Caterpillar DP25N Parts Manual 98725-55130
Caterpillar DP25N Parts Manual 98725-55130 - Image 2
Caterpillar DP25N Parts Manual 98725-55130 - Image 3
Caterpillar DP25N Parts Manual 98725-55130 - Image 4
Caterpillar DP25N Parts Manual 98725-55130 - Image 5

Caterpillar DP25N Parts Manual 98725-55130

$50.00

  • Type Of Manual: Parts Manual
  • Book Number: 98725-55130
  • Information: CAT S4S DIESEL ENGINE (TIER 2TIER 3)
  • Number of Pages: 260
  • Size: 110.0MB
  • Format: PDF
Category:

Product details

  • Model List:

    • DP25N

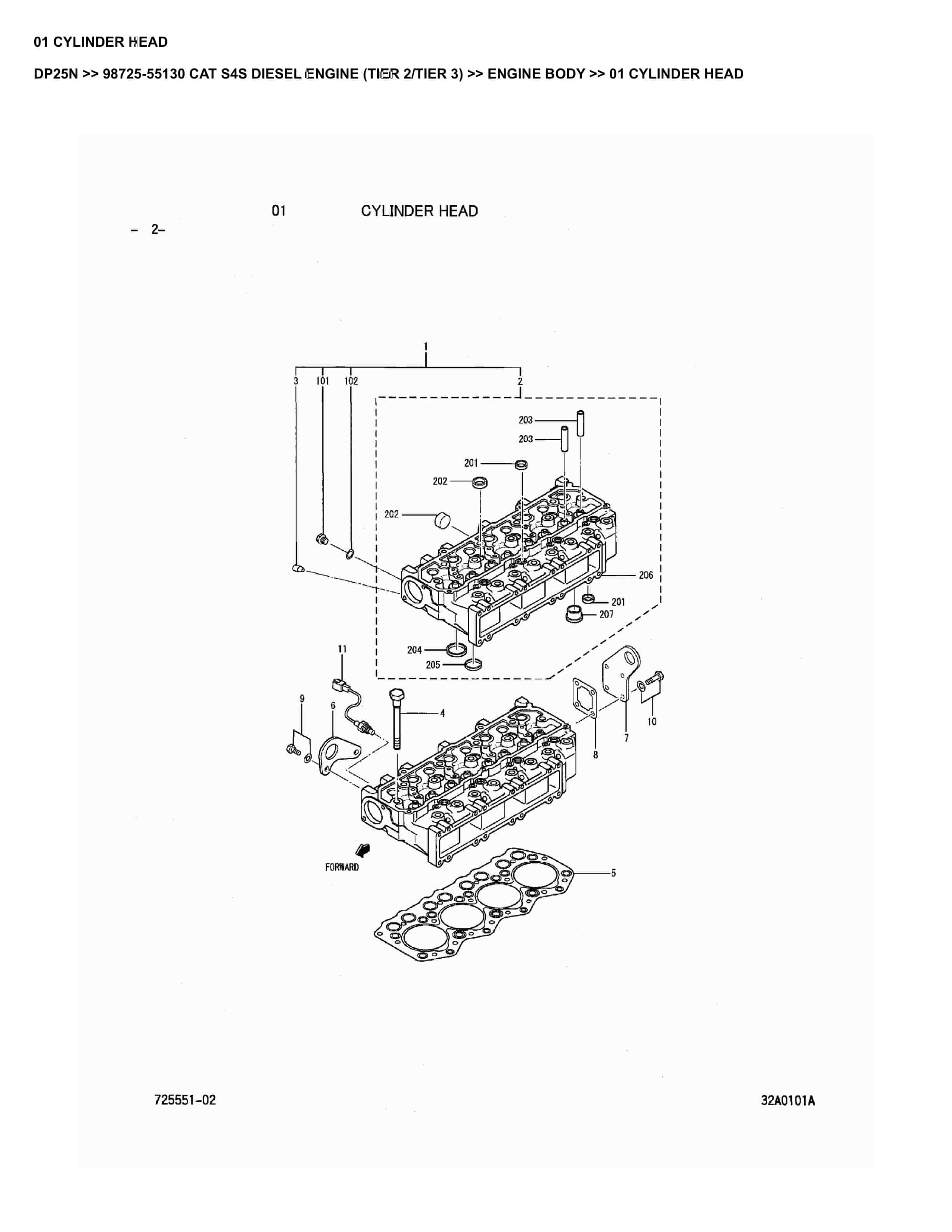

  • 1. _01 CYLINDER HEAD Spare Parts Catalog.pdf
  • 2. _04-01 VALVE MECHANISM Spare Parts Catalog.pdf
  • 3. _04-02 ROCKER COVER AND BREATHER Spare Parts Catalog.pdf
  • 4. _05 CAMSHAFT Spare Parts Catalog.pdf
  • 5. _07-01 CRANKCASE ASSY Spare Parts Catalog.pdf
  • 6. _07-02 MAIN BEARING Spare Parts Catalog.pdf
  • 7. _08 REAR PLATE Spare Parts Catalog.pdf
  • 8. _11 TIMING GEAR CASE Spare Parts Catalog.pdf
  • 9. _13 OIL PAN Spare Parts Catalog.pdf
  • 10. _17 PISTON CONNECTING-ROD Spare Parts Catalog.pdf
  • 11. _20 CRANKSHAFT FLYWHEEL Spare Parts Catalog.pdf
  • 12. _23 TIMING GEAR Spare Parts Catalog.pdf
  • 13. _25 SIDE POWER TAKE-OFF Spare Parts Catalog.pdf
  • 14. _30 INLET EXHAUST SYSTEM Spare Parts Catalog.pdf
  • 15. _36 OIL PUMP OIL STRAINER Spare Parts Catalog.pdf
  • 16. _39 OIL COOLER Spare Parts Catalog.pdf
  • 17. _40 OIL FILTER Spare Parts Catalog.pdf
  • 18. _46 COOLING SYSTEM Spare Parts Catalog.pdf
  • 19. _61-01-A FUEL SYSTEM(FUEL INJ PUMP DISTRIBUTOR VE TYPE) Spare Parts Catalog.pdf

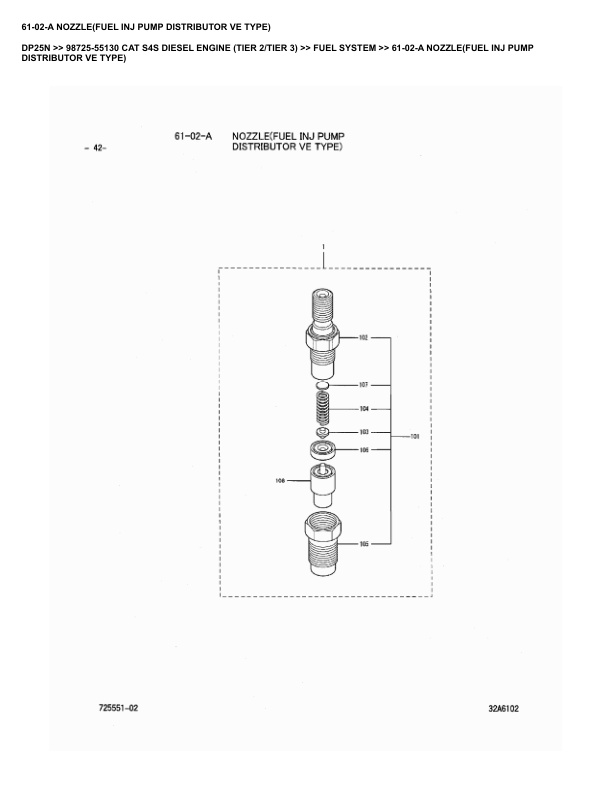

  • 20. _61-02-A NOZZLE(FUEL INJ PUMP DISTRIBUTOR VE TYPE) Spare Parts Catalog.pdf
  • 21. _62-A FUEL FILTER(FUEL INJ PUMP DISTRIBUTOR VE TYPE) Spare Parts Catalog.pdf
  • 22. _65-01-A INJECTION PUMP(PART-1)(FUEL I_P VE TYPE) (TIER3 FOR EPA) Spare Parts Catalog.pdf
  • 23. _65-02-A INJECTION PUMP(PART-2)(FUEL I_P VE TYPE) (TIER3 FOR EPA) Spare Parts Catalog.pdf

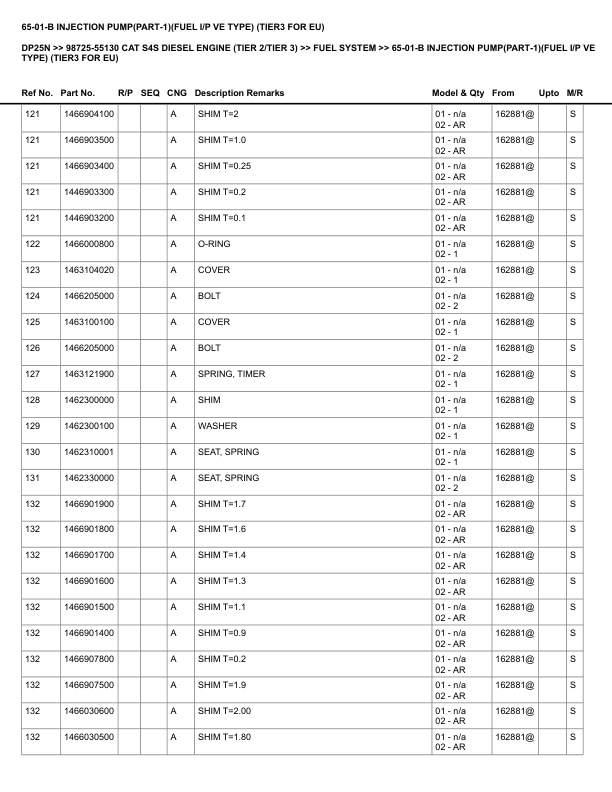

  • 24. _65-01-B INJECTION PUMP(PART-1)(FUEL I_P VE TYPE) (TIER3 FOR EU) Spare Parts Catalog.pdf
  • 25. _65-02-B INJECTION PUMP(PART-2)(FUEL I_P VE TYPE) (TIER3 FOR EU) Spare Parts Catalog.pdf

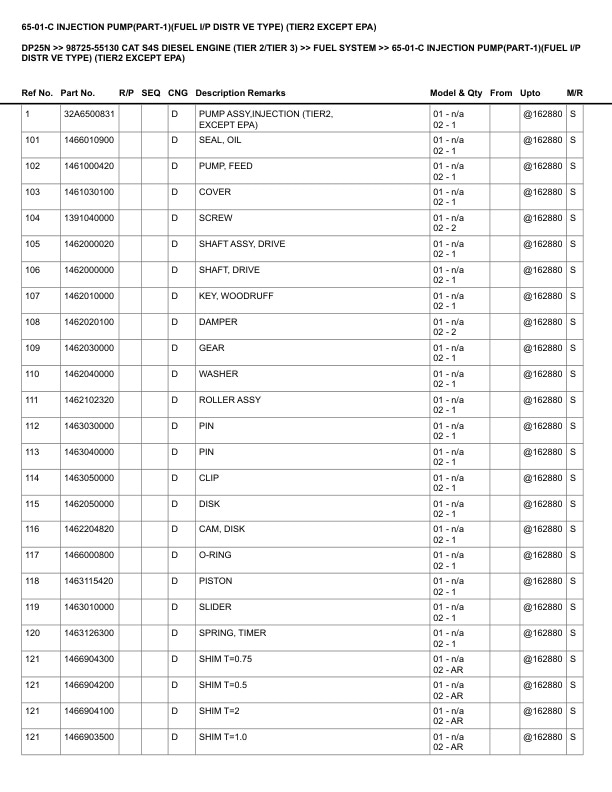

  • 26. _65-01-C INJECTION PUMP(PART-1)(FUEL I_P DISTR VE TYPE) (TIER2 EXCEPT EPA) Spare Parts Catalog.pdf
  • 27. _65-02-C INJECTION PUMP(PART-2)(FUEL I_P DISTR VE TYPE) (TIER2 EXCEPT EPA) Spare Parts Catalog.pdf
  • 28. _61-01-B FUEL SYSTEM(IN-LINE FUEL INJECTION PUMP) (TIER2, EXCEPT EPA) Spare Parts Catalog.pdf
  • 29. _61-02-B NOZZLE(IN-LINE FUEL INJECTION PUMP) (TIER2, EXCEPT EPA) Spare Parts Catalog.pdf
  • 30. _62-B FUEL FILTER(IN-LINE FUEL INJECTION PUMP) (TIER2, EXCEPT EPA) Spare Parts Catalog.pdf
  • 31. _65-03 FUEL INJECTION PUMP GENERAL (IN-LINE TYPE) (TIER2, EXCEPT EPA) Spare Parts Catalog.pdf
  • 32. _65-04 INJECTION PUMP(IN-LINE TYPE) (TIER2, EXCEPT EPA) Spare Parts Catalog.pdf
  • 33. _65-05 GOVERNOR(IN-LINE TYPE) (TIER2, EXCEPT EPA) Spare Parts Catalog.pdf
  • 34. _65-06 FEED PUMP(IN-LINE TYPE) (TIER2, EXCEPT EPA) Spare Parts Catalog.pdf
  • 35. _66-01-A ELECTRIC PARTS(PART-1) Spare Parts Catalog.pdf
  • 36. _66-01-B ELECTRIC PARTS(PART-2) Spare Parts Catalog.pdf
  • 37. _66-02-A STARTER (12V-2.2KW)(DRY) Spare Parts Catalog.pdf
  • 38. _66-02-B STARTER(12V-2.2KW)(WET) Spare Parts Catalog.pdf
  • 39. _66-02-C STARTER ASSY (12V-2.2KW)(WET) Spare Parts Catalog.pdf
  • 40. _68-A ALTERNATOR(12V-50A) Spare Parts Catalog.pdf
  • 41. _68-B ALTERNATOR(12V-25A) Spare Parts Catalog.pdf
  • 42. _94 OVERHAUL GASKET KIT Spare Parts Catalog.pdf
  • 43. _01 CYLINDER HEAD_1 Spare Parts Catalog.pdf
  • 44. _04-01 VALVE MECHANISM_1 Spare Parts Catalog.pdf
  • 45. _04-02 ROCKER COVER AND BREATHER_1 Spare Parts Catalog.pdf
  • 46. _05 CAMSHAFT_1 Spare Parts Catalog.pdf
  • 47. _07-01 CRANKCASE ASSY_1 Spare Parts Catalog.pdf
  • 48. _07-02 MAIN BEARING_1 Spare Parts Catalog.pdf
  • 49. _08 REAR PLATE_1 Spare Parts Catalog.pdf
  • 50. _11 TIMING GEAR CASE_1 Spare Parts Catalog.pdf
  • 51. _13 OIL PAN_1 Spare Parts Catalog.pdf
  • 52. _17 PISTON CONNECTING-ROD_1 Spare Parts Catalog.pdf
  • 53. _20 CRANKSHAFT FLYWHEEL_1 Spare Parts Catalog.pdf
  • 54. _23 TIMING GEAR_1 Spare Parts Catalog.pdf
  • 55. _25 SIDE POWER TAKE-OFF_1 Spare Parts Catalog.pdf
  • 56. _30 INLET EXHAUST SYSTEM_1 Spare Parts Catalog.pdf
  • 57. _36 OIL PUMP OIL STRAINER_1 Spare Parts Catalog.pdf
  • 58. _39 OIL COOLER_1 Spare Parts Catalog.pdf
  • 59. _40 OIL FILTER_1 Spare Parts Catalog.pdf
  • 60. _46 COOLING SYSTEM_1 Spare Parts Catalog.pdf
  • 61. _61-01-A FUEL SYSTEM(FUEL INJ PUMP DISTRIBUTOR VE TYPE)_1 Spare Parts Catalog.pdf
  • 62. _61-02-A NOZZLE(FUEL INJ PUMP DISTRIBUTOR VE TYPE)_1 Spare Parts Catalog.pdf
  • 63. _62-A FUEL FILTER(FUEL INJ PUMP DISTRIBUTOR VE TYPE)_1 Spare Parts Catalog.pdf
  • 64. _65-01-A INJECTION PUMP(PART-1)(FUEL I_P VE TYPE) (TIER3 FOR EPA)_1 Spare Parts Catalog.pdf
  • 65. _65-02-A INJECTION PUMP(PART-2)(FUEL I_P VE TYPE) (TIER3 FOR EPA)_1 Spare Parts Catalog.pdf
  • 66. _65-01-B INJECTION PUMP(PART-1)(FUEL I_P VE TYPE) (TIER3 FOR EU)_1 Spare Parts Catalog.pdf
  • 67. _65-02-B INJECTION PUMP(PART-2)(FUEL I_P VE TYPE) (TIER3 FOR EU)_1 Spare Parts Catalog.pdf
  • 68. _65-01-C INJECTION PUMP(PART-1)(FUEL I_P DISTR VE TYPE) (TIER2 EXCEPT EPA)_1 Spare Parts Catalog.pdf
  • 69. _65-02-C INJECTION PUMP(PART-2)(FUEL I_P DISTR VE TYPE) (TIER2 EXCEPT EPA)_1 Spare Parts Catalog.pdf
  • 70. _61-01-B FUEL SYSTEM(IN-LINE FUEL INJECTION PUMP) (TIER2, EXCEPT EPA)_1 Spare Parts Catalog.pdf
  • 71. _61-02-B NOZZLE(IN-LINE FUEL INJECTION PUMP) (TIER2, EXCEPT EPA)_1 Spare Parts Catalog.pdf
  • 72. _62-B FUEL FILTER(IN-LINE FUEL INJECTION PUMP) (TIER2, EXCEPT EPA)_1 Spare Parts Catalog.pdf
  • 73. _65-03 FUEL INJECTION PUMP GENERAL (IN-LINE TYPE) (TIER2, EXCEPT EPA)_1 Spare Parts Catalog.pdf
  • 74. _65-04 INJECTION PUMP(IN-LINE TYPE) (TIER2, EXCEPT EPA)_1 Spare Parts Catalog.pdf
  • 75. _65-05 GOVERNOR(IN-LINE TYPE) (TIER2, EXCEPT EPA)_1 Spare Parts Catalog.pdf
  • 76. _65-06 FEED PUMP(IN-LINE TYPE) (TIER2, EXCEPT EPA)_1 Spare Parts Catalog.pdf
  • 77. _66-01-A ELECTRIC PARTS(PART-1)_1 Spare Parts Catalog.pdf
  • 78. _66-01-B ELECTRIC PARTS(PART-2)_1 Spare Parts Catalog.pdf
  • 79. _66-02-A STARTER (12V-2.2KW)(DRY)_1 Spare Parts Catalog.pdf
  • 80. _66-02-B STARTER(12V-2.2KW)(WET)_1 Spare Parts Catalog.pdf
  • 81. _66-02-C STARTER ASSY (12V-2.2KW)(WET)_1 Spare Parts Catalog.pdf
  • 82. _68-A ALTERNATOR(12V-50A)_1 Spare Parts Catalog.pdf
  • 83. _68-B ALTERNATOR(12V-25A)_1 Spare Parts Catalog.pdf
  • 84. _94 OVERHAUL GASKET KIT_1 Spare Parts Catalog.pdf
