Caterpillar MD6290 Rotary Blasthole Drill Parts Manual BI006871

Caterpillar MD6290 Rotary Blasthole Drill Parts Manual BI006871 - Image 2

Caterpillar MD6290 Rotary Blasthole Drill Parts Manual BI006871 - Image 3

Caterpillar MD6290 Rotary Blasthole Drill Parts Manual BI006871 - Image 4

Caterpillar MD6290 Rotary Blasthole Drill Parts Manual BI006871 - Image 5

caterpillar md6290 rotary blasthole drill parts manual bi006871 2

caterpillar md6290 rotary blasthole drill parts manual bi006871 3

Caterpillar MD6290 Rotary Blasthole Drill Parts Manual BI006871

$30.00

Type Of Manual: Parts Manual
Manual ID: BI006871
Number of Pages: 583
Size: 21.6MB
Format: PDF

Category: Caterpillar Parts Manual PDF

Model List:
- MD6290 Rotary Blasthole Drill

1. VR

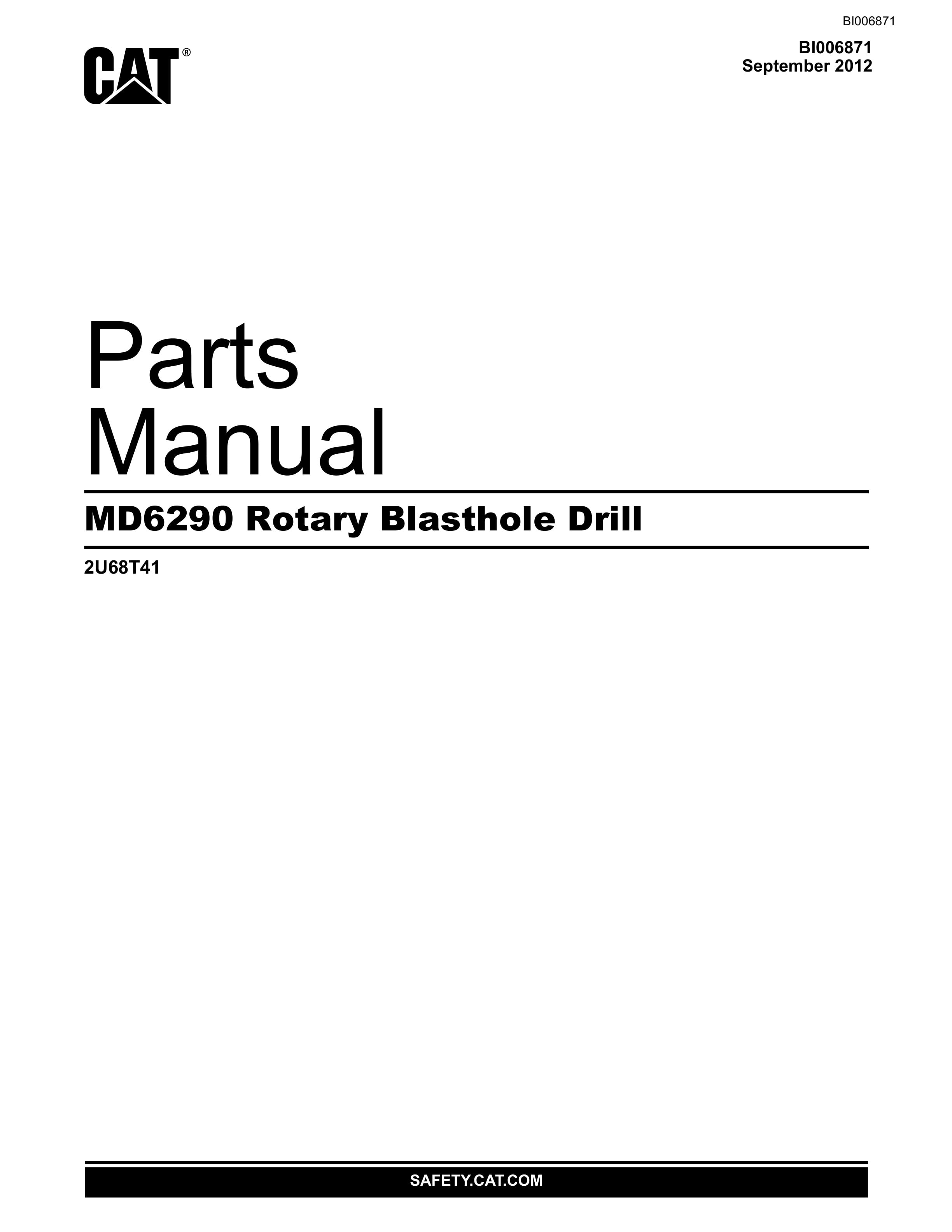

2. PARTS MANUAL MD6290 S N 2U68T
3. GENERAL ASSEMBLY ITEMS LIST
4. SECTION 1 GENERAL LOCATOR D.pdf
4.1. SECTION 1 GENERAL LOCATOR D
4.2. DECAL KIT CAT YELLOW MD6290
4.3. DECAL KIT WARNING
4.4. FILTER ELEMENTS
5. SECTION 2 OPERATOR S CAB.pdf
5.1. SECTION 2 OPERATOR S CAB
5.2. CAB ASSEMBLY W GAUGES AND ATTAC
5.3. JUMPER SEAT WITH ATTACHING HARD
5.4. PANEL GAUGES ENGINE
5.5. PANEL GAUGES HYDRAULIC
5.6. PANEL SWITCHES DRILL FUNCTIO
5.7. CONTROL MAST JACKS
5.8. INSULATION KIT CAB SPECIAL
5.9. CAB HOSE PLUMBING
5.10. CAB MODIFICATION ELECTRIC HAND
5.11. ROTARY OPERATOR S SEAT
5.12. SEAT BELT W TETHER AND HARDWARE
5.13. SEAT AIR ACCUMULATOR INSTALLATI
5.14. AIR CONDITIONER HEATER PRESSURI
5.15. HEATER AIR CONDITIONER PACKAG
5.16. AIR CLEANER ASSEMBLY A C HEATE
5.17. CONDENSER 24V
5.18. WALL MOUNT UNIT W ANGLE LOUVERS
5.19. BLOWER ASSEMBLY A C HEATER PRE
5.20. HOSE KIT AIR CONDITIONER
5.21. GLASS INSTALLATION CAB TINTED
5.22. WIPER WASHER INSTALLATION LE
5.23. WIPER WASHER ASSEMBLY OPERAT
5.24. WIPER WASHER INSTALLATION RE
5.25. WIPER WASHER INSTALLATION RI
6. SECTION 3 MAINFRAME CRAWLER.pdf
6.1. SECTION 3 MAINFRAME CRAWLER
6.2. MAINFRAME CRAWLER ASSEMBLY
6.3. UNDERCARRIAGE ASSEMBLY
6.4. ROCK GUARD COMPLETE FRONT AND
6.5. TRACK ASSEMBLY W SHOES 53 LINK
6.6. IDLER ASSEMBLY W SLIDE BAR
6.7. SPRING ASSEMBLY COMPLETE
6.8. ROCK GUARD COMPLETE MIDDLE
6.9. HYDRAULIC TENSIONER IDLER ASSE
6.10. PROPEL PLUMBING
6.11. FLOOR COVERING DUST SEALS
6.12. CYLINDER MAST ELEVATING
6.13. MANIFOLD INSTALLATION SUCTION
6.14. COUNTERBALANCE VALVE ASSEMBLY
6.15. WALKWAY INSTALLATION CAB
6.16. VALVE ASSEMBLY W ATTACHMENTS D
6.17. VALVE ASSEMBLY LESS ATTACHMENTS
6.18. VALVE ASSEMBLY W ATTACHMENTS F
6.19. VALVE ASSEMBLY LESS ATTACHMENTSx
6.20. MANIFOLD W ATTACHMENTS RETURN
6.21. MANIFOLD W ATTACHMENTS CASE DR
6.22. MANIFOLD W ATTACHMENTS
6.23. VALVE ASSEMBLY W ATTACHMENTS R
6.24. VALVE W ATTACHMENTS SHUTTLE
6.25. VALVE ASSEMBLY JACKS MAST CONT
6.26. VALVE ASSEMBLY JACKS MAST CONTx
6.27. VALVE ASSEMBLY W ATTACHMENTS V
6.28. VALVE ASSEMBLY LESS ATTACHMENTSz
6.29. VALVE ASSEMBLY DUST COLLECTOR
6.30. VALVE ASSEMBLY DUST COLLECTOR v
6.31. VALVE ASSEMBLY DIVERTER W ATTA
6.32. VALVE ASSEMBLY W ATTACHMENTS Rx
6.33. FUEL TANK INSTALLATION W PLUMBI
6.34. FUEL TANK SUBASSEMBLY
6.35. JACK INSTALLATION 48
6.36. CYLINDER ASSEMBLY JACK
6.37. TRACK 2 SPEED PROPEL INSTALLATI
6.38. VIEWING HATCH DRILL DECK
6.39. HYDRAULIC CYLINDER
6.40. VIEWING HATCH PLUMBING
7. SECTION 4 ENGINES COMPRESSO.pdf
7.1. SECTION 4 ENGINES COMPRESSO
7.2. ENGINE WITH ATTACHMENTS CAT C1
7.3. COUPLING PUMP DRIVE GEARBOX TO
7.4. MUFFLER INSTALLATION TWIN ENG
7.5. FUEL FILTER ASSEMBLY
7.6. FUEL FILTER
7.7. ENGINE PANEL STARTUP ASSEMBLY
7.8. ENGINE PRELUBE INSTALLATION C
7.9. ENGINE PRELUBE PUMP
7.10. ENGINE EXHAUST BLANKET INSTALLA
7.11. AIR CLEANER INSTALLATION ENGIN
7.12. AIR CLEANER ASSEMBLY
7.13. GUARD INSTALLATION DRIVELINE
7.14. ENGINE CHARGE AIR PIPING
7.15. WATER COOLANT PIPING ASSEMBLY
7.16. AIR COMPRESSOR WITH ATTACHMENTS
7.17. AIR COMPRESSOR PACKAGE SERVICE
7.18. AIR INLET VALVE 8 INCH INLET
7.19. TORSIONAL DRIVE COUPLING
7.20. AIR CLEANER INSTALLATION COMPR
7.21. COMPRESSOR AIR RECEIVER PIPIN
7.22. COMPRESSOR AIR RECEIVER HOSE
7.23. AIR COMPRESSOR HOSE ASSEMBLY
7.24. HYDRAULIC FILTER ASSEMBLY COMP
7.25. COOLER ASSEMBLY W PLUMBING ENG
7.26. COOLER ASSEMBLY
7.27. CHARGE AIR AFTERCOOLER ASSEMB
7.28. MOTOR FAN
7.29. THERMOSTATIC VALVE ASSEMBLY
7.30. PUMP DRIVE ASSEMBLY
7.31. PUMP DRIVE GEARBOX ASSEMBLY 3
7.32. MAIN PUMP CLOSED LOOP
7.33. SHAFT SEAL AND CASE DRAIN PLUG
7.34. PORT PLATE HOUSING AND VALVES S
7.35. PTO ADD ON SPARE PARTS LIST
7.36. FILTER ELIMINATION FLANGE SPARE
7.37. E1P CONTROL ASSEMBLY SPARE PART
7.38. MAIN PUMP OPEN LOOP
7.39. SHAFT SEAL AND CASE DRAIN SPARE
7.40. HIGH PRESSURE END FLANGE PLUG A
7.41. LP CONTROL ASSEMBLY LIST
7.42. CHARGE PUMP
7.43. GEAR PUMP FAN DUST COLLECTOR
7.44. HYDRAULIC FILTER ASSEMBLY CHAR
7.45. BLOWDOWN AIR HOSE ASSEMBLY
8. SECTION 5 DUST CONTROL.pdf
8.1. SECTION 5 DUST CONTROL

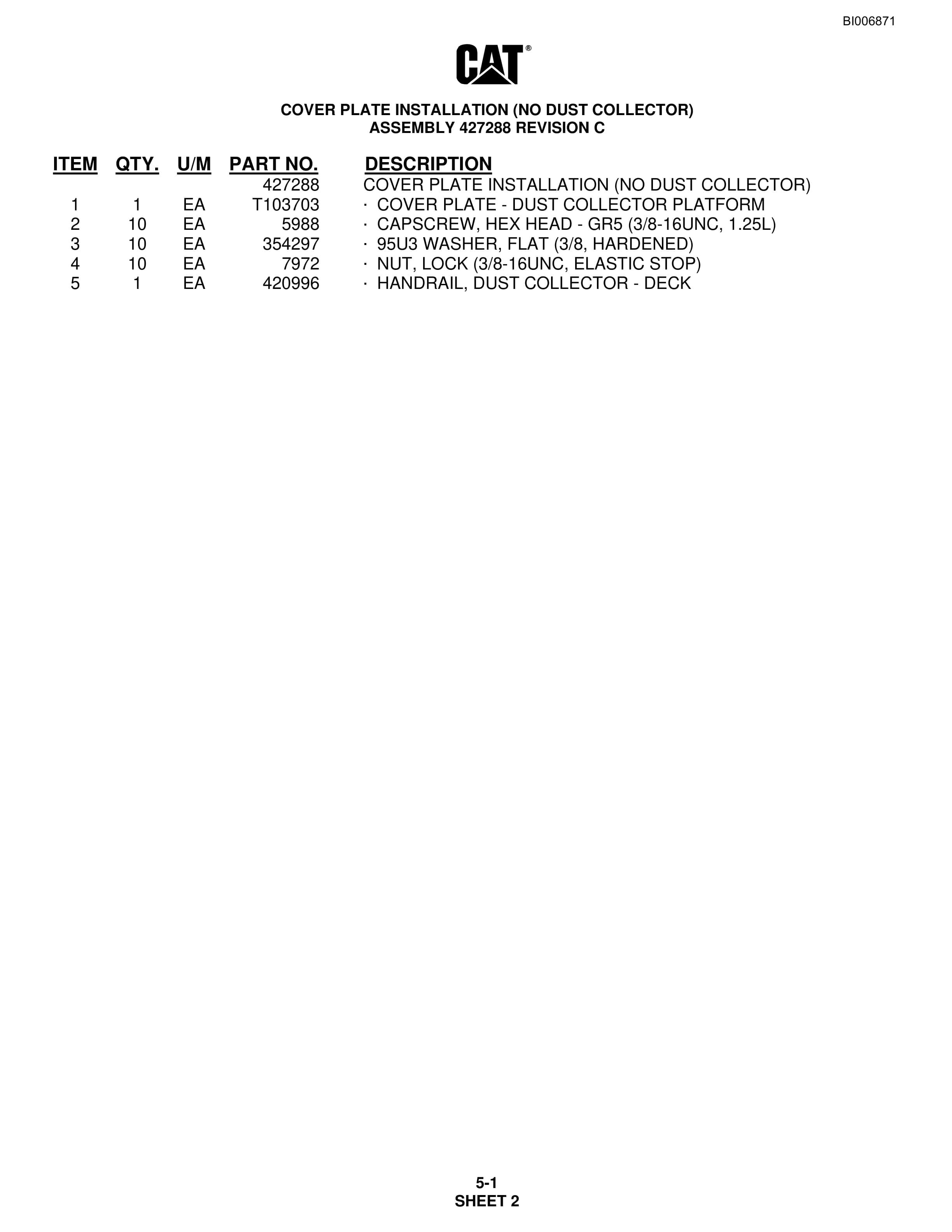

8.2. COVER PLATE INSTALLATION NO DU
8.3. DUST CURTAIN INSTALLATION
8.4. DUST CURTAIN RAISE LOWER ASSEMB
8.5. HYDRAULIC CYLINDER ASSEMBLY
8.6. DUST CURTAIN PLUMBING COLD WE
8.7. WATER INJECTION SYSTEM HORIZO
8.8. VALVE FLOW CONTROL
8.9. WATER INJECTION PLUMBING
8.10. WATER PUMP MOUNT ASSEMBLY
8.11. WATER PUMP ASSEMBLY HORIZONTA
8.12. HYDRAULIC MOTOR
9. SECTION 6 MAST.pdf
9.1. SECTION 6 MAST
9.2. MAST ASSEMBLY 11 5M
9.3. MAST PIVOT WELDMENT OUTSIDE
9.4. CYLINDER HOIST AND PULLDOWN M
9.5. GUIDE ASSEMBLY SHEAVE MAST
9.6. SHEAVE 22 INCH OD W BEARING
9.7. VALVE ASSEMBLY MAST 9 SECTI
9.8. VALVE ASSEMBLY MAST 9 SECTIO
9.9. DUST HOOD INSTALLATION
9.10. MAST PLUMBING 11 5 METER MAST
9.11. PIPE RACK INSTALLATION
9.12. MOTOR HYDRAULIC
9.13. HYDRAULIC CYLINDER ASSEMBLY S
9.14. ROTARY DRIVE ASSEMBLY
9.15. ROTARY DRIVE GEARBOX ASSEMBLY
9.16. ROTARY DRIVE MOTOR HOSE KIT
9.17. HYDRAULIC OPERATED BREAKOUT WRE
9.18. HYDRAULIC CYLINDER ASSEMBLY C
9.19. HYDRAULIC CYLINDER ASSEMBLY R
9.20. HYDRAULIC OPERATED BREAKOUT WREz
9.21. AUTOMATIC TOOL WRENCH
9.22. PIPE RACK ROTATE PLUMBING
9.23. AUTO TOOL WRENCH PLUMBING
9.24. PIPE RACK CAROUSEL LOCK PLUMBIN
9.25. PIPE RACK SWING PLUMBING
9.26. MAST LOCK INSTALLATION
9.27. WINCH INSTALLATION BG8

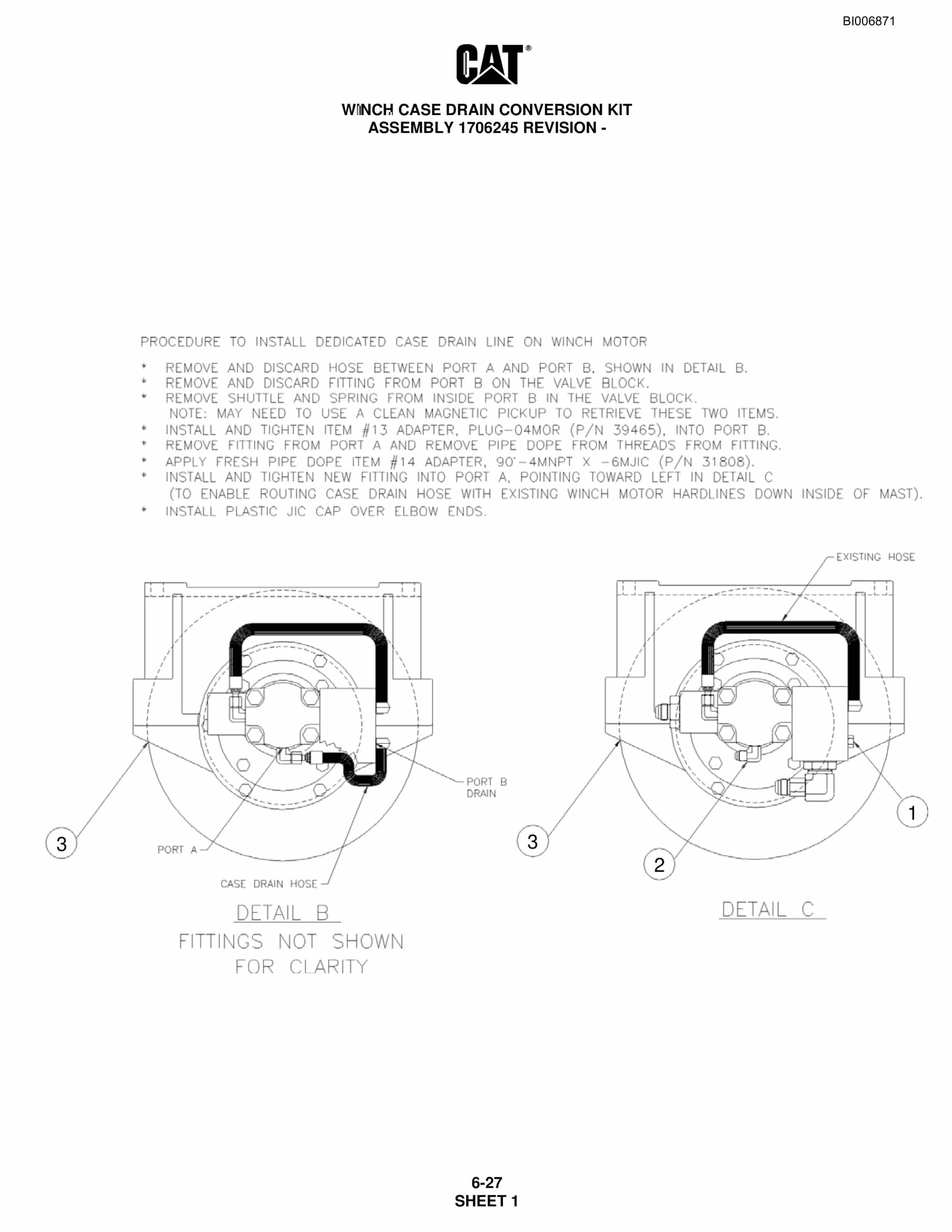

9.28. WINCH CASE DRAIN CONVERSION KIT
9.29. WINCH ASSEMBLY
9.30. BRAKE VALVE ASSEMBLY WINCH
9.31. WINCH PLUMBING HOSE KIT
10. SECTION 7 DRILLING TOOLS AC.pdf
10.1. SECTION 7 DRILLING TOOLS AC
10.2. PIPE POSITIONER INSTALLATION
10.3. PIPE POSITIONER PLUMBING COLD
10.4. PIPE POSITIONER SENSOR COMPONEN
10.5. PIPE RACK INTERLOCK
10.6. TACHOMETER INSTALLATION ROTARY
10.7. CABLE COVER KIT TACK DRIVE
10.8. MAST AUTO LUBE INJECTORS
10.9. MAST AUTO LUBE HOSE KIT
10.10. GUIDE BUSHING 6 INCH O D DRIL
10.11. DRILL STEM 6 INCH O D X 35 FT
10.12. MAINFRAME AUTO LUBE INJECTORS
10.13. MAINFRAME AUTO LUBE INJECTORS H
10.14. MANUAL LUBE PUMP INSTALLATION
10.15. TRAM INTERLOCK JACK
10.16. TRAM INTERLOCK DRILL STEM
10.17. LUBRICATOR INSTALLATION DRILL
10.18. VALVE AIR
10.19. VALVE AIR part of 330617
10.20. VALVE AIR SOLENOID W JUNCTION
10.21. LUBRICATOR ASSEMBLY DRILL STEM
10.22. FILTER REGULATOR LUBRICATOR
10.23. LUBRICATOR HOSE PLUMBING KIT D
10.24. RAPID FILL INSTALLATION FUEL
11. SECTION 8 HYDRAULICS PLUMBI.pdf
11.1. SECTION 8 HYDRAULICS PLUMBI

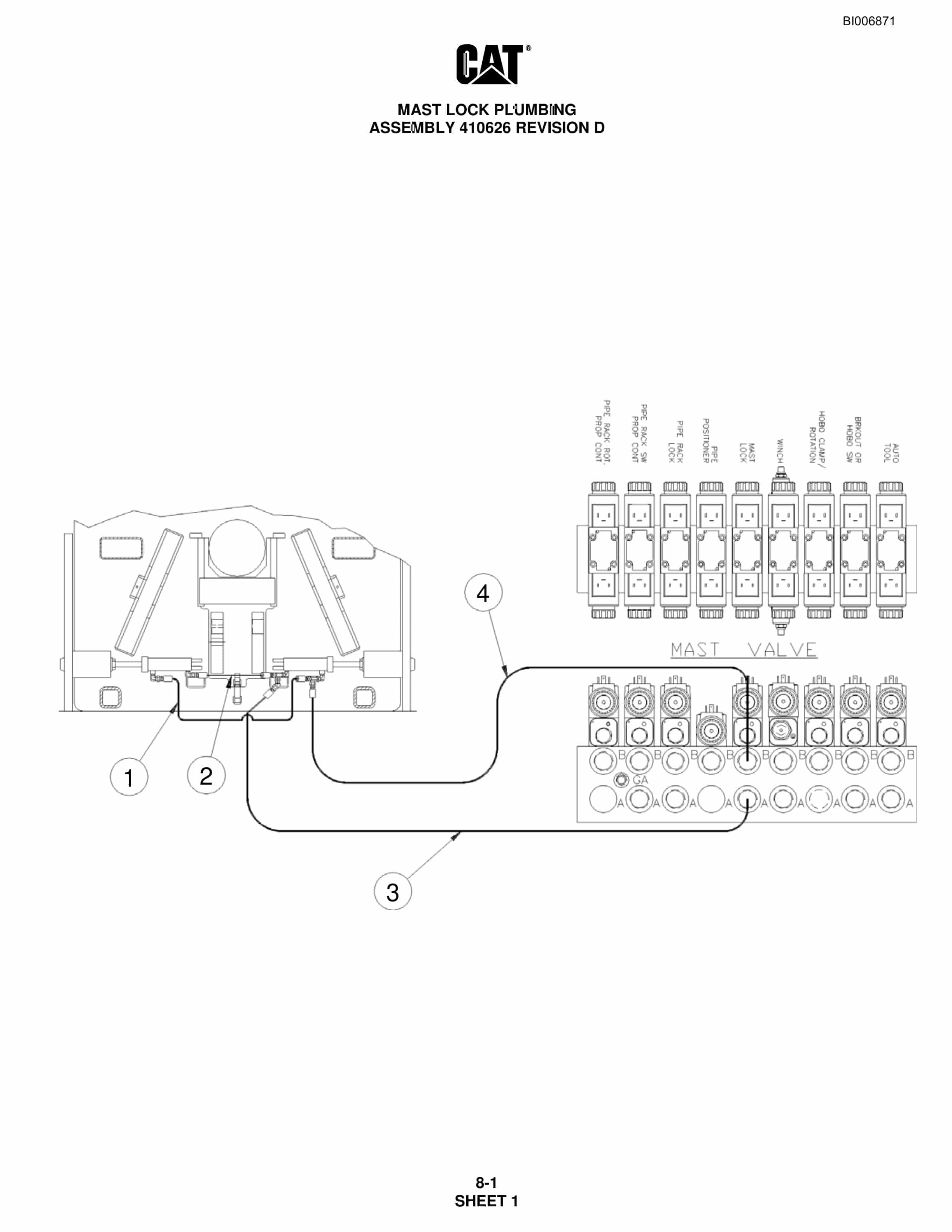

11.2. MAST LOCK PLUMBING
11.3. AUXILIARY PUMP AND FEED VALVE P
11.4. VALVE PLUMBING JACKS MAST
11.5. MAST ELEVATING PLUMBING
11.6. CHARGE HOSE PLUMBING
11.7. SUCTION RETURN DRAIN PLUMBI
11.8. HYDRAULIC FEED SYSTEM MODIFICAT
11.9. HYDRAULIC FEED SYSTEM MODIFICATz
11.10. HYDRAULIC RESERVOIR INSTALLATIO
11.11. HYDRAULIC RESERVOIR SUBASSEMBLY
11.12. FILTER ASSEMBLY MAIN RETURN
11.13. FILTER ASSEMBLY CASE RETURN
11.14. HYDRAULIC HAND PUMP ASSEMBLY
11.15. TEST STATION MACHINE SYSTEM HY
11.16. HOSE KIT HYDRAULIC TEST SYSTE
11.17. FILTER INDICATOR WIRING
11.18. JACK PLUMBING
11.19. CLOSED LOOP PLUMBING W LOOP FIL
11.20. FILTER ASSEMBLY LOOP
11.21. LOOP FILTER PLUMBING
12. SECTION 9 ELECTRICAL.pdf
12.1. SECTION 9 ELECTRICAL
12.2. ELECTRICAL SCHEMATIC
12.3. CAB WIRING
12.4. CAB ENGINE WIRING
12.5. CAB AIR AND CURTAIN VALVE WIR
12.6. CAB MAST VALVE WIRING
12.7. PUMP WIRING
12.8. PULLDOWN VALVE WIRING
12.9. STANDARD LIGHT PACKAGE WIRING
12.10. ENGINE HOUR METER WIRING
12.11. AUXILIARY PRESSURE PUMP WIRING
12.12. WATER AND DUST COLLECTOR VALVE
12.13. FAST PULLDOWN WIRING
12.14. CAB TOP LIGHTS WIRING
12.15. ADDITIONAL BATTERY INSTALLATION
12.16. BATTERY BOX ASSEMBLY
12.17. BATTERY ENGINE DISCONNECT INS

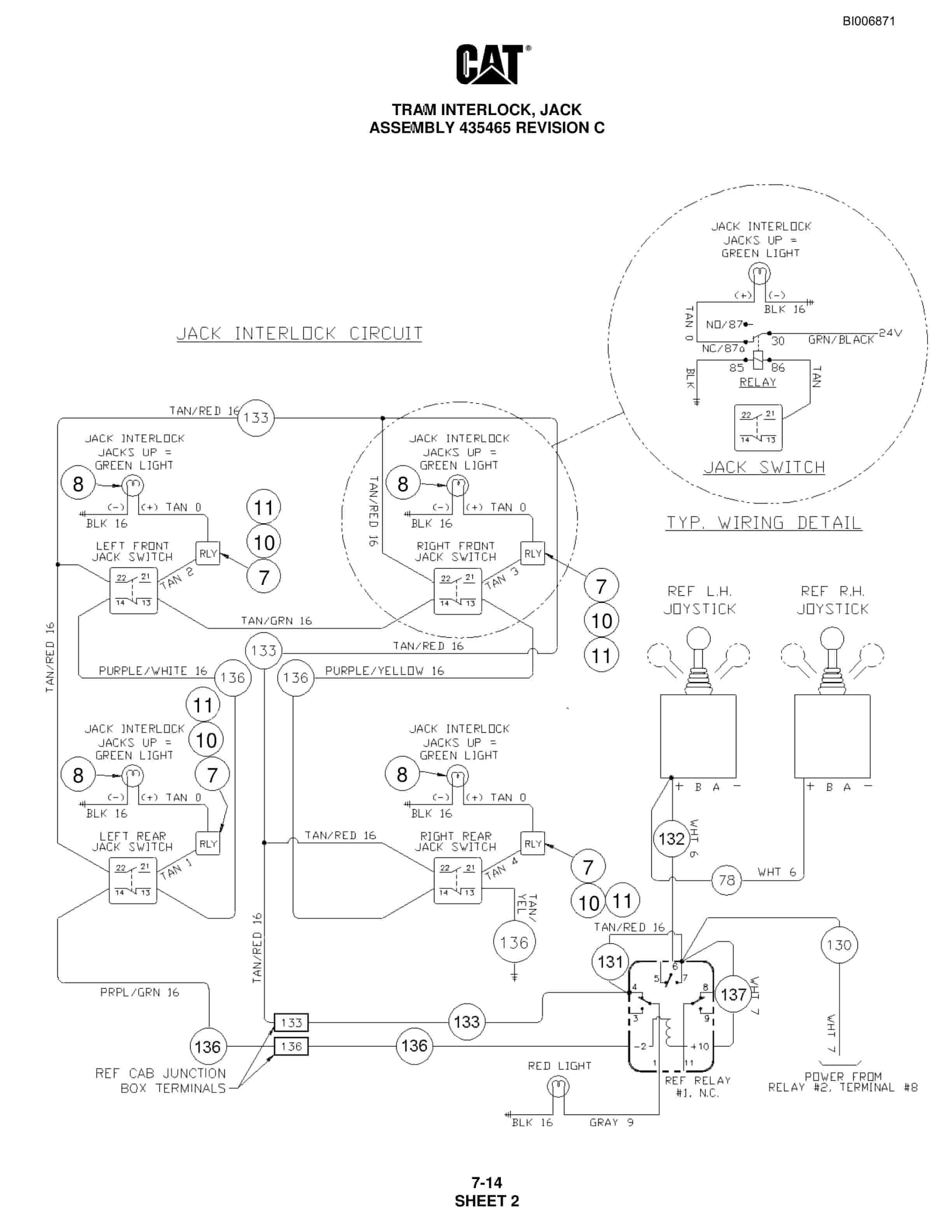

12.18. ELECTRICAL SCHEMATIC LADDER LO
12.19. ADDITIONAL LIGHTING KIT
