Caterpillar MD6290 Rotary Blasthole Drill Parts Manual BI012807
Caterpillar MD6290 Rotary Blasthole Drill Parts Manual BI012807 - Image 2

Caterpillar MD6290 Rotary Blasthole Drill Parts Manual BI012807

$30.00

  • Type Of Manual: Parts Manual
  • Manual ID: BI012807
  • Number of Pages: 686
  • Size: 23.1MB
  • Format: PDF
Category:

Product details

  • Model List:

    • MD6290 Rotary Blasthole Drill
  • 1. DT800102CVR
  • 2. PARTS MANUAL MD6290 S N DT800
  • 3. GENERAL ASSEMBLY ITEMS LIST
  • 4. SECT1.pdf
  • 4.1. SECTION 1 GENERAL LOCATOR D
  • 4.2. FILTER ELEMENTS
  • 4.3. DECAL KIT CAT YELLOW MD6290
  • 4.4. DECAL KIT WARNING
  • 5. SECT2.pdf
  • 5.1. SECTION 2 OPERATOR S CAB
  • 5.2. CAB ASSEMBLY W GAUGES AND ATTAC
  • 5.3. SHUTDOWN TIMER KIT
  • 5.4. HARNESS SHUTDOWN TIMER
  • 5.5. CAB WINDOW WIPER WASHER INSTALL
  • 5.6. WINDSHIELD WIPER SYSTEM 24 IN
  • 5.7. HARNESS WINDOW WIPER REAR
  • 5.8. HARNESS WINDOW WIPER RIGHT S
  • 5.9. HARNESS WINDOW WIPER LEFT SI
  • 5.10. HARNESS WINDOW WIPER FRONT T
  • 5.11. JUMPER SEAT WITH ATTACHING HARD
  • 5.12. PANEL GAUGES ENGINE
  • 5.13. PANEL GAUGES HYDRAULIC
  • 5.14. PANEL SWITCHES DRILL FUNCTIO
  • 5.15. CONTROL MAST JACKS
  • 5.16. INSULATION KIT CAB SPECIAL
  • 5.17. CAB PLUMBING
  • 5.18. CAB MODIFICATION ELECTRIC HAND
  • 5.19. ROTARY OPERATOR S SEAT
  • 5.20. SEAT BELT W TETHER AND HARDWARE
  • 5.21. SEAT AIR ACCUMULATOR INSTALLATI
  • 5.22. SEAT AIR ACCUMULATOR KIT
  • 5.23. GLASS INSTALLATION CAB TINTED
  • 5.24. AIR CONDITIONER HEATER PRESSURI
  • 5.25. HEATER AIR CONDITIONER PACKAG
  • 5.26. AIR CLEANER ASSEMBLY A C HEATE
  • 5.27. CONDENSER 24V
  • 5.28. WALL MOUNT UNIT W ANGLE LOUVERS
  • 5.29. BLOWER ASSEMBLY A C HEATER PRE
  • 5.30. HOSE KIT AIR CONDITIONER
  • 6. SECT3.pdf
  • 6.1. SECTION 3 MAINFRAME CRAWLER
  • 6.2. MAINFRAME CRAWLER ASSEMBLY W
  • 6.3. UNDERCARRIAGE ASSEMBLY
  • 6.4. FINAL DRIVE ASSEMBLY W MOTOR
  • 6.5. ROCK GUARD COMPLETE FRONT AND
  • 6.6. TRACK ASSEMBLY W SHOES 53 LINK
  • 6.7. IDLER ASSEMBLY W SLIDE BAR
  • 6.8. ROCK GUARD COMPLETE MIDDLE
  • 6.9. HYDRAULIC TENSIONER IDLER ASSE
  • 6.10. PROPEL PLUMBING
  • 6.11. FLOOR COVERING DUST SEALS
  • 6.12. MANIFOLD INSTALLATION SUCTION
  • 6.13. COUNTERBALANCE VALVE ASSEMBLY
  • 6.14. WALKWAY INSTALLATION CAB
  • 6.15. VALVE ASSEMBLY W ATTACHMENTS D
  • 6.16. VALVE ASSEMBLY LESS ATTACHMENTS
  • 6.17. VALVE ASSEMBLY W ATTACHMENTS F
  • 6.18. VALVE ASSEMBLY LESS ATTACHMENTSq
  • 6.19. MANIFOLD W ATTACHMENTS RETURN
  • 6.20. MANIFOLD W ATTACHMENTS CASE DR
  • 6.21. MANIFOLD W ATTACHMENTS
  • 6.22. VALVE ASSEMBLY W ATTACHMENTS R
  • 6.23. VALVE W ATTACHMENTS SHUTTLE
  • 6.24. VALVE ASSEMBLY JACKS MAST CONT
  • 6.25. VALVE ASSEMBLY JACKS MAST CONTW
  • 6.26. VALVE ASSEMBLY W ATTACHMENTS V
  • 6.27. VALVE ASSEMBLY LESS ATTACHMENTSY
  • 6.28. HARNESS CONNECTOR LIGHTED
  • 6.29. VALVE ASSEMBLY DUST COLLECTOR
  • 6.30. VALVE ASSEMBLY DUST COLLECTORQ
  • 6.31. VALVE ASSEMBLY DIVERTER W ATTA
  • 6.32. VALVE ASSEMBLY W ATTACHMENTS RQ
  • 6.33. FUEL TANK INSTALLATION W PLUMBI
  • 6.34. FUEL TANK SUBASSEMBLY
  • 6.35. JACK INSTALLATION 48
  • 6.36. CYLINDER ASSEMBLY JACK
  • 6.37. TRACK 2 SPEED PROPEL INSTALLATI
  • 6.38. HARNESS 2 SPEED INTERTRACK
  • 6.39. SWITCH 2 SPEED TRAM W CONNECTO
  • 6.40. VIEWING HATCH DRILL DECK
  • 6.41. HYDRAULIC CYLINDER
  • 6.42. VIEWING HATCH PLUMBING
  • 6.43. CYLINDER MAST ELEVATING
  • 7. SECT4.pdf
  • 7.1. SECTION 4 ENGINES COMPRESSO
  • 7.2. ENGINE WITH ATTACHMENTS CAT C1
  • 7.3. COUPLING PUMP DRIVE GEARBOX TO
  • 7.4. MUFFLER INSTALLATION TWIN ENG
  • 7.5. ELECTRICAL INSTALLATION C15
  • 7.6. ENGINE BOX ELECTRICAL ASSEMBLY
  • 7.7. HARNESS ECM C15
  • 7.8. HARNESS COMPRESSOR 1 C15
  • 7.9. HARNESS TAC FUEL A C COMPRE
  • 7.10. HARNESS STARTER C15
  • 7.11. HARNESS OIL ENGINE HOUR TEM
  • 7.12. FUEL FILTER ASSEMBLY
  • 7.13. FUEL FILTER
  • 7.14. HARNESS STARTER 2 C27
  • 7.15. ENGINE PANEL STARTUP ASSEMBLY
  • 7.16. HARNESS THROTTLE
  • 7.17. ENGINE PRELUBE INSTALLATION C
  • 7.18. ENGINE PRELUBE PUMP
  • 7.19. GUARD INSTALLATION DRIVELINE
  • 7.20. AIR CLEANER INSTALLATION ENGIN
  • 7.21. AIR CLEANER ASSEMBLY
  • 7.22. ENGINE WATER PIPING C15
  • 7.23. ENGINE EXHAUST BLANKET INSTALLA
  • 7.24. AIR COMPRESSOR WITH ATTACHMENTS
  • 7.25. AIR COMPRESSOR PACKAGE SERVICE
  • 7.26. AIR INLET VALVE 8 INCH INLET
  • 7.27. TORSIONAL DRIVE COUPLING
  • 7.28. AIR CLEANER INSTALLATION COMPR
  • 7.29. COMPRESSOR AIR RECEIVER PIPIN
  • 7.30. COMPRESSOR AIR RECEIVER HOSE
  • 7.31. AIR COMPRESSOR HOSE ASSEMBLY
  • 7.32. HYDRAULIC FILTER ASSEMBLY COMP
  • 7.33. ENGINE CHARGE AIR PIPING
  • 7.34. COOLER ASSEMBLY W PLUMBING ENG
  • 7.35. COOLER ASSEMBLY
  • 7.36. RADIATOR CSC350 OIL COOLER
  • 7.37. CHARGE AIR AFTERCOOLER ASSEMB
  • 7.38. OIL COOLER ASSEMBLY
  • 7.39. MOTOR FAN
  • 7.40. FAN 10 BLADE 48 DIA
  • 7.41. THERMOSTATIC VALVE ASSEMBLY
  • 7.42. PUMP DRIVE ASSEMBLY
  • 7.43. PUMP DRIVE GEARBOX ASSEMBLY 3
  • 7.44. PUMP PISTON OPEN LOOP
  • 7.45. REGULATOR PUMP
  • 7.46. CONTROL ELEMENT
  • 7.47. CONTROL ELEMENTQ
  • 7.48. PISTON ASSEMBLY STROKING PUMP
  • 7.49. PISTON ASSEMBLY DESTROKING PU
  • 7.50. GEAR PUMP FAN DUST COLLECTOR
  • 7.51. HYDRAULIC FILTER ASSEMBLY CHAR
  • 7.52. BLOWDOWN AIR HOSE ASSEMBLY
  • 8. SECT5.pdf
  • 8.1. SECTION 5 DUST CONTROL
  • 8.2. DUST CURTAIN INSTALLATION
  • 8.3. WATER INJECTION SYSTEM HORIZO
  • 8.4. VALVE FLOW CONTROL
  • 8.5. HYDRAULIC DUST CURTAIN LEVER
  • 8.6. WATER INJECTION PLUMBING
  • 8.7. WATER PUMP MOUNT ASSEMBLY
  • 8.8. WATER PUMP ASSEMBLY HORIZONTA
  • 8.9. HYDRAULIC MOTOR
  • 8.10. COVER PLATE INSTALLATION NO DU
  • 8.11. DUST CURTAIN RAISE LOWER ASSEMB
  • 8.12. HYDRAULIC CYLINDER ASSEMBLY
  • 8.13. DUST CURTAIN SWITCH W CONNECTOR
  • 8.14. DUST CURTAIN PLUMBING COLD WE
  • 9. SECT6.pdf

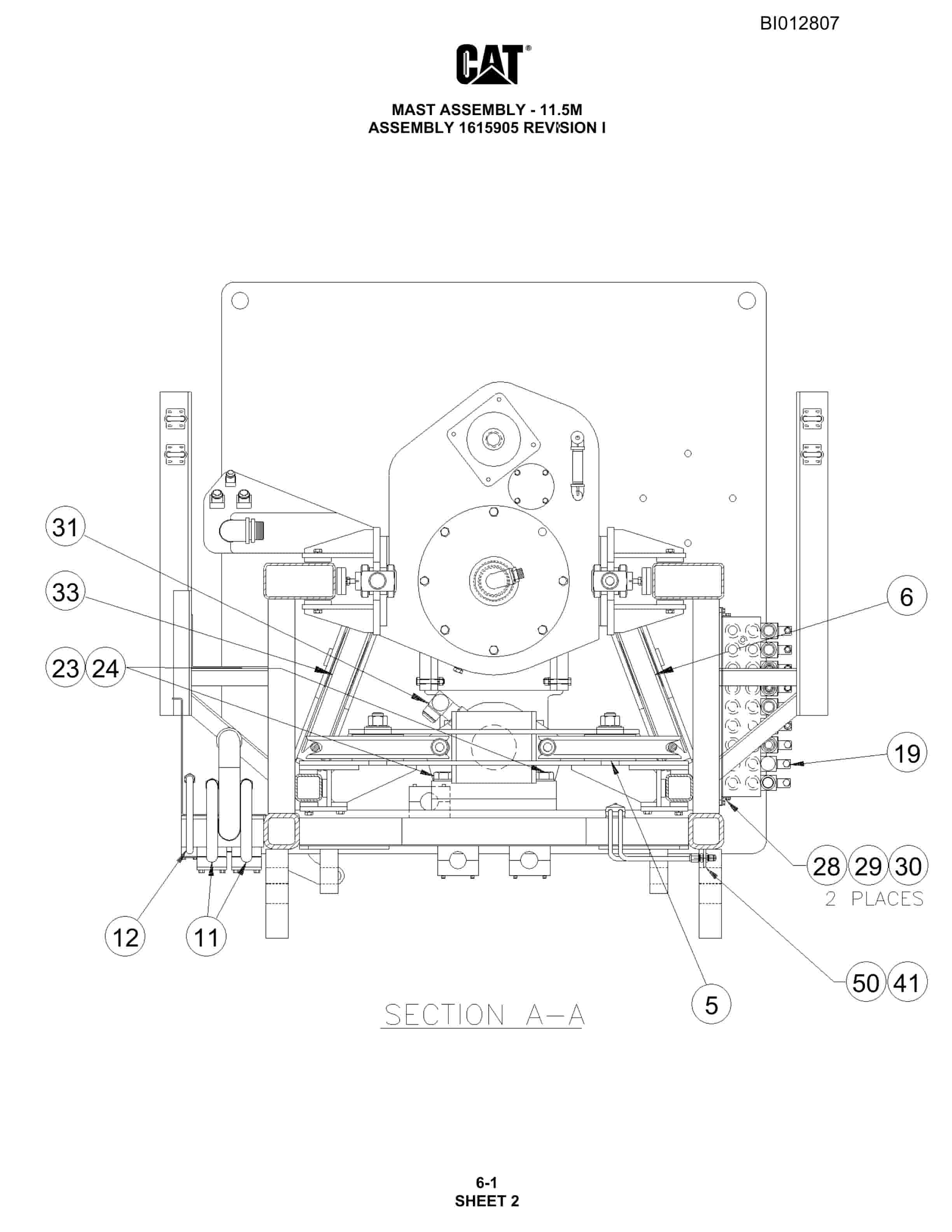

  • 9.1. SECTION 6 MAST
  • 9.2. MAST ASSEMBLY 11 5M
  • 9.3. MAST PIVOT BRACKET OUTSIDE
  • 9.4. CYLINDER HOIST AND PULLDOWN M
  • 9.5. GUIDE ASSEMBLY SHEAVE MAST
  • 9.6. SHEAVE 22 INCH OD W BEARING
  • 9.7. VALVE ASSEMBLY MAST 9 SECTI
  • 9.8. VALVE ASSEMBLY MAST 9 SECTIO
  • 9.9. DUST HOOD INSTALLATION
  • 9.10. MAST PLUMBING 11 5 METER MAST
  • 9.11. PIPE RACK INSTALLATION
  • 9.12. MOTOR HYDRAULIC
  • 9.13. HYDRAULIC CYLINDER ASSEMBLY S
  • 9.14. ROTARY DRIVE ASSEMBLY
  • 9.15. ROTARY DRIVE GEARCASE ASSEMBLY
  • 9.16. ROTARY DRIVE MOTOR PLUMBING
  • 9.17. HYDRAULIC OPERATED BREAKOUT WRE
  • 9.18. HYDRAULIC CYLINDER ASSEMBLY C
  • 9.19. HYDRAULIC CYLINDER ASSEMBLY R
  • 9.20. HYDRAULIC OPERATED BREAKOUT WRET
  • 9.21. AUTOMATIC TOOL WRENCH
  • 9.22. HYDRAULIC CYLINDER ASSEMBLYQ
  • 9.23. PIPE RACK ROTATE PLUMBING
  • 9.24. AUTO TOOL WRENCH PLUMBING
  • 9.25. PIPE RACK CAROUSEL LOCK PLUMBIN
  • 9.26. PIPE RACK SWING PLUMBING
  • 9.27. MAST LOCK INSTALLATION
  • 9.28. FILTER AIR W PRESSURE VACUUM V
  • 9.29. WINCH INSTALLATION BG8
  • 9.30. WINCH CASE DRAIN CONVERSION KIT
  • 9.31. WINCH ASSEMBLY
  • 9.32. SPRAG CLUTCH ASSEMBLY
  • 9.33. BRAKE VALVE ASSEMBLY WINCH
  • 9.34. PRIMARY PLANET CARRIER ASSEMBLY
  • 9.35. OUTPUT PLANET CARRIER ASSEMBLY
  • 9.36. MOTOR GROUP ASSEMBLY
  • 9.37. WINCH PLUMBING HOSE KIT
  • 10. SECT7.pdf
  • 10.1. SECTION 7 DRILLING TOOLS AC
  • 10.2. PIPE POSITIONER INSTALLATION
  • 10.3. COUNTERBALANCE VALVE DUAL
  • 10.4. PIPE POSITIONER PLUMBING COLD
  • 10.5. PIPE POSITIONER SENSOR COMPONEN
  • 10.6. MAST AUTO LUBE INJECTORS
  • 10.7. MAST AUTO LUBE HOSE KIT
  • 10.8. MAINFRAME AUTO LUBE INJECTORS
  • 10.9. MAINFRAME AUTO LUBE INJECTORS H
  • 10.10. MANUAL LUBE PUMP INSTALLATION
  • 10.11. GUIDE BUSHING 6 INCH OD DRILL
  • 10.12. LUBRICATOR INSTALLATION DRILL
  • 10.13. VALVE AIR
  • 10.14. LUBRICATOR ASSEMBLY DRILL STEM
  • 10.15. FILTER REGULATOR LUBRICATOR
  • 10.16. HARNESS THREAD LUBE SOLENOID
  • 10.17. LUBRICATOR HOSE PLUMBING KIT D
  • 10.18. RAPID FILL INSTALLATION FUEL
  • 11. SECT8.pdf
  • 11.1. SECTION 8 HYDRAULICS PLUMBI
  • 11.2. MAST LOCK PLUMBING
  • 11.3. AUXILIARY PUMP PULLDOWN HOLDB
  • 11.4. VALVE PLUMBING JACKS MAST
  • 11.5. MAST ELEVATING PLUMBING
  • 11.6. CHARGE RELIEF AND FILTERS PLUMB
  • 11.7. SUCTION RETURN DRAIN PLUMBING
  • 11.8. HYDRAULIC FEED SYSTEM MODIFICAT
  • 11.9. HOSE KIT FEED SYSTEM MODIFICA
  • 11.10. HYDRAULIC RESERVOIR INSTALLATIO
  • 11.11. HYDRAULIC RESERVOIR SUBASSEMBLY
  • 11.12. OIL LEVEL SIGHT GAUGE
  • 11.13. FILTER ASSEMBLY MAIN RETURN
  • 11.14. FILTER ASSEMBLY CASE RETURN
  • 11.15. HYDRAULIC HAND PUMP ASSEMBLY
  • 11.16. TEST STATION MACHINE SYSTEM HY
  • 11.17. HOSE KIT HYDRAULIC TEST SYSTE
  • 11.18. FILTER INDICATOR INSTALLATION
  • 11.19. PRESSURE SWITCH W 3 PIN CONNECT
  • 11.20. PRESSURE SWITCH W 3 PIN CONNECTZ
  • 11.21. PRESSURE SWITCH W 3 PIN CONNECTX
  • 11.22. HARNESS FILTER INDICATORS 1
  • 11.23. HARNESS FILTER INDICATORS 2
  • 11.24. JACK PLUMBING
  • 11.25. CLOSED LOOP PLUMBING W LOOP FIL
  • 11.26. FILTER ASSEMBLY LOOP
  • 11.27. CLOSED LOOP HOSE PLUMBING
  • 11.28. HYDRAULIC VALVE PROXIMITY SWITC
  • 12. SECT9.pdf
  • 12.1. SECTION 9 ELECTRICAL

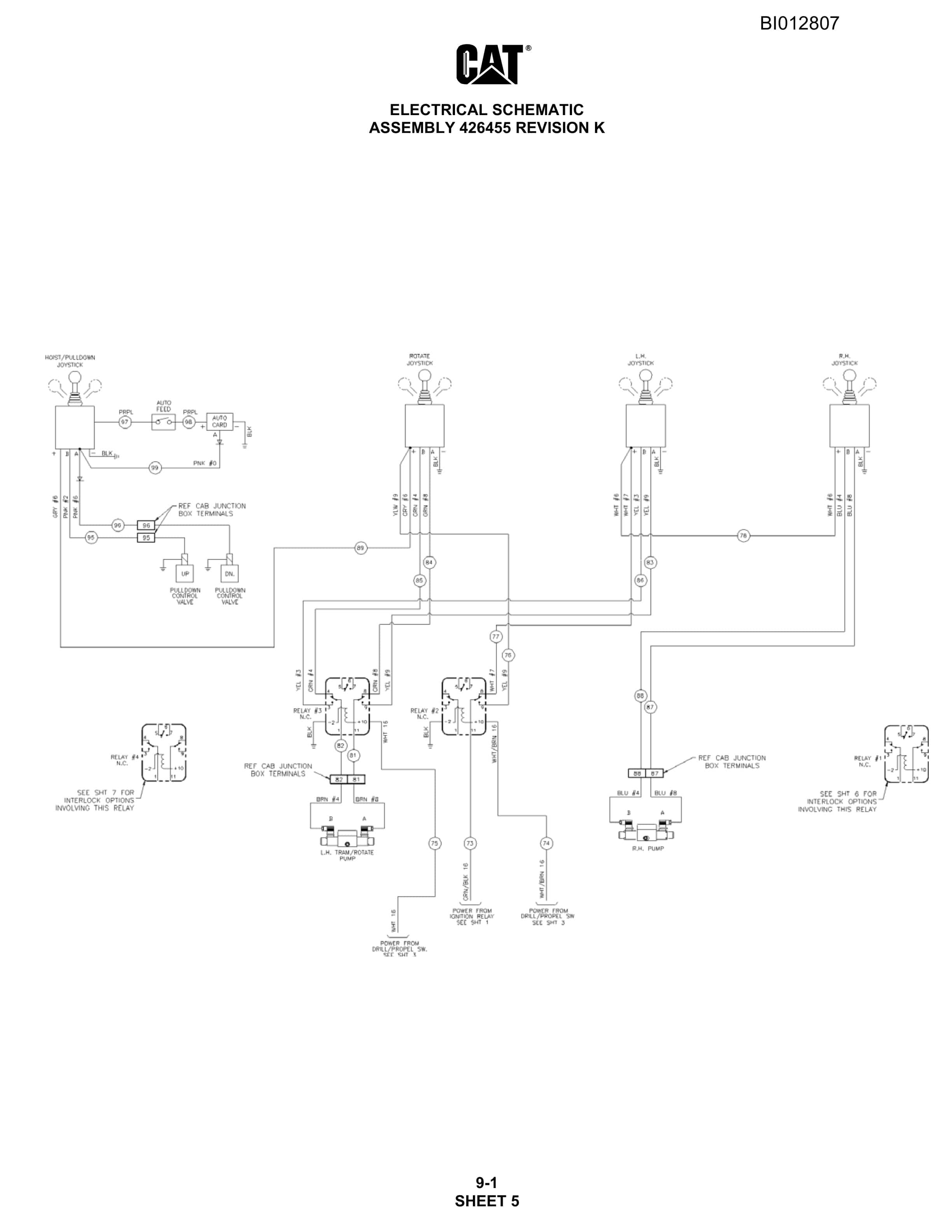

  • 12.2. ELECTRICAL SCHEMATIC
  • 12.3. CAB WIRING
  • 12.4. CAB ENGINE WIRING
  • 12.5. CAB AIR AND CURTAIN VALVE WIR
  • 12.6. CAB MAST VALVE WIRING
  • 12.7. PUMP WIRING
  • 12.8. PULLDOWN VALVE WIRING
  • 12.9. STANDARD LIGHT PACKAGE WIRING
  • 12.10. ENGINE HOUR METER WIRING
  • 12.11. AUXILIARY PRESSURE PUMP WIRING
  • 12.12. WATER AND DUST COLLECTOR VALVE
  • 12.13. FAST PULLDOWN WIRING
  • 12.14. CAB TOP LIGHTS WIRING
  • 12.15. ELECTRICAL SCHEMATIC LADDER LO
  • 12.16. ADDITIONAL BATTERY INSTALLATION
  • 12.17. BATTERY ENGINE DISCONNECT INS
  • 12.18. BATTERY BOX ASSEMBLY
  • 12.19. TRAM INTERLOCK JACK
  • 12.20. HARNESS JACK INTERLOCK FRONT
  • 12.21. HARNESS JACK INTERLOCK FRONTR
  • 12.22. HARNESS JACK INTERLOCK REAR
  • 12.23. HARNESS JACK INTERLOCK REARY
  • 12.24. HARNESS JACK LIGHT INDICATORS
  • 12.25. TRAM INTERLOCK DRILL STEM
  • 12.26. HARNESS DRILL PIPE INTERLOCK
  • 12.27. PIPE RACK INTERLOCK
  • 12.28. HARNESS PIPE RACK INTERLOCK
  • 12.29. PIPE RACK INTERLOCK SWITCH W CO
  • 12.30. EXTERIOR HARNESS INSTALLATION
  • 12.31. HARNESS MAST OPTIONS 1
  • 12.32. HARNESS ENGINE
  • 12.33. HARNESS VALVE MAST
  • 12.34. HARNESS CAB A C
  • 12.35. HARNESS A C CONDENSOR
  • 12.36. HARNESS VALVE BANKS LOWER
  • 12.37. HARNESS AUTO LUBE
  • 12.38. HARNESS TRAM
  • 12.39. HARNESS LIGHTS FRONT
  • 12.40. HARNESS VALVE MASTR
  • 12.41. HARNESS MAST 2
  • 12.42. CABLE GROUND CAB TO FRAME
  • 12.43. HARNESS JACK LEFT REAR
  • 12.44. INSTRUMENT PANEL ASSEMBLY
  • 12.45. TACHOMETER INSTALLATION ROTARY
  • 12.46. ROTARY HEAD TAC HARNESS CAB
  • 12.47. ROTARY HEAD TAC HARNESS
