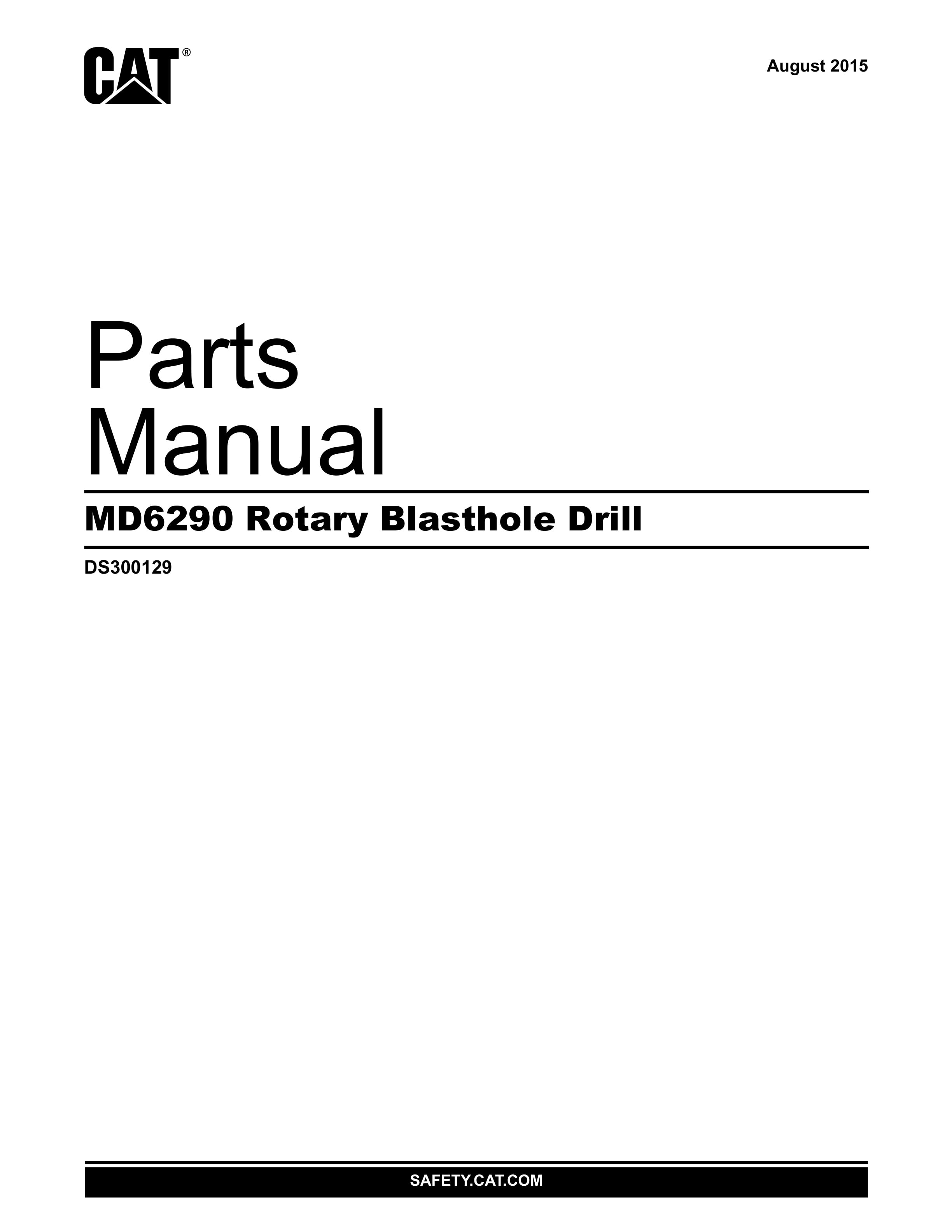

Caterpillar MD6290 Rotary Blasthole Drill Parts Manual BI012824
Caterpillar MD6290 Rotary Blasthole Drill Parts Manual BI012824 - Image 2
Caterpillar MD6290 Rotary Blasthole Drill Parts Manual BI012824 - Image 3
Caterpillar MD6290 Rotary Blasthole Drill Parts Manual BI012824 - Image 4
Caterpillar MD6290 Rotary Blasthole Drill Parts Manual BI012824 - Image 5

Caterpillar MD6290 Rotary Blasthole Drill Parts Manual BI012824

$30.00

  • Type Of Manual: Parts Manual
  • Manual ID: BI012824
  • Number of Pages: 739
  • Size: 23.0MB
  • Format: PDF
Category:

Product details

  • Model List:

    • MD6290 Rotary Blasthole Drill
  • 1. DS300129CVR
  • 2. PARTS MANUAL MD6290 S N DS300
  • 3. GENERAL ASSEMBLY ITEMS LIST
  • 4. SECT1.pdf
  • 4.1. SECTION 1 GENERAL LOCATOR D

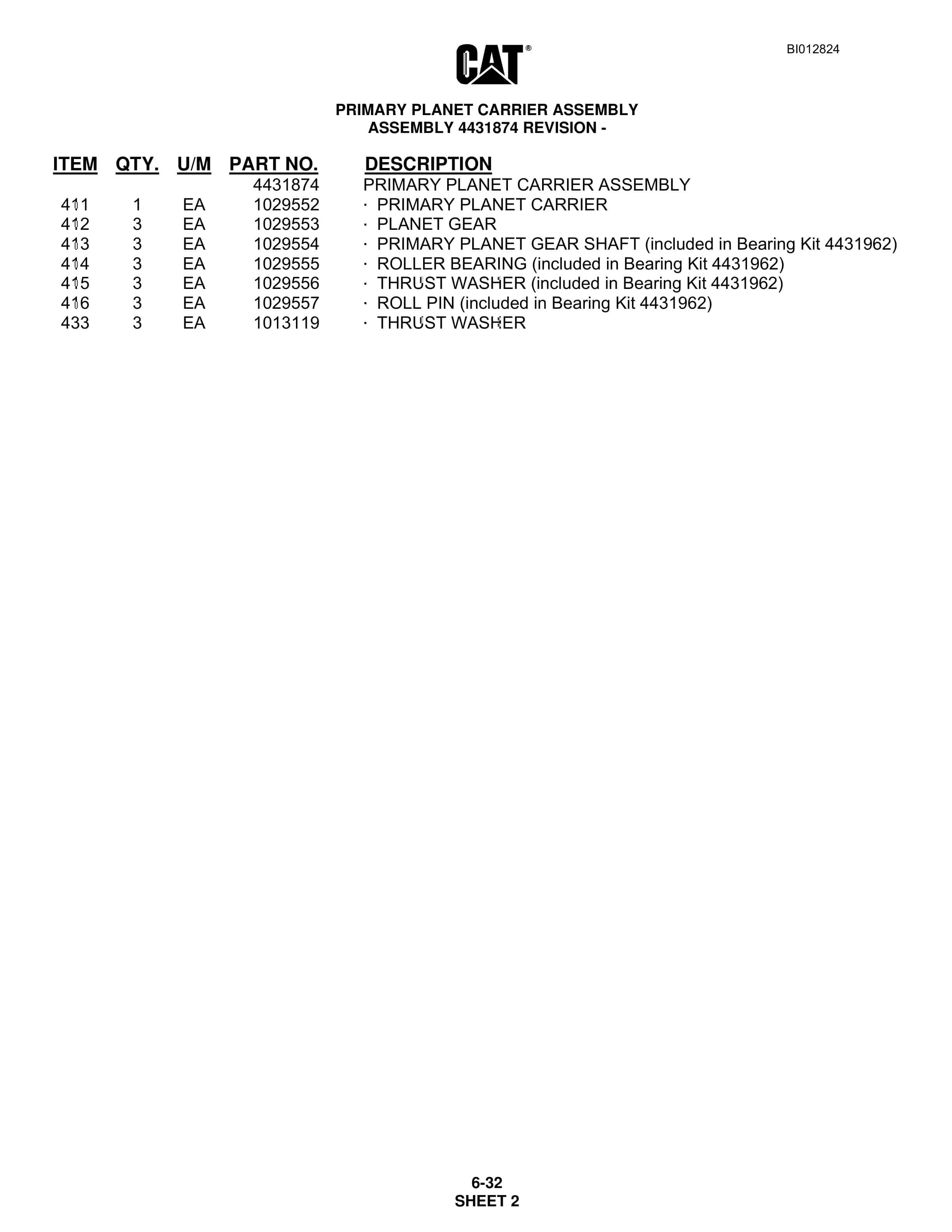

  • 4.2. FILTER ELEMENTS
  • 4.3. DECAL KIT CAT YELLOW MD6290
  • 4.4. DECAL KIT WARNING
  • 5. SECT2.pdf
  • 5.1. SECTION 2 OPERATOR S CAB
  • 5.2. CAB ASSEMBLY W GAUGES AND ATTAC
  • 5.3. CAB WINDOW WIPER WASHER INSTALL
  • 5.4. WINDSHIELD WIPER SYSTEM 24 IN
  • 5.5. HARNESS WINDOW WIPER REAR
  • 5.6. HARNESS WINDOW WIPER RIGHT S
  • 5.7. HARNESS WINDOW WIPER LEFT SI
  • 5.8. HARNESS WINDOW WIPER FRONT T
  • 5.9. INTERIOR HARNESS ELECTRICAL INS
  • 5.10. HARNESS E STOP CAB
  • 5.11. HARNESS RELAY 1 AND 4
  • 5.12. HARNESS RELAY 5 2 AND 3
  • 5.13. DRILL FUNCTION PANEL ASSEMBLY W
  • 5.14. PANEL SWITCHES DRILL FUNCTIO
  • 5.15. HARNESS GATE VALVE JUNCTION
  • 5.16. HARNESS PANEL JOYSTICK
  • 5.17. HARNESS DRILL HOUR
  • 5.18. LOAD UNLOAD SWITCH W CONNECTOR
  • 5.19. FAST PULLDOWN SWITCH W CONNECTO
  • 5.20. JUMPER SEAT WITH ATTACHING HARD
  • 5.21. PANEL GAUGES HYDRAULIC
  • 5.22. CONTROL MAST JACKS
  • 5.23. INSULATION KIT CAB SPECIAL
  • 5.24. CAB HOSE PLUMBING
  • 5.25. CAB MODIFICATION ELECTRIC HAND
  • 5.26. ROTARY OPERATOR S SEAT
  • 5.27. SEAT BELT W TETHER AND HARDWARE
  • 5.28. SEAT AIR ACCUMULATOR INSTALLATI
  • 5.29. SEAT AIR ACCUMULATOR KIT
  • 5.30. HEATER AIR CONDITIONER INSTAL
  • 5.31. HEATER AIR CONDITIONER PACKAG
  • 5.32. AIR CLEANER ASSEMBLY A C HEATE
  • 5.33. CONDENSER 24V
  • 5.34. WALL MOUNT UNIT W ANGLE LOUVERS
  • 5.35. BLOWER ASSEMBLY A C HEATER PRE
  • 5.36. AIR CONDITIONER HOSE KIT
  • 5.37. HARNESS CIRCUIT BREAKER A C
  • 5.38. GLASS INSTALLATION CAB TINTED
  • 6. SECT3.pdf
  • 6.1. SECTION 3 MAINFRAME CRAWLER
  • 6.2. MAINFRAME ASSEMBLY MD6290
  • 6.3. FLOOR COVERING DUST SEALS
  • 6.4. CYLINDER MAST ELEVATING
  • 6.5. MANIFOLD INSTALLATION SUCTION
  • 6.6. COUNTERBALANCE VALVE ASSEMBLY
  • 6.7. WALKWAY INSTALLATION CAB
  • 6.8. VALVE ASSEMBLY W ATTACHMENTS D
  • 6.9. VALVE ASSEMBLY W ATTACHMENTS F
  • 6.10. VALVE ASSEMBLY LESS ATTACHMENTS
  • 6.11. MANIFOLD W ATTACHMENTS RETURN
  • 6.12. MANIFOLD W ATTACHMENTS CASE DR
  • 6.13. MANIFOLD W ATTACHMENTS
  • 6.14. VALVE ASSEMBLY W ATTACHMENTS R
  • 6.15. VALVE ASSEMBLY W ATTACHMENTS S
  • 6.16. VALVE ASSEMBLY JACKS MAST CONT
  • 6.17. VALVE ASSEMBLY JACKS MAST CONTr
  • 6.18. VALVE ASSEMBLY W ATTACHMENTS V
  • 6.19. VALVE ASSEMBLY LESS ATTACHMENTSz
  • 6.20. HARNESS CONNECTOR LIGHTED
  • 6.21. VALVE ASSEMBLY DUST COLLECTOR
  • 6.22. VALVE ASSEMBLY DUST COLLECTORx
  • 6.23. VALVE ASSEMBLY DIVERTER W ATTA
  • 6.24. VALVE ASSEMBLY W ATTACHMENTS Rx
  • 6.25. CRAWLER ASSEMBLY CAT 330EL M
  • 6.26. PROPEL PLUMBING
  • 6.27. FUEL TANK INSTALLATION W PLUMBI
  • 6.28. FUEL TANK SUBASSEMBLY
  • 6.29. JACK INSTALLATION 48
  • 6.30. CYLINDER ASSEMBLY JACK
  • 6.31. TRACK 2 SPEED PROPEL INSTALLATI
  • 6.32. HARNESS 2 SPEED INTERTRACK
  • 6.33. SWITCH 2 SPEED TRAM W CONNECTO
  • 6.34. VIEWING HATCH DRILL DECK
  • 6.35. HYDRAULIC CYLINDER
  • 6.36. VIEWING HATCH PLUMBING
  • 6.37. AUXILIARY FUEL TANK INSTALLATIO
  • 7. SECT4.pdf
  • 7.1. SECTION 4 ENGINES COMPRESSO
  • 7.2. ENGINE WITH ATTACHMENTS CAT C2
  • 7.3. COUPLING PUMP DRIVE GEARBOX TO
  • 7.4. COOLANT CONDITIONER FILTER ASSE
  • 7.5. FUEL FILTER INSTALLATION C27
  • 7.6. FUEL FILTER
  • 7.7. ELECTRICAL INSTALLATION C27
  • 7.8. ENGINE BOX ELECTRICAL ASSEMBLY
  • 7.9. HARNESS ECM C27
  • 7.10. HARNESS TAC STARTER FUEL A C
  • 7.11. HARNESS COMPRESSOR 1 C27
  • 7.12. HARNESS STARTER 1 C27
  • 7.13. HARNESS PRESSURE SWITCH WATER
  • 7.14. HARNESS 2 SPEED FUEL C27
  • 7.15. HARNESS STARTER 2 C27
  • 7.16. HARNESS ALTERNATOR C27
  • 7.17. HARNESS RELAY TO STARTER SOLEN
  • 7.18. HARNESS ALTERNATOR 2 C27
  • 7.19. ENGINE CHARGE PILOT PLUMBING
  • 7.20. ENGINE PANEL STARTUP ASSEMBLY
  • 7.21. HARNESS THROTTLE
  • 7.22. MAGNETIC SENSOR W ELECTRICAL CO
  • 7.23. ENGINE PRELUBE INSTALLATION C
  • 7.24. ENGINE PRELUBE PUMP
  • 7.25. GUARD INSTALLATION DRIVELINE
  • 7.26. AIR CLEANER INSTALLATION ENGI
  • 7.27. AIR CLEANER ASSEMBLY
  • 7.28. ENGINE CHARGE AIR PIPING C27
  • 7.29. ENGINE WATER PIPING C27
  • 7.30. AIR COMPRESSOR ASSEMBLY 1150 3
  • 7.31. AIR COMPRESSOR PACKAGE SERVICE
  • 7.32. COMPRESSOR AIR END ATTACHMENTS
  • 7.33. RECEIVER TANK ASSEMBLY COMPRES
  • 7.34. REGULATOR CONTROL PANEL ASSEMBL
  • 7.35. SHUTDOWN SWITCH ASSEMBLY
  • 7.36. DISCHARGE VALVE ASSEMBLY
  • 7.37. TORSIONAL DRIVE COUPLING
  • 7.38. AIR CLEANER INSTALLATION COMPR
  • 7.39. COMPRESSOR AIR RECEIVER PIPIN
  • 7.40. HYDRAULIC FILTER ASSEMBLY COMP
  • 7.41. COMPRESSOR AIR RECEIVER HOSE
  • 7.42. COOLER INSTALLATION
  • 7.43. COOLER ASSEMBLY W PLUMBING ENG
  • 7.44. OIL COOLER ASSEMBLY COMPRESSOR
  • 7.45. RADIATOR ASSEMBLY
  • 7.46. CHARGE AIR AFTERCOOLER ASSEMB
  • 7.47. COOLER ASSEMBLY HYDRAULIC OIL
  • 7.48. MOTOR FAN
  • 7.49. THERMOSTATIC VALVE ASSEMBLY
  • 7.50. FAN PLUMBING COOLER
  • 7.51. PUMP DRIVE ASSEMBLY
  • 7.52. PUMP DRIVE GEARBOX ASSEMBLY 3
  • 7.53. MAIN PUMP CLOSED LOOP
  • 7.54. SHAFT SEAL AND CASE DRAIN PLUG
  • 7.55. PORT PLATE HOUSING AND VALVES S
  • 7.56. PTO ADD ON SPARE PARTS LIST
  • 7.57. FILTER ELIMINATION FLANGE SPARE
  • 7.58. E1P CONTROL ASSEMBLY SPARE PART
  • 7.59. MAIN PUMP OPEN LOOP
  • 7.60. SHAFT SEAL AND CASE DRAIN SPARE
  • 7.61. HIGH PRESSURE END FLANGE PLUG A
  • 7.62. LP CONTROL ASSEMBLY LIST
  • 7.63. CHARGE PUMP
  • 7.64. GEAR PUMP FAN DUST COLLECTOR
  • 7.65. HYDRAULIC FILTER ASSEMBLY CHAR
  • 7.66. AIR CLEANER RAIN SHIELD ASSEMBL

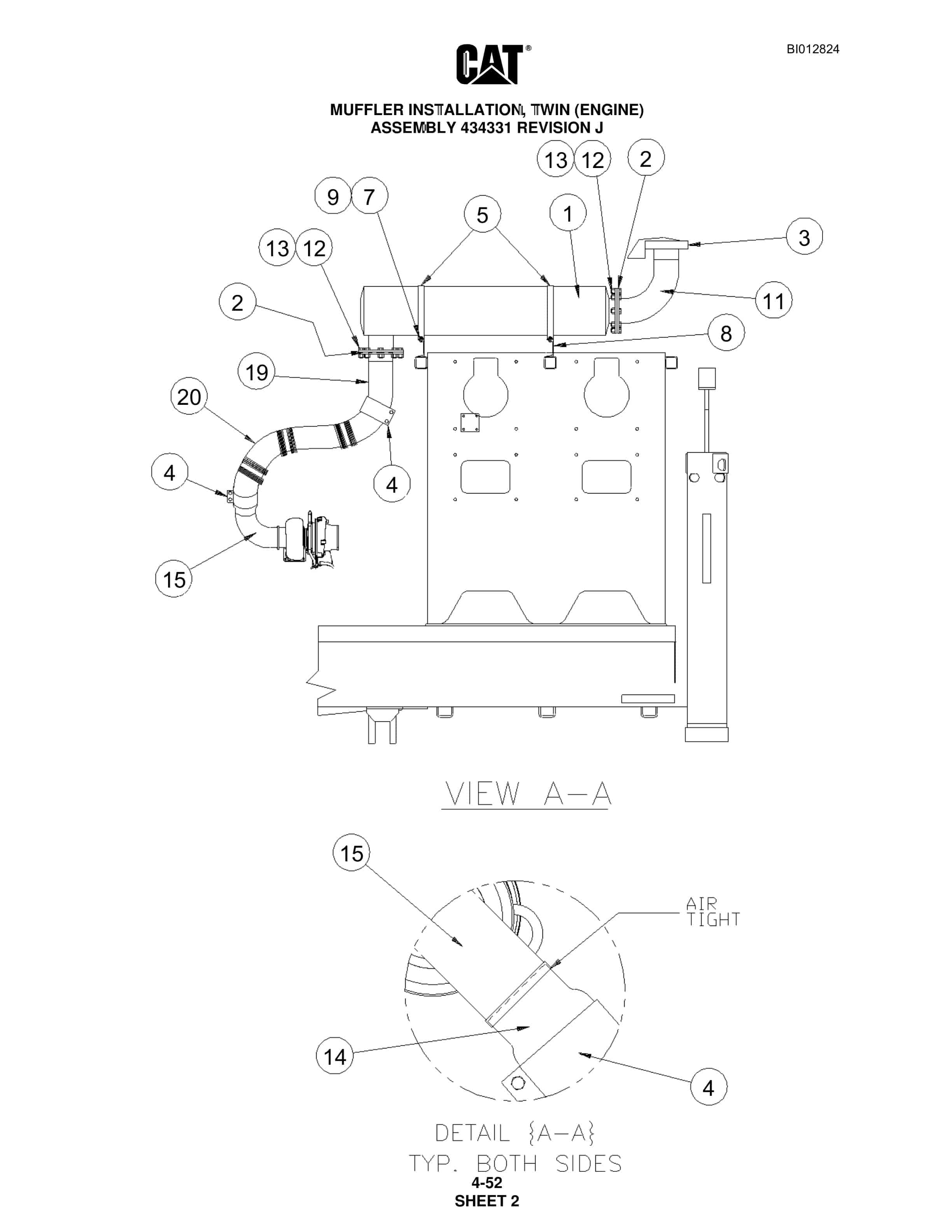

  • 7.67. MUFFLER INSTALLATION TWIN ENG
  • 7.68. EXHAUST INLET PIPE TO SILENCER
  • 7.69. EXHAUST OUTLET SILENCER CS D
  • 7.70. EXHAUST ELBOW GROUP LIST
  • 7.71. EXHAUST INLET PIPE
  • 8. SECT5.pdf
  • 8.1. SECTION 5 DUST CONTROL
  • 8.2. DUST CURTAIN INSTALLATION
  • 8.3. COVER PLATE INSTALLATION NO DU
  • 8.4. WATER INJECTION SYSTEM HORIZO
  • 8.5. VALVE FLOW CONTROL
  • 8.6. WATER INJECTION PLUMBING
  • 8.7. WATER PUMP MOUNT ASSEMBLY
  • 8.8. WATER PUMP ASSEMBLY HORIZONTA
  • 8.9. POWER END ASSEMBLY
  • 8.10. FLUID CYLINDER ASSEMBLY
  • 8.11. HYDRAULIC MOTOR
  • 9. SECT6.pdf
  • 9.1. SECTION 6 MAST
  • 9.2. MAST ASSEMBLY 35 FT
  • 9.3. MAST PIVOT BRACKET OUTSIDE
  • 9.4. CYLINDER HOIST AND PULLDOWN M
  • 9.5. GUIDE ASSEMBLY SHEAVE MAST
  • 9.6. SHEAVE 22 INCH OD W BEARING
  • 9.7. VALVE ASSEMBLY MAST 9 SECTI
  • 9.8. VALVE ASSEMBLY MAST 9 SECTIO
  • 9.9. DUST HOOD INSTALLATION
  • 9.10. MAST PLUMBING 35 FT
  • 9.11. PIPE RACK INSTALLATION
  • 9.12. MOTOR HYDRAULIC
  • 9.13. HYDRAULIC CYLINDER ASSEMBLY S
  • 9.14. PIVOT SUPPORT ASSEMBLY CAROUSE
  • 9.15. ROTARY DRIVE ASSEMBLY
  • 9.16. ROTARY DRIVE GEARBOX ASSEMBLY
  • 9.17. ROTARY DRIVE MOTOR HOSE KIT
  • 9.18. ROTARY DRIVE MOTOR FIELD KIT
  • 9.19. HYDRAULIC OPERATED BREAKOUT WRE
  • 9.20. HYDRAULIC CYLINDER ASSEMBLY C
  • 9.21. HYDRAULIC CYLINDER ASSEMBLY R
  • 9.22. HYDRAULIC OPERATED BREAKOUT WREf
  • 9.23. AUTOMATIC TOOL WRENCH
  • 9.24. HYDRAULIC CYLINDER ASSEMBLY
  • 9.25. PIPE RACK ROTATE PLUMBING
  • 9.26. AUTO TOOL WRENCH PLUMBING
  • 9.27. PIPE RACK CAROUSEL LOCK PLUMBIN
  • 9.28. PIPE RACK SWING PLUMBING
  • 9.29. MAST LOCK INSTALLATION
  • 9.30. MAST LOCK INDICATOR HARNESS
  • 9.31. WINCH INSTALLATION BG8
  • 9.32. WINCH CASE DRAIN CONVERSION KIT
  • 9.33. WINCH ASSEMBLY
  • 9.34. SPRAG CLUTCH ASSEMBLY
  • 9.35. BRAKE VALVE ASSEMBLY WINCH
  • 9.36. PRIMARY PLANET CARRIER ASSEMBLY
  • 9.37. OUTPUT PLANET CARRIER ASSEMBLY
  • 9.38. MOTOR GROUP ASSEMBLY
  • 9.39. WINCH PLUMBING HOSE KIT
  • 10. SECT7.pdf
  • 10.1. SECTION 7 DRILLING TOOLS AC
  • 10.2. PIPE POSITIONER INSTALLATION
  • 10.3. COUNTERBALANCE VALVE DUAL
  • 10.4. HYDRAULIC CYLINDER ASSEMBLYA
  • 10.5. PIPE POSITIONER PLUMBING COLD
  • 10.6. PIPE POSITIONER SENSOR COMPONEN
  • 10.7. MAST AUTO LUBE INJECTORS 35 F
  • 10.8. MAST AUTO LUBE HOSE KIT
  • 10.9. MAINFRAME AUTO LUBE INJECTORS
  • 10.10. MAINFRAME AUTO LUBE INJECTORS H
  • 10.11. OIL INJECTION INSTALLATION MD6
  • 10.12. AIR LINE LUBRICATOR TANK ASSEMB
  • 10.13. OIL INJECTION TANK 36 GAL
  • 10.14. AIR LINE LUBRICATOR HOSE KIT
  • 10.15. HARNESS AIR LINE LUBRICATOR
  • 10.16. HARNESS AIR LINE LUBRICATORZ
  • 10.17. HARNESS AIR LINE LUBRICATOR
  • 10.18. GUIDE BUSHING 4 1 2 INCH OD DR
  • 10.19. SUB SHOCK FLOATING CUSHION
  • 10.20. AUTO LUBE ASSEMBLY MACHINE
  • 10.21. AUTO LUBE ASSEMBLY HOSE KIT
  • 10.22. HARNESS AUTO LUBE PRESSURE S

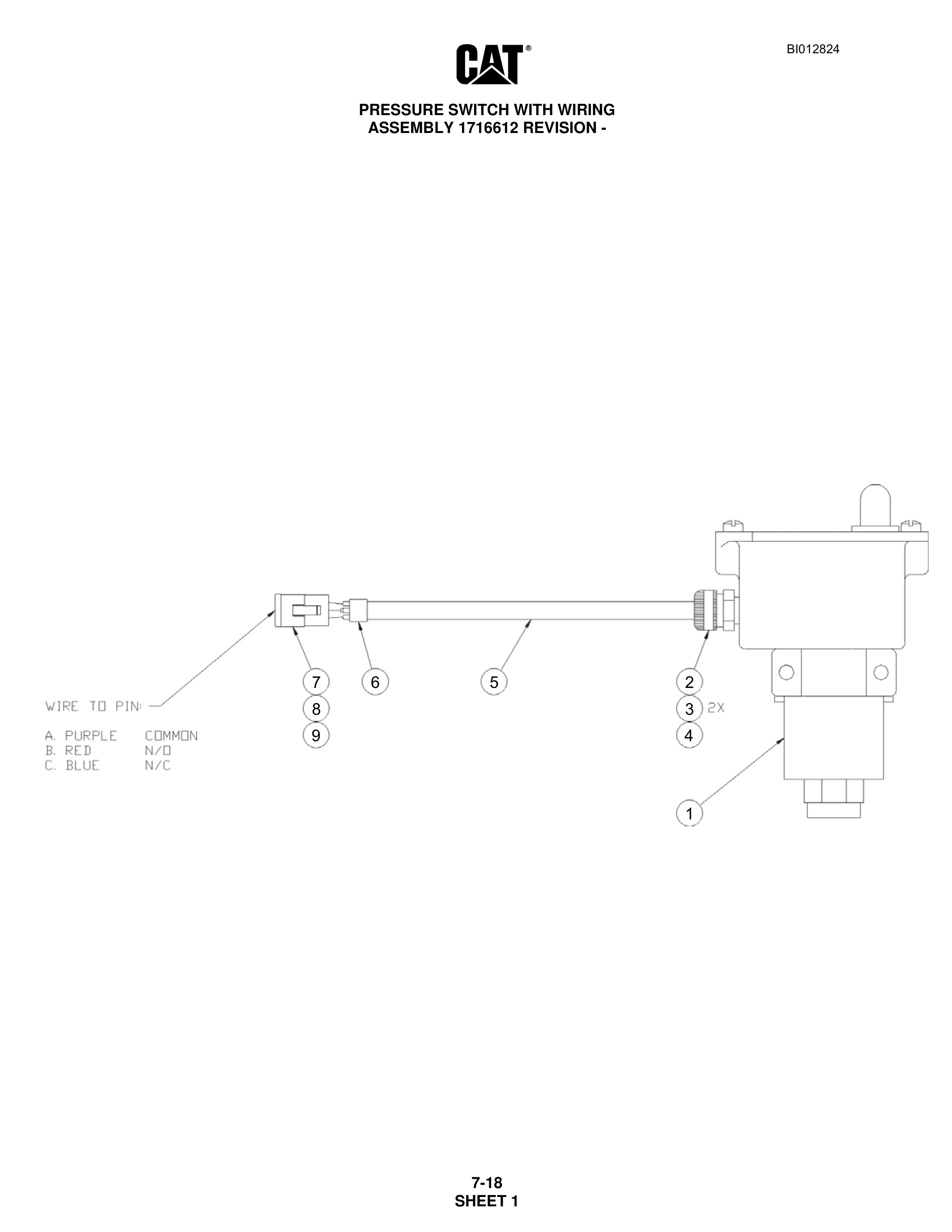

  • 10.23. PRESSURE SWITCH WITH WIRING
  • 10.24. FILTER REGULATOR LUBRICATOR
  • 10.25. FILTER ASSEMBLY
  • 10.26. REGULATOR ASSEMBLY
  • 10.27. LUBRICATOR ASSEMBLY
  • 10.28. WAY 2 POSITION SWITCH WITH WI
  • 10.29. AIR MOTOR ASSEMBLY MACHINE LUB
  • 10.30. HARNESS AUTO LUBE CONTROLLER
  • 10.31. TUBE ASSEMBLY AIR MOTOR MACHI
  • 10.32. MONITOR CONTROLLER MACHINE L
  • 10.33. DRILL STEM
  • 10.34. ROTARY TORQUE CONTROL INSTALLAT
  • 10.35. ROTARY TORQUE CONTROL PLUMBING
  • 10.36. RAPID FILL INSTALLATION
  • 10.37. CONNECTOR KIT RAPID FILL SYSTE
  • 10.38. RAPID FILL PLUMBING SINGLE TA
  • 11. SECT8.pdf
  • 11.1. SECTION 8 HYDRAULICS PLUMBI
  • 11.2. MAST LOCK PLUMBING

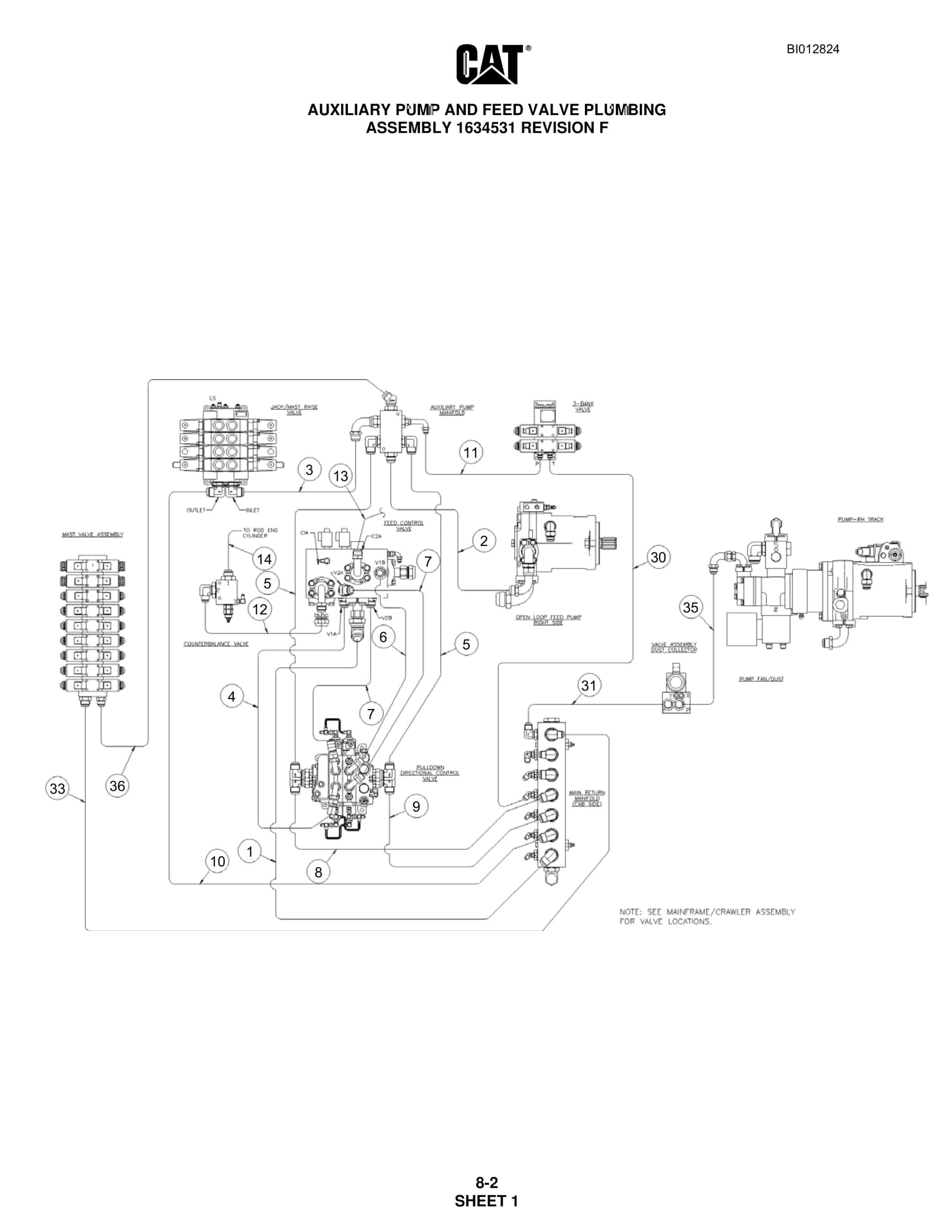

  • 11.3. AUXILIARY PUMP AND FEED VALVE P
  • 11.4. VALVE PLUMBING JACKS MAST
  • 11.5. MAST ELEVATING PLUMBING
  • 11.6. CHARGE HOSE PLUMBING
  • 11.7. SUCTION RETURN DRAIN PLUMBI
  • 11.8. HYDRAULIC FEED SYSTEM MODIFICAT
  • 11.9. HYDRAULIC FEED SYSTEM MODIFICATX
  • 11.10. HYDRAULIC RESERVOIR INSTALLATIO
  • 11.11. HYDRAULIC RESERVOIR SUBASSEMBLY
  • 11.12. OIL LEVEL SIGHT GAUGE
  • 11.13. FILTER ASSEMBLY MAIN RETURN
  • 11.14. FILTER ASSEMBLY CASE RETURN
  • 11.15. HYDRAULIC HAND PUMP ASSEMBLY
  • 11.16. TEST STATION MACHINE SYSTEM HY
  • 11.17. HOSE KIT HYDRAULIC TEST SYSTE
  • 11.18. FILTER INDICATOR INSTALLATION
  • 11.19. PRESSURE SWITCH W 3 PIN CONNECT
  • 11.20. PRESSURE SWITCH W 3 PIN CONNECT1
  • 11.21. PRESSURE SWITCH W 3 PIN CONNECT2
  • 11.22. HARNESS FILTER INDICATORS 1
  • 11.23. HARNESS FILTER INDICATORS 2
  • 11.24. JACK PLUMBING
  • 11.25. CLOSED LOOP PLUMBING W LOOP FIL
  • 11.26. FILTER ASSEMBLY LOOP
  • 11.27. LOOP FILTER PLUMBING
  • 11.28. HYDRAULIC VALVE PROXIMITY SWITC
  • 12. SECT9.pdf
  • 12.1. SECTION 9 ELECTRICAL
  • 12.2. ELECTRICAL SCHEMATIC LADDER LO
  • 12.3. MAINTENANCE FREE BATTERY KIT
  • 12.4. BATTERY ENGINE DISCONNECT INS
  • 12.5. BATTERY BOX ASSEMBLY
  • 12.6. HARNESS JUMPER BATTERY 16 I
  • 12.7. ADDITIONAL MAINTENANCE FREE BAT
  • 12.8. STANDARD LED LIGHT KIT
  • 12.9. ELECTRIC HORN
  • 12.10. HORN ELECTRIC W CONNECTOR
  • 12.11. EXTERIOR HARNESS INSTALLATION
  • 12.12. HARNESS MAST OPTIONS 1
  • 12.13. HARNESS ENGINE
  • 12.14. HARNESS VALVE MAST
  • 12.15. HARNESS CAB A C
  • 12.16. HARNESS A C CONDENSOR
  • 12.17. HARNESS VALVE BANKS LOWER
  • 12.18. HARNESS AUTO LUBE
  • 12.19. HARNESS TRAM
  • 12.20. HARNESS LIGHTS FRONT
  • 12.21. HARNESS VALVE MASTZ
  • 12.22. HARNESS MAST 2
  • 12.23. CABLE GROUND CAB TO FRAME
  • 12.24. HARNESS JACK LEFT REAR
  • 12.25. HP BUTTERFLY COMPRESSOR COMPONE
  • 12.26. HARNESS COMPRESSOR 2 HIGH P
  • 12.27. HARNESS HP COMPRESSOR INDICA
  • 12.28. INSTRUMENT PANEL ASSEMBLY
  • 12.29. PANEL GAUGES ENGINE
Rate this product

Related products
