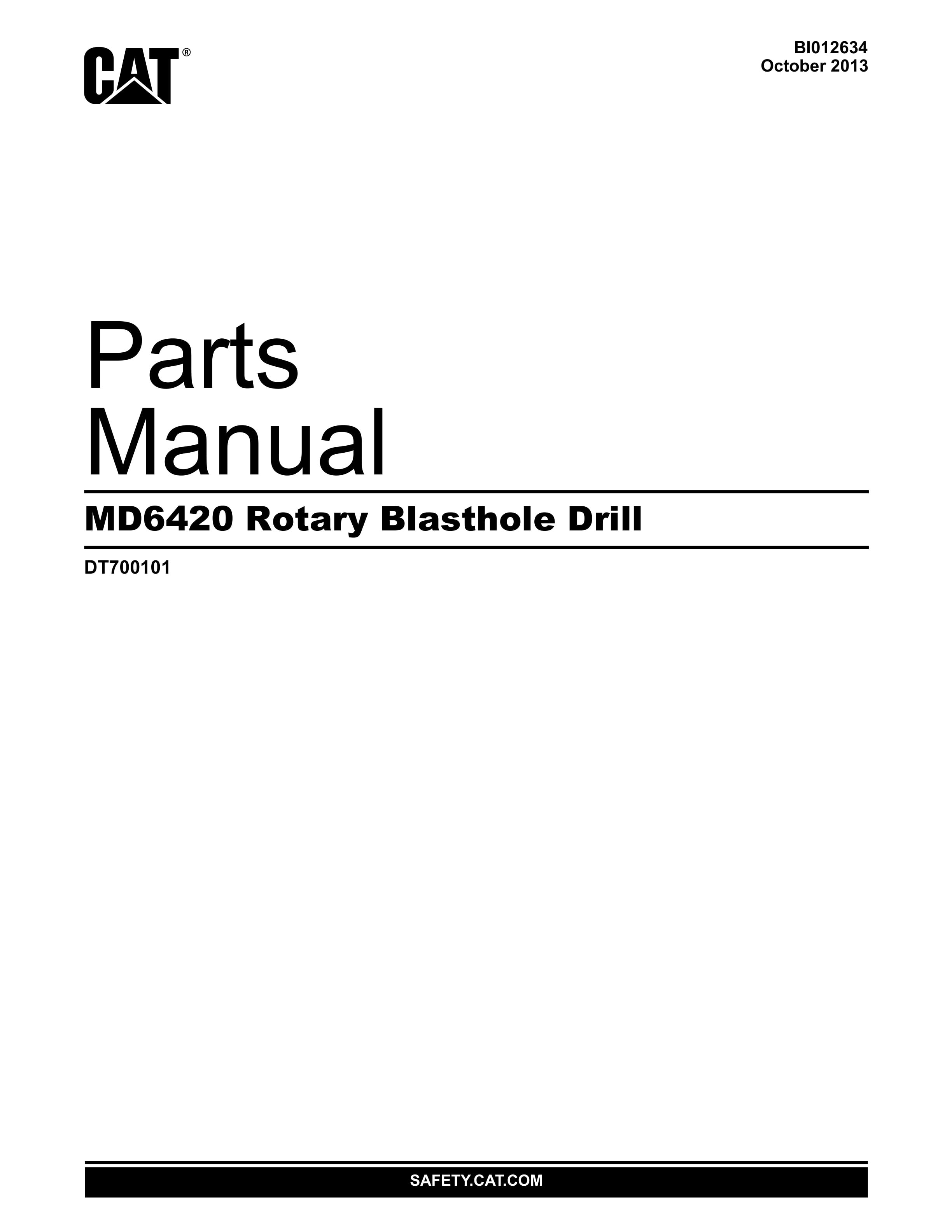

Caterpillar MD6420 Rotary Blasthole Drill Parts Manual BI012634
Caterpillar MD6420 Rotary Blasthole Drill Parts Manual BI012634 - Image 2
Caterpillar MD6420 Rotary Blasthole Drill Parts Manual BI012634 - Image 3
Caterpillar MD6420 Rotary Blasthole Drill Parts Manual BI012634 - Image 4
Caterpillar MD6420 Rotary Blasthole Drill Parts Manual BI012634 - Image 5

Caterpillar MD6420 Rotary Blasthole Drill Parts Manual BI012634

$30.00

  • Type Of Manual: Parts Manual
  • Manual ID: BI012634
  • Number of Pages: 592
  • Size: 16.8MB
  • Format: PDF
Category:

Product details

  • Model List:

    • MD6420 Rotary Blasthole Drill
  • 1. DT700101CVR
  • 2. PARTS MANUAL SECTION LOCATOR
  • 3. GENERAL ASSEMBLY ITEMS LIST
  • 4. SECTION 1 DECALS FILTER ELE.pdf
  • 4.1. SECTION 1 DECALS FILTER ELE
  • 4.2. FILTER ELEMENTS
  • 4.3. DECAL KIT CAT YELLOW MD6420
  • 4.4. DECAL KIT WARNING
  • 5. SECTION 2 OPERATOR S CAB.pdf
  • 5.1. SECTION 2 OPERATOR S CAB
  • 5.2. CAB ASSEMBLY W GAUGES AND ATTAC
  • 5.3. CAB WINDOW WIPER WASHER INSTALL
  • 5.4. WINDSHIELD WIPER SYSTEM 24 IN
  • 5.5. JUMPER SEAT WITH ATTACHING HARD
  • 5.6. PANEL GAUGES ENGINE
  • 5.7. PANEL GAUGES HYDRAULIC
  • 5.8. PANEL SWITCHES DRILL FUNCTIO
  • 5.9. CONTROL MAST JACKS
  • 5.10. PANEL W ATTACHMENTS ENGINE STA
  • 5.11. INSULATION KIT CAB SPECIAL
  • 5.12. CAB HOSE PLUMBING
  • 5.13. CAB MODIFICATION ELECTRIC HAND
  • 5.14. ROTARY OPERATOR S SEAT
  • 5.15. SEAT BELT W TETHER AND HARDWARE
  • 5.16. GLASS INSTALLATION CAB TINTED
  • 5.17. HEATER AIR CONDITIONER INSTAL
  • 5.18. HEATER AIR CONDITIONER PACKAG
  • 5.19. AIR CLEANER ASSEMBLY A C HEATE
  • 5.20. CONDENSER 24V
  • 5.21. WALL MOUNT UNIT W ANGLE LOUVERS
  • 5.22. BLOWER ASSEMBLY A C HEATER PRE
  • 5.23. AIR CONDITIONER HOSE KIT
  • 5.24. SEAT AIR ACCUMULATOR INSTALLATI
  • 6. SECTION 3 MAINFRAME CRAWLER.pdf
  • 6.1. SECTION 3 MAINFRAME CRAWLER
  • 6.2. MAINFRAME CRAWLER ASSEMBLY
  • 6.3. UNDERCARRIAGE ASSEMBLY
  • 6.4. FINAL DRIVE ASSEMBLY W MOTOR T
  • 6.5. HYDRAULIC MOTOR SPARE PARTS
  • 6.6. ROLLER ASSEMBLY TRACK
  • 6.7. IDLER ASSEMBLY COMPLETE
  • 6.8. TRACK ASSEMBLY W SHOES
  • 6.9. ROCK GUARD COMPLETE FRONT AND
  • 6.10. ROCK GUARD COMPLETE MIDDLE
  • 6.11. MAST ELEVATING CYLINDER
  • 6.12. DUST SEAL ASSEMBLY 30 DEG WI
  • 6.13. FUEL TANK INSTALLATION 850 GA
  • 6.14. JACK INSTALLATION
  • 6.15. JACK CYLINDER ASSEMBLY 48 INCH
  • 6.16. VALVE STAND VALVES AND ATTACH
  • 6.17. MANIFOLD W ATTACHMENTS RETURN
  • 6.18. MANIFOLD W ATTACHMENTS DRAIN
  • 6.19. VALVE JACKS MAST CONTROL WITH
  • 6.20. VALVE ASSEMBLY JACKS MAST CONT
  • 6.21. VALVE ASSEMBLY W ATTACHMENTS D
  • 6.22. VALVE ASSEMBLY LESS ATTACHMENTS
  • 6.23. VALVE ASSEMBLY W ATTACHMENTS F
  • 6.24. VALVE ASSEMBLY LESS ATTACHMENTSx
  • 6.25. VALVE ASSEMBLY W ATTACHMENTS C
  • 6.26. VALVE ASSEMBLY LESS ATTACHMENTSB
  • 6.27. MANIFOLD W ATTACHMENTS
  • 6.28. VALVE ASSEMBLY W ATTACHMENTS S
  • 6.29. DIVERTER VALVE ASSEMBLY 2 POS
  • 6.30. MANIFOLD PILOT CONTROL W ADAPT
  • 6.31. MANIFOLD PILOT CONTROL W REGEN
  • 6.32. MANIFOLD W ATTACHMENTS DRAIN
  • 6.33. VALVE ASSEMBLY DUST COLLECTOR
  • 6.34. VALVE ASSEMBLY DUST COLLECTORZ
  • 6.35. VALVE STAND VALVES HOSE PLUMBIN
  • 6.36. VALVE STAND VALVES HOSE KIT
  • 6.37. VIEWING HATCH DRILL DECK
  • 6.38. HYDRAULIC CYLINDER ASSEMBLY
  • 6.39. VIEWING HATCH PLUMBING
  • 7. SECTION 4 ENGINES COMPRESSO.pdf
  • 7.1. SECTION 4 ENGINES COMPRESSO
  • 7.2. ENGINE WITH ATTACHMENTS QST30
  • 7.3. COUPLING PUMP DRIVE GEARBOX TO
  • 7.4. EXHAUST BLANKETS ENGINE
  • 7.5. GUARD INSTALLATION DRIVELINE
  • 7.6. AIR CLEANER INSTALLATION ENGI
  • 7.7. AIR CLEANER ASSEMBLY
  • 7.8. ENGINE CHARGE AIR PIPING ASSEMB
  • 7.9. ENGINE WATER PIPING
  • 7.10. COOLER INSTALLATION COMPRESSOR
  • 7.11. COOLER INSTALLATION COMPRESSORz
  • 7.12. COOLER ASSEMBLY COMPRESSOR OIL
  • 7.13. CHARGE AIR AFTERCOOLER ASSEMB
  • 7.14. MOTOR FAN
  • 7.15. VALVE ASSEMBLY MOTOR CHECK
  • 7.16. COOLER INSTALLATION ENGINE
  • 7.17. ENGINE RADIATOR SYS HYDR OIL C
  • 7.18. RADIATOR ASSEMBLY ENGINE
  • 7.19. COOLER ASSEMBLY SYSTEM HYDRAUL
  • 7.20. CHARGE AIR AFTERCOOLER ASSEMBb
  • 7.21. THERMOSTATIC VALVE ASSEMBLY
  • 7.22. ALTERNATOR W BELT SHEAVE
  • 7.23. AIR CLEANER RAIN SHIELD ASSEMBL
  • 7.24. AIR CLEANER INSTALLATION COMPR
  • 7.25. COMPRESSOR AIR RECEIVER PIPING
  • 7.26. COMPRESSOR AIR RECEIVER PIPIN
  • 7.27. MAIN AIR MANIFOLD ASSEMBLY
  • 7.28. HYDRAULIC CYLINDER
  • 7.29. HYDRAULIC FILTER ASSEMBLY COMP
  • 7.30. DRAIN MANIFOLD ASSEMBLY
  • 7.31. AIR COMPRESSOR ASSEMBLY 2400 1
  • 7.32. AIR COMPRESSOR PACKAGE SERVICE
  • 7.33. COMPRESSOR AIR END ATTACHMENTS
  • 7.34. RECEIVER TANK ASSEMBLY
  • 7.35. TORSIONAL DRIVE COUPLING
  • 7.36. PUMP DRIVE ASSEMBLY
  • 7.37. PUMP DRIVE GEARBOX 4 PAD
  • 7.38. LINESHAFT ASSEMBLY INPUT GEAR
  • 7.39. VARIABLE DISPLACEMENT PUMP
  • 7.40. SHAFT SEAL AND CASE DRAIN PLUG
  • 7.41. HIGH PRESSURE END FLANGE PLUGS
  • 7.42. FILTER ELIMINATION BLOCK SPARE
  • 7.43. CONTROL ASSEMBLY
  • 7.44. CHARGE PILOT PUMP SPARE PARTS L
  • 7.45. PUMP GEAR FAN
  • 7.46. PUMP DUST COLLECTOR WATER INJE
  • 7.47. MAIN PUMP OPEN LOOP
  • 7.48. HYDRAULIC FILTER ASSEMBLY CHAR
  • 7.49. HYDRAULIC CHARGE VALVE
  • 7.50. MUFFLER INSTALLATION ENGINE
  • 7.51. PRECLEANER FUEL FILTER INSTALLA
  • 8. SECTION 5 DUST CONTROL.pdf
  • 8.1. SECTION 5 DUST CONTROL
  • 8.2. DUST CURTAIN ASSEMBLY 30 DEG
  • 8.3. DUST CURTAIN INSTALLATION

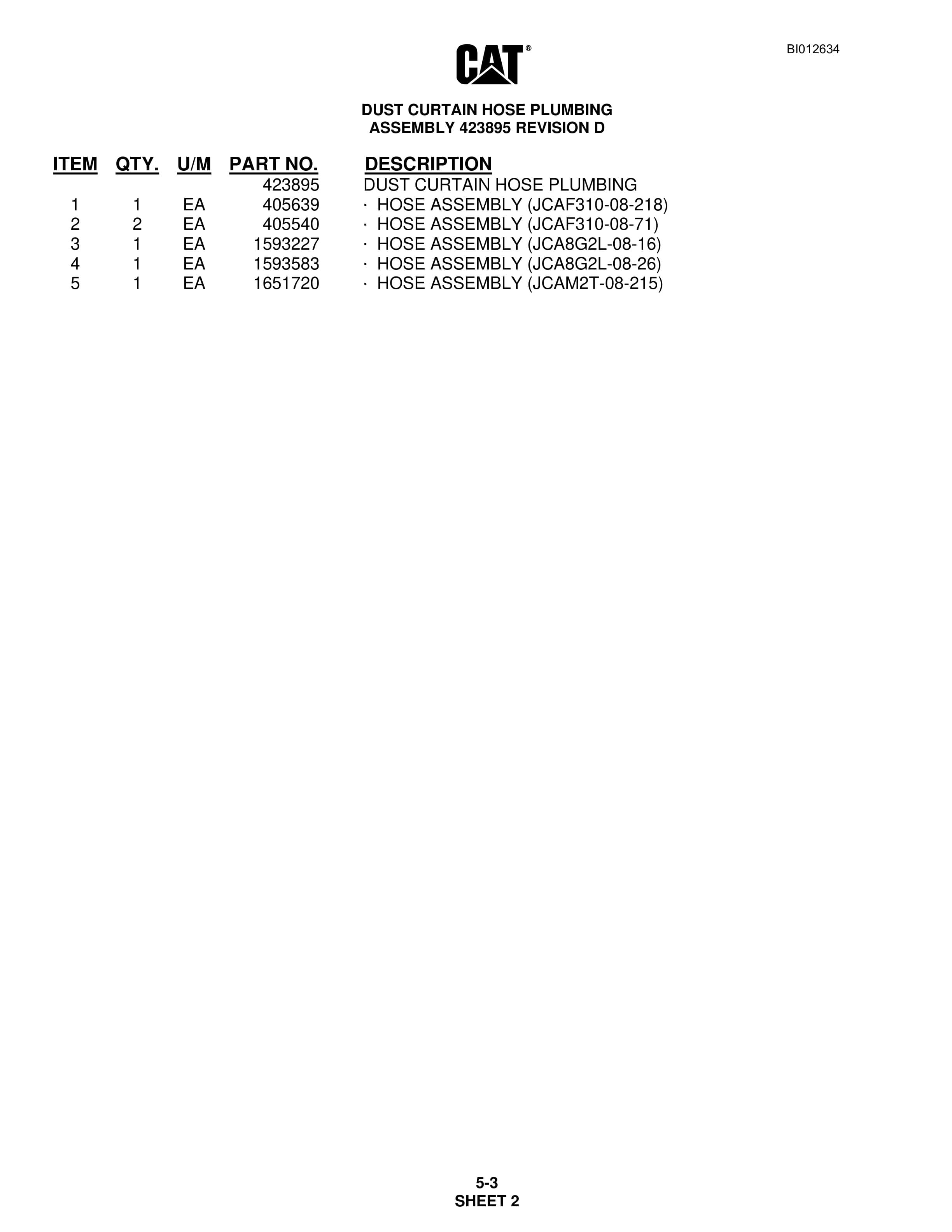

  • 8.4. DUST CURTAIN HOSE PLUMBING
  • 8.5. DUST CURTAIN ASSEMBLY FRONT
  • 8.6. DUST CURTAIN HOSE PLUMBING FR
  • 8.7. WATER INJECTION INSTALLATION 9
  • 8.8. WATER PUMP ASSEMBLY
  • 8.9. POWER END ASSEMBLY RH
  • 8.10. HYDRAULIC MOTOR
  • 8.11. VALVE FLOW CONTROL
  • 8.12. WATER INJECTION HOSE KIT 964 G
  • 8.13. WATER TANK 600 GALLON
  • 9. SECTION 6 MAST.pdf
  • 9.1. SECTION 6 MAST
  • 9.2. MAST ASSEMBLY 13M W AUTO TENS
  • 9.3. MAST PIVOT WELDMENT
  • 9.4. HOIST AND PULLDOWN CYLINDER ASS
  • 9.5. ROLLER ASSEMBLY CYLINDER GUIDE
  • 9.6. CYLINDER AUTO FEED CABLE TENSI
  • 9.7. CONTROL VALVE ASSEMBLY 9 STATI
  • 9.8. CONTROL VALVE ASSEMBLY 9 STATIn
  • 9.9. CLAMP HOIST AND PULLDOWN CYLIN
  • 9.10. MANIFOLD TENSIONER ASSEMBLY
  • 9.11. MANIFOLD TENSIONER
  • 9.12. AUTO FEED TENSIONER KIT
  • 9.13. MAST HOSE PLUMBING
  • 9.14. AUTO TOOL WRENCH INSTALLATION
  • 9.15. HOBO WRENCH INSTALLATION WITH
  • 9.16. HYDRAULIC OPERATED BREAKOUT WRE
  • 9.17. HYDRAULIC OPERATED BREAKOUT WREv
  • 9.18. CYLINDER 4 1 2 INCH BORE SWIN
  • 9.19. CYLINDER 5 INCH BORE ROTATE T
  • 9.20. CYLINDER 4 INCH BORE CLAMP
  • 9.21. WINCH INSTALLATION
  • 9.22. WINCH CASE DRAIN CONVERSION KIT
  • 9.23. WINCH ASSEMBLY
  • 9.24. BRAKE VALVE ASSEMBLY WINCH
  • 9.25. WINCH PLUMBING
  • 9.26. MAST LOCK ASSEMBLY SLEEVED
  • 9.27. PIPE POSITIONER PLUMBING
  • 9.28. PIPE POSITIONER INSTALLATION
  • 9.29. HYDRAULIC CYLINDER ASSEMBLY S

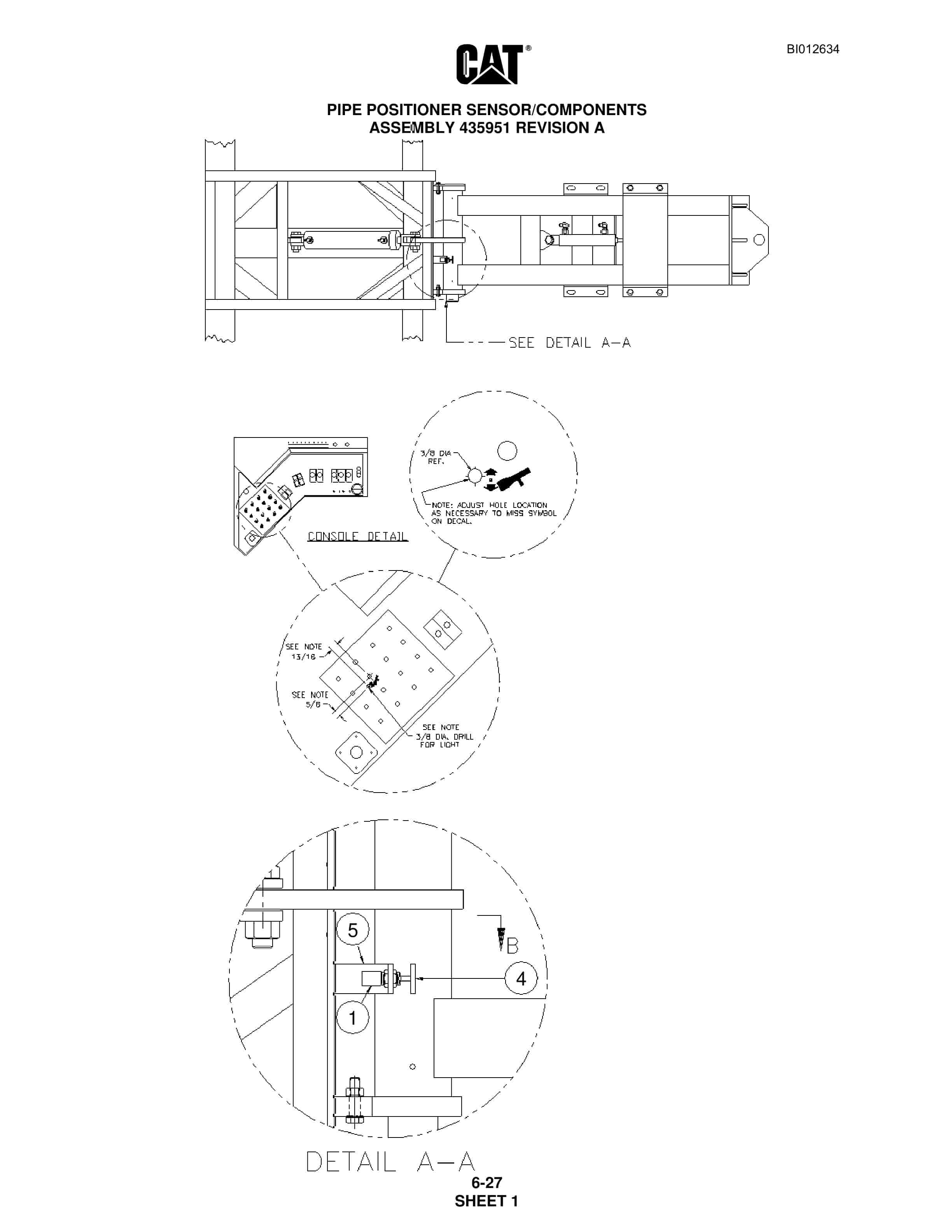

  • 9.30. PIPE POSITIONER SENSOR COMPONEN
  • 9.31. PIPE RACK INDEX PLUMBING
  • 9.32. PIPE RACK LOCK PLUMBING
  • 9.33. PIPE RACK SWING PLUMBING
  • 9.34. PIPE RACK SWING INTERLOCK
  • 9.35. PIPE RACK ASSEMBLY
  • 9.36. CYLINDER SWING PIPE RACK
  • 9.37. CYLINDER INDEX PIPE RACK
  • 9.38. MAST HOSE PLUMBINGc
  • 9.39. MAST LOCK INDICATOR
  • 9.40. MAST TUBING
  • 9.41. ROTARY DRIVE ASSEMBLY
  • 9.42. ROTARY DRIVE GEARCASE ASSEMBLY
  • 9.43. MOTOR HYDRAULIC
  • 9.44. SHUTTLE VALVE W TWO ORIFICES
  • 9.45. FRONT MAST REST INSTALLATION
  • 9.46. PIN RETAINER KIT MAST ELEVATI
  • 9.47. PIN RETAINER KIT HOIST AND PU
  • 10. SECTION 7 DRILLING TOOLS AC.pdf
  • 10.1. SECTION 7 DRILLING TOOLS AC

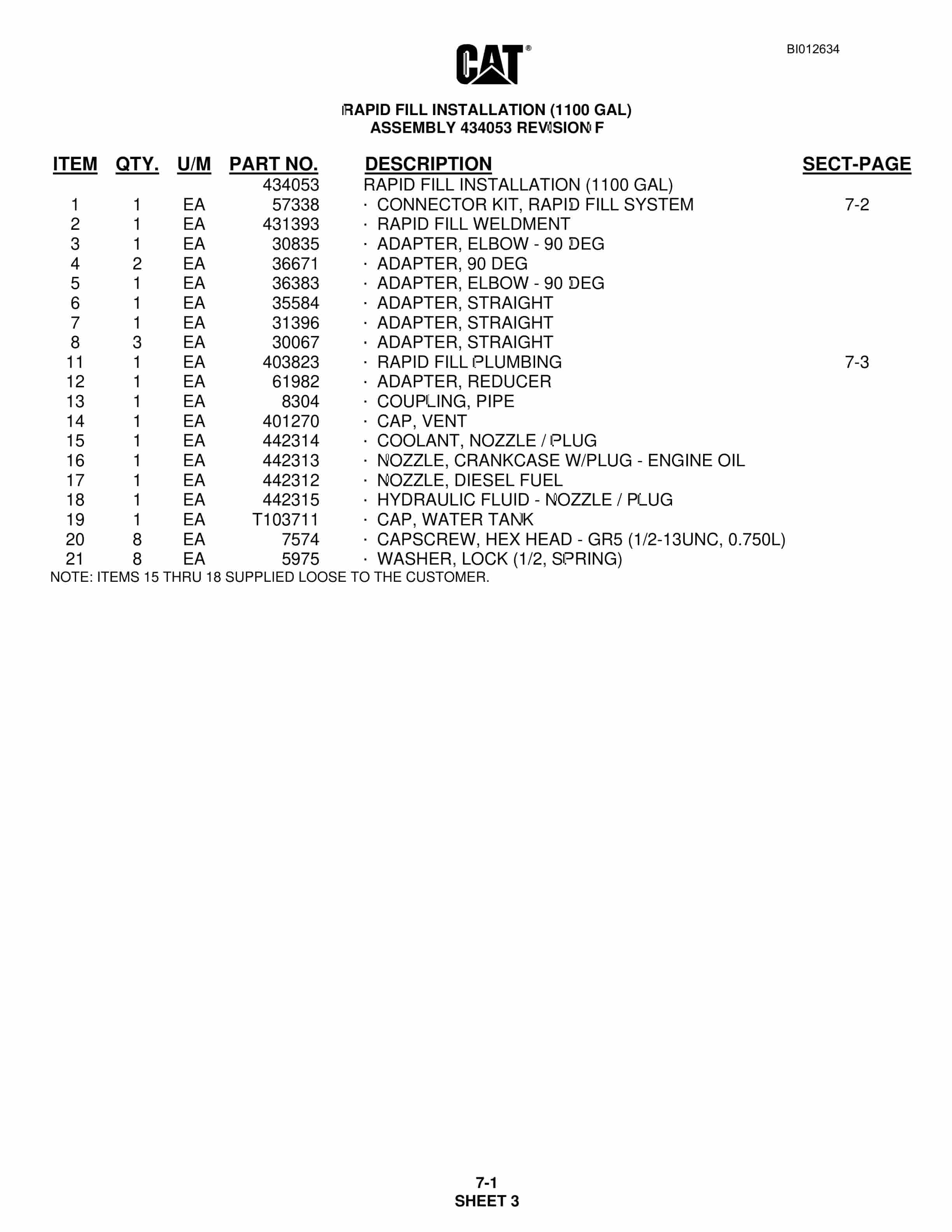

  • 10.2. RAPID FILL INSTALLATION 1100 G
  • 10.3. CONNECTOR KIT RAPID FILL SYSTE
  • 10.4. RAPID FILL PLUMBING
  • 10.5. LUBE SYSTEM INSTALLATION MACHI
  • 10.6. LUBRICATION SYSTEM MACHINE A
  • 10.7. AIR MOTOR ASSEMBLY MACHINE LUB
  • 10.8. TUBE ASSEMBLY AIR MOTOR MACHI
  • 10.9. MONITOR CONTROLLER MACHINE L

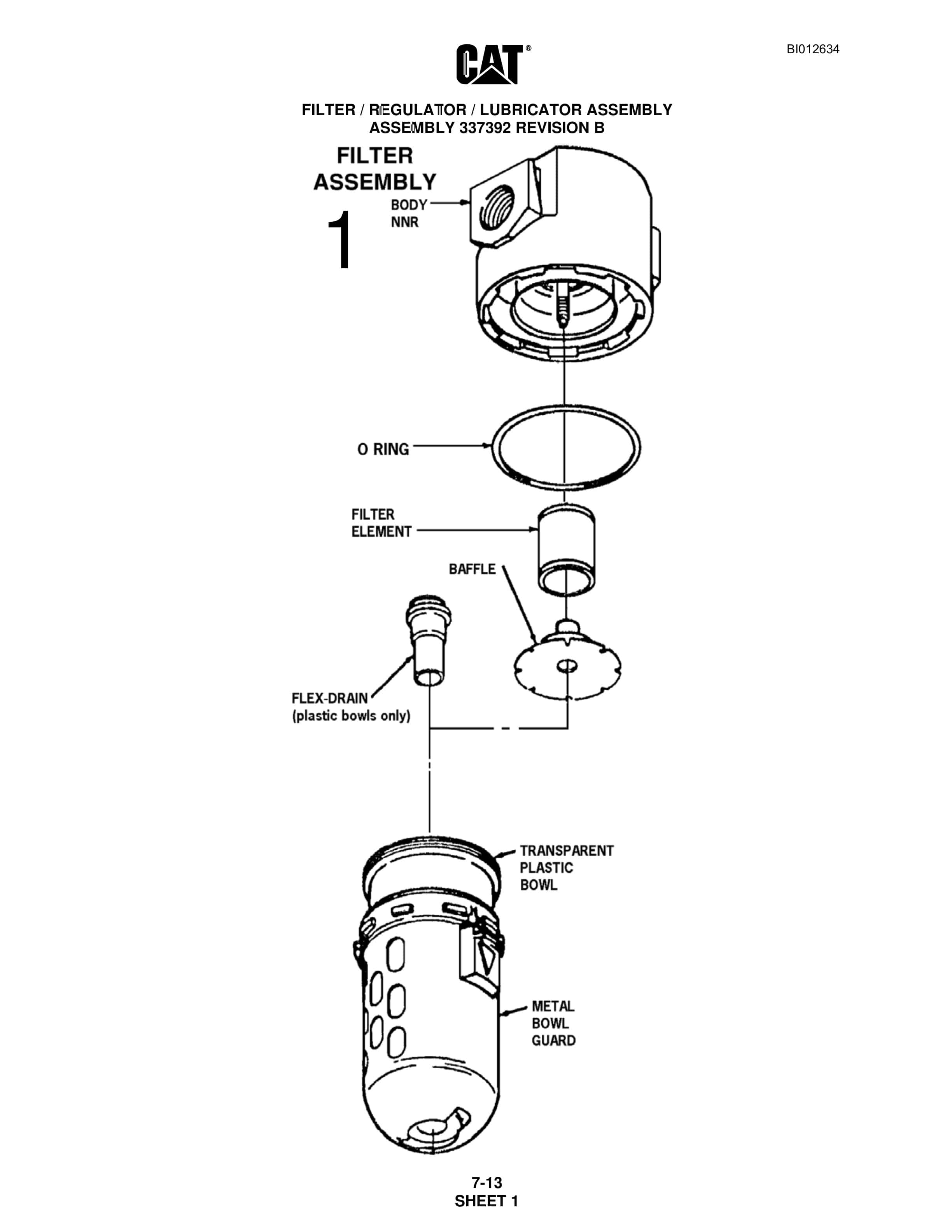

  • 10.10. FILTER REGULATOR LUBRICATOR
  • 10.11. LUBRICATOR INSTALLATION DRILL
  • 10.12. VALVE AIR
  • 10.13. LUBRICATOR ASSEMBLY DRILL STEM
  • 10.14. FILTER REGULATOR LUBRICATORw
  • 10.15. LUBRICATOR HOSE PLUMBING KIT
  • 10.16. ROTARY TORQUE CONTROL
  • 10.17. ROTARY TORQUE CONTROL PLUMBING
  • 10.18. HOSE COVER AND GRATING INSTALLA
  • 11. SECTION 8 HYDRAULICS PLUMBI.pdf
  • 11.1. SECTION 8 HYDRAULICS PLUMBI
  • 11.2. MAST ELEVATING PLUMBING
  • 11.3. MAST LOCK PLUMBING
  • 11.4. MAIN AIR PLUMBING
  • 11.5. JACK PLUMBING
  • 11.6. PROPEL PLUMBING
  • 11.7. FAN PLUMBING COOLER
  • 11.8. HYDRAULIC RESERVOIR INSTALLATIO
  • 11.9. FILTER ASSEMBLY MAIN RETURN
  • 11.10. FILTER ASSEMBLY CASE RETURN
  • 11.11. TEST STATION SYSTEM HYDRAULIC
  • 11.12. TEST STATION SYSTEM HYDRAULICq
  • 11.13. TEST STATION SYSTEM HYDRAULIC a
  • 11.14. TEST STATION HYDRAULIC HOSE PLU
  • 11.15. HYDRAULIC OPERATED BREAKOUT WREw
  • 11.16. MANIFOLD ASSEMBLY W ATTACHMENTS
  • 11.17. SUCTION PRESSURE RETURN PLUMB
  • 11.18. CAB TO VALVE STAND PLUMBING
  • 11.19. AUTO TOOL WRENCH PLUMBING
  • 11.20. FIVE LOOP FILTER KIT
  • 11.21. FILTER ASSEMBLY HIGH FATIGUE
  • 12. SECTION 9 ELECTRICAL.pdf
  • 12.1. SECTION 9 ELECTRICAL
  • 12.2. WIRING DIAGRAM COMPONENTS
  • 12.3. CAB WIRING HARNESS
  • 12.4. ENGINE SKID CAB WIRING HARNES
  • 12.5. CAB VALVE BANK WIRING HARNESS
  • 12.6. MAST WIRING HARNESS
  • 12.7. CAB DRILL PROPEL VALVE WIRING
  • 12.8. ENGINE SKID ENGINE AIR COND
  • 12.9. LIGHTS FRONT OF MACHINE WIRIN
  • 12.10. DUST COLLECTOR TO ENGINE WIRING
  • 12.11. BATTERY BOX ASSEMBLY
  • 12.12. ELECTRICAL SCHEMATIC SKS
  • 12.13. BATTERY ENGINE DISCONNECT INS
  • 12.14. FILTER INDICATOR WIRING
  • 12.15. TRAM INTERLOCK JACK
  • 12.16. TRAM INTERLOCK INSTALLATION 30
  • 12.17. STANDARD LED LIGHT KIT MD6420
