Caterpillar NSP12NI Parts Manual
Caterpillar NSP12NI Parts Manual - Image 2
Caterpillar NSP12NI Parts Manual - Image 3
Caterpillar NSP12NI Parts Manual - Image 4
Caterpillar NSP12NI Parts Manual - Image 5

Caterpillar NSP12NI Parts Manual

$50.00

  • Type Of Manual: Parts Manual
  • Number of Pages: 90
  • Size: 1.7MB
  • Format: PDF
Category:

Product details

  • Model List:

    • NSP12NI
  • 1. NSP12NI
  • 1.1. LIFTING CYLINDER 1200/1600kg SIMPLEX MAST
  • 1.2. LIFTING CYLINDER MIDDLE, DUPLEX SPEC FREELIFT, MLH 4300mm
  • 1.3. LIFTING CYLINDER DUPLEX MAST, MAX LIFTHEIGHT 4300mm
  • 1.4. LIFTING CYLINDER SIDE, DUPLEX SPEC FREE LIFT,MLH 4300mm
  • 1.5. A CHAIN YOKE FOR DUPLEX MAST WITH SIDE SYLINDERS
  • 1.6. C CASTER WHEEL SINGLE
  • 1.7. A DRIVE UNIT 0,6kW, WITH VULKOLLAN DRIVE TIRE
  • 1.8. A CYLINDER STANDARD
  • 1.9. A CIRCUIT BREAKER
  • 1.10. A CHAIN YOKE FOR 1200/1600kg SIMPLEX MAST
  • 1.11. A LEVER SYSTEM FOR SIMPLEX/DUPLEX MAST
  • 1.12. A MAST UNIT SIMPLEX WITH INITIAL LIFT, FORK LENGTH1150mm
  • 1.13. A LIFTING CARRIAGE FORK LENGTH 1150mm
  • 1.14. C BATTERY COVER FOR 1200kg MODEL, CAT
  • 1.15. C EL-PANEL FOR 1200kg MODEL, STANDARD
  • 1.16. B BOX FOR INBUILT CHARGER, EL-PANEL
  • 1.17. A DRIVE UNIT 0,6 kW
  • 1.18. A LIFTING CARRIAGE 1600kg WITH INIT LIFT DPLX MAST,FORK LNGHT 1150mm
  • 1.19. E HYDRAULIC AGGREGATE FOR 1200kg MODEL WITHINITIAL LIFT
  • 1.20. C BATTERY CHANGING DEV WITHOUT BRAKE
  • 1.21. B MOTOR 2.2kW, FOR 1200kg MODEL HYDRAULICAGGREGATE

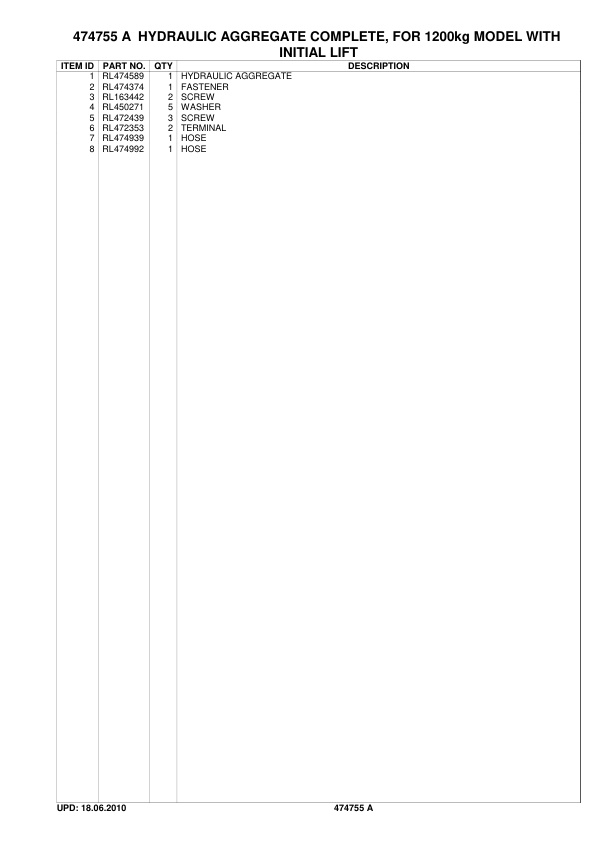

  • 1.22. A HYDRAULIC AGGREGATE COMPLETE, FOR 1200kgMODEL WITH INITIAL LIFT
  • 1.23. B MANIPULATOR WITH INITIAL LIFT, CAT
  • 1.24. B STEERING ARM STANDARD
  • 1.25. A STEERING ARM COMPLETE, WITH INITIAL LIFT, CAT
  • 1.26. A OPERATORS MODULE 1200kg MODEL WITH INIT LIFT,VULKOLLAN TIRE, CAT

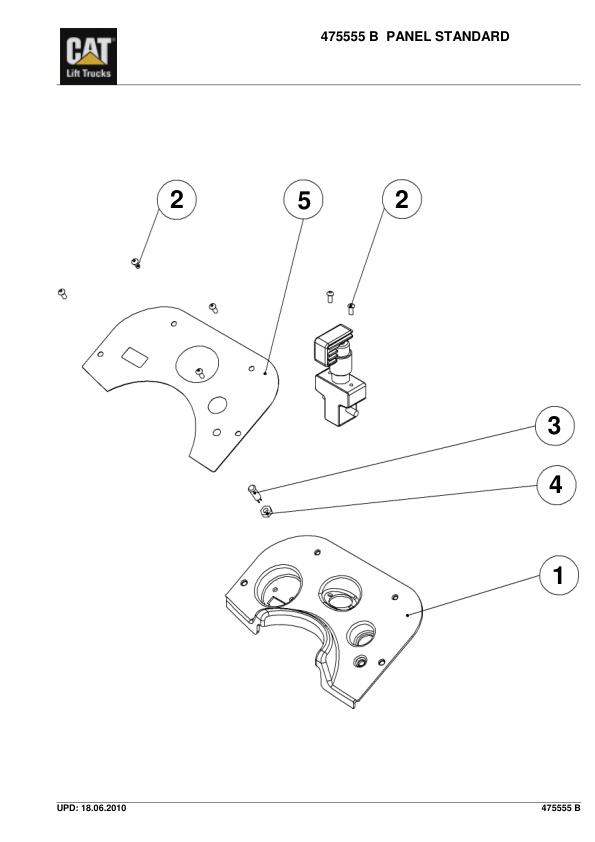

  • 1.27. B PANEL STANDARD
  • 1.28. D ASSEMBLY 1200kg MODEL WITH INITIAL LIFT, CAT

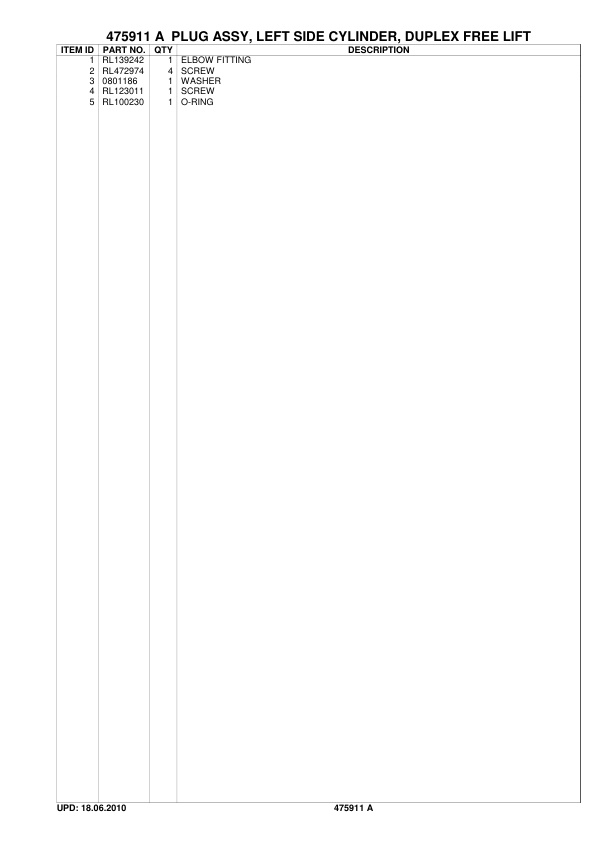

  • 1.29. A PLUG ASSY, LEFT SIDE CYLINDER, DUPLEX FREE LIFT
  • 1.30. A PLUG ASSY, RIGHT SIDE CYLINDER, DUPLEX FREE LIFT
  • 1.31. B MAST UNIT 1200/1600kg INIT/L DPLX MLH 4300mm, F/L1150mm
  • 1.32. B MAST UNIT 1200/1600kg INIT/L DPLX SFL MLH 4300mm,F/L 1150mm
  • 1.33. F CHASSIS FOR 1200kg MODEL WITH INITIAL LIFT
  • 1.34. A LOAD SUPPORT FOR INITIAL LIFT MODEL
  • 1.35. A STEERING UNIT STEERING ARM MODEL 2007
  • 1.36. A PIPE STEERING ARM MODEL 2007, WITHOUT PLATFORM
  • 1.37. ROLLER
