Caterpillar NSP12NS Parts Manual

$50.00

  • Type Of Manual: Parts Manual
  • Number of Pages: 74
  • Size: 1.3MB
  • Format: PDF
Category:

Product details

  • Model List:

    • NSP12NS
  • 1. NSP12NS
  • 1.1. LIFTING CYLINDER 1200/1600kg SIMPLEX MAST
  • 1.2. LIFTING CYLINDER MIDDLE, DUPLEX SPEC FREELIFT, MLH 4300mm
  • 1.3. LIFTING CYLINDER DUPLEX MAST, MAX LIFTHEIGHT 4300mm
  • 1.4. LIFTING CYLINDER SIDE, DUPLEX SPEC FREE LIFT,MLH 4300mm
  • 1.5. A CHAIN YOKE FOR DUPLEX MAST WITH SIDE SYLINDERS
  • 1.6. A DRIVE UNIT 0,6kW, WITH VULKOLLAN DRIVE TIRE
  • 1.7. A CIRCUIT BREAKER
  • 1.8. A CHAIN YOKE FOR 1200/1600kg SIMPLEX MAST
  • 1.9. C BATTERY COVER FOR 1200kg MODEL, CAT
  • 1.10. C EL-PANEL FOR 1200kg MODEL, STANDARD
  • 1.11. B BOX FOR INBUILT CHARGER, EL-PANEL
  • 1.12. A DRIVE UNIT 0,6 kW
  • 1.13. E HYDRAULIC AGGREGATE FOR 1200kg MODEL
  • 1.14. B MOTOR 2.2kW, FOR 1200kg MODEL HYDRAULICAGGREGATE
  • 1.15. B HYDRAULIC AGGREGATE COMPLETE, FOR 1200kgMODEL
  • 1.16. A MANIPULATOR STANDARD, CAT
  • 1.17. B BRACKET CASTER WHEEL, STRADDLE MODEL

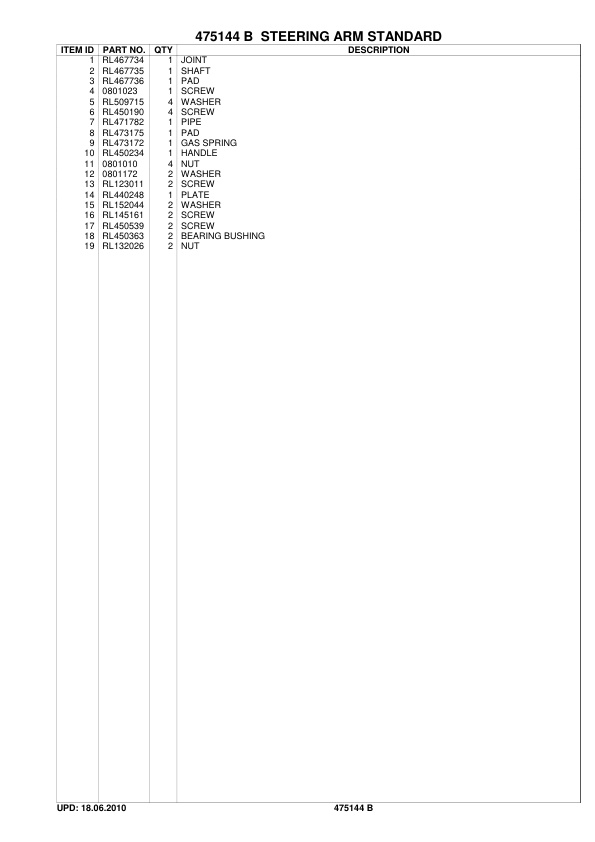

  • 1.18. B STEERING ARM STANDARD
  • 1.19. A STEERING ARM COMPLETE, STANDARD, CAT
  • 1.20. A OPERATORS MODULE 1200kg MODEL WITH VULKOLLANDRIVE TIRE, CAT
  • 1.21. B PANEL STANDARD
  • 1.22. A WHEEL LOAD WHEEL, TANDEM
  • 1.23. C ASSEMBLY 1200kg MODEL WITH STRADDLE, CAT

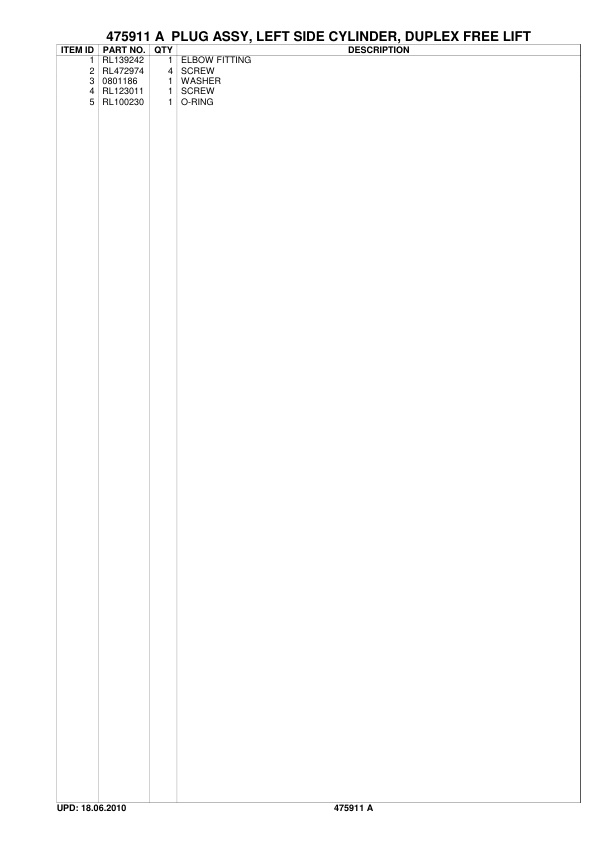

  • 1.24. A PLUG ASSY, LEFT SIDE CYLINDER, DUPLEX FREE LIFT
  • 1.25. A PLUG ASSY, RIGHT SIDE CYLINDER, DUPLEX FREE LIFT
  • 1.26. A LOAD SUPPORT FOR STRADDLE MODEL

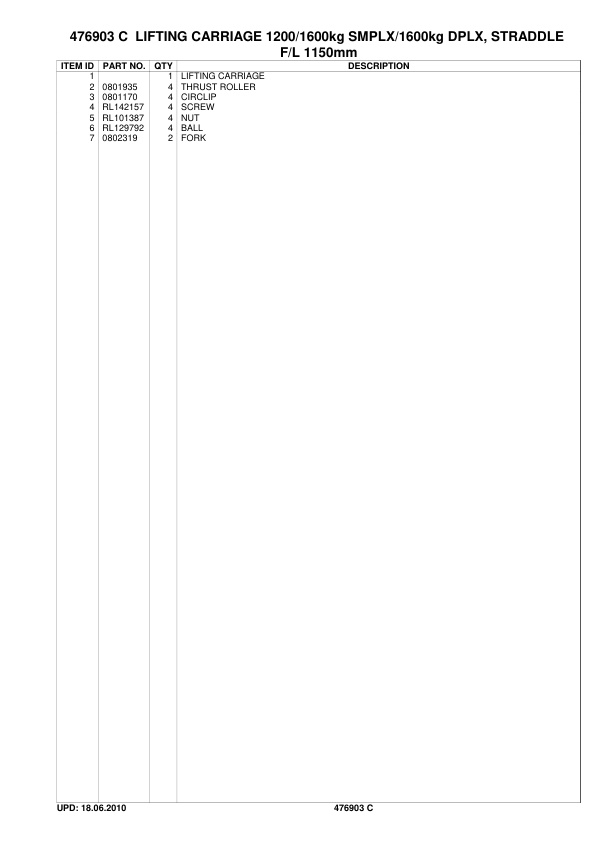

  • 1.27. C LIFTING CARRIAGE 1200/1600kg SMPLX/1600kg DPLX,STRADDLE F/L 1150mm
  • 1.28. A MAST UNIT 1200/1600kg SMPLXSTRADDLE, F/L 1150mm, TANDEM L/W

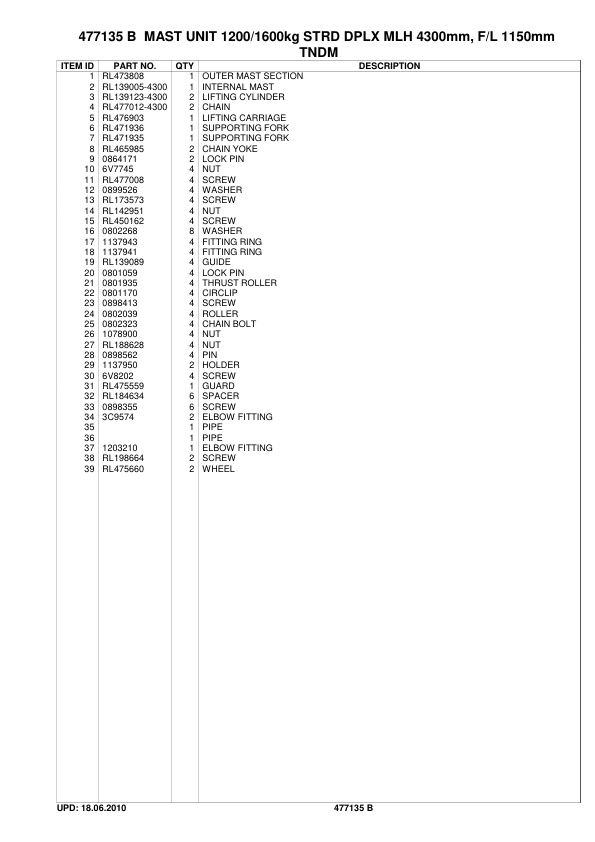

  • 1.29. B MAST UNIT 1200/1600kg STRD DPLX MLH 4300mm, F/L1150mm TNDM
  • 1.30. B MAST UNIT 1200/1600kg STRD DX SFL MLH 4300mm F/L1150mm TNDM
  • 1.31. B BATTERY CHANGING DEV FOR STRADDLE MODEL
  • 1.32. A STEERING UNIT STEERING ARM MODEL 2007
  • 1.33. A PIPE STEERING ARM MODEL 2007, WITHOUT PLATFORM
  • 1.34. ROLLER
