Caterpillar NSP16NI Parts Manual
Caterpillar NSP16NI Parts Manual - Image 2
Caterpillar NSP16NI Parts Manual - Image 3
Caterpillar NSP16NI Parts Manual - Image 4
Caterpillar NSP16NI Parts Manual - Image 5

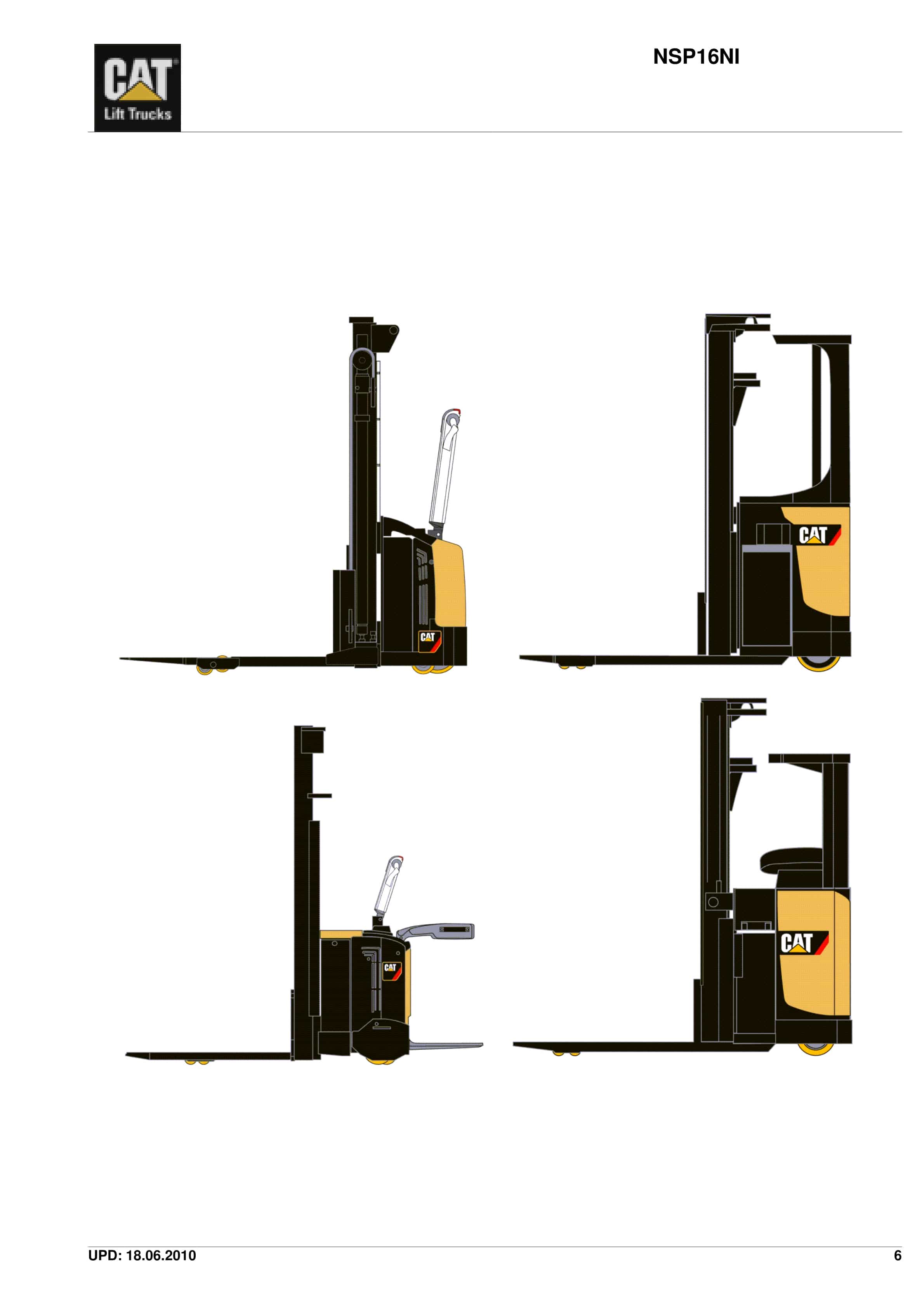

Caterpillar NSP16NI Parts Manual

$50.00

  • Type Of Manual: Parts Manual
  • Number of Pages: 168
  • Size: 3.3MB
  • Format: PDF
Category:

Product details

  • Model List:

    • NSP16NI
  • 1. NSP16NI
  • 1.1. LIFTING CYLINDER 1200/1600kg SIMPLEX MAST
  • 1.2. LIFTING CYLINDER MIDDLE, DUPLEX SPEC FREELIFT, MLH 4300mm
  • 1.3. LIFTING CYLINDER DUPLEX MAST, MAX LIFTHEIGHT 4300mm
  • 1.4. LIFTING CYLINDER SIDE, DUPLEX SPEC FREE LIFT,MLH 4300mm
  • 1.5. LIFTING CYLINDER 1600kg TRIPLEX MAST, MAX LIFTHEIGHT 4100mm
  • 1.6. LIFTING CYLINDER MIDDLE, 1600kg TRIPLEX SPECFREE LIFT, MLH 4100mm
  • 1.7. LIFTING CYLINDER LEFT, 1600kg TRIPLEX SPECFREE LIFT, MLH 4100mm
  • 1.8. LIFTING CYLINDER RIGHT, 1600kg TRIPLEX SPECFREE LIFT, MLH 4100mm
  • 1.9. A CHAIN YOKE FOR DUPLEX MAST WITH SIDE SYLINDERS
  • 1.10. C CASTER WHEEL SINGLE
  • 1.11. C DRIVE UNIT
  • 1.12. A CYLINDER STANDARD
  • 1.13. A CIRCUIT BREAKER
  • 1.14. A DRIVE UNIT VULKOLLAN TIRE
  • 1.15. B MOTOR 3kW, FOR 1600kg MODEL HYDRAULICAGGREGATE
  • 1.16. A CHAIN WHEEL DIAM. 91.5mm
  • 1.17. A CHAIN WHEEL DIAM. 80mm
  • 1.18. A CHAIN YOKE FOR 1200/1600kg SIMPLEX MAST
  • 1.19. A LEVER SYSTEM FOR SIMPLEX/DUPLEX MAST
  • 1.20. A MAST UNIT SIMPLEX WITH INITIAL LIFT, FORK LENGTH1150mm
  • 1.21. A LIFTING CARRIAGE FORK LENGTH 1150mm
  • 1.22. C BATTERY COVER FOR 1600kg MODEL, CAT
  • 1.23. C EL-PANEL FOR 1600kg MODEL, STANDARD
  • 1.24. B BOX FOR INBUILT CHARGER, EL-PANEL
  • 1.25. A LIFTING CARRIAGE 1600kg W/ INIT LIFT, TRPLX SPECFREE, F/L 1150mm
  • 1.26. A LIFTING CARRIAGE 1600kg WITH INIT LIFT, TRPLX MAST,F/L 1150mm
  • 1.27. A LIFTING CARRIAGE 1600kg WITH INIT LIFT DPLX MAST,FORK LNGHT 1150mm
  • 1.28. E HYDRAULIC AGGREGATE FOR 1600kg MODEL WITHINITIAL LIFT

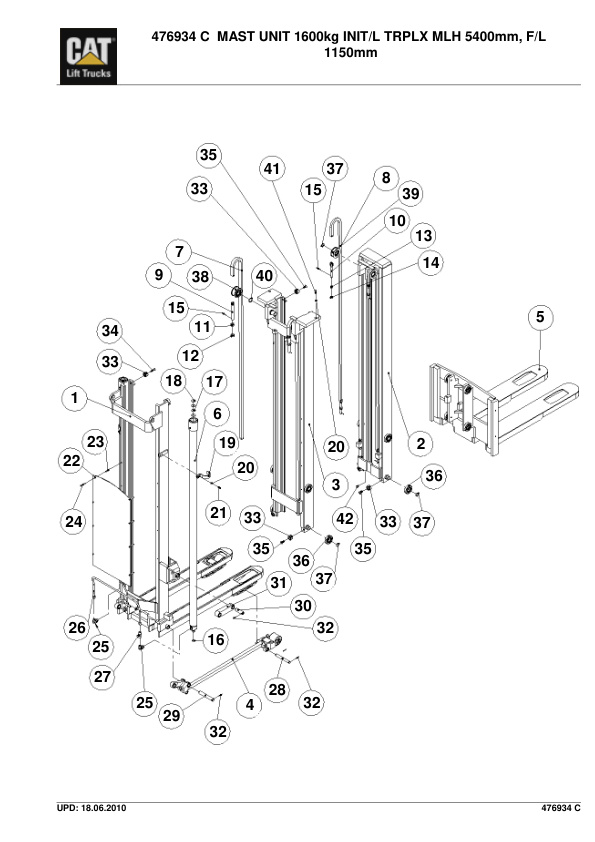

  • 1.29. C MAST UNIT 1600kg INIT/L TRPLX MLH 4100mm, F/L1150mm
  • 1.30. A LEVER SYSTEM FOR TRIPLEX MAST
  • 1.31. B HYDRAULIC AGGREGATE COMPLETE, FOR 1600kgMODEL WITH INITIAL LIFT
  • 1.32. A PANEL FRONT, 1600kg MODEL, CAT
  • 1.33. B STEERING ARM STANDARD

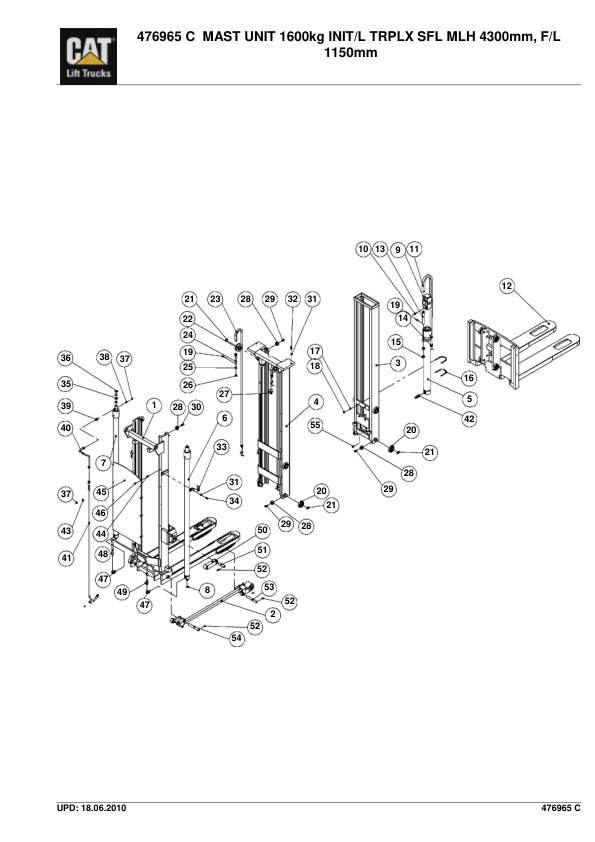

  • 1.34. C MAST UNIT 1600kg INIT/L TRPLX SFL MLH 4100mm, F/L1150mm
  • 1.35. C BATTERY CHANGING DEV WITH BRAKE
  • 1.36. B PANEL STANDARD
  • 1.37. C ASSEMBLY 1600kg MODEL WITH INITIAL LIFT, CAT
  • 1.38. A PLUG ASSY, LEFT SIDE CYLINDER, DUPLEX FREE LIFT
  • 1.39. A PLUG ASSY, RIGHT SIDE CYLINDER, DUPLEX FREE LIFT
  • 1.40. B MAST UNIT 1200/1600kg INIT/L DPLX MLH 4300mm, F/L1150mm
  • 1.41. B MAST UNIT 1200/1600kg INIT/L DPLX SFL MLH 4300mm,F/L 1150mm
  • 1.42. F CHASSIS FOR 1600kg MODEL WITH INITIAL LIFT
  • 1.43. A LOAD SUPPORT FOR INITIAL LIFT MODEL

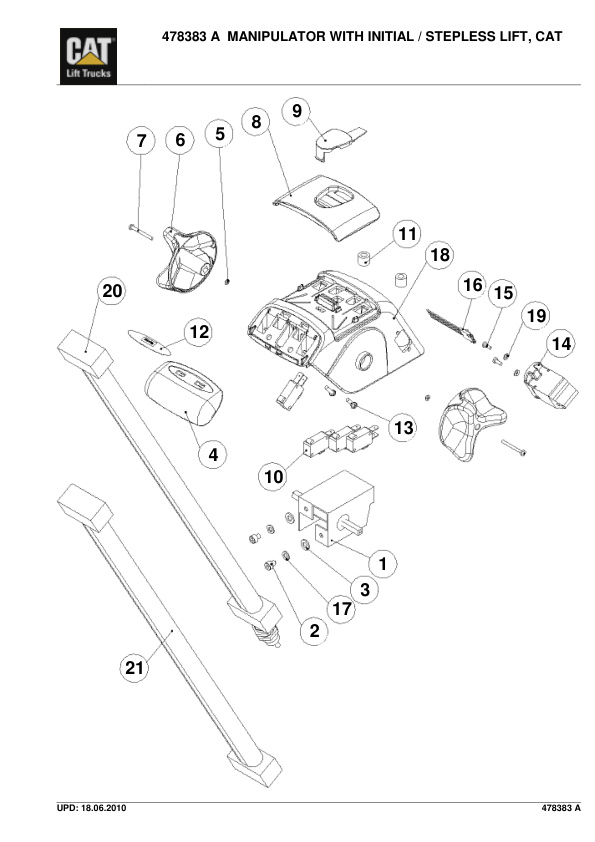

  • 1.44. A MANIPULATOR WITH INITIAL / STEPLESS LIFT, CAT
  • 1.45. A STEERING ARM WITH INITIAL / STEPLESS LIFT, CAT
  • 1.46. A OPERATORS MODULE
  • 1.47. A STEERING UNIT STEERING ARM MODEL 2007
  • 1.48. A PIPE STEERING ARM MODEL 2007, WITHOUT PLATFORM
  • 1.49. ROLLER
