Caterpillar NSR16NI Parts Manual
Caterpillar NSR16NI Parts Manual - Image 2
Caterpillar NSR16NI Parts Manual - Image 3
Caterpillar NSR16NI Parts Manual - Image 4
Caterpillar NSR16NI Parts Manual - Image 5

Caterpillar NSR16NI Parts Manual

$50.00

  • Type Of Manual: Parts Manual
  • Number of Pages: 232
  • Size: 4.7MB
  • Format: PDF
Category:

Product details

  • Model List:

    • NSR16NI
  • 1. NSR16NI
  • 1.1. LIFTING CYLINDER 1200/1600kg SIMPLEX MAST
  • 1.2. LIFTING CYLINDER MIDDLE, DUPLEX SPEC FREELIFT, MLH 2500mm
  • 1.3. LIFTING CYLINDER DUPLEX MAST, MAX LIFTHEIGHT 2500mm
  • 1.4. LIFTING CYLINDER SIDE, DUPLEX SPEC FREE LIFT,MLH 2500mm
  • 1.5. LIFTING CYLINDER 1600kg TRIPLEX, MAX LIFTHEIGHT 5400mm

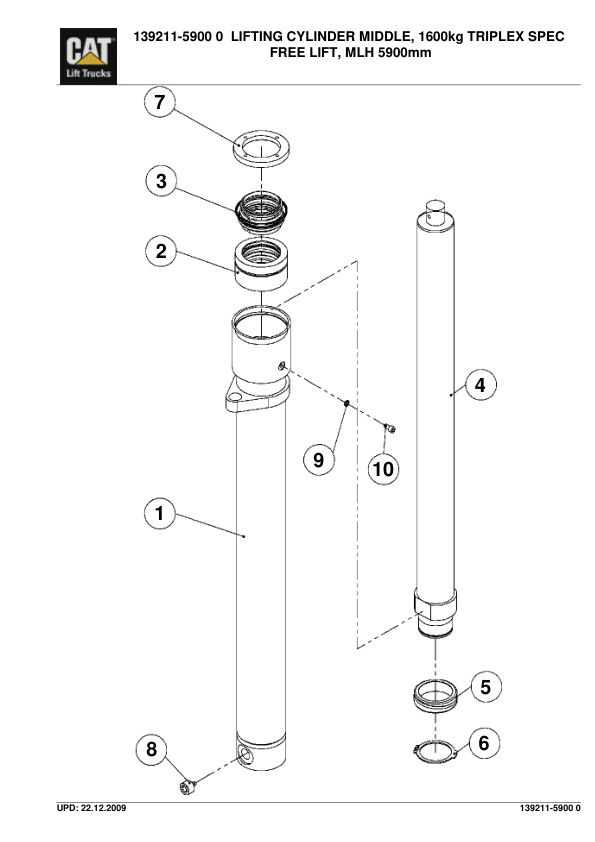

  • 1.6. LIFTING CYLINDER MIDDLE, 1600kg TRIPLEX SPECFREE LIFT, MLH 5400mm
  • 1.7. LIFTING CYLINDER LEFT, 1600kg TRIPLEX SPECFREE LIFT, MLH 5400mm
  • 1.8. LIFTING CYLINDER RIGHT, 1600kg TRIPLEX SPECFREE LIFT, MLH 5400mm
  • 1.9. A CHAIN YOKE FOR DUPLEX MAST WITH SIDE SYLINDERS
  • 1.10. B CASTER WHEEL STANDARD
  • 1.11. A BATTERY CHANGING DEVICE HANDLING WITH HANDPALLET TRUCK
  • 1.12. C LEVER SYSTEM
  • 1.13. A CHAIN WHEEL DIAM. 91.5mm
  • 1.14. A CHAIN WHEEL DIAM. 80mm
  • 1.15. A CHAIN YOKE FOR 1200/1600kg SIMPLEX MAST
  • 1.16. B OIL TANK
  • 1.17. A PLUG ASSY, LEFT SIDE CYLINDER, DUPLEX FREE LIFT
  • 1.18. A PLUG ASSY, RIGHT SIDE CYLINDER, DUPLEX FREE LIFT
  • 1.19. A WHEEL LOAD WHEEL, TANDEM, W/ INITIAL LIFT
  • 1.20. B MAST UNIT 1200/1600kg SIMPLEX MAST W/ INIT LIFT F/W570mm
  • 1.21. A LIFTING CARRIAGE 1200/1600kg SMPLX/1600kg DPLX INITLIFT F/W 570mm
  • 1.22. A LIFTING CARRIAGE 1200/1600kg TRIPLEX MAST W/ INITLIFT F/W 570mm
  • 1.23. A LIFTING CARRIAGE 1200/1600kg TRPLX SPEC FREE W/INIT LIFT F/W 570mm
  • 1.24. B MAST UNIT 1600kg DUPLEX W/ INIT LIFT, MLH 2500mmF/W 550mm
  • 1.25. B MAST UNIT 1600kg DUPLEX SF/INIT LIFT, MLH 2500mmF/W 550mm
  • 1.26. B MAST UNIT 1200/1600kg TRPLX INIT LIFT MLH 5400mmF/W 570mm
  • 1.27. C MAST UNIT 1200/1600kg TRPLX INIT/SF LIFT MLH 5400mmFW 570mm

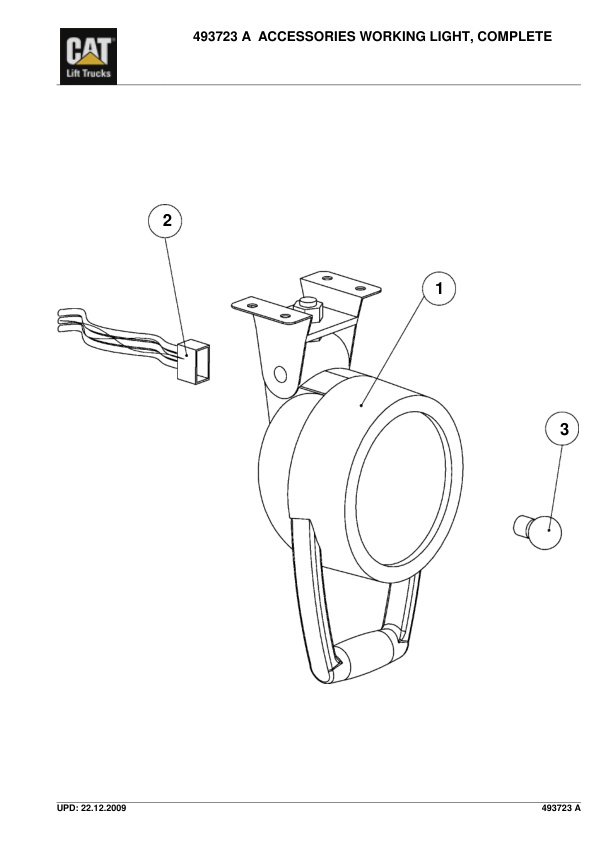

  • 1.28. C ACCESSORIES WORKING LIGHT, COMPLETE
  • 1.29. C DRIVE UNIT
  • 1.30. A STEERING WHEEL STEERING HANDLE
  • 1.31. A BRAKE
  • 1.32. A DRIVE WHEEL VULKOLLAN

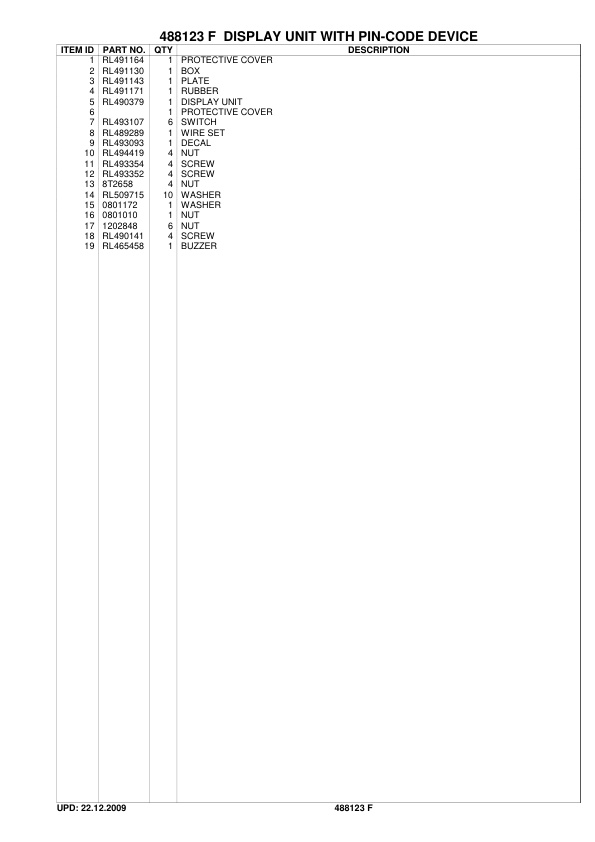

  • 1.33. F DISPLAY UNIT WITH PIN-CODE DEVICE
  • 1.34. C STEERING WHEEL COMPLETE
  • 1.35. A PUMP
  • 1.36. A SIDEPLATE CAT
  • 1.37. A ASSEMBLY BATTERY CABLES
  • 1.38. F PLATFORM
  • 1.39. B SENSOR SCALE-HYDRAULIC PRESSURE
  • 1.40. D INSTRUMENT PANEL WITH 2 STEERING HANDLES
  • 1.41. D EL-PANEL
  • 1.42. C ASSEMBLY MAIN ASSEMBLY
  • 1.43. A ASSEMBLY BATTERY LATCH
  • 1.44. A FIRE EXTINGUISHER
  • 1.45. A BUZZER
  • 1.46. A MIRROR
  • 1.47. A ACCESSORIES WORKING LIGHT
  • 1.48. A LOAD SUPPORT
  • 1.49. A ASSEMBLY PRESS KEY
  • 1.50. B SUPPORT SIDE STABILIZER FOR INITIAL LIFT
  • 1.51. A ASSEMBLY HYDRAULIC SIDE STABILIZERS
  • 1.52. A SENSOR AUTOMATIC LIFT CUT
  • 1.53. A HYDRAULIC SYSTEM DUPLEX MAST, INITIAL LIFT
  • 1.54. A STEERING HANDLE
  • 1.55. A PUMP MOTOR STAND-ON MODEL
  • 1.56. A ACCESSORIES WORKING LIGHT, COMPLETE
  • 1.57. ROLLER
