Caterpillar NSS15N Parts Manual
Caterpillar NSS15N Parts Manual - Image 2
Caterpillar NSS15N Parts Manual - Image 3
Caterpillar NSS15N Parts Manual - Image 4
Caterpillar NSS15N Parts Manual - Image 5

Caterpillar NSS15N Parts Manual

$50.00

  • Type Of Manual: Parts Manual
  • Number of Pages: 272
  • Size: 4.4MB
  • Format: PDF
Category:

Product details

  • Model List:

    • NSS15N
  • 1. LIFTING CYLINDER 1200/1600kg SIMPLEX MAST
  • 2. LIFTING CYLINDER MIDDLE, DUPLEX SPEC FREELIFT, MLH 2500mm
  • 3. LIFTING CYLINDER DUPLEX MAST, MAX LIFTHEIGHT 2500mm
  • 4. LIFTING CYLINDER SIDE, DUPLEX SPEC FREE LIFT,MLH 2500mm
  • 5. LIFTING CYLINDER 1600kg TRIPLEX, MAX LIFTHEIGHT 5400mm
  • 6. LIFTING CYLINDER MIDDLE, 1600kg TRIPLEX SPECFREE LIFT, MLH 5400mm
  • 7. LIFTING CYLINDER LEFT, 1600kg TRIPLEX SPECFREE LIFT, MLH 5400mm
  • 8. BATTERY ROLLER L220mm
  • 9. LIFTING CYLINDER RIGHT, 1600kg TRIPLEX SPECFREE LIFT, MLH 5400mm
  • 10. A CHAIN YOKE FOR DUPLEX MAST WITH SIDE SYLINDERS
  • 11. B CASTER WHEEL STANDARD
  • 12. A BATTERY CHANGING DEVICE HANDLING WITH HANDPALLET TRUCK
  • 13. B SUPPORT
  • 14. B SUPPORT
  • 15. A CHAIN WHEEL DIAM. 91.5mm
  • 16. A CHAIN WHEEL DIAM. 80mm
  • 17. A CHAIN YOKE FOR 1200/1600kg SIMPLEX MAST
  • 18. A WHEEL LOAD WHEEL, TANDEM
  • 19. A PLUG ASSY, LEFT SIDE CYLINDER, DUPLEX FREE LIFT
  • 20. A PLUG ASSY, RIGHT SIDE CYLINDER, DUPLEX FREE LIFT
  • 21. A LIFTING CARRIAGE SIMPLEX/DUPLEX MAST, FORKWIDTH 550mm
  • 22. A MAST UNIT 1200/1600kg SIMPLEX MAST, FORK WIDTH550mm
  • 23. B MAST UNIT 1600kg DUPLEX MAST, MLH 2500mm F/W550mm
  • 24. B MAST UNIT 1600kg DUPLEX SFL, MLH 2500mm F/W550mm

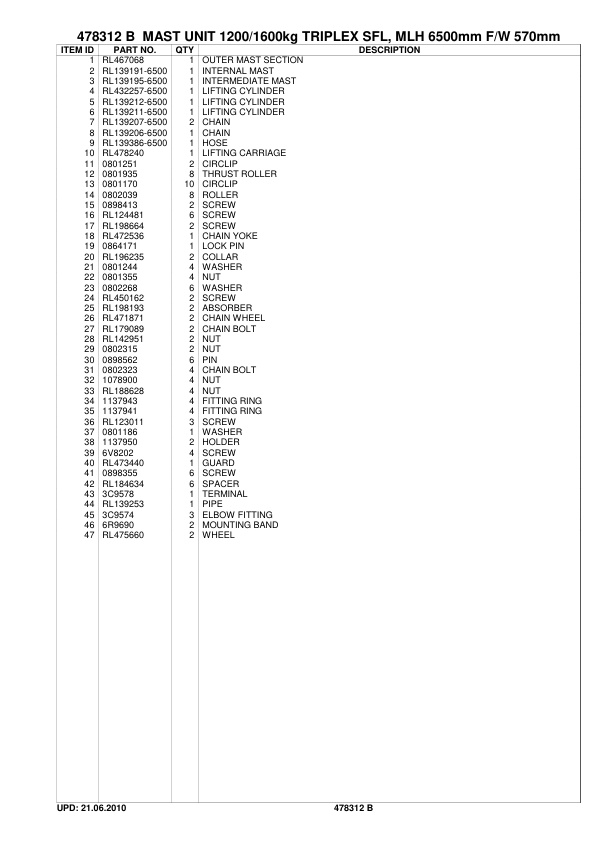

  • 25. C MAST UNIT 1200/1600kg TRIPLEX MAST, MLH 5400mmF/W 550mm
  • 26. A LIFTING CARRIAGE FOR TRIPLEX MAST, FORK WIDTH550mm
  • 27. A LIFTING CARRIAGE FOR TRIPLEX SPEC FREE LIFT, FORKWIDTH 550mm
  • 28. B MAST UNIT 1200/1600kg TRIPLEX SFL, MLH 5400mm F/W570mm
  • 29. C ACCESSORIES WORKING LIGHT, COMPLETE
  • 30. C PLATFORM COMPLETE
  • 31. A STEERING WHEEL STEERING HANDLE
  • 32. B SWITCH
  • 33. A BRAKE
  • 34. E DRIVE UNIT

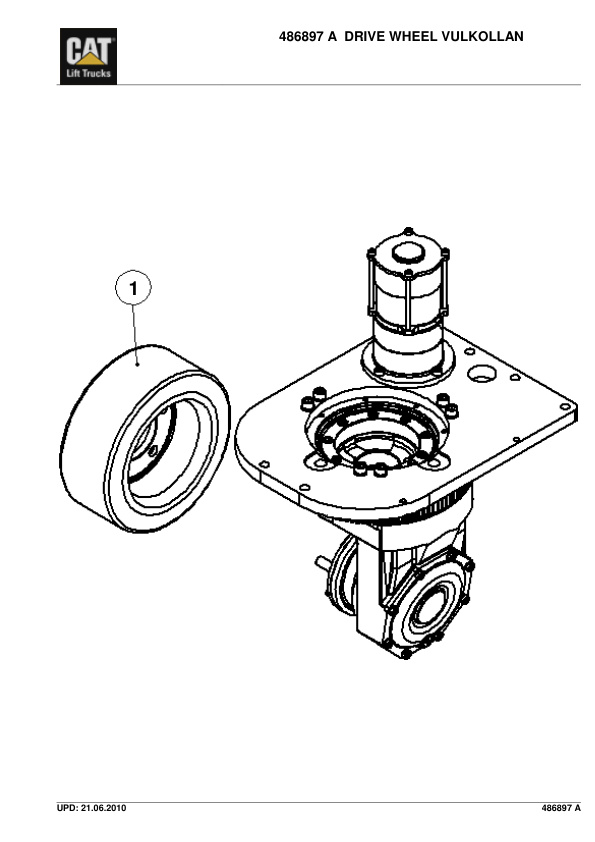

  • 35. A DRIVE WHEEL VULKOLLAN
  • 36. B PUMP MOTOR SIT-ON MODEL
  • 37. F EL-PANEL
  • 38. C EL-PANEL
  • 39. C STEERING WHEEL COMPLETE

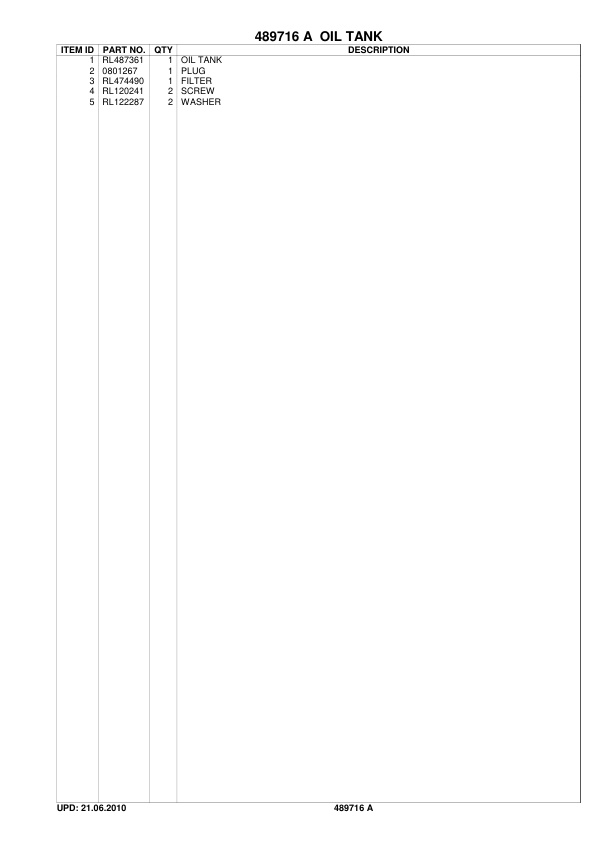

  • 40. A OIL TANK
  • 41. D INSTRUMENT PANEL COMPLETE
  • 42. G INSTRUMENT PANEL
  • 43. A SIDEPLATE OUTFIT, CAT
  • 44. A DRIVING SEAT STANDARD
  • 45. A PUMP
  • 46. D ASSEMBLY MAIN ASSEMBLY
  • 47. B SENSOR SCALE-HYDRAULIC PRESSURE
  • 48. A LOAD SUPPORT
  • 49. A ASSEMBLY BATTERY CABLES
  • 50. A ASSEMBLY BATTERY LATCH
  • 51. A LIGHT COMPLETE
  • 52. A FIRE EXTINGUISHER
  • 53. A WARNING LIGHT WITH SELECTING SWITCH
  • 54. A BUZZER
  • 55. B SAFETY BELT
  • 56. A ASSEMBLY EXTRA EQUIPMENT BRACKET
  • 57. A ACCESSORIES VOLTAGE CONVERTER
  • 58. B HYDRAULIC SYSTEM DUPLEX MAST
  • 59. A SENSOR AUTOMATIC LIFT CUT
  • 60. A ACCESSORIES WORKING LIGHT, COMPLETE
  • 61. A PRESS KEY
  • 62. ROLLER
