Caterpillar NSV12NS Parts Manual
Caterpillar NSV12NS Parts Manual - Image 2
Caterpillar NSV12NS Parts Manual - Image 3
Caterpillar NSV12NS Parts Manual - Image 4
Caterpillar NSV12NS Parts Manual - Image 5

Caterpillar NSV12NS Parts Manual

$50.00

  • Type Of Manual: Parts Manual
  • Number of Pages: 158
  • Size: 2.0MB
  • Format: PDF
Category:

Product details

  • Model List:

    • NSV12NS
  • 1. NSV12NS
  • 1.1. C CASTER WHEEL SINGLE
  • 1.2. C DRIVE UNIT
  • 1.3. B MOTOR 2.2kW, FOR 1200kg MODEL HYDRAULICAGGREGATE
  • 1.4. A WHEEL LOAD WHEEL, TANDEM
  • 1.5. A GASKET HOLDER FREE LIFT
  • 1.6. A ASSEMBLING SET SHIMS Q35/50
  • 1.7. D PLATFORM COMPLETE
  • 1.8. A BUMPER LOW GROUND CLEARANCE 40mm
  • 1.9. C ROLLBAR
  • 1.10. C ROLLBAR
  • 1.11. E FAN HEAVY DUTY
  • 1.12. C KEY SWITCH COMPLETE
  • 1.13. B CIRCUIT BREAKER COMPLETE, EMERGENCY SWITCH
  • 1.14. B PANEL COMPLETE, CAT
  • 1.15. A ASSEMBLY LOW GROUND CLEARANCE 40mm
  • 1.16. B BATTERY CHANGING DEV STANDARD
  • 1.17. C ASSEMBLY COMPUTER BRACKET
  • 1.18. A BUZZER DRIVE ALARM FOR DRIVE AND LIFTING
  • 1.19. B CHAIN FREE LIFT, LIFTING HEIGHT 2500mm
  • 1.20. B CHAIN DPLX MAST, LH 2900 / TRPLX MAST, LH4200mm
  • 1.21. B CHAIN DPLX MAST, LH 3700 / TRPLX MAST, LH5400mm
  • 1.22. B BRACKET
  • 1.23. A CHAIN YOKE FOR FREE LIFT CYLINDER
  • 1.24. A STEERING UNIT STEERING ARM MODEL 2007
  • 1.25. E ASSEMBLY MAIN ASSEMBLY
  • 1.26. B FREE LIFT CYLINDER
  • 1.27. B FREE LIFT CYLINDER
  • 1.28. B FREE LIFT CYLINDER
  • 1.29. B HEIGHT SENSOR
  • 1.30. D EL-PANEL
  • 1.31. A CHARGING CONNECTOR
  • 1.32. A HYDRAULIC AGGREGATE
  • 1.33. A MANIPULATOR STEERING ARM MODEL 2007, STACKERS,INITIAL LIFT
  • 1.34. B HYDRAULIC SYSTEM STANDARD
  • 1.35. F DISPLAY UNIT WITH PIN-CODE DEVICE
  • 1.36. A ASSEMBLY CURRENT OUTPUT
  • 1.37. A DRIVE UNIT
  • 1.38. A ROLLBAR ASSEMBLY
  • 1.39. D JOINT STEERING ARM MODEL 2007, STACKER /PLATFORM
  • 1.40. A STEERING ARM MODEL 2007
  • 1.41. B SENSOR SCALE-HYDRAULIC PRESSURE
  • 1.42. A PIPE STEERING ARM MODEL 2007, WITH PLATFORM
  • 1.43. B CYLINDER COMPLETE, WITH CUP SPRINGS
  • 1.44. A MACHINERY SHIELD CAT
  • 1.45. C CYLINDER WHEEL LOAD CYLINDER
  • 1.46. D DRIVE UNIT
  • 1.47. A ROLLBAR WITHOUT SIDE SAFETY BARS
  • 1.48. B BATTERY COVER CAT
  • 1.49. B BATTERY COVER SPECIAL COLOR

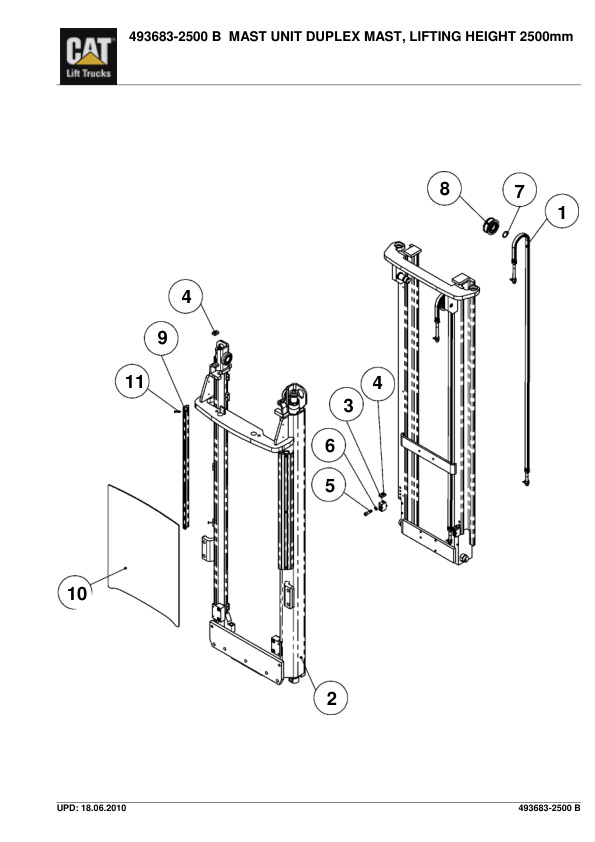

  • 1.50. B ASSEMBLY DUPLEX MAST, LIFTING HEIGHT 2500mm
  • 1.51. C ASSEMBLY DUPLEX MAST/ SPEC. FREE LIFT, LH2500mm

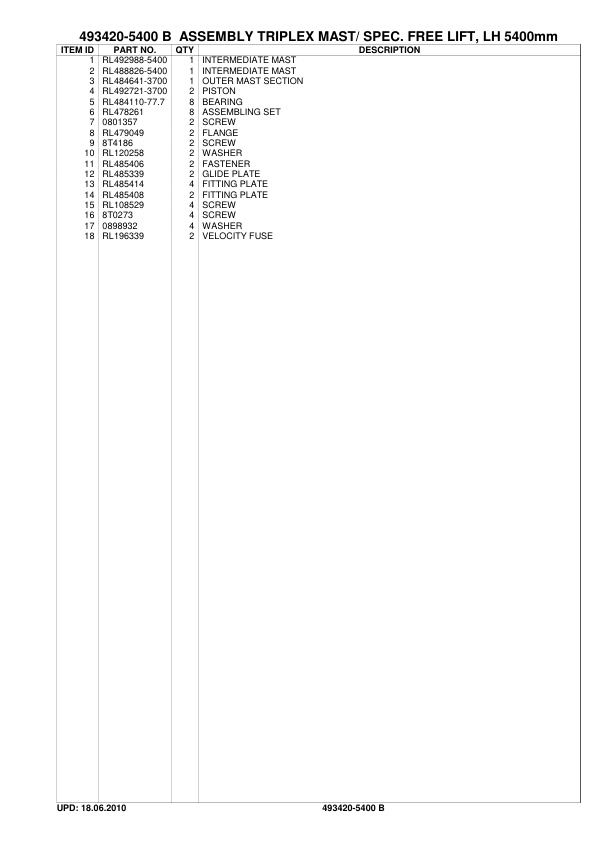

  • 1.52. B ASSEMBLY TRIPLEX MAST/ SPEC. FREE LIFT, LH5400mm
  • 1.53. B ASSEMBLY TRIPLEX MAST, LIFTING HEIGHT5400mm
  • 1.54. C MAST UNIT DUPLEX MAST/ SPEC. FREE LIFT, LH2500mm
  • 1.55. A BUMPER
  • 1.56. B ASSEMBLY STANDARD
  • 1.57. B MAST UNIT TRIPLEX MAST/ SPEC. FREE LIFT, LH5400mm
  • 1.58. A CHAIN WHEEL

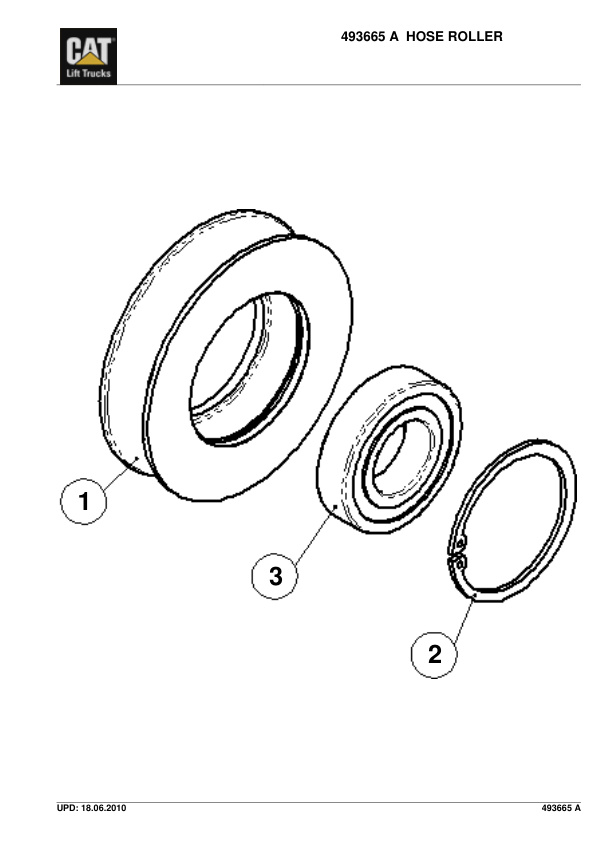

  • 1.59. A HOSE ROLLER
  • 1.60. A CHAIN LIFTING HEIGHT 5400mm
  • 1.61. A MAST UNIT TRIPLEX MAST, LIFTING HEIGHT 5400mm
  • 1.62. A CHAIN LIFTING HEIGHT 5400mm
  • 1.63. B MAST UNIT DUPLEX MAST, LIFTING HEIGHT 2500mm
  • 1.64. A CHAIN LIFTING HEIGHT 2500mm
  • 1.65. A ASSEMBLY SPECIAL COLOR
  • 1.66. A SUPPORTING FORK STRADDLE, WIDTH 900mm
  • 1.67. A ASSEMBLY STRADDLE
  • 1.68. A LIFTING CARRIAGE STRADDLE, DUPLEX/DUPLEXSPEC.FREE LIFT
  • 1.69. A ASSEMBLY BATTERY CONNECTOR
  • 1.70. A LOAD SUPPORT
  • 1.71. A HEIGHT SENSOR
  • 1.72. B ASSEMBLY QUICK BATTERY CHANGING DEVICE
