Caterpillar NSV16NS Parts Manual

$50.00

  • Type Of Manual: Parts Manual
  • Number of Pages: 144
  • Size: 1.9MB
  • Format: PDF
Category:

Product details

  • Model List:

    • NSV16NS
  • 1. NSV16NS
  • 1.1. C CASTER WHEEL SINGLE
  • 1.2. B MOTOR 3kW, FOR 1600kg MODEL HYDRAULICAGGREGATE
  • 1.3. A WHEEL LOAD WHEEL, TANDEM
  • 1.4. B DRIVE UNIT 2,0 kW WITH VULKOLLAN DRIVE WHEEL
  • 1.5. B DRIVE UNIT
  • 1.6. A GASKET HOLDER FREE LIFT
  • 1.7. A ASSEMBLING SET SHIMS Q35/50
  • 1.8. D PLATFORM COMPLETE
  • 1.9. A BUMPER LOW GROUND CLEARANCE 40mm
  • 1.10. C ROLLBAR
  • 1.11. C ROLLBAR
  • 1.12. E FAN HEAVY DUTY
  • 1.13. C KEY SWITCH COMPLETE
  • 1.14. B CIRCUIT BREAKER COMPLETE, EMERGENCY SWITCH
  • 1.15. B PANEL COMPLETE, CAT
  • 1.16. A ASSEMBLY LOW GROUND CLEARANCE 40mm
  • 1.17. B BATTERY CHANGING DEV STANDARD
  • 1.18. C ASSEMBLY COMPUTER BRACKET
  • 1.19. A BUZZER DRIVE ALARM FOR DRIVE AND LIFTING
  • 1.20. B CHAIN FREE LIFT, LIFTING HEIGHT 2500mm
  • 1.21. B CHAIN DPLX MAST, LH 2900 / TRPLX MAST, LH4200mm
  • 1.22. B CHAIN DPLX MAST, LH 3700 / TRPLX MAST, LH5400mm
  • 1.23. B BRACKET
  • 1.24. A CHAIN YOKE FOR FREE LIFT CYLINDER
  • 1.25. A STEERING UNIT STEERING ARM MODEL 2007
  • 1.26. E ASSEMBLY MAIN ASSEMBLY
  • 1.27. B FREE LIFT CYLINDER
  • 1.28. B FREE LIFT CYLINDER
  • 1.29. B FREE LIFT CYLINDER
  • 1.30. B HEIGHT SENSOR
  • 1.31. D EL-PANEL
  • 1.32. A CHARGING CONNECTOR
  • 1.33. A HYDRAULIC AGGREGATE
  • 1.34. A MANIPULATOR STEERING ARM MODEL 2007, STACKERS,INITIAL LIFT
  • 1.35. F DISPLAY UNIT WITH PIN-CODE DEVICE
  • 1.36. D DRIVE UNIT
  • 1.37. A ASSEMBLY CURRENT OUTPUT
  • 1.38. A ROLLBAR ASSEMBLY
  • 1.39. D JOINT STEERING ARM MODEL 2007, STACKER /PLATFORM
  • 1.40. A STEERING ARM MODEL 2007
  • 1.41. B SENSOR SCALE-HYDRAULIC PRESSURE
  • 1.42. A PIPE STEERING ARM MODEL 2007, WITH PLATFORM
  • 1.43. B CYLINDER COMPLETE, WITH CUP SPRINGS
  • 1.44. A MACHINERY SHIELD CAT
  • 1.45. C CYLINDER WHEEL LOAD CYLINDER
  • 1.46. A HYDRAULIC SYSTEM WITH PROPORTION VALVE
  • 1.47. B BATTERY COVER CAT

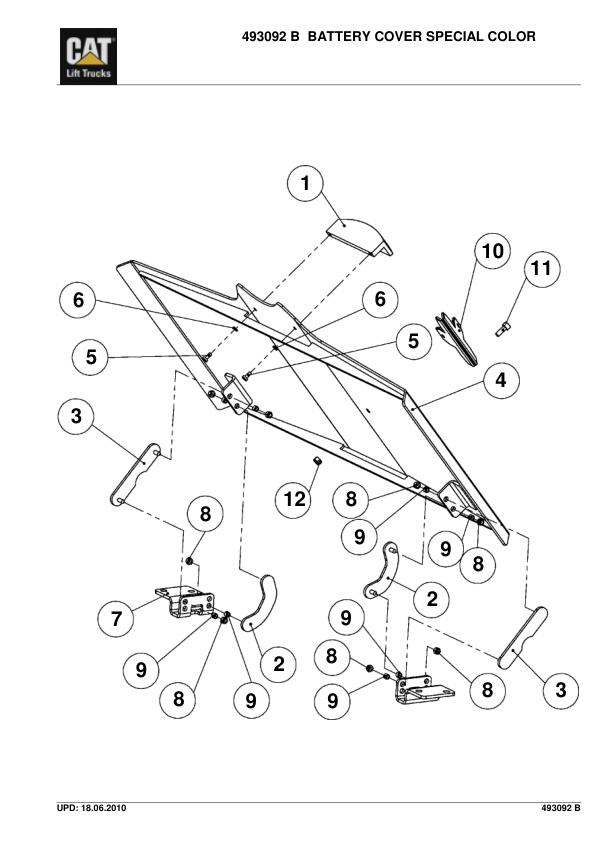

  • 1.48. B BATTERY COVER SPECIAL COLOR
  • 1.49. C ASSEMBLY DUPLEX MAST/ SPEC. FREE LIFT, LH2500mm
  • 1.50. B ASSEMBLY TRIPLEX MAST/ SPEC. FREE LIFT, LH5400mm
  • 1.51. B ASSEMBLY TRIPLEX MAST, LIFTING HEIGHT5400mm
  • 1.52. C MAST UNIT DUPLEX MAST/ SPEC. FREE LIFT, LH2500mm
  • 1.53. A BUMPER

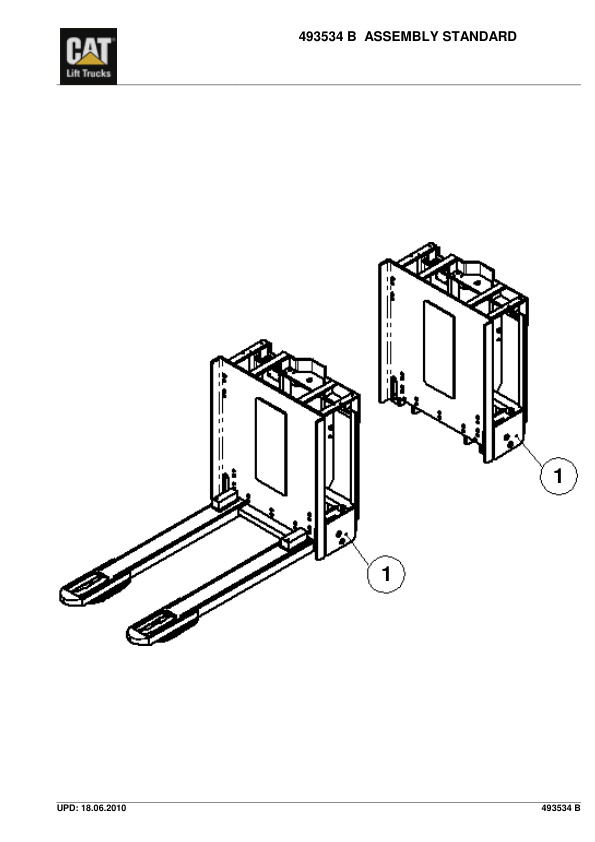

  • 1.54. B ASSEMBLY STANDARD
  • 1.55. B MAST UNIT TRIPLEX MAST/ SPEC. FREE LIFT, LH5400mm
  • 1.56. A CHAIN WHEEL

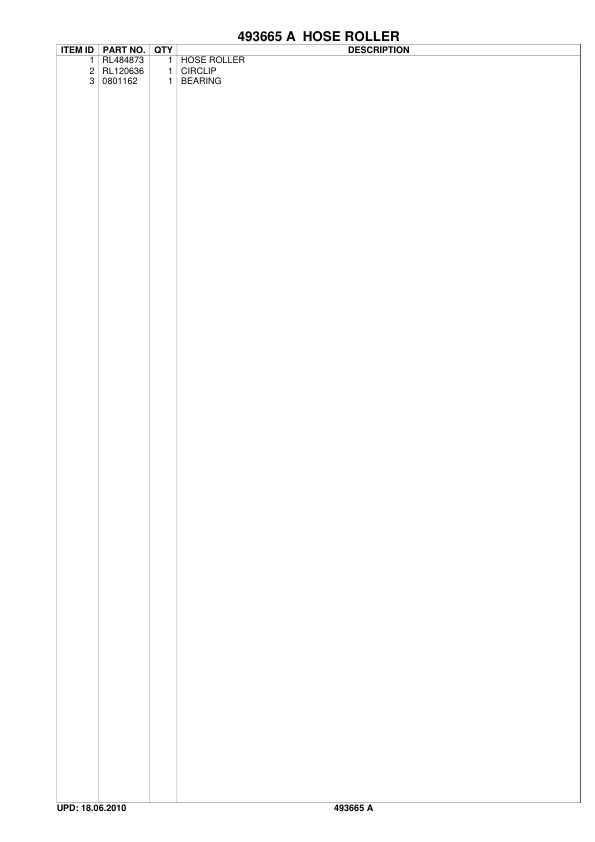

  • 1.57. A HOSE ROLLER
  • 1.58. A CHAIN LIFTING HEIGHT 5400mm
  • 1.59. A MAST UNIT TRIPLEX MAST, LIFTING HEIGHT 5400mm
  • 1.60. A CHAIN LIFTING HEIGHT 5400mm
  • 1.61. A ASSEMBLY SPECIAL COLOR
  • 1.62. A SUPPORTING FORK STRADDLE, WIDTH 900mm
  • 1.63. A ASSEMBLY STRADDLE
  • 1.64. A LIFTING CARRIAGE STRADDLE, DUPLEX/DUPLEXSPEC.FREE LIFT
  • 1.65. A ASSEMBLY BATTERY CONNECTOR
  • 1.66. A LOAD SUPPORT
  • 1.67. A HEIGHT SENSOR
  • 1.68. B ASSEMBLY QUICK BATTERY CHANGING DEVICE
  • 1.69. A OUTER MAST SECTION
  • 1.70. A LOCK QUICK-BATTERY BLOCKING
