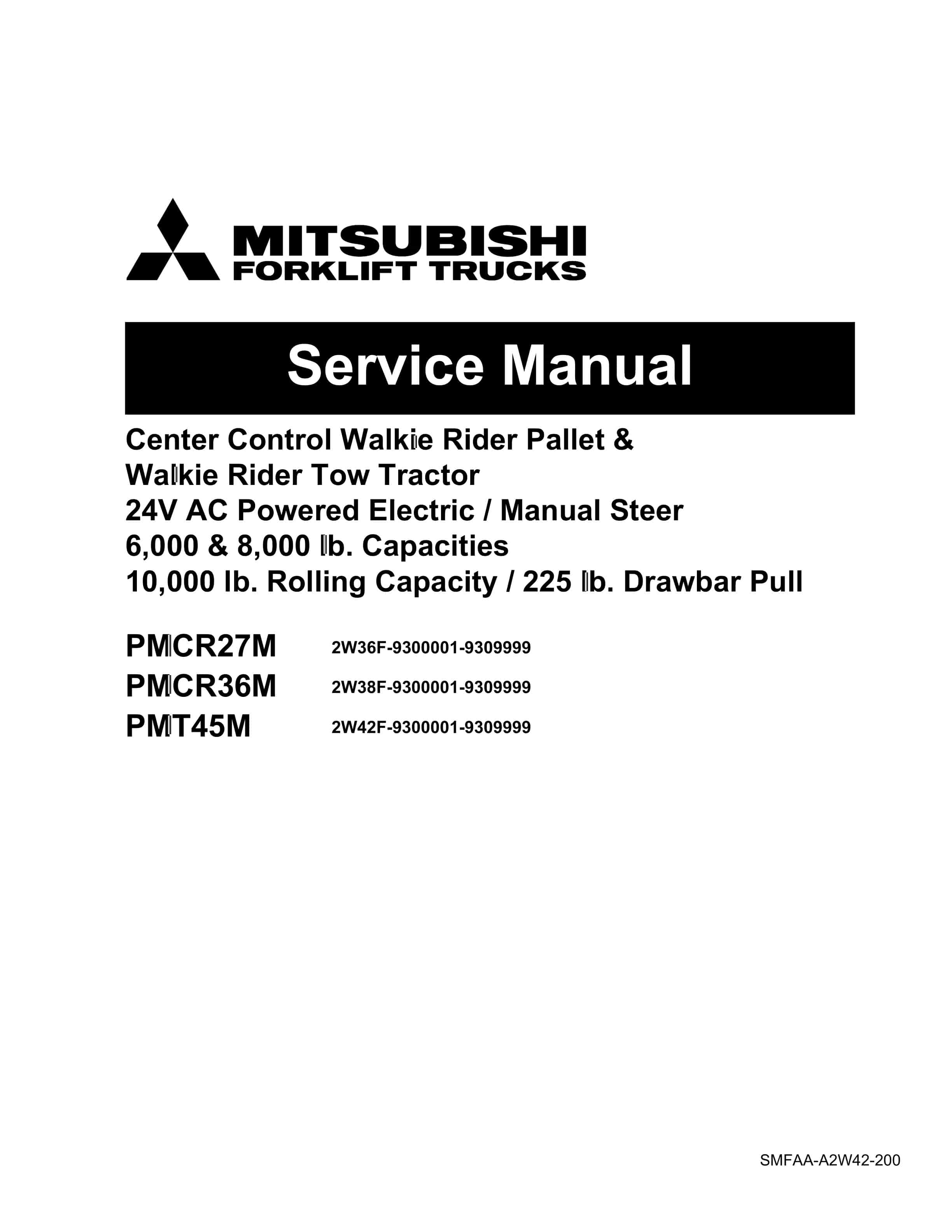

Mitsubishi PMCR27M, PMCR36M, PMT45M Service Manual SMFAA-A2W42-200

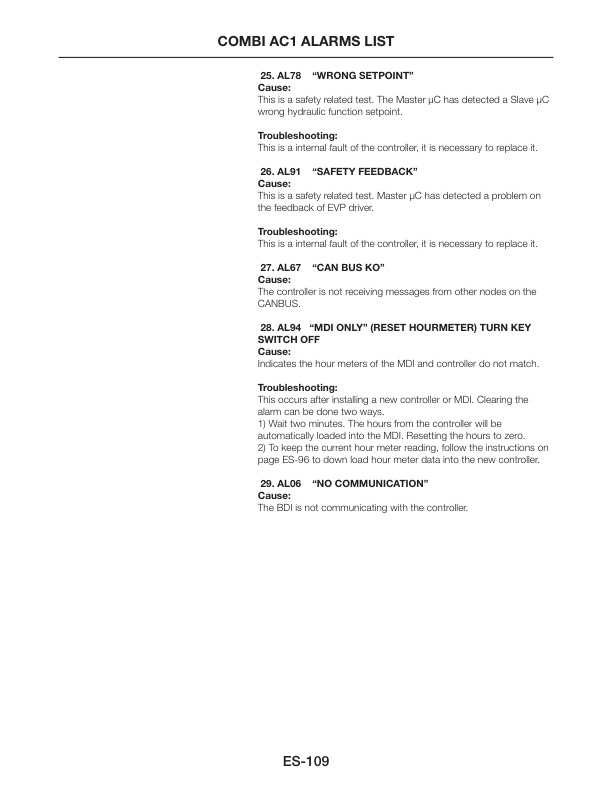

Mitsubishi PMCR27M, PMCR36M, PMT45M Service Manual SMFAA-A2W42-200 - Image 2

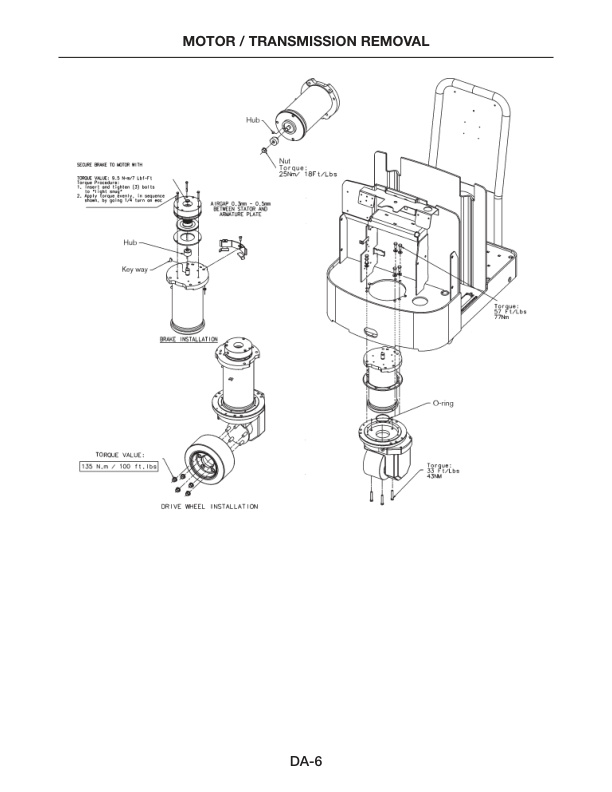

Mitsubishi PMCR27M, PMCR36M, PMT45M Service Manual SMFAA-A2W42-200 - Image 3

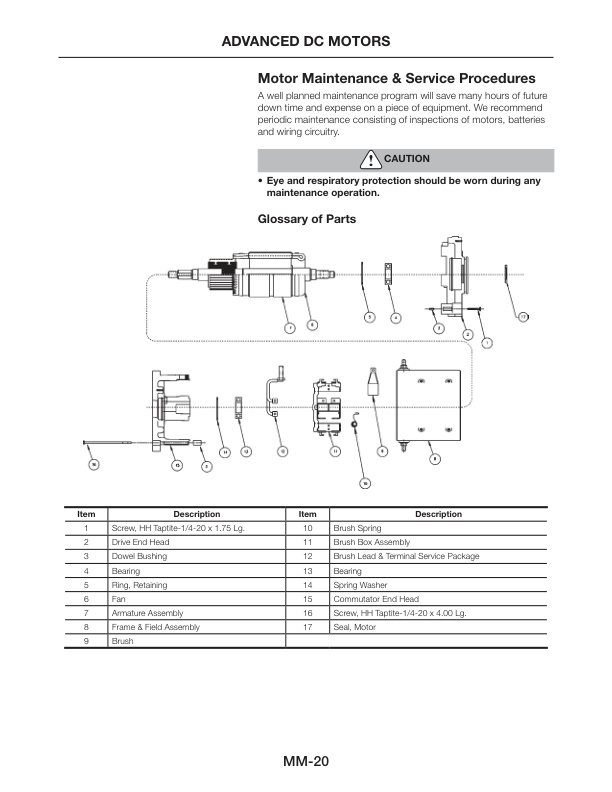

Mitsubishi PMCR27M, PMCR36M, PMT45M Service Manual SMFAA-A2W42-200 - Image 4

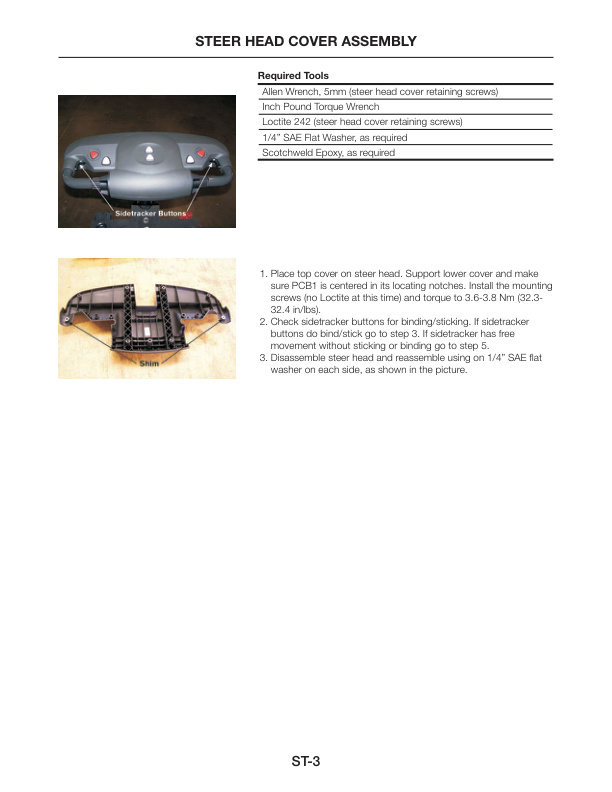

Mitsubishi PMCR27M, PMCR36M, PMT45M Service Manual SMFAA-A2W42-200 - Image 5

Mitsubishi PMCR27M, PMCR36M, PMT45M Service Manual SMFAA-A2W42-200

$50.00

  • Type Of Manual: Service Manual
  • Manual ID: SMFAA-A2W42-200
  • : 1
  • Number of Pages: 366
  • Size: 23.0MB
  • Format: PDF
Category:

Product details

  • Model List:

    • PMCR27M, PMCR36M, PMT45M
  • 1. Service Manual
  • 1.1. Comment Page
  • 1.2. Foreword
  • 1.3. Introduction
  • 1.4. Bulletin Index
  • 1.4.1. SB2018-143 Directional/Speed Control Kit
  • 1.4.2. SB2017-141R Steer Handle Wire Routing, Assembly, and Inspection
  • 1.4.3. SB2015-138 Tiller Handle Controller Inspection and Replacement
  • 1.4.4. SB2015-137 Main Contactor Cover Screw Thread Lock
  • 1.5. GI – General Information
  • 1.6. MA – Maintenance
  • 1.7. ES – Electrical System
  • 1.8. DA – Drive Assembly
  • 1.9. MM – Motor
  • 1.10. BR – Brake System
  • 1.11. ST – Steer Assembly
  • 1.12. HD – Hydraulics
  • 1.13. LC – Load Carrying
  • 1.14. BF – Body Frame
  • 1.15. OE – Optional Equipment
  • 1.16. Schematics
  • 2. Blank Page
