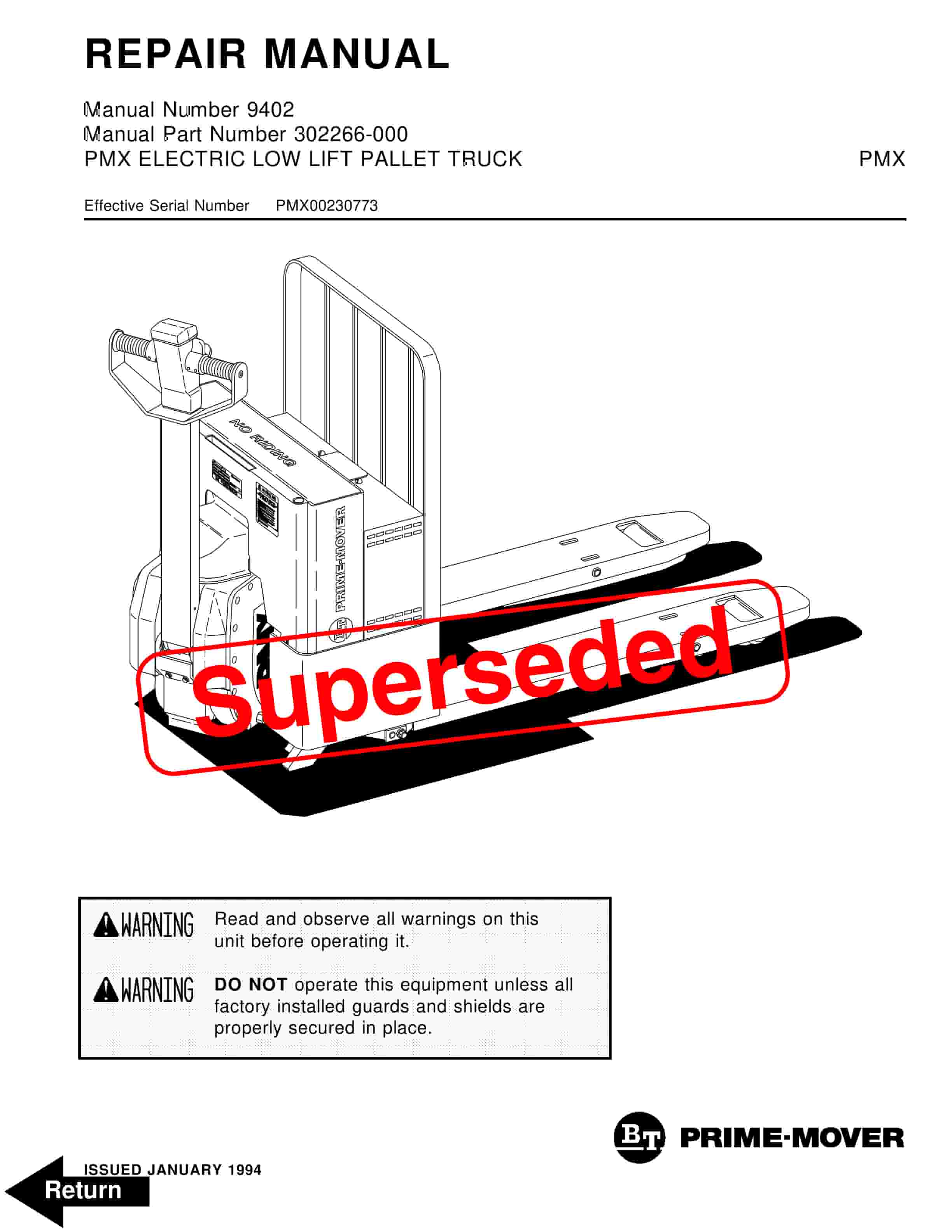

BT PMX Electric Low Lift Pallet Truck Repair Manual 9402 302266-000

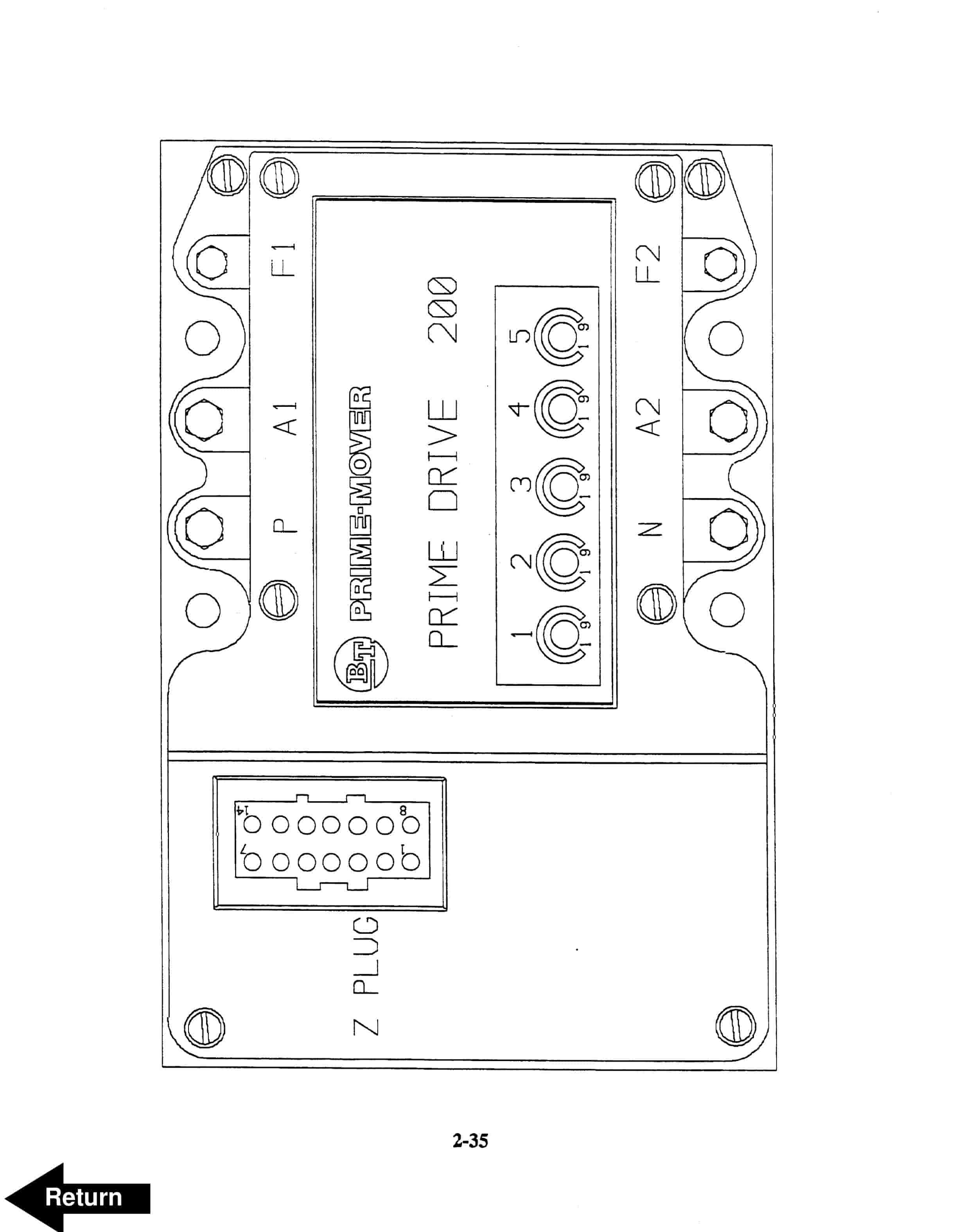

BT PMX Electric Low Lift Pallet Truck Repair Manual 9402 302266-000 - Image 2

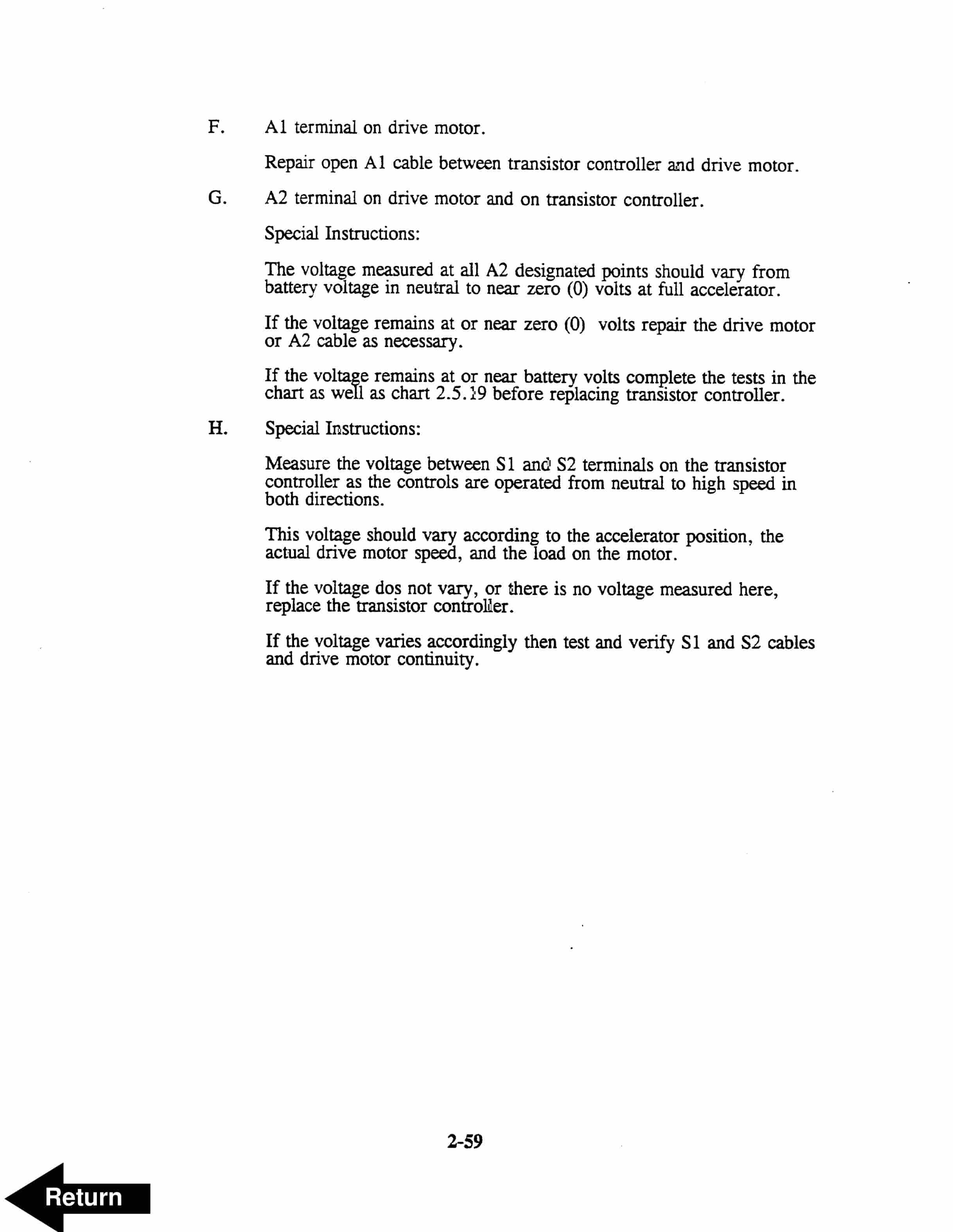

BT PMX Electric Low Lift Pallet Truck Repair Manual 9402 302266-000 - Image 3

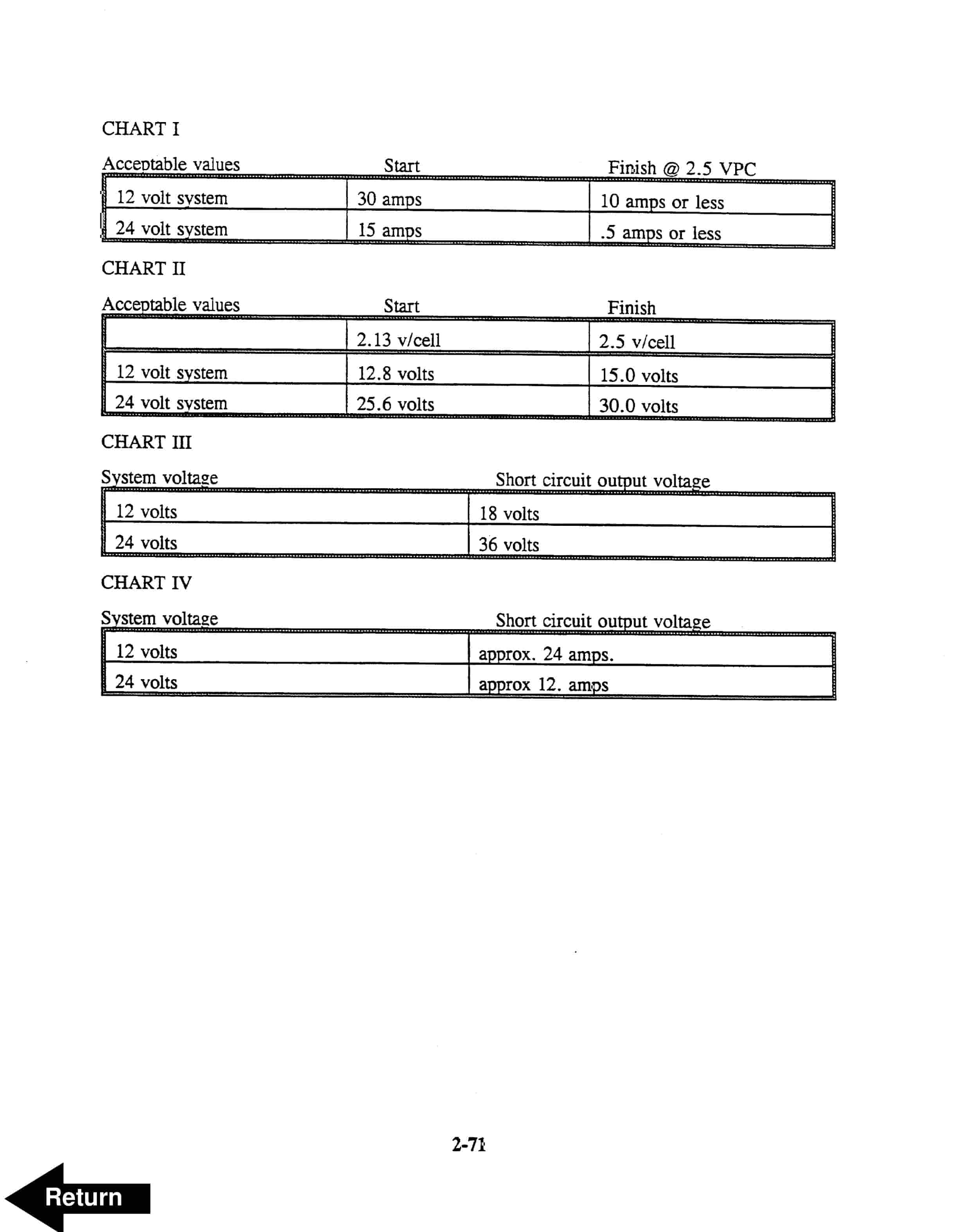

BT PMX Electric Low Lift Pallet Truck Repair Manual 9402 302266-000 - Image 4

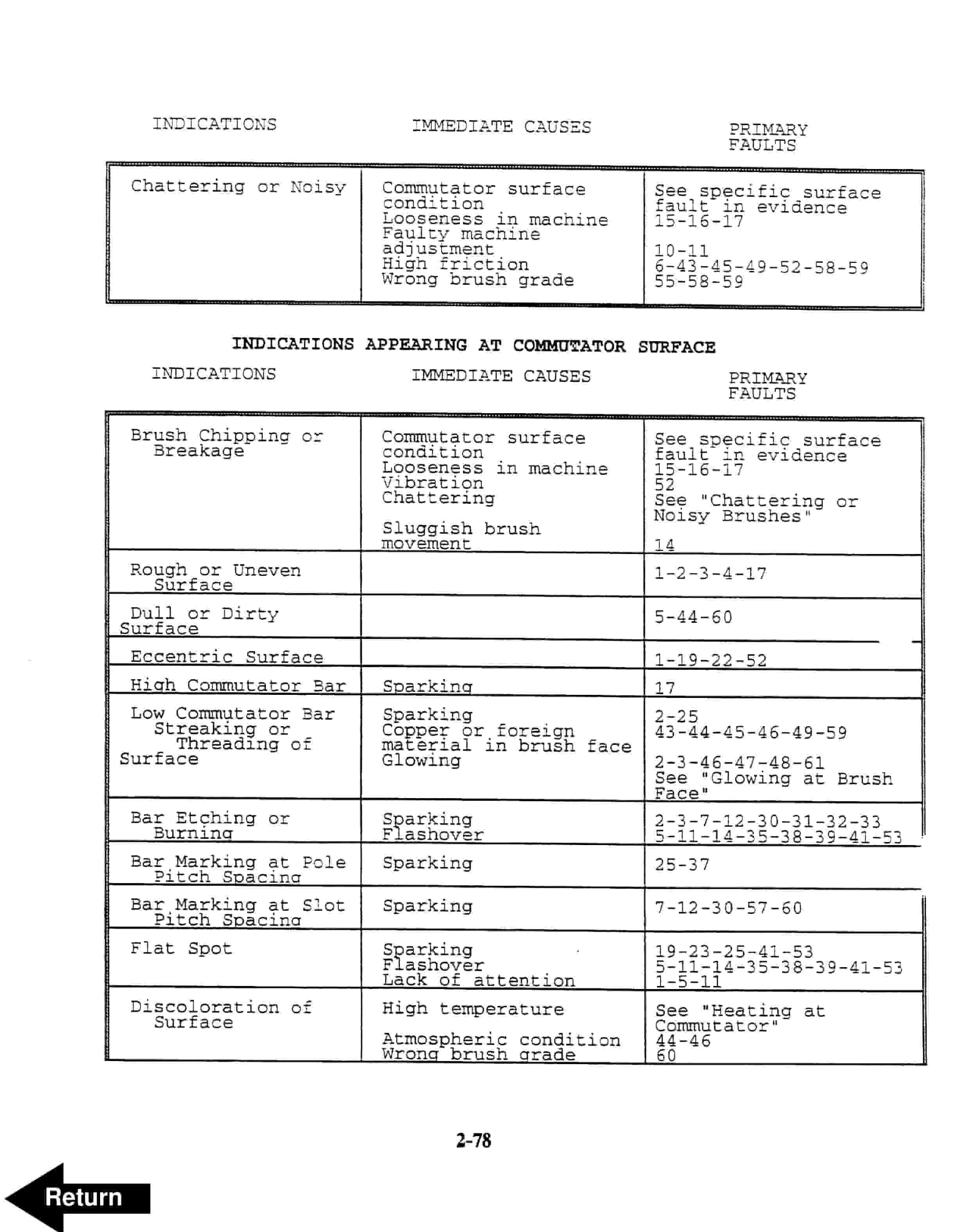

BT PMX Electric Low Lift Pallet Truck Repair Manual 9402 302266-000 - Image 5

BT PMX Electric Low Lift Pallet Truck Repair Manual 9402 302266-000

$30.00

  • Type Of Manual: Repair Manual
  • Manual ID: 9402 302266-000
  • : Service Manual PDF
  • Number of Pages: 144
  • Size: 6.5MB
  • Format: PDF
Category:

Product details

  • Model List:

    • PMX Electric Low Lift Pallet Truck
  • 1. Front Cover
  • 2. Table of Contents
  • 3. Maintenance
  • 3.1. Truck Identification
  • 3.2. System Operation
  • 3.3. Specifications
  • 3.3.1. Inch (SAE) and Metric Fasteners
  • 3.3.2. Introduction
  • 3.3.3. Nomenclature, Threads
  • 3.3.4. Figure 1 – Thread Design
  • 3.3.5. Strength Identification
  • 3.3.6. Table 1 – Bolts and Screws
  • 3.3.7. Table 2 – Studs and Nuts
  • 3.3.8. Table 3 – Torque Nuts
  • 3.3.9. Table 4 – Torque Nuts with Nylon Insert
  • 3.3.10. Table 5 – Conversion Table for Metric and English Units
  • 3.3.11. Table 6 – Torque Values for Coarse Threaded Metric Fasteners
  • 3.4. Maintenance and Adjustments
  • 3.4.1. Planned Maintenance Schedule
  • 3.4.2. Services to be Performed Daily or at Each 8 Hour Operating Shift
  • 3.4.3. Services to be Performed Monthly or Every 200 Operating Hours
  • 3.4.4. Services to be Performed Annually or Every 2000 Operating Hours
  • 3.5. Troubleshooting
  • 3.6. Component Removal and Installation
  • 3.7. Component Repair
  • 4. Transmission
  • 4.1. Transmission Assembly
  • 4.2. System Operation
  • 4.3. Specifications
  • 4.4. Maintenance and Adjustments
  • 4.5. Troubleshooting
  • 4.6. Component Removal and Installation
  • 4.6.1. Transmission Removal and Installation
  • 4.6.2. Drive Wheel Removal and Installation
  • 4.6.3. Axle Seal Removal and Installation
  • 4.6.4. Brake Linkage Removal and Installation
  • 4.6.5. Brake Shoe Removal and Installation
  • 4.7. Component Repair
  • 5. Electrical
  • 5.1. Component Identification
  • 5.1.1. Volt PMX
  • 5.1.2. Volt Electrical Assembly
  • 5.1.3. Volt Panel Assembly
  • 5.1.4. Volt PMX
  • 5.1.5. Volt Electrical Assembly
  • 5.1.6. Volt Panel Assembly
  • 5.2. System Operation
  • 5.2.1. Volt PMX
  • 5.2.2. Volt PMX
  • 5.2.3. Basics of Circuit Operation
  • 5.2.4. Control Features
  • 5.3. Specifications
  • 5.4. Maintenance and Adjustments
  • 5.4.1. Lift Limit Switch
  • 5.4.2. Accelerator Potentiometer
  • 5.4.3. Brake Interlock Switch
  • 5.4.4. Controller Adjustments – 12 Volt
  • 5.4.5. Controller Adjustments – 24 Volt
  • 5.5. Troubleshooting
  • 5.5.1. Troubleshooting Chart Index – 12 Volt Trucks
  • 5.5.2. Troubleshooting Chart Index – 24 Volt Trucks
  • 5.5.3. Troubleshooting Charts
  • 5.5.4. Troubleshooting Charts – 24 Volt Trucks
  • 5.5.5. Battery Pack Schematic
  • 5.5.6. Troubleshooting the Charger Used in the PMX Battery Pack
  • 5.6. Component Removal and Installation
  • 5.6.1. Drive Motor Removal and Installation
  • 5.6.2. Drive Motor Brush Removal and Installation
  • 5.6.3. Pump and Motor Removal and Installation
  • 5.6.4. Pump Motor Brush Removal and Installation
  • 5.6.5. Switch, Control
  • 5.6.6. Contactor Tip Removal and Installation
  • 5.6.7. Contactor Tip/Bar Replacement
  • 5.7. Component Repair
  • 5.7.1. Table 1 – Indications, Causes and Correction of Unsatisfactory Brush Performance
  • 5.7.2. Table 2 – Primary Sources of Unsatisfactory Brush Performance
  • 6. Hydraulics
  • 6.1. Component Identification
  • 6.1.1. Hydraulic Schematic
  • 6.1.2. Hydraulic Schematic Symbols
  • 6.2. System Operation
  • 6.3. Specifications
  • 6.4. Maintenance and Adjustments
  • 6.5. Troubleshooting
  • 6.6. Component Removal and Installation
  • 6.6.1. Pump and Motor Removal and Installation
  • 6.6.2. Reservoir and Pump Removal and Installation
  • 6.6.3. Cylinder Removal and Installation
  • 6.7. Component Repair
  • 7. Frame
  • 7.1. Component Identification
  • 7.2. System Operation
  • 7.3. Specifications
  • 7.4. Maintenance and Adjustments
  • 7.5. Troubleshooting
  • 7.6. Component Removal and Installation
  • 7.6.1. Control Handle Head
  • 7.6.2. Load Wheels
  • 7.6.3. Pull Rod Bushings
  • 7.6.4. Carrier Frame Bushings
  • 8. Back Cover
