Bucyrus FBL-15 LHD – Utility Service Manual BI014607

$30.00

  • Type Of Manual: Service Manual
  • Manual ID: BI014607
  • Number of Pages: 310
  • Size: 23.2MB
  • Format: PDF
Category:

Product details

  • Model List:

    • FBL-15 LHD – Utility
  • 1. Upgrade Service Manual – Cover Page
  • 2. Table of Contents
  • 3. Section 1 General Information

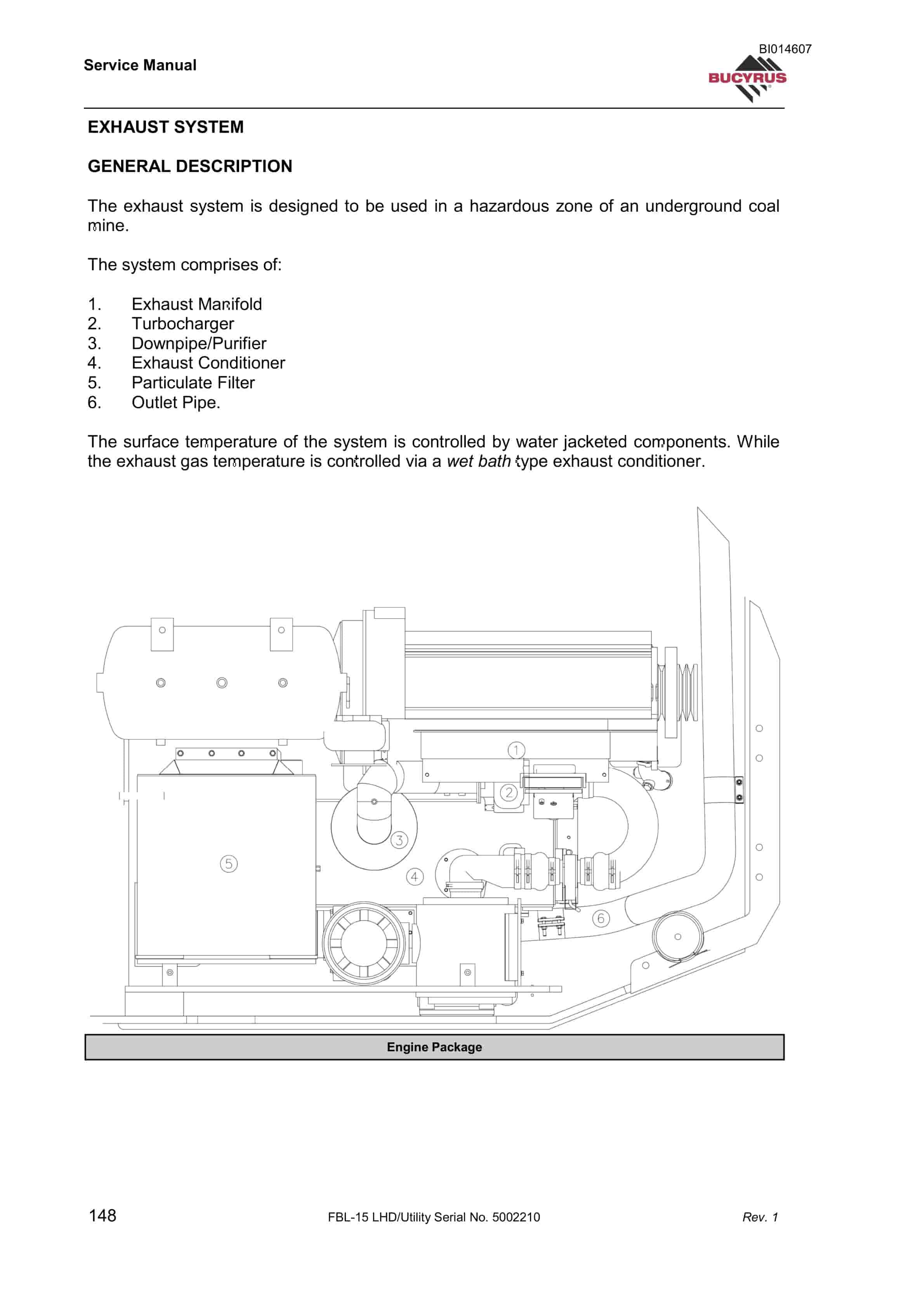

  • 4. Section 2 Engine System
  • 5. Section 3 Transmission and Drive Train
  • 6. Section 4 Hydraulic Schematic

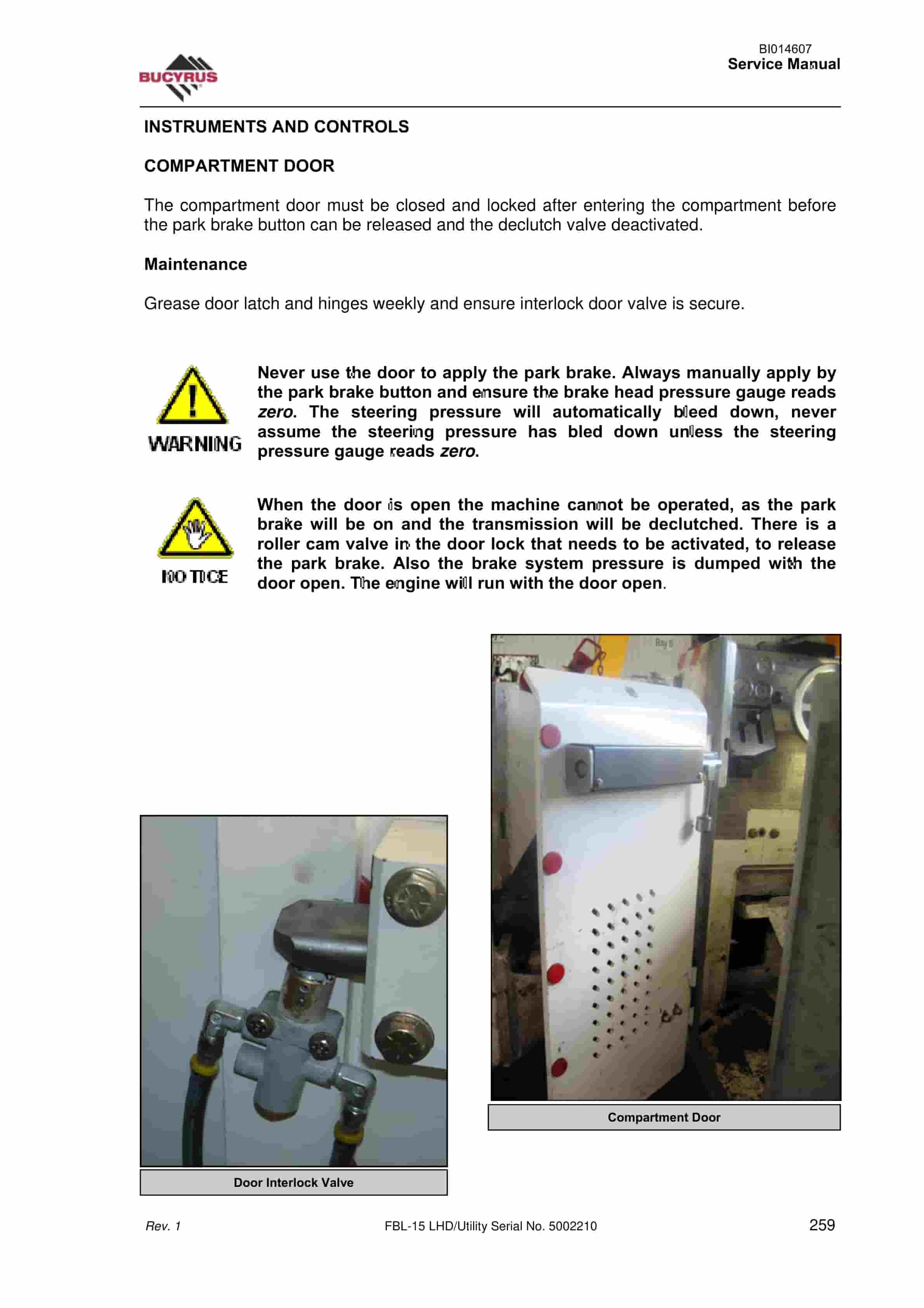

  • 7. Section 5 Electrics, Instruments and Controls

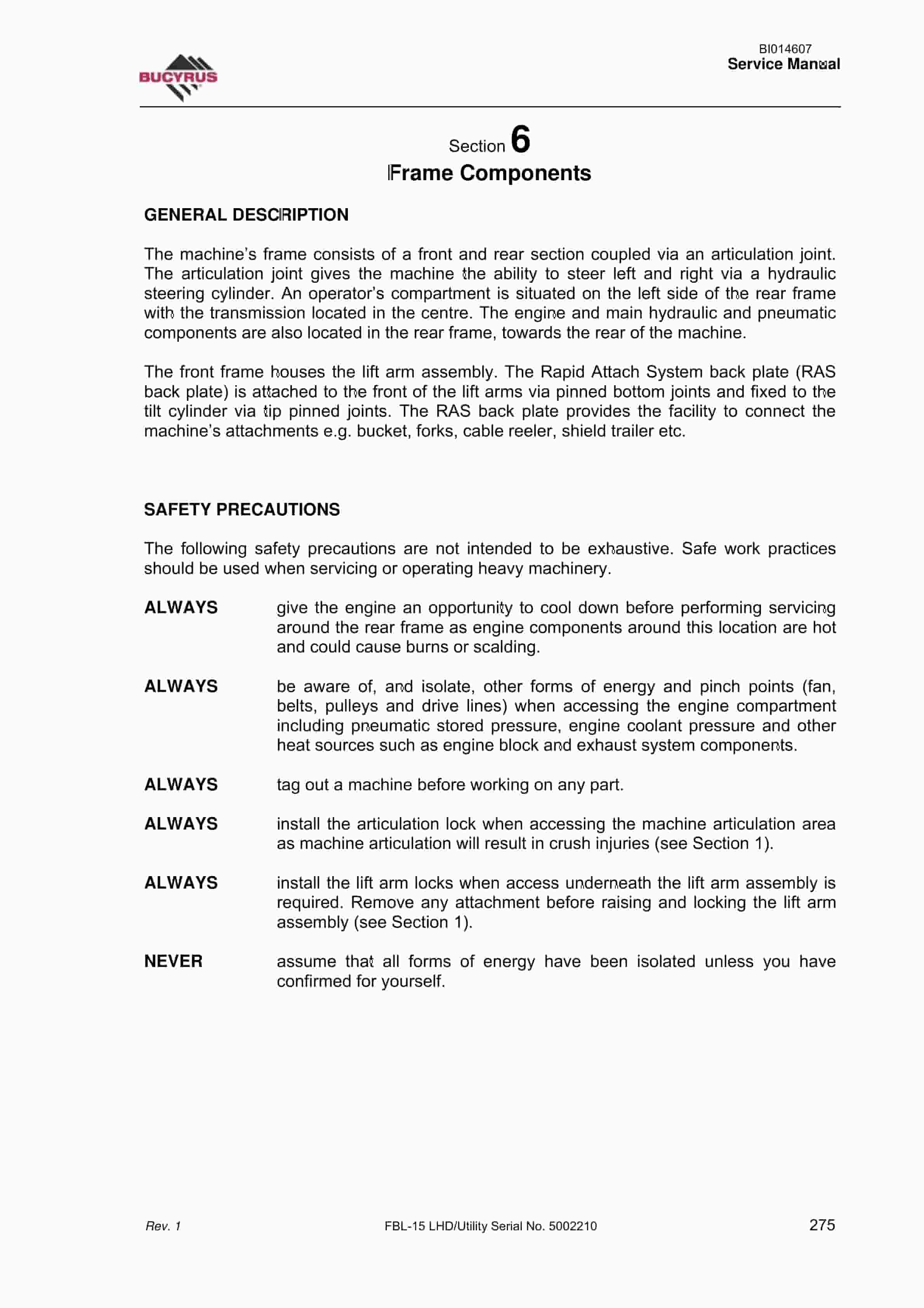

  • 8. Section 6 Frame Components
  • 9. Section 7 Pneumatic System
  • 10. Section 8 Attachments
