AGCO ST22A Compact Tractor Manual

Manual for: AGCO Tractor
Format: PDF
Book Number: 79023519
English

AGCO ST22A Tractor Manual : 185 Pages
Parts Catalog: 96 Pages

 Manual TABLE OF CONTENTS

INDEXING …………………………………………………………………………………………. 01- 2
SPECIAL TOOLS………………………………………………………………………………… 01- 2
REPAIRS & REPLACEMENTS……………………………………………………………… 01- 2
REPAIR TIME SCHEDULE…………………………………………………………………… 01- 2
AMENDMENTS ………………………………………………………………………………….. 01- 2
SAFETY PRECAUTIONS …………………………………………………………………….. 01- 3
GENERAL INFORMATION …………………………………………………………………… 01- 4
Model Name and Identification Numbers ………………………………………………………………… 01- 4
Chasis ………………………………………………………………………………………………………………. 01- 5
Engine Model and Serial Number ………………………………………………………………………….. 01- 5
Specifications …………………………………………………………………………………………………….. 01- 6
TRANSMISSION & RELATED PARTS
AGRI TIRE (REVOLUTION OF SHAFTS) ………………………………………………. 01- 9
Drive System ……………………………………………………………………………………………………… 01- 9
PTO System ………………………………………………………………………………………………………. 01- 9
Gear Pump System …………………………………………………………………………………………….. 01- 9
TURF TIRE (REVOLUTION OF SHAFTS) ……………………………………………. 01- 10
Drive System ……………………………………………………………………………………………………. 01- 10
PTO System …………………………………………………………………………………………………….. 01- 10
Gear Pump System …………………………………………………………………………………………… 01- 10
LUBRICATION & PERIODIC MAINTENANCE ………………………………………. 01- 12
SPECIFICATIONS & CAPACITIES
ENGINE OIL …………………………………………………………………………………….. 01- 12
Engine Coolant …………………………………………………………………………………………………. 01- 12
Fuel Tank…………………………………………………………………………………………………………. 01- 12
Transmission & Differential Housing (Including Hydraulic System) …………………………… 01- 12
Front Axle (4-WD Only) ……………………………………………………………………………………… 01- 12
Grease Fittings …………………………………………………………………………………………………. 01- 12
PERIODIC MAINTENANCE SCHEDULE ……………………………………………… 01- 12
MAINTENANCE SCHEDULE ……………………………………………………………… 01- 13
LUBRICATION AND FILL POINTS ………………………………………………………. 01- 14
STANDARD TORQUE CHART ……………………………………………………………. 01- 15
SEALANT & ADHESIVES…………………………………………………………………… 01- 16
CONVERSION TABLES …………………………………………………………………….. 01- 17

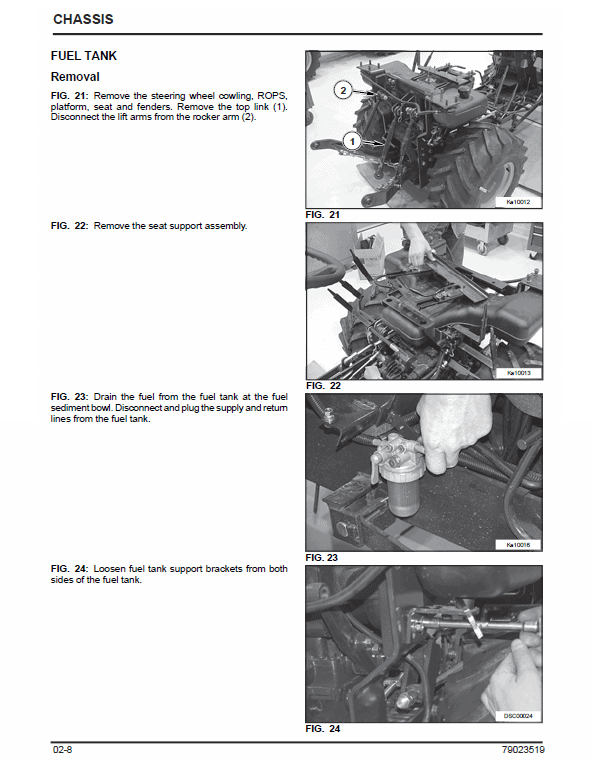

ST22A Manual Extract

The purpose of this manual is to assist dealers and Owners in the efficient repair and maintenance of their AGCO machinery. Carrying out the procedures as detailed, together with the use of special tools where appropriate will enable the operations to be completed within the time stated in the repair time schedule
