Ammann ARX 26-2, ARX 26-2C Tandem Roller Workshop Repair Manual

Description

Table of Content – Ammann ARX 26-2, ARX 26-2C Tandem Roller Repair Manual

1 INTRODUCTION
2 SAFETY MEASURES AND INSTRUCTIONS
3 SPECIFICATION MANUAL
4 SPECIFICATION OF OPERATING FLUIDS
5 FRAME
6 CAB AND PLATFORM
7 FRONT DRUM
8 REAR DRUM
9 FRONT AXLE (NOT PART OF MACHINE EQUIPMENT)
10 REAR AXLE
11 TRAVEL
12 VIBRATION
13 STEERING
14 COOLING
15 ENGINE
16 OPTIONAL EQUIPMENT
17 GENERAL PROCEDURES

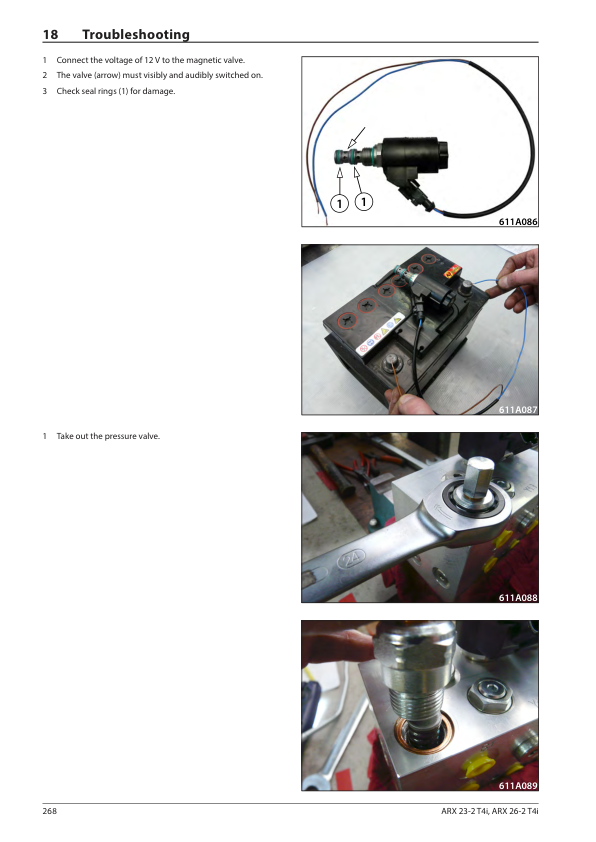

18 TROUBLESHOOTING
19 ANNEXES

About this workshop manual

This workshop manual is intended for service technicians in the field and a workshop who are authorized by the user to perform servicing and maintenance. The purpose of this workshop manual is to provide instructions for optimal use and safe operation of the roller, while ensuring the following processes:

• Maintenance
• Repairs

This manual applies to the following models: ARX 26-2, ARX 26-2C

Because the roller can be fitted with various optional equipment, some illustrations or descriptions in this manual may differ from those of your particular machine.

Repairs on this machine must only be performed by qualified, professionally trained, and experienced personnel, or by service staff from our authorized dealerships. Always consult this workshop manual before commencing any repair work. Individual chapters include special instructions and guidelines for disassembly and assembly tasks.
