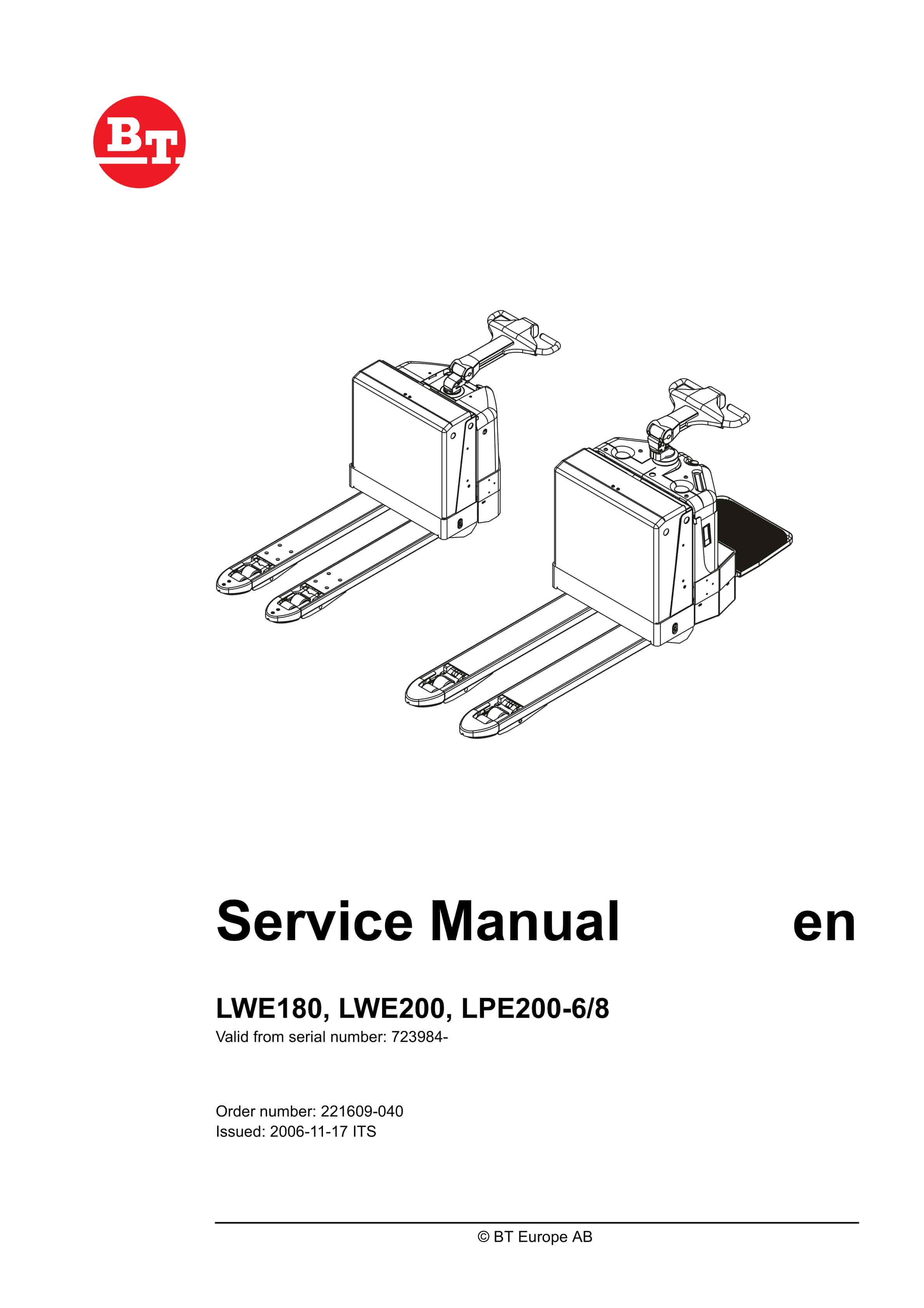

BT LWE180, LWE200, LPE200-6, LPE200-8 Service Manual 221609-040

$30.00

  • Type Of Manual: Service Manual
  • Manual ID: 221609-040
  • : Service Manual PDF
  • Number of Pages: 156
  • Size: 5.7MB
  • Format: PDF

Product details

  • Model List:

    • LWE180, LWE200, LPE200-6, LPE200-8
  • 1. Table of contents
  • 2. Technical data
  • 2.1. General tightening torques
  • 2.1.1. Galvanised, non-oiled bolts
  • 2.1.2. Untreated, oiled bolts
  • 3. Introduction, maintenance
  • 3.1. Safety regulations during maintenance work
  • 3.2. Cleaning and washing
  • 3.2.1. Cleaning the exterior
  • 3.2.2. Cleaning the motor compartment
  • 3.2.3. Electrical components
  • 3.3. Safe lifting
  • 3.4. Maintenance schedule
  • 3.5. Lubrication schedule
  • 3.6. Oil and grease specification
  • 4. Tools
  • 4.1. Super Seal connectors
  • 4.2. AMP connectors
  • 4.2.1. AMP Connectors, 040 series
  • 4.3. Molex connectors
  • 4.4. Grease guns
  • 4.5. Other tools
  • 5. Fork carriage- 0380
  • 5.1. Maintenance
  • 5.1.1. Adjusting the play between the fork carriage and body
  • 6. Engine suspension- 0450
  • 6.1. Component parts
  • 6.1.1. Component List
  • 7. Electric drive motor – 1760
  • 7.1. Component parts
  • 7.1.1. Dismantling/assembling of motor from truck
  • 7.1.2. Assembling
  • 7.2. Service/Repairs
  • 7.2.1. Dismantling of motor
  • 7.2.2. Assembling of motor
  • 7.2.3. Cleaning
  • 7.3. Technical data
  • 8. Drive unit/gear – 2550
  • 8.1. General
  • 8.2. Included components
  • 8.3. Disassembly of the drive unit from the truck
  • 8.4. Assembly of the drive unit in the truck
  • 8.5. Oil inspection or changing oil
  • 8.5.1. Oil inspection/replenishment
  • 8.5.2. Changing oil
  • 8.6. Replacing the gasket ring
  • 8.6.1. Disassembly
  • 8.6.2. Assembly
  • 8.7. Leakage from top cover
  • 9. Electro magnetic brake – 3370
  • 9.1. Brake LWE180, LWE200, LPE200-6
  • 9.1.1. Main components
  • 9.1.2. Maintenance
  • 9.1.2.1. Exchange of brake disc
  • 9.2. Brake LPE200-8
  • 9.2.1. Main components
  • 9.2.2. Maintenance
  • 9.2.2.1. Exchange of brake disc
  • 9.2.2.2. Adjustment of gap
  • 10. Steering system – 4000
  • 10.1. Component parts, tiller arm
  • 10.2. Adjustments
  • 10.2.1. Adjusting of brake microswitch
  • 10.3. Tiller arm handle
  • 10.3.1. Dismantling/Assembling
  • 10.3.1.1. Change from ignition key to keyboard (2)
  • 10.3.1.2. Change from keyboard to ignition key (2)
  • 10.3.1.3. Changing of signal button/switch (9, 10)
  • 10.3.1.4. Changing of lift/lowering button (13)
  • 10.3.1.5. Changing of pushbutton (16)
  • 11. Electrical System – 5000
  • 11.1. General
  • 11.1.1. Software/hardware order numbers
  • 11.1.2. Nomenclature
  • 11.2. Electrical equipment overview
  • 11.2.1. Electric component overview

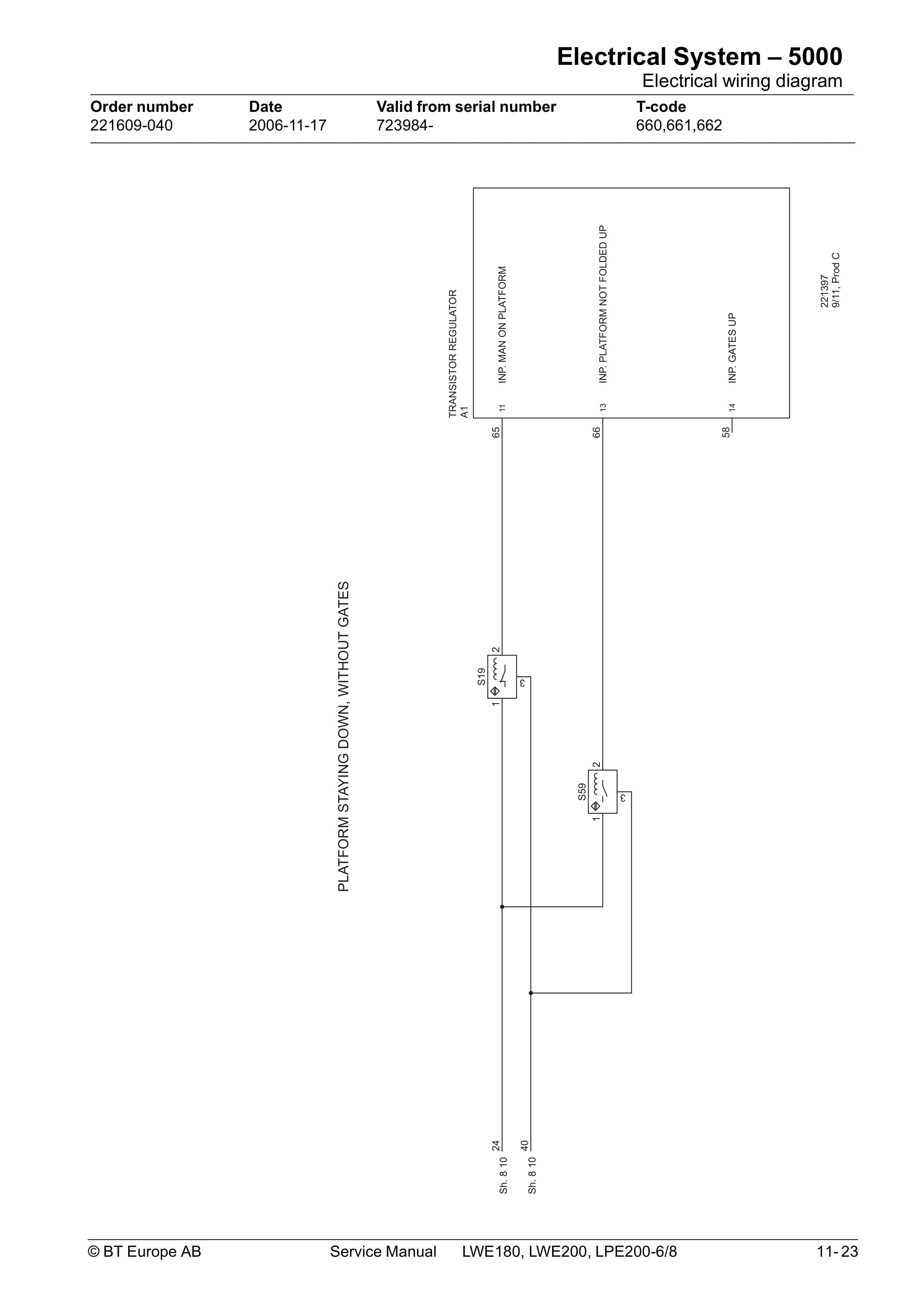

  • 11.3. Electrical wiring diagram
  • 11.3.1. Symbol list
  • 11.3.2. Overview
  • 11.3.3. Wiring diagram LWE180, LWE 200, LPE200-6
  • 11.3.4. Wiring Diagram LPE200-8
  • 11.4. Functional description
  • 11.4.1. Theory of operation
  • 11.4.2. Spider expansion unit (SEU)
  • 11.4.3. Hour meter and battery condition
  • 11.4.4. TLS – Truck log system (optional)
  • 11.4.4.1. General
  • 11.4.4.2. Registration
  • 11.4.4.3. Logging in/out SD16
  • 11.4.4.4. Logging in/out S16
  • 11.4.4.5. Collision sensor
  • 11.4.4.6. Settings
  • 11.4.5. ID unit (optional)
  • 11.4.6. Built-in battery charger (optional)
  • 11.4.6.1. Technical data
  • 11.4.6.2. Charging
  • 11.4.6.3. Troubleshooting and service
  • 11.4.6.4. Adjusting the charger
  • 11.5. Parameters adjustments
  • 11.5.1. General
  • 11.5.2. Displaying parameters – without the CAN service key
  • 11.5.3. Adjusting operator parameters – without the CAN service key
  • 11.5.4. Displaying changing parameters – CAN service key connected
  • 11.5.4.1. Changing a parameter
  • 11.5.5. List of operator parameters
  • 11.5.6. Description of operator parameters
  • 11.5.6.1. 1 – Travel speed, Turtle button (LWE180, LWE200)
  • 11.5.6.2. 1 – Creep speed (LPE200-8)
  • 11.5.6.3. 2 – Maximum travel speed
  • 11.5.6.4. 3 – Acceleration
  • 11.5.6.5. 4 – Neutral speed reduction
  • 11.5.6.6. 5 – Logout
  • 11.5.7. List of Service parameters
  • 11.5.8. Description of Service parameter
  • 11.5.8.1. 10 – PIN code
  • 11.5.8.2. To enter a new PIN-code
  • 11.5.8.3. To remove an existing PIN-code
  • 11.5.8.4. 14 – Creep speed

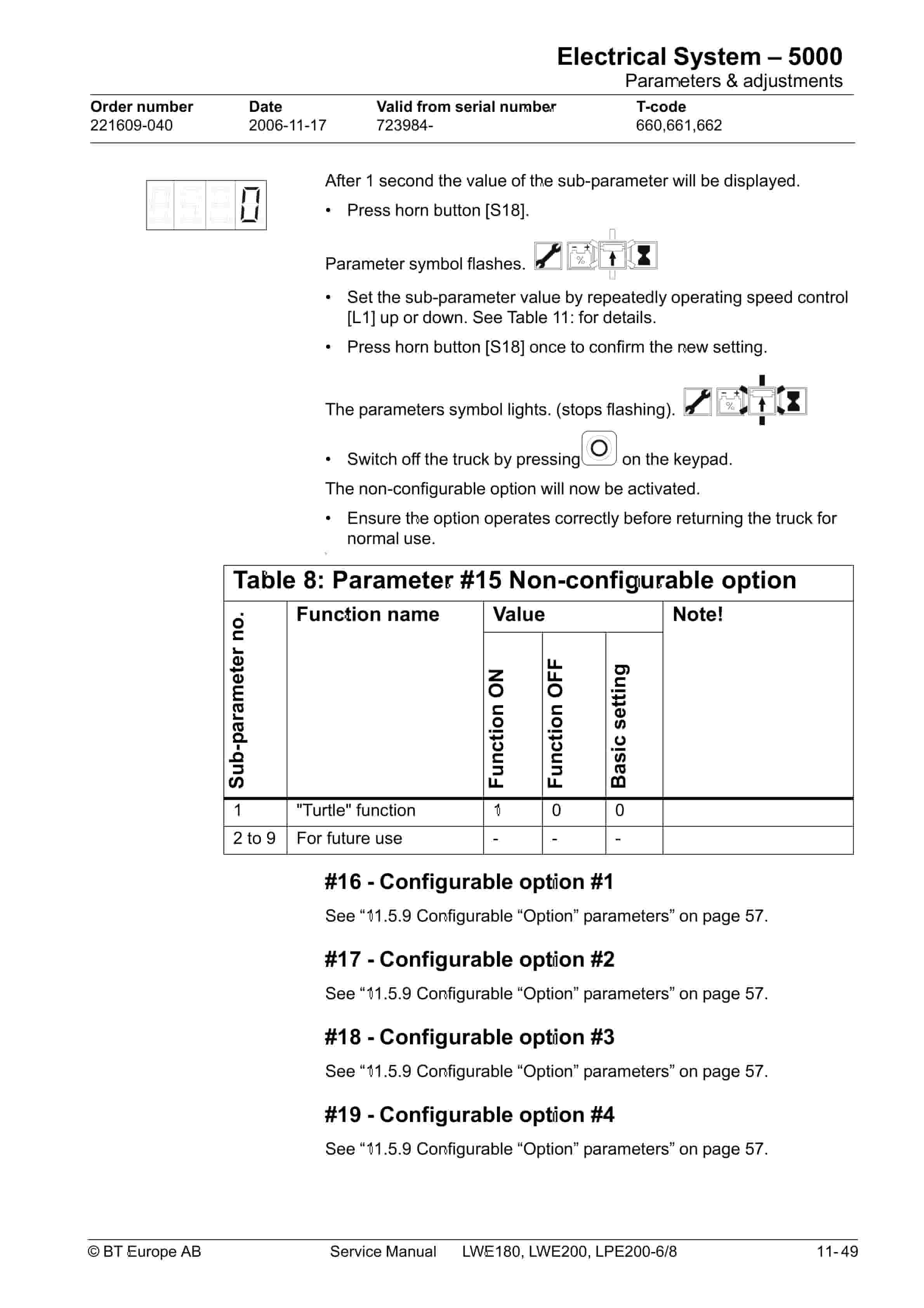

  • 11.5.8.5. 15 – Non-configurable options
  • 11.5.8.6. Setting Non-configurable options
  • 11.5.8.7. 16 – Configurable option 1
  • 11.5.8.8. 17 – Configurable option 2
  • 11.5.8.9. 18 – Configurable option 3
  • 11.5.8.10. 19 – Configurable option 4
  • 11.5.8.11. 20 – Hour meter selection
  • 11.5.8.12. 21 – Battery size
  • 11.5.8.13. Instructions for verifying parameter setting
  • 11.5.8.14. Instructions for verifying parameter setting
  • 11.5.8.15. 22 – Brake switch
  • 11.5.8.16. 25 – Service interval
  • 11.5.8.17. 28 – Button selection
  • 11.5.8.18. 39 – Login method and driver parameter access
  • 11.5.8.19. Expanded keypad – General
  • 11.5.8.20. Expanded keypad – Programming
  • 11.5.9. Configurable Option parameters
  • 11.5.9.1. General
  • 11.5.9.2. Parameter 16 to 19 configurable options
  • 11.5.9.3. Setting Configurable options

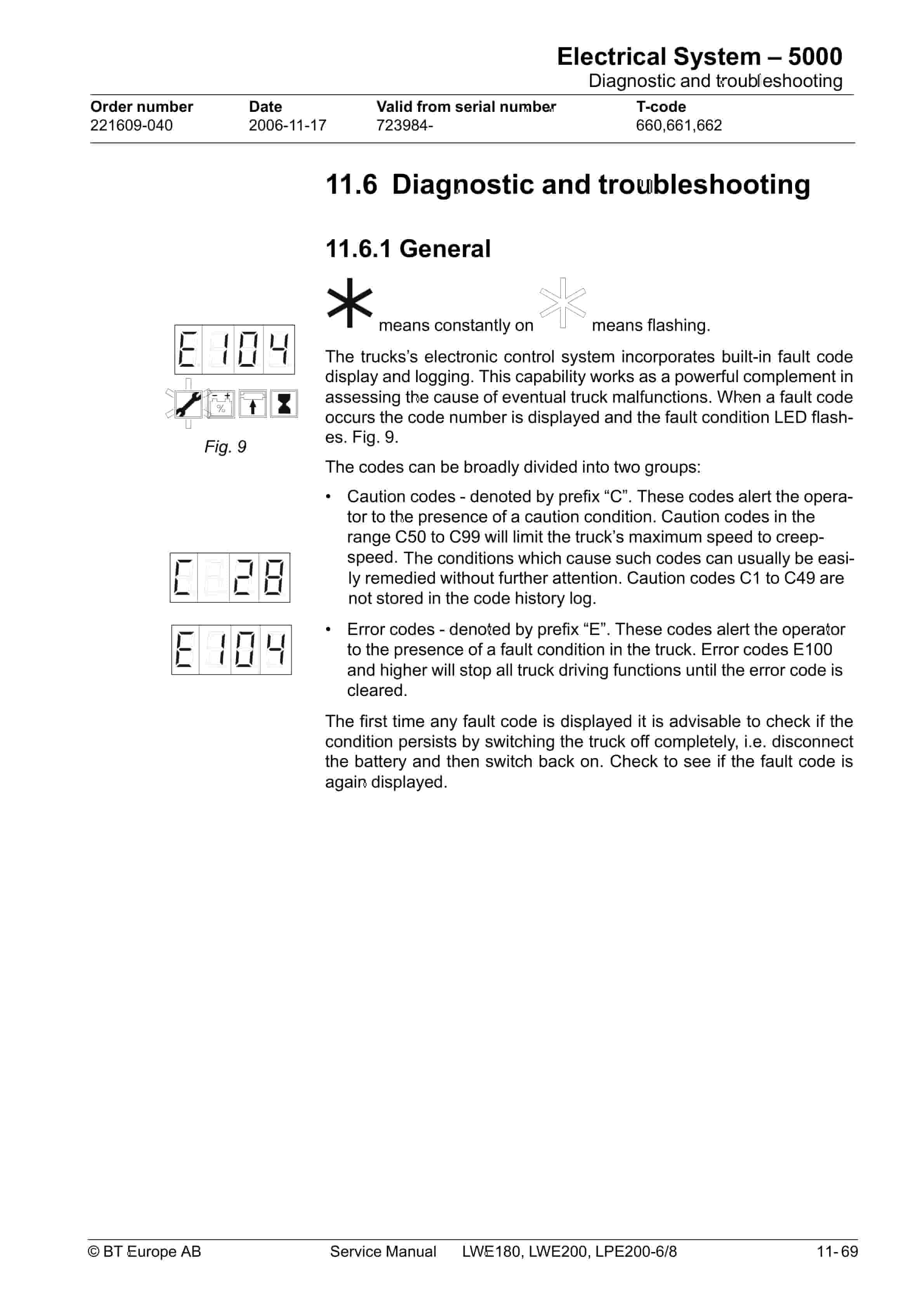

  • 11.6. Diagnostic and troubleshooting
  • 11.6.1. General
  • 11.6.2. Fault code history
  • 11.6.3. List of fault codes
  • 11.6.4. Transistor regulator troubleshooting and error codes
  • 11.6.4.1. General
  • 11.6.4.2. Transistor regulator errors
  • 11.6.4.3. Resetting errors
  • 11.6.5. Built-in Test Function
  • 11.6.5.1. Digital inputs/outputs test mode
  • 11.6.5.2. Transistor regulator inputs
  • 11.6.5.3. Transistor regulator outputs
  • 11.6.5.4. Digital input of logic card A2
  • 11.6.5.5. Extra functions
  • 11.6.6. Display test mode
  • 11.7. Technical specifications – Curtis 1243
  • 12. Hydraulic/Pneumatik – 6000
  • 12.1. General
  • 12.2. Hydraulic chart and list of symbols
  • 12.2.1. List of Symbols
  • 12.3. Adjustments LWE180
  • 12.3.1. Adjusting the pressure limit valve
  • 12.3.2. Tools
  • 12.4. Adjustments LWE200
  • 12.4.1. Adjusting the pressure limit valve
  • 12.5. Hydraulic chart and list of symbols
  • 12.5.1. List of Symbols
  • 12.6. Adjusting the pressure limit valve
  • 13. PowerTrak cylinder – 6680
  • 13.1. Included components
  • 13.2. Disassembling the PowerTrak cylinder and spring guides
