Challenger MT555D, MT565D, MT575D, MT585D, MT595D Tractor Repair Workshop Manual

Manual for: AGCO Challenger
Format: PDF
April 2012
No. 4373224M2
MT500D AutoPower IV Series
MT500D AutoPower VI Series
MT500D TechStar CVT Series
North America – English

Challenger MT555D, MT565D, MT575D, MT585D, MT595D Tractor Workshop Manual : 4226 Pages
Technician Service Book MT500D (Schematics and Electronics) : 763 Pages
Operators Manual MT555D, MT565D, MT575D, MT585D, MT595D: 338 Pages & 196 Pages
Parts Catalog TechStar CVT and AutoPower VI: 594 Pages & 466 Pages
Engine Manual AGCO SISU: 113 Pages
Spicer Dana Axle 735, 740, 750, 755 Axle Service Manual: 176 Pages

Challenger MT500D Series Manual TABLE OF CONTENTS

• Introduction
• Separation of assemblies
• Engine
• Clutch
• Gearbox
• Rear Axle
• Power Take off
• Front Axle
• Hydraulics
• Electricity
• Electronics
• Operator Environment
• Accessories
• Services Tools

MT555D, MT565D, MT575D, MT585D, MT595D Manual Extract-

Disassembling a wheel brake cylinder

1. Remove the hand brake cables.

2. Remove the wheel brake cylinder (35), upper and lower sections.

3. Loosen the screws.

4. Mark the position of the hand brake control lever in relation to the shaft.

5. Remove all parts, and take off all seals.

6. Seals to be changed on the wheel brake cylinder:

– U seals (A)
– “O” rings (B)
– Lip seals (C)
– “O” ring (D)

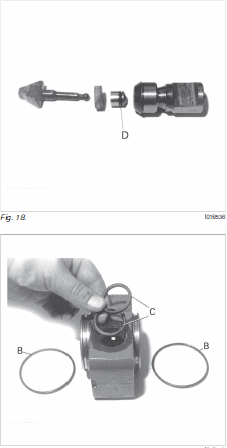

Reassembly

1. Grease and fit a new “O” ring (D) in the piston groove.

2. Fit the parts in the specified order fig. 18.

3. Grease and fit a new “O” ring (B) in the housing groove.

4. Grease and fit a new lip seal (C) in the housing groove.
