Description

Cub Cadet RZT Series Service Manual

The manual is applicable for the following Cub Cadet RZT Series Lawn Tractor:

The manual is in PDF Format
Language: English
Type: Cub Cadet RZT Lawn Tractor Service Manual 30 Pages

If not present in the table of content details service information about the engine will be provided by the engine manufacturer in most cases.

The Cub Cadet RZT Lawn tractor manual instruction are for use by trained technicians who are experienced in the service and repair of outdoor power equipment of the kind described in this publication.

These materials are intended to provide supplemental information to assist the trained technician, untrained or inexperienced individuals. Read, understand, and follow all instructions and use common sense when working on power equipment. This includes the contents of the products Operators Manual, supplied with the equipment.

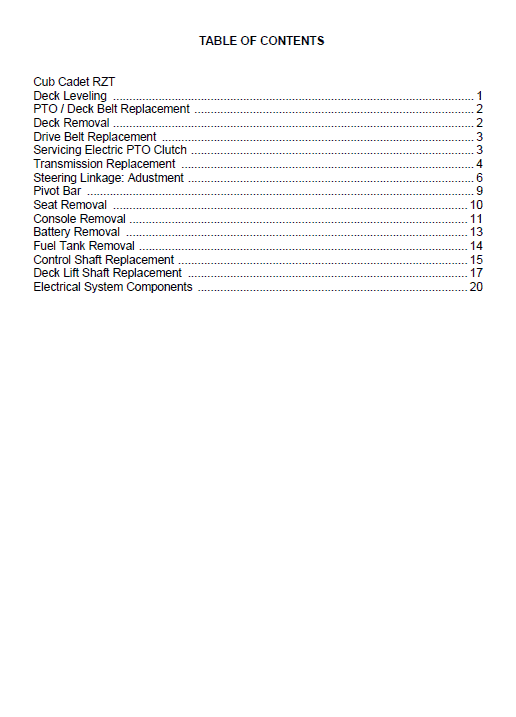

The Cub Cadet Tractor Service Manual Content

Cub Cadet RZT
Deck Leveling ………………………………………………………………………………………………… 1
PTO / Deck Belt Replacement ………………………………………………………………………….. 2
Deck Removal ………………………………………………………………………………………………… 2
Drive Belt Replacement …………………………………………………………………………………… 3
Servicing Electric PTO Clutch …………………………………………………………………………… 3
Transmission Replacement ……………………………………………………………………………… 4
Steering Linkage: Adustment ……………………………………………………………………………. 6
Pivot Bar ……………………………………………………………………………………………………….. 9
Seat Removal ………………………………………………………………………………………………. 10
Console Removal ………………………………………………………………………………………….. 11

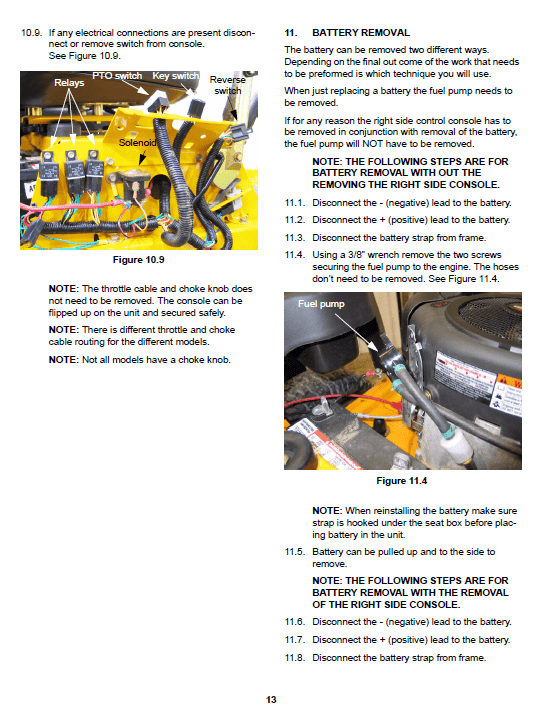

Battery Removal …………………………………………………………………………………………… 13
Fuel Tank Removal ……………………………………………………………………………………….. 14
Control Shaft Replacement …………………………………………………………………………….. 15
Deck Lift Shaft Replacement ………………………………………………………………………….. 17
Electrical System Components ……………………………………………………………………….. 20

Some instructions may refer to other parts of the manual for subsidiary procedures. This avoids repeating the same procedure two or three times in the manual.

Intent: This manual is intended to: Provide specific service and repair procedures for the range of Cub Cadet RZT Lawn tractors manufactured.

This Service Manual is not a substitute for the Operators Manual. You must read, understand and follow all of the directions in this manual as well as the Operators Manual before working on this power equipment.
