Fendt 924, 927, 930, 933, 936 Vario Stage 3B Tier 4i Tractor Service Manual
$43.00
Fendt 924, 927, 930, 933, 936 Vario Stage 3B Tractor Workshop Manual : 2823 Pages

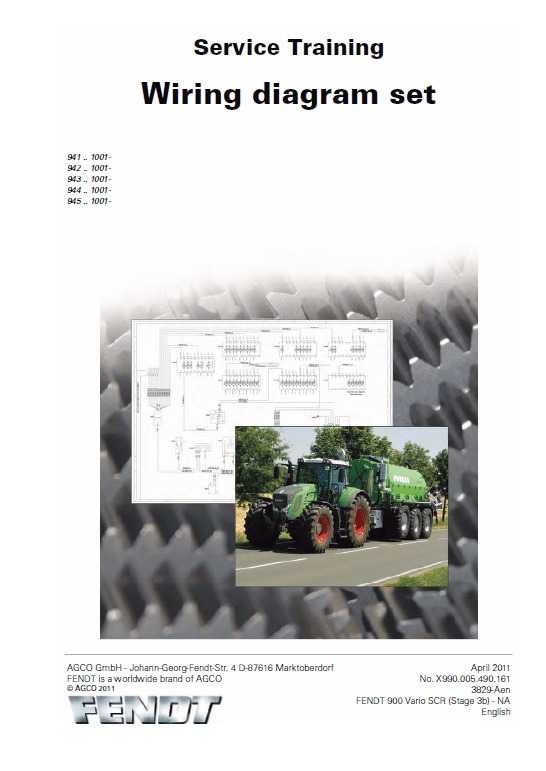

Fendt 900 Vario SCR Stage 3B Wiring Diagram and Schematics: 143 Pages

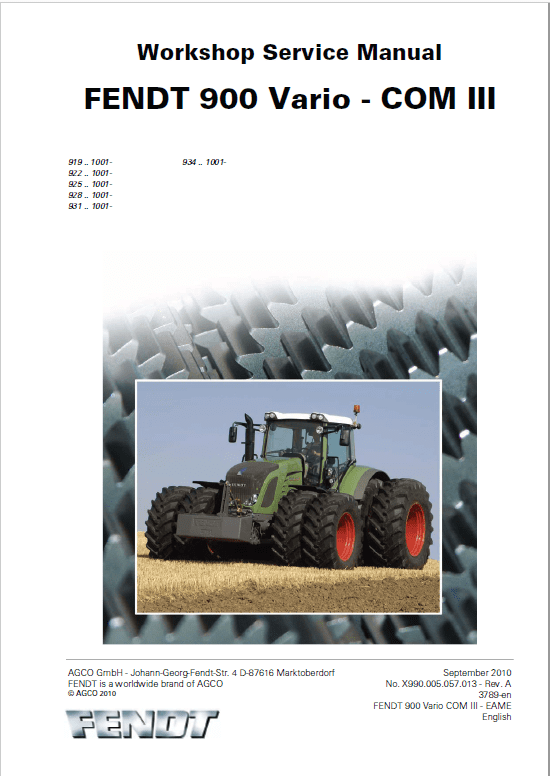

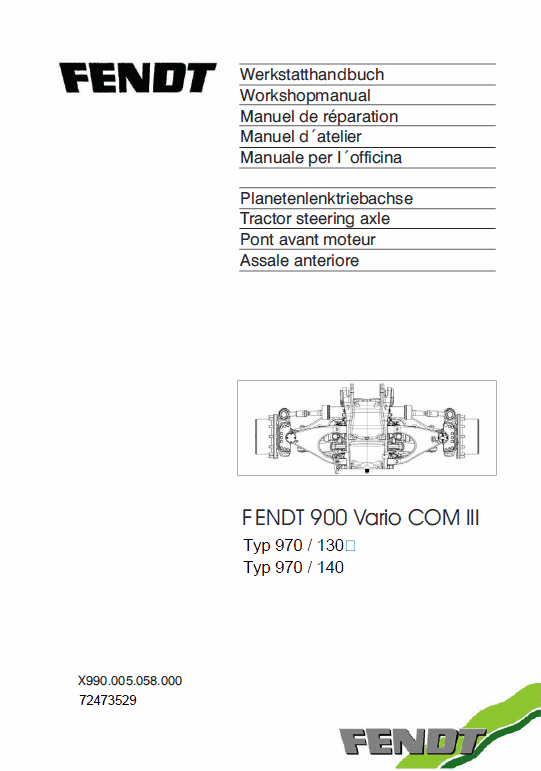

Fendt 900 Vario COM III Front Steering Axle: 288 Pages
Description
Fendt 900 Vario SCR Stage 3B Tractor Service Manual
Manual for: AGCO Fendt
Format: PDF
April 2011
No. X990.005.490.161
3829-Aen
FENDT 900 Vario SCR (Stage 3b) – NA
English
Fendt 924, 927, 930, 933, 936 Vario Stage 3B Tractor Workshop Manual : 2823 Pages
Fendt 900 Vario SCR Stage 3B Wiring Diagram and Schematics: 143 Pages
Fendt 900 Vario COM III Front Steering Axle: 288 Pages
For Fendt Vario 900 S4 (Tier 4) Check out Listing Here
Workshop Service Manual TABLE OF CONTENTS
- 0000 – Tractor
- 1000 – Gearbox

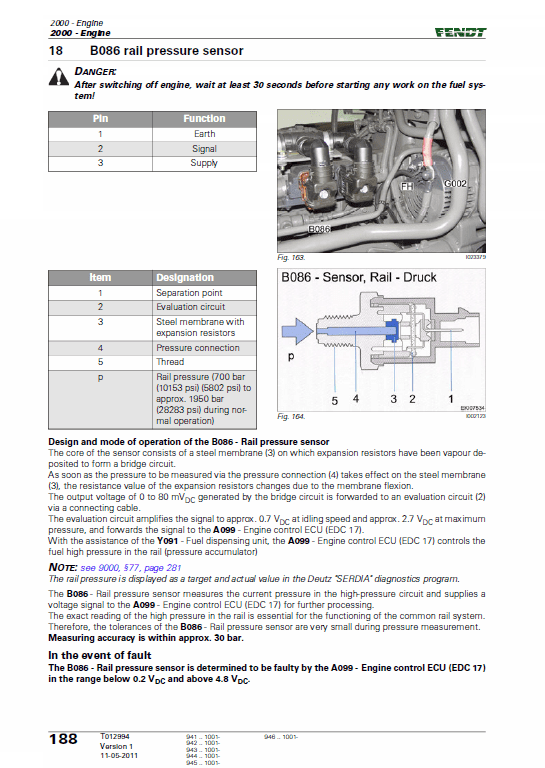

- 2000 – Engine

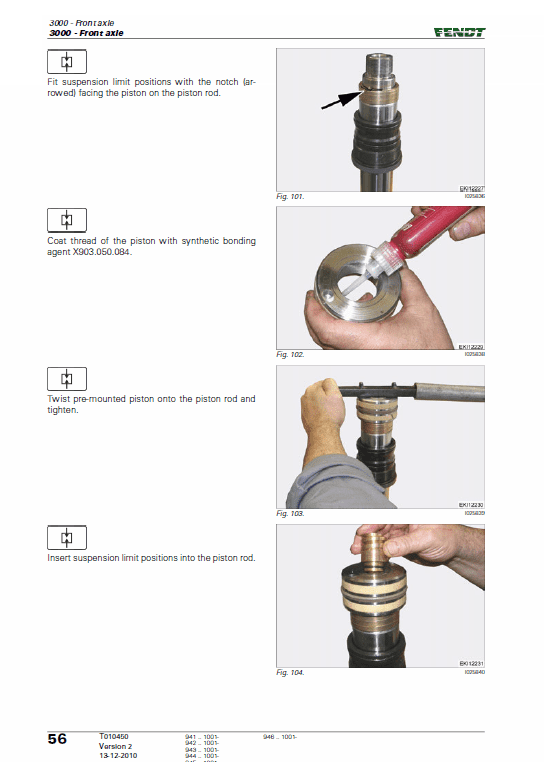

- 3000 – Front Axle
- 4000 – LS signal generation
- 5500 – Air conditioning system
- 8100 – Cab
- 8600 – Power lift
- 8800 – Compressed air system
- 9000 – Electrical system
- 9400 – Hydraulic pump installation
- 9600 – Hydraulic equipment
- 9700 – Electronics
- 9900 – Service
Manual Extract – Control pressure
Once the diesel engine has started, oil flows from the auxiliary pump to the pilot control pressure compensator (DWP) and via the pilot control pressure filter (DFP) to the pilot pressure control valve (DRVP).
The pilot pressure compensator (DWP) is closed by the spring force. If a pressure of 10 bar (145 psi) is applied to the pressure compensator, this hydraulic force is exerted via the control line and pushes the pressure compensator against the spring force to the right. The pressure compensator opens and the oil can flow to steering non-return valve 2 (RVL2) and the steering priority valve (PVL).
The pressure is regulated to 22 bar (319 psi) bar at the pilot pressure control valve (DRVP) and applied to the pilot pressure solenoid valve (MVP).
The pilot pressure solenoid valve opens when actuated and the pilot pressure is applied to the pilot control valves. The pilot pressure is also applied to the right-hand side of the pressure compensator and pushes the pressure compensator together with the spring force to the left.
This increases the pressure in front of the pressure compensator (control line) until it exceeds the sum of the spring force and pilot pressure and pushes the pressure compensator further to the right until it opens.
NOTE: The pilot pressure (DRVP) of 22 bar (319 psi) is also increased further by the return pressures in the middle or rear of the valve stack
