Description

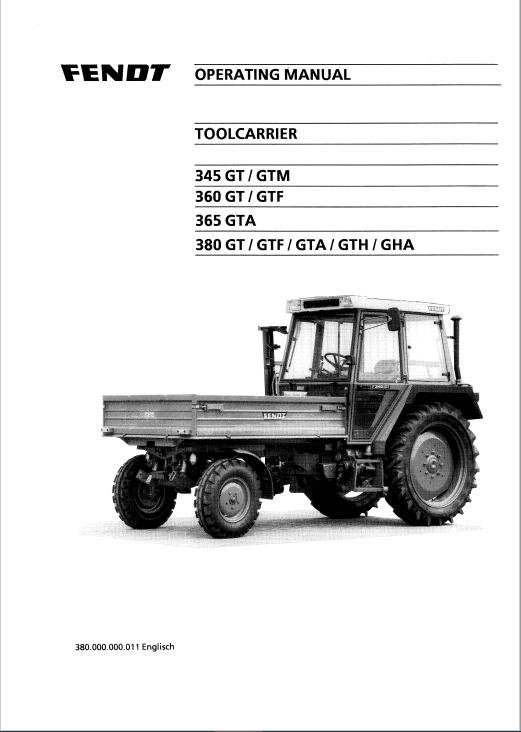

Fendt F345 GT, F345 GTM, F360 GT, F360 GTF, F365 GTA Tractors Operators Manual

Manual for: AGCO Fendt
Format: PDF
English

Fendt F345 GT, F345 GTM, F360 GT, F360 GTF, F365 GTA Tractors Operators Manual – 100 Pages & 145 Pages

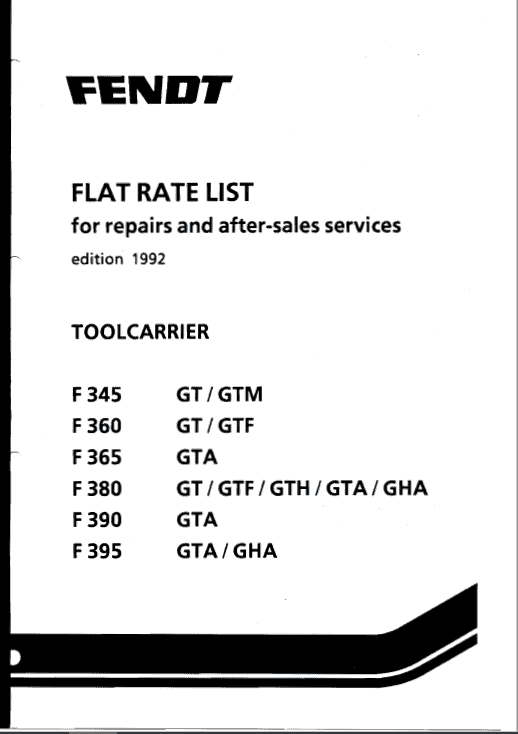

Repair Time Schedule – 37 Pages

Operational Manual TABLE OF CONTENTS

• 1. OPERATION
  1.1 Driver’s seat
  1.2 Instruments, Switches
  1.3 Heater
  1.4 Preparation for starting up
  1.5 Starting, glow starter, engine
  1.6 Gears
  1.7 P.t.o
  1.8 Differential lock
  1.9 Wheel drive
  1.10 Brakes
  1.11 Steering
  1.12 Hydraulics, general
  1.13 Hydraulic connections
  1.14 Control hydraulics
  1.15 Three-point hitch
  1.16 Trailer hitch
  1.17 Additional loading
  1.18 Twin tyres, tracks, adjustable rims

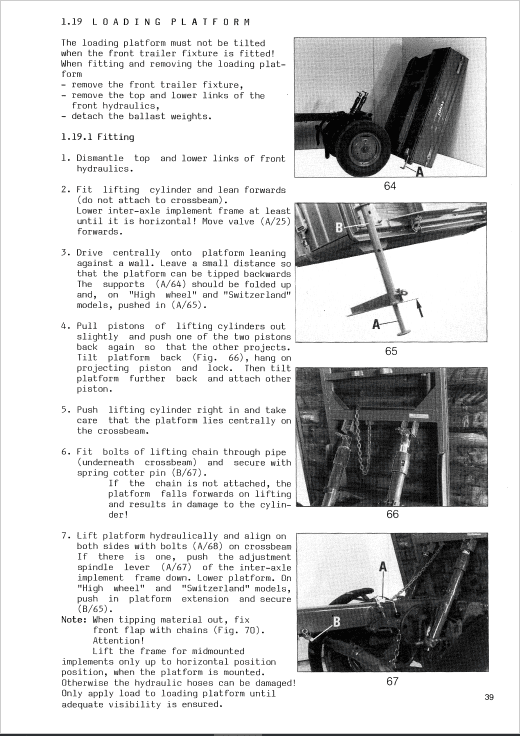

  1.19 Loading platform
  2. MAINTENANCE AND SERVICING
  2.1 Tilting the cab
  2.3 Fuel pump
  2.4 Fuel filter
  2.5 Bleeding the fuel system
  2.6 Dry air filter
  2.7 Cooling air system
  2.8 Tensioning V-belts
  2.9 Clutches
  2.10 Gears
  2.11 Front p. t. o.
  2.12 Axle drives
  2.13 Central spar – filling with oil
  2.14 Changing the hydraulics oil
  2.15 Brakes
  2.16 Steering and front wheel hubs
  2.17 Electrics, fuses, circuit diagram
  2.18 Heating
  2.19 Windscreen washer unit
  2.20 Cleaning the tractor
  3. ADDITIONAL EQUIPMENT
  3.1 Front power lift with additional lighting

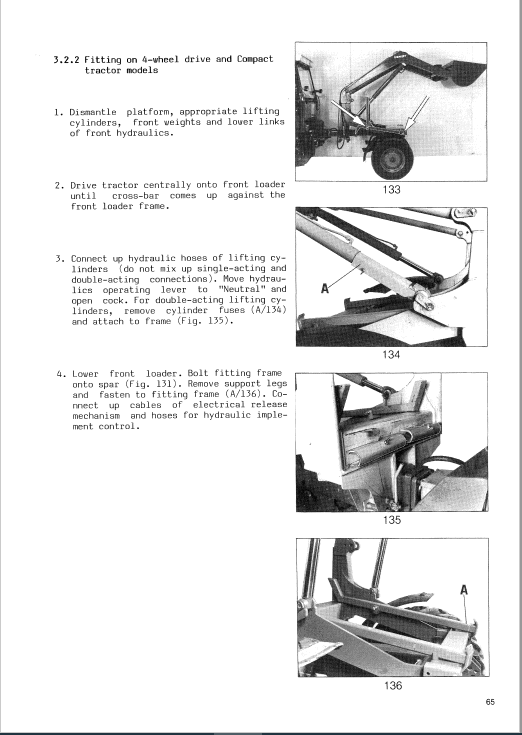

  3.2 Front loader
  3.3 Draw bar
  3.4 Mower
  3.5 Compressed air generating unit
  4. FAULTS CHART
  5. TECHNICAL DATA
  Tyre pressure Table
  Fuel and lubricants Table

Manual Extract

This operating manual allows you to use the machine safely and efficiently. The operating manual helps the machine operator to work with the machine, in order to ensure product safety and to prevent material damage and personal injury.

The F345 GT, F345 GTM, F360 GT, F360 GTF, F365 operating manual is part of the technical documentation and contain all necessary information and safety information about all stages of the machine life.

The manual is an integral part of the machine and should be accessible. You must be kept in the driver’s cab in the
corresponding storage compartment. When reselling the machine, the operating manual must be handed over with the machine.
