Description

Kawasaki 65ZV, 65TMV Wheel Loader Service Manual

Machinery Type: 65ZV, 65TMV or 65Z5 Wheel Loader
Language English
Format: PDF

Kawasaki 65ZVWheel Loader Repair Service Manual – 760 Pages

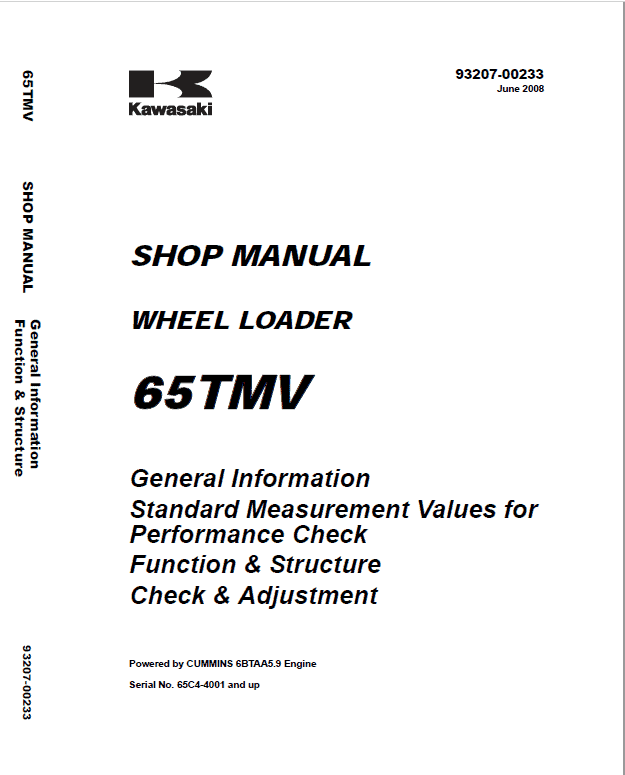

Kawasaki 65TMV Wheel Loader Repair Service Manual – 468 Pages

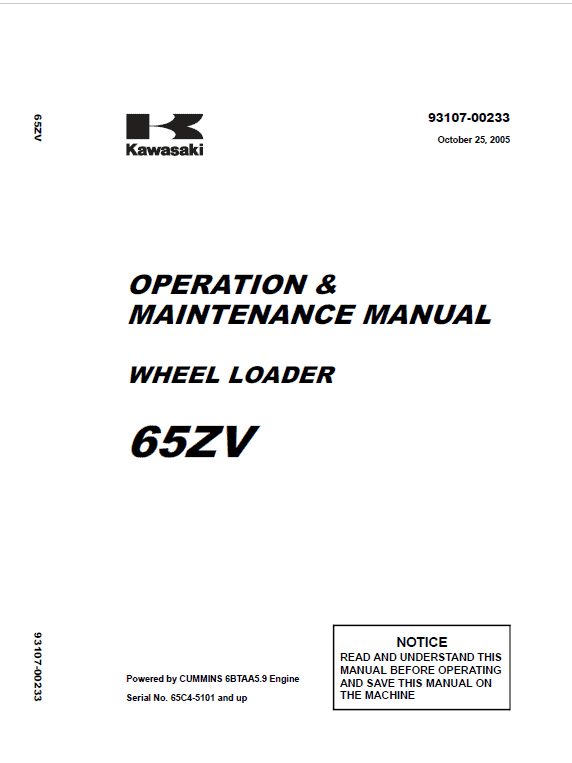

Kawasaki 65ZV Wheel Loader Operating Manual – 180 Pages
Parts Catalog 65ZV, 65TMV  – 658 Pages & 590 Pages

Manual Details

This manual contains guidelines on repair and maintenance work for the 65ZV, 65TMV Loader. All explanations, drawings and photographs are current at the time of going to press.

Repair and maintenance work should be carried out systematically and logically after thoroughly reading and understanding this manual to ensure that the shovel loader gives reliable, long-term service.

The manual is structured as follows to make it easy to use

SHOP SERVICE MANUAL CONTENT:

• 01 GENERAL OUTLINE
• 10 FUNCTIONS AND CONSTRUCTION
• 20 INSPECTION AND ADJUSTMENT
• 30 DISASSEMBLY AND ASSEMBLY
• 40 MAINTENANCE STANDARDS


The most important maintenance operations are those related to safety. The points that  have special significance from the safety point-of-view are indicated with a A mark in this manual.

Parts Catalog Manual

I. Introduction
Before Use
This parts catalog is applied to models indicated on the cover.
Parts of special specifications are not included.
For engines, refer to the “Engine Parts Catalog” offered separately.
II. How to Order Parts
When ordering a part, refer to illustrations and lists in this parts catalog, and clearly notify our company of the model name, the chassis No., the parts No., the parts name, the required quantity, etc.
111. How to Look at Parts Catalog
Illustrations in the parts catalog show the “position and shape” of each part in the range required in ordering. Accordingly, illustrations do not always agree with actual parts.
