Manitou MRT 2150, 2540 Privilege Plus ST4 S1 Telehandler Repair Service Manual

Format: PDF
Language: English
Telehandler Applicable Model:
MRT 2150 PLUS-ST4 S1
MRT 2540 PLUS-ST4 S1

• Manitou MRT 2150, 2540 Privilege Plus ST4 S1 Telehandler Repair Service Manual – 1773 Pages
• Manitou MRT 2540 PLUS-ST4 S1 Part Catalog – 614 Pages

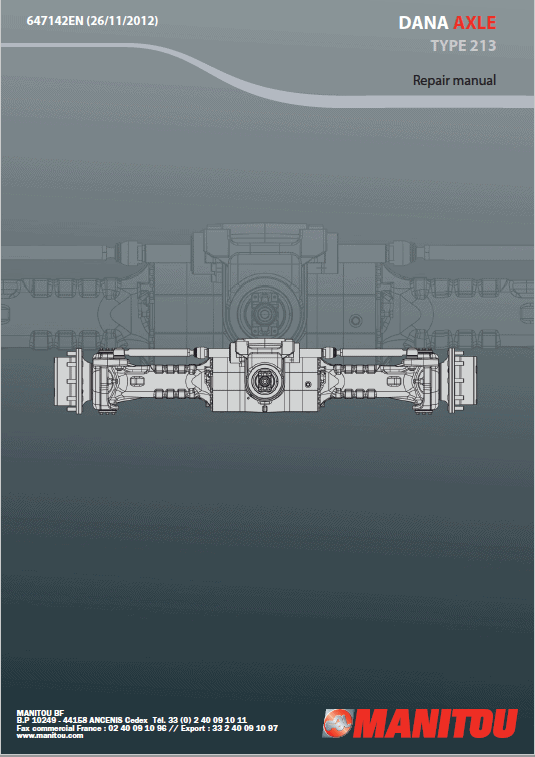

• Manitou Dana Axle Type 213 Repair Manual – 116 Pages

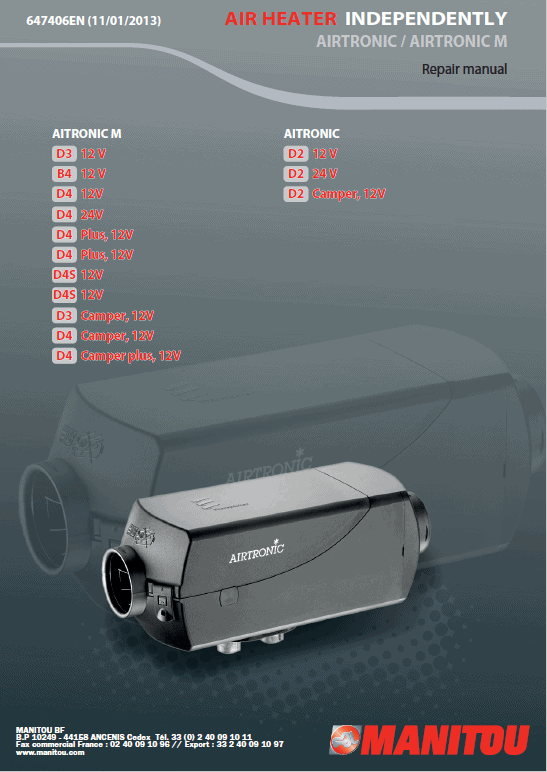

• Manitou Air Heater (Airtronic/Airtronic M) Manual – 70 Pages
• Manitou HydroStatic Pump H1 069 TO 165 Manual – 70 Pages
• Manitou Transfer Box Type 357 Manual – 52 Pages

Table of content of the Repair Manual:

• GENERAL
• ENGINE
• TRANSMISSION
• AXLE
• BRAKE
• BOOM
• HYDRAULIC
• ELECTRICITY
• DRIVER’S CAB
• FRAME – BODY
• OPTIONS – ATTACHMENTS

The manufacturer cannot predict all possible risky situations. Consequently, the safety instructions given in the safety manual are not exhaustive. At any time, as an operator, you must envisage, within reason, the possible risk to yourself, to others or
to the lift truck itself when you repair, service or drive it.

The efficiency and continued operation of mechanical units depend on constant, correct maintenance and also on efficient repair work, should there be a break-down or malfunction. The instructions contained in this MRT 2150, 2540 Privilege Plus ST4 S1 Telehandler repair manual have been based on a complete overhaul of the unit. However, it is up to the mechanic to decide whether or not it is necessary to assemble only individual components, when partial repair work is needed. The manual provides a quick and sure guide which, with the use of photographs and diagrams illustrating the various phases of the operations, allows accurate work to be performed.All the information needed for correct disassembly, checks and assembly of each individual component is set out below. In order to remove the differential unit from the vehicle, the manuals provided by the vehicle manufacturer should be consulted. In describing the following operations it is presumed that the unit has already been removed from the vehicle.

INTRODUCTORY REMARKS: All the disassembled mechanical of  the MRT 2150 PLUS-ST4 S1, MRT 2540 PLUS-ST4 S1 should be thoroughly cleaned with appropriate products and restored or replaced if damage, wear, cracking or seizing have occurred. In particular, thoroughly check the condition of all moving parts (bearings, gears, crown wheel and pinion, shafts) and sealing parts (o-rings, oil shields) which are subject to major stress and wear. In any case, it is advisable to replace the seals every time a component is overhauled or repaired. During assembly, the sealing rings must be lubricated on the sealing edge. In the case of the crown wheel and pinion, replacement of one component requires the replacement of the other one. During assembly, the prescribed pre-loading, backlash and torque of parts must be maintained.
