Mitsubishi FB13PNT, FB15PNT, FB16PNT, FB16CPNT Lift Truck Manual

Lift Truck Forklift Model: FB13PNT, FB15PNT, FB16PNT, FB16CPNT
Publication 99759-5M200
English
Format: PDF

Mitsubishi FB13PNT, FB15PNT, FB16PNT, FB16CPNT Forklift  Service Manual: 294 Pages

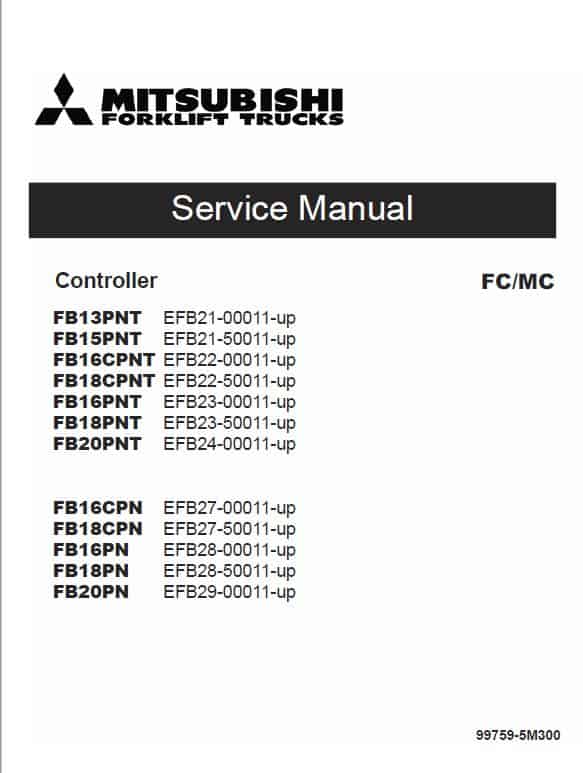

Controller Manual: 292 Pages

Forklift Manual Table of Content:

• General Information
• Front Axle & Reduction Differential

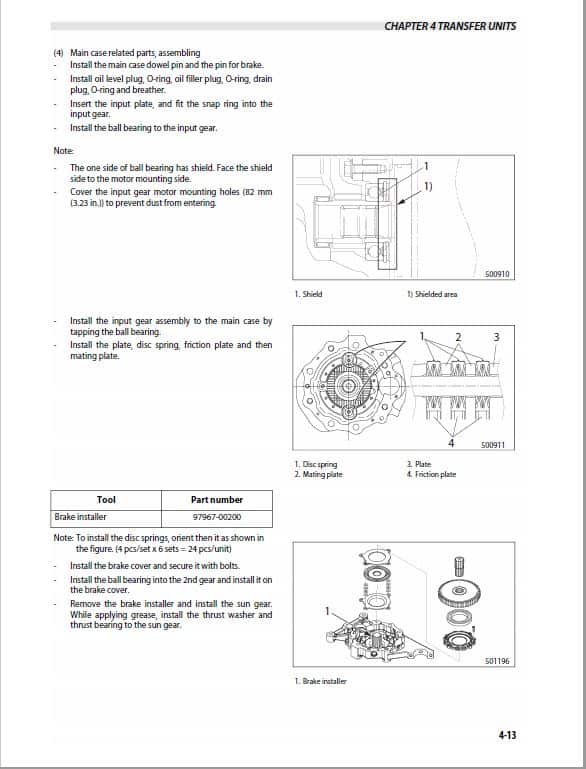

• Transfer Assembly
• Rear Axle
• Brake System

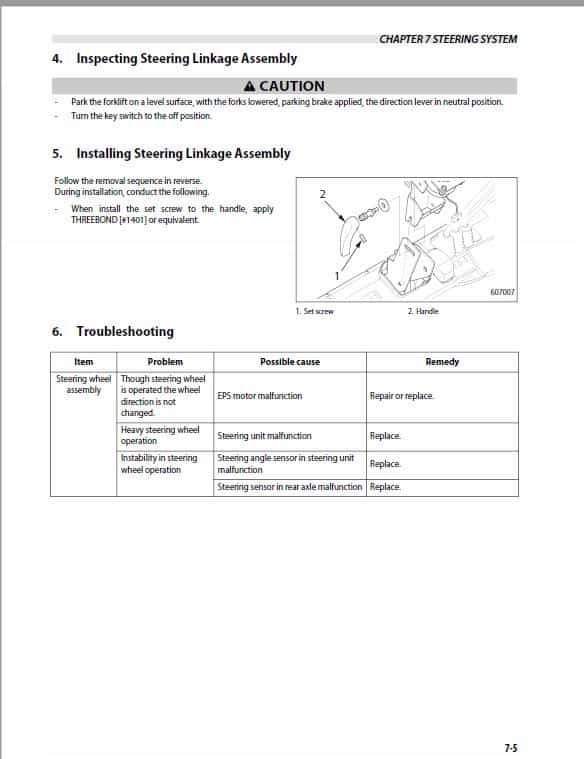

• Steering System

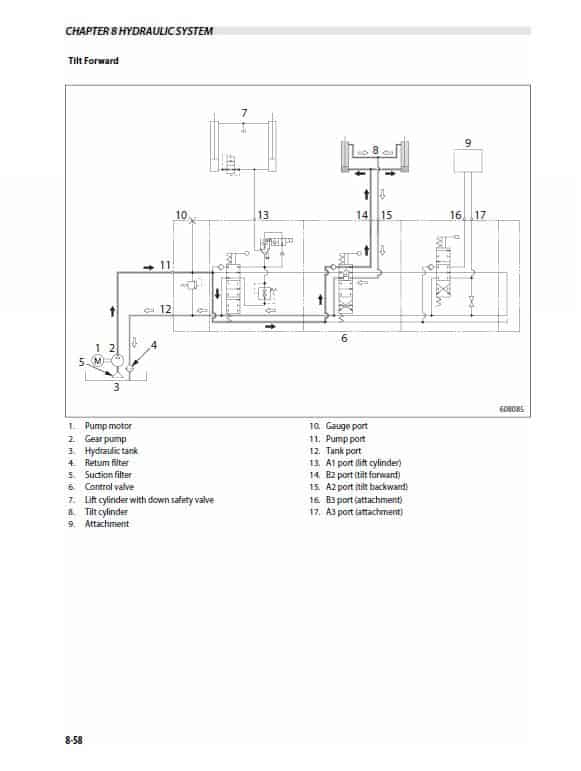

• Hydraulic System
• Mast and Forks
• Service Data
• Panel Cabin

This service manual deals with all components or systems of the Mitsubishi Forklift Trucks, except for the electrical system, which is covered in a Controller manual

The descriptions, illustrations and specifications contained in this manual are for forklift trucks with serial numbers in effect at the time of printing.

Brake related parts, assembling

– Keep the transfer assembly lying on its side and install it to the brake assembly. (Right and left differ in shape.) – Insert the pin and O-ring, and while holding the brake lever with the pin, secure the clevis pin and split pin.
– Loosen the nut.
– Move the brake lever to the arrow direction 1) by hand to bring the brake plates in close contact with each other. (Required force: approx. 98 N (10 kgf) [22.03 lbf]) – Tighten the adjusting bolt unit it comes into contact with the case by hand.
– Tighten the nut by hand.
– If the dimension 2) is 8 mm (0.32 in.) or less, replace, friction plates.
– From the above position, loosen the adjusting bolt one turn.
– Tighten the nut to secure the adjusting bolt in that position.
(Tightening torque: 6.9 ± 1.4 N·m
(0.7 ± 0.14 kgf·m) [5.09 ± 1.03 lbf·ft])
