Mitsubishi FB16CPN, FB18CPN, FB16PN, FB18PN, FB20PN Lift Truck Manual

Lift Truck Forklift Model: FB16CPN, FB18CPN, FB16PN, FB18PN, FB20PN
Publication 99759-5M100
English
Format: PDF

Mitsubishi FB16CPN, FB18CPN, FB16PN, FB18PN, FB20PN Forklift  Service Manual: 316 Pages

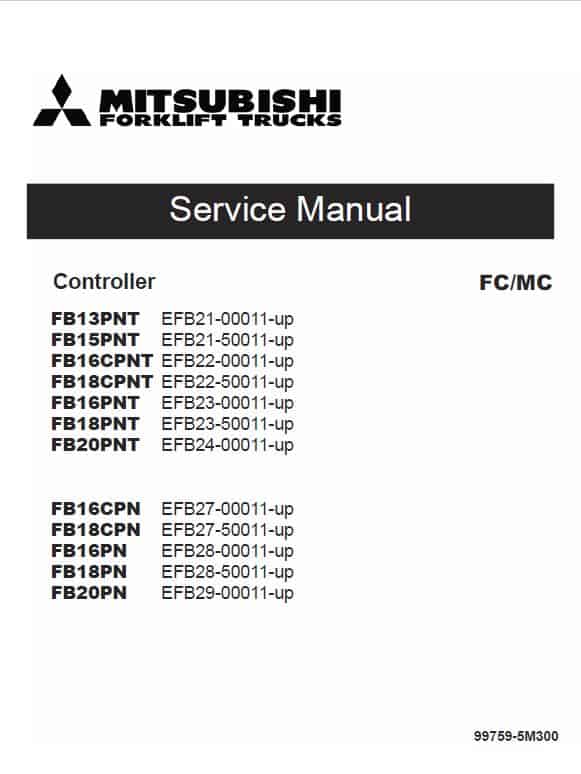

Controller Manual: 292 Pages

Forklift Manual Table of Content:

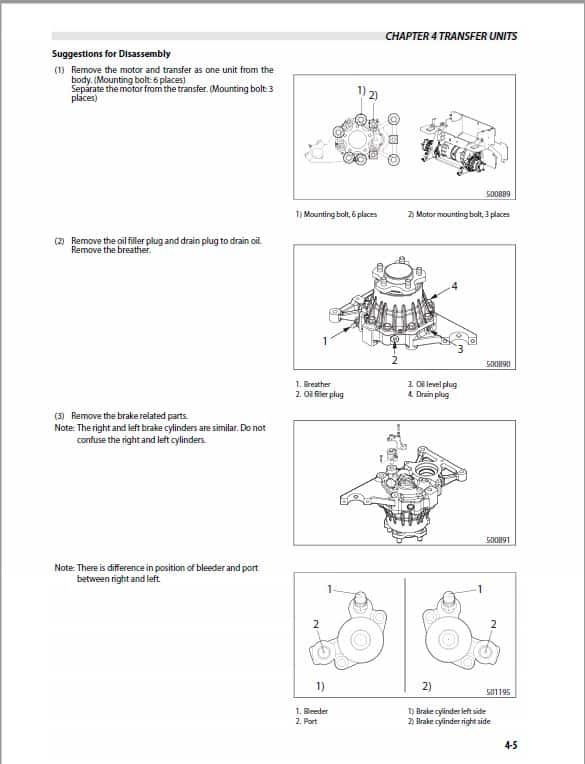

• General Information
• Front Axle & Reduction Differential
• Transfer Assembly

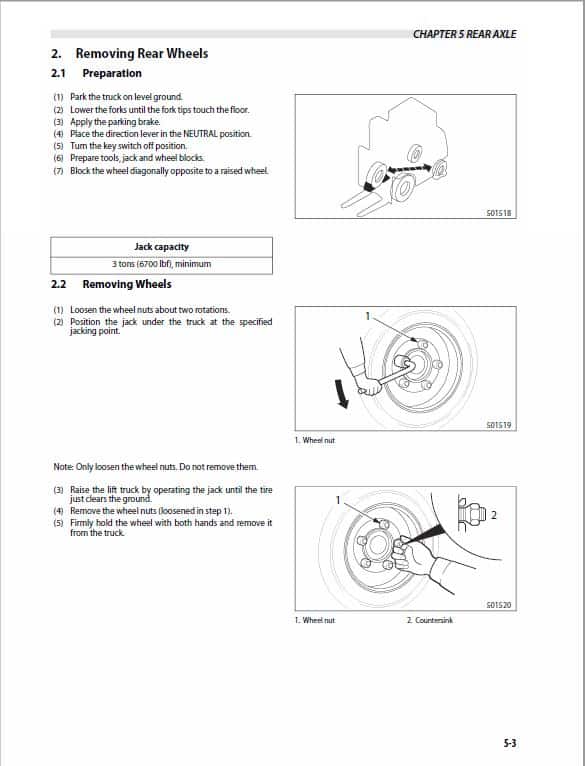

• Rear Axle
• Brake System
• Steering System

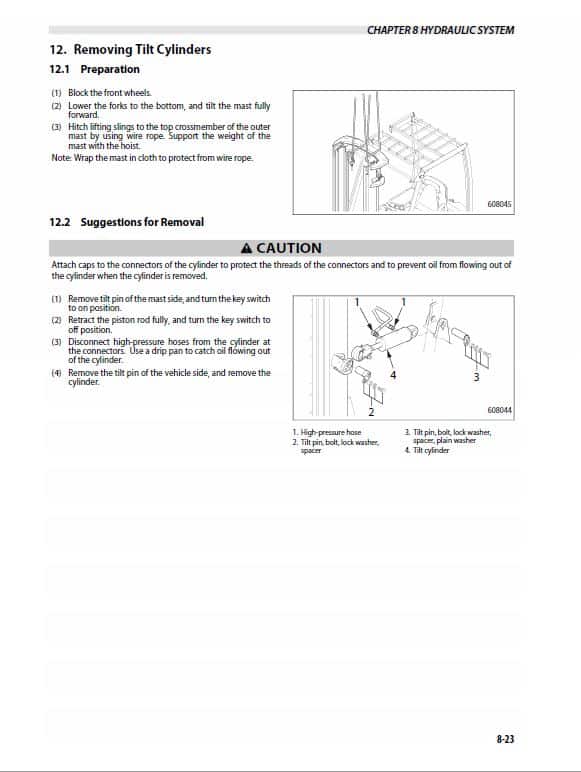

• Hydraulic System
• Mast and Forks
• Service Data
• Panel Cabin

This service manual deals with all components or systems of the Mitsubishi Forklift Trucks, except for the electrical system, which is covered in a Controller manual

Read the respective sections of this manual carefully and familiarize yourself with all of the components before attempting to
start a test, repair or rebuild the forklift truck.

Condition When Joystick is in Neutral Position

The electricity in both of the electromagnetic proportional solenoid valves (SA1 and SB1) does not flow, springs 11 and 12 installed in the right and left are placed in the center, and the lift spool 7 remains in the center without moving in either direction.
The hydraulic oil to lift/tilt/attachment of bleed-off valve enters oil passage 1, and the oil remains there as the exist of lift spool 7 of oil passage 1 is blocked.
Since the return oil passage from the A1 port is also blocked by lift lock valve 9, the hydraulic oil in the lift cylinder cannot be drained.
