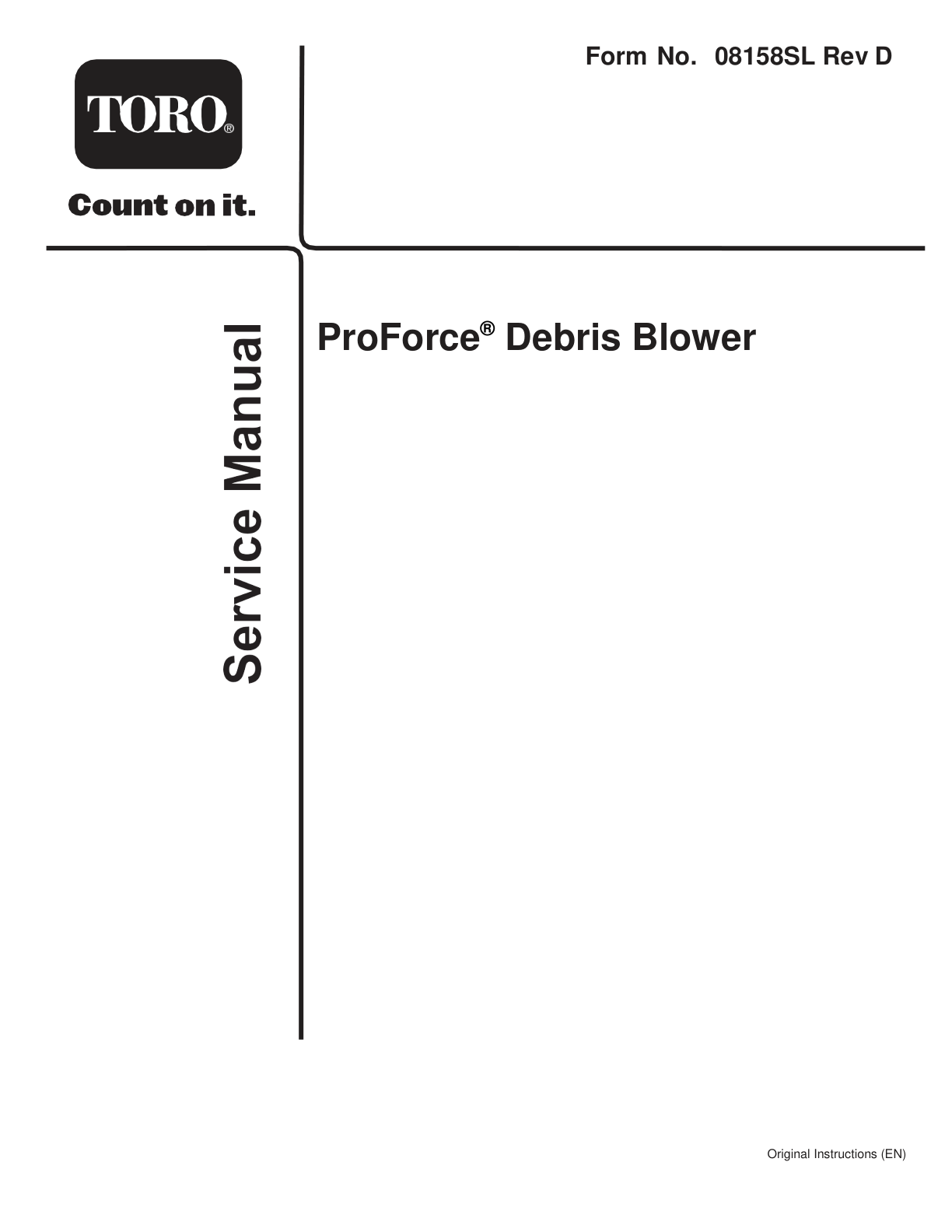

Toro Pro Force Debris Blower (Models 44538, 44539, 44542, 44551) Service Repair Manual

Description

Table of Content – Pro Force Debris Blower (Models 44538, 44539, 44542, 44551)

• Title Page
• Revision History
• Reader Comments
• Preface
• Table Of Contents
• 1 – Safety
• Safety Instructions
• Before Operating
• While Operating

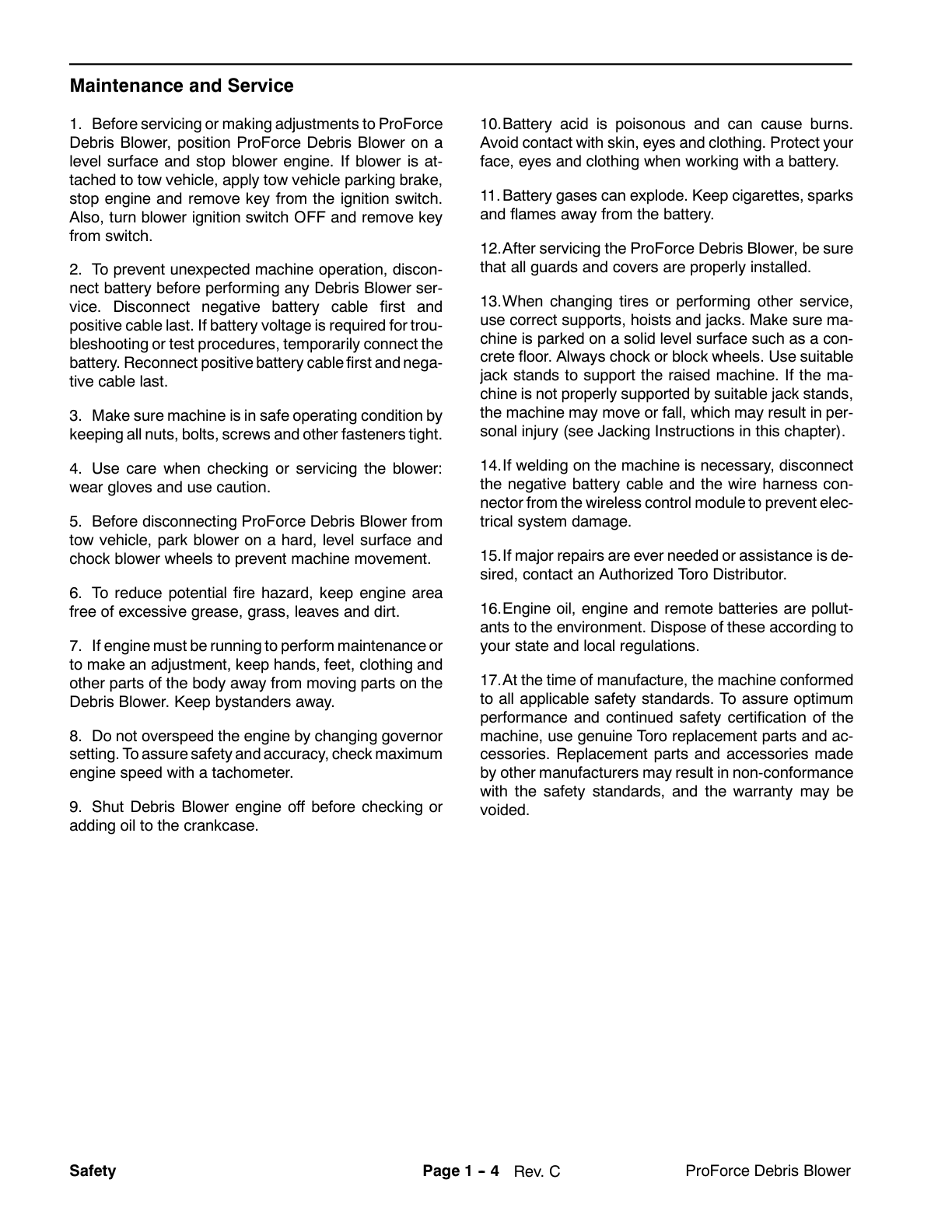

• Maintenance and Service

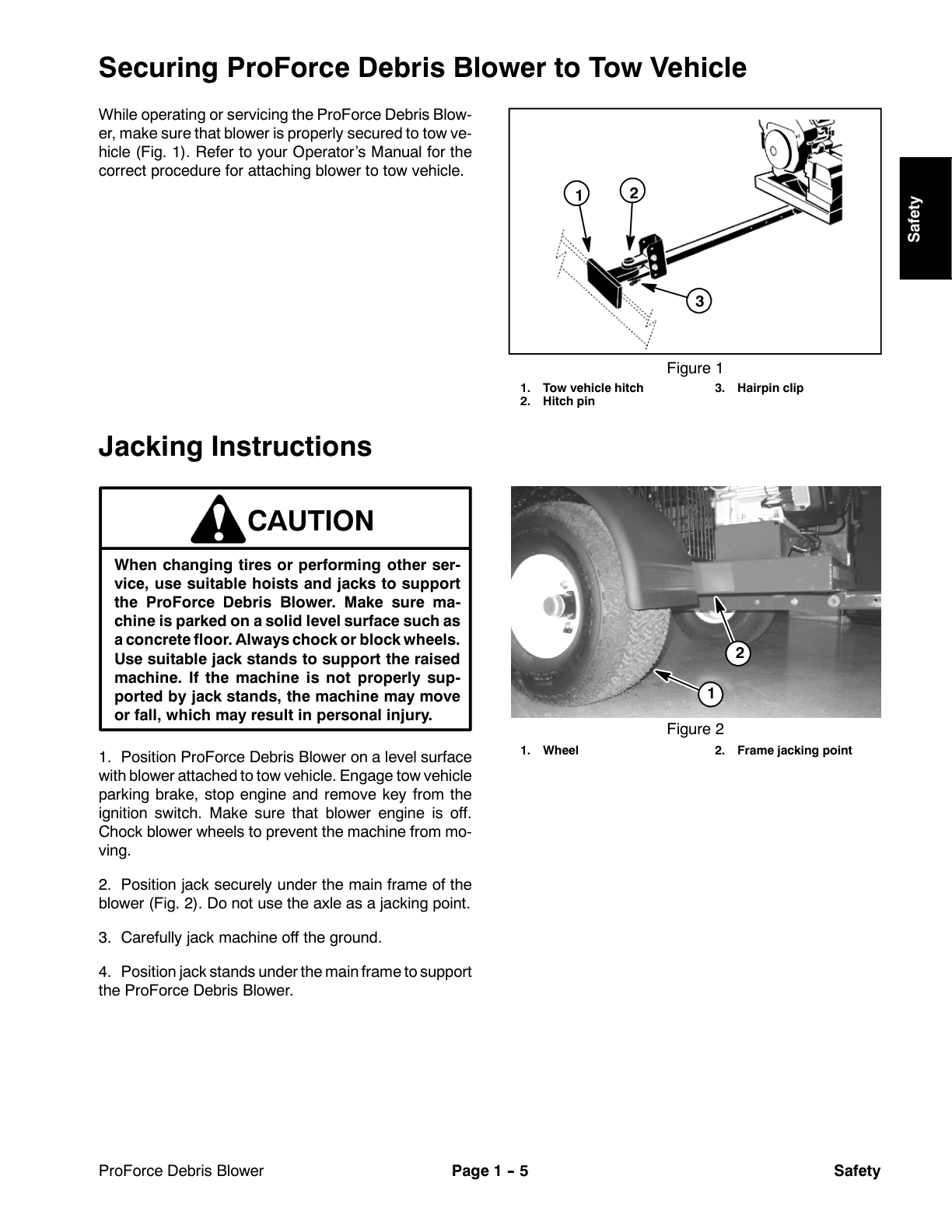

• Securing ProForce Debris Blower to Tow Vehicle
• Jacking Instructions
• Safety and Instruction Decals
• 2 – Product Records and Maintenance
• Product Records
• Maintenance
• Equivalents and Conversions
• Torque Specifications
• Fastener Identification
• Standard Torque for Dry, Zinc Plated and Steel Fasteners (Inch Series)
• Standard Torque for Dry, Zinc Plated and Steel Fasteners (Metric Fasteners)
• Other Torque Specifications
• Conversion Factors
• 3 – Engine
• Specifications
• General Information
• Operator’s Manual
• Electrical Power
• Service and Repairs
• Engine Cooling System

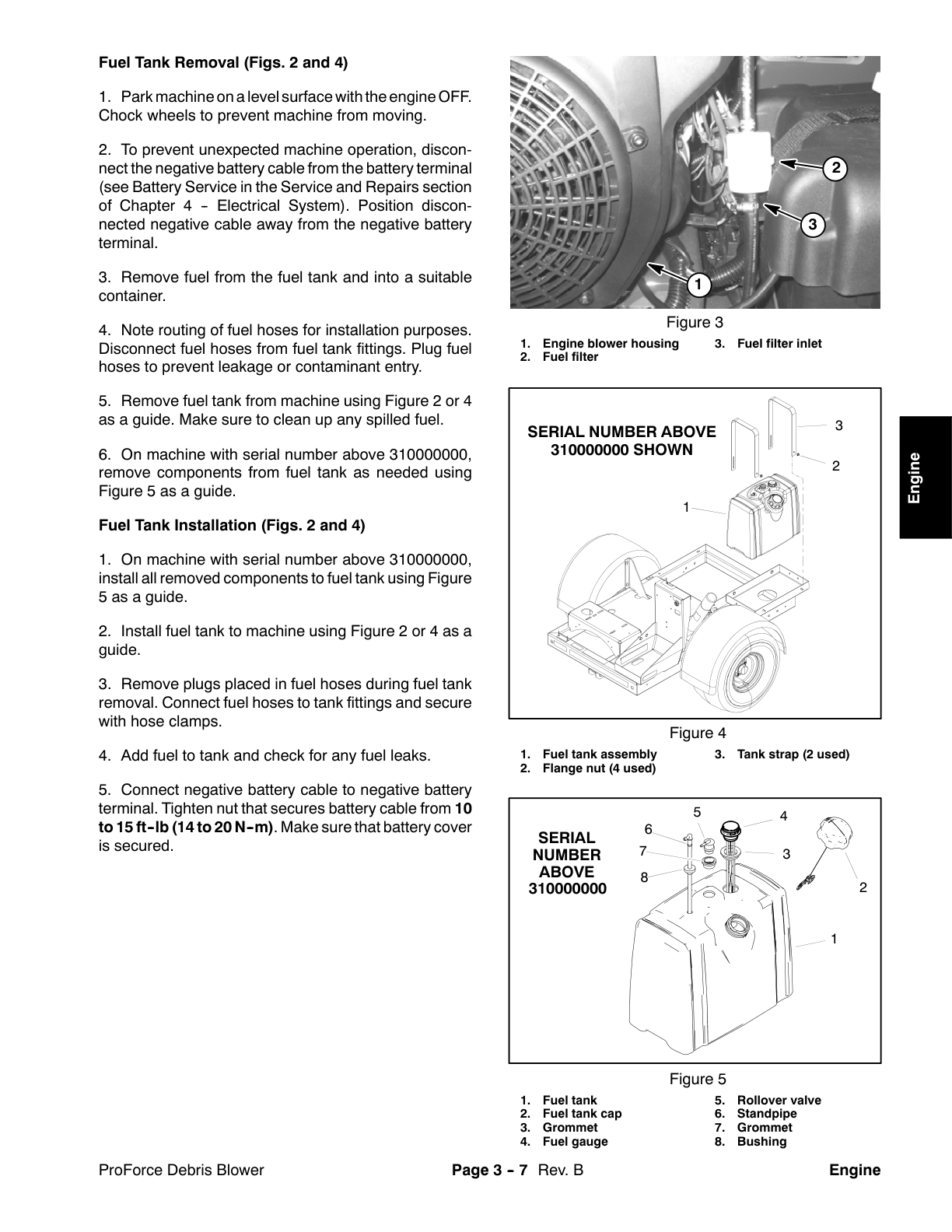

• Fuel Tank
• Engine
• Fuel Evaporative Control System (Serial Number Above 310000000)
• Kohler Engine Service Repair Manual
• 4 – Electrical System
• General Information
• Operator’s Manual
• Electrical Power
• Electrical Diagrams
• Special Tools
• Multimeter
• Skin-Over Grease
• Battery Terminal Protector
• Battery Hydrometer
• Troubleshooting
• Starting Problems
• General Run Problems
• Electrical System Quick Checks
• Battery Test (Open Circuit Test)
• Charging System Test
• Component Testing
• Ignition Switch
• Hour Meter
• Fuse
• Fusible Link
• Relays
• Remote Transmitter (Machines with Single Channel Controller
• Remote Transmitter (Machines with Multi Channel Controller)
• Wireless Control Module (Machines with Single Channel Controller)
• Wireless Control Module (Machines with Multi Channel Controller)
• Diode Assembly (Serial Number Below 310000000)
• Service and Repairs
• Nozzle Motor
• Battery Storage
• Battery Care
• Battery Service
• 5 – Blower Assembly
• General Information
• Operator’s Manual
• Electrical Power
• Special Tools
• Offset Wrench
• Service and Repairs
• Blower Drive Shaft
• Rotor Assembly
• Rotor Shaft (Serial Number Below 313000000)
• Rotor Shaft (Serial Number Above 313000000)
• Nozzle Assembly
• Inner Housing Assembly
• 6 – Chassis
• Specifications
• General Information
• Operator’s Manual
• Securing ProForce Debris Blower to Tow Vehicle
• Electrical Power
• Service and Repairs
• Wheels
• Wheel Hubs and Bearings
• Guards
• 7 – Electrical Diagrams
• Electrical Schematic Model 44538 (S.N Below 310000000)
• Electrical Schematic Models 44538 and 44539 (S.N From 310000000 to 311999999) and Model 44542
• Electrical Schematic Models 44538 and 44539 (S.N Above 312000000)
• Engine Electrical Diagram (S.N Below 310000000)
• Engine Electrical Diagram (S.N Above 310000000)
• Control Module Wake Up
• Crank Circuits
• Run Circuits
• Engine Speed Increase Circuits
• Nozzle Rotation Circuits
• Wire Harness Drawing Model 44538 (S.N Below 310000000)
• Wire Harness Diagram Model 44538 (S.N Below 310000000)
• Wire Harness Drawing Models 44538 and 44539 (S.N 310000000 to 311999999) and Model 44542
• Wire Harness Diagram Models 44538 and 44539 (S.N 310000000 to 311999999) and Model 44542
• Wire Harness Drawing Models 44538 and 44539 (S.N Above 312000000)
• Wire Harness Diagram Models 44538 and 44539 (S.N Above 312000000)
