BT 3 Function Control Handle Parts List Reference 302145-000

$30.00

Category: BT Parts Manual PDF

1. Front Cover
2. Figure 2.31 EV-100LX SCR Electrical Schematic – 3 Function Control Handle
3. Figure 2.32 EV-100LX SCR Electrical Schematic Symbols
4. Figure 2.33 Wiring Harness Assembly for 3 Function Control Valve
5. Figure 3.26 Hydraulic Schematic for 3 Function Control Handle
6. Figure 3.27 Hydraulic Schematic Symbols
7. Figure 3.28 Auxiliary Pump Reservoir Assembly for 3 Function Control Handle

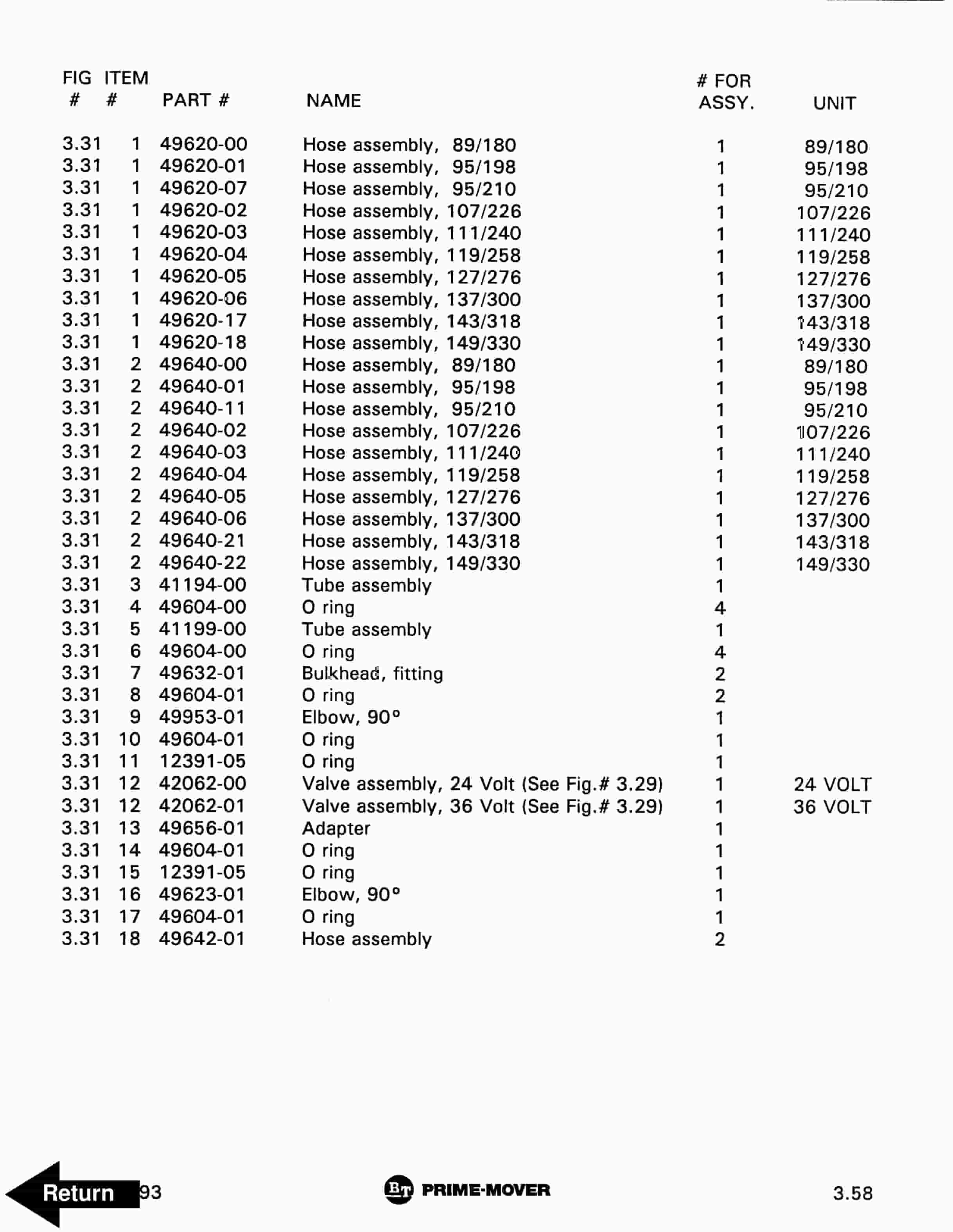

8. Figure 3.29 Valve Assembly

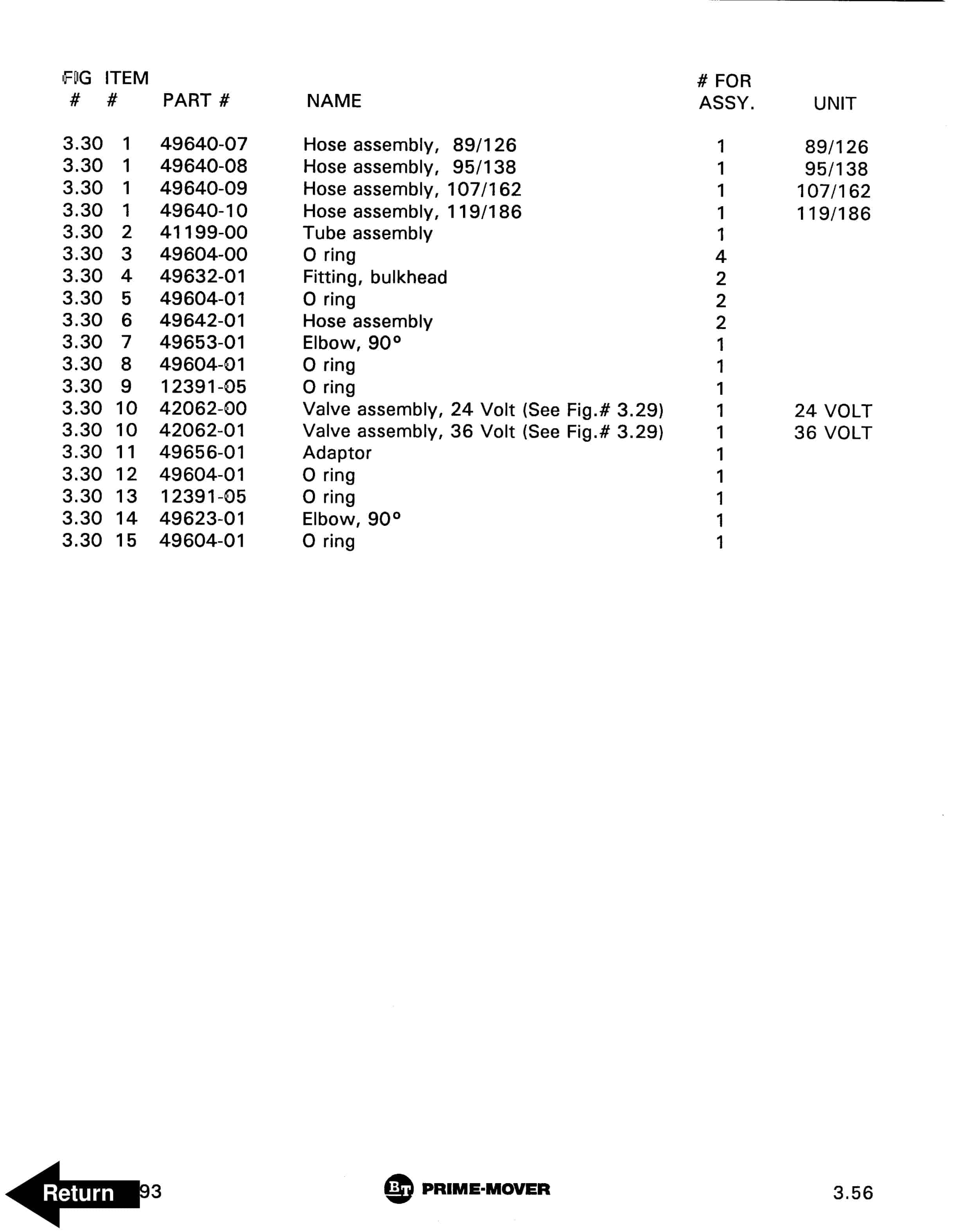

9. Figure 3.30 Two Stage Mast Hydraulic Assembly for 3 Function Control Handle

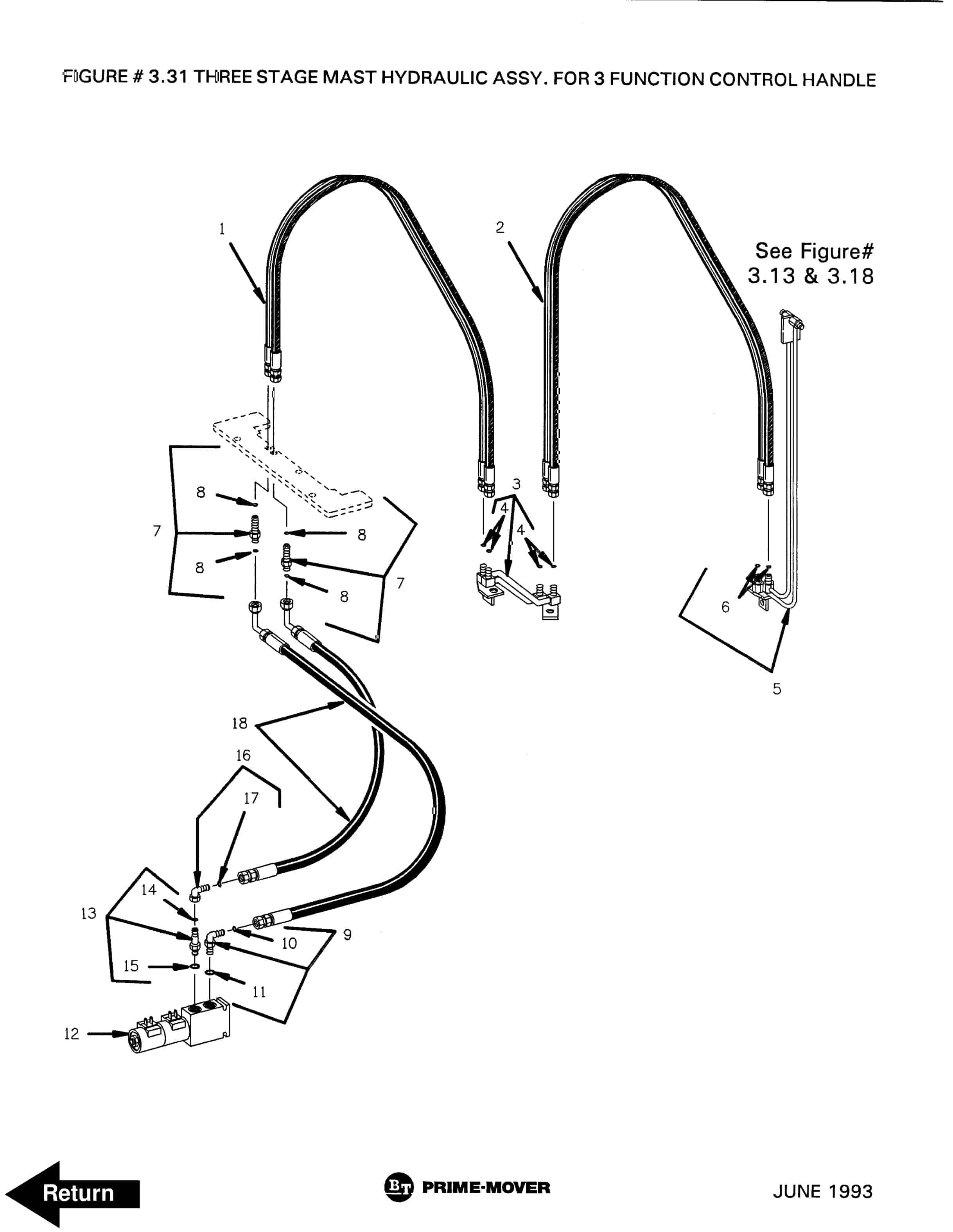

10. Figure 3.31 Three Stage Mast Hydraulic Assembly for 3 Function Control Handle
11. Figure 4.13 Hand Lift/Lower and Speed Control for 3 Function Control
12. Back Cover
