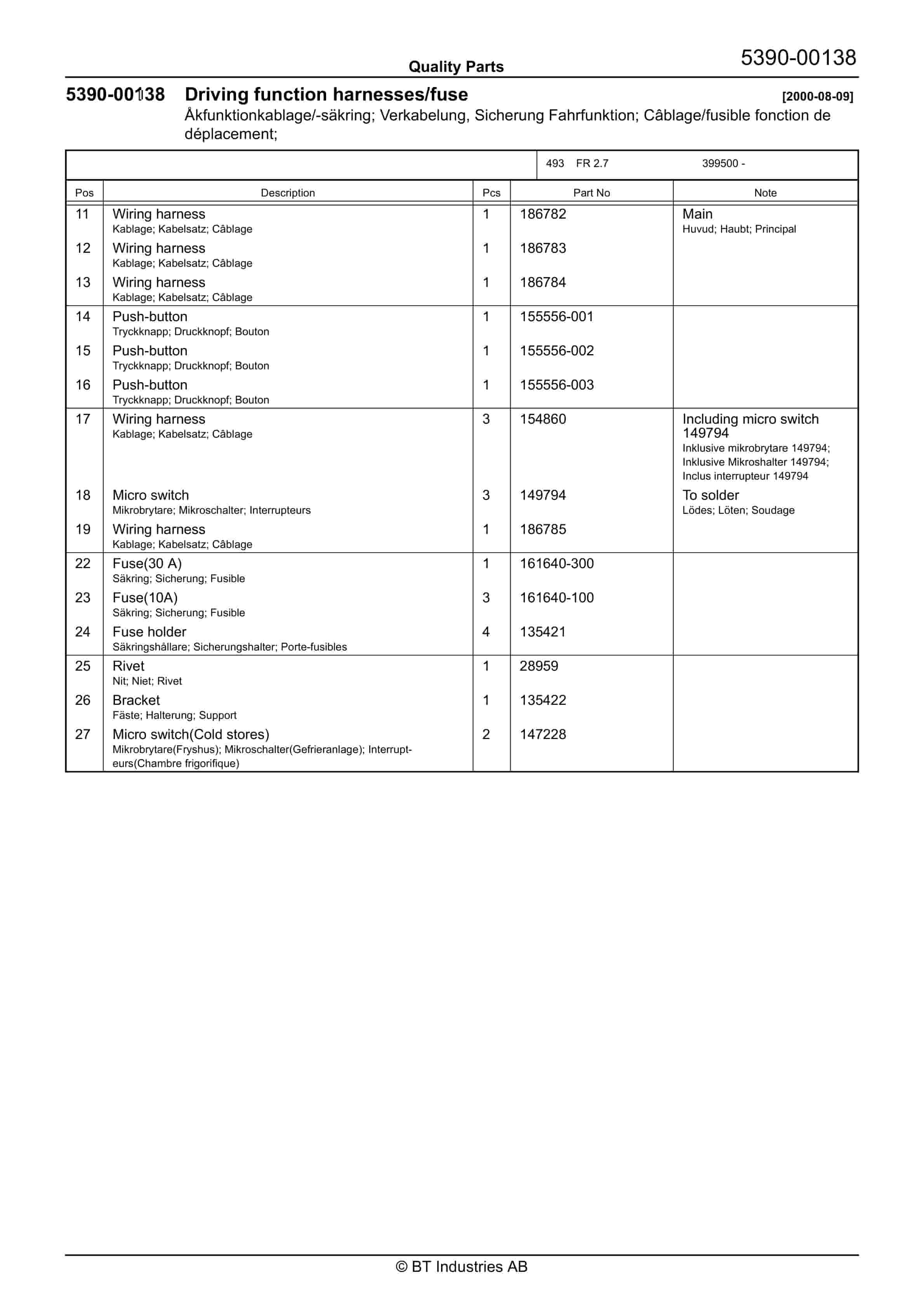

BT FR 2.7 Quality Parts 217811 - Image 2

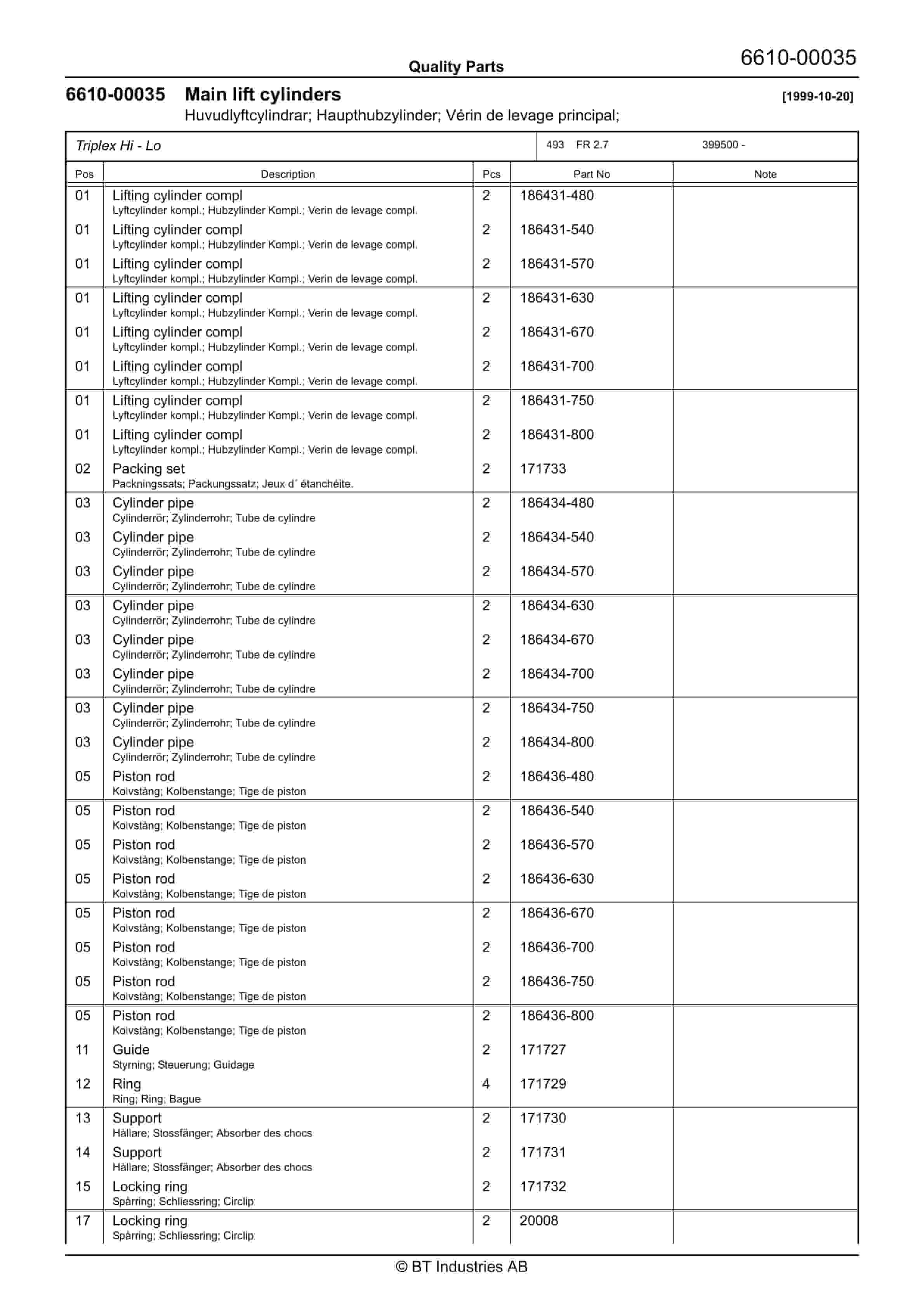

BT FR 2.7 Quality Parts 217811 - Image 3

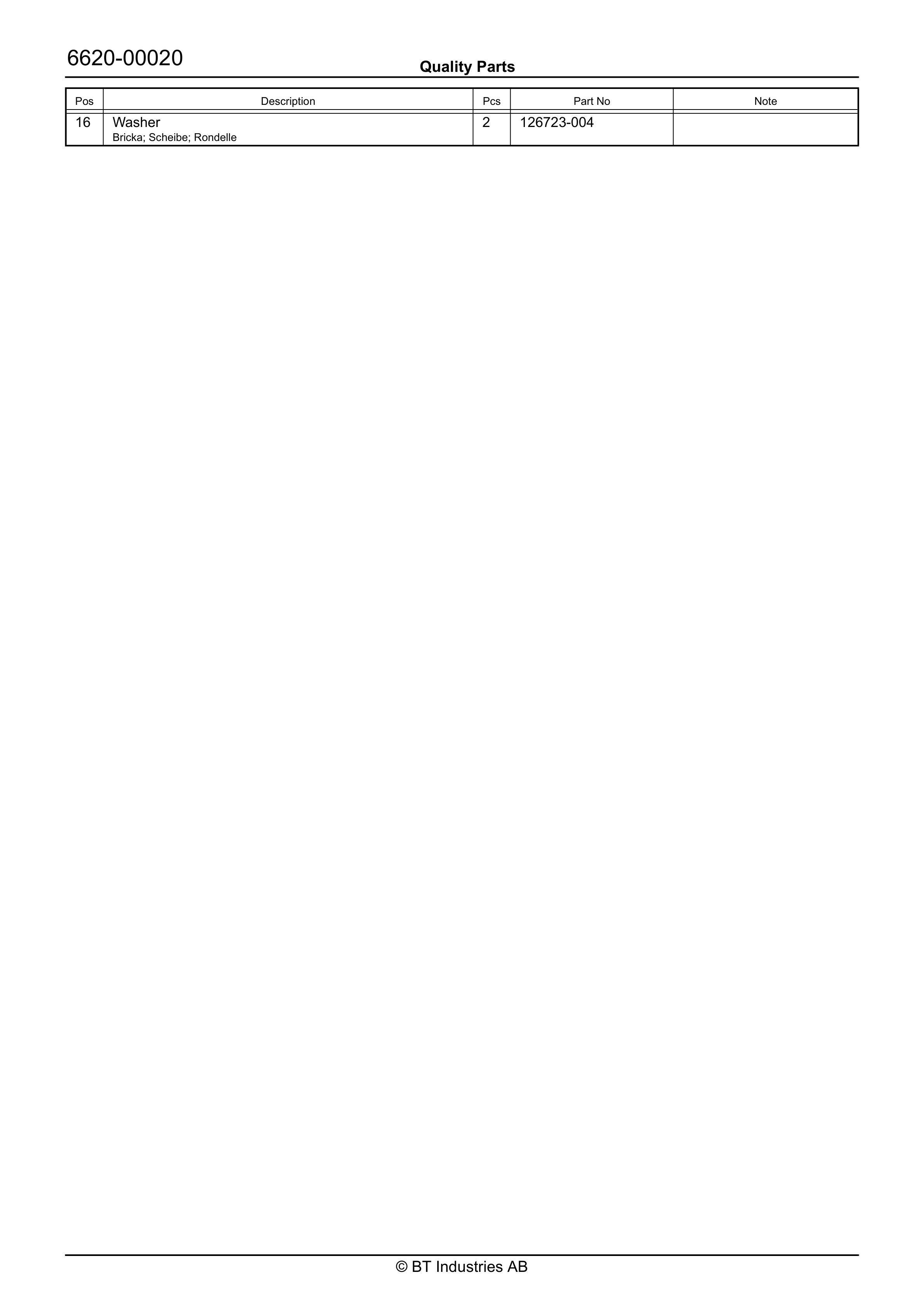

BT FR 2.7 Quality Parts 217811 - Image 4

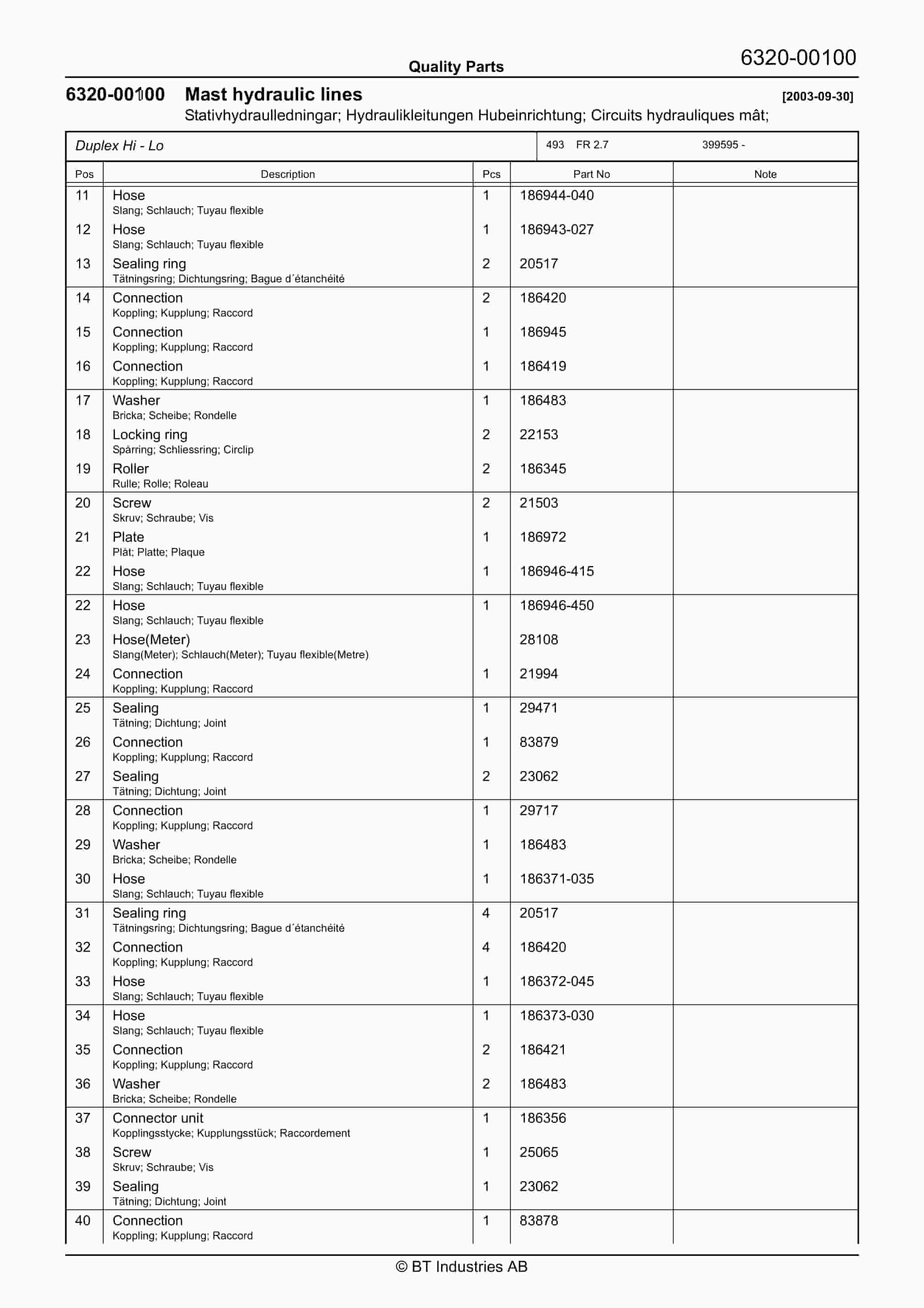

BT FR 2.7 Quality Parts 217811 - Image 5

BT FR 2.7 Quality Parts 217811

$30.00

Type Of Manual: Quality Parts
Manual ID: 217811
: Parts Manual PDF
Number of Pages: 144
Size: 7.1MB
Format: PDF

Category: BT Parts Manual PDF

Model List:
- FR 2.7

1. Chassis
1.1. Chassi Chassis Châssis
2. Motors
2.1. Motorer Motoren Moteurs
3. Transmission/Drive gear
3.1. Kraftöverföring/Drivväxel Kraftübertragung/Fahrgetriebe Transmission/Groupe de traction
4. Brake/Wheel/Caterpillar system
4.1. Broms-/Hjul-/Bandsystem Brems-/Rad-/Bandsystem Freins/Roues/ Chenilles
5. Steering system
5.1. Styrsystem Steuer-/Lenksystem Système de direction
6. Electrical system
6.1. Elektriskt system Elektroanlage Système électrique
7. Hydraulic/pneumatic system
7.1. Hydraulik/pneumatik Hydraulikanlage/Pneumatik Système hydraulique/pneumatique
8. Work function – lifting masts
8.1. Arbetsfunktion – lyftstativ Arbeitsfunktion – Hubgerüste Fonction de travail – mâts de levage
9. Options/attachments
9.1. Tillbehör/extrautrustning Zubehör/Zusatzausrüstung Equipement supplémentaire/Options
10. P0011617
11. Inspection covers 2000-01-12
12. P0011709
13. Battery compartment parts 2000-02-01
14. P0011768
15. Gearbox fixing points 2002-02-20
16. P0009691
17. Motor fixing points 2004-01-08
18. P0009746
19. Seat, cushions 2004-01-08
20. P0007590
21. Driver controls ( mechanical ) 2004-04-15
22. P0011770
23. Internal fittings 2000-02-17
24. P0010970
25. Overhead guard/roof 1999-09-14
26. P0011755
27. Overhead guard/roof 2000-02-14
28. P0011754
29. Finger/foot guards 2001-03-29
30. P0016857
31. Signs, warnings, decals 2002-09-26
32. P0020723
33. Electric pump motor 2004-04-20
34. P0019556
35. Electric steering motor 2004-04-15
36. P0009593
37. Electric fan motor, electric fan 2004-04-15
38. P0011293
39. Electric fan motor, electric fan 2004-04-15
40. P0020721
41. Electric drive motor 2004-04-20
42. P0011618
43. Mechanical drive gear unit 2002-10-29
44. P0007232
45. Travel brake controls 2004-04-15
46. P0009607
47. Electrically controlled travel brake 2004-04-15
48. P0012895
49. Electrically controlled travel brake 2003-04-01
50. P0000249
51. Drive wheel 2003-12-09
52. P0010928
53. Support/castor wheels 1999-09-10
54. P0010929
55. Fork/support arm wheels 2001-04-04
56. P0010930
57. Fork/support arm wheels 2000-08-15
58. P0014065
59. Fork/support arm wheels 2001-04-05
60. P0012896
61. Electric steering wheel/lever 2001-04-04
62. P0011762
63. Steering angle sensor 2000-02-16
64. P0016556
65. Steering bearings 2002-10-29
66. P0019213
67. General alarm signals (audible/visual) 2004-04-15
68. P0006443
69. Battery cut out connector/contactor 2003-12-09
70. P0007136
71. Instrument panel, display 2004-04-15
72. P0011703
73. Level/position transducers/lamps 2000-01-31
74. P0011767
75. Level/position transducers/lamps 2000-02-16
76. P0000151
77. Start/stop switch 2004-04-15
78. P0000257
79. Travel direction switch (separate) 2004-04-15
80. P0007232
81. Speed control 2004-04-15
82. P0011759
83. Driving function harnesses/fuse 2000-08-09
84. P0011010
85. Drive motor cables/resistors/fuses 1999-09-21
86. P0011011
87. Transistor panel 2000-10-09
88. P0010377
89. Work function micro switches, potentiometers 2003-12-09
90. P0011760
91. Work function harnesses/fuse 2000-02-15
92. P0011009
93. Battery/motor cables, fuse 1999-09-21
94. P0014016
95. Drive/multi-function PCBs 2003-03-25
96. P0007058
97. Safety electronics harnesses, fuse 2004-04-15
98. P0019523
99. Lift/lowering/reach movement probes/sensors 2003-12-03
100. P0009651
101. Safety probes/sensors 2004-04-15
102. P0009652
103. Safety probes/sensors 2004-01-08
104. P0010910
105. Safety probes/sensors 1999-09-08
106. P0011756
107. Safety probes/sensors 2000-02-14
108. P0010441
109. Hydraulic tank 2004-01-08
110. P0011719
111. Hydraulic tank lines 2000-02-03
112. P0010610
113. Filters and housing 2004-04-15
114. P0019208
115. Hydraulic pump 2004-01-08
116. P0020026
117. Control valve 2003-12-09
118. P0004679
119. Main valve unit lift/reach/tilt 2004-04-15
120. P0014017
121. Control valve ( Other functions ) 2001-04-04
122. P0011195
123. Hydraulic lines chassis 1999-10-22
124. P0014053
125. Mast hydraulic lines 2003-09-30
126. P0014059
127. Mast hydraulic lines 2001-04-04
128. P0014060
129. Mast hydraulic lines 2001-04-04
130. P0019399
131. Mast hydraulic lines 2003-09-30
132. P0019444
133. Mast hydraulic lines 2003-12-03
134. P0011179
135. Main lift cylinders 1999-10-20
136. P0011752
137. Main lift cylinders 2000-02-14
138. P0011180
139. Free lift cylinders 2003-09-30
140. P0016812
141. Free lift cylinders 2003-09-25
142. P0011210
143. Reach/telescopic cylinders 1999-10-25
144. P0011717
145. Tilt cylinders 2003-09-25
146. P0011208
147. Other hydraulic cylinders 1999-10-25
148. P0011713
149. Main mast 2000-02-02
150. P0011610
151. Main lift chain system 2003-09-25
152. P0011710
153. Main lift chain system 2003-09-25
154. P0014056
155. Main mast fork carriage 2001-04-04
156. P0014057
157. Main mast fork carriage 2001-04-04
158. P0014058
159. Main mast guidance/dampers 2003-09-25
160. P0011801
161. Main mast suspension 2000-03-01
162. P0011763
163. Fork carriage unit, integrated sideshift, fork spread 2003-09-30
164. P0019400
165. Fork carriage unit, integrated sideshift, fork spread 2003-09-30
166. P0011758
167. Other load carriers 2000-02-14
168. P0011757
169. Other load carriers 2000-02-14
170. P0019582
171. Extra warning lights/alarm 2003-12-03
172. P0011102
173. Charger attachment 2004-04-15
