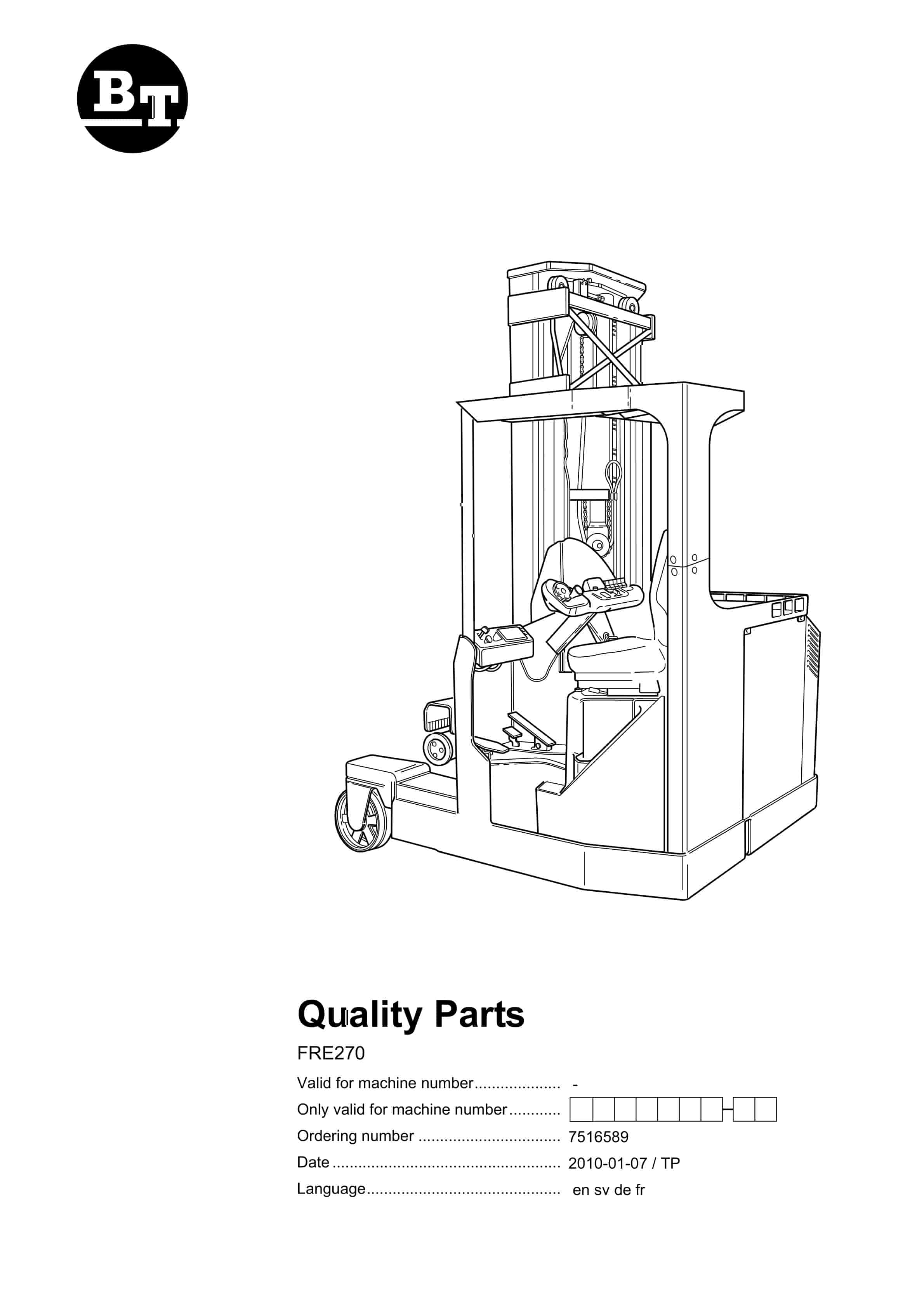

BT FRE270 Quality Parts 7516589

$30.00

Type Of Manual: Quality Parts
Manual ID: 7516589
: Parts Manual PDF
Number of Pages: 141
Size: 7.0MB
Format: PDF

Category: BT Parts Manual PDF

Model List:
- FRE270

1. Chassis
1.1. Chassi Chassis Châssis
2. Motors
2.1. Motorer Motoren Moteurs
3. Transmission/Drive gear
3.1. Kraftöverföring/Drivväxel Kraftübertragung/Fahrgetriebe Transmission/Groupe de traction
4. Brake/Wheel/Caterpillar system
4.1. Broms-/Hjul-/Bandsystem Brems-/Rad-/Bandsystem Freins/Roues/ Chenilles
5. Steering system
5.1. Styrsystem Steuer-/Lenksystem Système de direction
6. Electrical system
6.1. Elektriskt system Elektroanlage Système électrique
7. Hydraulic/pneumatic system
7.1. Hydraulik/pneumatik Hydraulikanlage/Pneumatik Système hydraulique/pneumatique
8. Work function – lifting masts
8.1. Arbetsfunktion – lyftstativ Arbeitsfunktion – Hubgerüste Fonction de travail – mâts de levage
9. Options/attachments
9.1. Tillbehör/extrautrustning Zubehör/Zusatzausrüstung Equipement supplémentaire/Options
10. P0035608
11. Inspection covers 2009-11-19
12. P0027043
13. Battery compartment parts 2006-05-29
14. P0011768
15. Gearbox fixing points 2006-05-29
16. P0009691
17. Motor fixing points 2008-10-14
18. P0021632
19. Seat, cushions 2009-11-19
20. P0007590
21. Driver controls ( mechanical ) 2008-12-02
22. P0011770
23. Internal fittings 2006-05-29
24. P0011755
25. Overhead guard/roof 2006-05-29
26. P0034367
27. Overhead guard/roof 2009-05-06
28. P0011754
29. Finger/foot guards 2006-05-29
30. P0026985
31. Signs, warnings, decals 2006-05-29
32. P0020723
33. Electric pump motor 2009-11-19
34. P0022836
35. Electric steering motor 2009-11-19
36. P0009593
37. Electric fan motor, electric fan 2008-12-04
38. P0011293
39. Electric fan motor, electric fan 2009-11-19
40. P0020721
41. Electric drive motor 2009-11-19
42. P0011618
43. Mechanical drive gear unit 2006-05-29
44. P0007232
45. Travel brake controls 2009-11-19
46. P0012895
47. Electrically controlled travel brake 2008-10-14
48. P0026959
49. Electrically controlled travel brake 2009-11-19
50. P0000249
51. Drive wheel 2008-10-14
52. P0010928
53. Support/castor wheels 2006-05-29
54. P0010929
55. Fork/support arm wheels 2006-05-29
56. P0014065
57. Fork/support arm wheels 2006-05-29
58. P0022557
59. Fork/support arm wheels 2006-05-29
60. P0012896
61. Electric steering wheel/lever 2007-02-21
62. P0011762
63. Steering angle sensor 2007-02-21
64. P0016556
65. Steering bearings 2006-05-29
66. P0019213
67. General alarm signals (audible/visual) 2007-11-28
68. P0026037
69. Battery cut out connector/contactor 2009-11-24
70. P0007136
71. Instrument panel, display 2009-11-24
72. P0011703

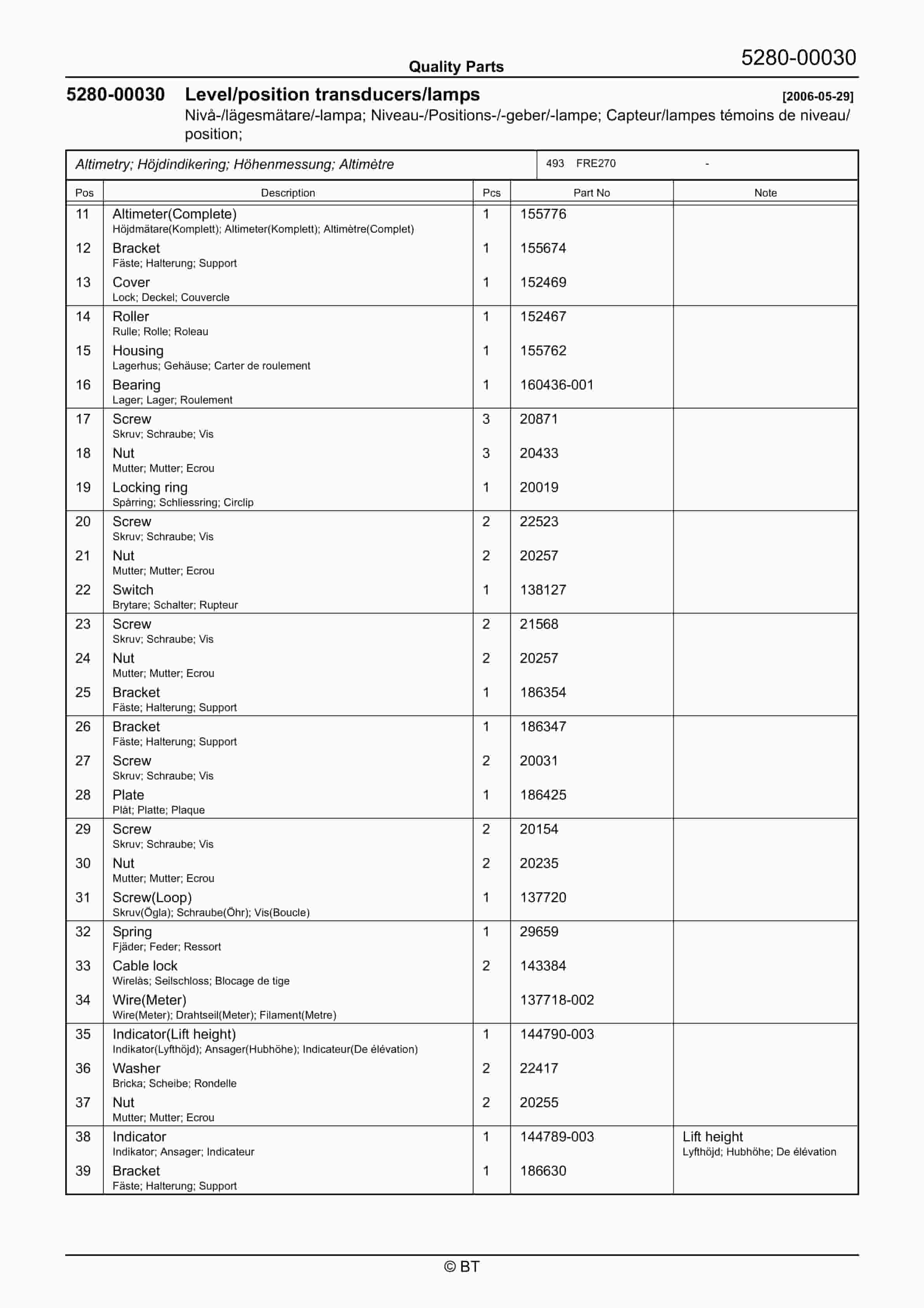

73. Level/position transducers/lamps 2006-05-29
74. P0011767
75. Level/position transducers/lamps 2006-05-29
76. P0000151
77. Start/stop switch 2009-04-15
78. P0000257
79. Travel direction switch (separate) 2009-11-24
80. P0007232
81. Speed control 2009-11-24
82. P0011759
83. Driving function harnesses/fuse 2006-05-29
84. P0011010
85. Drive motor cables/resistors/fuses 2006-05-29
86. P0011011
87. Transistor panel 2006-05-29
88. P0010377
89. Work function micro switches, potentiometers 2006-05-29
90. P0011760
91. Work function harnesses/fuse 2007-02-14
92. P0011009
93. Battery/motor cables, fuse 2006-05-29
94. P0014016
95. Drive/multi-function PCBs 2006-05-29
96. P0007058
97. Safety electronics harnesses, fuse 2009-11-24
98. P0019523
99. Lift/lowering/reach movement probes/sensors 2006-05-29
100. P0009651
101. Safety probes/sensors 2008-09-18
102. P0009652
103. Safety probes/sensors 2006-05-29
104. P0011756
105. Safety probes/sensors 2006-05-29
106. P0034368
107. Safety probes/sensors 2009-05-06
108. P0023727
109. Hydraulic tank 2006-05-29
110. P0031744
111. Hydraulic tank lines 2008-05-22
112. P0010610
113. Filters and housing 2009-11-24
114. P0019208
115. Hydraulic pump 2009-11-24
116. P0020026
117. Control valve 2006-05-29
118. P0022152
119. Main valve unit lift/reach/tilt 2008-10-15
120. P0014017
121. Control valve ( Other functions ) 2006-05-29
122. P0011195

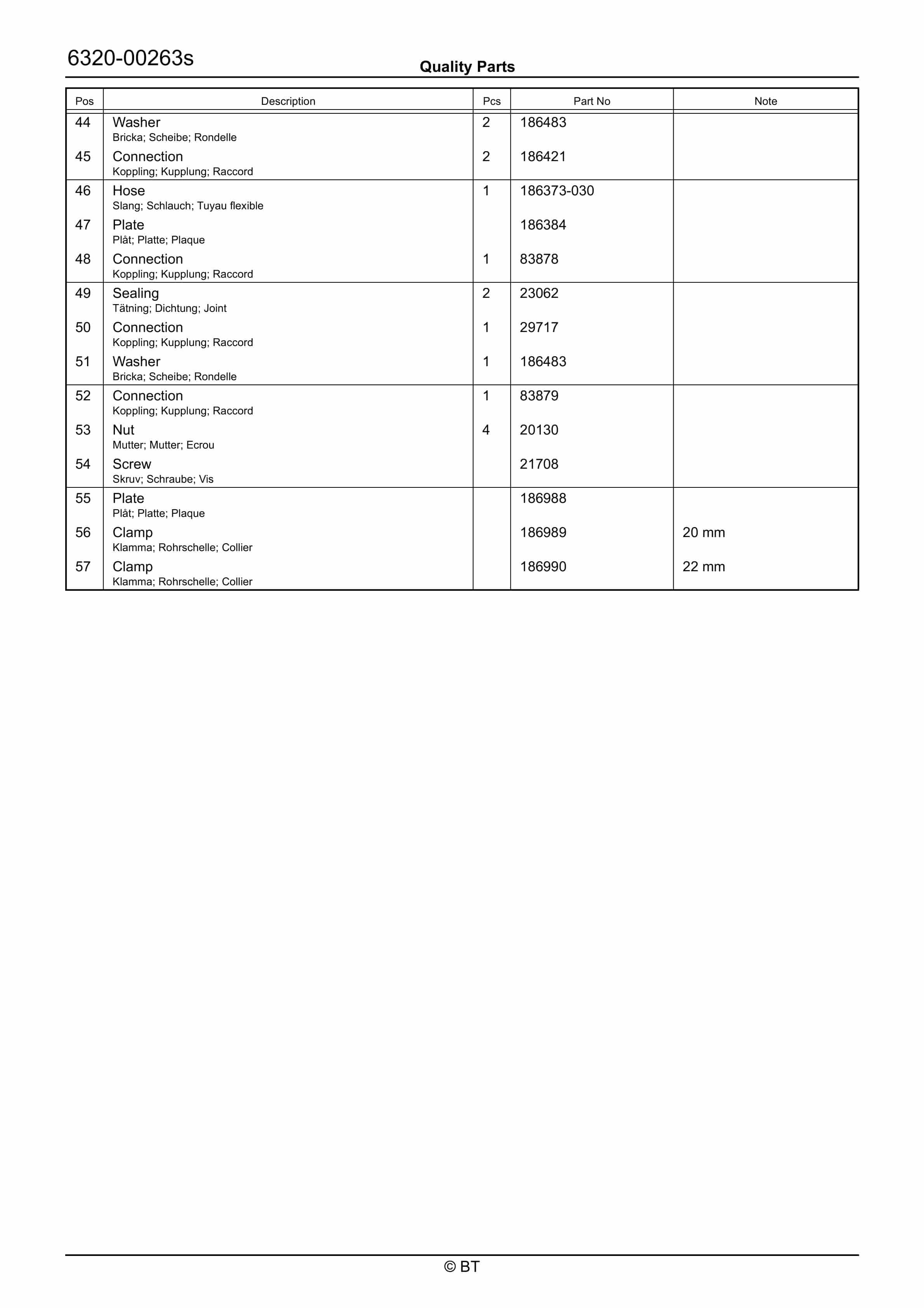

123. Hydraulic lines chassis 2006-05-29
124. P0014053
125. Mast hydraulic lines 2006-05-29
126. P0014059
127. Mast hydraulic lines 2006-05-29
128. P0014060
129. Mast hydraulic lines 2006-05-29
130. P0019399
131. Mast hydraulic lines 2006-05-29
132. P0021190
133. Mast hydraulic lines 2004-05-17
134. P0021189
135. Main lift cylinders 2004-05-17
136. P0021188
137. Free lift cylinders 2004-05-17
138. P0011210
139. Reach/telescopic cylinders 2006-05-29
140. P0011717

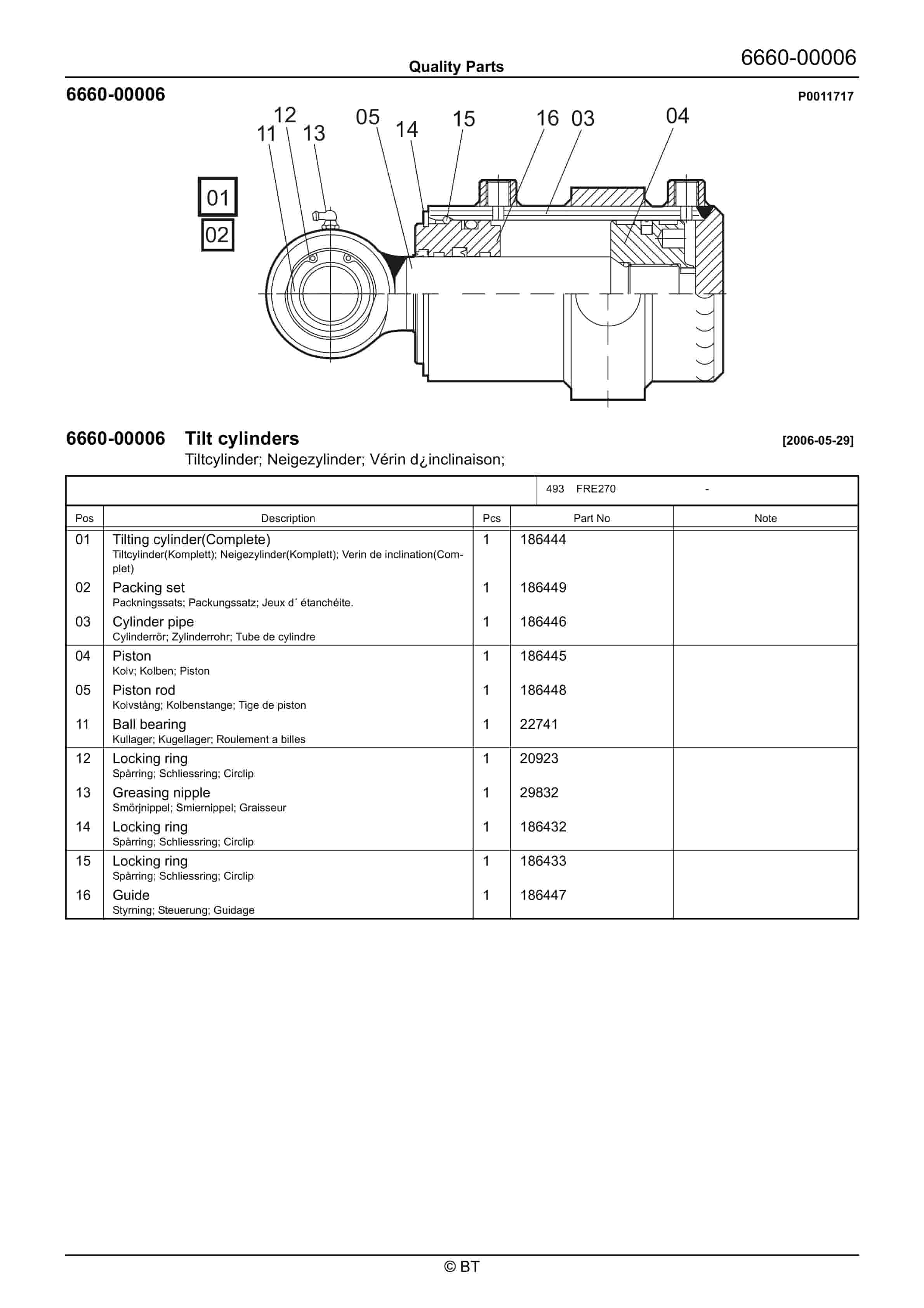

141. Tilt cylinders 2006-05-29
142. P0011208
143. Other hydraulic cylinders 2006-05-29
144. P0011713
145. Main mast 2006-05-29
146. P0021187
147. Main lift chain system 2004-05-17
148. P0014056
149. Main mast fork carriage 2006-05-29
150. P0014057
151. Main mast fork carriage 2006-05-29
152. P0014058
153. Main mast guidance/dampers 2006-05-29
154. P0022556
155. Main mast suspension 2006-05-29
156. P0019400
157. Fork carriage unit, integrated sideshift, fork spread 2006-06-14
158. P0031480
159. Fork carriage unit, integrated sideshift, fork spread 2008-05-22
160. P0011758
161. Other load carriers 2006-05-29
162. P0011757
163. Other load carriers 2006-05-29
164. P0034619
165. Extra lighting 2009-05-06
166. P0019582
167. Extra warning lights/alarm 2006-05-29
168. P0011102
169. Charger attachment 2009-11-24
