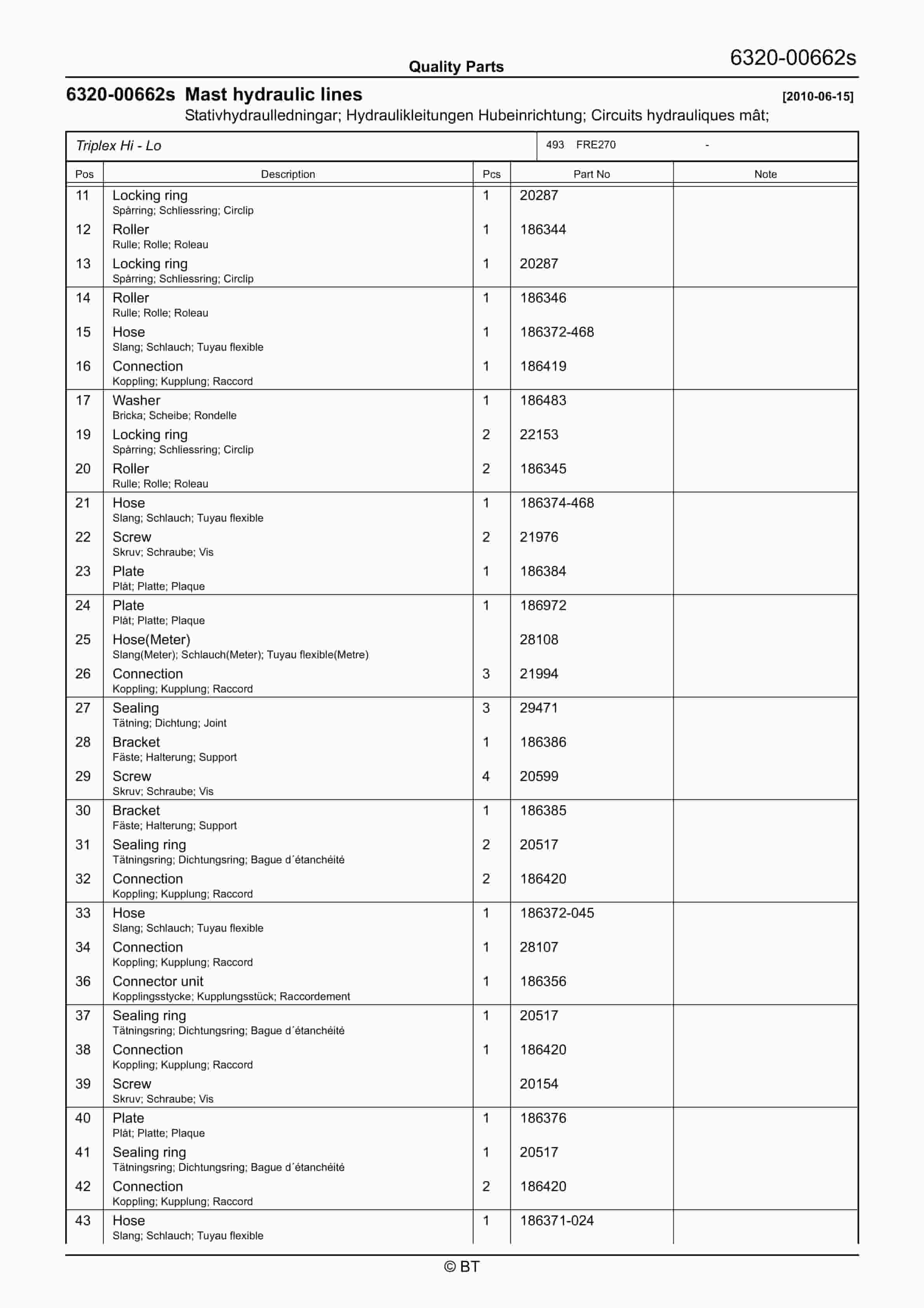

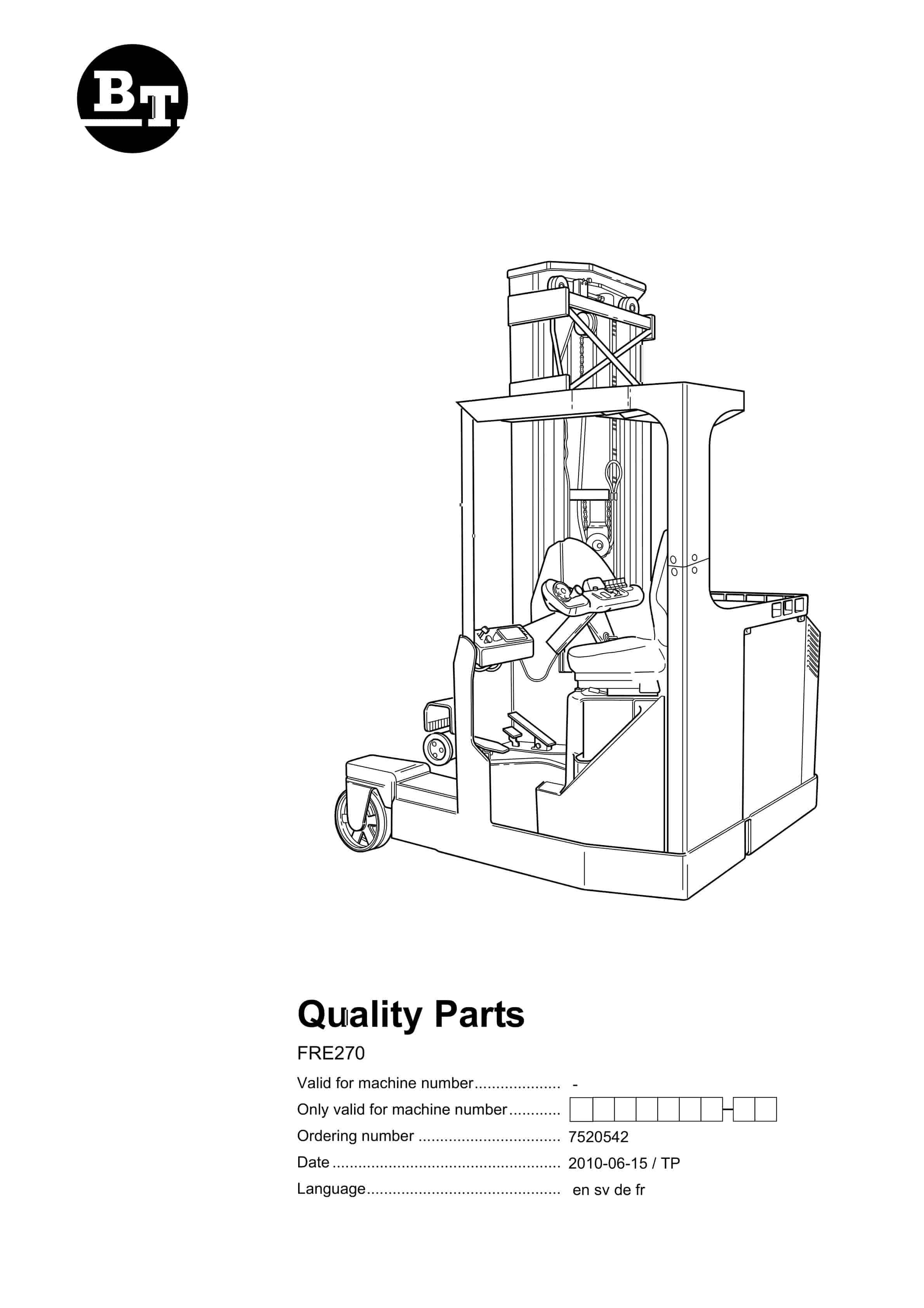

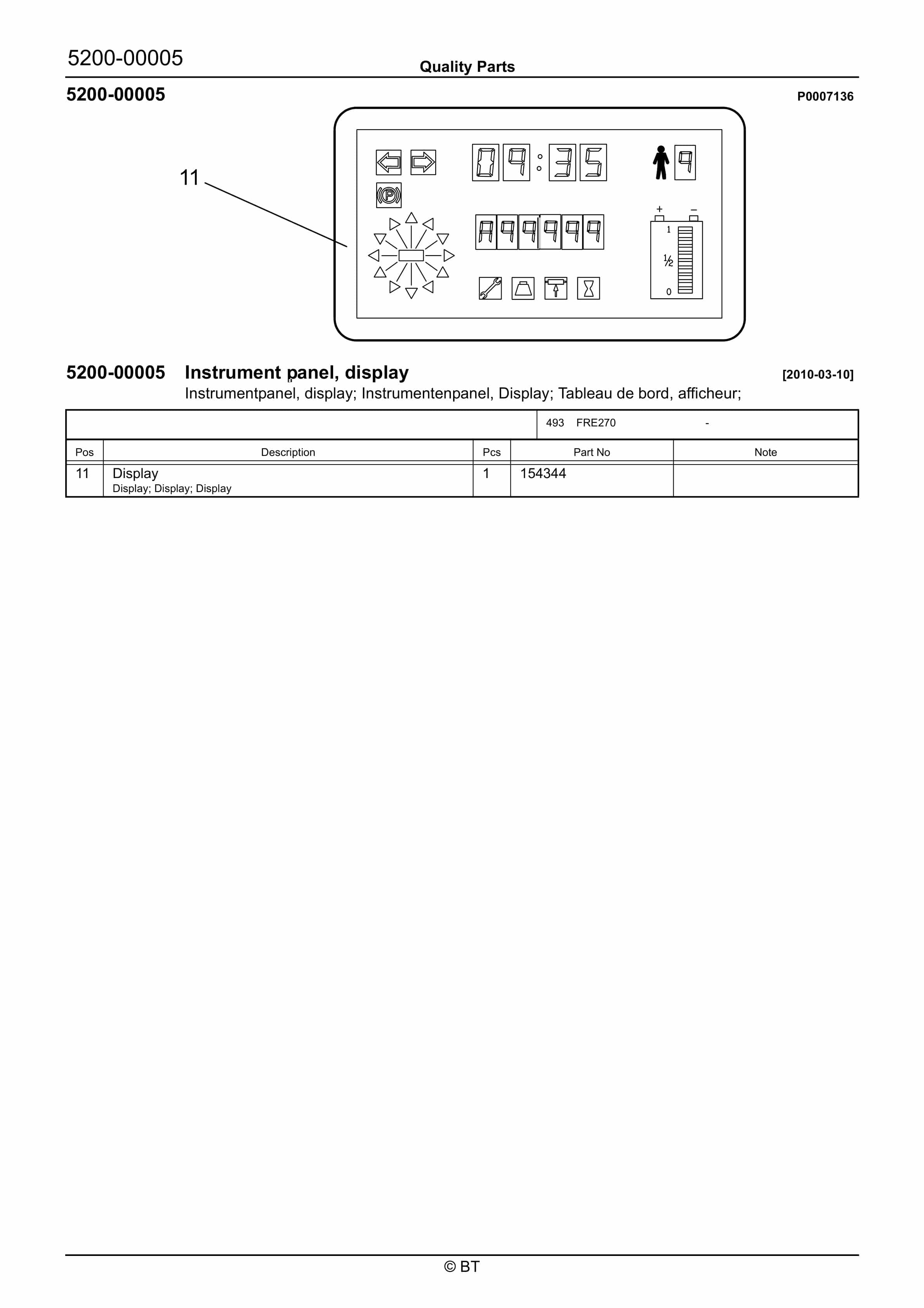

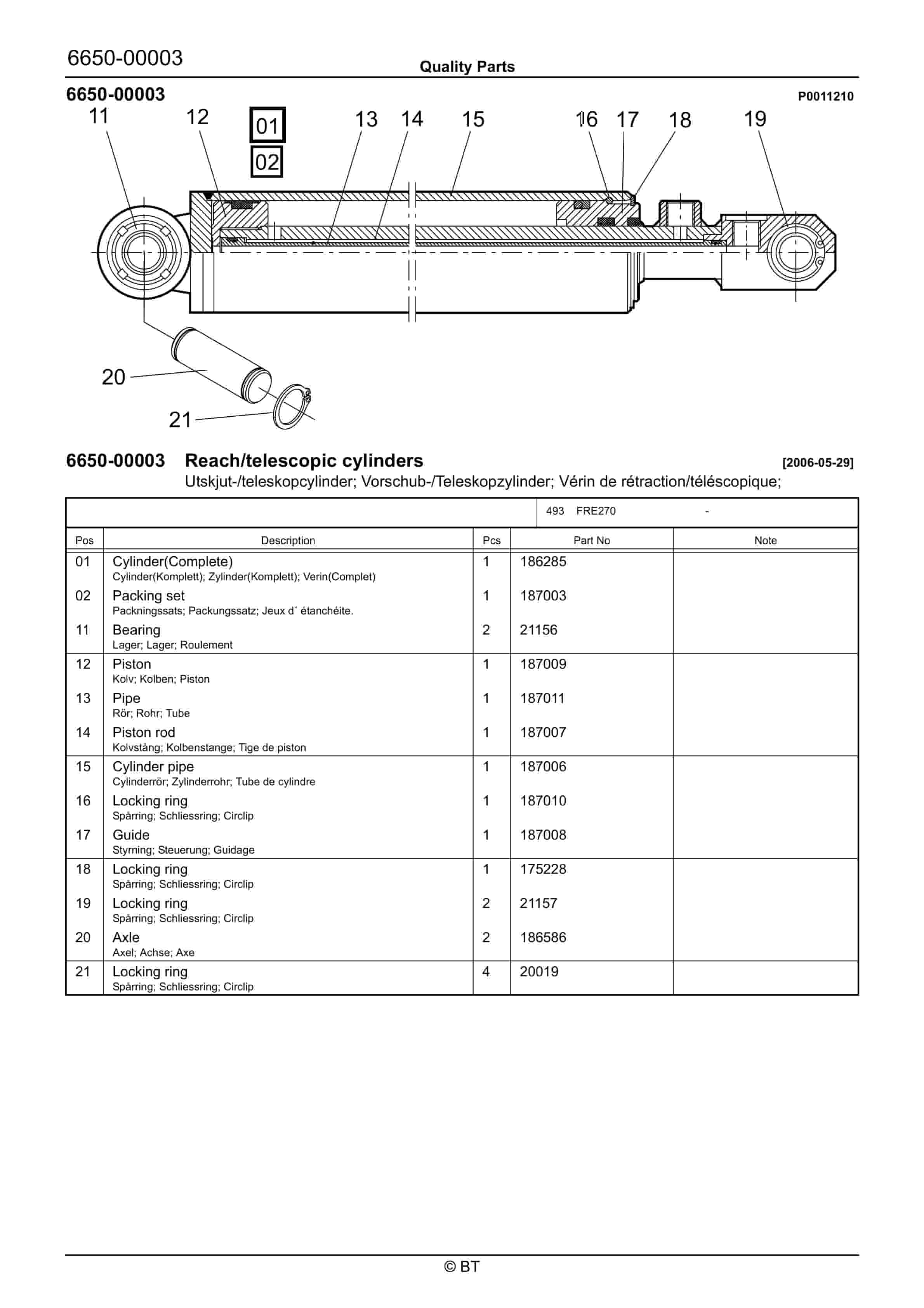

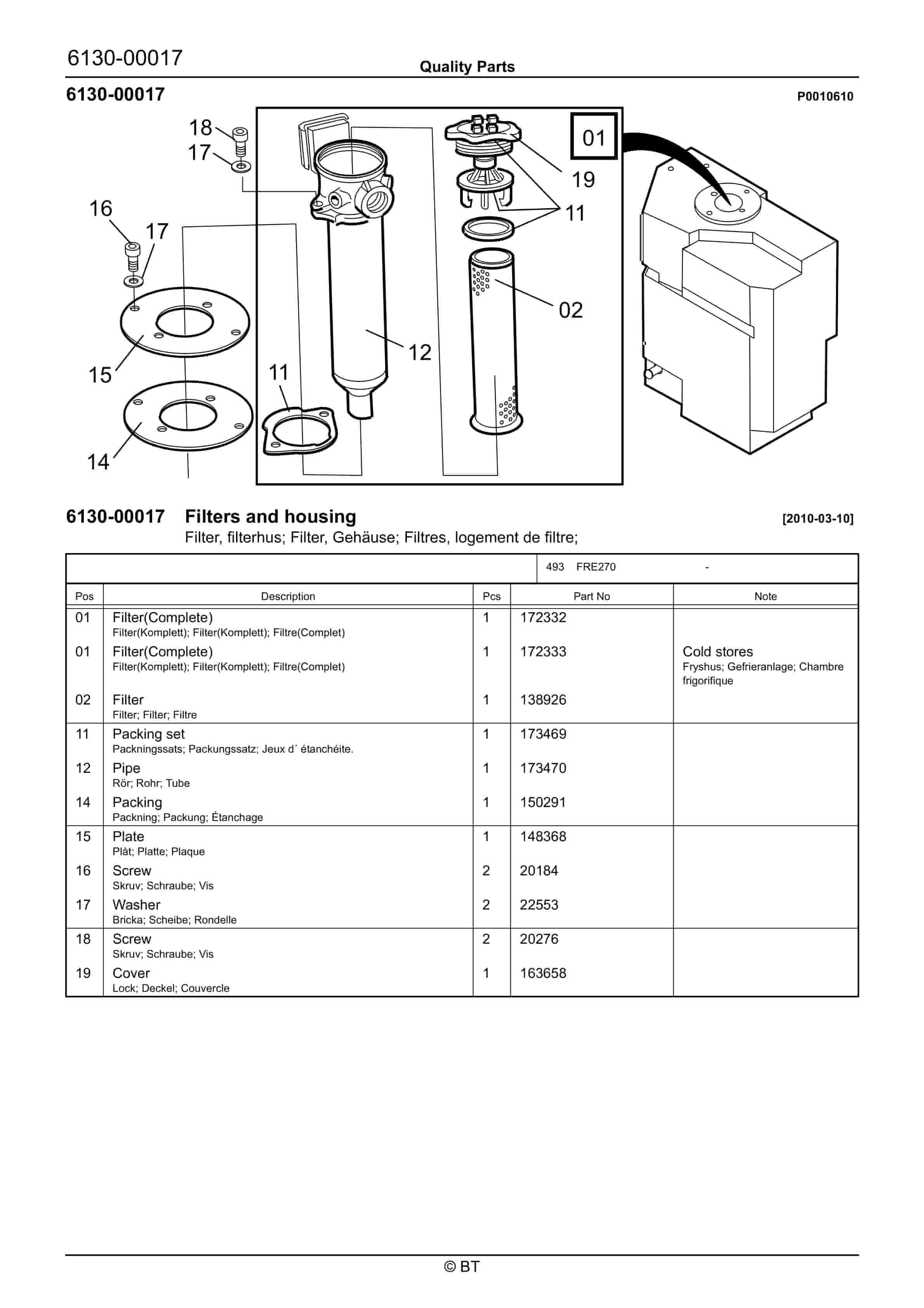

BT FRE270 Quality Parts 7520542

$30.00

Type Of Manual: Quality Parts
Manual ID: 7520542
: Parts Manual PDF
Number of Pages: 134
Size: 7.0MB
Format: PDF

Category: BT Parts Manual PDF

Model List:
- FRE270

1. Chassis
1.1. Chassi Chassis Châssis
2. Motors
2.1. Motorer Motoren Moteurs
3. Transmission/Drive gear
3.1. Kraftöverföring/Drivväxel Kraftübertragung/Fahrgetriebe Transmission/Groupe de traction
4. Brake/Wheel/Caterpillar system
4.1. Broms-/Hjul-/Bandsystem Brems-/Rad-/Bandsystem Freins/Roues/ Chenilles
5. Steering system
5.1. Styrsystem Steuer-/Lenksystem Système de direction
6. Electrical system
6.1. Elektriskt system Elektroanlage Système électrique
7. Hydraulic/pneumatic system
7.1. Hydraulik/pneumatik Hydraulikanlage/Pneumatik Système hydraulique/pneumatique
8. Work function – lifting masts
8.1. Arbetsfunktion – lyftstativ Arbeitsfunktion – Hubgerüste Fonction de travail – mâts de levage
9. Options/attachments
9.1. Tillbehör/extrautrustning Zubehör/Zusatzausrüstung Equipement supplémentaire/Options
10. P0035608
11. Inspection covers 2009-11-19
12. P0027043
13. Battery compartment parts 2006-05-29
14. P0011768
15. Gearbox fixing points 2006-05-29
16. P0009691
17. Motor fixing points 2008-10-14
18. P0036921
19. Seat, cushions 2010-06-03
20. P0007590
21. Driver controls ( mechanical ) 2008-12-02
22. P0011770
23. Internal fittings 2006-05-29
24. P0036917
25. Mirrors 2010-06-02
26. P0011755
27. Overhead guard/roof 2006-05-29
28. P0034367
29. Overhead guard/roof 2009-05-06
30. P0011754
31. Finger/foot guards 2006-05-29
32. P0026985
33. Signs, warnings, decals 2006-05-29
34. P0020723
35. Electric pump motor 2009-11-19
36. P0022836
37. Electric steering motor 2009-11-19
38. P0009593
39. Electric fan motor, electric fan 2008-12-04
40. P0011293
41. Electric fan motor, electric fan 2010-03-10
42. P0020721
43. Electric drive motor 2009-11-19
44. P0011618
45. Mechanical drive gear unit 2006-05-29
46. P0007232
47. Travel brake controls 2010-03-10
48. P0012895
49. Electrically controlled travel brake 2008-10-14
50. P0026959
51. Electrically controlled travel brake 2009-11-19
52. P0000249
53. Drive wheel 2008-10-14
54. P0010928
55. Support/castor wheels 2006-05-29
56. P0010929
57. Fork/support arm wheels 2006-05-29
58. P0014065
59. Fork/support arm wheels 2006-05-29
60. P0022557
61. Fork/support arm wheels 2006-05-29
62. P0012896
63. Electric steering wheel/lever 2007-02-21
64. P0011762
65. Steering angle sensor 2007-02-21
66. P0016556
67. Steering bearings 2006-05-29
68. P0019213
69. General alarm signals (audible/visual) 2007-11-28
70. P0026037
71. Battery cut out connector/contactor 2009-11-24
72. P0007136
73. Instrument panel, display 2010-03-10
74. P0011703
75. Level/position transducers/lamps 2006-05-29
76. P0011767
77. Level/position transducers/lamps 2006-05-29
78. P0000151
79. Start/stop switch 2009-04-15
80. P0000257
81. Travel direction switch (separate) 2010-03-10
82. P0007232
83. Speed control 2010-03-10
84. P0011759
85. Driving function harnesses/fuse 2006-05-29
86. P0011010
87. Drive motor cables/resistors/fuses 2006-05-29
88. P0011011
89. Transistor panel 2006-05-29
90. P0010377
91. Work function micro switches, potentiometers 2006-05-29
92. P0011760
93. Work function harnesses/fuse 2007-02-14
94. P0011009
95. Battery/motor cables, fuse 2006-05-29
96. P0014016
97. Drive/multi-function PCBs 2006-05-29
98. P0007058
99. Safety electronics harnesses, fuse 2009-11-24
100. P0019523
101. Lift/lowering/reach movement probes/sensors 2006-05-29
102. P0009651
103. Safety probes/sensors 2010-03-10
104. P0009652
105. Safety probes/sensors 2006-05-29
106. P0011756
107. Safety probes/sensors 2006-05-29
108. P0034368
109. Safety probes/sensors 2009-05-06
110. P0023727
111. Hydraulic tank 2006-05-29
112. P0031744
113. Hydraulic tank lines 2008-05-22
114. P0010610
115. Filters and housing 2010-03-10
116. P0019208
117. Hydraulic pump 2009-11-24
118. P0020026
119. Control valve 2006-05-29
120. P0022152
121. Main valve unit lift/reach/tilt 2010-03-10
122. P0014017
123. Control valve ( Other functions ) 2006-05-29
124. P0011195
125. Hydraulic lines chassis 2006-05-29
126. P0014059
127. Mast hydraulic lines 2006-05-29
128. P0019399
129. Mast hydraulic lines 2006-05-29
130. P0037063
131. Mast hydraulic lines 2010-06-15
132. P0037064
133. Main lift cylinders 2010-06-15
134. P0037065
135. Free lift cylinders 2010-06-15
136. P0011210
137. Reach/telescopic cylinders 2006-05-29
138. P0011717
139. Tilt cylinders 2006-05-29
140. P0011208
141. Other hydraulic cylinders 2006-05-29
142. P0011713
143. Main mast 2006-05-29
144. P0037066
145. Main lift chain system 2010-06-15
146. P0014057
147. Main mast fork carriage 2006-05-29
148. P0014058
149. Main mast guidance/dampers 2006-05-29
150. P0022556
151. Main mast suspension 2006-05-29
152. P0019400
153. Fork carriage unit, integrated sideshift, fork spread 2006-06-14
154. P0031480
155. Fork carriage unit, integrated sideshift, fork spread 2008-05-22
156. P0011758
157. Other load carriers 2006-05-29
158. P0011757
159. Other load carriers 2006-05-29
160. P0034619
161. Extra lighting 2009-05-06
162. P0036920
163. Extra warning lights/alarm 2010-06-03
164. P0011102
165. Charger attachment 2010-03-10
166. P0036318
167. Other extra equipment 2010-03-16
