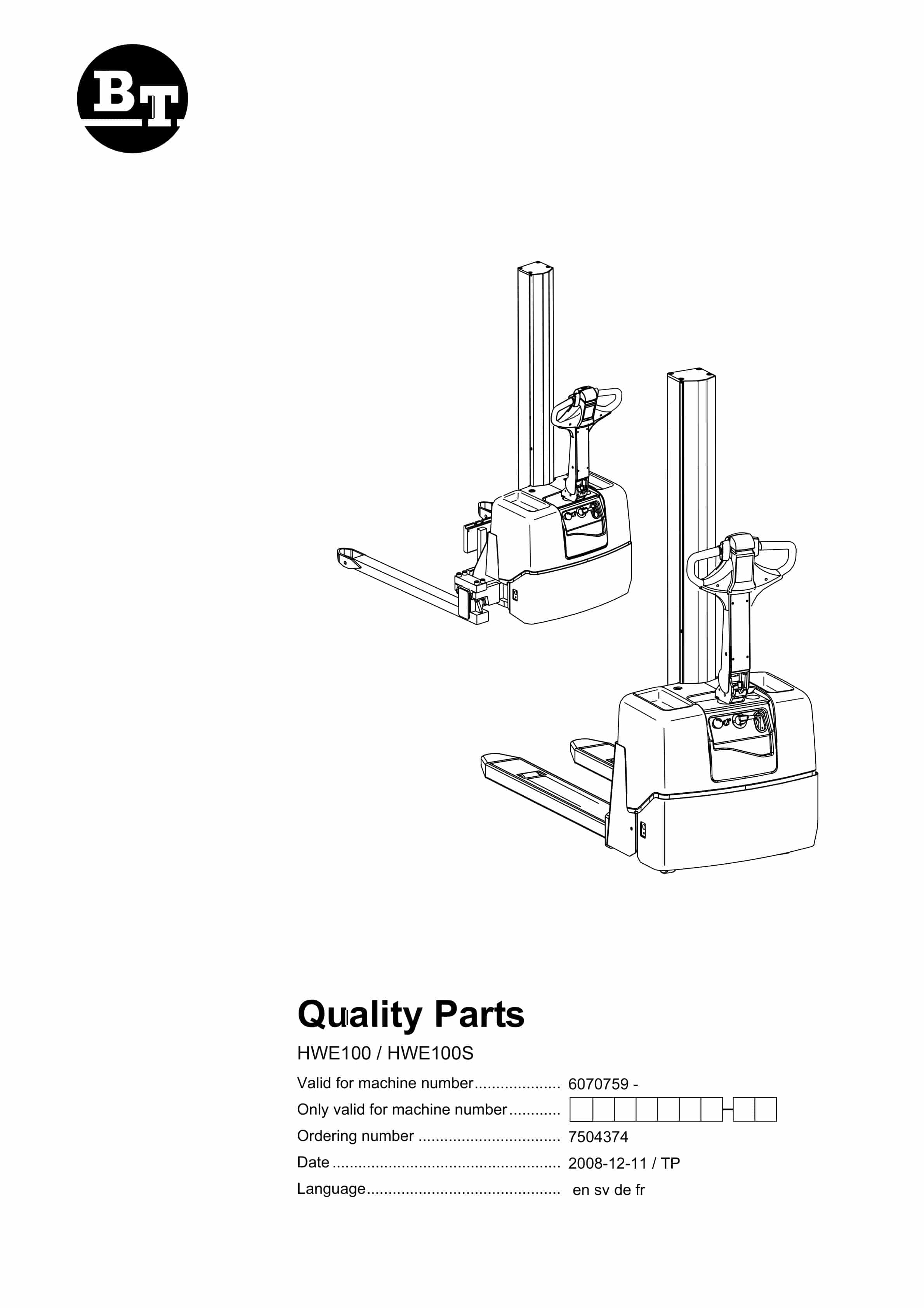

BT HWE100, HWE100S Quality Parts 7504374

BT HWE100, HWE100S Quality Parts 7504374 - Image 2

BT HWE100, HWE100S Quality Parts 7504374 - Image 3

BT HWE100, HWE100S Quality Parts 7504374 - Image 4

BT HWE100, HWE100S Quality Parts 7504374 - Image 5

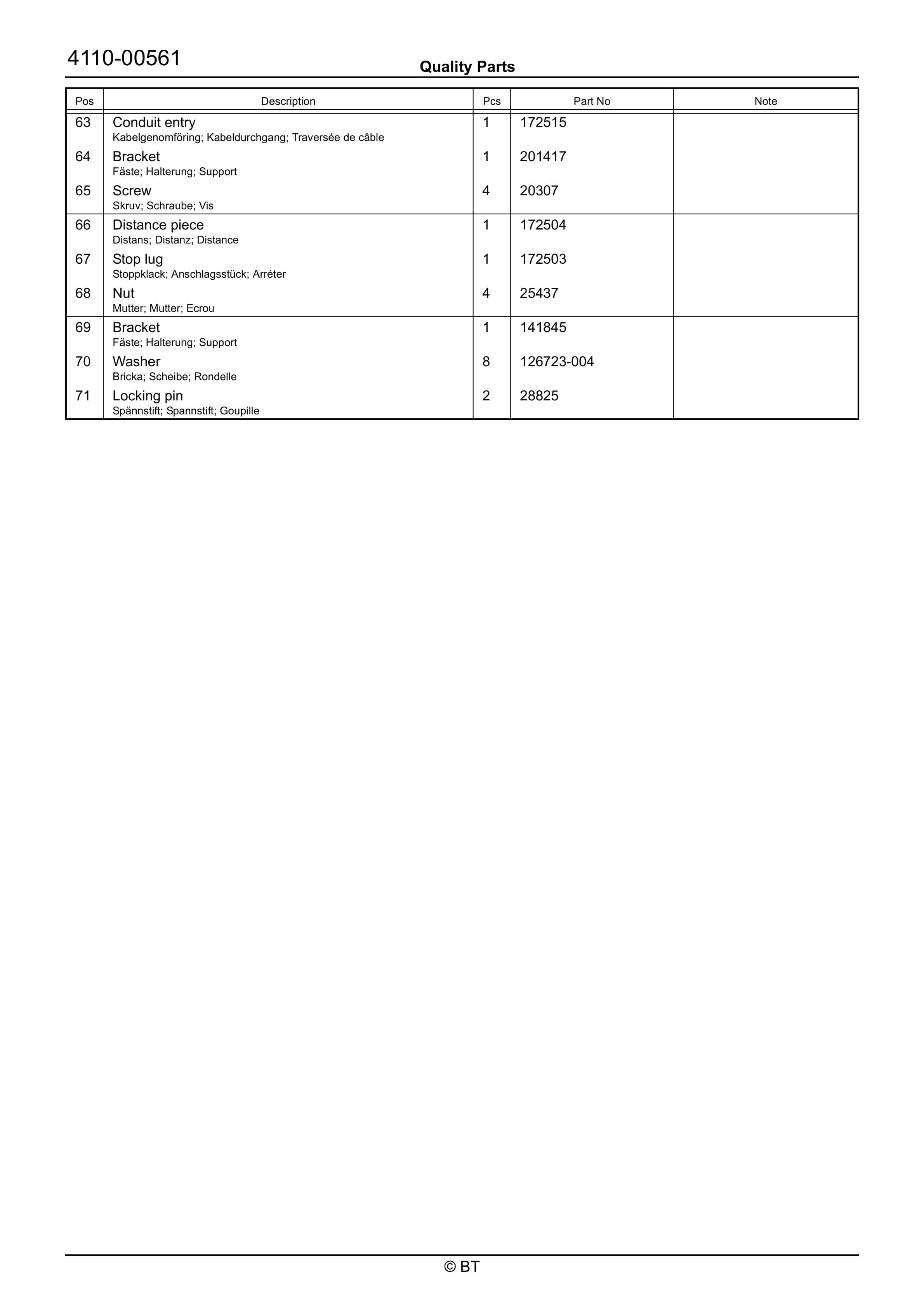

bt hwe100 hwe100s quality parts 7504374 2

bt hwe100 hwe100s quality parts 7504374 3

BT HWE100, HWE100S Quality Parts 7504374

$30.00

Type Of Manual: Quality Parts
Manual ID: 7504374
: Parts Manual PDF
Number of Pages: 79
Size: 3.5MB
Format: PDF

Category: BT Parts Manual PDF

Model List:
- HWE100, HWE100S

1. O Objekt0a – 0000 Chassis
1.1. O Objekt0b – Chassi Chassis Châssis
2. O Objekt0a – 1000 Motors
2.1. O Objekt0b – Motorer Motoren Moteurs
3. O Objekt0a – 2000 Transmission/Drive gear
3.1. O Objekt0b – Kraftöverföring/Drivväxel Kraftübertragung/Fahrgetriebe Transmission/Groupe de traction
4. O Objekt0a – 3000 Brake/Wheel/Caterpillar system
4.1. O Objekt0b – Broms-/Hjul-/Bandsystem Brems-/Rad-/Bandsystem Freins/Roues/ Chenilles
5. O Objekt0a – 4000 Steering system
5.1. O Objekt0b – Styrsystem Steuer-/Lenksystem Système de direction
6. O Objekt0a – 5000 Electrical system
6.1. O Objekt0b – Elektriskt system Elektroanlage Système électrique
7. O Objekt0a – 6000 Hydraulic/pneumatic system
7.1. O Objekt0b – Hydraulik/pneumatik Hydraulikanlage/Pneumatik Système hydraulique/pneumatique
8. O Objekt0a – 7000 Work function – lifting masts
8.1. O Objekt0b – Arbetsfunktion – lyftstativ Arbeitsfunktion – Hubgerüste Fonction de travail – mâts de levage
9. O Objekt0a – 9000 Options/attachments
9.1. O Objekt0b – Tillbehör/extrautrustning Zubehör/Zusatzausrüstung Equipement supplémentaire/Options
10. O Objekt1 – 0340-00741 P0033546
11. O Objekt1 – 0340-00741 Inspection covers 2008-12-11
12. O Objekt1 – 0340-00742 P0033547
13. O Objekt1 – 0340-00742 Inspection covers 2008-12-11
14. O Objekt1 – 0350-00102 P0027611
15. O Objekt1 – 0350-00102 Support arms, stabilizers 2007-11-18
16. O Objekt1 – 0350-00103 P0027612
17. O Objekt1 – 0350-00103 Support arms, stabilizers 2007-11-18
18. O Objekt1 – 0390-00354 P0027602
19. O Objekt1 – 0390-00354 Battery compartment parts 2007-11-18
20. O Objekt1 – 0400-00130 P0027613
21. O Objekt1 – 0400-00130 Frame/chassis components 2007-11-18
22. O Objekt1 – 0820-00258 P0027615
23. O Objekt1 – 0820-00258 Finger/foot guards 2007-11-18
24. O Objekt1 – 0850-00452 P0027728
25. O Objekt1 – 0850-00452 Signs, warnings, decals 2006-09-27
26. O Objekt1 – 1710-00128 P0023890
27. O Objekt1 – 1710-00128 Electric pump motor 2007-11-18
28. O Objekt1 – 1760-00043 P0016212
29. O Objekt1 – 1760-00043 Electric drive motor 2008-05-06
30. O Objekt1 – 2550-00071 P0024334
31. O Objekt1 – 2550-00071 Mechanical drive gear unit 2008-05-06
32. O Objekt1 – 3370-00037 P0024337
33. O Objekt1 – 3370-00037 Electromagnetic parking brake 2007-11-18
34. O Objekt1 – 3530-00059 P0016209
35. O Objekt1 – 3530-00059 Drive wheel 2007-11-18
36. O Objekt1 – 3540-00089 P0023844
37. O Objekt1 – 3540-00089 Support/castor wheels 2007-11-18
38. O Objekt1 – 3550-00355 P0023846
39. O Objekt1 – 3550-00355 Fork/support arm wheels 2007-11-18
40. O Objekt1 – 4110-00560 P0031727
41. O Objekt1 – 4110-00560 Steering arm/wheel/lever 2008-05-05
42. O Objekt1 – 4110-00561 P0031750
43. O Objekt1 – 4110-00561 Steering arm/wheel/lever 2008-05-06
44. O Objekt1 – 4180-00018 P0013246
45. O Objekt1 – 4180-00018 Steering bearings, radial bearing 2007-11-18
46. O Objekt1 – 5160-00134 P0027624
47. O Objekt1 – 5160-00134 General alarm signals (audible/visual) 2007-11-18
48. O Objekt1 – 5170-00020 P0027672
49. O Objekt1 – 5170-00020 Battery charger (on board) 2008-02-05
50. O Objekt1 – 5170-00021 P0027673
51. O Objekt1 – 5170-00021 Battery charger (on board) 2007-11-18
52. O Objekt1 – 5170-00022 P0027674
53. O Objekt1 – 5170-00022 Battery charger (on board) 2007-11-18
54. O Objekt1 – 5170-00024 P0028765
55. O Objekt1 – 5170-00024 Battery charger (on board) 2007-11-18
56. O Objekt1 – 5190-00124 P0027670
57. O Objekt1 – 5190-00124 Battery cut out connector/contactor 2007-11-18
58. O Objekt1 – 5310-00065 P0013163

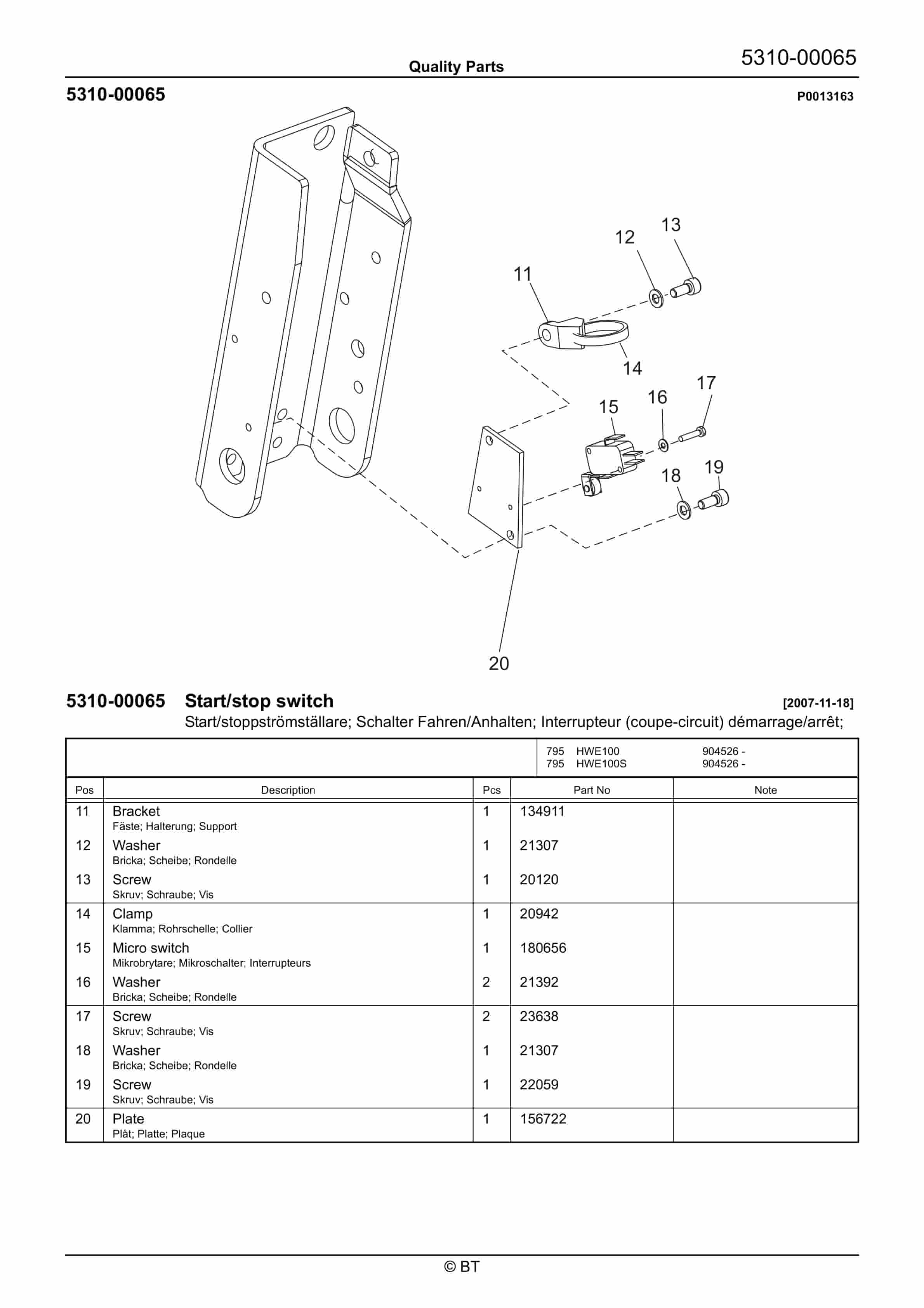

59. O Objekt1 – 5310-00065 Start/stop switch 2007-11-18
60. O Objekt1 – 5310-00099 P0016607
61. O Objekt1 – 5310-00099 Start/stop switch 2007-11-18
62. O Objekt1 – 5460-00050 P0016587
63. O Objekt1 – 5460-00050 Transistor panel 2008-12-08
64. O Objekt1 – 5590-00319 P0027682
65. O Objekt1 – 5590-00319 Work function harnesses/fuse 2007-11-18
66. O Objekt1 – 5610-00031 P0027671

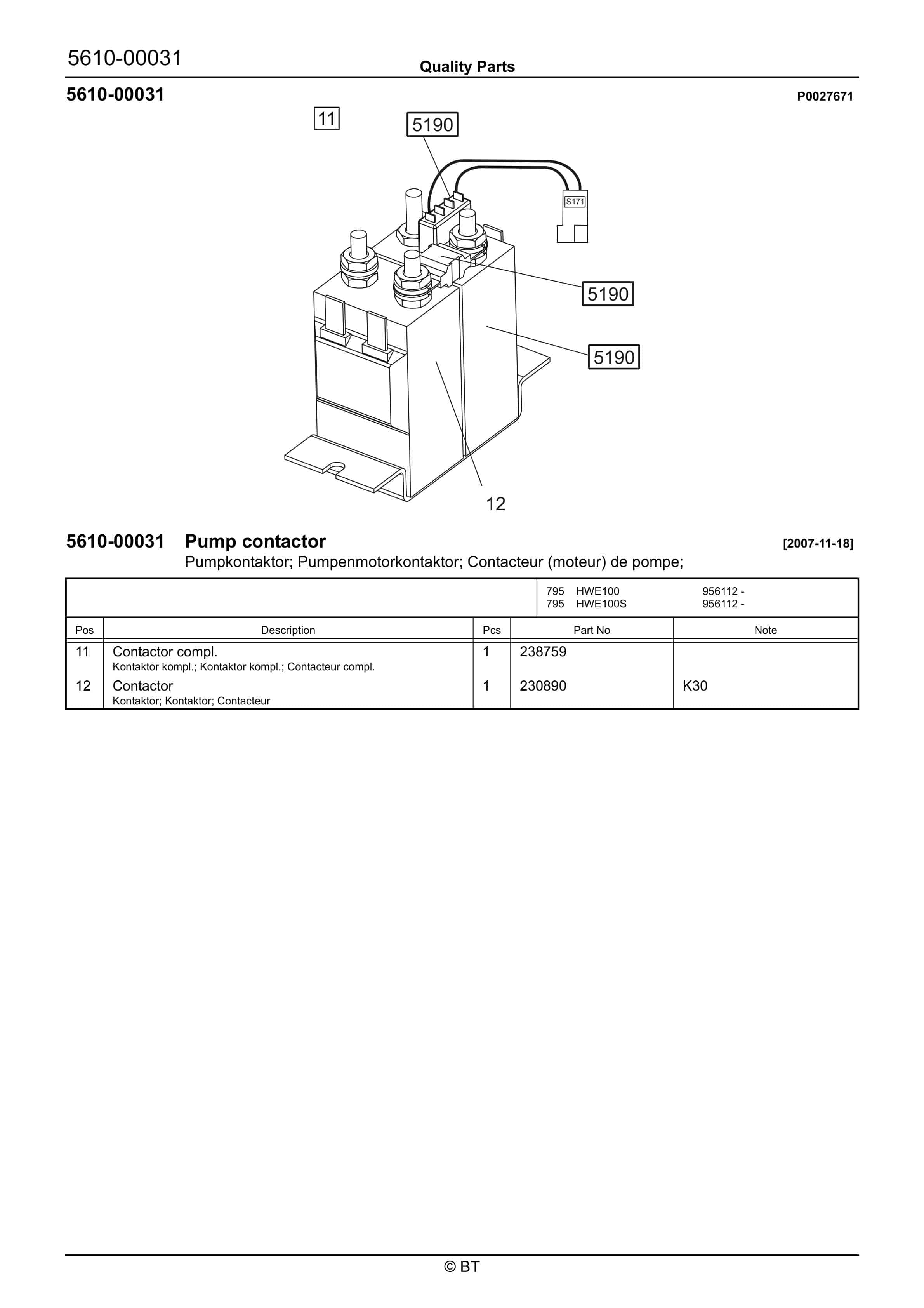

67. O Objekt1 – 5610-00031 Pump contactor 2007-11-18
68. O Objekt1 – 5830-00181 P0027686
69. O Objekt1 – 5830-00181 Safety probes/sensors 2007-11-18
70. O Objekt1 – 6100-00285 P0031777
71. O Objekt1 – 6100-00285 Hydraulic unit 2008-09-10
72. O Objekt1 – 6120-00225 P0023988

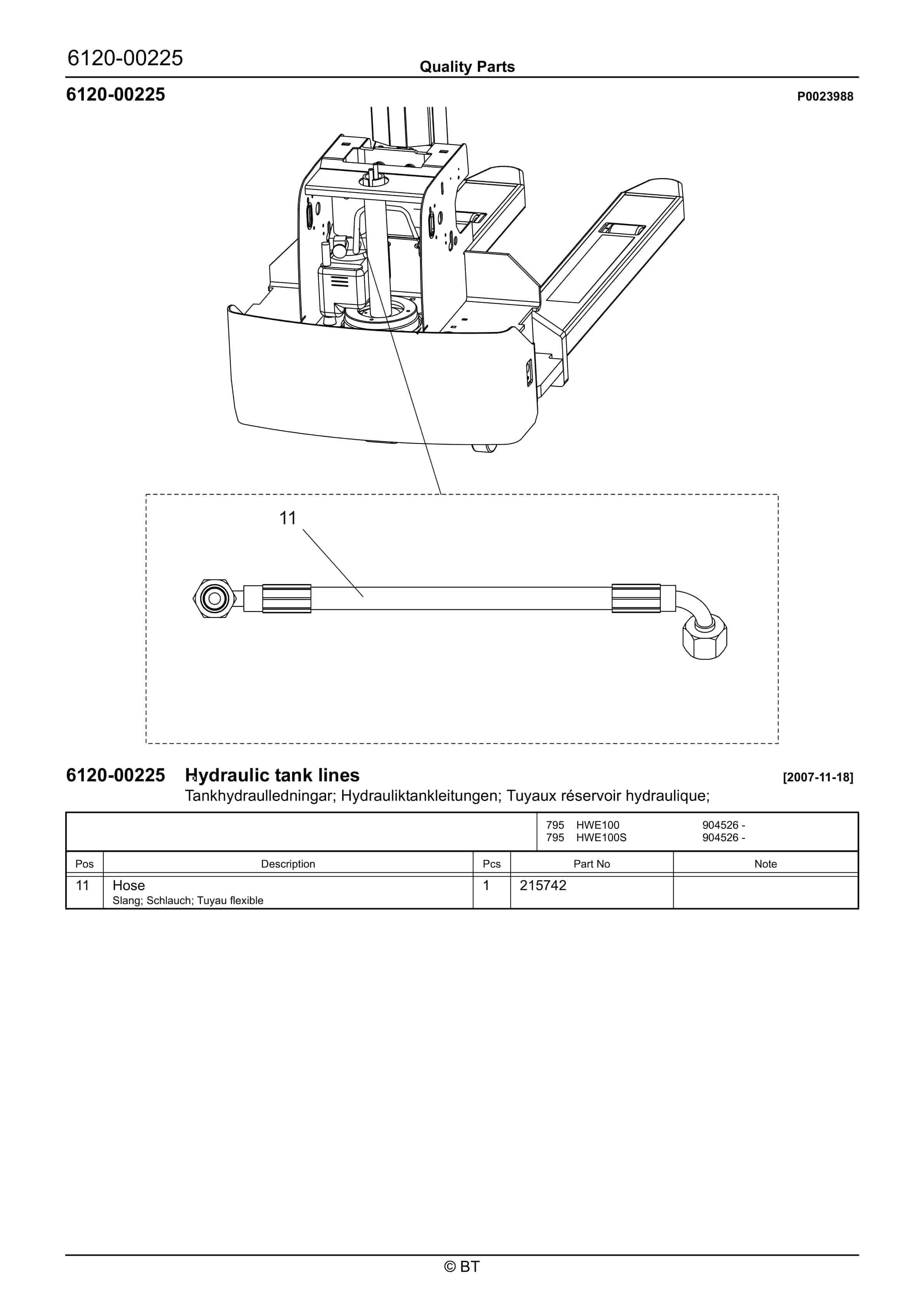

73. O Objekt1 – 6120-00225 Hydraulic tank lines 2007-11-18
74. O Objekt1 – 6610-00190 P0023358
75. O Objekt1 – 6610-00190 Main lift cylinders 2007-11-18
76. O Objekt1 – 7100-00114 P0027616
77. O Objekt1 – 7100-00114 Main mast 2007-11-18
78. O Objekt1 – 7120-00600 P0033375
79. O Objekt1 – 7120-00600 Main lift chain system 2008-11-14
80. O Objekt1 – 7130-00329 P0033387
81. O Objekt1 – 7130-00329 Main mast fork carriage 2008-11-14
82. O Objekt1 – 7410-00243 P0023368
83. O Objekt1 – 7410-00243 Fork, carpet boom, lift hook 2007-11-18
84. O Objekt1 – 7420-00779 P0033394
85. O Objekt1 – 7420-00779 Fork carriage unit, integrated sideshift, fork spread 2008-11-14
86. O Objekt1 – 9400-00172 P0024353
87. O Objekt1 – 9400-00172 Extra electrical equipment 2007-11-18
88. O Objekt1 – 9400-00371 P0033379
89. O Objekt1 – 9400-00371 Extra electrical equipment 2008-11-14
