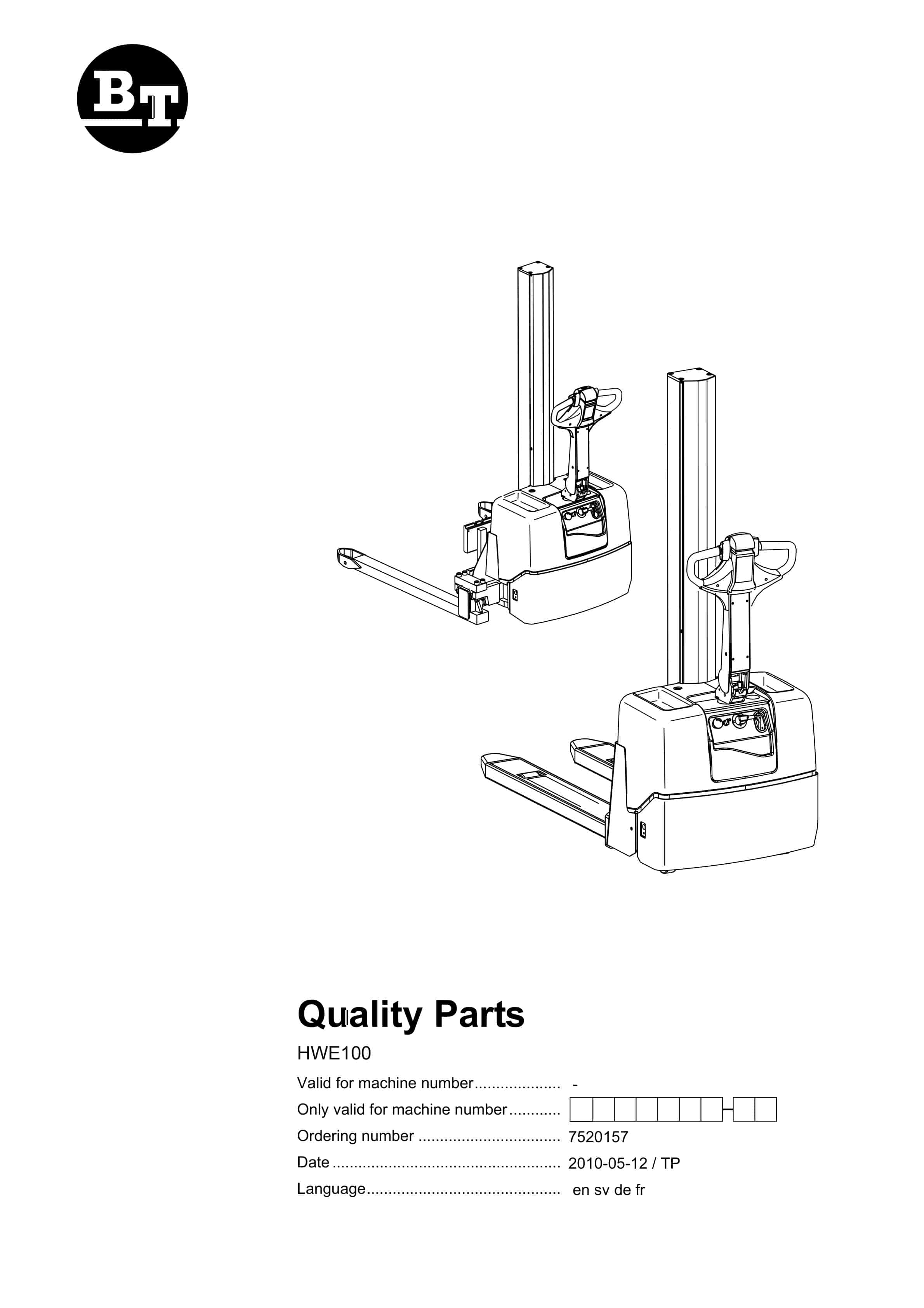

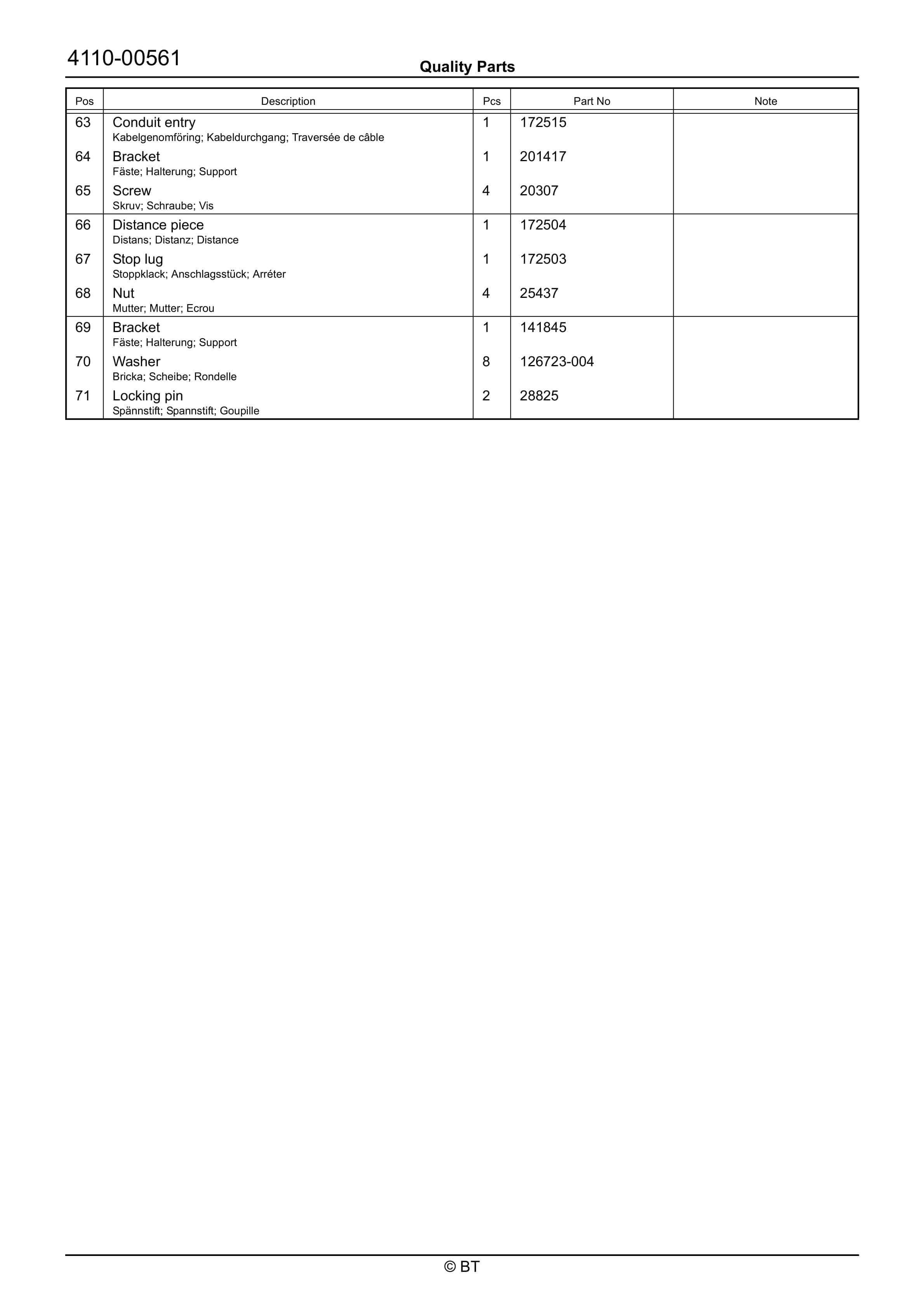

BT HWE100 Quality Parts 7520157

$30.00

Type Of Manual: Quality Parts
Manual ID: 7520157
: Parts Manual PDF
Number of Pages: 75
Size: 3.4MB
Format: PDF

Category: BT Parts Manual PDF

Model List:
- HWE100

1. Chassis
1.1. Chassi Chassis Châssis
2. Motors
2.1. Motorer Motoren Moteurs
3. Transmission/Drive gear
3.1. Kraftöverföring/Drivväxel Kraftübertragung/Fahrgetriebe Transmission/Groupe de traction
4. Brake/Wheel/Caterpillar system
4.1. Broms-/Hjul-/Bandsystem Brems-/Rad-/Bandsystem Freins/Roues/ Chenilles
5. Steering system
5.1. Styrsystem Steuer-/Lenksystem Système de direction
6. Electrical system
6.1. Elektriskt system Elektroanlage Système électrique
7. Hydraulic/pneumatic system
7.1. Hydraulik/pneumatik Hydraulikanlage/Pneumatik Système hydraulique/pneumatique
8. Work function – lifting masts
8.1. Arbetsfunktion – lyftstativ Arbeitsfunktion – Hubgerüste Fonction de travail – mâts de levage
9. Options/attachments
9.1. Tillbehör/extrautrustning Zubehör/Zusatzausrüstung Equipement supplémentaire/Options
10. P0033546
11. Inspection covers 2008-12-11
12. P0036784
13. Support arms, stabilizers 2010-05-12
14. P0027602
15. Battery compartment parts 2010-01-19
16. P0027613
17. Frame/chassis components 2010-01-20
18. P0027615
19. Finger/foot guards 2010-01-20
20. P0035365
21. Signs, warnings, decals 2009-09-16
22. P0035366
23. Signs, warnings, decals 2009-09-16
24. P0023890
25. Electric pump motor 2007-11-18
26. P0016212
27. Electric drive motor 2008-05-06
28. P0024334
29. Mechanical drive gear unit 2008-05-06
30. P0024337
31. Electromagnetic parking brake 2007-11-18
32. P0016209
33. Drive wheel 2007-11-18
34. P0023844
35. Support/castor wheels 2007-11-18
36. P0023846
37. Fork/support arm wheels 2007-11-18
38. P0031727
39. Steering arm/wheel/lever 2008-05-05
40. P0031750
41. Steering arm/wheel/lever 2008-05-06
42. P0013246
43. Steering bearings, radial bearing 2007-11-18
44. P0027624
45. General alarm signals (audible/visual) 2007-11-18
46. P0027672
47. Battery charger (on board) 2008-02-05
48. P0027673
49. Battery charger (on board) 2007-11-18
50. P0027674
51. Battery charger (on board) 2007-11-18
52. P0028765
53. Battery charger (on board) 2007-11-18
54. P0027670
55. Battery cut out connector/contactor 2007-11-18
56. P0013163

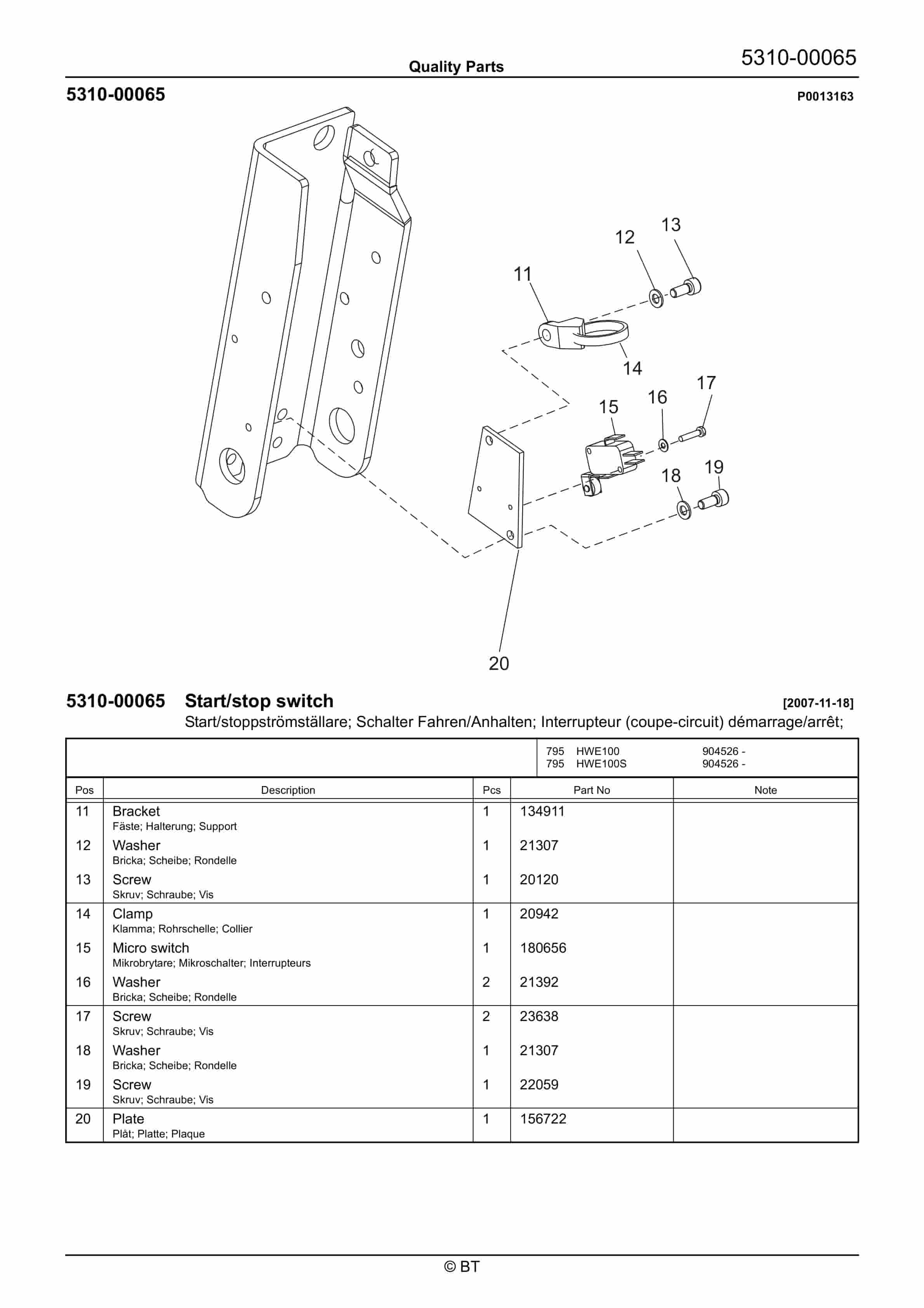

57. Start/stop switch 2007-11-18
58. P0016607
59. Start/stop switch 2007-11-18
60. P0016587
61. Transistor panel 2008-12-08
62. P0027682

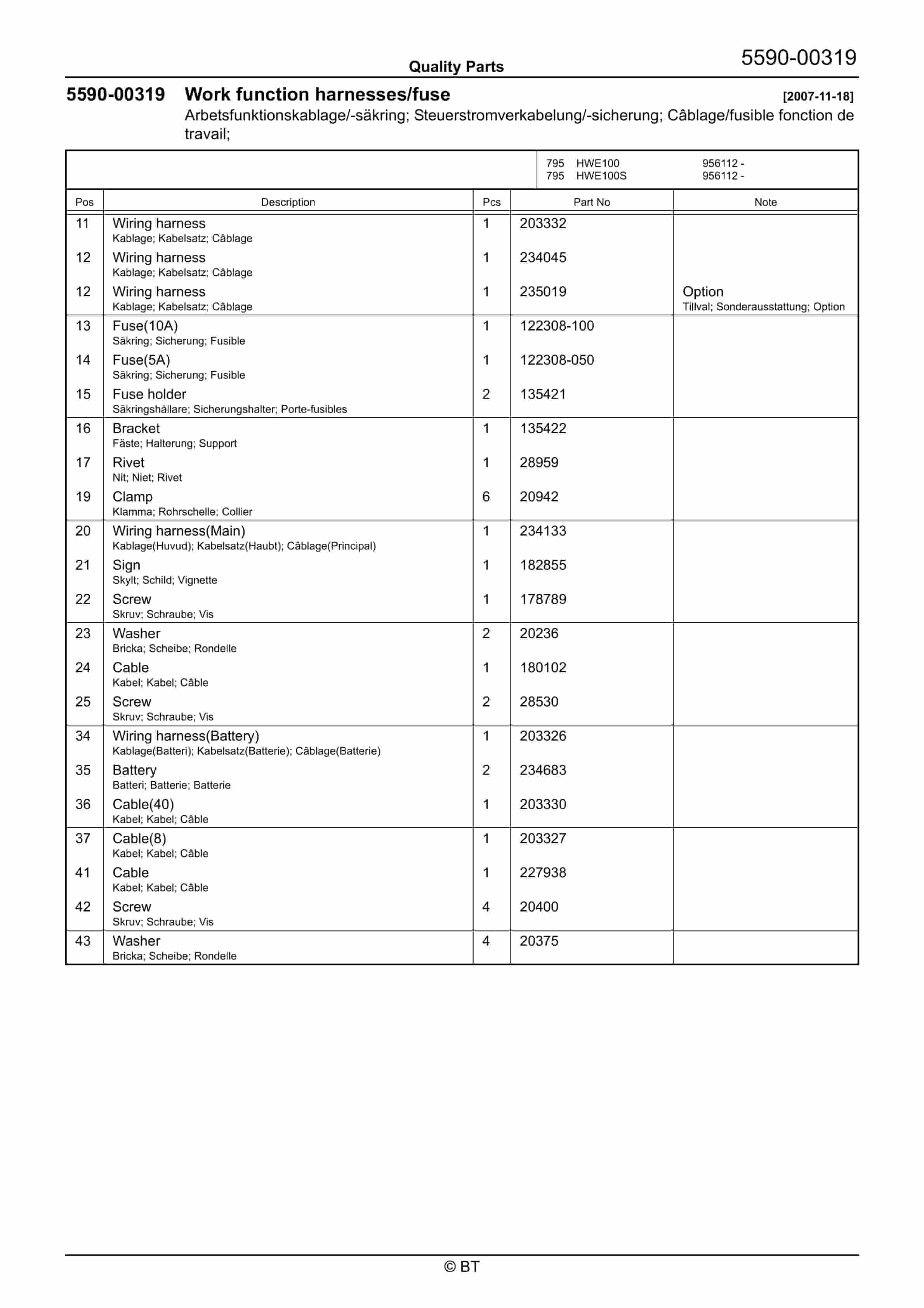

63. Work function harnesses/fuse 2007-11-18
64. P0027671
65. Pump contactor 2007-11-18
66. P0027686
67. Safety probes/sensors 2007-11-18
68. P0031777

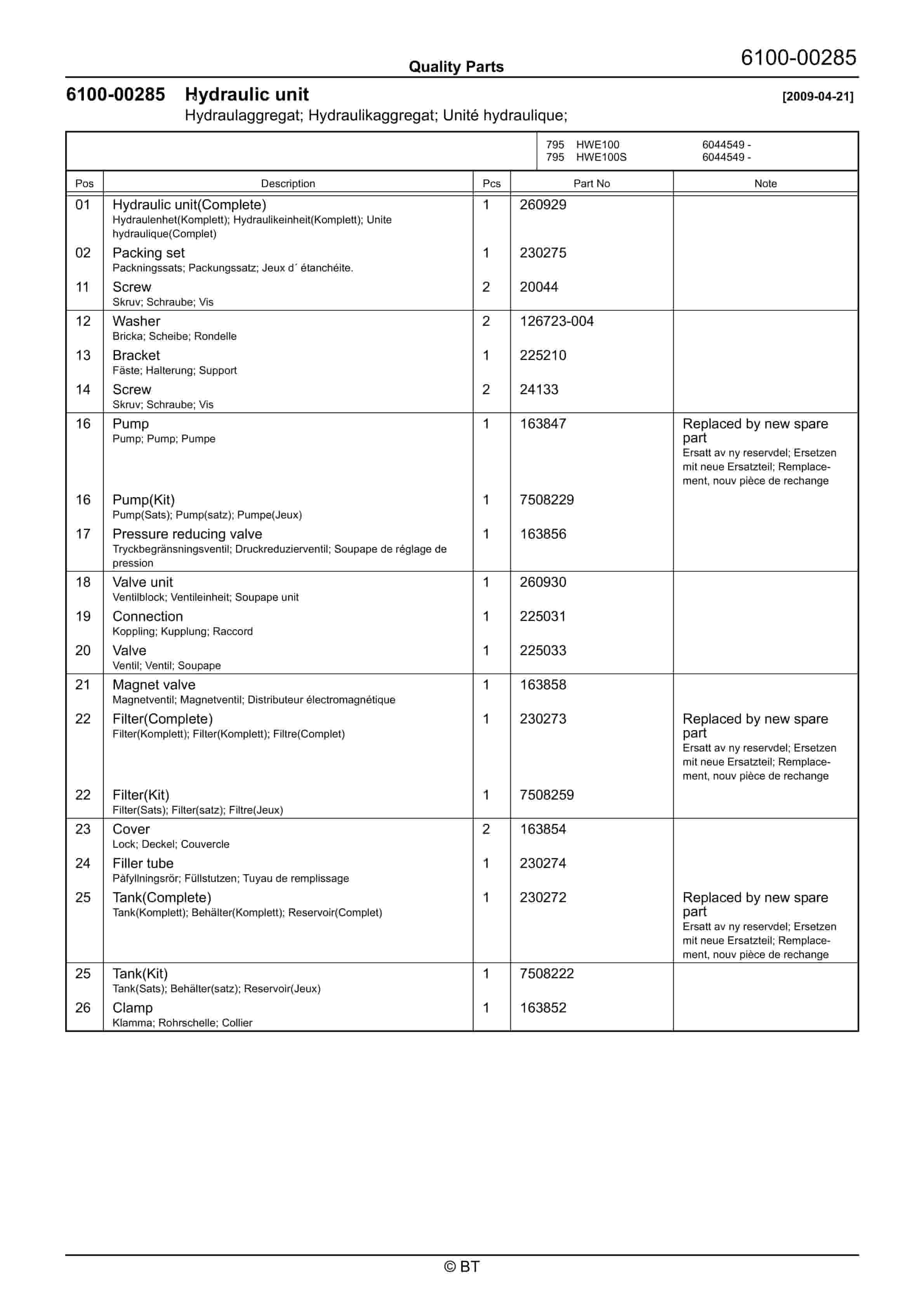

69. Hydraulic unit 2009-04-21
70. P0023988
71. Hydraulic tank lines 2007-11-18
72. P0023358
73. Main lift cylinders 2007-11-18
74. P0027616
75. Main mast 2010-01-21
76. P0033375
77. Main lift chain system 2010-01-21
78. P0036783
79. Fork carriage unit, integrated sideshift, fork spread 2010-05-12
80. P0024353
81. Extra electrical equipment 2007-11-18
82. P0034614
83. Extra electrical equipment 2009-05-05
