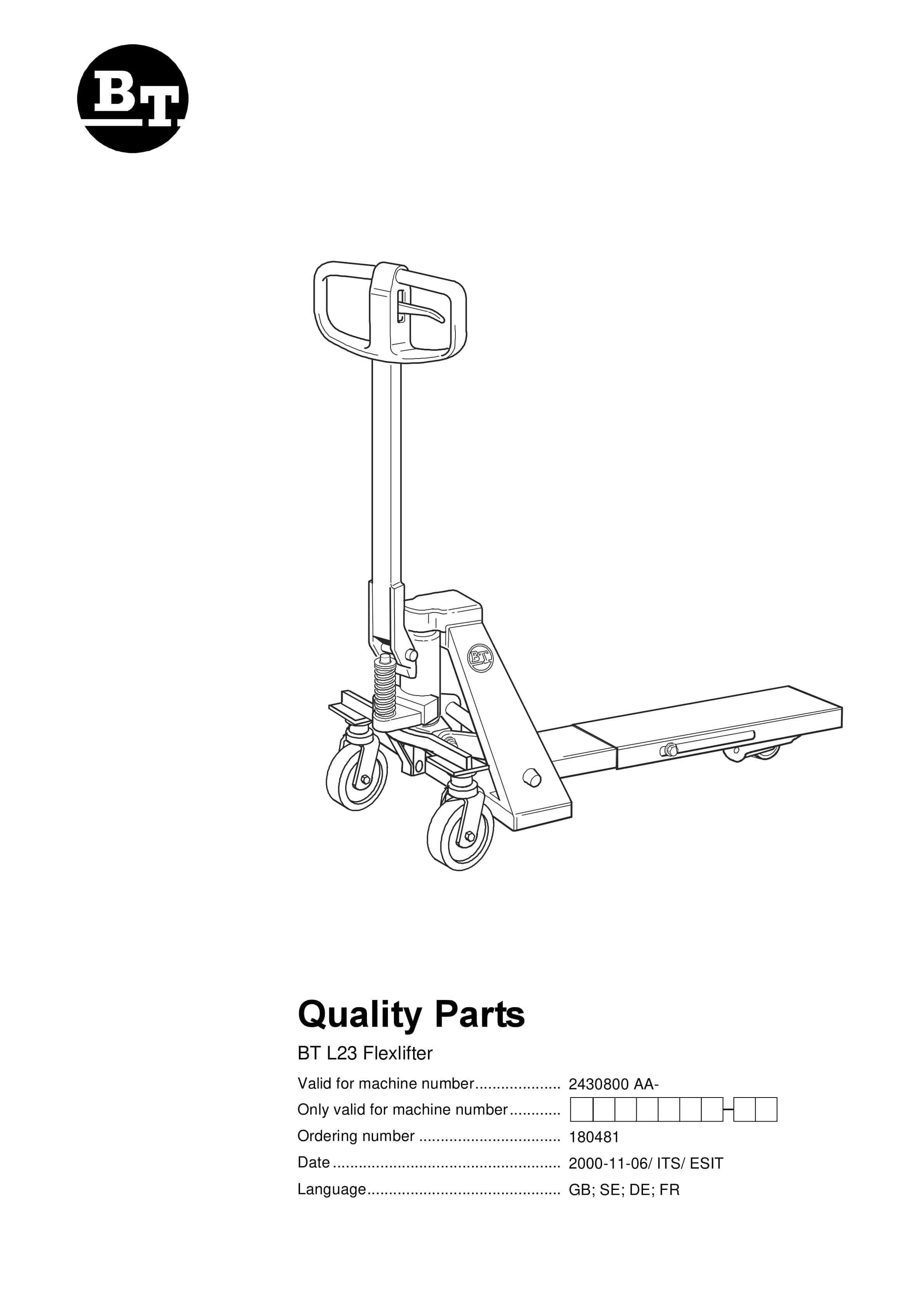

BT L23 Flexlifter Quality Parts 180481

$30.00

Category: BT Parts Manual PDF

1. Chassis
1.1. Chassi Chassis Châssis
2. Brake/Wheel/Caterpillar system
2.1. Broms-/Hjul/Bandsystem Brems-/Rad-/Bandsystem Freins/Roues/ Chenilles
3. Steering system
3.1. Styrsystem Steuer-/Lenksystem Système de direction
4. Hydraulic/pneumatic system
4.1. Hydraulik/pneumatik Hydraulikanlage/Pneumatik Système hydraulique/pneumatique
5.
6. Fork frame (low lifters) 2000-11-01
7.
8. Driver controls ( mechanical ) 2000-03-28
9.
10. Signs, warnings, decals 2000-11-01
11.
12. Fork/support arm wheels 2000-11-01
13.

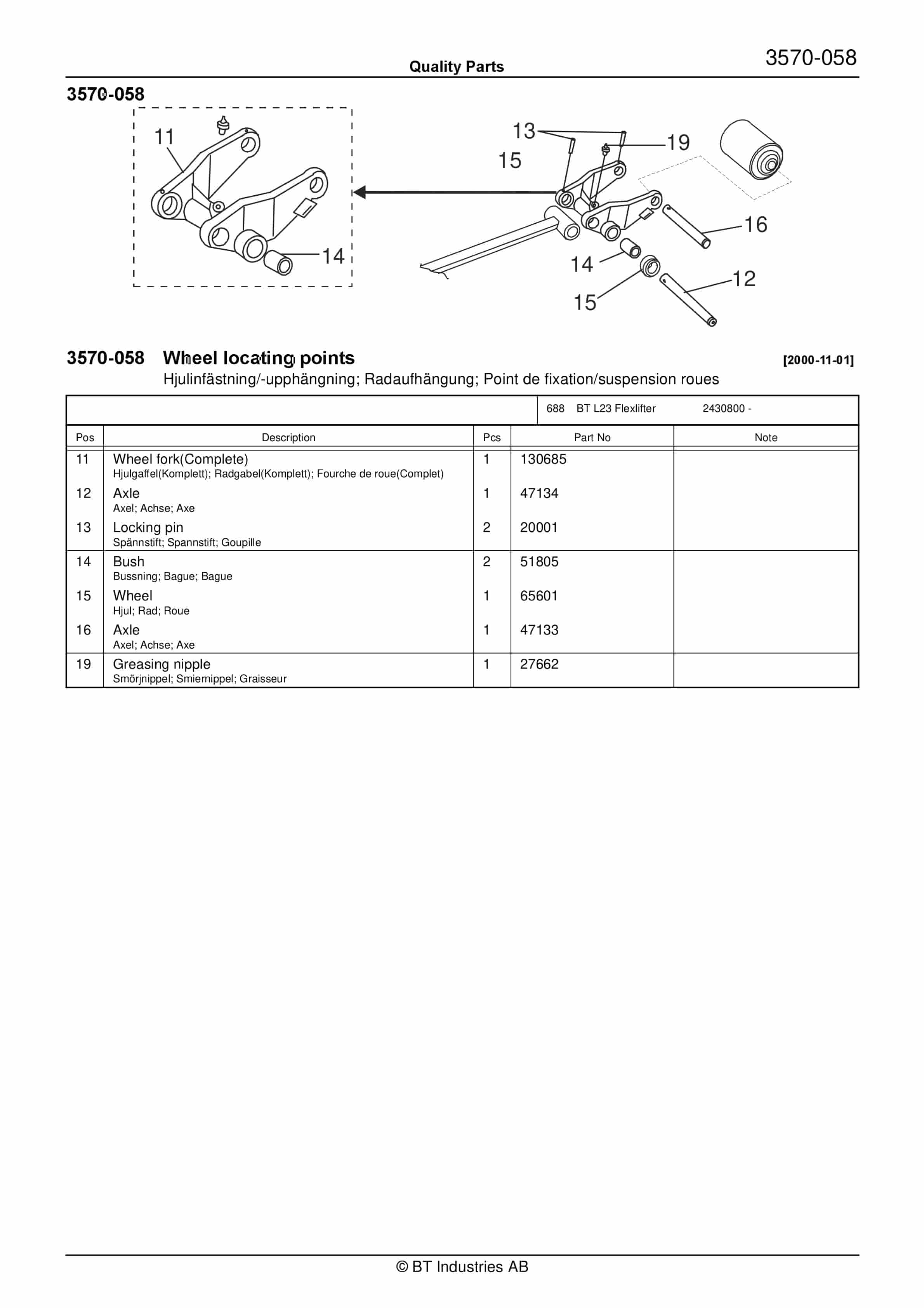

14. Wheel locating points 2000-11-01
15.
16. Steered wheel 2000-11-01
17.

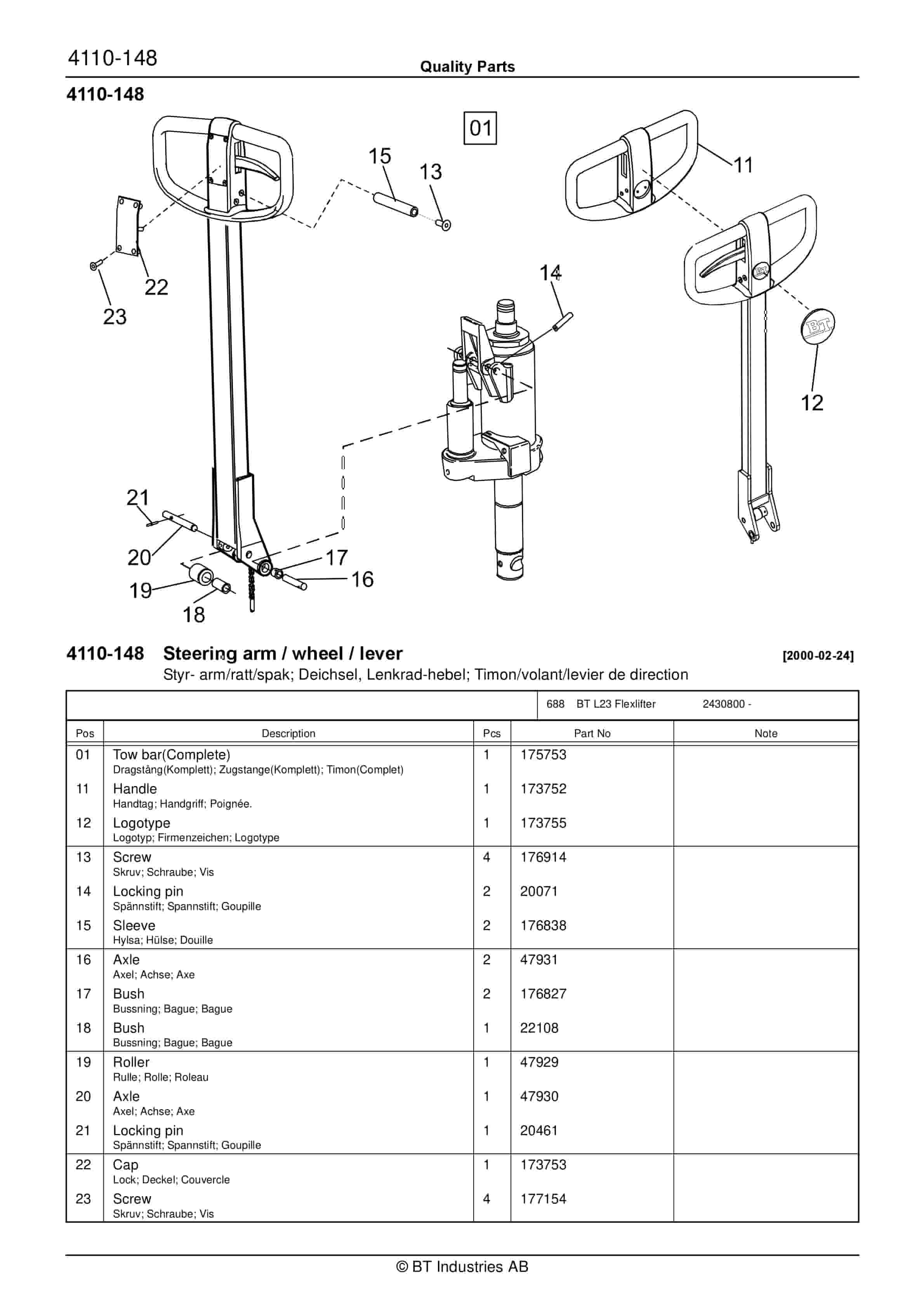

18. Steering arm / wheel / lever 2000-02-24
19.

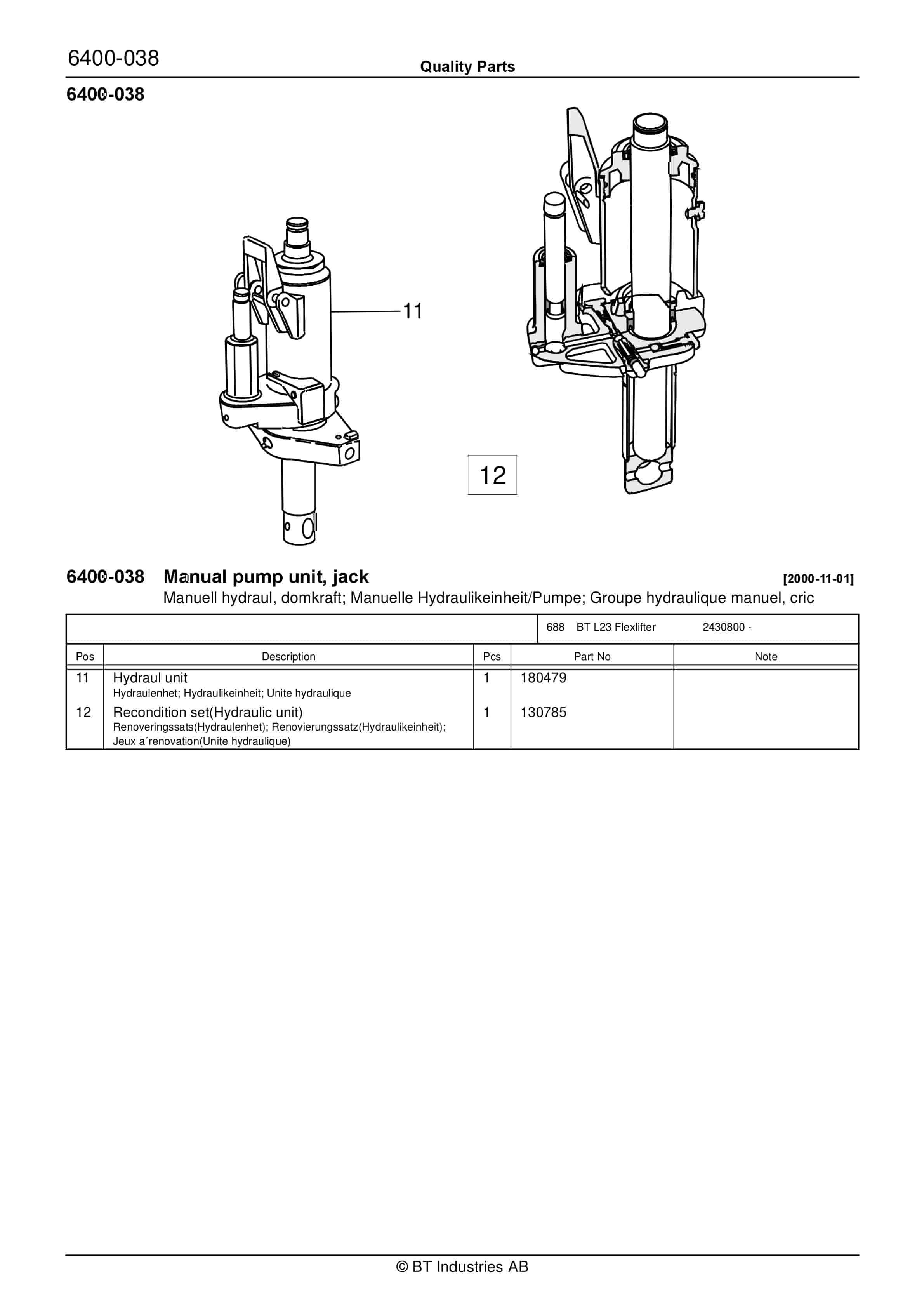

20. Manual pump unit, jack 2000-11-01
21.

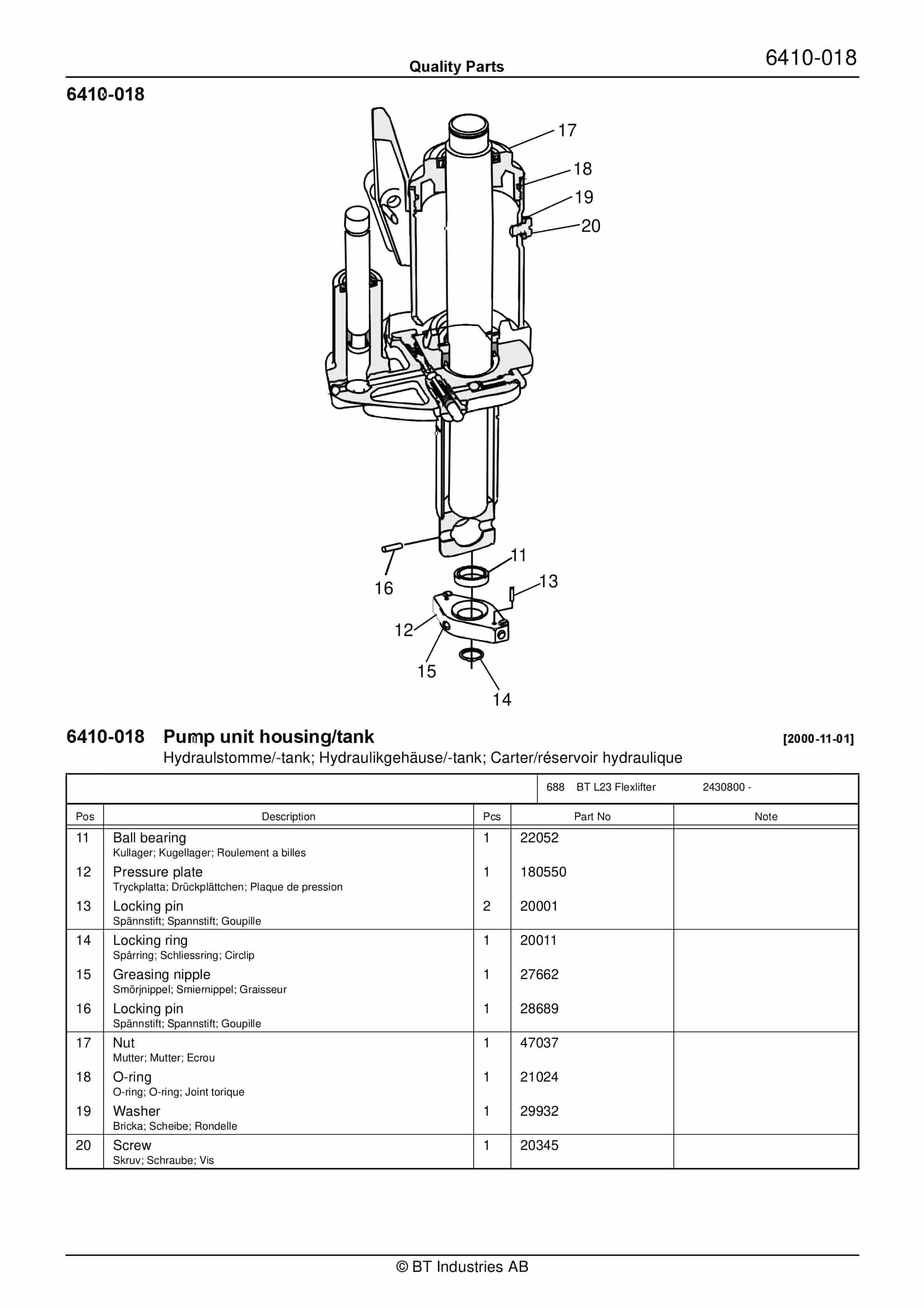

22. Pump unit housing/tank 2000-11-01
23.
24. Lift cylinder/piston 1999-06-22
25.
26. Manual pump 2000-03-27
27.
28. Valve functions 2000-03-27
