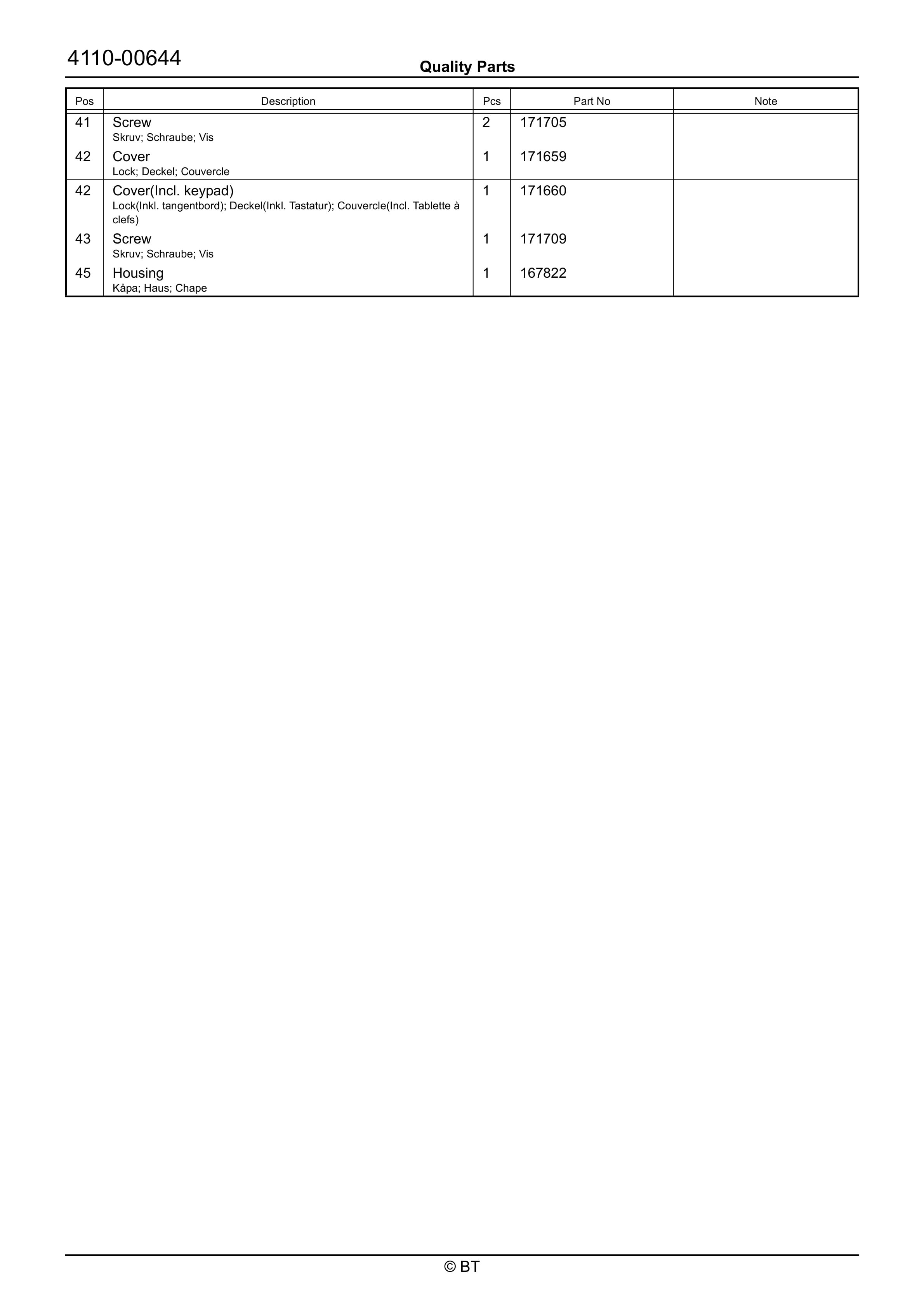

BT LAE240 Quality Parts 7520804 - Image 2

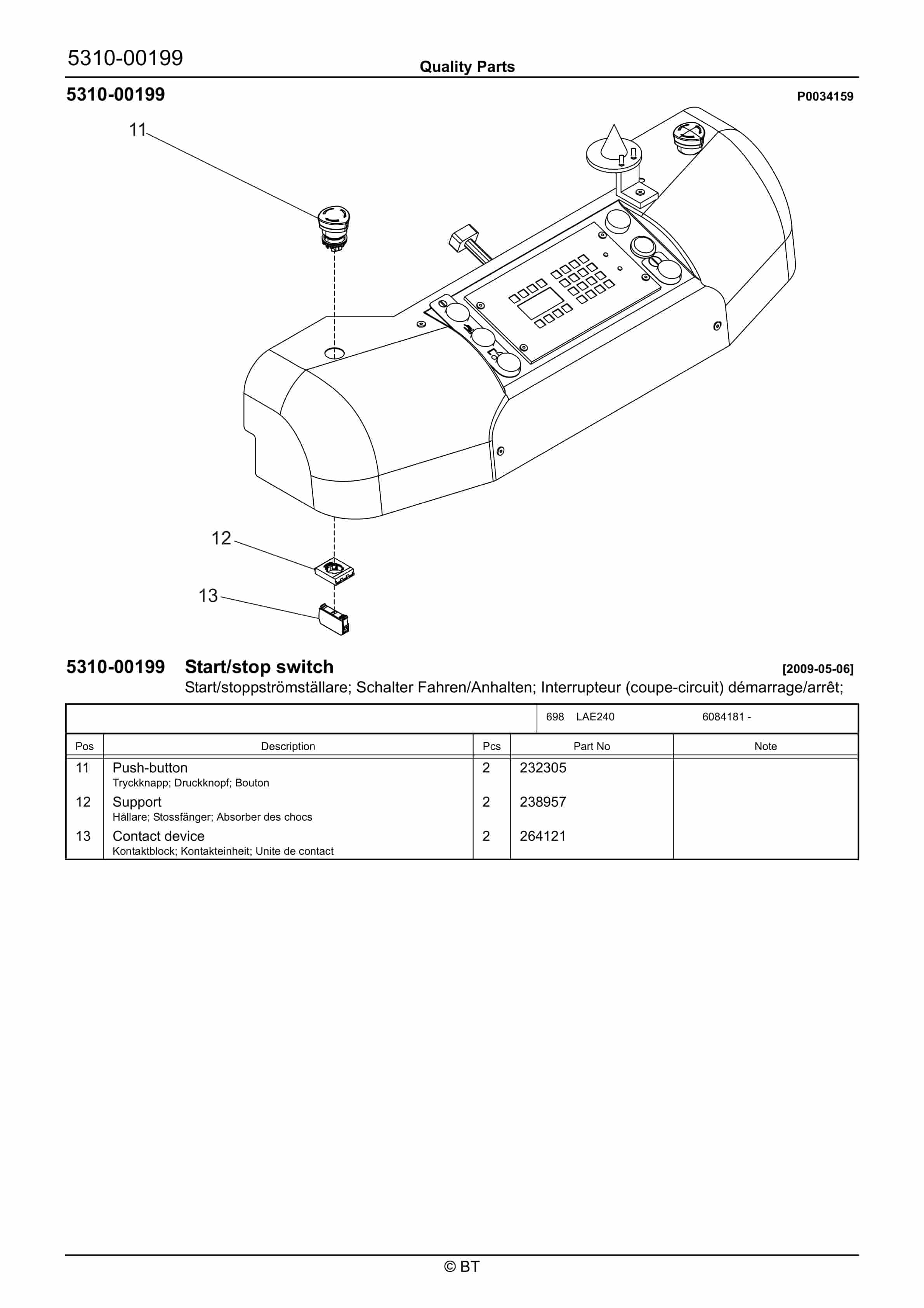

BT LAE240 Quality Parts 7520804 - Image 3

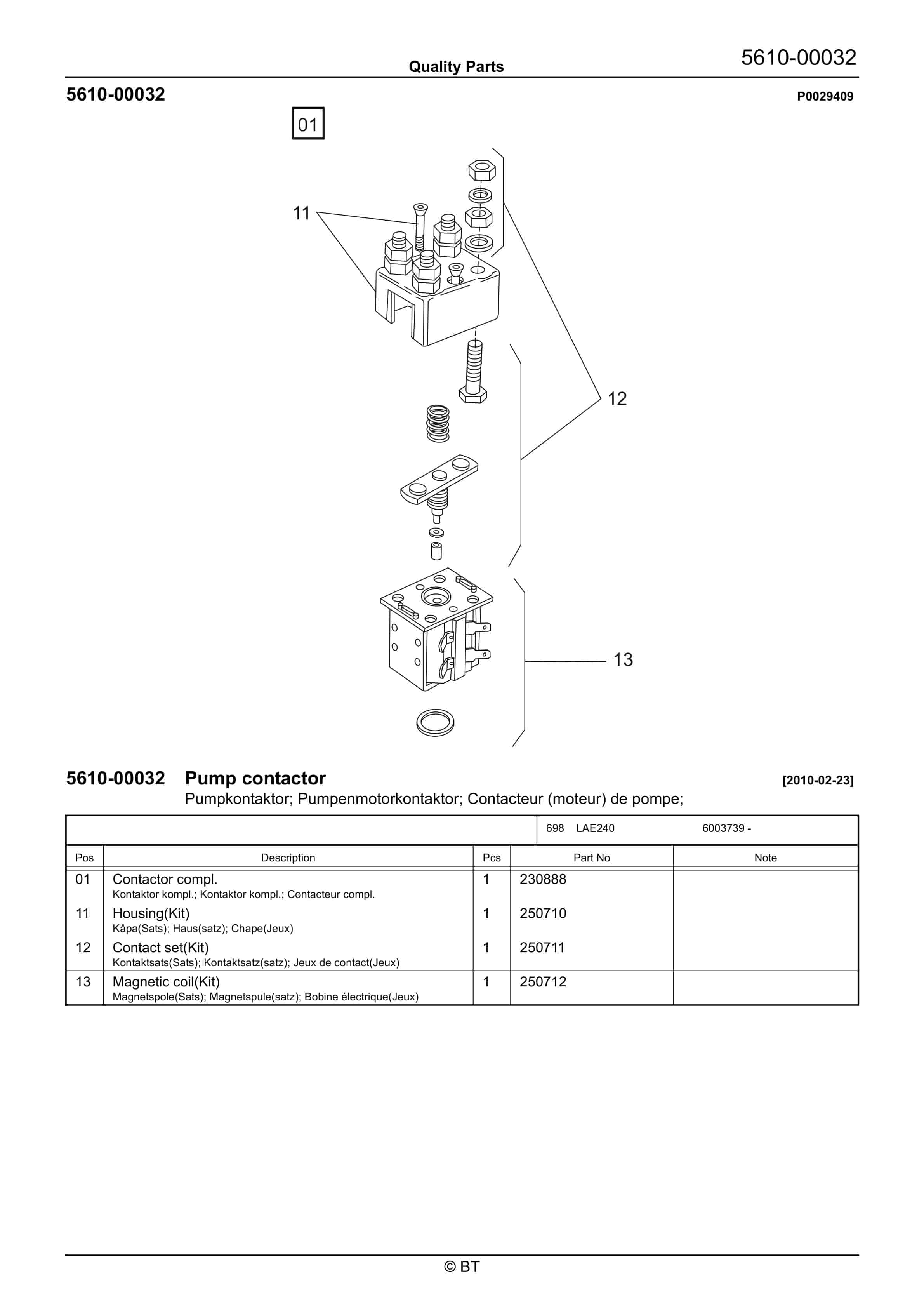

BT LAE240 Quality Parts 7520804 - Image 4

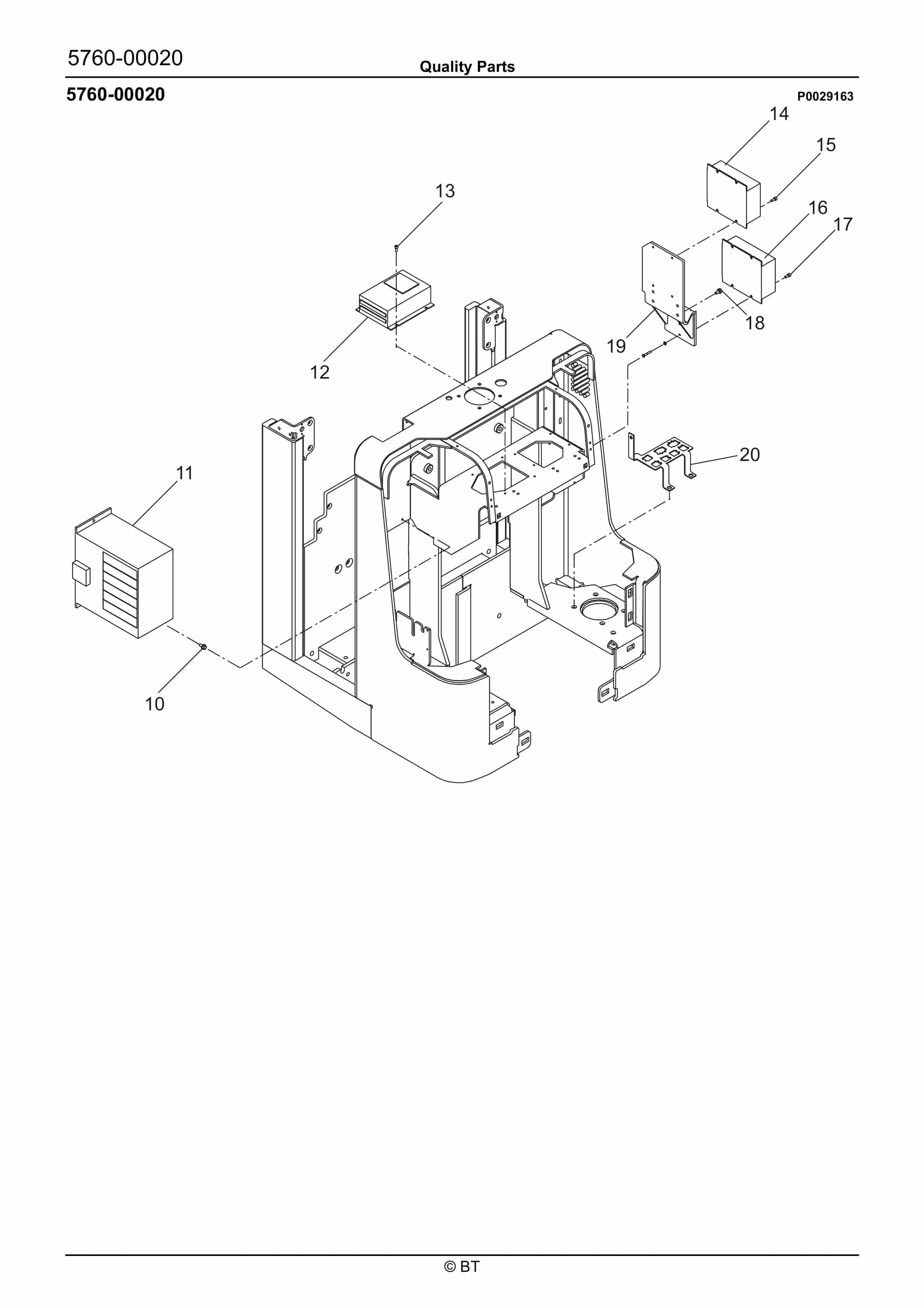

BT LAE240 Quality Parts 7520804 - Image 5

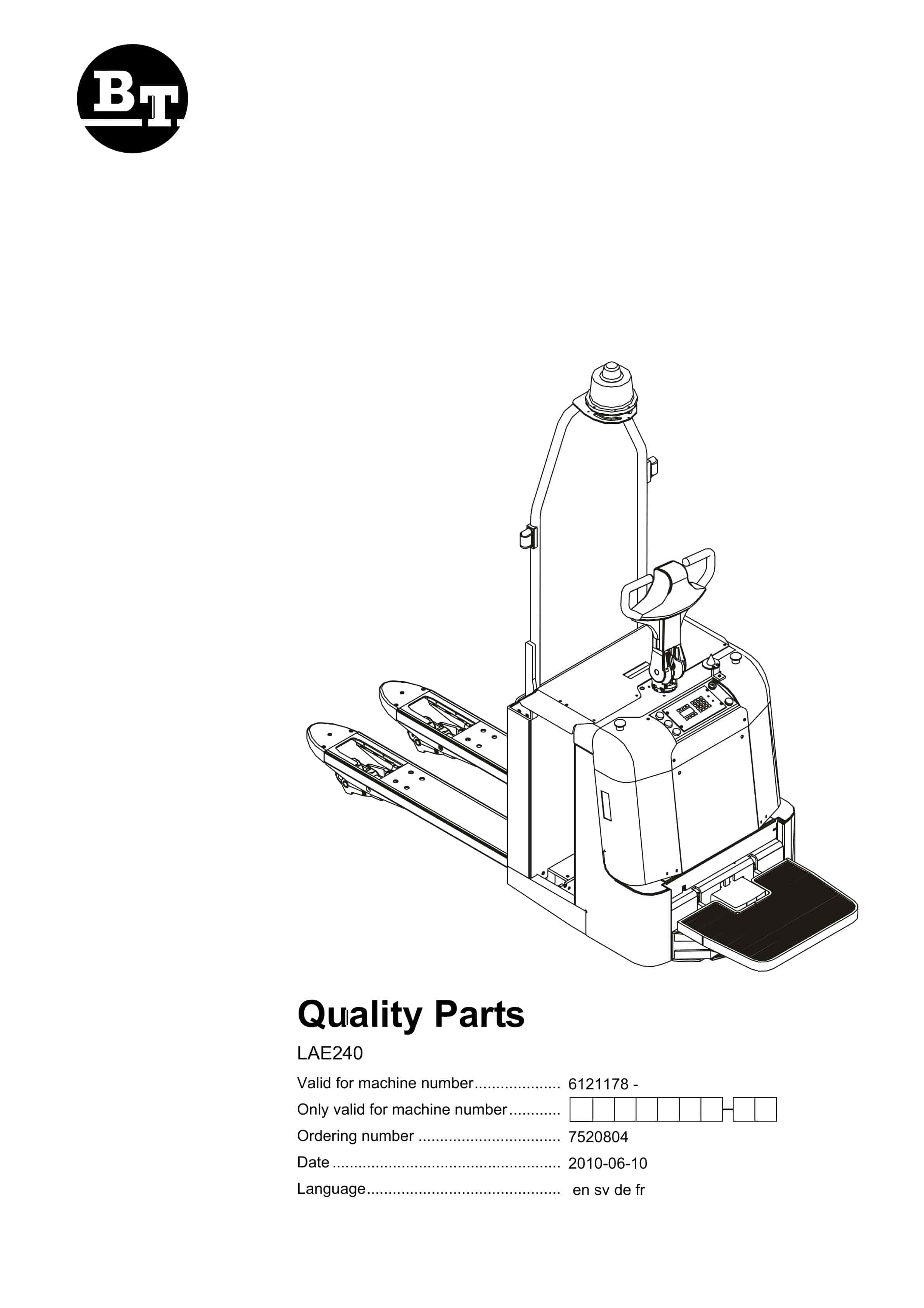

BT LAE240 Quality Parts 7520804

$30.00

Type Of Manual: Quality Parts
Manual ID: 7520804
: Parts Manual PDF
Number of Pages: 107
Size: 6.6MB
Format: PDF

Category: BT Parts Manual PDF

Model List:
- LAE240

1. Chassis
1.1. Chassi Chassis Châssis
2. Motors
2.1. Motorer Motoren Moteurs
3. Transmission/Drive gear
3.1. Kraftöverföring/Drivväxel Kraftübertragung/Fahrgetriebe Transmission/Groupe de traction
4. Brake/Wheel/Caterpillar system
4.1. Broms-/Hjul-/Bandsystem Brems-/Rad-/Bandsystem Freins/Roues/ Chenilles
5. Steering system
5.1. Styrsystem Steuer-/Lenksystem Système de direction
6. Electrical system
6.1. Elektriskt system Elektroanlage Système électrique
7. Hydraulic/pneumatic system
7.1. Hydraulik/pneumatik Hydraulikanlage/Pneumatik Système hydraulique/pneumatique
8. Peripheral/installation equipment
8.1. Kring-/installationsutrustning Periphere-/Installationsausrüstung Equipement complémentaire
9. Options/attachments
9.1. Tillbehör/extrautrustning Zubehör/Zusatzausrüstung Equipement supplémentaire/Options
10. P0023542
11. Inspection covers 2008-12-15
12. P0034526
13. Inspection covers 2009-05-06
14. P0035005
15. Fork frame (low lifters) 2010-05-26
16. P0016147
17. Battery compartment parts 2006-04-13
18. P0019613
19. Battery compartment parts 2007-12-10
20. P0028998
21. Battery compartment parts 2009-02-10
22. P0028999
23. Battery compartment parts 2009-02-10
24. P0032605
25. Battery compartment parts 2008-12-15
26. P0015615
27. Frame/chassis components 2006-04-13
28. P0036880
29. Frame/chassis components 2010-06-10
30. P0036872
31. Platform incl. fixing points 2010-06-10
32. P0019248
33. Signs, warnings, decals 2006-04-13
34. P0035554
35. Signs, warnings, decals 2010-06-10
36. P0014106
37. Electric pump motor 2009-05-12
38. P0032568
39. Electric steering motor 2010-06-10
40. P0028997
41. Electric fan motor, electric fan 2009-05-12
42. P0031700
43. Electric drive motor 2010-06-10
44. P0030709
45. Mechanical drive gear unit 2009-10-13
46. P0012474
47. Electromagnetic parking brake 2009-05-12
48. P0016142
49. Drive wheel 2006-04-13
50. P0036878
51. Support/castor wheels 2010-06-10
52. P0035045
53. Fork/support arm wheels 2010-01-11
54. P0036669
55. Steering arm/wheel/lever 2010-06-10
56. P0036730
57. Steering arm/wheel/lever 2010-06-10
58. P0028582
59. Electric steering system 2009-09-02
60. P0016154
61. External direction indicator lights 2007-06-11
62. P0036853
63. General alarm signals (audible/visual) 2010-06-10
64. P0012064
65. Battery cut out connector/contactor 2009-03-26
66. P0036868
67. Battery cut out connector/contactor 2010-06-10
68. P0034160
69. Instrument panel, display 2009-05-06
70. P0034159
71. Start/stop switch 2009-05-06
72. P0036873
73. Driving function harnesses/fuse 2010-06-10
74. P0014081
75. Transistor panel 2008-11-04
76. P0020881
77. Work function micro switches, potentiometers 2007-01-02
78. P0028607
79. Work function harnesses/fuse 2007-04-03
80. P0036855
81. Work function harnesses/fuse 2010-06-10
82. P0012440
83. Power system for work function 2006-04-13
84. P0029409
85. Pump contactor 2010-02-23
86. P0036731
87. Drive/multi-function PCBs 2010-06-10
88. P0036884
89. Emitting/receiving equipment 2010-06-01
90. P0028650
91. Emitting/receiving equipment 2007-01-12
92. P0029163
93. Emitting/receiving equipment 2007-05-14
94. P0023543
95. Drive movement probes/sensors 2009-01-14
96. P0019285
97. Safety probes/sensors 2009-08-14
98. P0036856
99. Safety probes/sensors 2010-06-10
100. P0036871
101. Safety probes/sensors 2010-06-10
102. P0033452
103. Positioning probes/sensors 2008-12-15
104. P0028588
105. Hydraulic unit 2009-09-15
106. P0033364
107. Hydraulic lines chassis 2009-09-30
108. P0033640
109. Main lift cylinders 2008-12-15
110. P0036874
111. Powertrak cylinder 2010-06-10
112. P0017056
113. Magnets, reflectors, mirrors 2006-04-13
114. P0019044
115. Charger attachment 2009-10-13
116. P0016146
117. Truck log device, code locking device 2009-10-13
118. P0034687
119. Battery changing equipment 2010-01-19
