BT RR-30C Electric Reach Truck Parts Manual 300379-001

$30.00

Type Of Manual: Parts Manual
Manual ID: 300379-001
: Parts Manual PDF
Number of Pages: 226
Size: 7.1MB
Format: PDF

Category: BT Parts Manual PDF

Model List:
- RR-30C Electric Reach Truck

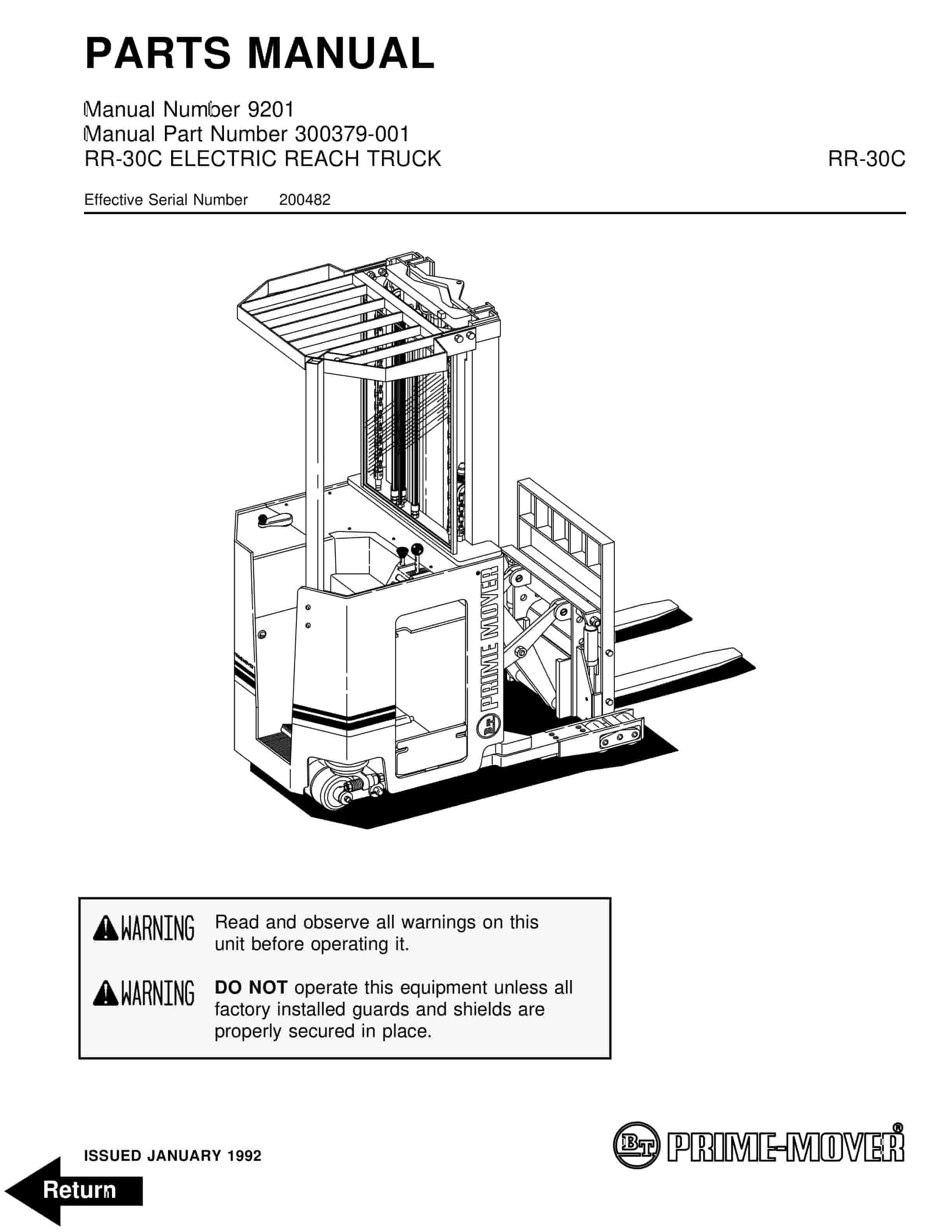

1. Front Cover
2. Parts Ordering Instructions
3. General Information
4. Alphabetical Index
5. Figure 0.1 Decals and Parts Assembly
6. Figure 0.2 Parts List Index
7. Figure 1.1 Transmission and Drive Motor Installation
8. Figure 1.2 Drive Motor and Brake Assembly
9. Figure 1.3 Transmission Assembly (40011-01) Part I
10. Figure 1.4 Transmission Assembly (40011-00) Part II
11. Figure 2.1 E EV-100LX SCR Electrical Schematic

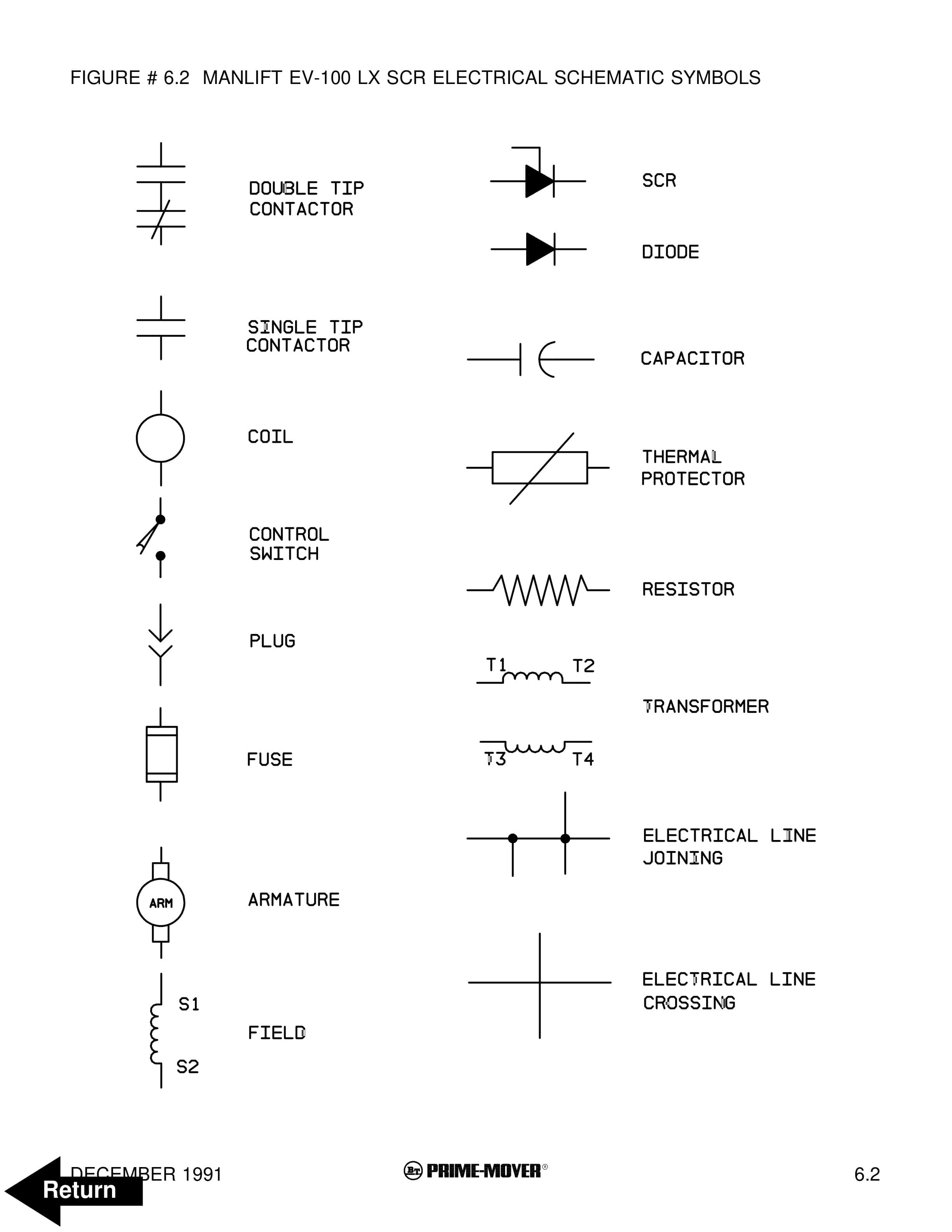

12. Figure 2.2 E EV-100LX SCR Electrical Schematic Symbols
13. Figure 2.3 EE EV-100LX SCR Electrical Schematic
14. Figure 2.4 EE EV-100LX SCR Electrical Schematic Symbols
15. Figure 2.5 Wiring Assembly for Cold Storage
16. Figure 2.6 Wiring Harness Assembly
17. Figure 2.7 Limit Switch Wiring Assembly
18. Figure 2.8 Two Stage Mast Cable Assembly
19. Figure 2.9 Three Stage Mast Cable Assembly
20. Figure 2.10 Reach Cable Assembly
21. Figure 2.11 EV-100LX Power Component Wiring
22. Figure 2.12 EV-100LX TX SCR Control Panel Assembly (49399-00) EV-100LX TT SCR Control Panel Assembly (49399-01)
23. Figure 2.13 EV-100LX contactor Panel Assembly Related Parts for E and EE
24. Figure 2.14 EV-100LX Contactor Panel Assembly (24 Volt, 41757-01) (36 Volt, 41757-02)
25. Figure 2.15 EV-100LX SCR Forward Rearward Contactor Assembly (27692-00)
26. Figure 2.16 EV-100LX SCR 1A Contactor Assembly (27693-02)
27. Figure 2.17 Lift Pump Contactor Assembly (24 Volt, 27693-02) (36 Volt, 202169)
28. Figure 2.18 EV-100LX SCR Auxiliary Pump Contactor Assembly (300073-000)
29. Figure 2.19 Power Connector Assembly (24 Volt, 29855-24) (36 Volt, 49855-22)
30. Figure 2.20 Lift Pump Motor Assembly, 24 Volt (27900-00, 5BT1324B54) G.E. Lift Pump Motor Assembly, 36 Volt (27899-00, 5B
31. Figure 2.21 Drive Motor Assembly, 24 Volt (27901-00, 5BT1326B235) G.E. Drive Motor Assembly, 36 Volt (27902-00, 5BT1326B2
32. Figure 2.22 Auxiliary Pump Motor Assembly
33. Figure 2.23 Warning Light Assembly (26210-02, 24 Volt) (26210-03, 36 Volt)
34. Figure 2.24 E EV-100LX TT SCR Electrical Schematic
35. Figure 2.25 E EV-100LX TT SCR Electrical Schematic Symbols
36. Figure 2.26 EE EV-100LX TT SCR Electrical Schematic
37. Figure 2.27 EE EV-100LX TT SCR Electrical Schematic Symbols
38. Figure 2.28 EV-100LX Dash Display Installation
39. Figure 3.1 Hydraulic Schematic
40. Figure 3.2 Hydraulic Schematic Symbols
41. Figure 3.3 Auxiliary Pump and Reservoir Assembly
42. Figure 3.4 Auxiliary Control Valve Assembly (41331-00)
43. Figure 3.5 Auxiliary Pump and Motor Assembly (24 Volt, 300333-000) (36 Volt, 300334-000)
44. Figure 3.6 Auxiliary Pump Assembly
45. Figure 3.7 Hydraulic Reservoir Assembly
46. Figure 3.8 Torque Generator Assembly (40795-01)
47. Figure 3.9 Two Stage Mast Hydraulic Assembly
48. Figure 3.10 Three Stage Mast Hydraulic Assembly
49. Figure 3.11 Reach Cylinder Hose Installation
50. Figure 3.12 Reach Diverter Valve Assembly (41242-00)
51. Figure 3.13 Reach Cylinder Assembly (41228-XX)
52. Figure 3.14 Tilt and Sideshift Hose Installation
53. Figure 3.15 Tilt Cylinder Assembly (Left, 41469-00), (Right, 41559-00)
54. Figure 3.16 Lift Pump and Reservoir Assembly
55. Figure 3.17 Lift Pump Motor Assembly
56. Figure 3.18 Lift Pump Motor Assembly, 36 Volt (41178-00)
57. Figure 3.19 Lift Control Valve Assembly (41364-00)
58. Figure 3.20 Two Stage Cylinder and Reservoir Assembly
59. Figure 3.21 Two Stage Cylinder Assembly (40534-XX)
60. Figure 3.22 Three Stage Cylinder and Reservoir Assembly
61. Figure 3.23 Three Stage Staging Cylinder Assembly (40891-XX)

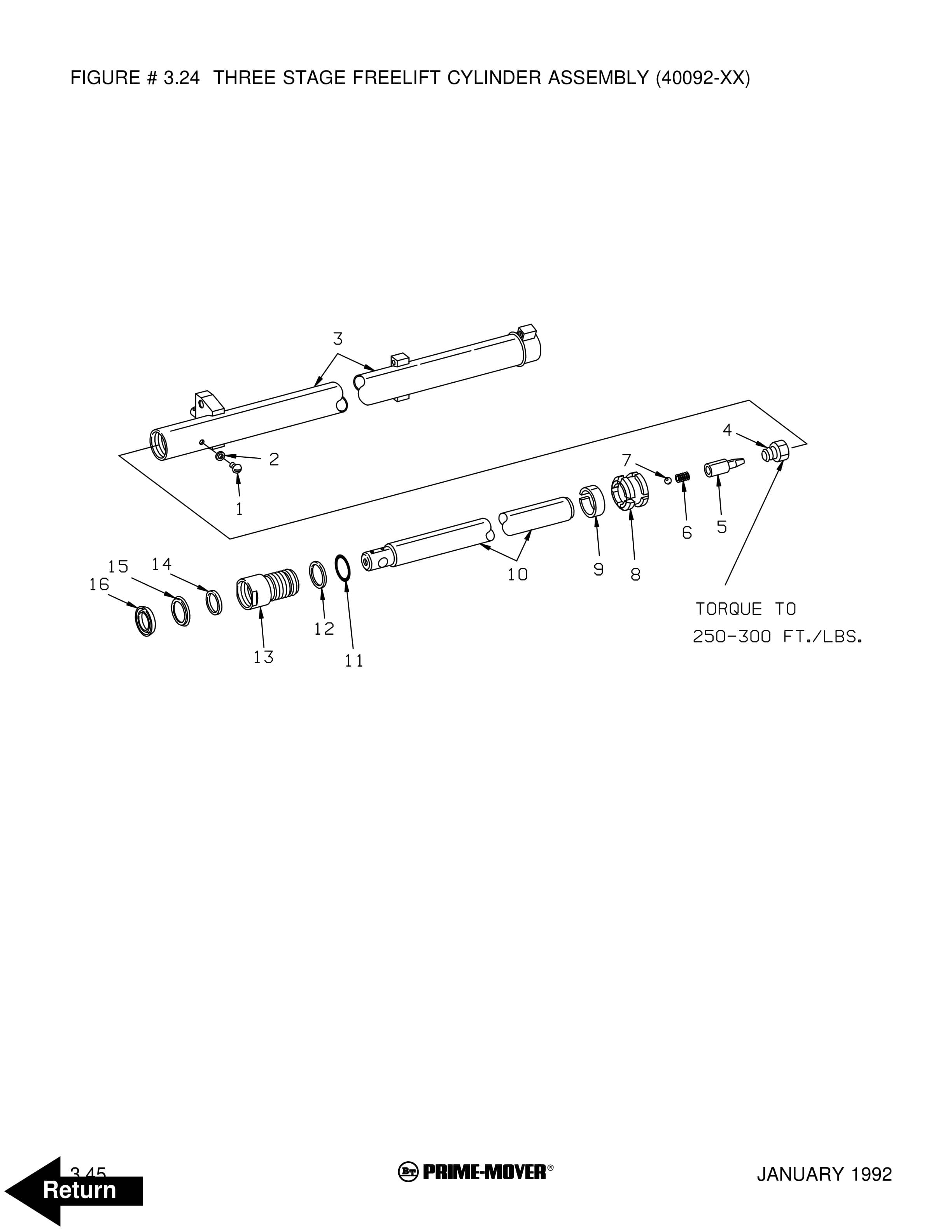

62. Figure 3.24 Three Stage Freelift Cylinder Assembly (40092-XX)
63. Figure 4.1 Shielding Assembly
64. Figure 4.2 Emergency Disconnect Assembly
65. Figure 4.3 Auxiliary Control Assembly
66. Figure 4.4 Hand Lift/Lower and Speed Control
67. Figure 4.5 Steering Control Assembly
68. Figure 4.6 Idler Wheel Installation
69. Figure 4.7 Idler Wheel Assembly
70. Figure 4.8 Main Frame and Load Wheel Assembly
71. Figure 4.9 Single Load Wheel Assembly
72. Figure 4.10 5 High Articulating Load Wheel Assembly
73. Figure 4.11 4 High Articulating Load Wheel Assembly
74. Figure 5.1 Two Stage Mast Installation
75. Figure 5.2 Two Stage Inner Column Assembly
76. Figure 5.3 Two Stage Outer Column Assembly
77. Figure 5.4 Two Stage Cylinder Assembly
78. Figure 5.5 Two Stage Single Reach Assembly
79. Figure 5.6 Two Stage Single Reach Front Frame

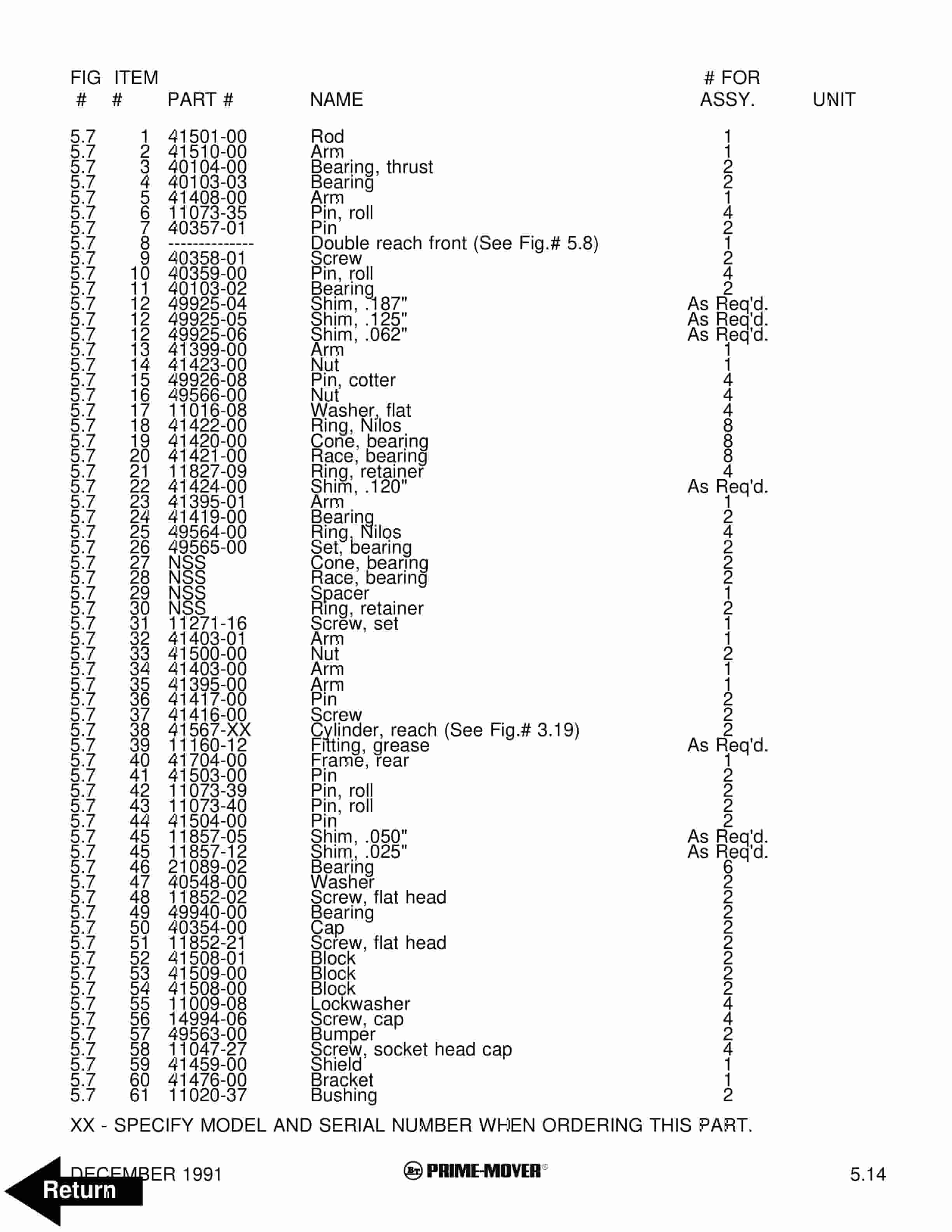

80. Figure 5.7 Two Stage Double Reach Assembly
81. Figure 5.8 Two Stage Double Reach Front Frame
82. Figure 5.9 Two Stage Sideshifter Assembly (40472-00)
83. Figure 5.10 Two Stage Fork Assembly (25008-XX)
84. Figure 5.11 Three Stage Mast Installation
85. Figure 5.12 Three Stage Inner Column Assembly
86. Figure 5.13 Three Stage Freelift Cylinder Installation
87. Figure 5.14 Three Stage Intermediate Column Assembly
88. Figure 5.15 Three Stage Outer Column Assembly
89. Figure 5.16 Three Stage Single Reach Assembly

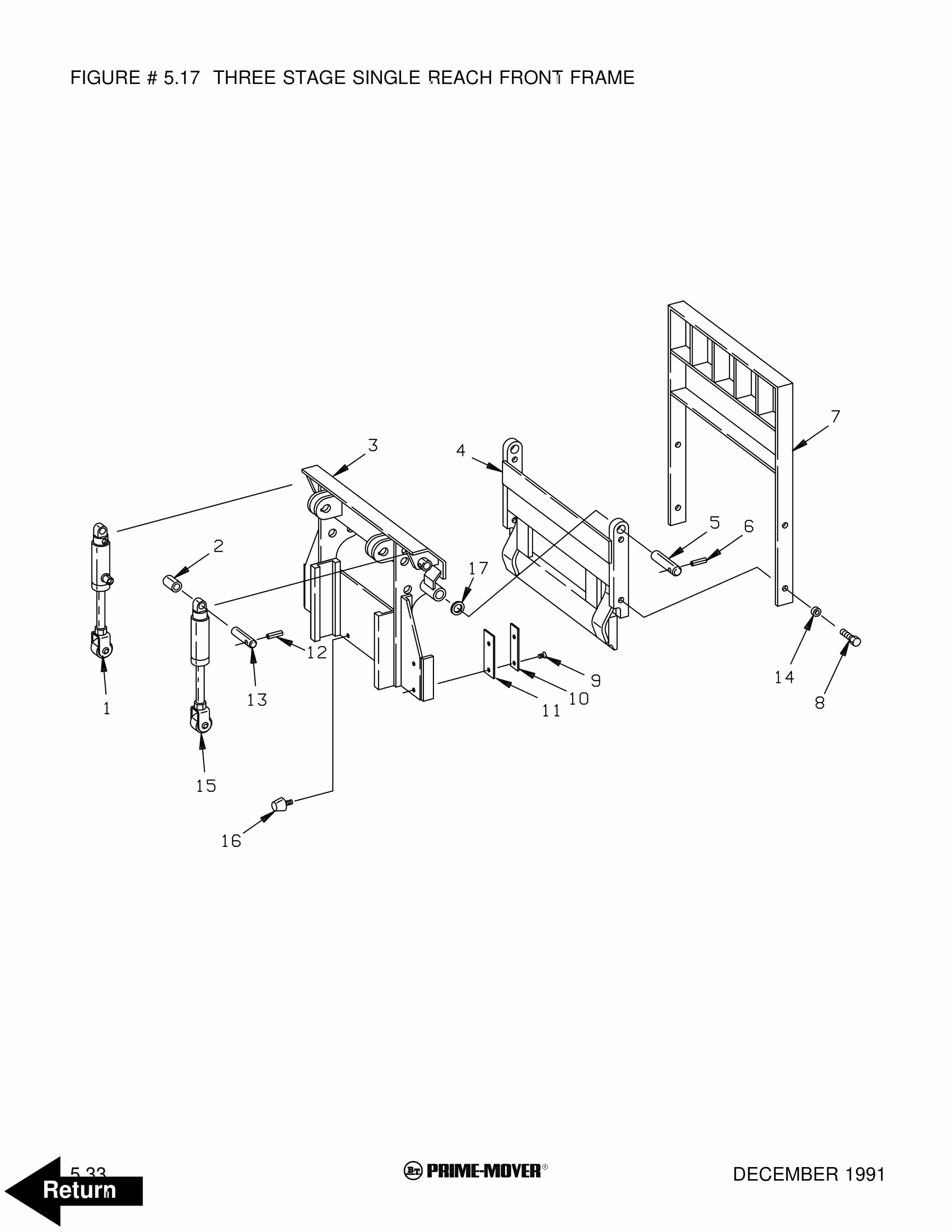

90. Figure 5.17 Three Stage Single Reach Front Frame
91. Figure 5.18 Three Stage Double Reach Assembly
92. Figure 5.19 Three Stage Double Reach Front Frame
93. Figure 5.20 Three Stage Sideshifter Assembly (40472-00)
94. Figure 5.21 Three Stage Fork Assembly (25008-XX)
95. Figure 6.1 Manlift EV-100 LX SCR Electrical Schematic
96. Figure 6.2 Manlift EV-100 LX SCR Electrical Schematic Symbols
97. Figure 6.3 Three Stage Fork Assembly (25008-XX)
98. Figure 6.4 Manlift Three Stage Mast Cable Assembly
99. Figure 6.5 Manlift Reach and Platform Cable Assembly
100. Figure 6.6 Manlift Power Component Wiring
101. Figure 6.7 Manlift Connector Assembly (49855-16)
102. Figure 6.8 Manlift Hydraulic Schematic
103. Figure 6.9 Manlift Hydraulic Schematic Symbols
104. Figure 6.10 Manlift Hydraulic Diagram
105. Figure 6.11 Manlift Valve Assembly (24 Volt, 41461-01) (36 Volt, 41461-00)
106. Figure 6.12 Manlift Valve Assembly (24 Volt, 41460-01) (36 Volt, 41460-00)
107. Figure 6.13 Manlift Load Backrest Installation
108. Figure 10.1 Special Tools and Lubrications
109. Numerical Index
110. Back Cover
