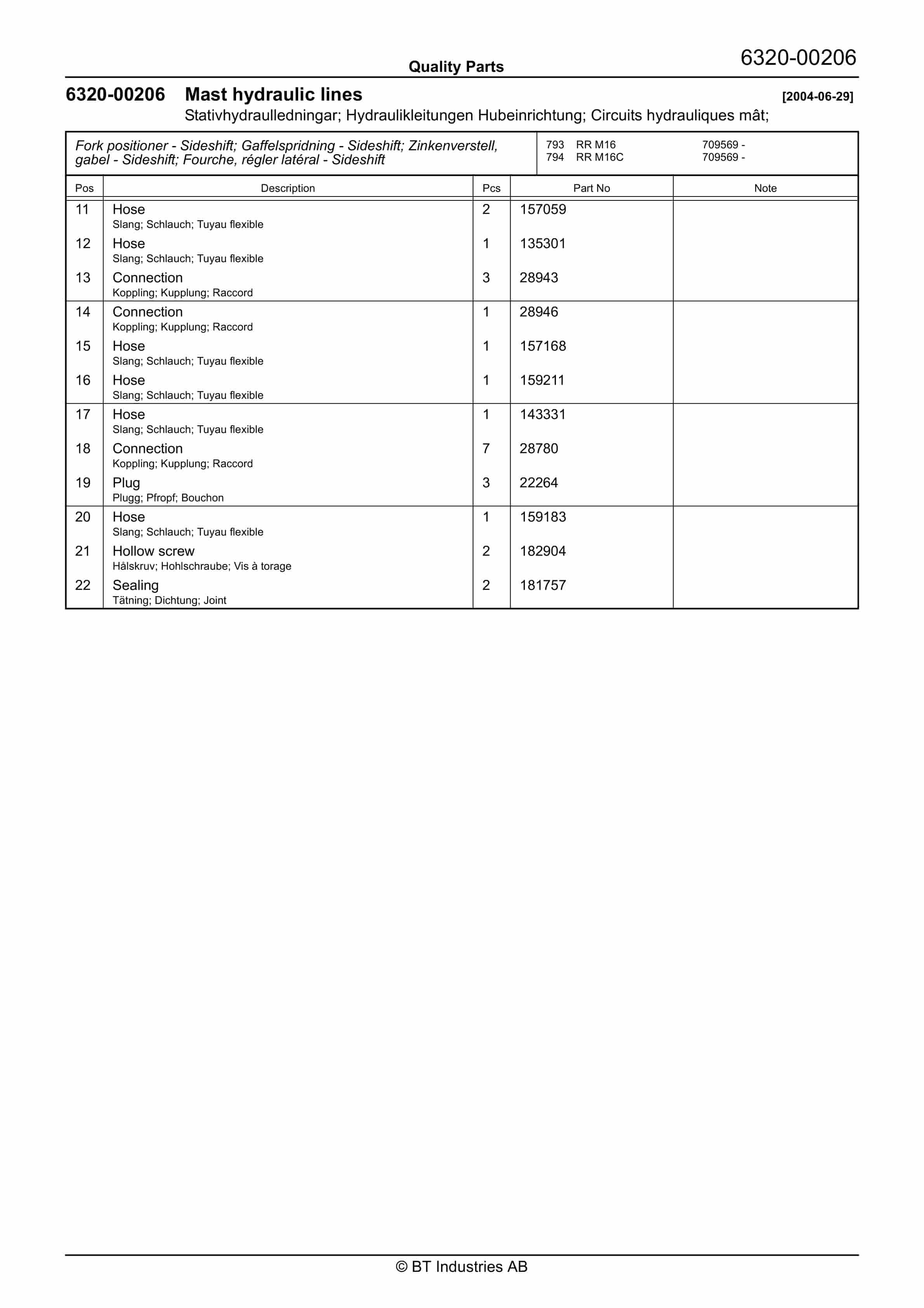

BT RR M16, RR M16C Quality Parts 217060 - Image 3

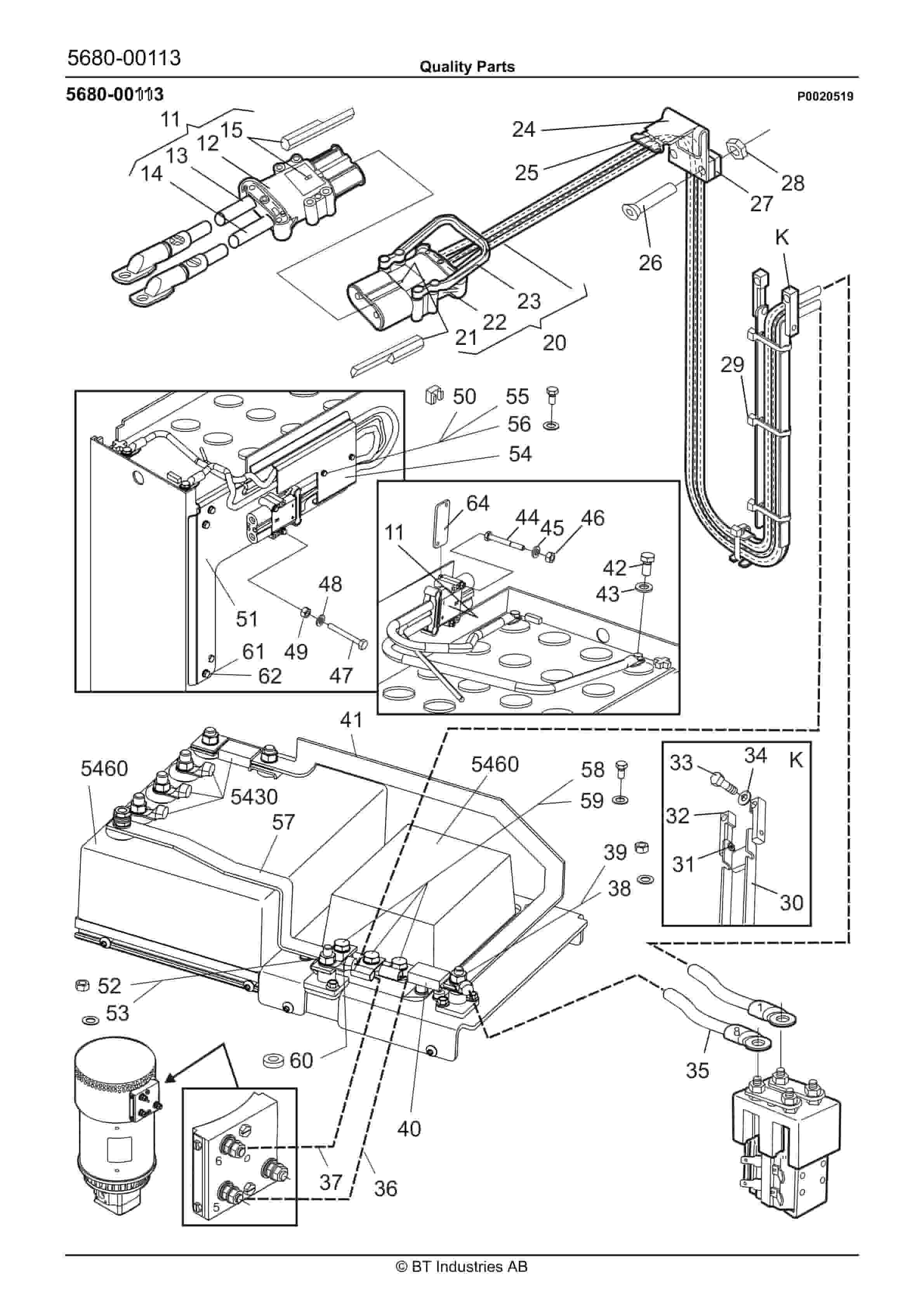

BT RR M16, RR M16C Quality Parts 217060 - Image 4

BT RR M16, RR M16C Quality Parts 217060 - Image 5

bt rr m16 rr m16c quality parts 217060 2

bt rr m16 rr m16c quality parts 217060 3

BT RR M16, RR M16C Quality Parts 217060

$30.00

Type Of Manual: Quality Parts
Manual ID: 217060
: Parts Manual PDF
Number of Pages: 190
Size: 9.8MB
Format: PDF

Category: BT Parts Manual PDF

Model List:
- RR M16, RR M16C

1. Chassis
1.1. Chassi Chassis Châssis
2. Motors
2.1. Motorer Motoren Moteurs
3. Transmission/Drive gear
3.1. Kraftöverföring/Drivväxel Kraftübertragung/Fahrgetriebe Transmission/Groupe de traction
4. Brake/Wheel/Caterpillar system
4.1. Broms-/Hjul-/Bandsystem Brems-/Rad-/Bandsystem Freins/Roues/ Chenilles
5. Steering system
5.1. Styrsystem Steuer-/Lenksystem Système de direction
6. Electrical system
6.1. Elektriskt system Elektroanlage Système électrique
7. Hydraulic/pneumatic system
7.1. Hydraulik/pneumatik Hydraulikanlage/Pneumatik Système hydraulique/pneumatique
8. Work function – lifting masts
8.1. Arbetsfunktion – lyftstativ Arbeitsfunktion – Hubgerüste Fonction de travail – mâts de levage
9. Options/attachments
9.1. Tillbehör/extrautrustning Zubehör/Zusatzausrüstung Equipement supplémentaire/Options
10. P0008951
11. Inspection covers 2004-04-15
12. P0010775
13. Inspection covers 2004-04-15
14. P0010985
15. Support arms, stabilizers 2004-04-15
16. P0020445
17. Support arms, stabilizers 2004-04-15
18. P0015346
19. Battery compartment parts 2004-06-23
20. P0011450
21. Motor fixing points 2004-04-15
22. P0009747
23. Cabin fixing points 2004-05-06
24. P0020514
25. Seat, cushions 2004-04-20
26. P0007590
27. Driver controls ( mechanical ) 2004-04-15
28. P0007591
29. Driver controls ( mechanical ) 2004-04-15
30. P0020446
31. Internal fittings 2004-04-20
32. P0011555
33. Mirrors 2004-04-15
34. P0013344
35. Overhead guard/roof 2004-04-15
36. P0013362
37. Overhead guard/roof 2004-06-03
38. P0018010
39. Overhead guard/roof 2004-04-15
40. P0000297
41. Finger/foot guards 2004-04-22
42. P0004156
43. Driver protection 2004-04-15
44. P0011572
45. Driver protection 2004-04-15
46. P0018399
47. Signs, warnings, decals 2004-04-15
48. P0012991
49. Electric pump motor 2004-04-15
50. P0019556
51. Electric steering motor 2004-04-15
52. P0009593
53. Electric fan motor, electric fan 2004-04-15
54. P0011293
55. Electric fan motor, electric fan 2004-04-15
56. P0020720
57. Electric drive motor 2004-04-15
58. P0015708
59. Mechanical drive gear unit 2004-04-15
60. P0007232
61. Travel brake controls 2004-04-15
62. P0009607
63. Electrically controlled travel brake 2004-04-15
64. P0005710
65. Drive wheel 2004-04-15
66. P0020405
67. Fork/support arm wheels 2004-04-15
68. P0012891
69. Electric steering wheel/lever 2004-04-15
70. P0009627
71. Steering angle sensor 2004-04-15
72. P0016555
73. Steering bearings 2004-04-15
74. P0019213
75. General alarm signals (audible/visual) 2004-04-15
76. P0007571
77. Battery cut out connector/contactor 2004-04-15
78. P0007136
79. Instrument panel, display 2004-04-15
80. P0020527
81. Level/position transducers/lamps 2004-04-15
82. P0000151
83. Start/stop switch 2004-04-15
84. P0004631
85. Start/stop switch 2004-04-15
86. P0000257
87. Travel direction switch (separate) 2004-04-15
88. P0004694
89. Travel direction switch (separate) 2004-04-15
90. P0006458
91. Travel direction switch (separate) 2004-04-15
92. P0007232
93. Speed control 2004-04-15
94. P0019660
95. Driving function harnesses/fuse 2004-04-15
96. P0014005
97. Drive motor cables/resistors/fuses 2004-04-15
98. P0019649
99. Transistor panel 2004-04-15
100. P0020444
101. Transistor panel 2004-04-15
102. P0002932
103. Work function micro switches, potentiometers 2004-04-15
104. P0015571
105. Work function micro switches, potentiometers 2004-04-15
106. P0011566
107. Work function harnesses/fuse 2004-04-15
108. P0020545
109. Work function harnesses/fuse 2004-04-15
110. P0020519
111. Battery/motor cables, fuse 2004-04-15
112. P0020524
113. Drive/multi-function PCBs 2004-04-15
114. P0007058
115. Safety electronics harnesses, fuse 2004-04-15
116. P0019368
117. Lift/lowering/reach movement probes/sensors 2004-04-15
118. P0020448
119. Lift/lowering/reach movement probes/sensors 2004-04-15
120. P0009598
121. Safety probes/sensors 2004-04-15
122. P0009634
123. Safety probes/sensors 2004-04-15
124. P0009651
125. Safety probes/sensors 2004-04-15
126. P0010770
127. Hydraulic tank 2004-06-29
128. P0008950
129. Hydraulic tank lines 2004-06-29
130. P0011482
131. Hydraulic tank lines 2004-04-15
132. P0010610
133. Filters and housing 2004-06-29
134. P0019207
135. Hydraulic pump 2004-04-15
136. P0004679
137. Main valve unit lift/reach/tilt 2004-06-29
138. P0004680
139. Main valve unit lift/reach/tilt 2004-06-29
140. P0004689
141. Control valve ( Other functions ) 2004-06-29
142. P0015280
143. Control valve ( Other functions ) 2004-06-29
144. P0011484
145. Hydraulic lines chassis 2004-04-15
146. P0009646
147. Mast hydraulic lines 2004-06-29
148. P0015333
149. Mast hydraulic lines 2004-06-29
150. P0015381
151. Mast hydraulic lines 2004-06-29
152. P0016869
153. Mast hydraulic lines 2004-06-29
154. P0019560
155. Mast hydraulic lines 2004-06-29
156. P0019559
157. Mast hydraulic lines 2004-06-29
158. P0019851
159. Mast hydraulic lines 2004-04-15
160. P0019852
161. Mast hydraulic lines 2004-04-15
162. P0020322
163. Mast hydraulic lines 2004-08-24
164. P0019859
165. Mast hose reel/swivel joint 2004-06-29
166. P0019860
167. Mast hose reel/swivel joint 2004-06-29
168. P0020329
169. Main lift cylinders 2004-04-15
170. P0020473
171. Free lift cylinders 2004-04-15
172. P0020413
173. Reach/telescopic cylinders 2004-04-15
174. P0009605
175. Tilt cylinders 2004-06-29
176. P0009633
177. Tilt cylinders 2004-06-29
178. P0018033
179. Other hydraulic cylinders 2004-06-29
180. P0020546
181. Main mast 2004-04-15
182. P0015336
183. Main lift chain system 2004-04-15
184. P0020544
185. Main lift chain system 2004-04-15
186. P0020542
187. Main mast fork carriage 2004-04-15
188. P0020543
189. Main mast fork carriage 2004-04-15
190. P0000171
191. Main mast guidance/dampers 2004-04-15
192. P0015208
193. Main mast guidance/dampers 2004-04-15
194. P0020414
195. Main mast suspension 2004-04-15
196. P0000186
197. Fork, carpet boom, lift hook 2004-04-15
198. P0013021
199. Separate sideshift/forkspread 2004-04-15
200. P0002899
201. Fork extensions 2004-04-15
202. P0006506
203. Extra lighting 2004-04-15
204. P0018310
205. Extra lighting 2004-04-15
206. P0019573
207. Extra warning lights/alarm 2004-04-15
208. P0011102
209. Charger attachment 2004-04-15
210. P0012876
211. Truck log device, code locking device 2004-04-15
212. P0016873
213. Truck log device, code locking device 2004-04-15
214. P0005120
215. Other extra equipment 2004-04-15
216. P0008971
217. Other extra equipment 2004-04-15
218. P0017239
219. Other extra equipment 2004-04-15
220. P0018045
221. Battery changing equipment 2004-04-15
