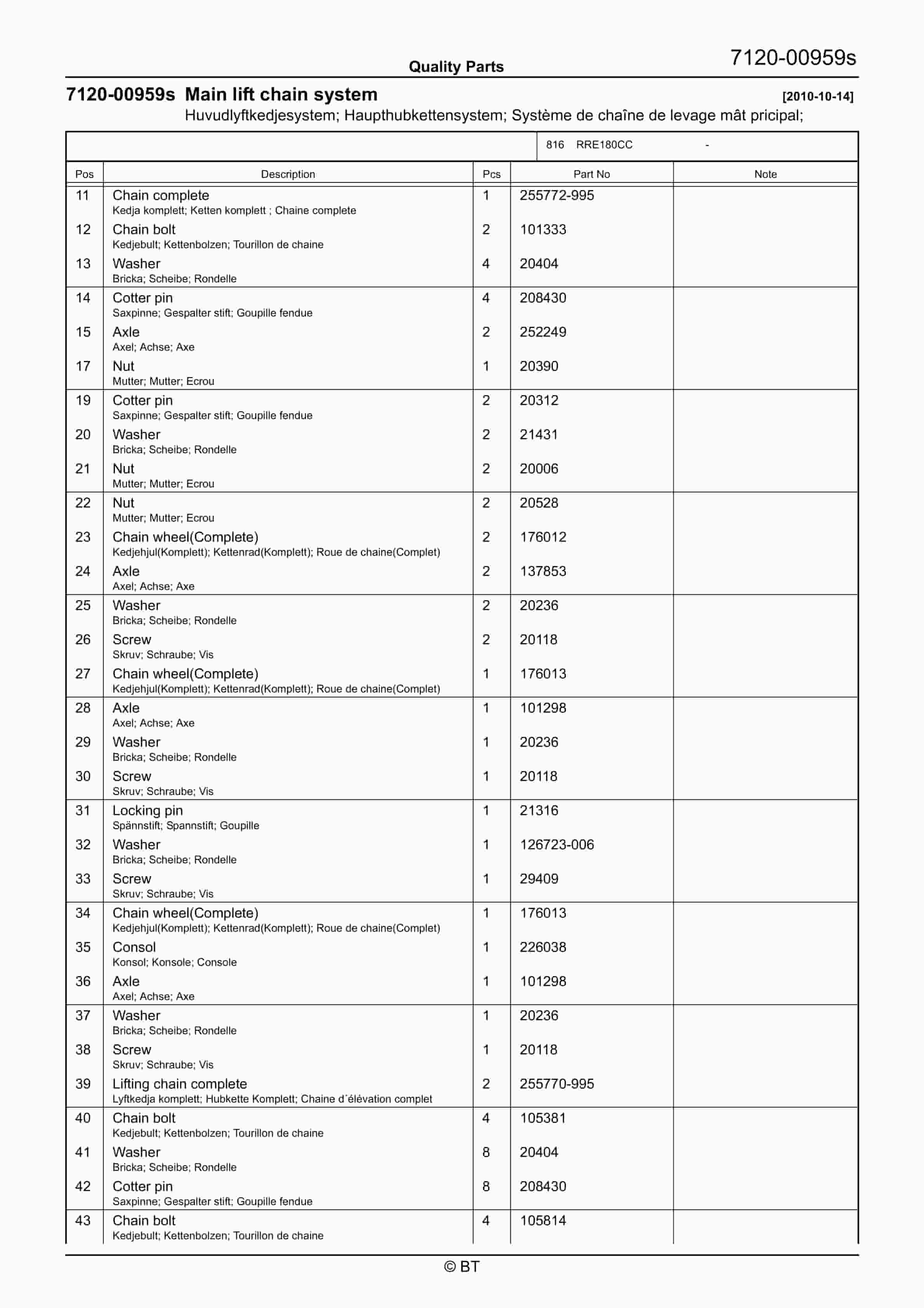

BT RRE180CC Quality Parts 7524312 - Image 2

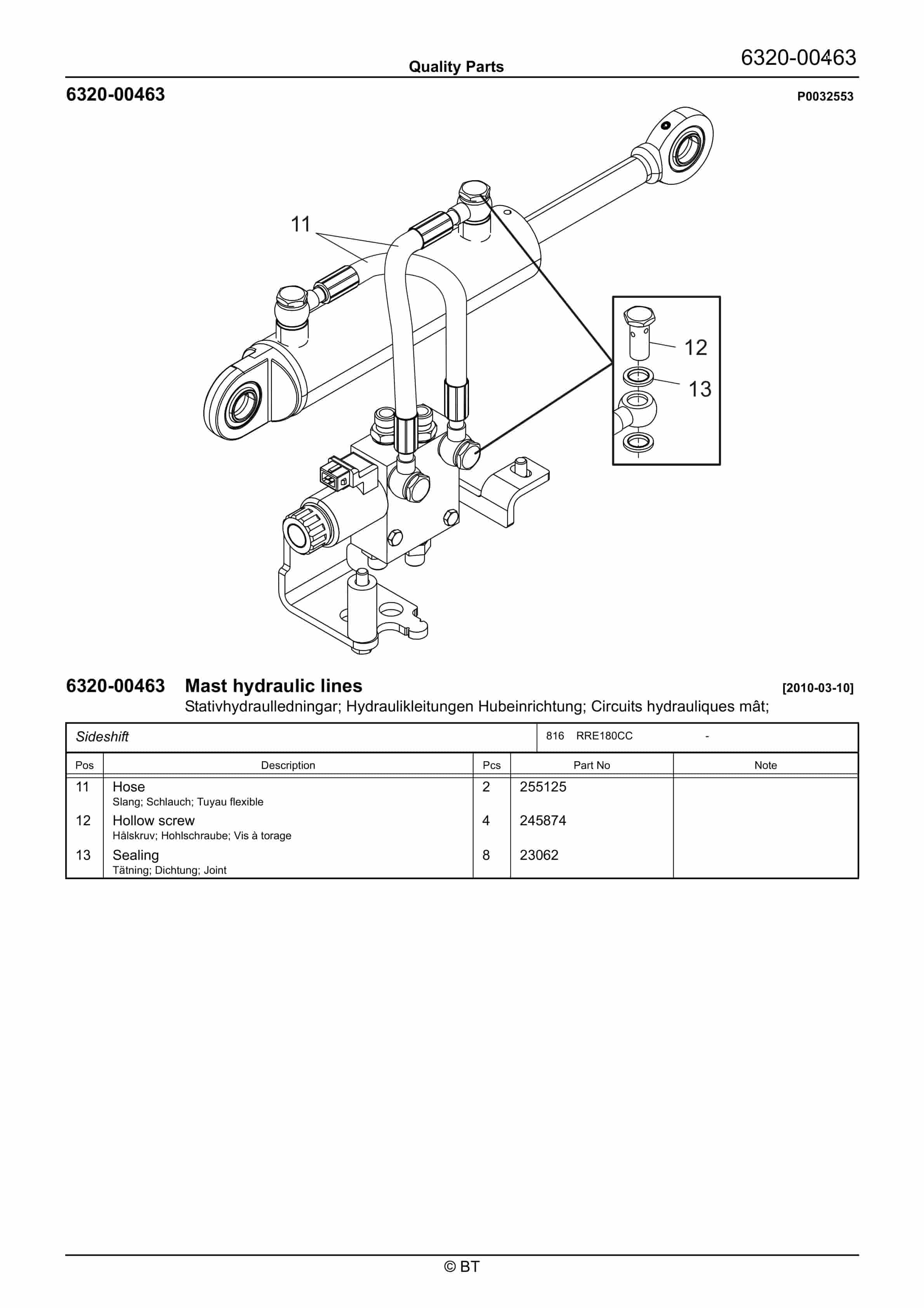

BT RRE180CC Quality Parts 7524312 - Image 3

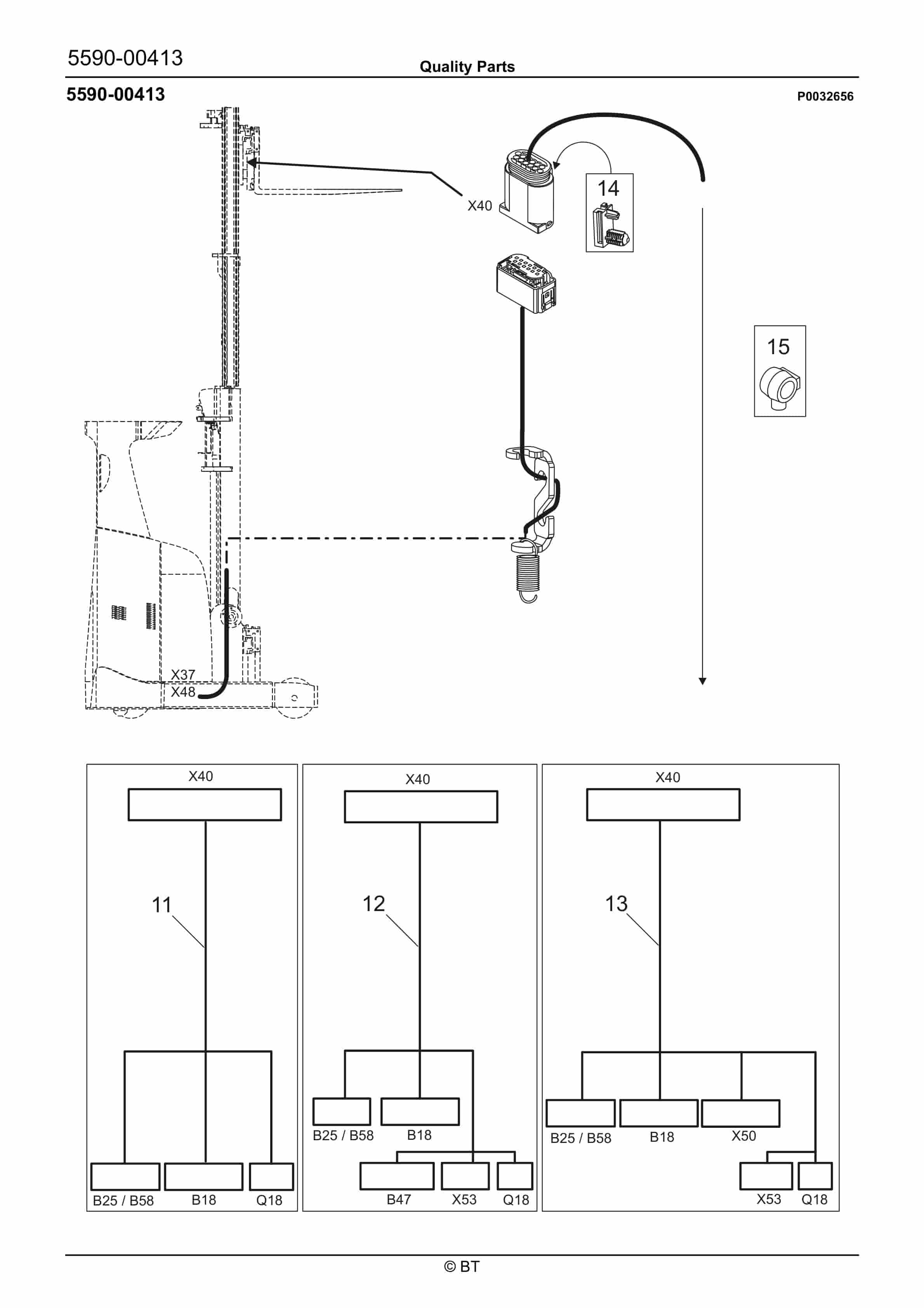

BT RRE180CC Quality Parts 7524312 - Image 4

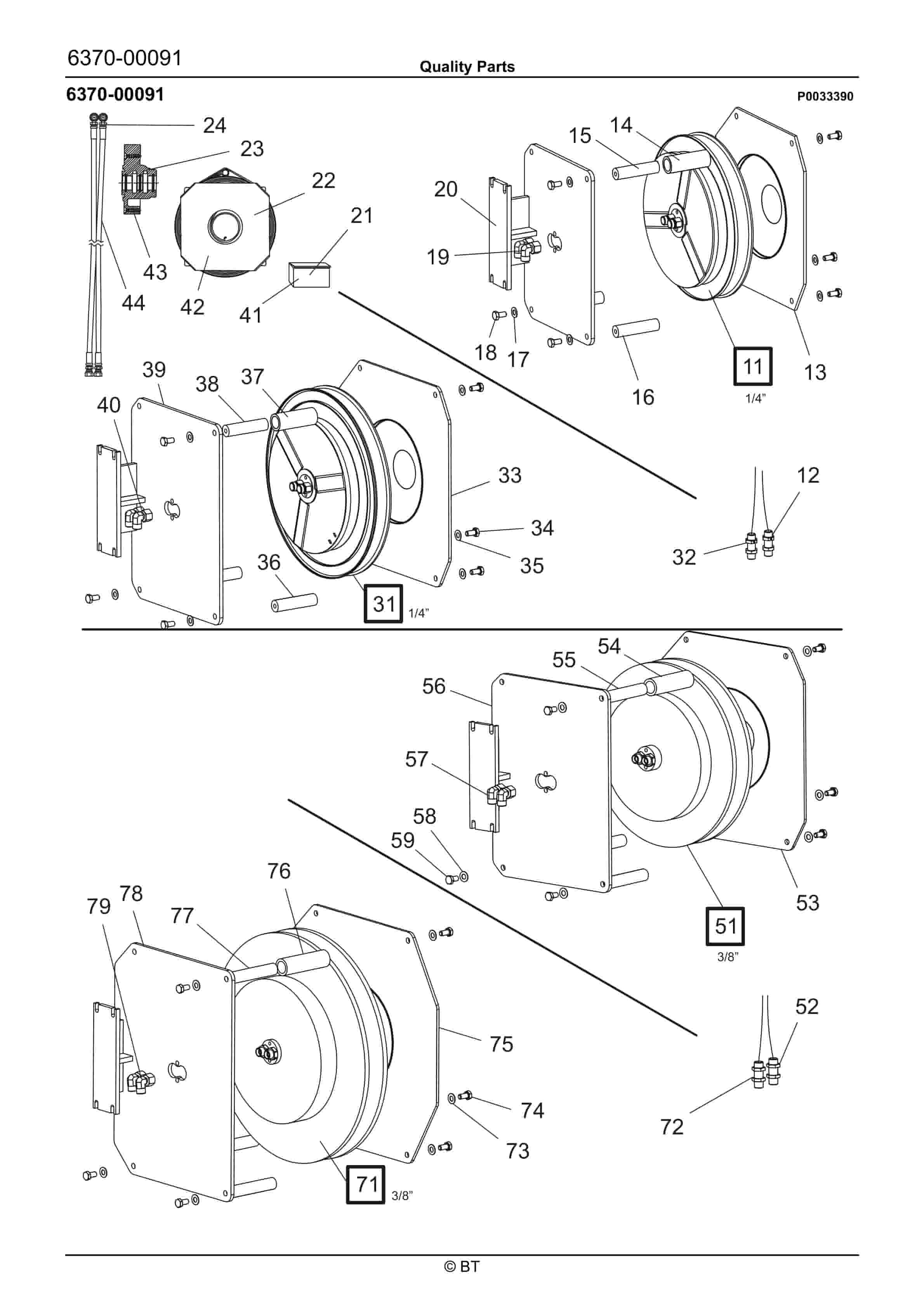

BT RRE180CC Quality Parts 7524312 - Image 5

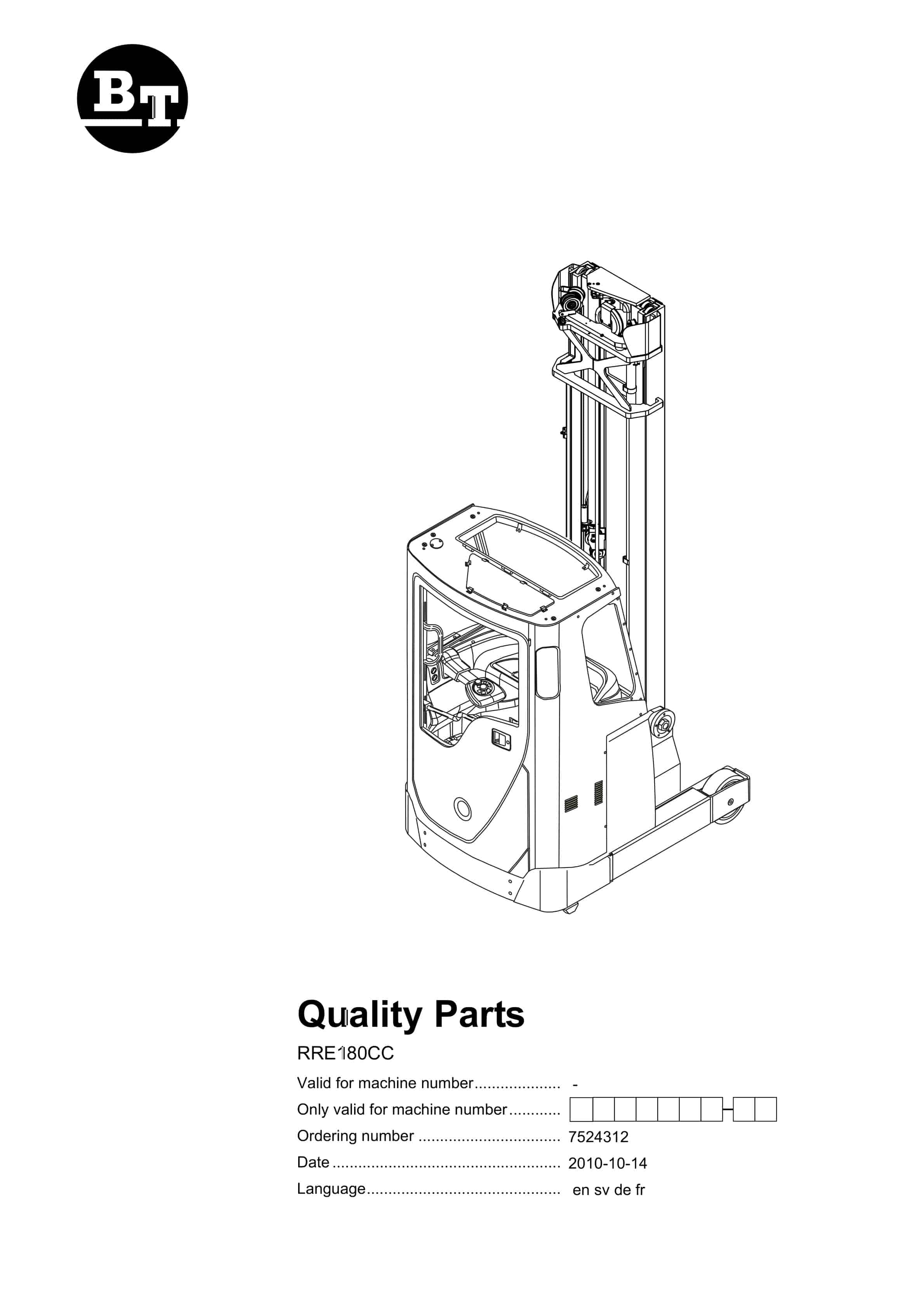

BT RRE180CC Quality Parts 7524312

$30.00

Type Of Manual: Quality Parts
Manual ID: 7524312
: Parts Manual PDF
Number of Pages: 295
Size: 16.8MB
Format: PDF

Category: BT Parts Manual PDF

Model List:
- RRE180CC

1. Chassis
2. Motors
3. Transmission/Drive gear
4. Brake/Wheel/Caterpillar system
5. Steering system
6. Electrical system
7. Hydraulic/pneumatic system
8. Work function – lifting masts
9. Options/attachments
10. P0032308
11. Inspection covers 2010-03-10
12. P0033973
13. Inspection covers 2009-11-25
14. P0035276
15. Inspection covers 2009-09-01
16. P0032305
17. Support arms, stabilizers 2010-03-10
18. P0034832
19. Battery compartment parts 2009-06-04
20. P0036778
21. Battery compartment parts 2010-09-14
22. P0036805
23. Battery compartment parts 2010-09-14
24. P0036807
25. Battery compartment parts 2010-09-14
26. P0036809
27. Battery compartment parts 2010-09-14
28. P0037392
29. Battery compartment parts 2010-09-14
30. P0037567
31. Battery compartment parts 2010-09-14
32. P0032258
33. Motor fixing points 2010-10-13
34. P0032690
35. Cabin fixing points 2010-03-10
36. P0034152
37. Cabin windows 2009-12-08
38. P0034164
39. Cabin windows 2009-09-07
40. P0034167
41. Cabin windows 2009-09-07
42. P0034183
43. Cabin windows 2009-03-17
44. P0035257
45. Cabin windows 2009-09-01
46. P0035258
47. Cabin windows 2009-09-01
48. P0035317
49. Cabin windows 2009-09-07
50. P0035322
51. Cabin windows 2009-10-27
52. P0034195
53. Cabin door 2009-03-17
54. P0036160
55. Cabin door 2010-02-08
56. P0036161
57. Cabin door 2010-02-08
58. P0036057
59. Seat, cushions 2010-06-29
60. P0034179
61. Cabin heating/ventilation 2009-12-08
62. P0033453
63. Driver controls ( mechanical ) 2010-03-10
64. P0034365
65. Driver controls ( mechanical ) 2010-03-10
66. P0033996
67. Internal fittings 2009-11-25
68. P0033999
69. Internal fittings 2009-11-25
70. P0034021
71. Internal fittings 2009-03-17
72. P0034095
73. Internal fittings 2009-03-17
74. P0035274
75. Internal fittings 2009-09-01
76. P0034189
77. Driver compartment/cabin external 2009-03-17
78. P0035275
79. Driver compartment/cabin external 2009-09-01
80. P0034129
81. Mirrors 2009-03-17
82. P0036708
83. Finger/foot guards 2010-05-27
84. P0037238
85. Driver protection 2010-09-14
86. P0033967
87. Signs, warnings, decals 2009-03-17
88. P0031307
89. Electric pump motor 2010-03-10
90. P0037564
91. Electric steering motor 2010-09-14
92. P0034022
93. Electric fan motor, electric fan 2010-03-10
94. P0037264
95. Electric fan motor, electric fan 2010-09-20
96. P0032399
97. Electric drive motor 2010-03-10
98. P0030289
99. Mechanical drive gear unit 2010-08-16
100. P0032405
101. Electrically controlled travel brake 2010-03-10
102. P0032955
103. Electrically controlled travel brake 2010-03-10
104. P0031609
105. Drive wheel 2010-03-10
106. P0033138
107. Fork/support arm wheels 2010-03-10
108. P0031370
109. Electric steering wheel/lever 2010-03-10
110. P0032654
111. Electric steering wheel/lever 2009-09-09
112. P0031638
113. Steering angle sensor 2010-10-13
114. P0037353
115. General alarm signals (audible/visual) 2010-09-14
116. P0031508
117. Battery cut out connector/contactor 2010-03-10
118. P0032073
119. Battery cut out connector/contactor 2010-03-10
120. P0031314
121. Instrument panel, display 2010-10-13
122. P0031398
123. Instrument panel, display 2009-09-29
124. P0034124
125. Instrument panel, display 2009-03-17
126. P0032634
127. Level/position transducers/lamps 2009-09-09
128. P0035152
129. Level/position transducers/lamps 2009-10-27
130. P0035576
131. Level/position transducers/lamps 2009-11-24
132. P0032660
133. Driving function harnesses/fuse 2010-03-10
134. P0033756
135. Driving function harnesses/fuse 2010-03-10
136. P0036570
137. Driving function harnesses/fuse 2010-05-27
138. P0037258
139. Drive motor cables/resistors/fuses 2010-09-14
140. P0037259
141. Transistor panel 2010-09-14
142. P0031270
143. Work function harnesses/fuse 2010-03-10
144. P0032524
145. Work function harnesses/fuse 2010-03-10
146. P0032656
147. Work function harnesses/fuse 2010-03-10
148. P0033524
149. Work function harnesses/fuse 2010-03-10
150. P0033523
151. Work function harnesses/fuse 2010-03-10
152. P0033738
153. Work function harnesses/fuse 2010-03-10
154. P0034178
155. Work function harnesses/fuse 2009-03-17
156. P0034180
157. Work function harnesses/fuse 2009-03-17
158. P0036108
159. Work function harnesses/fuse 2010-03-10
160. P0037871
161. Work function harnesses/fuse 2010-10-14
162. P0035629
163. Battery/motor cables, fuse 2010-03-10
164. P0035630
165. Battery/motor cables, fuse 2010-05-03
166. P0036877
167. Battery/motor cables, fuse 2010-05-31
168. P0033840
169. Drive/multi-function PCBs 2010-03-10
170. P0034077
171. Safety probes/sensors 2010-03-10
172. P0034196
173. Safety probes/sensors 2009-05-05
174. P0033526
175. Positioning probes/sensors 2010-03-10
176. P0035579
177. Positioning probes/sensors 2010-03-10
178. P0037412
179. Positioning probes/sensors 2010-09-14
180. P0031616
181. Hydraulic tank 2010-03-10
182. P0032255
183. Hydraulic tank lines 2010-03-10
184. P0033522
185. Hydraulic tank lines 2009-09-09
186. P0032253
187. Filters and housing 2010-03-10
188. P0032249
189. Hydraulic pump 2010-03-10
190. P0037514
191. Main valve unit lift/reach/tilt 2010-09-14
192. P0031703
193. Control valve ( Other functions ) 2010-03-10
194. P0032549
195. Control valve ( Other functions ) 2010-03-10
196. P0032663
197. Control valve ( Other functions ) 2010-03-10
198. P0033047
199. Control valve ( Other functions ) 2010-03-10
200. P0032675
201. Hydraulic lines chassis 2010-03-10
202. P0035193
203. Hydraulic lines chassis 2010-05-03
204. P0031705
205. Mast hydraulic lines 2010-03-10
206. P0032553
207. Mast hydraulic lines 2010-03-10
208. P0033496
209. Mast hydraulic lines 2010-09-01
210. P0033497
211. Mast hydraulic lines 2010-09-01
212. P0033680
213. Mast hydraulic lines 2010-03-10
214. P0034858
215. Mast hydraulic lines 2010-03-10
216. P0037872
217. Mast hydraulic lines 2010-10-14
218. P0033381
219. Mast hose reel/swivel joint 2010-03-10
220. P0033384
221. Mast hose reel/swivel joint 2010-03-10
222. P0033390
223. Mast hose reel/swivel joint 2010-03-10
224. P0033517
225. Mast hose reel/swivel joint 2010-03-10
226. P0037873
227. Main lift cylinders 2010-10-14
228. P0037874
229. Free lift cylinders 2010-10-14
230. P0036163
231. Reach/telescopic cylinders 2010-03-10
232. P0024168
233. Tilt cylinders 2010-03-10
234. P0036761
235. Tilt cylinders 2010-09-15
236. P0032554
237. Other hydraulic cylinders 2010-03-10
238. P0031145
239. Main mast 2009-02-12
240. P0037875
241. Main lift chain system 2010-10-14
242. P0031702
243. Main mast fork carriage 2009-02-12
244. P0031708
245. Main mast fork carriage 2010-06-09
246. P0036763
247. Main mast fork carriage 2010-10-13
248. P0032510
249. Main mast guidance/dampers 2010-03-10
250. P0033650
251. Main mast suspension 2010-10-04
252. P0036688
253. Main mast suspension 2010-09-14
254. P0033674
255. Fork, carpet boom, lift hook 2010-06-10
256. P0037526
257. Fork, carpet boom, lift hook 2010-09-14
258. P0035204
259. Separate sideshift/forkspread 2009-09-01
260. P0036813
261. Fork extensions 2010-05-27
262. P0033340
263. Extra electrical equipment 2010-03-10
264. P0035614
265. Extra electrical equipment 2009-11-24
266. P0034169
267. Radio/recorder 2010-01-26
268. P0035601
269. Radio/recorder 2010-09-06
270. P0034097
271. Extra lighting 2009-03-18
272. P0030370
273. Extra warning lights/alarm 2010-03-10
274. P0035669
275. Extra warning lights/alarm 2009-11-24
276. P0036628
277. Extra warning lights/alarm 2010-05-27
278. P0032673
279. Charger attachment 2010-03-10
280. P0034661
281. Charger attachment 2010-03-10
282. P0036638
