BT RRE200 Quality Parts 7519072 - Image 2

BT RRE200 Quality Parts 7519072 - Image 3

BT RRE200 Quality Parts 7519072 - Image 4

BT RRE200 Quality Parts 7519072 - Image 5

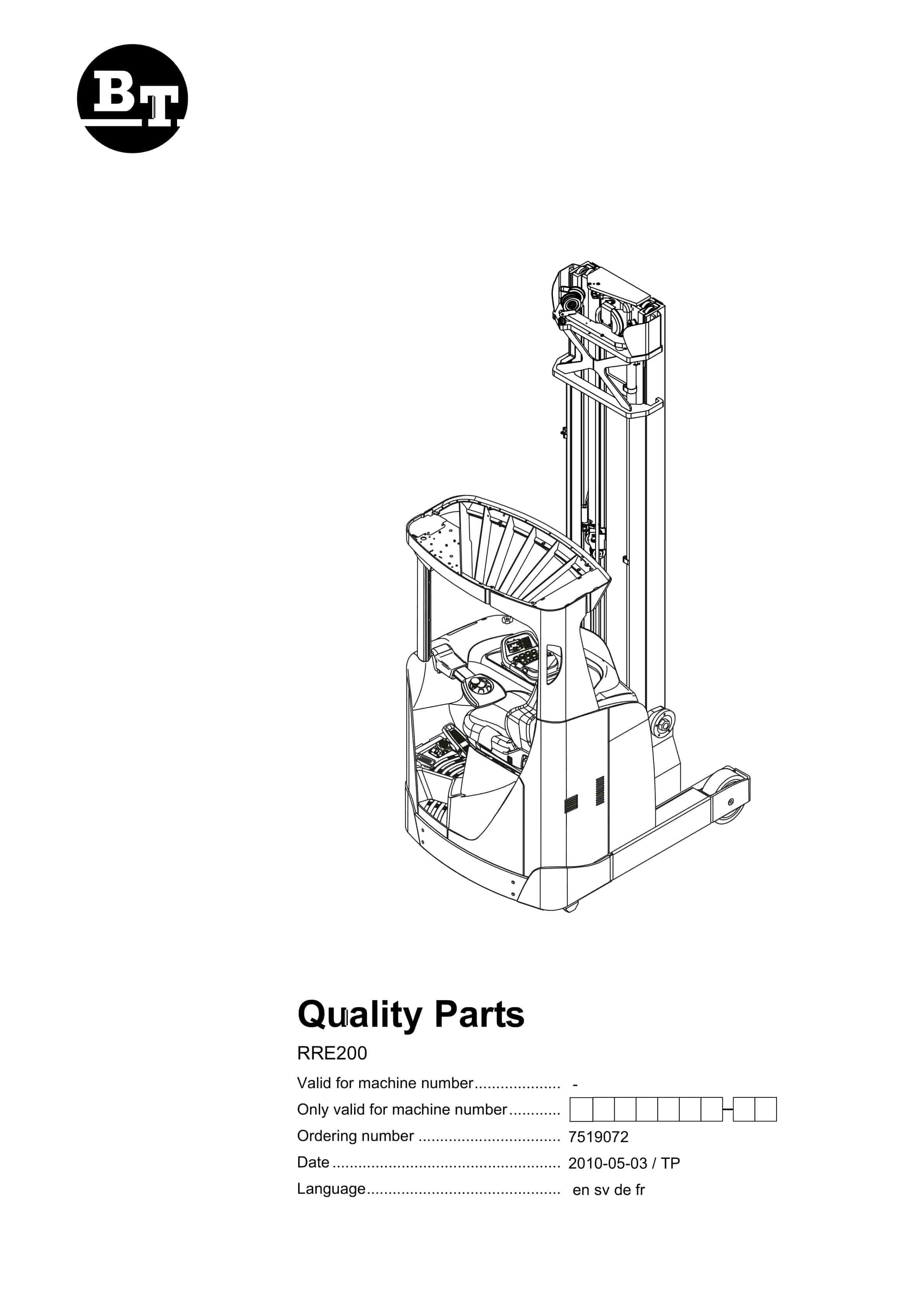

BT RRE200 Quality Parts 7519072

$30.00

Type Of Manual: Quality Parts
Manual ID: 7519072
: Parts Manual PDF
Number of Pages: 284
Size: 17.8MB
Format: PDF

Category: BT Parts Manual PDF

Model List:
- RRE200

1. Chassis
2. Motors
3. Transmission/Drive gear
4. Brake/Wheel/Caterpillar system
5. Steering system
6. Electrical system
7. Hydraulic/pneumatic system
8. Work function – lifting masts
9. Options/attachments
10. P0032308
11. Inspection covers 2010-03-10
12. P0033343
13. Inspection covers 2010-03-30
14. P0032306
15. Support arms, stabilizers 2010-03-10
16. P0033481
17. Battery compartment parts 2010-03-10
18. P0034542
19. Battery compartment parts 2010-01-20
20. P0034550
21. Battery compartment parts 2010-01-20
22. P0034679
23. Battery compartment parts 2010-03-10
24. P0034681
25. Battery compartment parts 2010-03-10
26. P0035206
27. Battery compartment parts 2010-03-10
28. P0036109
29. Battery compartment parts 2010-03-10
30. P0036111
31. Battery compartment parts 2010-02-10
32. P0032258
33. Motor fixing points 2010-03-10
34. P0032690
35. Cabin fixing points 2010-03-10
36. P0036057
37. Seat, cushions 2010-02-08
38. P0033453
39. Driver controls ( mechanical ) 2010-03-10
40. P0034365
41. Driver controls ( mechanical ) 2010-03-10
42. P0034642
43. Internal fittings 2009-09-09
44. P0034644
45. Internal fittings 2009-09-09
46. P0034822
47. Mirrors 2010-03-10
48. P0032310
49. Overhead guard/roof 2010-03-10
50. P0034641
51. Overhead guard/roof 2010-01-20
52. P0035140
53. Overhead guard/roof 2010-03-10
54. P0035141
55. Overhead guard/roof 2010-03-10
56. P0035651
57. Overhead guard/roof 2010-01-20
58. P0032356
59. Finger/foot guards 2010-03-10
60. P0032424
61. Finger/foot guards 2010-03-10
62. P0030616
63. Driver protection 2010-03-10
64. P0032149
65. Driver protection 2010-03-10
66. P0032594
67. Signs, warnings, decals 2009-09-09
68. P0032596
69. Signs, warnings, decals 2009-09-09
70. P0031307
71. Electric pump motor 2010-03-10
72. P0033337
73. Electric steering motor 2010-03-10
74. P0034022
75. Electric fan motor, electric fan 2010-03-10
76. P0032399
77. Electric drive motor 2010-03-10
78. P0030289
79. Mechanical drive gear unit 2010-03-10
80. P0032405
81. Electrically controlled travel brake 2010-03-10
82. P0032955
83. Electrically controlled travel brake 2010-03-10
84. P0031609
85. Drive wheel 2010-03-10
86. P0033138
87. Fork/support arm wheels 2010-03-10
88. P0031370
89. Electric steering wheel/lever 2010-03-10
90. P0032654
91. Electric steering wheel/lever 2009-09-09
92. P0031638
93. Steering angle sensor 2010-03-10
94. P0031251
95. General alarm signals (audible/visual) 2010-03-10
96. P0031508
97. Battery cut out connector/contactor 2010-03-10
98. P0032073
99. Battery cut out connector/contactor 2010-03-10
100. P0031314
101. Instrument panel, display 2009-09-09
102. P0031398
103. Instrument panel, display 2009-09-29
104. P0031624
105. Instrument panel, display 2010-03-10
106. P0032634
107. Level/position transducers/lamps 2009-09-09
108. P0035153
109. Level/position transducers/lamps 2009-10-27
110. P0035190
111. Level/position transducers/lamps 2009-10-27
112. P0035571
113. Level/position transducers/lamps 2010-01-18
114. P0035577
115. Level/position transducers/lamps 2009-11-24
116. P0032660
117. Driving function harnesses/fuse 2010-03-10
118. P0033737
119. Driving function harnesses/fuse 2010-03-10
120. P0033756
121. Driving function harnesses/fuse 2010-03-10
122. P0033458
123. Drive motor cables/resistors/fuses 2010-03-10
124. P0033855
125. Transistor panel 2010-03-10
126. P0031270
127. Work function harnesses/fuse 2010-03-10
128. P0032163
129. Work function harnesses/fuse 2010-03-10
130. P0032527
131. Work function harnesses/fuse 2009-02-11
132. P0032534
133. Work function harnesses/fuse 2010-04-20
134. P0032656
135. Work function harnesses/fuse 2010-03-10
136. P0033524
137. Work function harnesses/fuse 2010-03-10
138. P0033523
139. Work function harnesses/fuse 2010-03-10
140. P0033738
141. Work function harnesses/fuse 2010-03-10
142. P0036108
143. Work function harnesses/fuse 2010-03-10
144. P0036134
145. Work function harnesses/fuse 2010-04-20

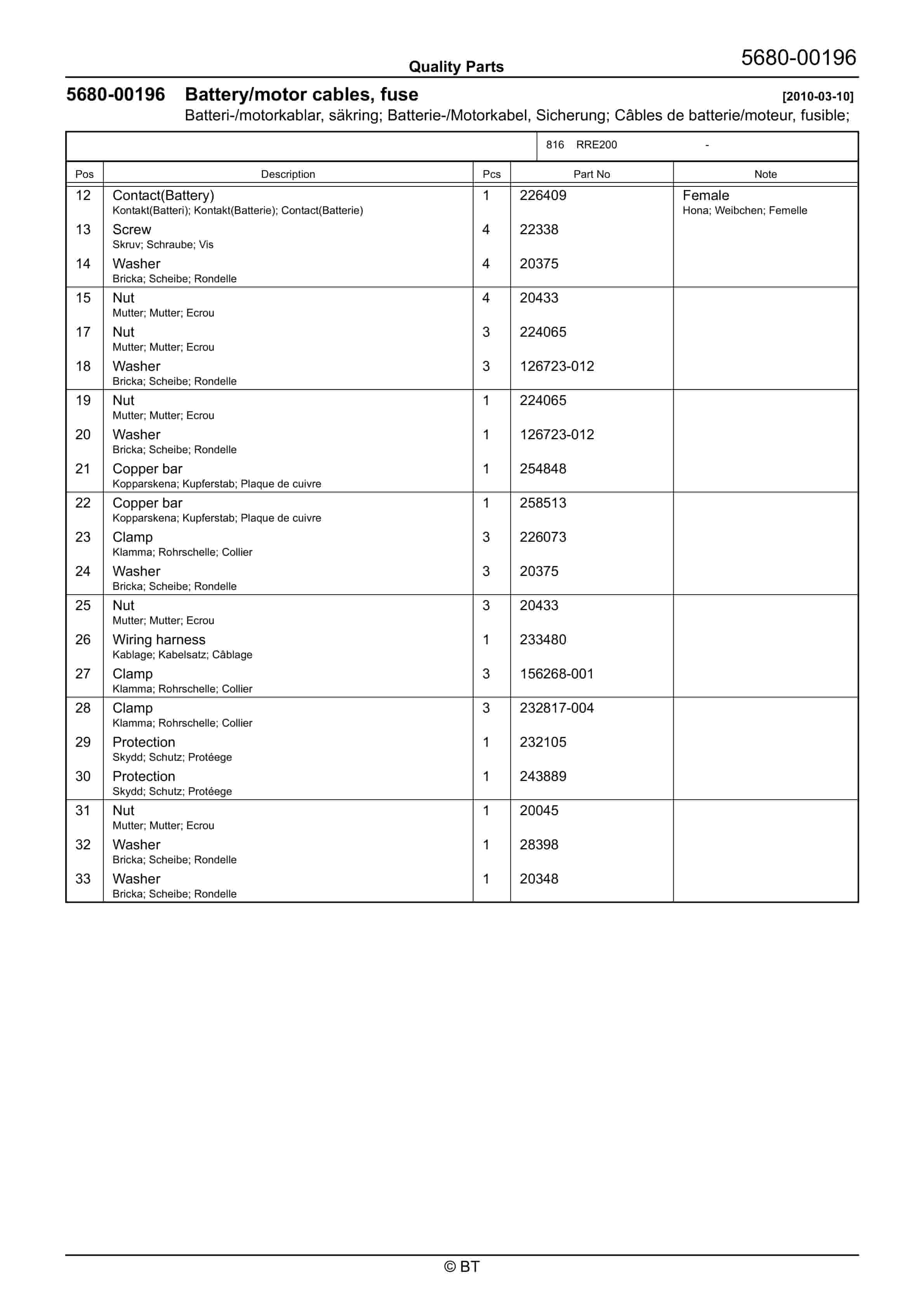

146. P0035191
147. Battery/motor cables, fuse 2010-03-10
148. P0035629
149. Battery/motor cables, fuse 2010-03-10
150. P0035630
151. Battery/motor cables, fuse 2010-05-03
152. P0033840
153. Drive/multi-function PCBs 2010-03-10
154. P0034077
155. Safety probes/sensors 2010-03-10
156. P0035192
157. Safety probes/sensors 2009-12-03
158. P0033525
159. Positioning probes/sensors 2010-03-10
160. P0033526
161. Positioning probes/sensors 2010-03-10
162. P0035579
163. Positioning probes/sensors 2010-03-10
164. P0031616
165. Hydraulic tank 2010-03-10
166. P0032255
167. Hydraulic tank lines 2010-03-10
168. P0032253
169. Filters and housing 2010-03-10
170. P0032249
171. Hydraulic pump 2010-03-10
172. P0034690
173. Main valve unit lift/reach/tilt 2010-03-10
174. P0032549
175. Control valve ( Other functions ) 2010-03-10
176. P0032546
177. Control valve ( Other functions ) 2009-02-12
178. P0032663
179. Control valve ( Other functions ) 2010-03-10
180. P0033047
181. Control valve ( Other functions ) 2010-03-10
182. P0032682
183. Hydraulic lines chassis 2009-02-12
184. P0032683
185. Hydraulic lines chassis 2010-04-20
186. P0035193
187. Hydraulic lines chassis 2010-05-03
188. P0031575

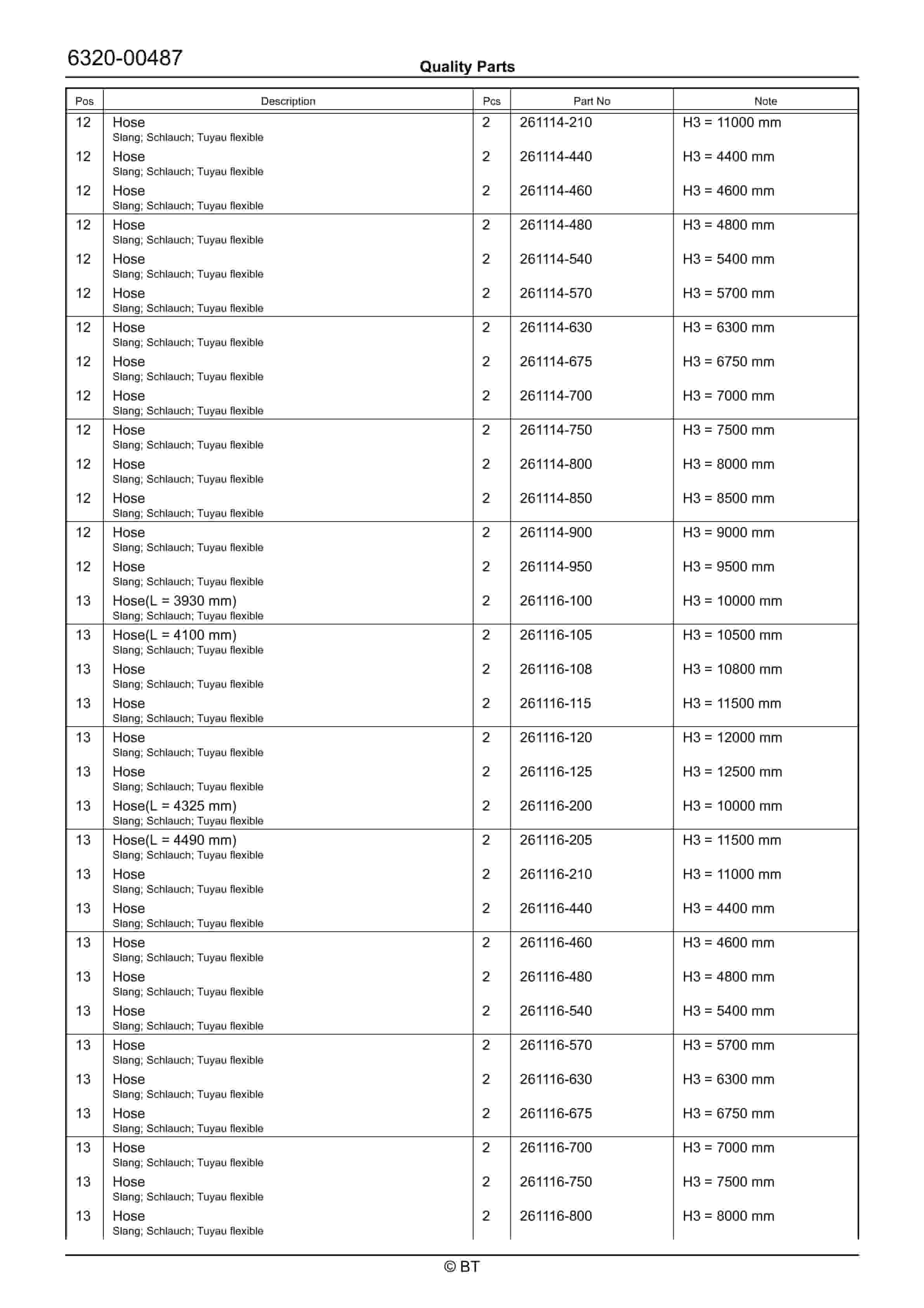

189. Mast hydraulic lines 2010-04-20
190. P0032543
191. Mast hydraulic lines 2009-02-12
192. P0032552
193. Mast hydraulic lines 2010-03-18
194. P0032553
195. Mast hydraulic lines 2010-03-10
196. P0033496
197. Mast hydraulic lines 2010-04-28
198. P0033497
199. Mast hydraulic lines 2010-04-28
200. P0034436
201. Mast hydraulic lines 2009-12-16
202. P0034858
203. Mast hydraulic lines 2010-03-10
204. P0034910
205. Mast hydraulic lines 2009-10-07
206. P0033381
207. Mast hose reel/swivel joint 2010-03-10
208. P0033384
209. Mast hose reel/swivel joint 2010-03-10
210. P0033390
211. Mast hose reel/swivel joint 2010-03-10
212. P0035617
213. Mast hose reel/swivel joint 2009-11-24
214. P0035546

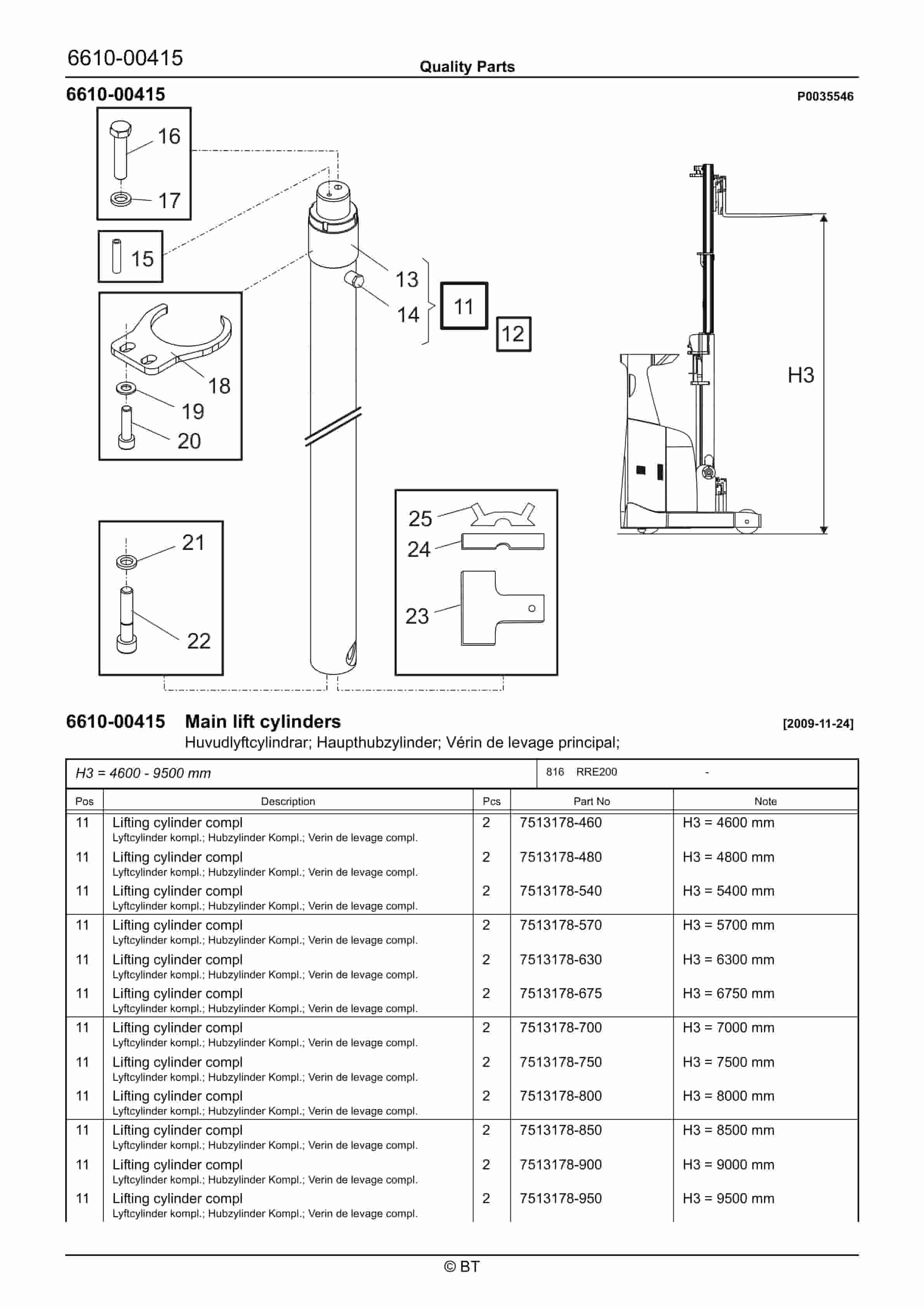

215. Main lift cylinders 2009-11-24
216. P0035547
217. Main lift cylinders 2010-04-20
218. P0032508
219. Free lift cylinders 2010-04-20
220. P0036163
221. Reach/telescopic cylinders 2010-03-10
222. P0024167
223. Tilt cylinders 2010-03-10
224. P0024168
225. Tilt cylinders 2010-03-10
226. P0032554
227. Other hydraulic cylinders 2010-03-10
228. P0031147
229. Main mast 2009-02-12
230. P0032536
231. Main mast 2009-02-12
232. P0031136

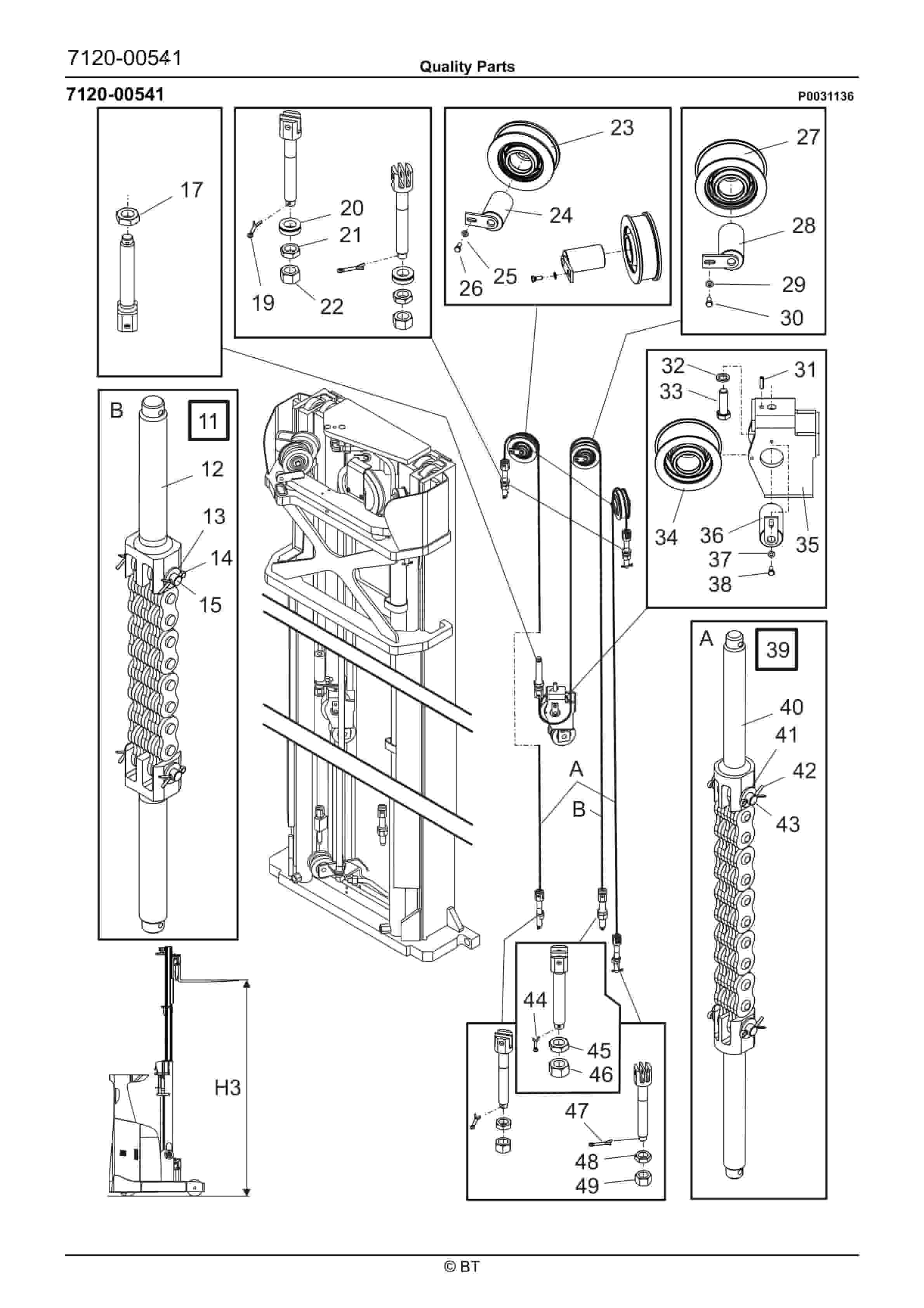

233. Main lift chain system 2009-02-12
234. P0032469
235. Main lift chain system 2010-04-20
236. P0032547
237. Main mast fork carriage 2009-02-12
238. P0032844
239. Main mast fork carriage 2009-02-12
240. P0032511
241. Main mast guidance/dampers 2009-02-12
242. P0032512
243. Main mast guidance/dampers 2009-02-12
244. P0033650
245. Main mast suspension 2010-03-10
246. P0033835
247. Main mast suspension 2009-06-10
248. P0034674
249. Main mast suspension 2010-04-28
250. P0034676
251. Main mast suspension 2009-12-16
252. P0027479
253. Fork, carpet boom, lift hook 2006-09-06
254. P0033340
255. Extra electrical equipment 2010-03-10
256. P0035614
257. Extra electrical equipment 2009-11-24
258. P0033572
259. Radio/recorder 2010-03-10
260. P0032084
261. Extra lighting 2010-03-10
262. P0030370
263. Extra warning lights/alarm 2010-03-10
264. P0032235
265. Extra warning lights/alarm 2010-03-10
266. P0033329
267. Extra warning lights/alarm 2010-03-10
268. P0032673
269. Charger attachment 2010-03-10
270. P0034661
271. Charger attachment 2010-03-10
272. P0035338
273. Positioning/TV equip., height preselector 2009-09-08
274. P0031265
275. Extra electrical equipment 2010-03-10
276. P0036105
277. Extra electrical equipment 2010-03-10
278. P0036195
279. Extra electrical equipment 2010-02-15
