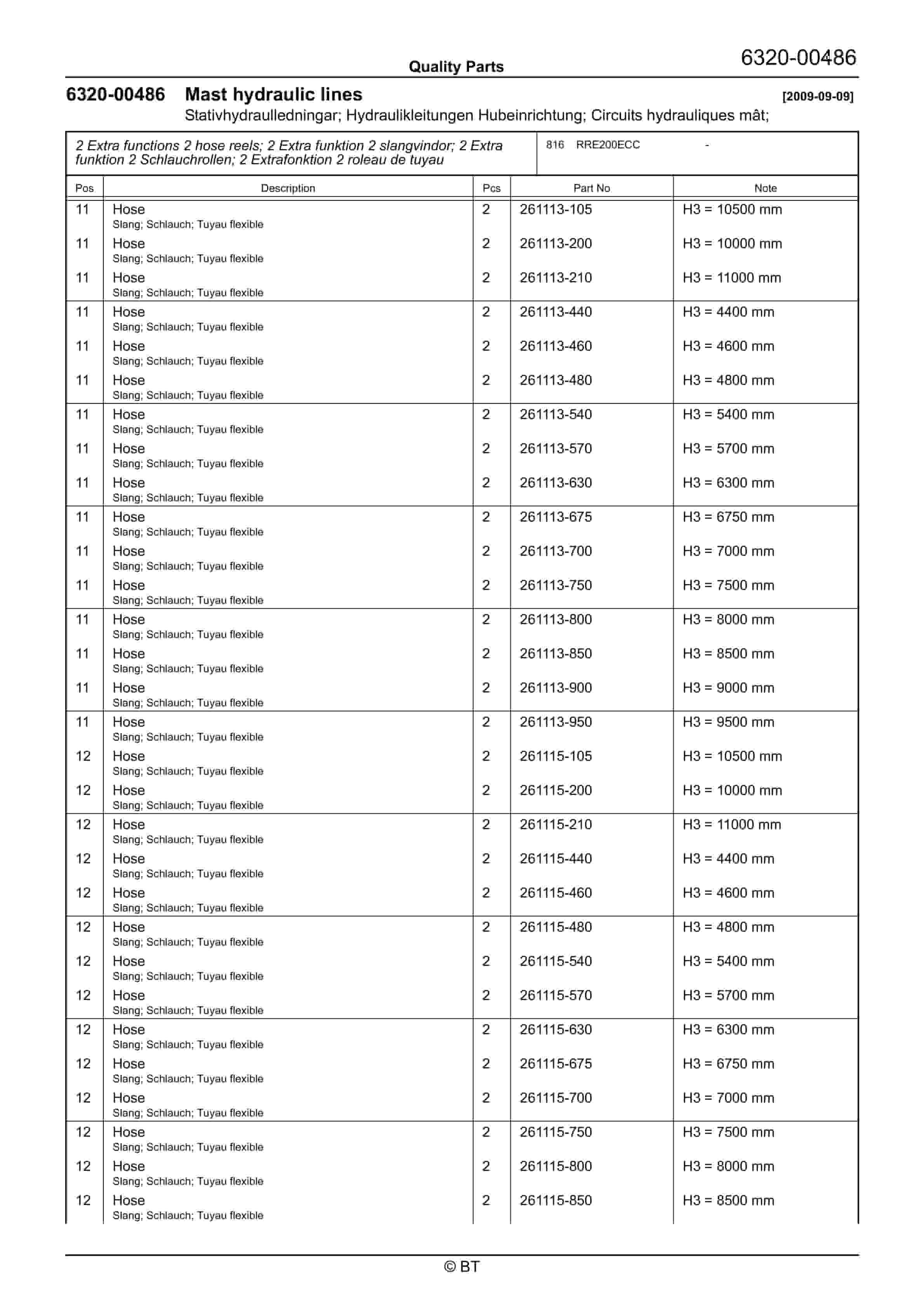

BT RRE200ECC Quality Parts 7514643 - Image 2

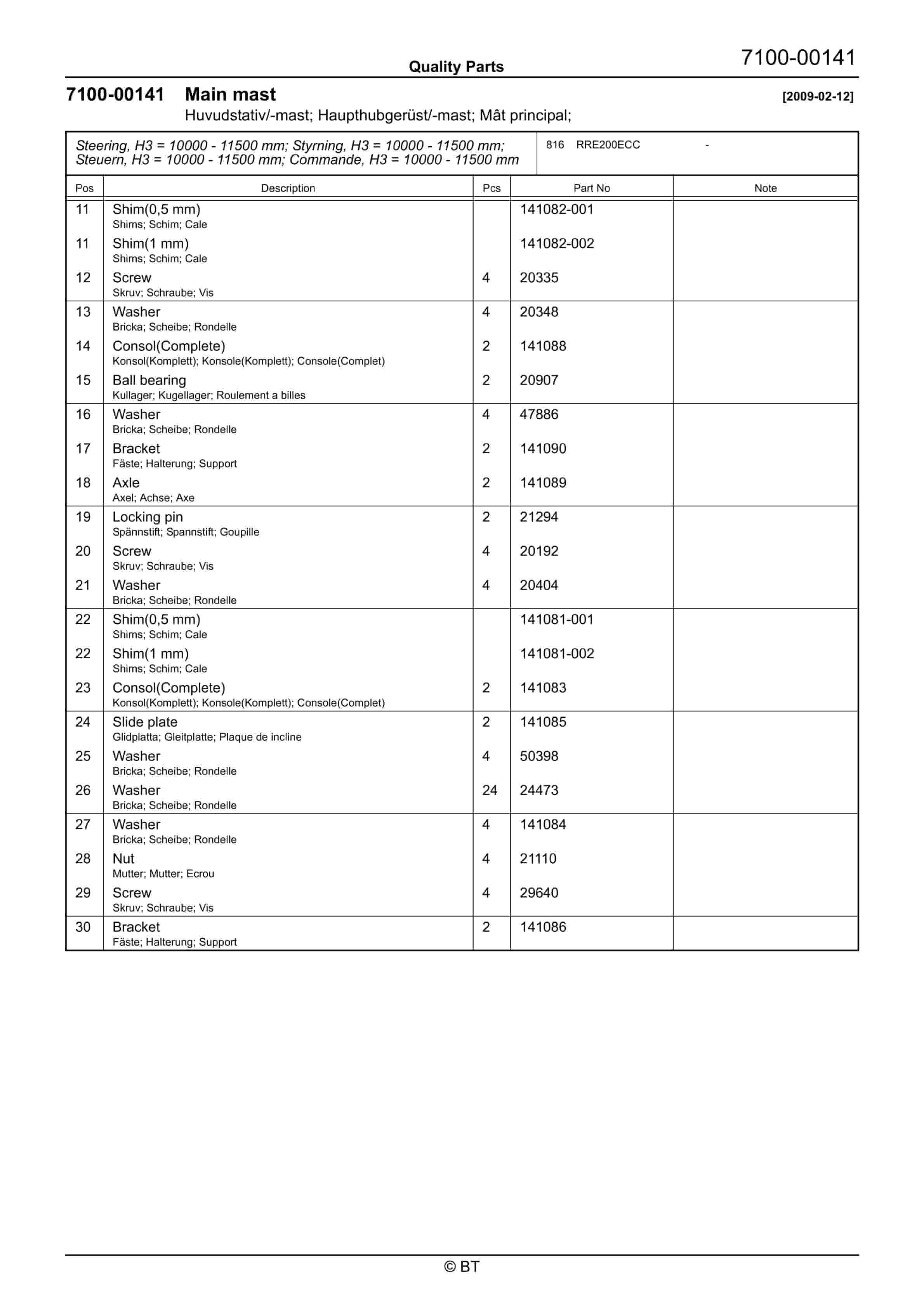

BT RRE200ECC Quality Parts 7514643 - Image 3

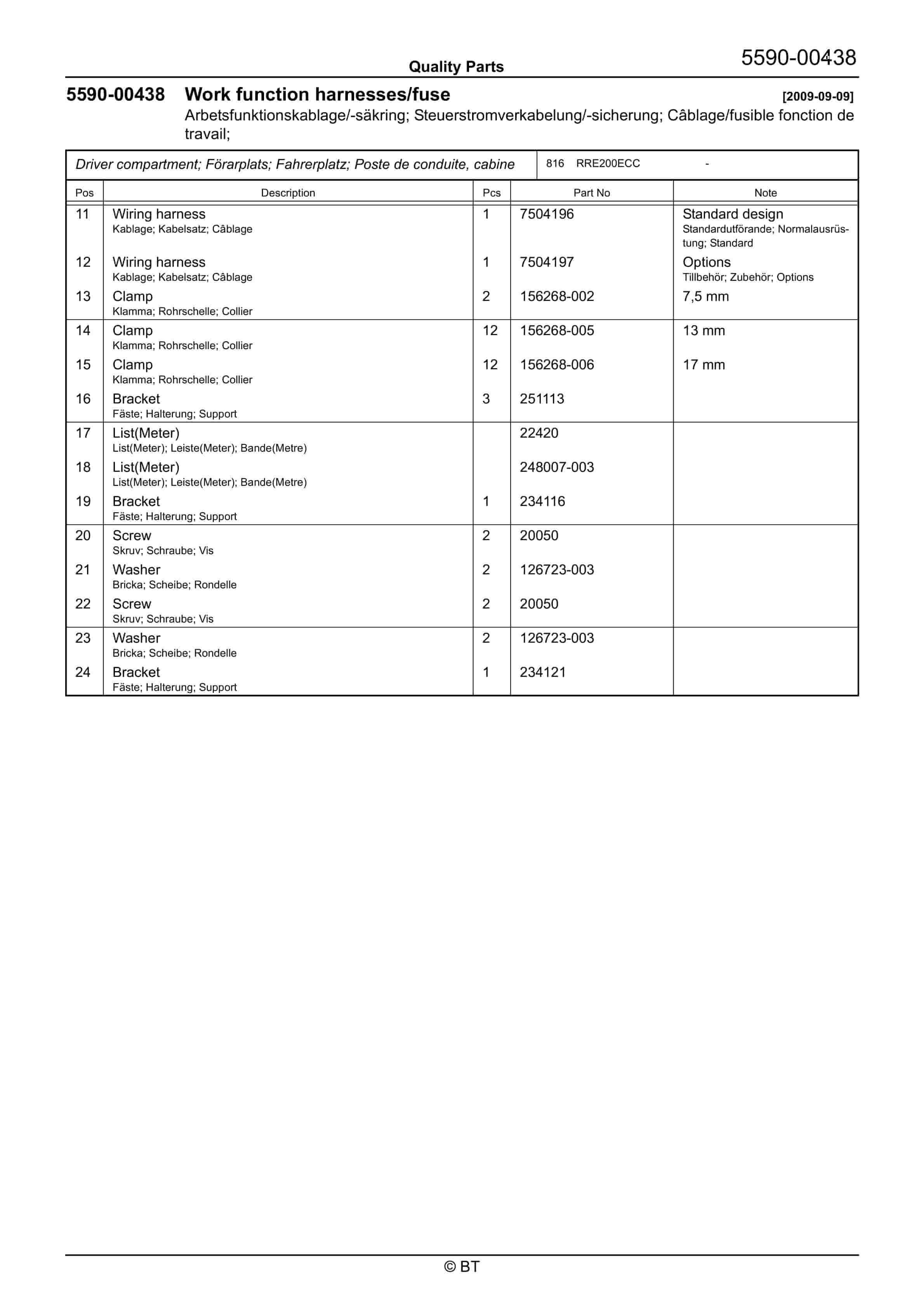

BT RRE200ECC Quality Parts 7514643 - Image 4

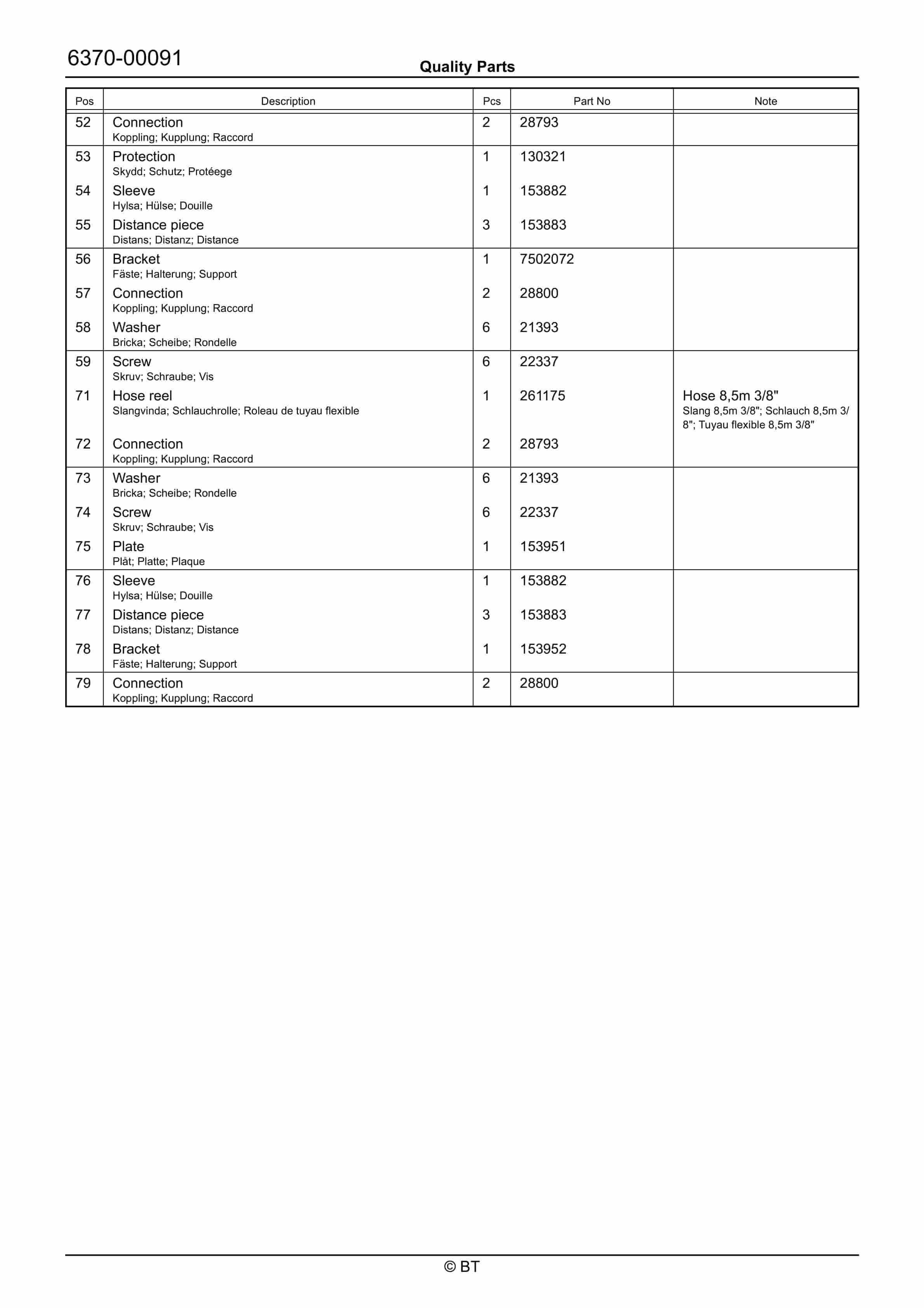

BT RRE200ECC Quality Parts 7514643 - Image 5

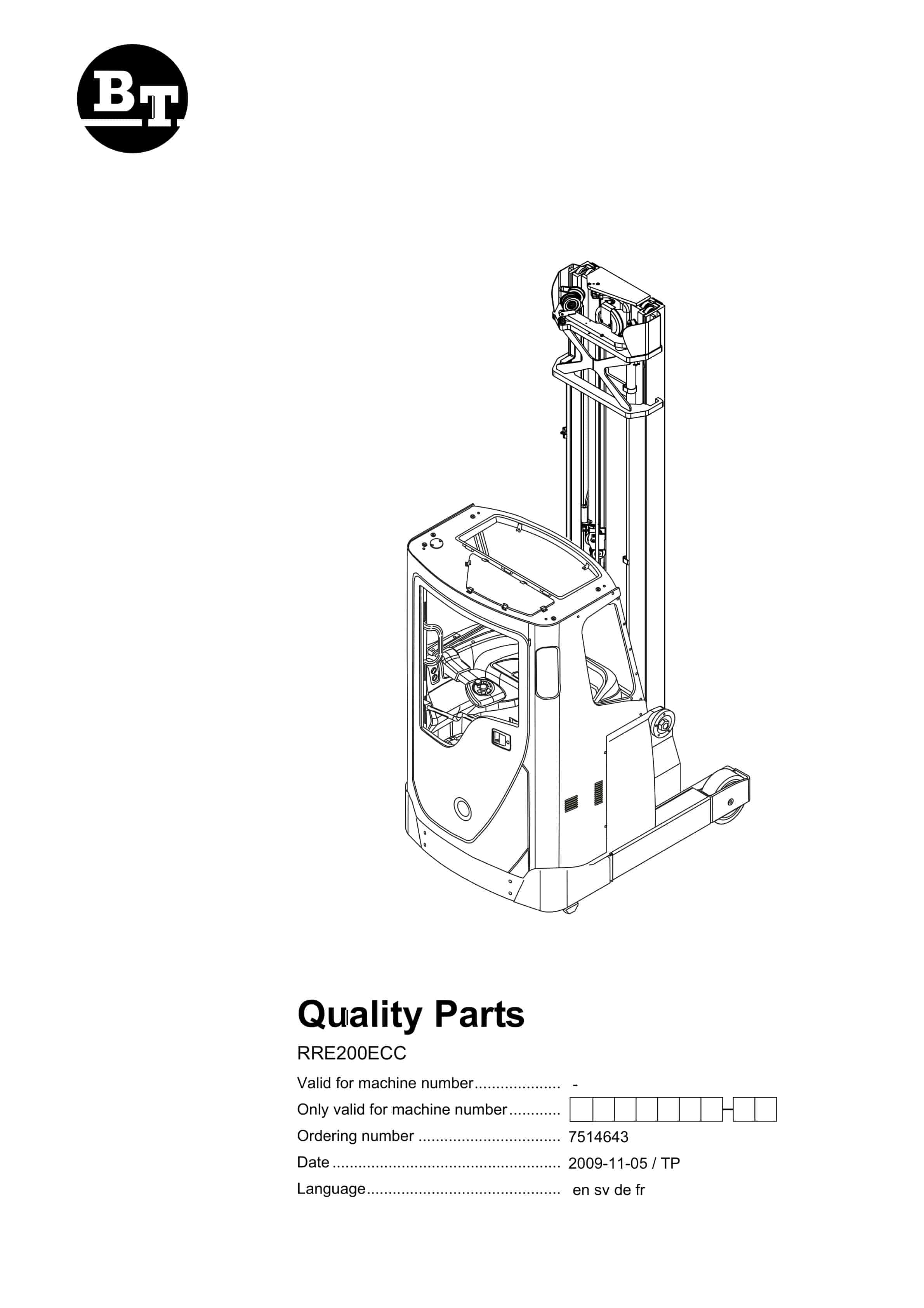

BT RRE200ECC Quality Parts 7514643

$30.00

Type Of Manual: Quality Parts
Manual ID: 7514643
: Parts Manual PDF
Number of Pages: 285
Size: 17.7MB
Format: PDF

Category: BT Parts Manual PDF

Model List:
- RRE200ECC

1. Chassis
2. Motors
3. Transmission/Drive gear
4. Brake/Wheel/Caterpillar system
5. Steering system
6. Electrical system
7. Hydraulic/pneumatic system
8. Work function – lifting masts
9. Options/attachments
10. P0032308
11. Inspection covers 2009-09-09
12. P0034123
13. Inspection covers 2009-03-17
14. P0034275
15. Inspection covers 2009-03-17
16. P0032306
17. Support arms, stabilizers 2009-10-07
18. P0031443
19. Battery compartment parts 2009-09-09
20. P0033481
21. Battery compartment parts 2009-06-10
22. P0034096
23. Battery compartment parts 2009-05-11
24. P0034679
25. Battery compartment parts 2009-06-04
26. P0034681
27. Battery compartment parts 2009-06-04
28. P0034797
29. Battery compartment parts 2009-06-04
30. P0034831
31. Battery compartment parts 2009-06-04
32. P0032258
33. Motor fixing points 2009-09-09
34. P0033801
35. Cabin fixing points 2009-08-06
36. P0034122
37. Cabin fixing points 2009-03-18
38. P0034152
39. Cabin windows 2009-09-07
40. P0034164
41. Cabin windows 2009-09-07
42. P0034167
43. Cabin windows 2009-09-07
44. P0034183
45. Cabin windows 2009-03-17
46. P0034165
47. Cabin door 2009-08-31
48. P0034195
49. Cabin door 2009-03-17
50. P0035145
51. Seat, cushions 2009-11-03
52. P0034179
53. Cabin heating/ventilation 2009-03-17
54. P0033453
55. Driver controls ( mechanical ) 2009-09-09
56. P0034365
57. Driver controls ( mechanical ) 2009-09-09
58. P0033996
59. Internal fittings 2009-08-31
60. P0033999
61. Internal fittings 2009-03-17
62. P0034021
63. Internal fittings 2009-03-17
64. P0034095
65. Internal fittings 2009-03-17
66. P0034189
67. Driver compartment/cabin external 2009-03-17
68. P0034129
69. Mirrors 2009-03-17
70. P0032424
71. Finger/foot guards 2009-06-10
72. P0030616
73. Driver protection 2009-06-10
74. P0033967
75. Signs, warnings, decals 2009-03-17
76. P0031307
77. Electric pump motor 2009-06-10
78. P0033337
79. Electric steering motor 2009-06-10
80. P0034022
81. Electric fan motor, electric fan 2009-09-09
82. P0032399
83. Electric drive motor 2009-06-10
84. P0030289
85. Mechanical drive gear unit 2009-06-10
86. P0032405
87. Electrically controlled travel brake 2009-06-10
88. P0032955
89. Electrically controlled travel brake 2009-09-09
90. P0031609
91. Drive wheel 2009-06-10
92. P0033138
93. Fork/support arm wheels 2009-06-10
94. P0031370
95. Electric steering wheel/lever 2009-09-09
96. P0032654
97. Electric steering wheel/lever 2009-09-09
98. P0031638
99. Steering angle sensor 2009-09-09
100. P0031251
101. General alarm signals (audible/visual) 2009-09-09
102. P0031508
103. Battery cut out connector/contactor 2009-09-09
104. P0032073
105. Battery cut out connector/contactor 2009-09-09
106. P0031314
107. Instrument panel, display 2009-09-09
108. P0031398
109. Instrument panel, display 2009-09-29
110. P0034124
111. Instrument panel, display 2009-03-17
112. P0032634
113. Level/position transducers/lamps 2009-09-09
114. P0034808
115. Level/position transducers/lamps 2009-10-14
116. P0034815
117. Level/position transducers/lamps 2009-09-01
118. P0035153
119. Level/position transducers/lamps 2009-10-27
120. P0035190
121. Level/position transducers/lamps 2009-10-27
122. P0032660
123. Driving function harnesses/fuse 2009-09-09
124. P0033737
125. Driving function harnesses/fuse 2009-09-09
126. P0033744
127. Driving function harnesses/fuse 2009-09-09
128. P0033458
129. Drive motor cables/resistors/fuses 2009-06-10
130. P0033855
131. Transistor panel 2009-06-10
132. P0031270
133. Work function harnesses/fuse 2009-09-09
134. P0032380
135. Work function harnesses/fuse 2009-09-09
136. P0032527
137. Work function harnesses/fuse 2009-02-11
138. P0032534
139. Work function harnesses/fuse 2009-10-28
140. P0032656
141. Work function harnesses/fuse 2009-09-09
142. P0033524
143. Work function harnesses/fuse 2009-09-09
144. P0033523
145. Work function harnesses/fuse 2009-09-09
146. P0033738
147. Work function harnesses/fuse 2009-09-09
148. P0034178
149. Work function harnesses/fuse 2009-03-17
150. P0034180
151. Work function harnesses/fuse 2009-03-17
152. P0034350
153. Work function harnesses/fuse 2009-09-09
154. P0035722
155. Work function harnesses/fuse 2009-11-05
156. P0033449
157. Battery/motor cables, fuse 2009-09-09
158. P0034659
159. Battery/motor cables, fuse 2009-09-09
160. P0034660
161. Battery/motor cables, fuse 2009-09-09
162. P0033854
163. Drive/multi-function PCBs 2009-09-09
164. P0032034
165. Lift/lowering/reach movement probes/sensors 2009-09-21
166. P0034077
167. Safety probes/sensors 2009-09-09
168. P0034196
169. Safety probes/sensors 2009-05-05
170. P0033525
171. Positioning probes/sensors 2009-09-09
172. P0033526
173. Positioning probes/sensors 2009-09-09
174. P0034540
175. Positioning probes/sensors 2009-10-15
176. P0031616
177. Hydraulic tank 2009-09-09
178. P0032255
179. Hydraulic tank lines 2009-09-09
180. P0033522
181. Hydraulic tank lines 2009-09-09
182. P0032253
183. Filters and housing 2009-09-09
184. P0032249
185. Hydraulic pump 2009-04-14
186. P0034691
187. Main valve unit lift/reach/tilt 2009-09-09
188. P0032549
189. Control valve ( Other functions ) 2009-09-09
190. P0032546
191. Control valve ( Other functions ) 2009-02-12
192. P0032663
193. Control valve ( Other functions ) 2009-09-09
194. P0033047
195. Control valve ( Other functions ) 2009-09-09
196. P0032682
197. Hydraulic lines chassis 2009-02-12
198. P0032683
199. Hydraulic lines chassis 2009-02-12
200. P0035193
201. Hydraulic lines chassis 2009-09-09
202. P0032543
203. Mast hydraulic lines 2009-02-12
204. P0032552
205. Mast hydraulic lines 2009-02-12
206. P0032553
207. Mast hydraulic lines 2009-09-09
208. P0033496
209. Mast hydraulic lines 2009-09-09
210. P0033497
211. Mast hydraulic lines 2009-09-09
212. P0033680
213. Mast hydraulic lines 2009-09-09
214. P0034858
215. Mast hydraulic lines 2009-09-09
216. P0035723
217. Mast hydraulic lines 2009-11-05
218. P0033381
219. Mast hose reel/swivel joint 2009-09-09
220. P0033384
221. Mast hose reel/swivel joint 2009-09-09
222. P0033390
223. Mast hose reel/swivel joint 2009-09-09
224. P0033585
225. Mast hose reel/swivel joint 2009-10-21
226. P0035724
227. Main lift cylinders 2009-11-05
228. P0035725
229. Free lift cylinders 2009-11-05
230. P0032299
231. Reach/telescopic cylinders 2009-09-21
232. P0024167
233. Tilt cylinders 2009-09-09
234. P0024168
235. Tilt cylinders 2009-09-09
236. P0032555
237. Tilt cylinders 2009-09-09
238. P0032554
239. Other hydraulic cylinders 2009-09-09
240. P0031147
241. Main mast 2009-02-12
242. P0032536
243. Main mast 2009-02-12
244. P0035726
245. Main lift chain system 2009-11-05
246. P0032539
247. Main mast fork carriage 2009-02-12
248. P0032547
249. Main mast fork carriage 2009-02-12
250. P0032844
251. Main mast fork carriage 2009-02-12
252. P0032511
253. Main mast guidance/dampers 2009-02-12
254. P0032512
255. Main mast guidance/dampers 2009-02-12
256. P0033650
257. Main mast suspension 2009-09-09
258. P0033835
259. Main mast suspension 2009-06-10
260. P0034674
261. Main mast suspension 2009-09-09
262. P0034676
263. Main mast suspension 2009-06-04
264. P0009796
265. Fork, carpet boom, lift hook 2009-10-15
266. P0033674
267. Fork, carpet boom, lift hook 2009-09-09
268. P0035201
269. Separate sideshift/forkspread 2009-09-01
270. P0033340
271. Extra electrical equipment 2009-09-09
272. P0034009
273. Extra electrical equipment 2009-10-21
274. P0034169
275. Radio/recorder 2009-10-20
276. P0034097
277. Extra lighting 2009-03-18
278. P0030370
279. Extra warning lights/alarm 2009-09-09
