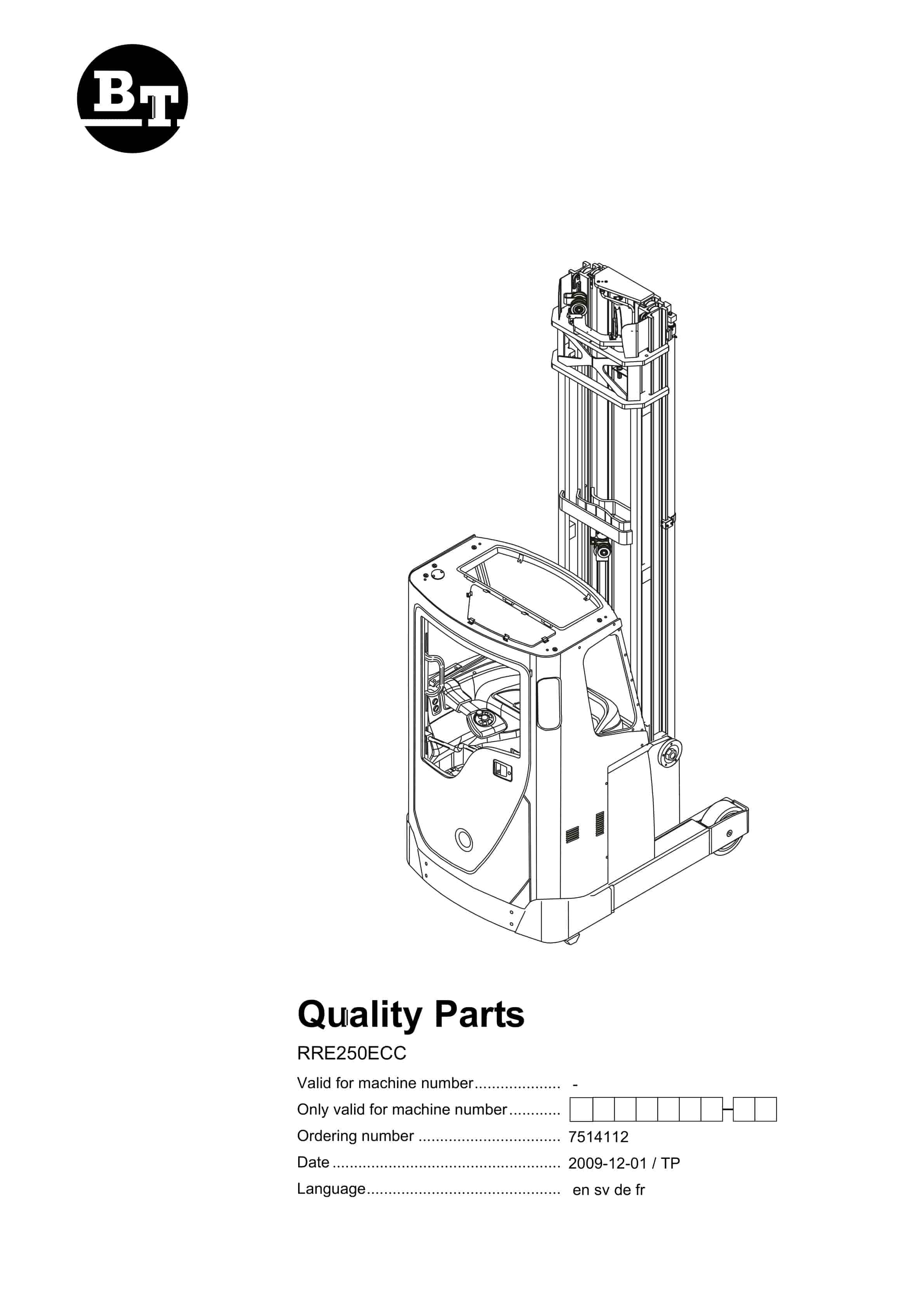

BT RRE250ECC Quality Parts 7514112

$30.00

Type Of Manual: Quality Parts
Manual ID: 7514112
: Parts Manual PDF
Number of Pages: 257
Size: 16.1MB
Format: PDF

Category: BT Parts Manual PDF

Model List:
- RRE250ECC

1. Chassis
2. Motors
3. Transmission/Drive gear
4. Brake/Wheel/Caterpillar system
5. Steering system
6. Electrical system
7. Hydraulic/pneumatic system
8. Work function – lifting masts
9. Options/attachments
10. P0032308
11. Inspection covers 2009-09-09
12. P0034123
13. Inspection covers 2009-03-17
14. P0034275
15. Inspection covers 2009-11-25
16. P0032307
17. Support arms, stabilizers 2009-06-10
18. P0031443
19. Battery compartment parts 2009-09-09
20. P0033481
21. Battery compartment parts 2009-06-10
22. P0034096
23. Battery compartment parts 2009-05-11
24. P0034679
25. Battery compartment parts 2009-06-04
26. P0034681
27. Battery compartment parts 2009-06-04
28. P0034797
29. Battery compartment parts 2009-06-04
30. P0034831
31. Battery compartment parts 2009-06-04
32. P0032258
33. Motor fixing points 2009-09-09
34. P0033801
35. Cabin fixing points 2009-11-25
36. P0034122
37. Cabin fixing points 2009-03-18
38. P0034152
39. Cabin windows 2009-09-07
40. P0034164
41. Cabin windows 2009-09-07
42. P0034167
43. Cabin windows 2009-09-07
44. P0034183
45. Cabin windows 2009-03-17
46. P0034165
47. Cabin door 2009-11-25
48. P0034195
49. Cabin door 2009-03-17
50. P0035145
51. Seat, cushions 2009-11-03
52. P0034179
53. Cabin heating/ventilation 2009-03-17
54. P0033453
55. Driver controls ( mechanical ) 2009-09-09
56. P0034365
57. Driver controls ( mechanical ) 2009-09-09
58. P0033996
59. Internal fittings 2009-11-25
60. P0033999
61. Internal fittings 2009-11-25
62. P0034021
63. Internal fittings 2009-03-17
64. P0034095
65. Internal fittings 2009-03-17
66. P0034189
67. Driver compartment/cabin external 2009-03-17
68. P0034129
69. Mirrors 2009-03-17
70. P0032424
71. Finger/foot guards 2009-06-10
72. P0030616
73. Driver protection 2009-06-10
74. P0033967
75. Signs, warnings, decals 2009-03-17
76. P0031307
77. Electric pump motor 2009-06-10
78. P0033337
79. Electric steering motor 2009-06-10
80. P0034022
81. Electric fan motor, electric fan 2009-09-09
82. P0032399
83. Electric drive motor 2009-06-10
84. P0030289
85. Mechanical drive gear unit 2009-06-10
86. P0032405
87. Electrically controlled travel brake 2009-06-10
88. P0032955
89. Electrically controlled travel brake 2009-09-09
90. P0031609
91. Drive wheel 2009-06-10
92. P0033138
93. Fork/support arm wheels 2009-11-25
94. P0031370
95. Electric steering wheel/lever 2009-09-09
96. P0032654
97. Electric steering wheel/lever 2009-09-09
98. P0031638
99. Steering angle sensor 2009-09-09
100. P0031251
101. General alarm signals (audible/visual) 2009-09-09
102. P0031508
103. Battery cut out connector/contactor 2009-09-09
104. P0032073
105. Battery cut out connector/contactor 2009-09-09
106. P0031314
107. Instrument panel, display 2009-09-09
108. P0031398
109. Instrument panel, display 2009-09-29
110. P0034124
111. Instrument panel, display 2009-03-17
112. P0032634
113. Level/position transducers/lamps 2009-09-09
114. P0035189
115. Level/position transducers/lamps 2009-10-27
116. P0035572
117. Level/position transducers/lamps 2009-11-24
118. P0032660
119. Driving function harnesses/fuse 2009-09-09
120. P0033737
121. Driving function harnesses/fuse 2009-09-09
122. P0033744
123. Driving function harnesses/fuse 2009-09-09
124. P0033458
125. Drive motor cables/resistors/fuses 2009-06-10
126. P0033855
127. Transistor panel 2009-06-10
128. P0031122

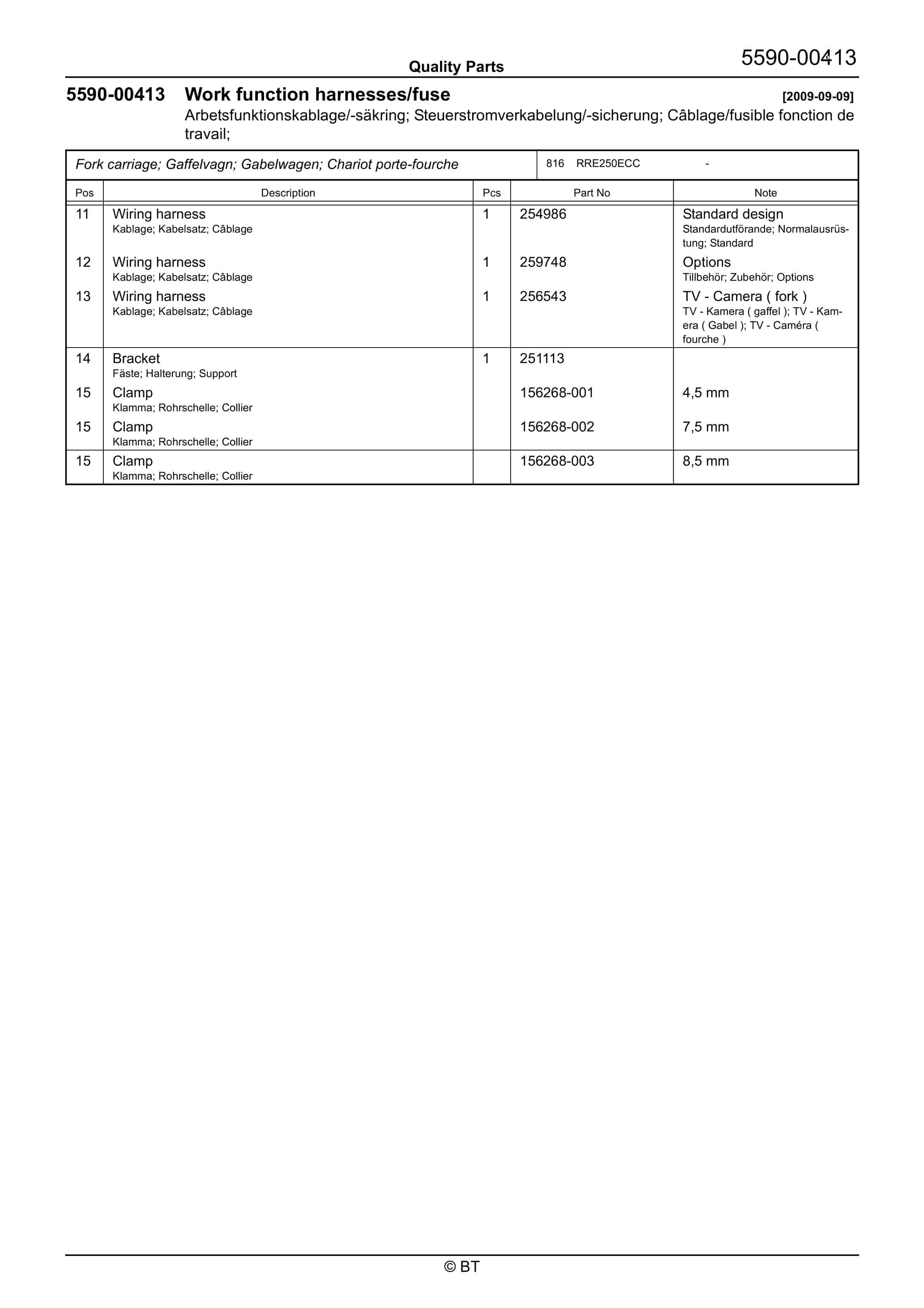

129. Work function harnesses/fuse 2009-11-24
130. P0031270
131. Work function harnesses/fuse 2009-09-09
132. P0032380
133. Work function harnesses/fuse 2009-09-09
134. P0032533
135. Work function harnesses/fuse 2009-06-10
136. P0032656
137. Work function harnesses/fuse 2009-09-09
138. P0033524
139. Work function harnesses/fuse 2009-09-09
140. P0033523
141. Work function harnesses/fuse 2009-09-09
142. P0033738
143. Work function harnesses/fuse 2009-09-09
144. P0034178
145. Work function harnesses/fuse 2009-03-17
146. P0034180
147. Work function harnesses/fuse 2009-03-17
148. P0034350
149. Work function harnesses/fuse 2009-09-09
150. P0033449
151. Battery/motor cables, fuse 2009-09-09
152. P0034659
153. Battery/motor cables, fuse 2009-09-09
154. P0034660
155. Battery/motor cables, fuse 2009-09-09
156. P0033854
157. Drive/multi-function PCBs 2009-09-09
158. P0032034
159. Lift/lowering/reach movement probes/sensors 2009-09-21
160. P0034077
161. Safety probes/sensors 2009-09-09
162. P0034196
163. Safety probes/sensors 2009-05-05
164. P0033525
165. Positioning probes/sensors 2009-09-09
166. P0033526
167. Positioning probes/sensors 2009-09-09
168. P0035579
169. Positioning probes/sensors 2009-11-24
170. P0031616
171. Hydraulic tank 2009-09-09
172. P0032255
173. Hydraulic tank lines 2009-09-09
174. P0033522
175. Hydraulic tank lines 2009-09-09
176. P0032253
177. Filters and housing 2009-09-09
178. P0034463
179. Hydraulic pump 2009-06-10
180. P0034691
181. Main valve unit lift/reach/tilt 2009-09-09
182. P0032549
183. Control valve ( Other functions ) 2009-09-09
184. P0032663
185. Control valve ( Other functions ) 2009-09-09
186. P0033047
187. Control valve ( Other functions ) 2009-09-09
188. P0032681
189. Hydraulic lines chassis 2009-06-10
190. P0035193
191. Hydraulic lines chassis 2009-09-09
192. P0031574

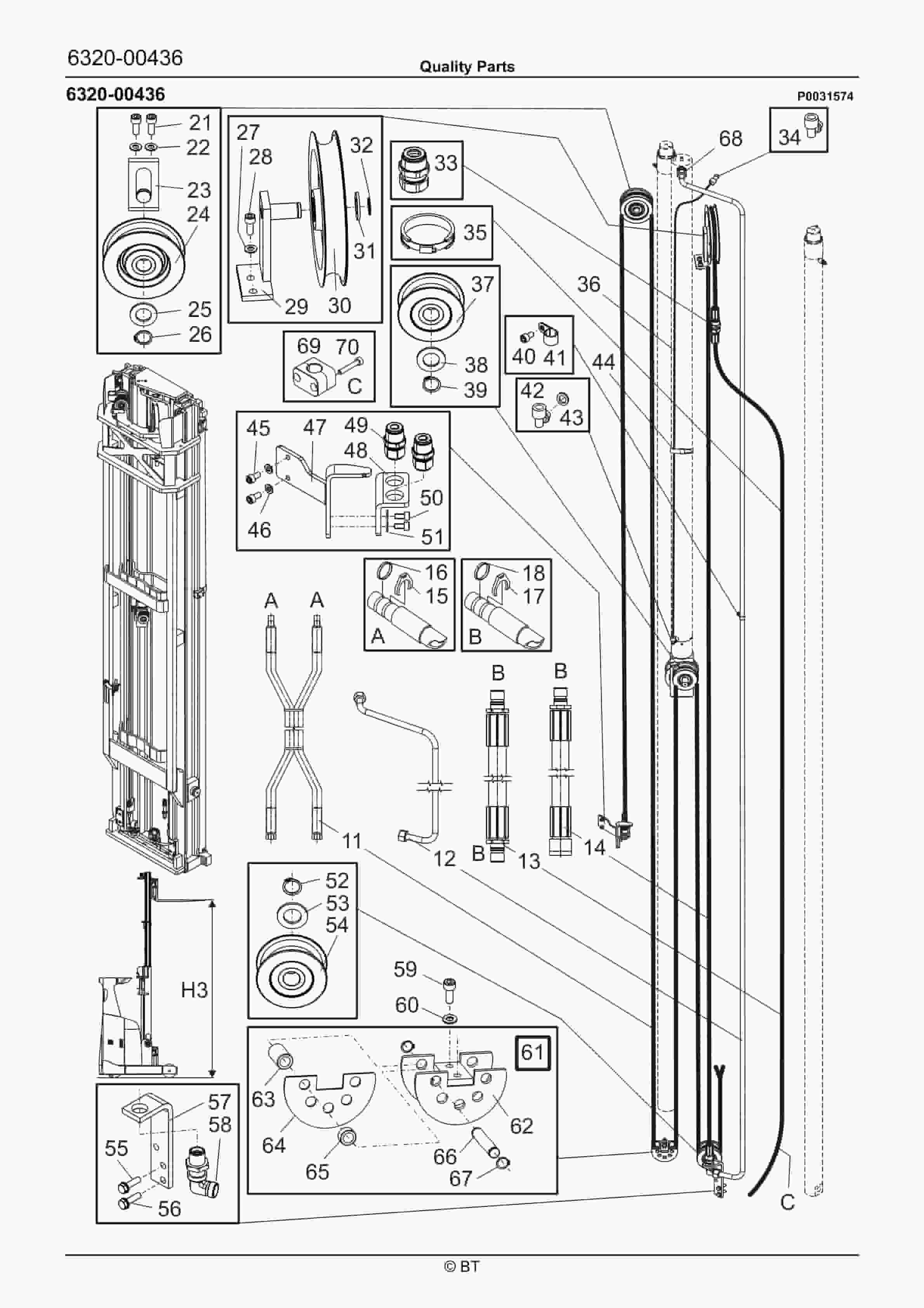

193. Mast hydraulic lines 2009-06-10
194. P0032550
195. Mast hydraulic lines 2009-06-10
196. P0032553
197. Mast hydraulic lines 2009-09-09
198. P0033496
199. Mast hydraulic lines 2009-09-09
200. P0033497
201. Mast hydraulic lines 2009-09-09
202. P0034858
203. Mast hydraulic lines 2009-09-09
204. P0034910
205. Mast hydraulic lines 2009-10-07
206. P0033381
207. Mast hose reel/swivel joint 2009-09-09
208. P0033384
209. Mast hose reel/swivel joint 2009-09-09
210. P0033390
211. Mast hose reel/swivel joint 2009-09-09
212. P0035616
213. Mast hose reel/swivel joint 2009-11-24
214. P0035548
215. Main lift cylinders 2009-11-24
216. P0032509

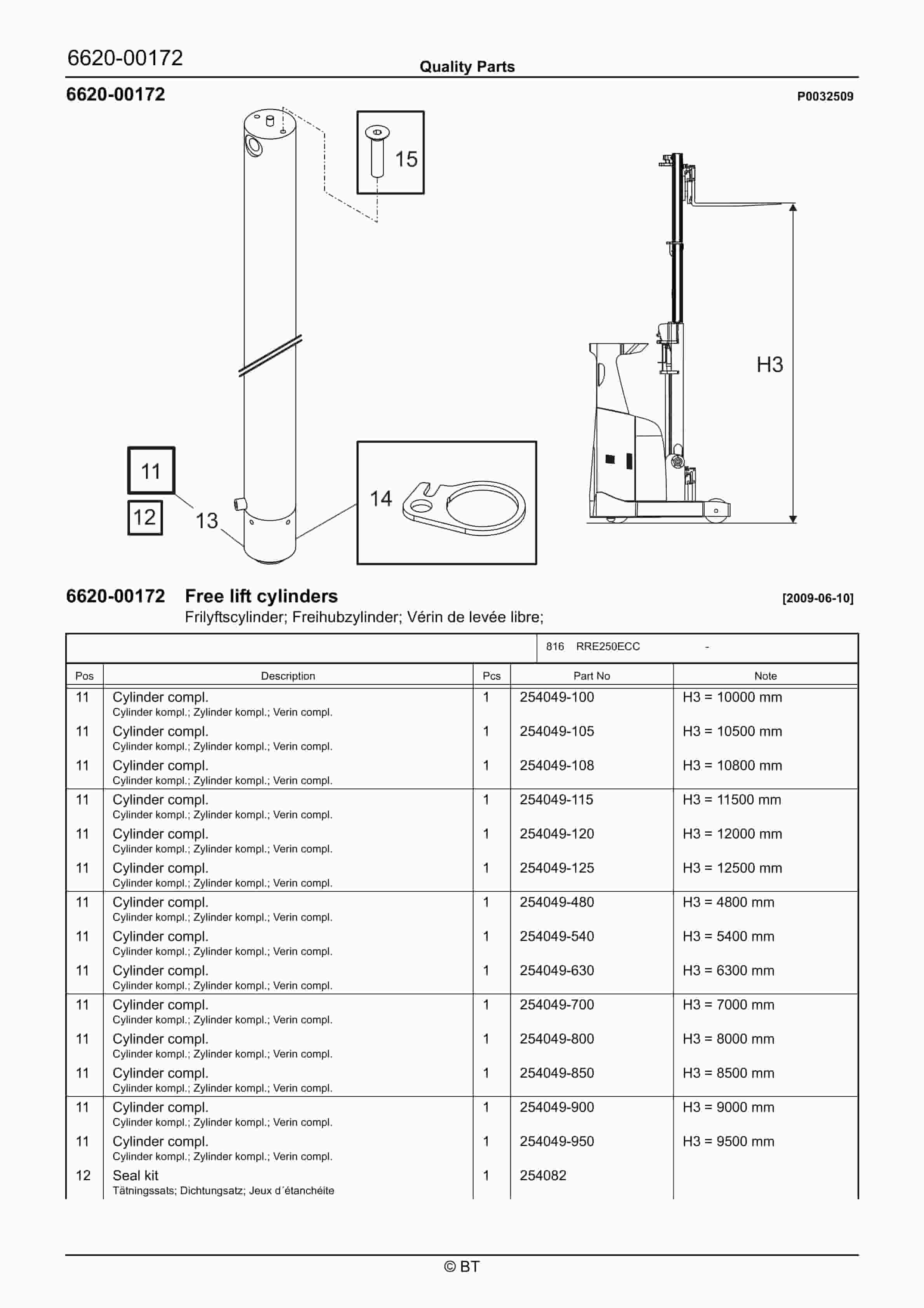

217. Free lift cylinders 2009-06-10
218. P0032299
219. Reach/telescopic cylinders 2009-09-21
220. P0024167
221. Tilt cylinders 2009-09-09
222. P0032555
223. Tilt cylinders 2009-09-09
224. P0032554
225. Other hydraulic cylinders 2009-09-09
226. P0031149
227. Main mast 2009-06-10
228. P0032535
229. Main mast 2009-06-10
230. P0032468
231. Main lift chain system 2009-06-10
232. P0032842
233. Main mast fork carriage 2009-06-10
234. P0032513
235. Main mast guidance/dampers 2009-06-10
236. P0033835
237. Main mast suspension 2009-06-10
238. P0034676
239. Main mast suspension 2009-06-04
240. P0027479
241. Fork, carpet boom, lift hook 2006-09-06
242. P0033340
243. Extra electrical equipment 2009-09-09
244. P0035614
245. Extra electrical equipment 2009-11-24
246. P0034169
247. Radio/recorder 2009-10-20
248. P0035601
249. Radio/recorder 2009-11-24
250. P0034097
251. Extra lighting 2009-03-18
252. P0030370
253. Extra warning lights/alarm 2009-09-09
254. P0033329
255. Extra warning lights/alarm 2009-09-09
256. P0035669
257. Extra warning lights/alarm 2009-11-24
258. P0032673
259. Charger attachment 2009-09-09
260. P0034661
261. Charger attachment 2009-09-09
262. P0034126
263. Positioning/TV equip., height preselector 2009-03-17
264. P0034181
265. Extra electrical equipment 2009-03-17
266. P0034287
267. Extra electrical equipment 2009-03-17
268. P0033808
269. Truck log device, code locking device 2009-09-09
270. P0034496
271. Truck log device, code locking device 2009-10-08
272. P0031109
273. Other extra equipment 2009-09-09
274. P0032394
275. Other extra equipment 2009-09-09
276. P0032396
277. Other extra equipment 2009-09-09
278. P0032556
279. Other extra equipment 2009-09-09
