BT RS-40C Electric Straddle Truck Parts Manual 301040-001

BT RS-40C Electric Straddle Truck Parts Manual 301040-001 - Image 2

BT RS-40C Electric Straddle Truck Parts Manual 301040-001 - Image 3

BT RS-40C Electric Straddle Truck Parts Manual 301040-001 - Image 4

BT RS-40C Electric Straddle Truck Parts Manual 301040-001 - Image 5

bt rs 40c electric straddle truck parts manual 301040 001 2

bt rs 40c electric straddle truck parts manual 301040 001 3

BT RS-40C Electric Straddle Truck Parts Manual 301040-001

$30.00

Type Of Manual: Parts Manual
Manual ID: 301040-001
: Parts Manual PDF
Number of Pages: 192
Size: 4.9MB
Format: PDF

Category: BT Parts Manual PDF

Model List:
- RS-40C Electric Straddle Truck

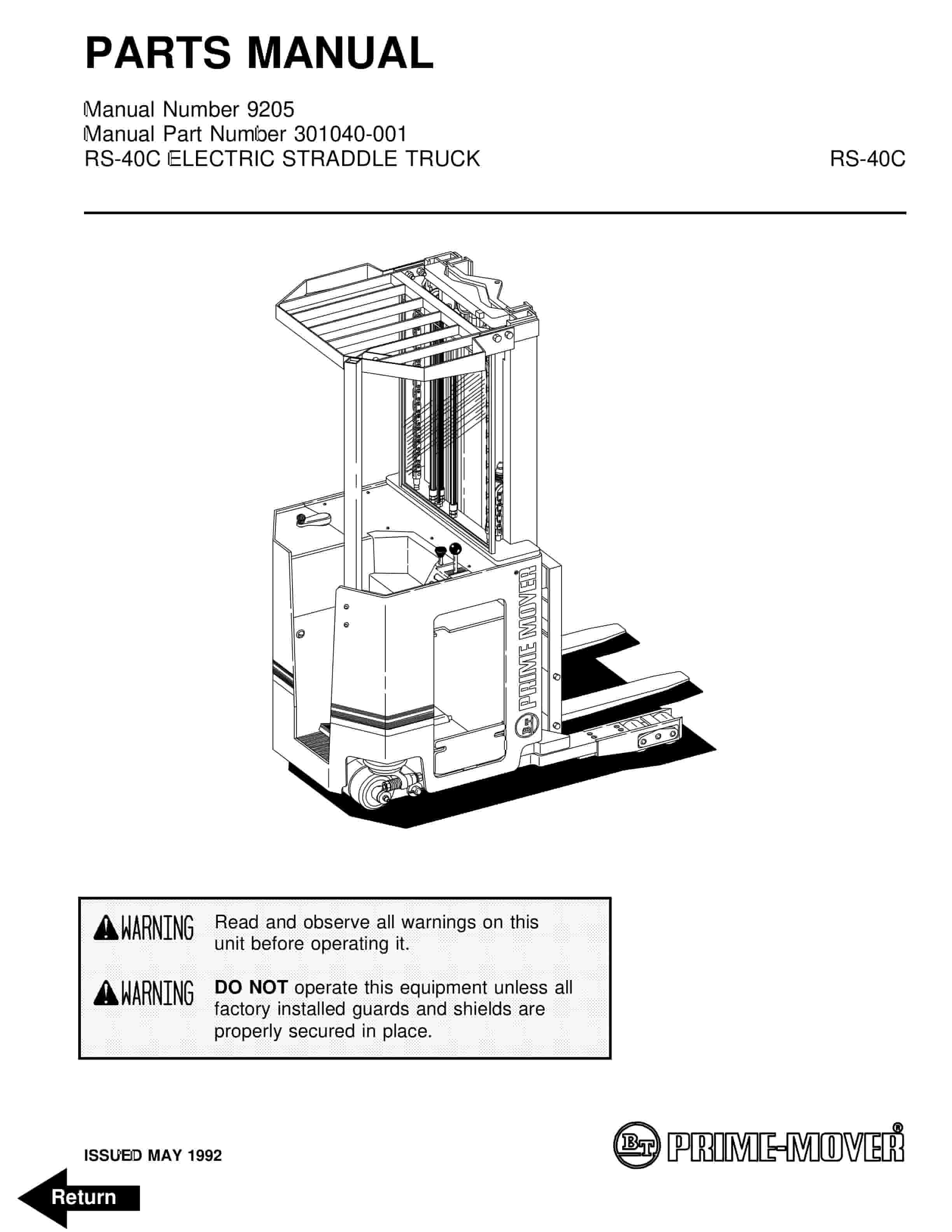

1. Front Cover
2. Parts Ordering Instructions
3. General Information

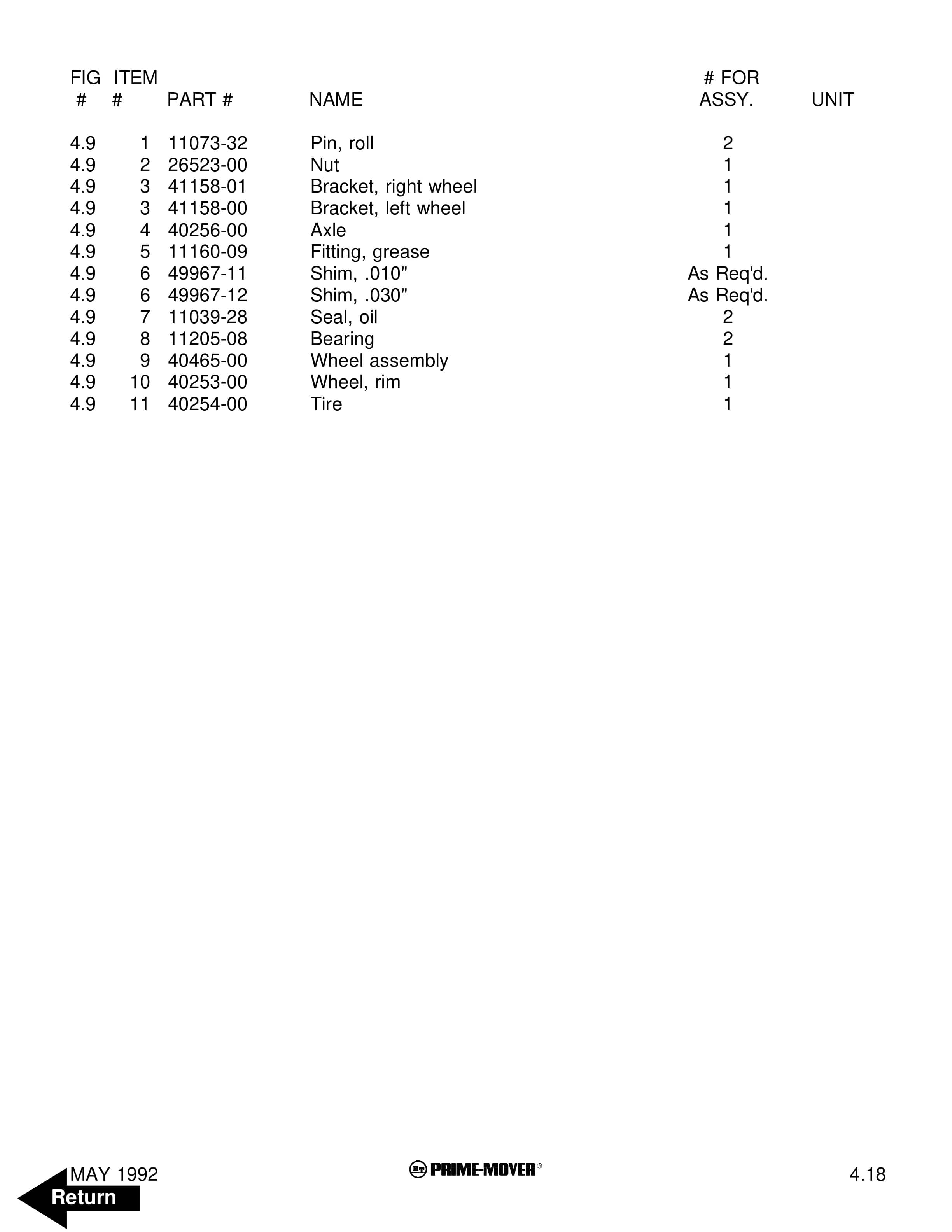

4. Figure 0.1 Decals and Parts Assembly
5. Figure 0.2 Parts List Index
6. Figure 1.1 Transmission and Drive Motor Installation
7. Figure 1.2 Drive Motor and Brake Assembly
8. Figure 1.3 Transmission Assembly
9. Figure 1.4 Transmission Assembly
10. Figure 2.1 E EV-100LX SCR Electrical Schematic
11. Figure 2.2 E EV-100LX SCR Electrical Schematic Symbols
12. Figure 2.3 EE EV-100LX SCR Electrical Schematic
13. Figure 2.4 EE EV-100LX SCR Electrical Schematic Symbols
14. Figure 2.5 Wiring Assembly for Cold Storage
15. Figure 2.6 Wiring Harness Assembly
16. Figure 2.7 Limit Switch Wiring Assembly
17. Figure 2.8 Two Stage Mast Cable Assembly
18. Figure 2.9 Three Stage Mast Cable Assembly
19. Figure 2.10 Tilt with Sideshifter Cable Assembly
20. Figure 2.11 EV-100LX Power Component Wiring
21. Figure 2.12 EV-100LX TX TT SCR Control Panel Assembly
22. Figure 2.13 EV-100LX Contactor Panel Assembly Related Parts for E and EE
23. Figure 2.14 EV-100LX Contactor Panel Assembly
24. Figure 2.15 EV-100LX SCR Forward Rearward Contactor Assembly
25. Figure 2.16 EV-100LX SCR 1A Contactor Assembly
26. Figure 2.17 Lift Pump Contactor Assembly
27. Figure 2.18 EV-100LX SCR Auxiliary Pump Contactor Assembly
28. Figure 2.19 Power Connector Assembly
29. Figure 2.20 Lift Pump Motor Assembly
30. Figure 2.21 Drive Motor Assembly
31. Figure 2.22 Auxiliary Pump Motor Assembly
32. Figure 2.23 Warning Light Assembly
33. Figure 2.24 E EV-100LX TT SCR Electrical Schematic
34. Figure 2.25 E EV-100LX TT SCR Electrical Schematic Symbols
35. Figure 2.26 EE EV-100LX TT SCR Electrical Schematic
36. Figure 2.27 EE EV-100LX TT SCR Electrical Schematic Symbols
37. Figure 2.28 EV-100LX Dash Display Installation
38. Figure 3.1 Hydraulic Schematic
39. Figure 3.2 Hydraulic Schematic Symbols
40. Figure 3.3 Auxiliary Pump and Reservoir Assembly
41. Figure 3.4 Auxiliary Control Valve Assembly
42. Figure 3.5 Auxiliary Pump and Motor Assembly
43. Figure 3.6 Auxiliary Pump Assembly
44. Figure 3.7 Hydraulic Reservoir Assembly
45. Figure 3.8 Torque Generator Assembly
46. Figure 3.9 Two Stage Mast Hydraulic Assembly
47. Figure 3.10 Three Stage Mast Hydraulic Assembly
48. Figure 3.11 Tilt Cylinder and Related Parts
49. Figure 3.12 Tilt Cylinder Assembly
50. Figure 3.13 Sideshifter Cylinder with Tilt Assembly
51. Figure 3.14 Sideshifter Manifold Valve Assembly
52. Figure 3.15 Lift Pump and Reservoir Assembly
53. Figure 3.16 Lift Pump Motor Assembly
54. Figure 3.17 Lift Pump Assembly, 24 Volt

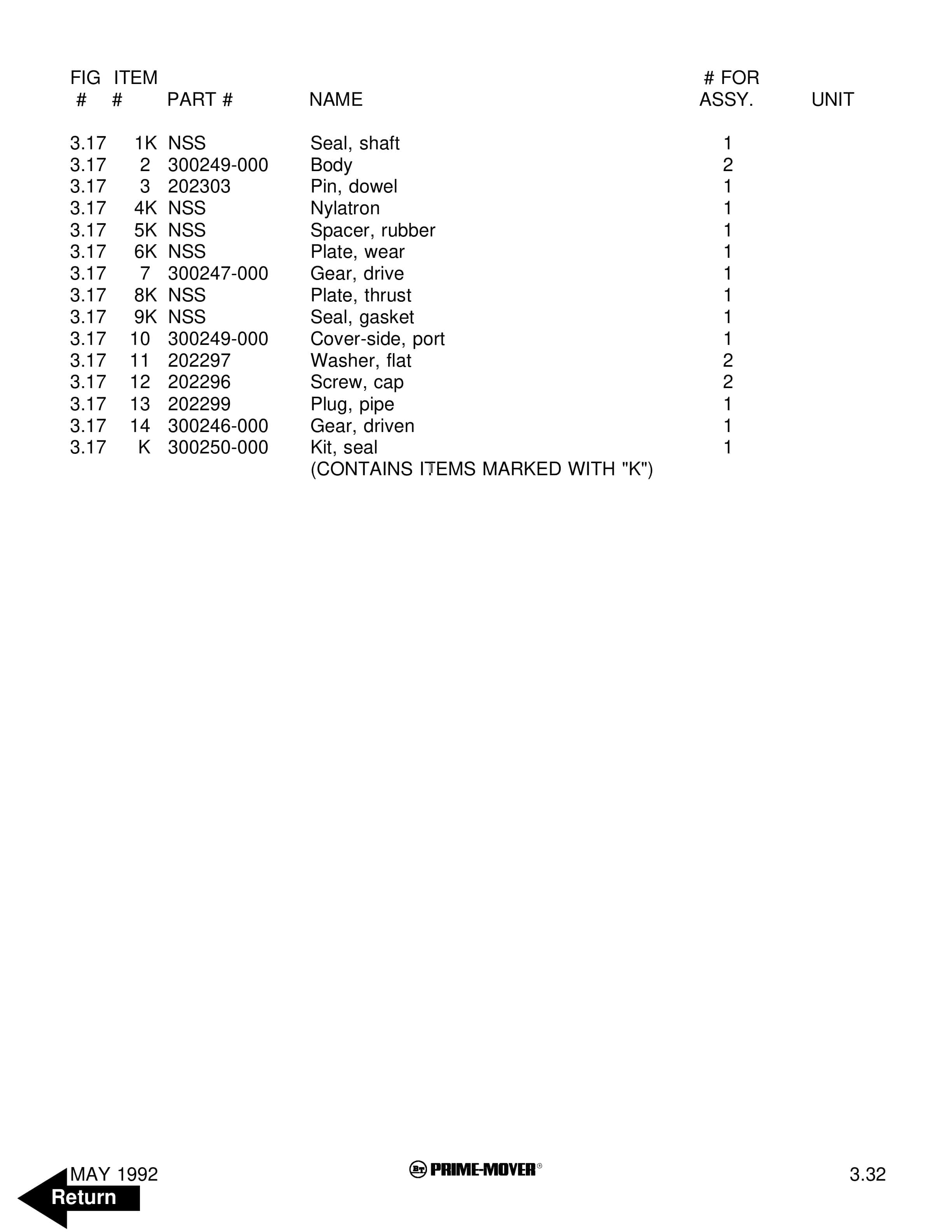

55. Figure 3.18 Lift Pump Assembly, 36 Volt
56. Figure 3.19 Lift Control Valve Assembly
57. Figure 3.20 Two Stage Cylinder and Reservoir Assembly
58. Figure 3.21 Two Stage Cylinder Assembly
59. Figure 3.22 Three Stage Cylinder and Reservoir Assembly
60. Figure 3.23 Three Stage Staging Cylinder Assembly
61. Figure 3.24 Three Stage Freelift Cylinder Assembly
62. Figure 4.1 Shielding Assembly
63. Figure 4.2 Emergency Disconnect Assembly
64. Figure 4.3 Auxiliary Control Assembly
65. Figure 4.4 Hand Lift/Lower and Speed Control
66. Figure 4.5 Forward Steering Control Assembly
67. Figure 4.6 Rearward Steering Control Assembly
68. Figure 4.7 Auxiliary Pump and Motor Installation
69. Figure 4.8 Main Frame and Load Wheel Assembly
70. Figure 4.9 Single Load Wheel Assembly
71. Figure 4.10 5 High Articulating Load Wheel Assembly
72. Figure 4.11 4 High Articulating Load Wheel Assembly
73. Figure 4.12 Caster Assembly
74. Figure 5.1 Two Stage Mast Installation
75. Figure 5.2 Two Stage Inner Column Assembly
76. Figure 5.3 Two Stage Outer Column Assembly
77. Figure 5.4 Two Stage Cylinder Installation

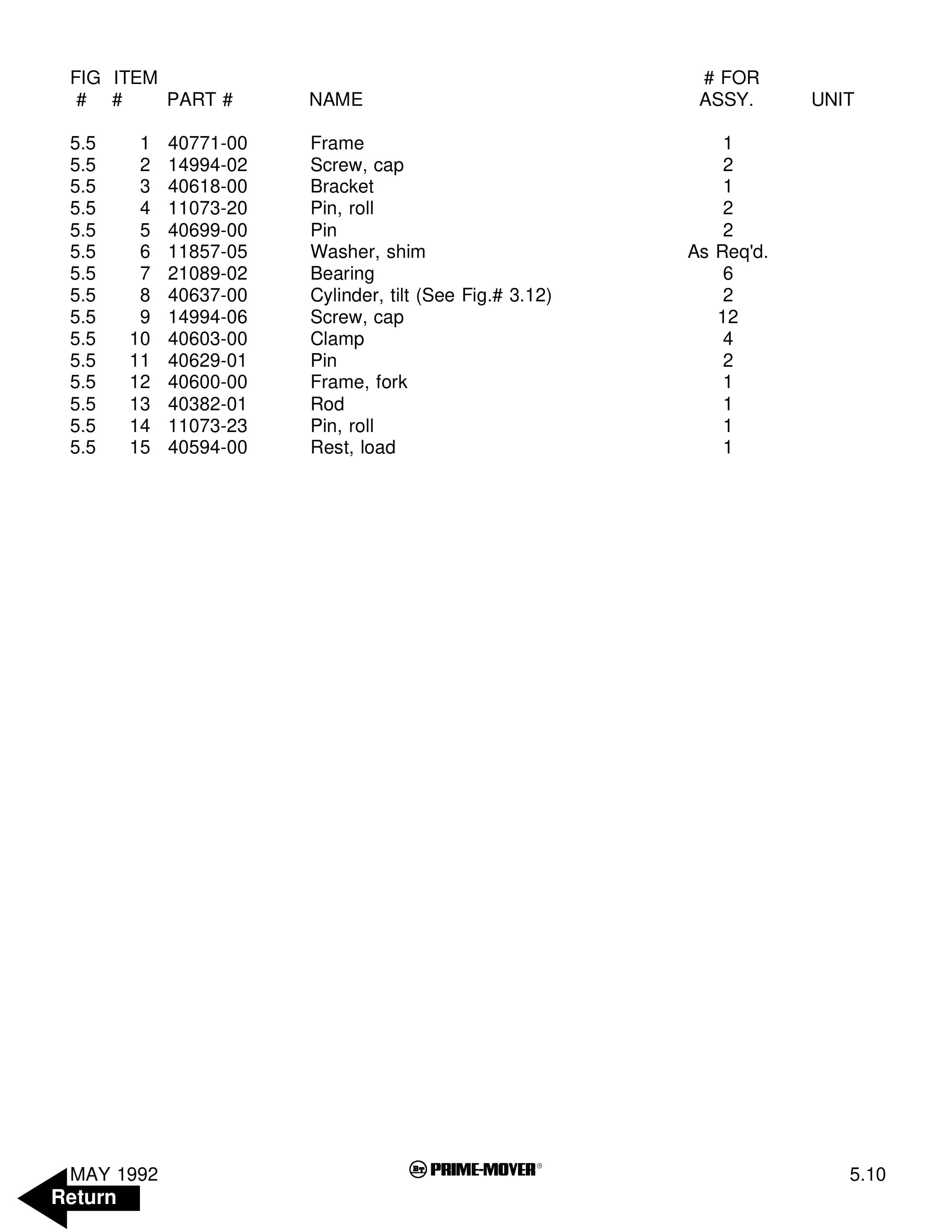

78. Figure 5.5 Two Stage Lift Frame Assembly
79. Figure 5.6 Two Stage Sideshifter Assembly
80. Figure 5.7 Two Stage Fork Assembly
81. Figure 5.8 Three Stage Mast Installation
82. Figure 5.9 Three Stage Inner Column Assembly

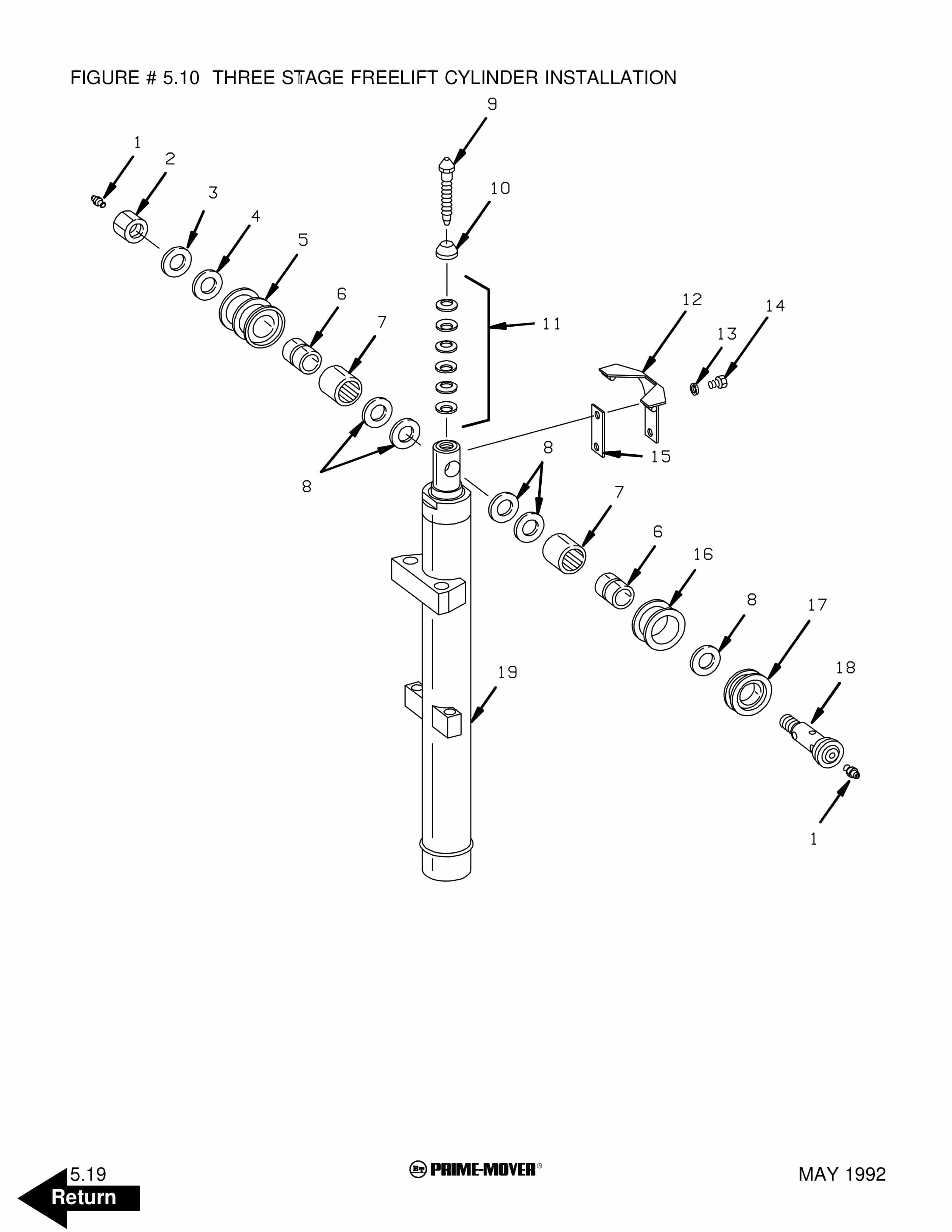

83. Figure 5.10 Three Stage Freelift Cylinder Installation
84. Figure 5.11 Three Stage Intermediate Column Assembly
85. Figure 5.12 Three Stage Outer Column Assembly
86. Figure 5.13 Three Stage Lift Frame Assembly
87. Figure 5.14 Three Stage Sideshifter Assembly
88. Figure 5.15 Three Stage Fork Assembly
89. Figure 7.1 Battery Lift Interrupt E EV-100LX SCR Electrical Schematic
90. Figure 7.2 Battery Lift Interrupt E EV-100LX SCR Electrical Schematic Symbols
91. Figure 7.3 Battery Lift Interrupt EE EV-100LX SCR Electrical Schematic
92. Figure 7.4 Battery Lift Interrupt EE EV-100LX SCR Electrical Schematic Symbols
93. Figure 7.5 Battery Lift Interrupt Installation
94. Figure 10.1 Special Tools and Lubrications
95. Numerical Index
96. Back Cover
