BT RWE120 Quality Parts 7508661

$30.00

Type Of Manual: Quality Parts
Manual ID: 7508661
: Parts Manual PDF
Number of Pages: 143
Size: 5.6MB
Format: PDF

Category: BT Parts Manual PDF

Model List:
- RWE120

1. Chassis
1.1. Chassi Chassis Châssis
2. Motors
2.1. Motorer Motoren Moteurs
3. Transmission/Drive gear
3.1. Kraftöverföring/Drivväxel Kraftübertragung/Fahrgetriebe Transmission/Groupe de traction
4. Brake/Wheel/Caterpillar system
4.1. Broms-/Hjul-/Bandsystem Brems-/Rad-/Bandsystem Freins/Roues/ Chenilles
5. Steering system
5.1. Styrsystem Steuer-/Lenksystem Système de direction
6. Electrical system
6.1. Elektriskt system Elektroanlage Système électrique
7. Hydraulic/pneumatic system
7.1. Hydraulik/pneumatik Hydraulikanlage/Pneumatik Système hydraulique/pneumatique
8. Work function – lifting masts
8.1. Arbetsfunktion – lyftstativ Arbeitsfunktion – Hubgerüste Fonction de travail – mâts de levage
9. Options/attachments
9.1. Tillbehör/extrautrustning Zubehör/Zusatzausrüstung Equipement supplémentaire/Options
10. P0034001
11. Frame, chassis 2009-05-05
12. P0033598
13. Inspection covers 2009-05-05
14. P0034234
15. Platform incl. fixing points 2009-05-05
16. P0034005
17. Driver controls ( mechanical ) 2009-05-05
18. P0034042
19. Driver controls ( mechanical ) 2009-05-05
20. P0033989
21. Finger/foot guards 2009-05-05
22. P0000231
23. Driver protection 2009-05-05
24. P0034228
25. Driver protection 2009-05-05
26. P0026936
27. Signs, warnings, decals 2009-05-05
28. P0033268
29. Electric pump motor 2009-05-05
30. P0034278
31. Electric drive motor 2009-05-06
32. P0027375
33. Mechanical drive gear unit 2009-05-05
34. P0011711
35. Electromagnetic parking brake 2009-05-05
36. P0034209
37. Drive wheel 2009-05-05
38. P0034010
39. Support/castor wheels 2009-05-05
40. P0034424
41. Fork/support arm wheels 2009-05-05
42. P0034028
43. Steering arm/wheel/lever 2009-05-05
44. P0034029
45. Steering arm/wheel/lever 2009-05-05
46. P0034223
47. Steering arm/wheel/lever 2009-05-05
48. P0034224
49. Steering arm/wheel/lever 2009-05-05
50. P0034279
51. Electric steering system 2009-05-05
52. P0013736
53. General alarm signals (audible/visual) 2009-05-05
54. P0013777
55. Battery cut out connector/contactor 2009-05-05
56. P0007830
57. Instrument panel, display 2009-05-05
58. P0007800
59. Start/stop switch 2009-05-05
60. P0033602
61. Start/stop switch 2009-05-05
62. P0034048
63. Speed control 2009-05-05
64. P0034280
65. Driving function harnesses/fuse 2009-05-05
66. P0008943
67. Direction contactors 2009-05-05

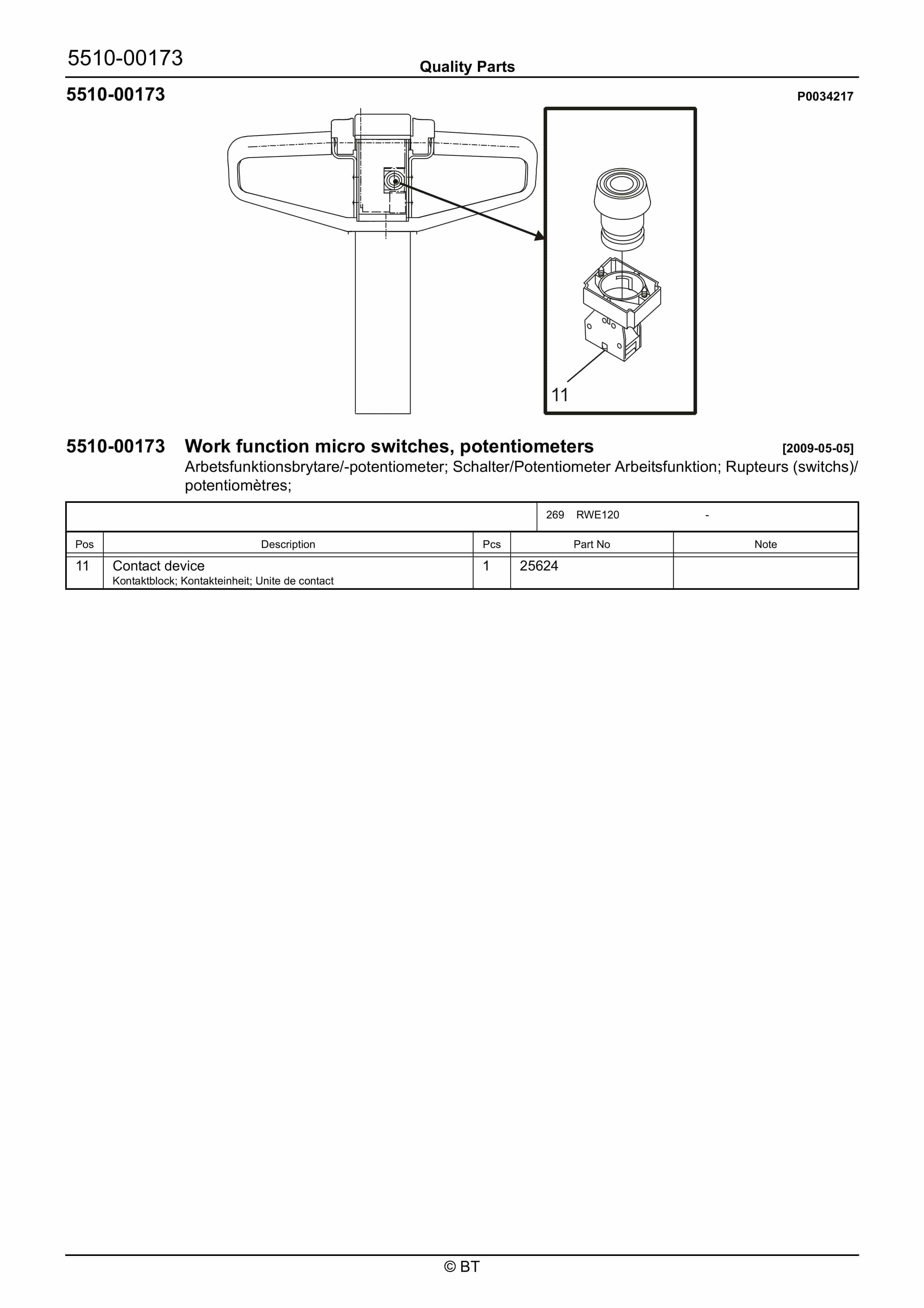

68. P0034040
69. Work function micro switches, potentiometers 2009-05-05
70. P0034217
71. Work function micro switches, potentiometers 2009-05-05
72. P0008945
73. Pump contactor 2009-05-05
74. P0033606
75. Drive/multi-function PCBs 2009-05-05
76. P0034233
77. Work function PCBs 2009-05-05
78. P0034227
79. Safety probes/sensors 2009-05-05
80. P0034232
81. Safety probes/sensors 2009-05-05
82. P0034013
83. Hydraulic unit 2009-05-05
84. P0033685
85. Hydraulic lines chassis 2009-05-05
86. P0034008
87. Hydraulic lines chassis 2009-05-05
88. P0034723
89. Hydraulic system mast mounted 2009-05-14
90. P0033604
91. Mast hydraulic lines 2009-05-05

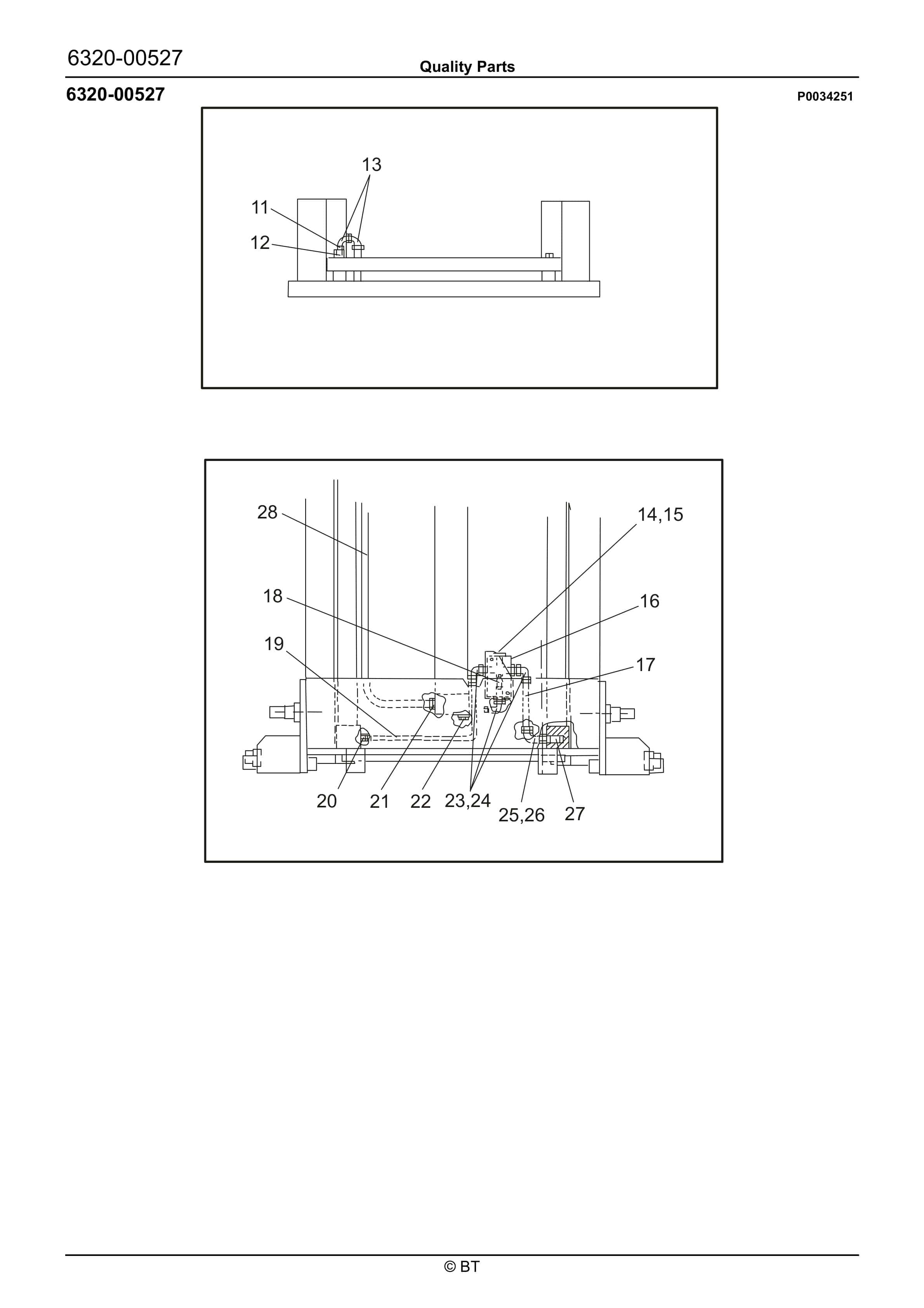

92. P0034251
93. Mast hydraulic lines 2009-05-05
94. P0034260
95. Mast hydraulic lines 2009-05-05
96. P0034274
97. Mast hydraulic lines 2009-05-05
98. P0033761
99. Main lift cylinders 2009-05-05
100. P0033763
101. Main lift cylinders 2009-05-05
102. P0034257
103. Main lift cylinders 2009-05-05
104. P0033765

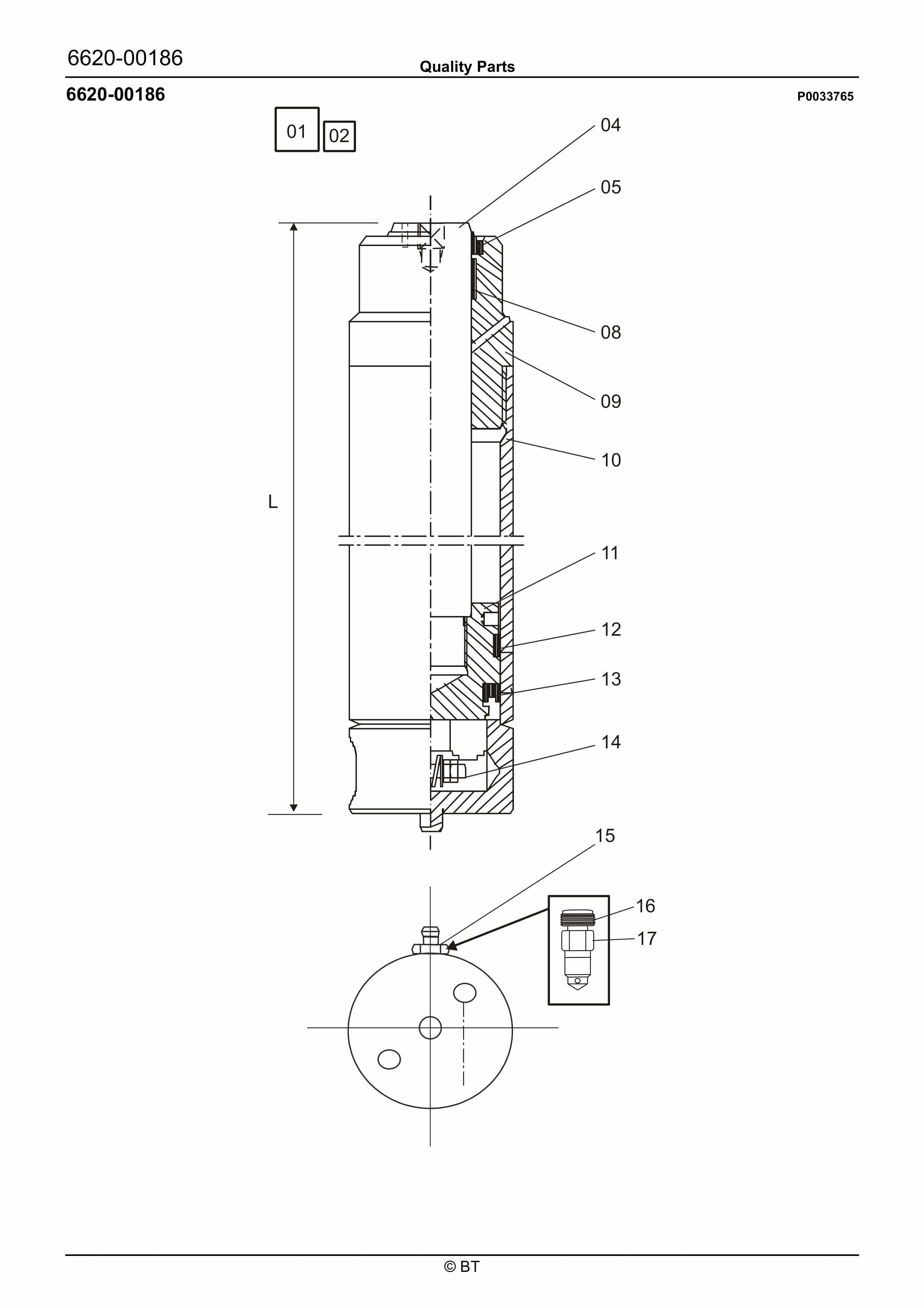

105. Free lift cylinders 2009-05-05
106. P0034250
107. Free lift cylinders 2009-05-05
108. P0034033
109. Reach/telescopic cylinders 2009-05-05
110. P0034221
111. Tilt cylinders 2009-05-05

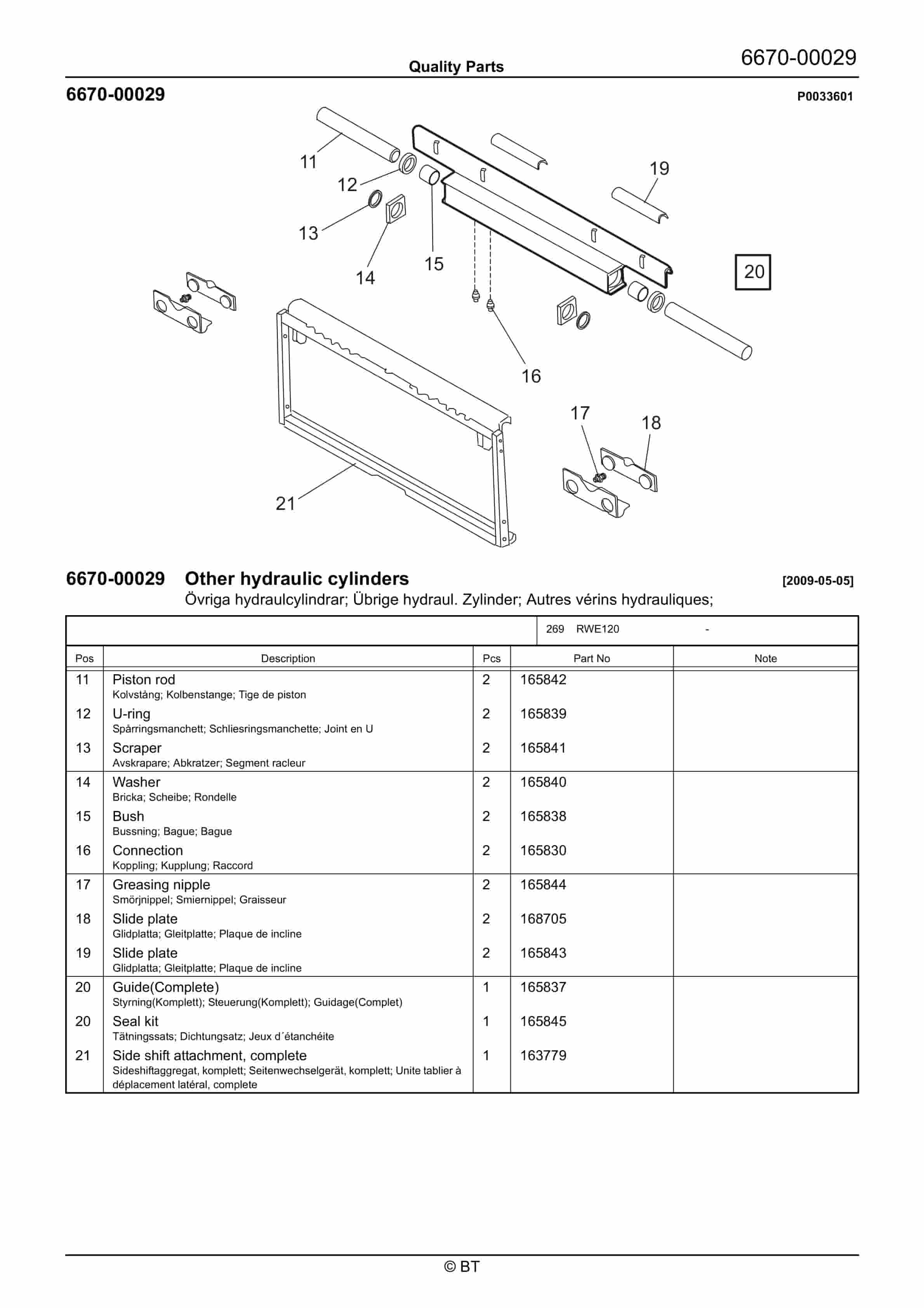

112. P0033601
113. Other hydraulic cylinders 2009-05-05
114. P0034249
115. Main mast 2009-05-05
116. P0034256
117. Main mast 2009-05-05
118. P0034272
119. Main mast 2009-05-05
120. P0034037
121. Main mast fork carriage 2009-05-05
122. P0034038
123. Main mast fork carriage 2009-05-05
124. P0034000
125. Main mast suspension 2009-05-05
126. P0000126
127. Tilt cylinders 2009-05-05
128. P0034034
129. Fork, carpet boom, lift hook 2009-05-05
130. P0013773
131. Extra electrical equipment 2009-05-05
132. P0019044
133. Charger attachment 2009-05-12
134. P0021526
135. Extra electrical equipment 2009-05-05
136. P0034215
137. Other extra equipment 2009-05-05
138. P0007837
139. Battery changing equipment 2009-05-05
140. P0034283
141. Battery changing equipment 2009-05-05
