BT SC-30 Electric Counter Balanced Walkie Stacker Parts Manual 300387-001

$30.00

Type Of Manual: Parts Manual
Manual ID: 300387-001
: Parts Manual PDF
Number of Pages: 84
Size: 2.0MB
Format: PDF

Category: BT Parts Manual PDF

Model List:
- SC-30 Electric Counter Balanced Walkie Stacker

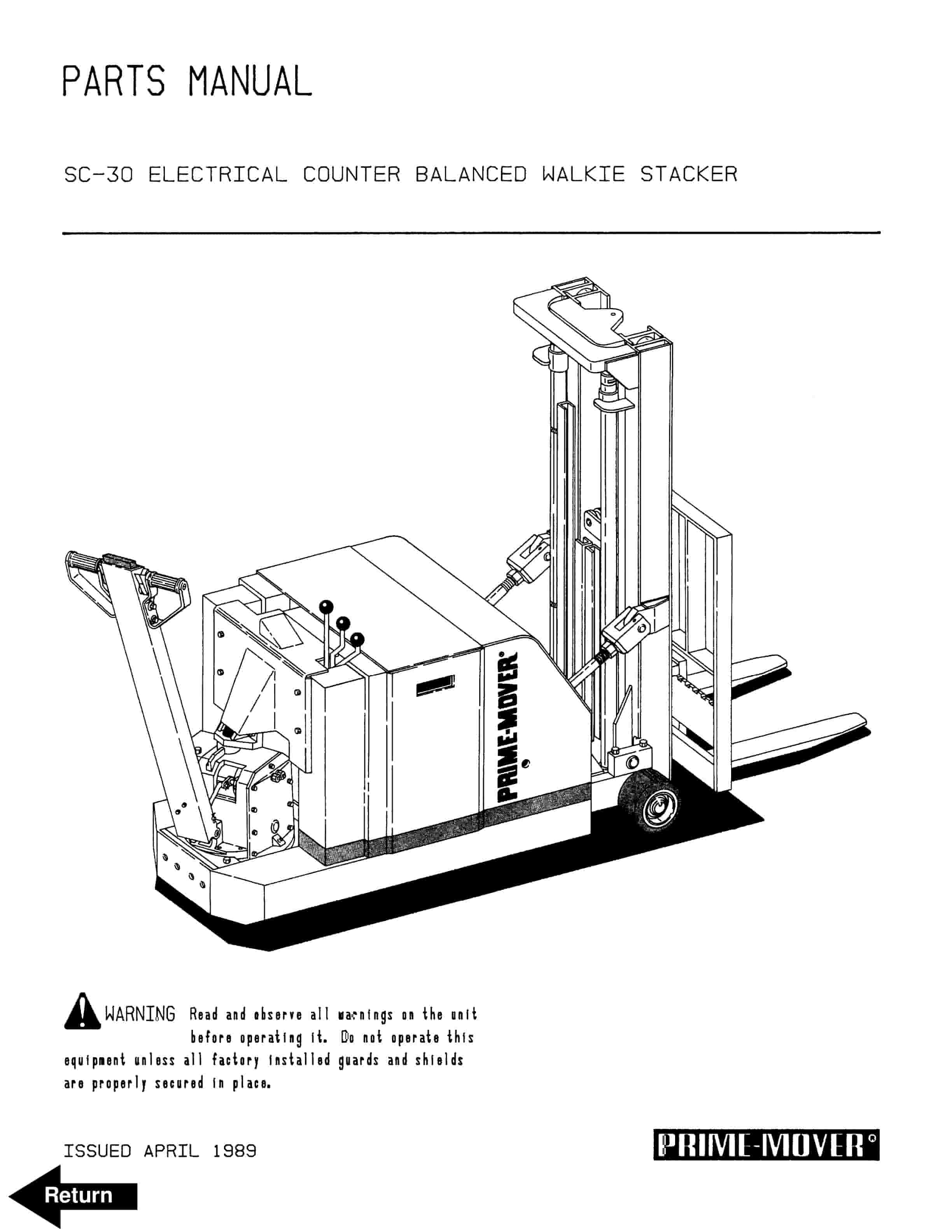

1. Front Cover
2. Parts Ordering Instructions
3. General Information
4. Table of Contents
5. Alphabetical Index
6. Figure 0.1 Decals and Parts Assembly
7. Figure 0.2 Parts List and Service Reference Index
8. Figure 1.1 Handle and Transmission Assembly
9. Figure 1.2 Handle Assembly
10. Figure 1.3 Transmission Assembly
11. Figure 1.4 Drive Motor Assembly
12. Figure 2.1 Electrical Schematic
13. Figure 2.2 Electrical Schematic Symbols
14. Figure 2.3 Control Wiring Assembly
15. Figure 2.4 Power Wiring Assembly
16. Figure 2.5 24 Volt Contactor Panel Assembly
17. Figure 2.6 Contactor Assembly, 24 Volt
18. Figure 2.7 Forward Rearward Contactor Assembly, 24 Volt
19. Figure 2.8 Power Connector Assembly
20. Figure 2.9 Drive Motor Assembly
21. Figure 2.10 Pump Motor Assembly
22. Figure 2.11 Master Control Switch
23. Figure 3.1 Hydraulic Schematic
24. Figure 3.2 Hydraulic Schematic Symbols
25. Figure 3.3 Reservoir and Pump Assembly
26. Figure 3.4 Reservoir Assembly
27. Figure 3.5 Pump and Motor Assembly
28. Figure 3.6 Pump Assembly
29. Figure 3.7 Control Spool Valve Assembly
30. Figure 3.8 Lift Hydraulic Assembly
31. Figure 3.9 Cylinder Assembly
32. Figure 3.10 Cylinder Assembly

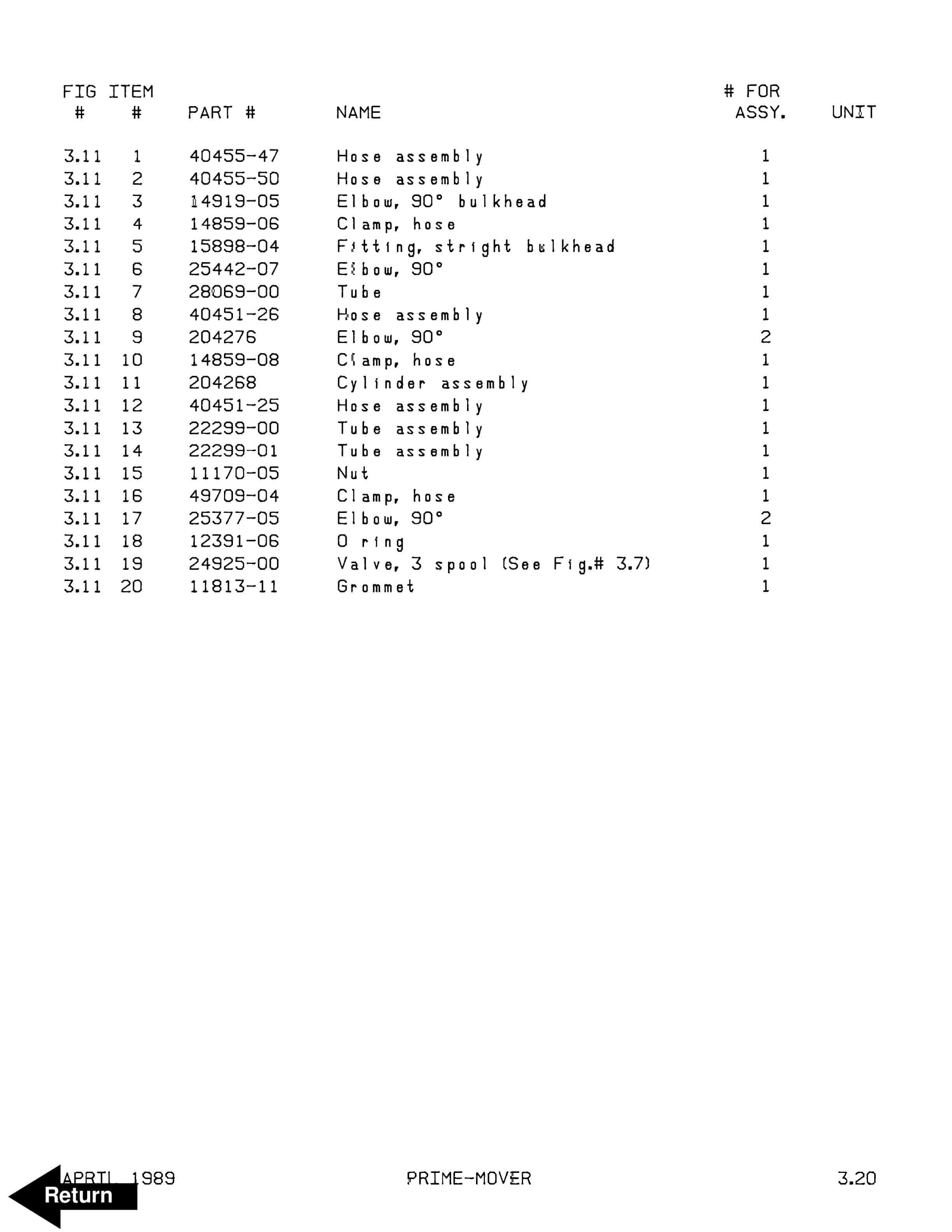

33. Figure 3.11 Sideshifter Hydraulic Assembly
34. Figure 3.12 Tilt Cylinder and Related Parts
35. Figure 3.13 Tilt Cylinder Assembly
36. Figure 4.1 Frame Assembly

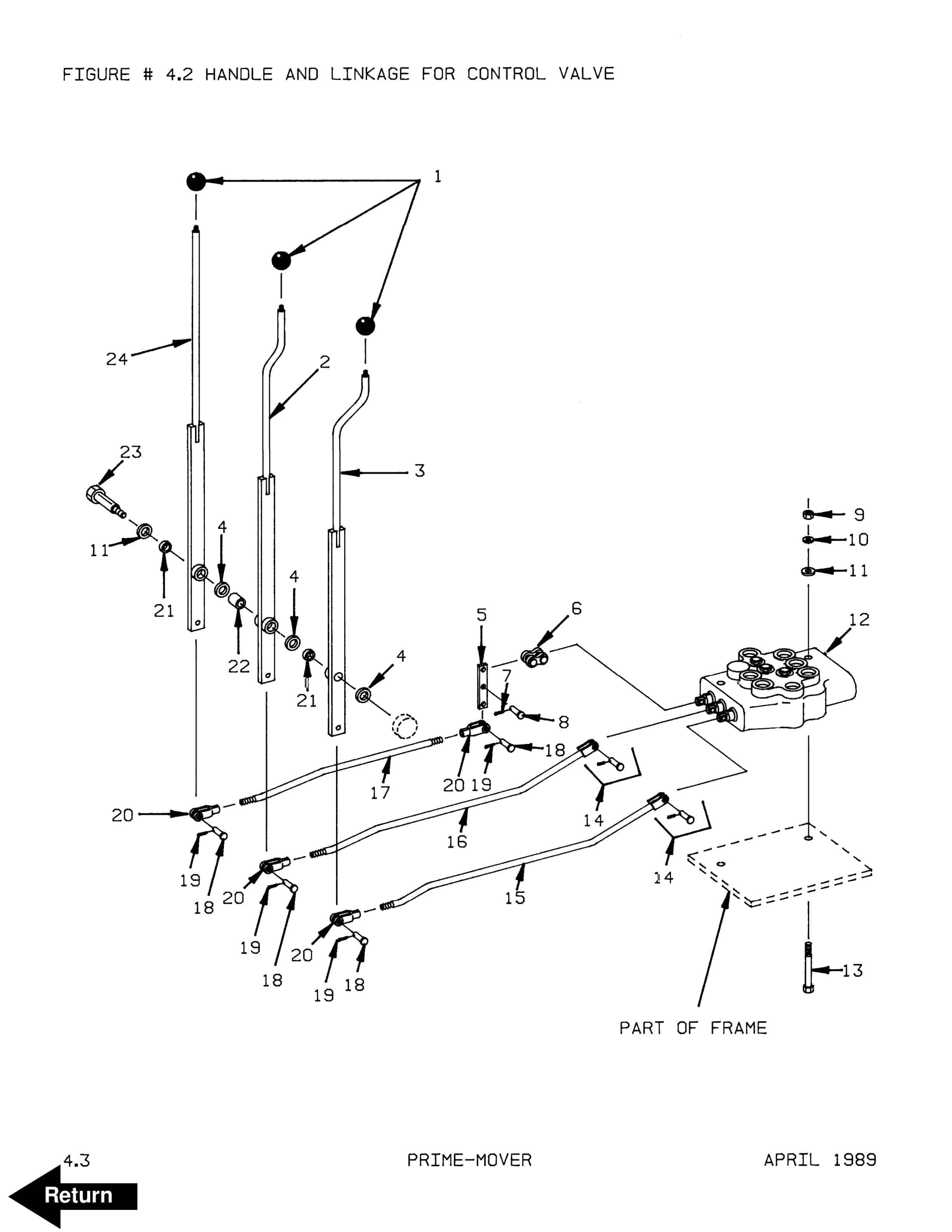

37. Figure 4.2 Handle and Linkage for Control Valve
38. Figure 4.3 Shield Assembly

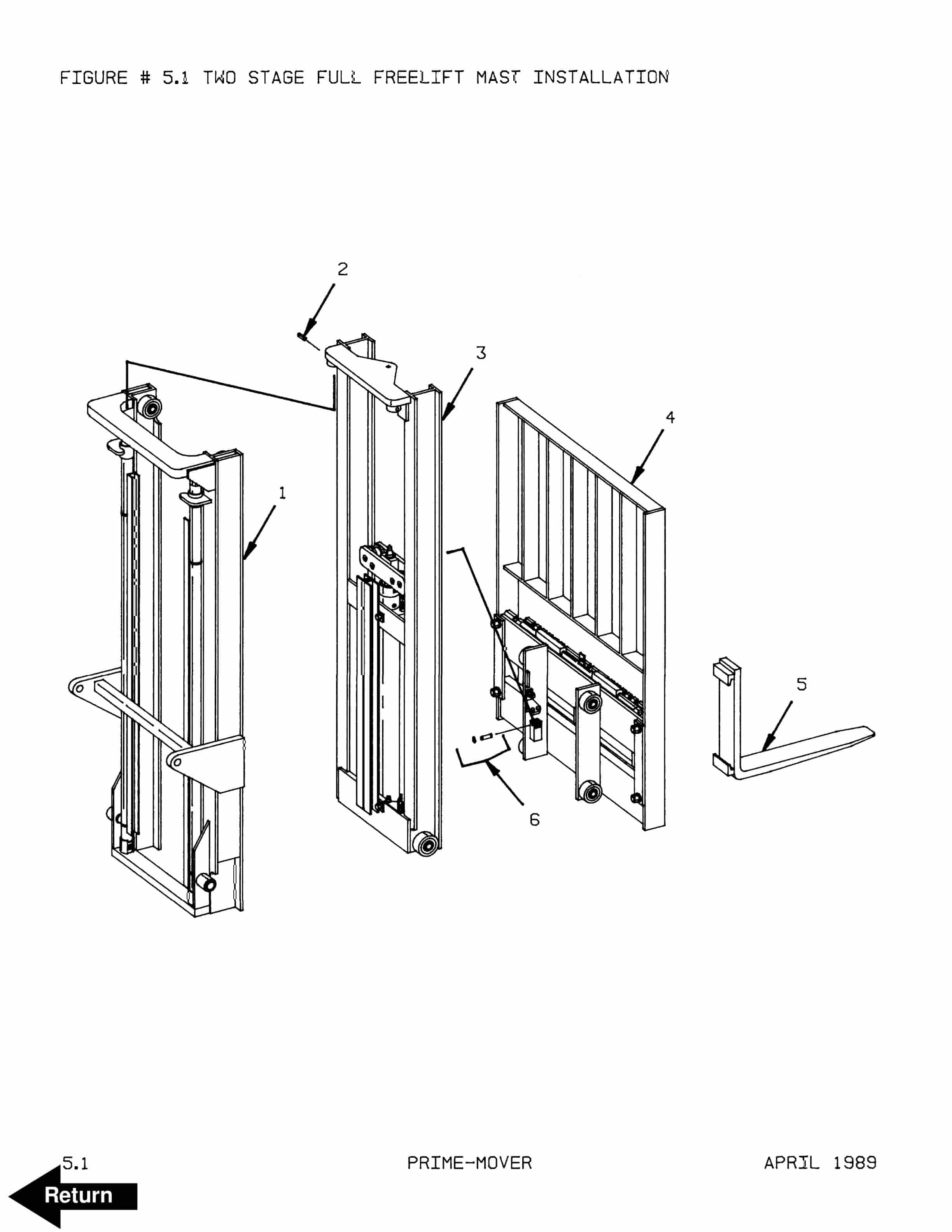

39. Figure 5.1 Two Stage Full Freelift Mast Installation
40. Figure 5.2 Outer Column Assembly
41. Figure 5.3 Inner Column Assembly
42. Figure 5.4 Freelift Cylinder Assembly and Related Parts
43. Figure 5.5 Lift Frame and Backrest Assembly
44. Figure 5.6 Sideshifter Assembly
45. Figure 5.7 Fork Assembly
46. Figure 6.1 Special Tools and Lubrications
47. Back Cover
