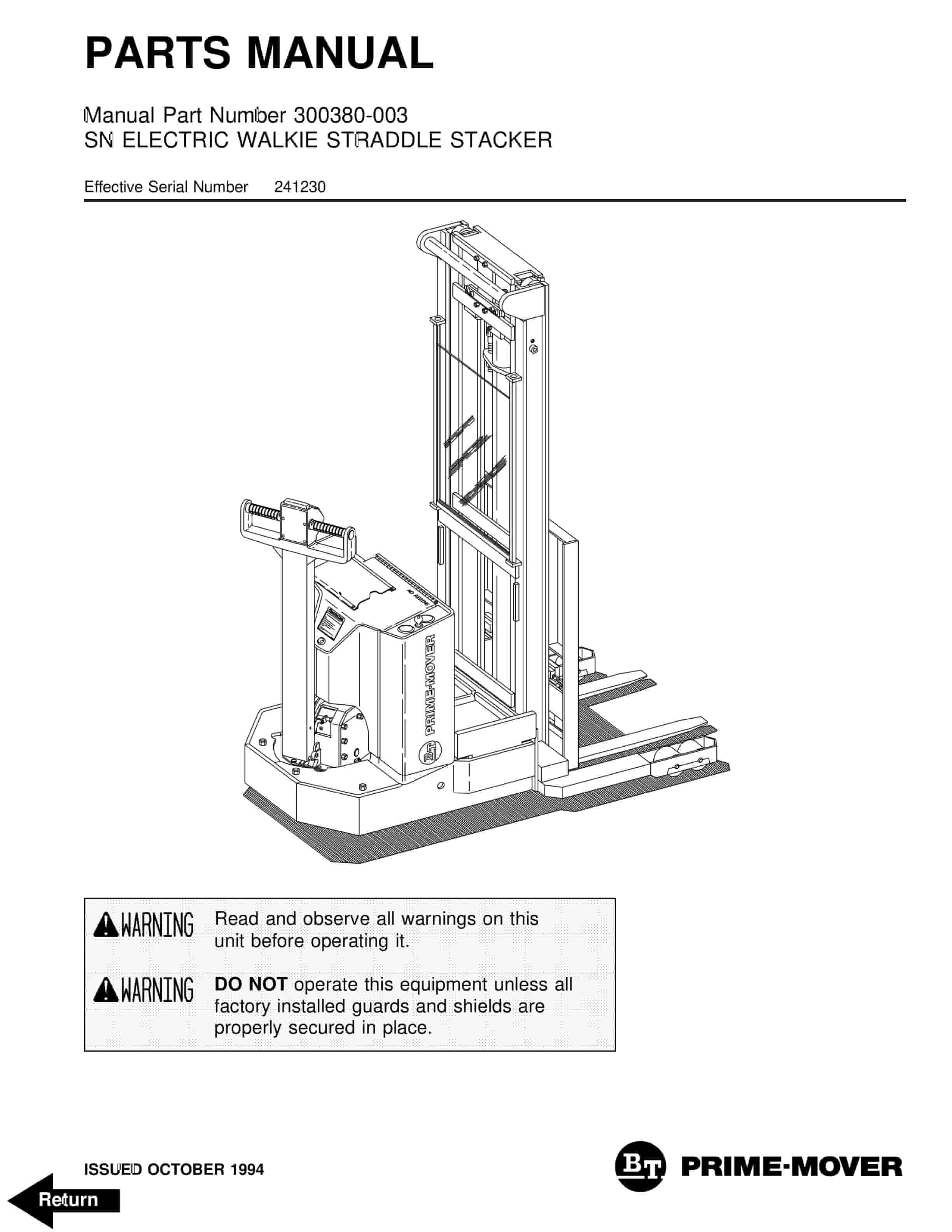

BT SN Electric Walkie Straddle Stacker Parts Manual 300380-003

BT SN Electric Walkie Straddle Stacker Parts Manual 300380-003 - Image 2

BT SN Electric Walkie Straddle Stacker Parts Manual 300380-003 - Image 3

BT SN Electric Walkie Straddle Stacker Parts Manual 300380-003 - Image 4

BT SN Electric Walkie Straddle Stacker Parts Manual 300380-003 - Image 5

bt sn electric walkie straddle stacker parts manual 300380 003 2

bt sn electric walkie straddle stacker parts manual 300380 003 3

BT SN Electric Walkie Straddle Stacker Parts Manual 300380-003

$30.00

Type Of Manual: Parts Manual
Manual ID: 300380-003
: Parts Manual PDF
Number of Pages: 243
Size: 3.8MB
Format: PDF

Category: BT Parts Manual PDF

Model List:
- SN Electric Walkie Straddle Stacker

1. Front Cover
2. Parts Ordering Instructions
3. General Information
4. Alphabetical Index
5. Figure 0.1 Decals and Parts Assembly
6. Figure 1.1 Transmission and Handle Assembly
7. Figure 1.2 Twist Grip Resistor Transistor Control Handle Assembly
8. Figure 1.3 Thumb Control Resistor Transistor Control Handle Assembly
9. Figure 1.4 Transmission Assembly, Part I
10. Figure 1.5 Transmission Assembly, Part II
11. Figure 1.6 Drive Motor Assembly
12. Figure 2.1 Resistor Electrical Schematic
13. Figure 2.2 Resistor Electrical Schematic Symbols
14. Figure 2.3 Resistor Control Wiring Harness Assembly
15. Figure 2.4 Resistor Power Component Wiring
16. Figure 2.5 Resistor Control Panel Assembly
17. Figure 2.6 Resistor Second Speed Contactor Assembly
18. Figure 2.7 Resistor Forward Rearward Contactor Assembly
19. Figure 2.8 Power Connector Assembly
20. Figure 2.9 Hydraulic Pump Motor Assembly
21. Figure 2.10 Pump Motor Assembly
22. Figure 2.11 Drive Motor Assembly, 12 Volt
23. Figure 2.12 24 Volt Drive Motor Assembly
24. Figure 2.13 Warning Light Assembly
25. Figure 2.14 Transistor Electrical Schematic E
26. Figure 2.15 Transistor Electrical Schematic Symbols E
27. Figure 2.16 Transistor Control Wiring Harness E
28. Figure 2.17 Transistor Power Component Wiring E
29. Figure 2.18 Transistor Control Panel Assembly E
30. Figure 2.19 Transistor Forward Rearward Contactor Assembly
31. Figure 2.20 Transistor Electrical Schematic EE
32. Figure 2.21 Transistor Electrical Schematic Symbols EE
33. Figure 2.22 Transistor Control Wiring Harness EE
34. Figure 2.23 Transistor Power Component Wiring EE
35. Figure 2.24 Transistor Control Panel Assembly EE
36. SN-20 Hydraulic Section
36.1. Figure 3.1 SN-20 Two Stage Hydraulic Schematic
36.2. Figure 3.2 SN-20 Two Stage Hydraulic Schematic Symbols
36.3. Figure 3.3 SN-20 Two Stage Mast Hydraulic System
36.4. Figure 3.4 SN-20 Reservoir and Pump Assembly
36.5. Figure 3.5 SN-20 Pump and Motor Assembly
36.6. Figure 3.6 SN-20 Two Stage Lift Cylinder Assembly
36.7. Figure 3.7 SN-20 Three Stage Hydraulic Schematic
36.8. Figure 3.8 SN-20 Three Stage Hydraulic Schematic Symbols
36.9. Figure 3.9 SN-20 Three Stage Mast Hydraulic System
36.10. Figure 3.10 SN-20 Three Stage Freelift Cylinder Assembly
36.11. Figure 3.11 SN-20 Three Stage Staging Cylinder Assembly
37. SN-30 Hydraulic Section
37.1. Figure 3.12 SN-30 Two Stage Hydraulic Schematic
37.2. Figure 3.13 SN-30 Two Stage Hydraulic Schematic Symbols
37.3. Figure 3.14 SN-30 Two Stage Mast Hydraulic System, 12 Volt
37.4. Figure 3.15 SN-30 Two Stage Mast Hydraulic System, 24 Volt
37.5. Figure 3.16 SN-30 Reservoir and Pump Assembly
37.6. Figure 3.17 SN-30 Pump and Motor Assembly
37.7. Figure 3.18 SN-30 Two Stage Lift Cylinder Assembly
37.8. Figure 3.19 SN-30 Two Stage Hydraulic Reservoir Assembly
37.9. Figure 3.20 Lift Pump and Motor Assembly
37.10. Figure 3.21 Lift Pump Assembly
37.11. Figure 3.22 SN-30 Three Stage Hydraulic Schematic
37.12. Figure 3.23 SN-30 Three Stage Hydraulic Schematic Symbols
37.13. Figure 3.24 SN-30 Three Stage Mast Hydraulic System, 12 Volt
37.14. Figure 3.25 SN-30 Three Stage Mast Hydraulic System, 24 Volt Part I
37.15. Figure 3.26 SN-30 Three Stage Mast Hydraulic System, 24 Volt Part II
37.16. Figure 3.27 SN-30 Three Stage Freelift Cylinder Assembly
37.17. Figure 3.28 SN-30 Three Stage Staging Cylinder Assembly
37.18. Figure 3.29 SN-30 Manual Control Hydraulic Schematic
37.19. Figure 3.30 SN-30 Manual Control Hydraulic Schematic Symbols
37.20. Figure 3.31 SN-30 Manual Control Hydraulic System – Part I
37.21. Figure 3.32 SN-30 Manual Control Hydraulic System – Part II

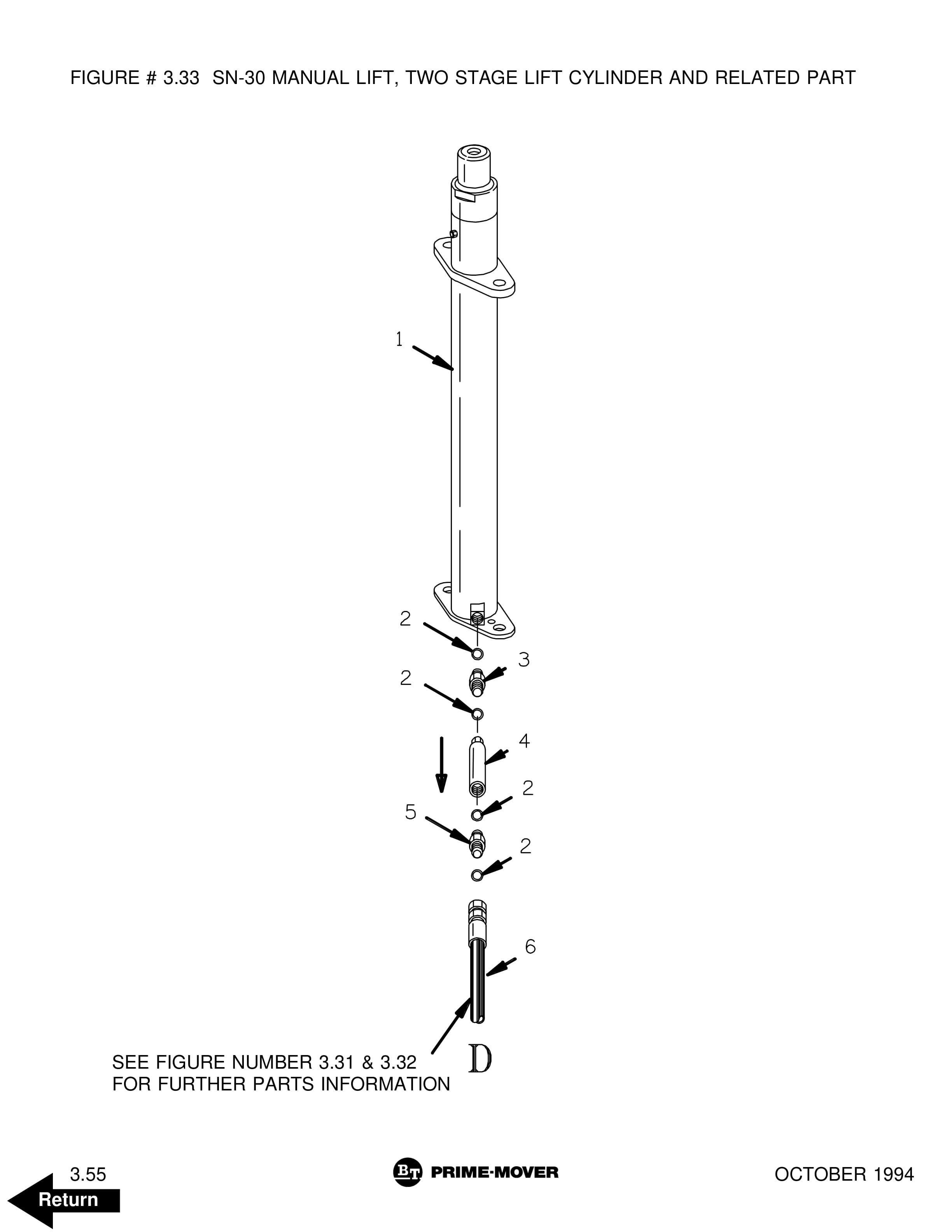

37.22. Figure 3.33 SN-30 Manual Lift, Two Stage Lift Cylinder and Related Part
37.23. Figure 3.34 SN-30 Manual Lift, Three Stage Lift Cylinder and Related Part
37.24. Figure 3.35 Two Three Spool Control Valve Assembly
38. SN-40 Hydraulic Section
38.1. Figure 3.36 SN-40 Two Stage Hydraulic Schematic
38.2. Figure 3.37 SN-40 Two Stage Hydraulic Schematic Symbols
38.3. Figure 3.38 SN-40 Manual Control Hydraulic System – Part I
38.4. Figure 3.39 SN-40 Manual Control Hydraulic System – Part II
38.5. Figure 3.40 SN-40 Manual Lift, Two Stage Lift Cylinder and Related Part
38.6. Figure 3.41 SN-40 Two Stage Cylinder Assembly
38.7. Figure 3.42 SN-40 Manual Control Hydraulic Schematic
38.8. Figure 3.43 SN-40 Manual Control Hydraulic Schematic Symbols
38.9. Figure 3.44 SN-40 Three Stage Hydraulic System – Part I
38.10. Figure 3.45 SN-40 Three Stage Hydraulic System – Part II
38.11. Figure 3.46 SN-40 Three Stage Lift Cylinder and Related Parts
38.12. Figure 3.47 SN-40 Three Stage Staging Cylinder Assembly
38.13. Figure 3.48 SN-40 Three Stage Freelift Cylinder Assembly
39. Figure 4.1 Shielding Assembly
40. Figure 4.2 Main Frame and Load Wheel Installation
41. Figure 4.3 Spring Loaded Caster Assembly
42. Figure 4.4 Control Valve Mounting Assembly
43. Figure 4.5 Pallet Centering Device

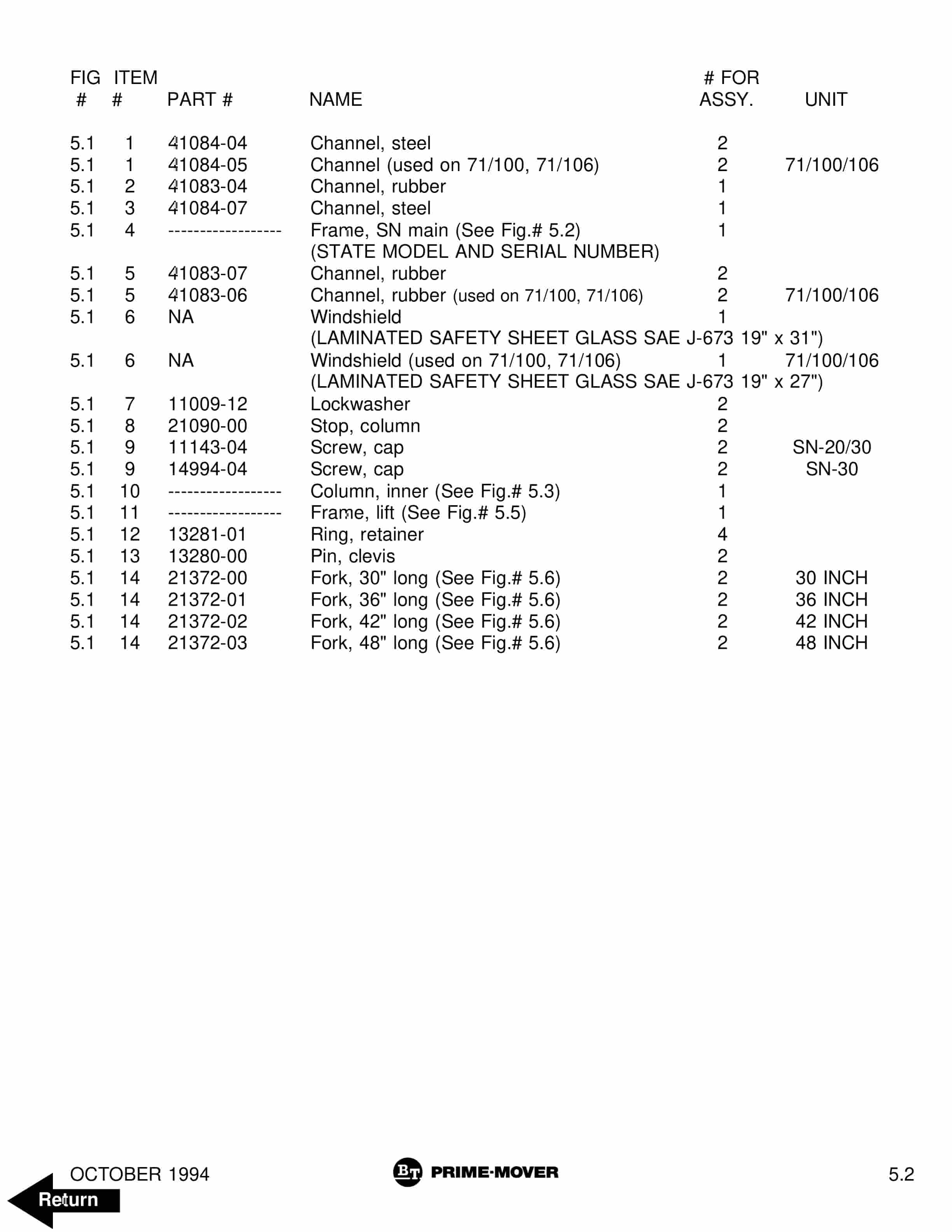

44. Figure 5.1 SN-20/30 Two Stage Mast Installation
45. Figure 5.2 SN-20/30 Two Stage Mast Outer Column Assembly (Frame)
46. Figure 5.3 SN-20/30 Two Stage Mast Inner Column Assembly
47. Figure 5.4 SN-20/30 Two Stage Mast Cylinder and Related Parts
48. Figure 5.5 SN-20/30 Two Stage Mast Lift Frame and Backrest Assembly
49. Figure 5.6 SN-20/30 Two Stage Fork Assembly
50. Figure 5.7 SN-20/30 Three Stage Mast Installation
51. Figure 5.8 SN-20/30 Three Stage Mast Outer Column Assembly (Frame)
52. Figure 5.9 SN-20/30 Three Stage Mast Intermediate Column Assembly
53. Figure 5.10 SN-20/30 Three Stage Mast Inner Column Assembly

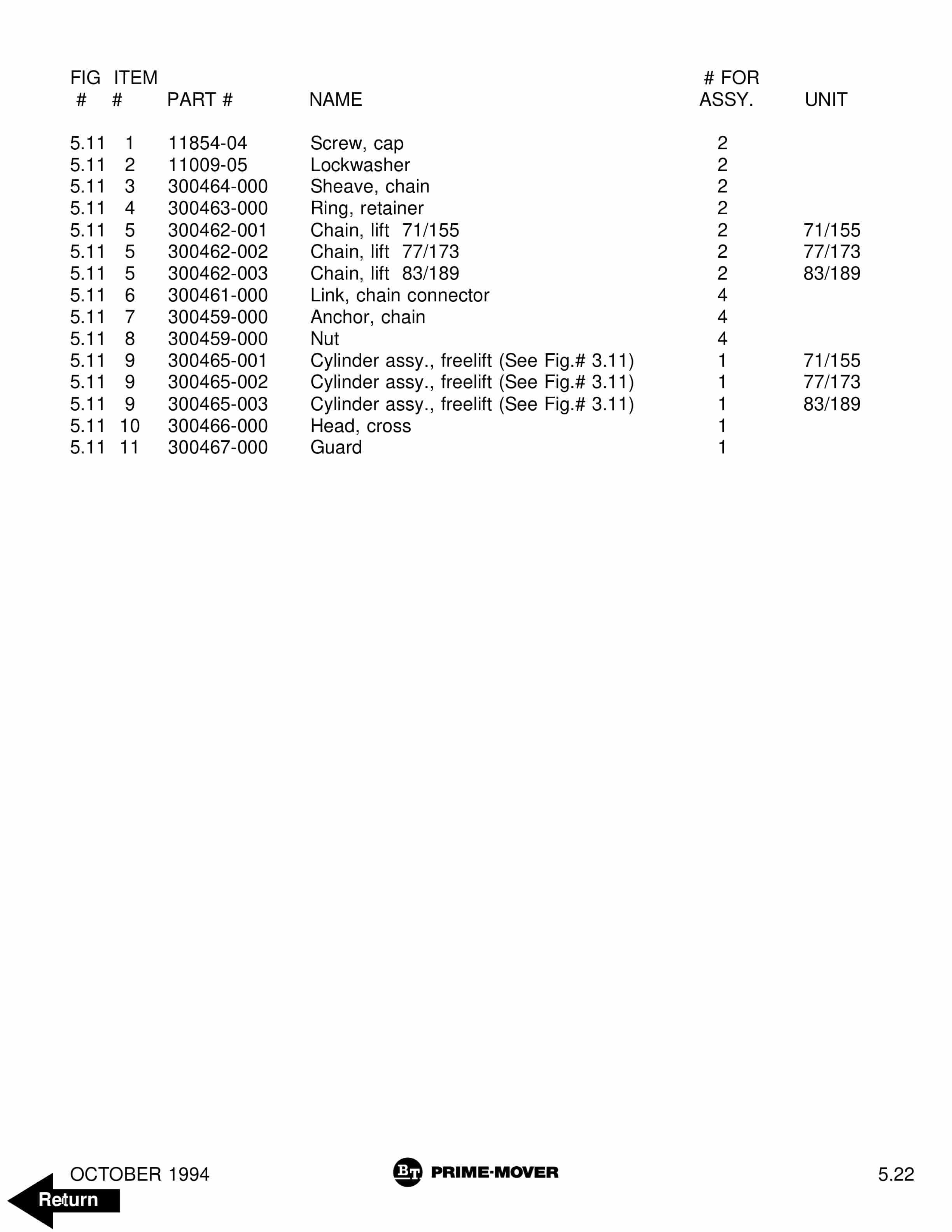

54. Figure 5.11 SN-20/30 Three Stage Mast Freelift Cylinder and Related Parts
55. Figure 5.12 SN-20/30 Three Stage Mast Lift Frame and Backrest Assembly
56. Figure 5.13 SN-20/30 Three Stage Fork Assembly
57. Figure 5.14 SN-40 Two Stage Mast Installation
58. Figure 5.15 SN-40 Two Stage Mast Outer Column Assembly (Frame)
59. Figure 5.16 SN-40 Two Stage Mast Inner Column Assembly

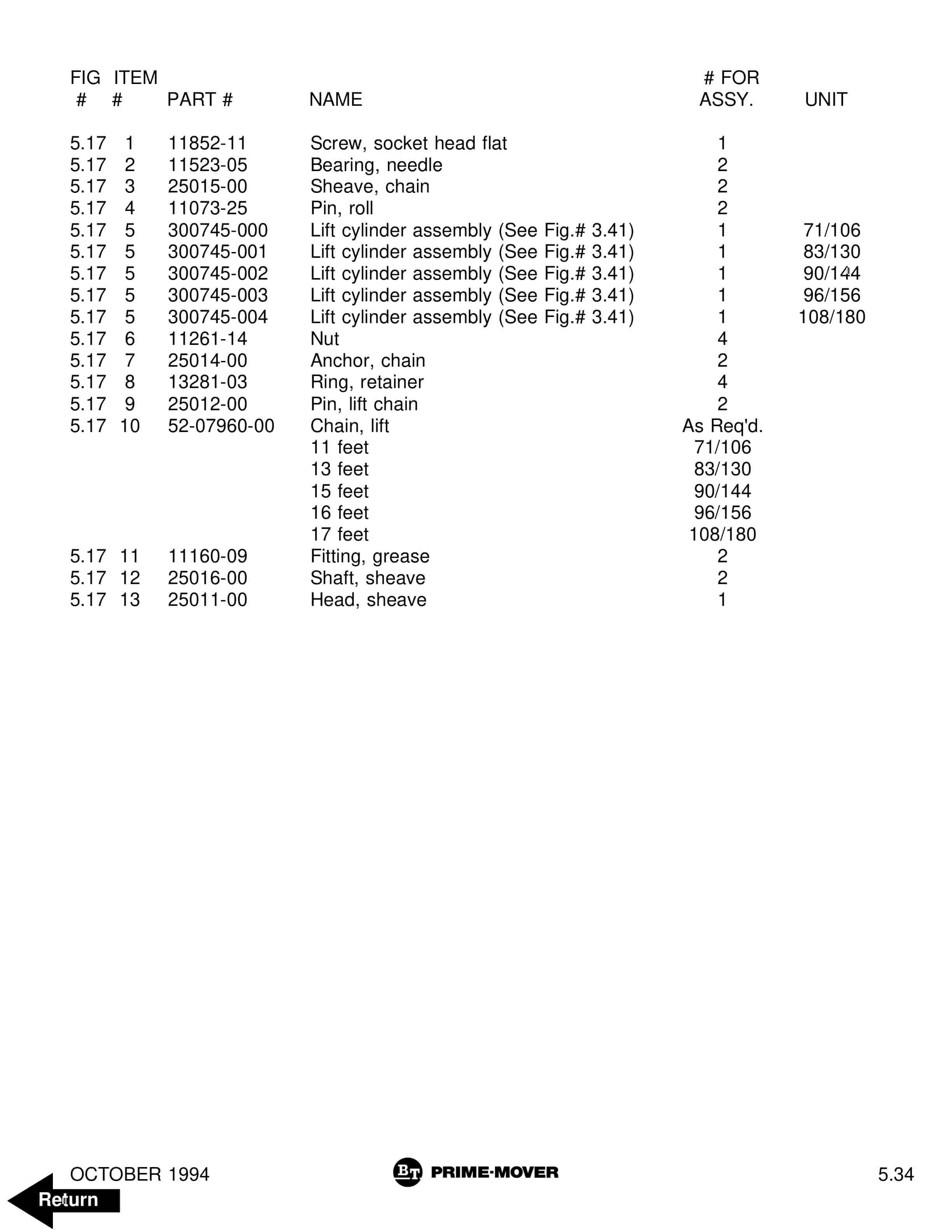

60. Figure 5.17 SN-40 Two Stage Mast Cylinder and Related Parts
61. Figure 5.18 SN-40 Two Stage Mast Lift Frame and Backrest Assembly
62. Figure 5.19 SN-40 Two Stage Fork Assembly
63. Figure 5.20 SN-40 Three Stage Mast Installation
64. Figure 5.21 SN-40 Three Stage Mast Outer Column Assembly
65. Figure 5.22 SN-40 Three Stage Mast Intermediate Column Assembly
66. Figure 5.23 SN-40 Three Stage Mast Inner Column Assembly
67. Figure 5.24 SN-40 Three Stage Mast Freelift Cylinder Installation
68. Figure 5.25 SN-40 Three Stage Mast Lift Frame and Load Backrest Assembly
69. Figure 5.26 SN-40 Three Stage Fork Assembly
70. Figure 6.1 Hose Reel and Related Parts
71. Figure 6.2 Dual Elbow Swivel Assembly
72. Figure 6.3 Hose Reel Assembly
73. Figure 10.1 Special Tools and Lubrications
74. Numerical Index
75. Back Cover
