BT SPS 1.35 Quality Parts 239485

$30.00

Type Of Manual: Quality Parts
Manual ID: 239485
: Parts Manual PDF
Number of Pages: 123
Size: 5.1MB
Format: PDF

Category: BT Parts Manual PDF

Model List:
- SPS 1.35

1. Chassis
1.1. Chassi Chassis Châssis
2. Drive motor
2.1. Motorprimär Antriebsmotor Moteur de traction
3. Transmission/Drive gear
3.1. Kraftöverföring/Drivväxel Kraftübertragung/Fahrgetriebe Transmission/Groupe de traction
4. Brake/Wheel/Caterpillar system
4.1. Broms-/Hjul-/Bandsystem Brems-/Rad-/Bandsystem Freins/Roues/ Chenilles
5. Steering system
5.1. Styrsystem Steuer-/Lenksystem Système de direction
6. Electrical system
6.1. Elektriskt system Elektroanlage Système électrique
7. Hydraulic/pneumatic system
7.1. Hydraulik/pneumatik Hydraulikanlage/Pneumatik Système hydraulique/pneumatique
8. Operating funktion – lifting mast/cylinder
8.1. Arbetsfunktion – lyftstativ/cylindrar Arbeitsfunktion – Hubgerüst / zylinder Fonction de travail – mat / cylindre
9. Options/attachments
9.1. Tillbehör/extrautrustning Zubehör/Zusatzausrüstung Equipement supplémentaire/Options
10. P0008418
11. Inspection covers 2002-09-24
12. P0002076
13. Support arms, stabilizers 2005-11-29
14. P0000023
15. Support arms, stabilizers 1996-08-07
16. P0004535
17. Battery compartment parts 2002-09-24
18. P0004538
19. Motor fixing points 1999-06-10
20. P0015875
21. Wall/floor covering 2002-04-23
22. P0004545
23. Internal fittings 2002-09-24
24. P0004424
25. Overhead guard/roof 2005-05-04
26. P0003203
27. Finger/foot guards 1996-08-14
28. P0020395
29. Signs, warnings, decals 2004-02-11
30. P0005138
31. Electric drive motor 2002-09-24
32. P0004534
33. Mechanical drive gear unit 2002-09-24
34. P0011737
35. Electromagnetic parking brake 2002-09-24
36. P0026478
37. Wheels 2006-03-17
38. P0010512
39. Drive wheel 2002-09-24
40. P0020997
41. Support/castor wheels 2004-04-23
42. P0013768
43. Steering arm/wheel/lever 2002-09-24
44. P0004549
45. Steering bearings, radial bearing 2002-09-24
46. P0007543
47. Steering angle sensor 2002-09-24
48. P0020388
49. General alarm signals (audible/visual) 2004-02-11
50. P0026540
51. Battery cut out connector/contactor 2006-03-17
52. P0000256
53. Instrument panel, display 2002-09-24
54. P0013779
55. Level/position transducers/lamps 2001-02-15
56. P0000151
57. Start/stop switch 2006-06-08
58. P0007546
59. Start/stop switch 2002-09-24
60. P0004490
61. Travel direction switch (separate) 2002-09-24
62. P0004473
63. Speed control 2002-09-24
64. P0015895
65. Driving function harnesses/fuse 2002-04-23
66. P0013654
67. Motor cables, resistors 2002-03-07
68. P0026532
69. Direction contactors 2006-04-07
70. P0002977
71. Transistor panel 2006-06-08
72. P0015900
73. Work function micro switches, potentiometers 2002-06-20
74. P0013778
75. Work function harnesses/fuse 2001-02-15

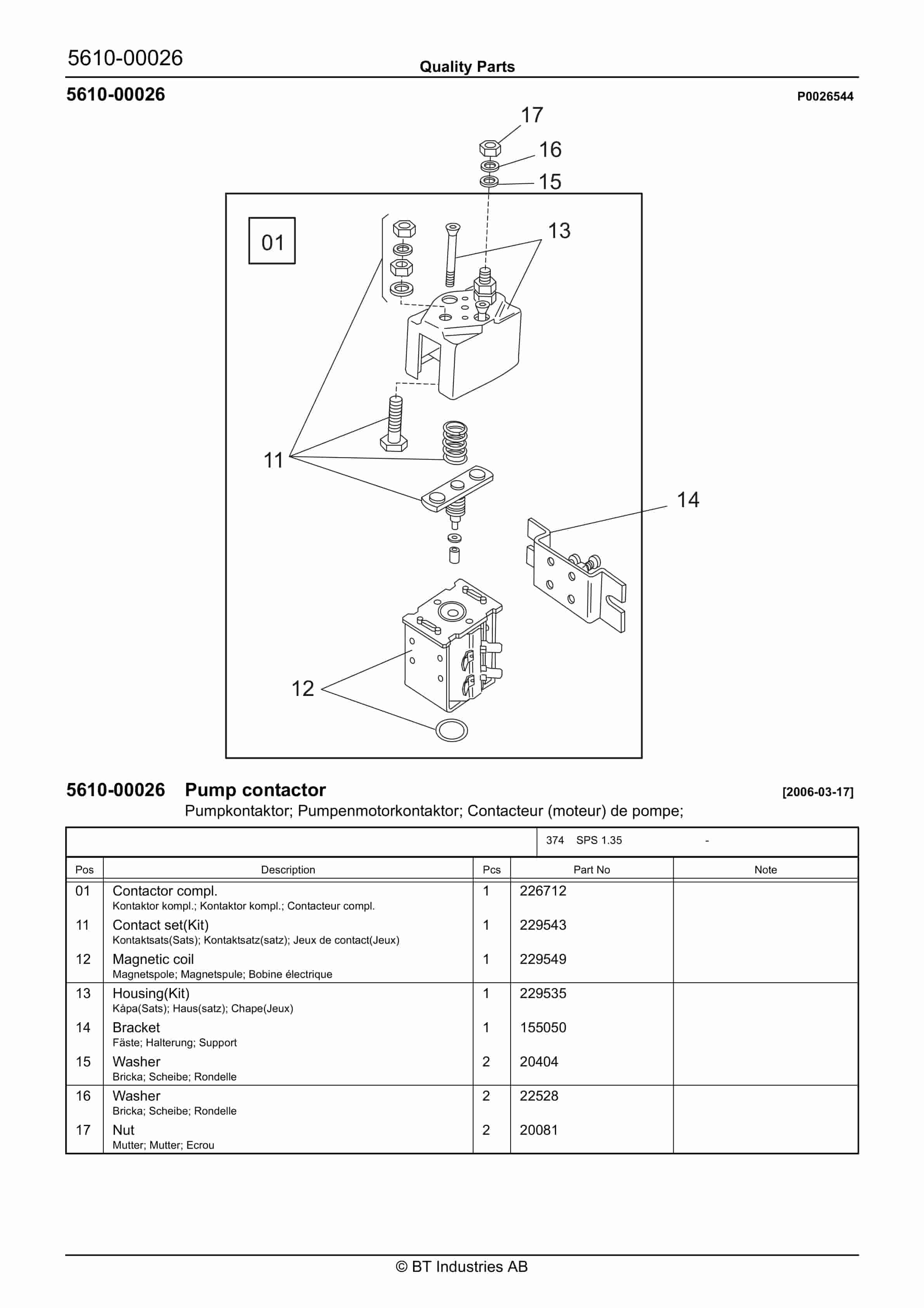

76. P0026544
77. Pump contactor 2006-03-17
78. P0008116
79. PCBs logic card / box 2003-11-26
80. P0002074
81. Safety/ position probes/ sensors 1996-09-02
82. P0002075
83. Safety/ position probes/ sensors 2005-01-25
84. P0015889
85. Safety/ position probes/ sensors 2002-09-24
86. P0020276
87. Safety/ position probes/ sensors 2004-02-11
88. P0005838
89. Electric pump motor 1997-04-29
90. P0007542
91. Electric steering motor 2004-04-20
92. P0004504
93. Fan motor 2002-09-24
94. P0004488
95. Hydraulic tank 1996-08-14
96. P0000158
97. Hoses and pipes, connection, fixation 1996-08-08
98. P0003217
99. Hoses and pipes, connection, fixation 1996-08-12
100. P0004539
101. Hoses and pipes, connection, fixation 1996-09-02

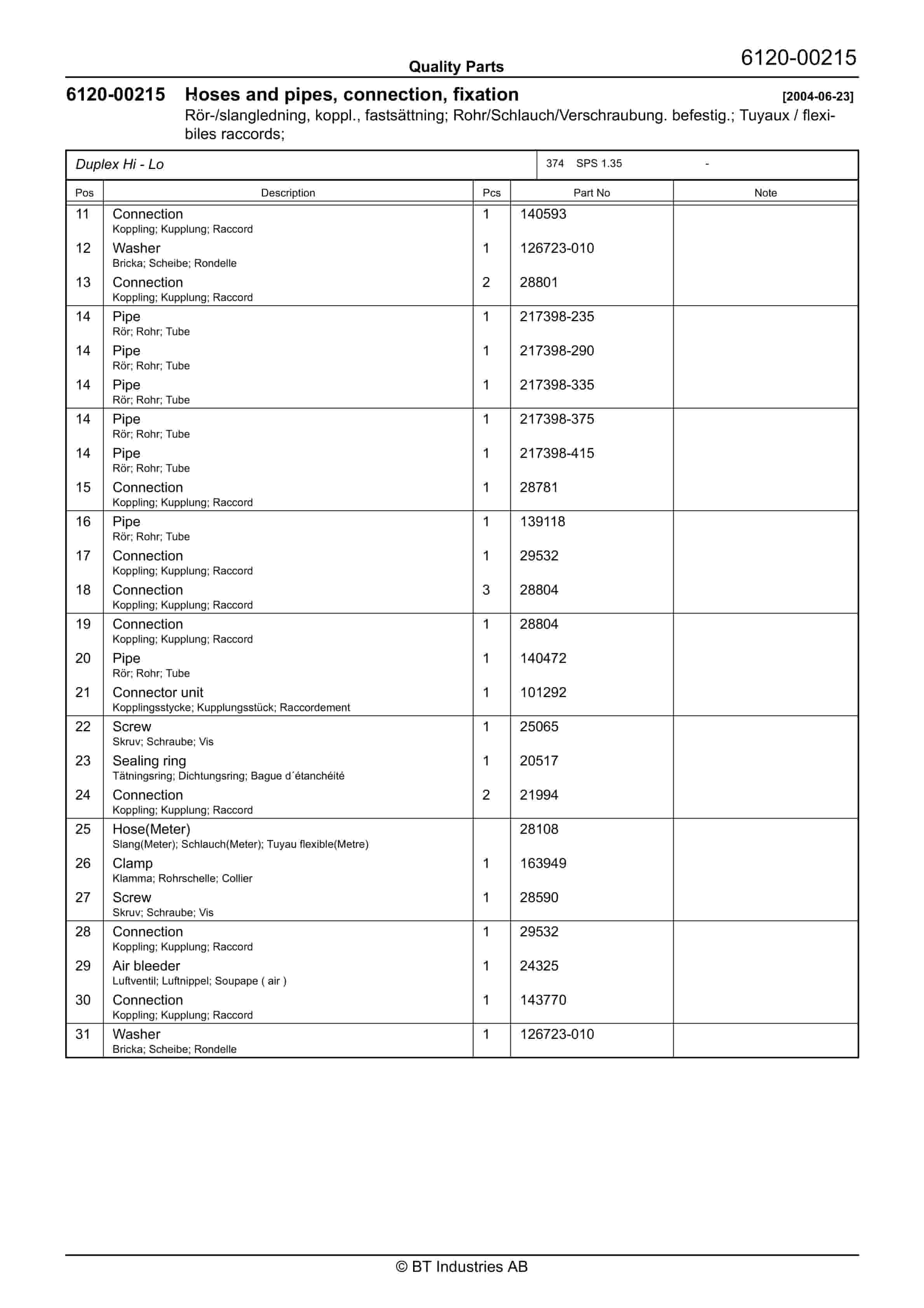

102. P0008417
103. Hoses and pipes, connection, fixation 2006-05-16
104. P0021468
105. Hoses and pipes, connection, fixation 2004-06-23
106. P0021469
107. Hoses and pipes, connection, fixation 2004-06-23
108. P0011745
109. Filters and housing 2002-08-27
110. P0013794
111. Hydraulic pump 2001-02-26
112. P0000167
113. Pressure/flow control valve 1996-08-12
114. P0004552
115. Main valve unit lift/reach/tilt 1996-09-04
116. P0004553
117. Main valve unit lift/reach/tilt 1996-09-04

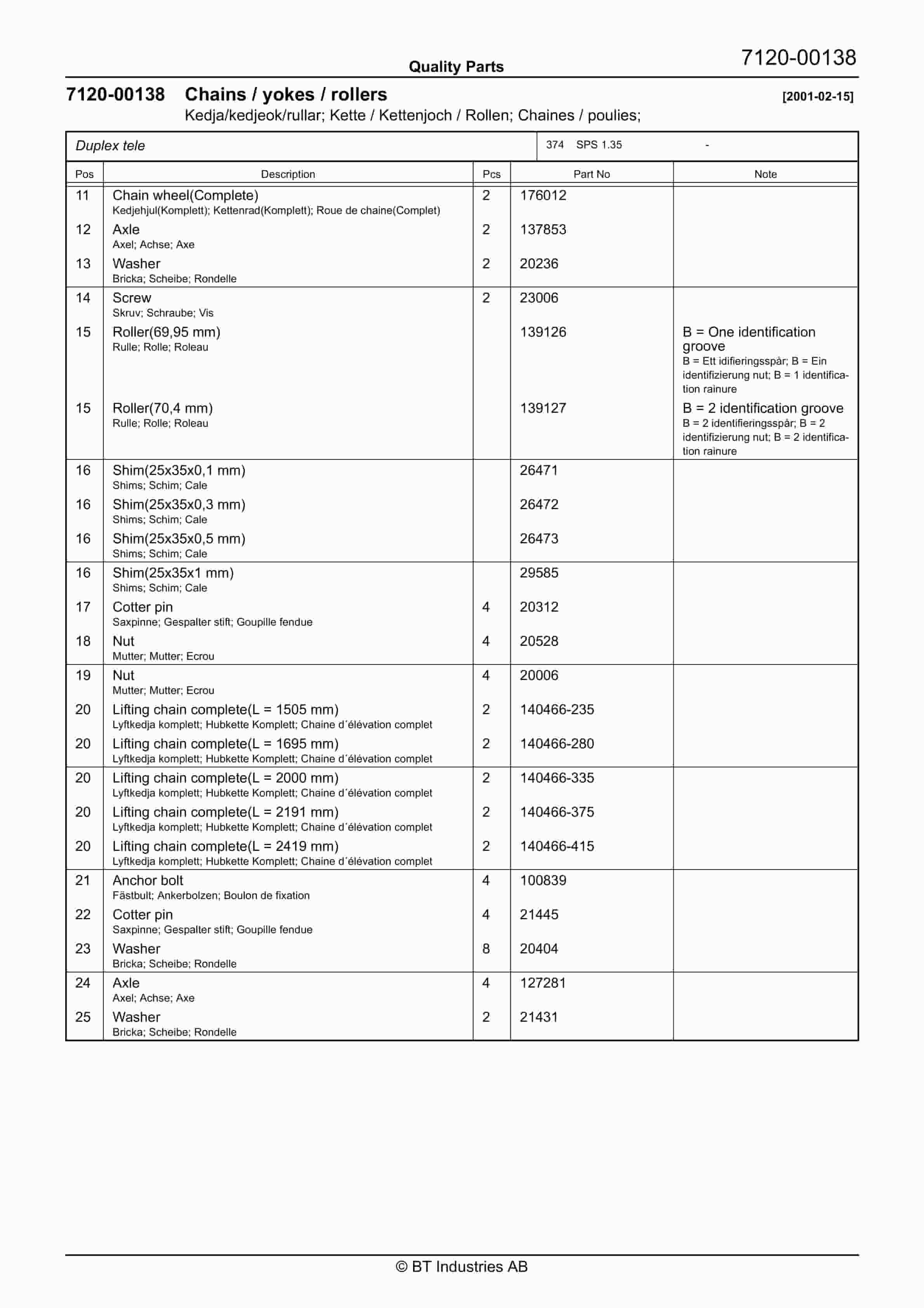

118. P0013750
119. Chains / yokes / rollers 2001-02-15
120. P0013751
121. Chains / yokes / rollers 2001-02-15
122. P0013752
123. Chains / yokes / rollers 2001-02-15
124. P0000171
125. Mast guidance / dampers 2006-05-24
126. P0008306
127. Mast carriage, mast fixation points 2002-08-21
128. P0000044
129. Lift cylinders 1997-05-07
130. P0000046
131. Lift cylinders 1997-05-07
132. P0008436
133. Lift cylinders 1998-05-26
134. P0008119
135. Free initial lift cylinder 2001-03-05
136. P0008120
137. Free initial lift cylinder 1998-03-31
138. P0002050
139. Balance/stabilizer cylinders 1996-09-03
140. P0027337
141. Fork carriage unit 2006-08-11
142. P0011749
143. Fork extensions 2000-02-09
144. P0020408
145. Extra electrical equipment 2006-03-17
146. P0027332
147. Extra electrical equipment 2006-08-10
148. P0027333
149. Extra electrical equipment 2006-08-11
150. P0006528
151. Other extra equipment 2002-09-24
152. P0013781
153. Other extra equipment 2001-02-15
154. P0027330
155. Other extra equipment 2006-08-11
156. P0027336
157. Other extra equipment 2006-08-11
