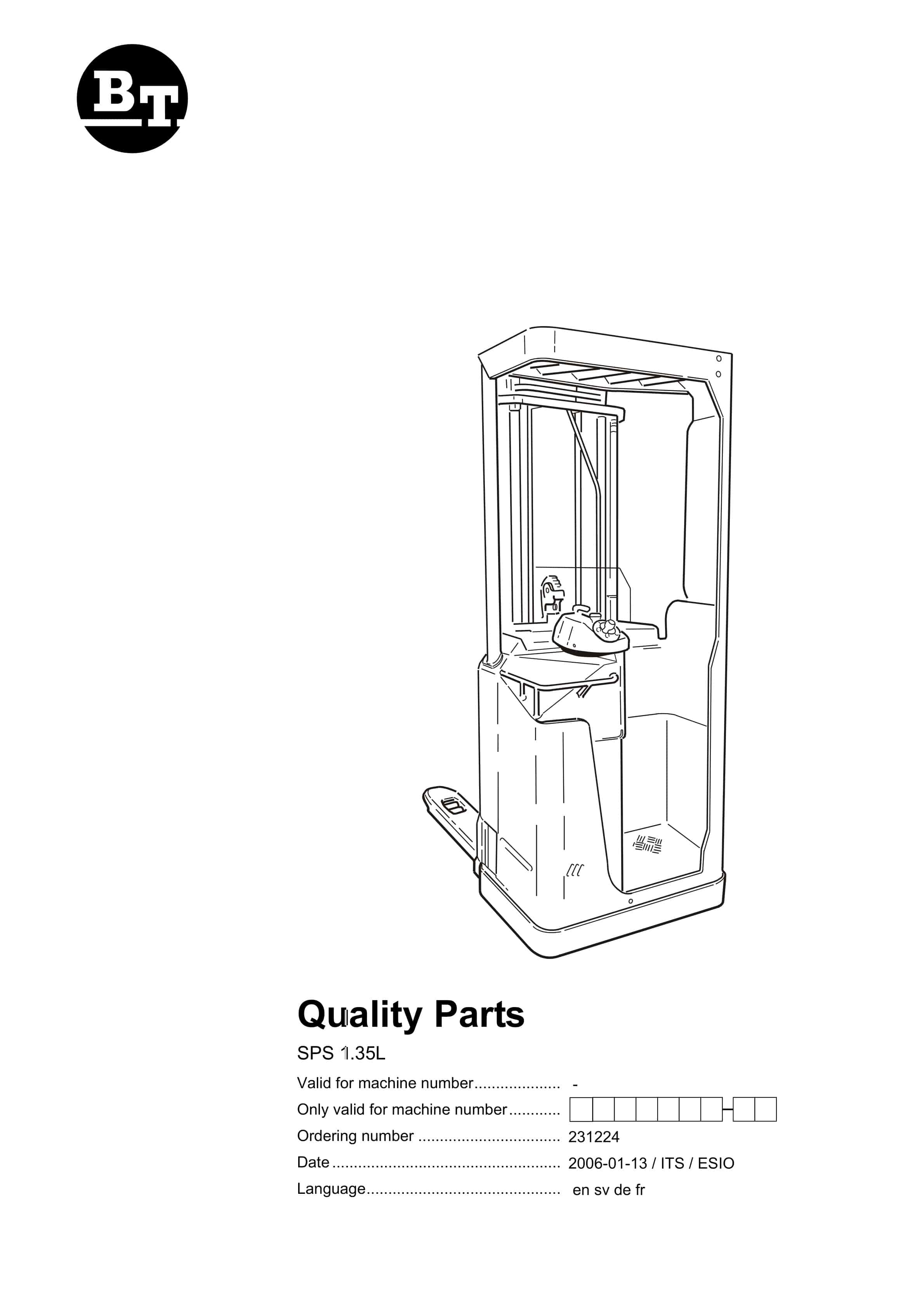

BT SPS 1.35L Quality Parts 231224

$30.00

Type Of Manual: Quality Parts
Manual ID: 231224
: Parts Manual PDF
Number of Pages: 123
Size: 6.0MB
Format: PDF

Category: BT Parts Manual PDF

Model List:
- SPS 1.35L

1. Chassis
1.1. Chassi Chassis Châssis
2. Drive motor
2.1. Motorprimär Antriebsmotor Moteur de traction
3. Transmission/Drive gear
3.1. Kraftöverföring/Drivväxel Kraftübertragung/Fahrgetriebe Transmission/Groupe de traction
4. Brake/Wheel/Caterpillar system
4.1. Broms-/Hjul-/Bandsystem Brems-/Rad-/Bandsystem Freins/Roues/ Chenilles
5. Steering system
5.1. Styrsystem Steuer-/Lenksystem Système de direction
6. Electrical system
6.1. Elektriskt system Elektroanlage Système électrique
7. Hydraulic/pneumatic system
7.1. Hydraulik/pneumatik Hydraulikanlage/Pneumatik Système hydraulique/pneumatique
8. Operating funktion – lifting mast/cylinder
8.1. Arbetsfunktion – lyftstativ/cylindrar Arbeitsfunktion – Hubgerüst / zylinder Fonction de travail – mat / cylindre
9. Options/attachments
9.1. Tillbehör/extrautrustning Zubehör/Zusatzausrüstung Equipement supplémentaire/Options
10. P0008418
11. Inspection covers 2002-09-24
12. P0002076
13. Support arms, stabilizers 2005-11-29
14. P0000023
15. Support arms, stabilizers 1996-08-07
16. P0005852
17. Fork frame (low lifters) 2002-08-21
18. P0004535
19. Battery compartment parts 2002-09-24
20. P0004538
21. Motor fixing points 1999-06-10
22. P0015875
23. Wall/floor covering 2002-04-23
24. P0004545
25. Internal fittings 2002-09-24
26. P0025847
27. Overhead guard/roof 2006-01-13
28. P0003203
29. Finger/foot guards 1996-08-14
30. P0020395
31. Signs, warnings, decals 2004-02-11
32. P0005138
33. Electric drive motor 2002-09-24
34. P0004534
35. Mechanical drive gear unit 2002-09-24
36. P0011737
37. Electromagnetic parking brake 2002-09-24
38. P0005851
39. Wheels 2003-08-08
40. P0010512
41. Drive wheel 2002-09-24
42. P0020997
43. Support/castor wheels 2004-04-23
44. P0013768
45. Steering arm/wheel/lever 2002-09-24
46. P0004549
47. Steering bearings, radial bearing 2002-09-24
48. P0007543
49. Steering angle sensor 2002-09-24
50. P0020388
51. General alarm signals (audible/visual) 2004-02-11
52. P0013733
53. Battery cut out connector/contactor 2002-09-24
54. P0000256
55. Instrument panel, display 2002-09-24
56. P0013779
57. Level/position transducers/lamps 2001-02-15
58. P0000151
59. Start/stop switch 2004-09-23
60. P0007546
61. Start/stop switch 2002-09-24
62. P0004490
63. Travel direction switch (separate) 2002-09-24
64. P0004473
65. Speed control 2002-09-24
66. P0015895
67. Driving function harnesses/fuse 2002-04-23
68. P0013654
69. Motor cables, resistors 2002-03-07
70. P0005308
71. Direction contactors 2002-09-24
72. P0002977
73. Transistor panel 2004-06-15
74. P0015900

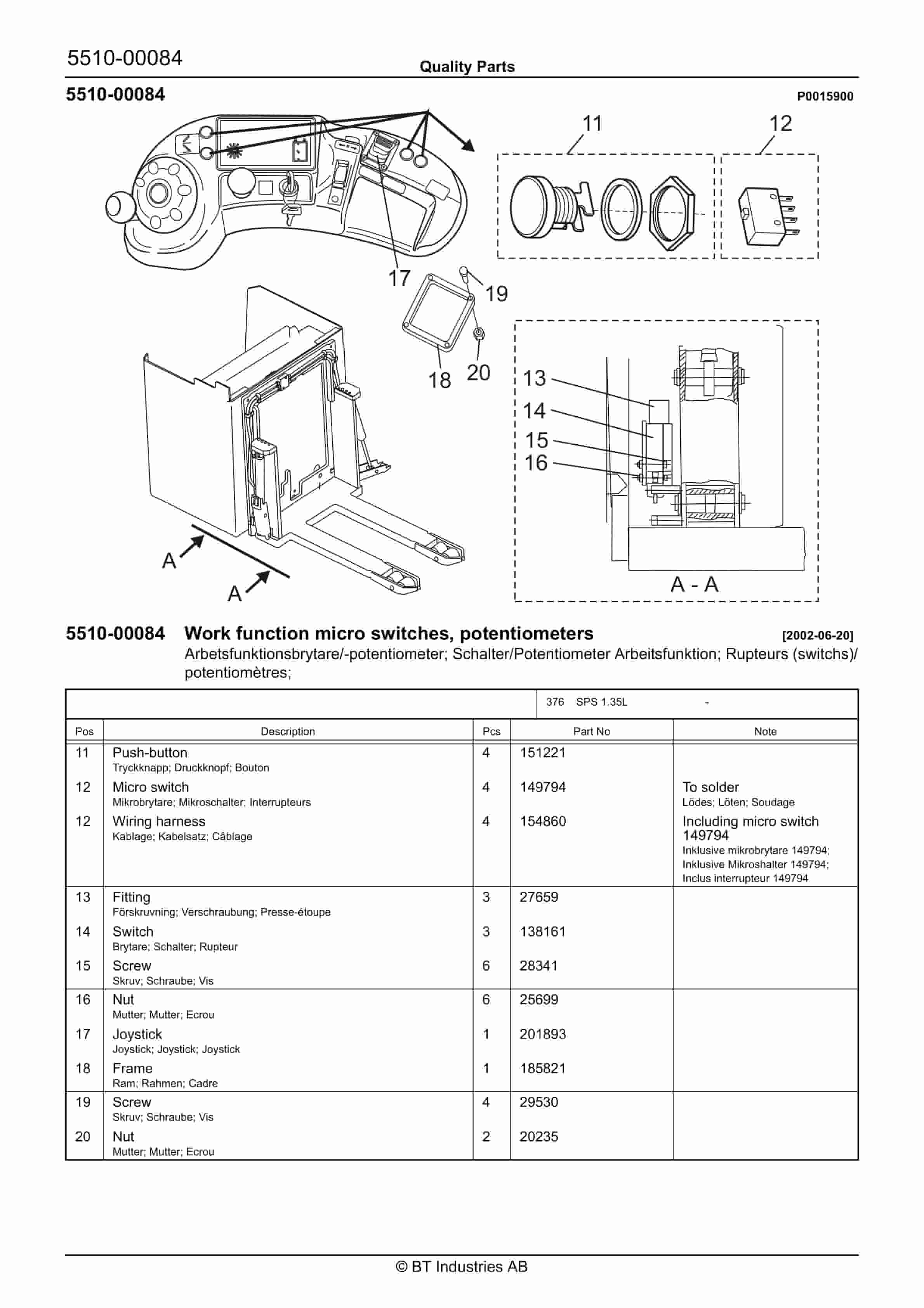

75. Work function micro switches, potentiometers 2002-06-20
76. P0013778
77. Work function harnesses/fuse 2001-02-15
78. P0004474
79. Pump contactor 2002-09-24
80. P0008116
81. PCBs logic card / box 2003-11-26
82. P0002074
83. Safety/ position probes/ sensors 1996-09-02
84. P0002075
85. Safety/ position probes/ sensors 2005-01-25
86. P0015889
87. Safety/ position probes/ sensors 2002-09-24
88. P0020276
89. Safety/ position probes/ sensors 2004-02-11
90. P0005838
91. Electric pump motor 1997-04-29
92. P0007542
93. Electric steering motor 2004-04-20
94. P0004504
95. Fan motor 2002-09-24
96. P0004488
97. Hydraulic tank 1996-08-14
98. P0000158
99. Hoses and pipes, connection, fixation 1996-08-08
100. P0004539
101. Hoses and pipes, connection, fixation 1996-09-02
102. P0008286
103. Hoses and pipes, connection, fixation 1998-04-27
104. P0008417
105. Hoses and pipes, connection, fixation 1999-06-10
106. P0021468
107. Hoses and pipes, connection, fixation 2004-06-23
108. P0021469
109. Hoses and pipes, connection, fixation 2004-06-23
110. P0011745
111. Filters and housing 2002-08-27
112. P0013794
113. Hydraulic pump 2001-02-26
114. P0000167
115. Pressure/flow control valve 1996-08-12
116. P0004554
117. Main valve unit lift/reach/tilt 1996-09-05
118. P0004555
119. Main valve unit lift/reach/tilt 1996-09-05
120. P0013750

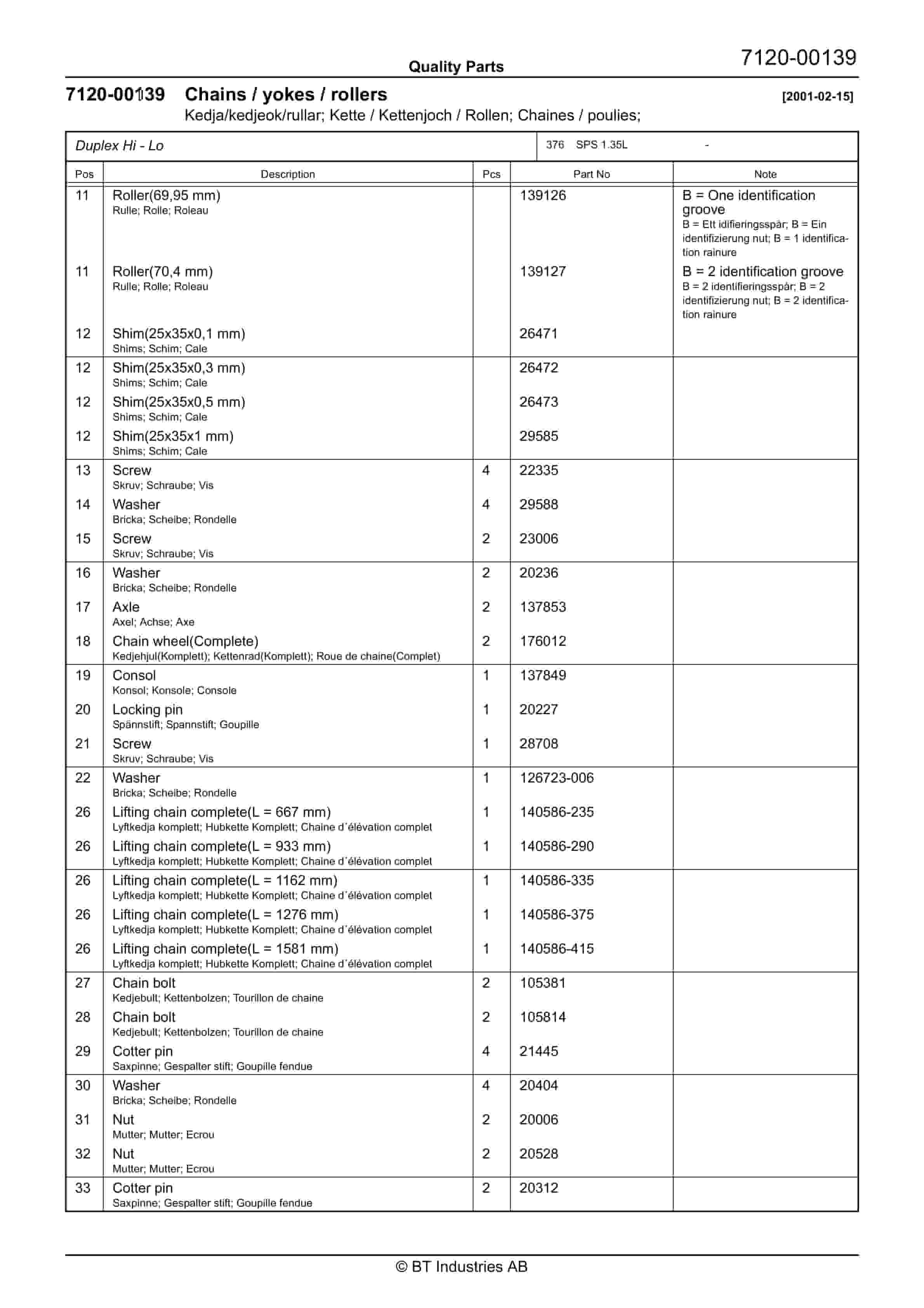

121. Chains / yokes / rollers 2001-02-15
122. P0013751
123. Chains / yokes / rollers 2001-02-15
124. P0013752
125. Chains / yokes / rollers 2001-02-15
126. P0000171
127. Mast guidance / dampers 2005-03-29
128. P0008306

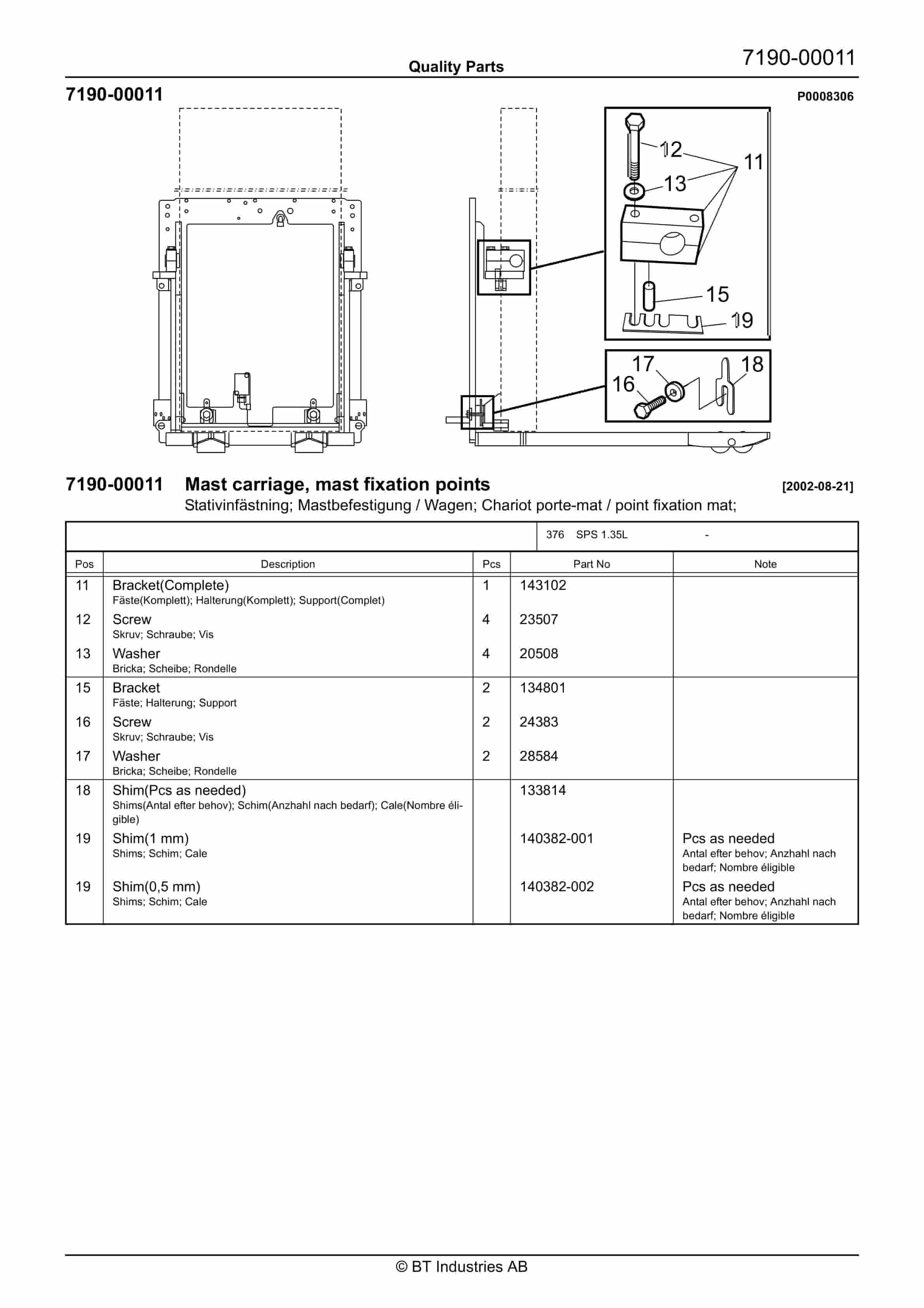

129. Mast carriage, mast fixation points 2002-08-21
130. P0000044
131. Lift cylinders 1997-05-07
132. P0000046
133. Lift cylinders 1997-05-07
134. P0008436
135. Lift cylinders 1998-05-26
136. P0002882
137. Free initial lift cylinder 1996-08-12
138. P0008119
139. Free initial lift cylinder 2001-03-05
140. P0008120
141. Free initial lift cylinder 1998-03-31
142. P0002050
143. Balance/stabilizer cylinders 1996-09-03
144. P0022967
145. Fork carriage unit 2005-05-23
146. P0022981
147. Fork carriage unit 2005-05-23
148. P0022982
149. Fork carriage unit 2005-05-23
150. P0025851
151. Fork extensions 2006-01-13
152. P0020408
153. Extra electrical equipment 2004-11-16
154. P0006528
155. Other extra equipment 2002-09-24
156. P0013781
157. Other extra equipment 2001-02-15
