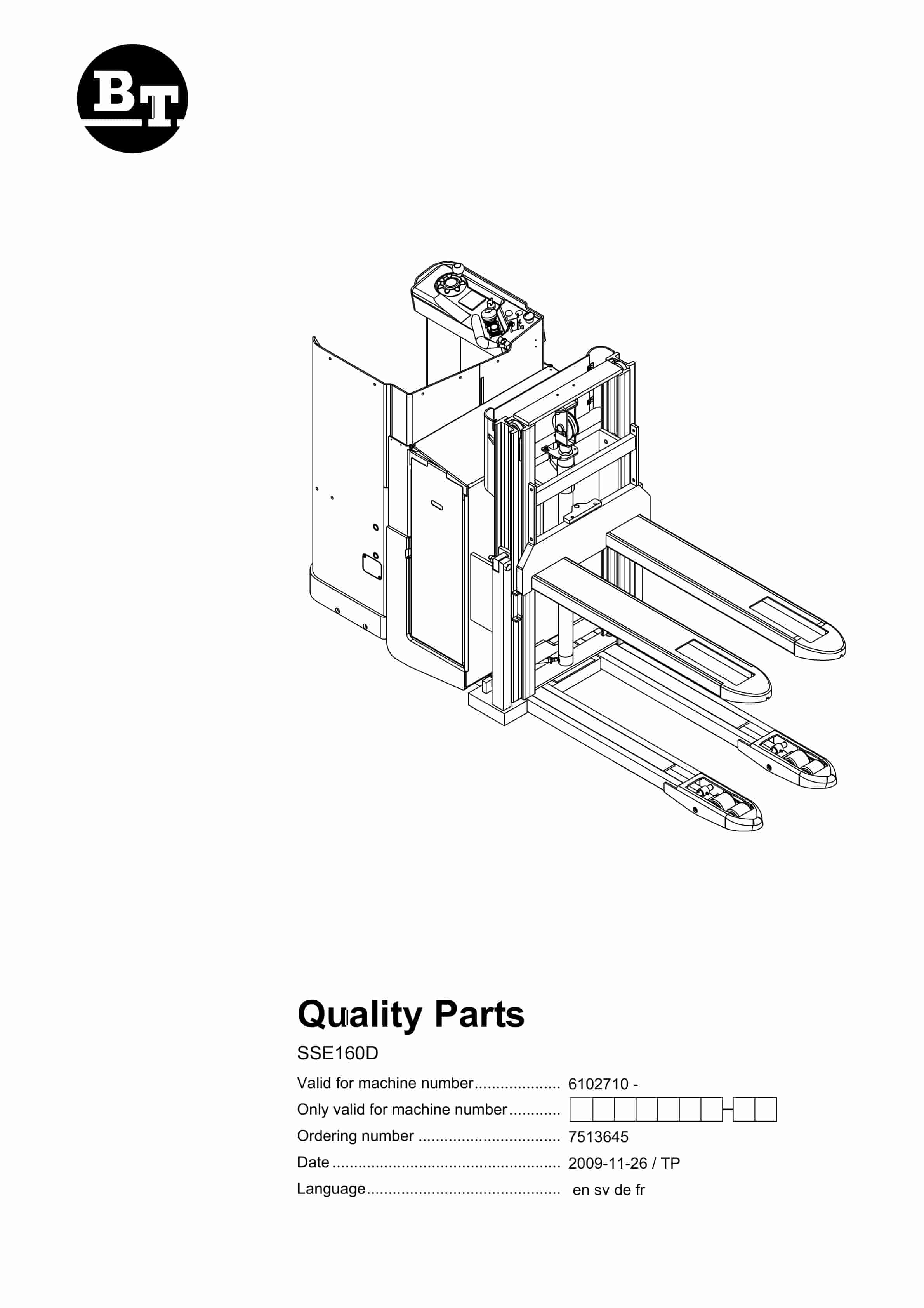

BT SSE160D Quality Parts 7513645

$30.00

Type Of Manual: Quality Parts
Manual ID: 7513645
: Parts Manual PDF
Number of Pages: 85
Size: 3.0MB
Format: PDF

Category: BT Parts Manual PDF

Model List:
- SSE160D

1. Chassis
1.1. Chassi Chassis Châssis
2. Motors
2.1. Motorer Motoren Moteurs
3. Transmission/Drive gear
3.1. Kraftöverföring/Drivväxel Kraftübertragung/Fahrgetriebe Transmission/Groupe de traction
4. Brake/Wheel/Caterpillar system
4.1. Broms-/Hjul-/Bandsystem Brems-/Rad-/Bandsystem Freins/Roues/ Chenilles
5. Steering system
5.1. Styrsystem Steuer-/Lenksystem Système de direction
6. Electrical system
6.1. Elektriskt system Elektroanlage Système électrique
7. Hydraulic/pneumatic system
7.1. Hydraulik/pneumatik Hydraulikanlage/Pneumatik Système hydraulique/pneumatique
8. Work function – lifting masts
8.1. Arbetsfunktion – lyftstativ Arbeitsfunktion – Hubgerüste Fonction de travail – mâts de levage
9. P0016156
10. Floor, footstep 2009-03-18
11. P0035823
12. Inspection covers 2009-11-26
13. P0033266
14. Support arms, stabilizers 2008-11-17
15. P0017457
16. Fork frame (low lifters) 2009-06-16
17. P0033551
18. Battery compartment parts 2008-12-11
19. P0034790
20. Motor fixing points 2009-05-26
21. P0029165
22. Seat, cushions 2007-05-07
23. P0033264
24. Finger/foot guards 2008-11-17
25. P0026740
26. Signs, warnings, decals 2008-10-10
27. P0026646
28. Electric pump motor 2008-11-14
29. P0026652
30. Electric steering motor 2006-05-17
31. P0008791
32. Electric drive motor 2006-05-17
33. P0008761
34. Mechanical drive gear unit 2009-03-18
35. P0017458
36. Travel brake controls 2008-06-03
37. P0011921
38. Electromagnetic parking brake 2006-05-17
39. P0008619
40. Drive wheel 2006-05-17
41. P0029202
42. Support/castor wheels 2008-11-03

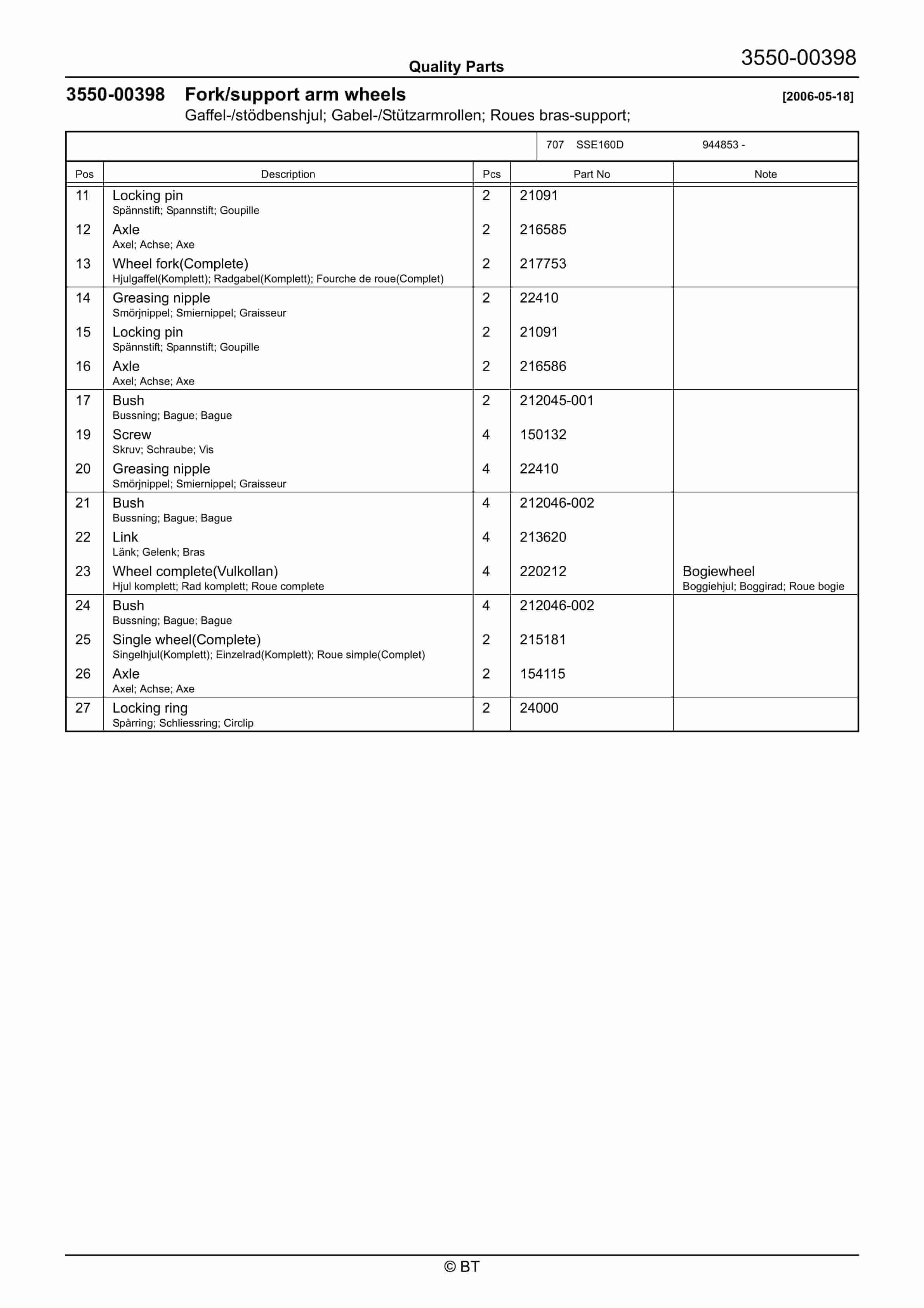

43. P0026697
44. Fork/support arm wheels 2006-05-18
45. P0026742
46. Electric steering wheel/lever 2006-05-18
47. P0017084
48. Steering angle sensor 2006-05-17
49. P0026745
50. General alarm signals (audible/visual) 2006-05-18
51. P0026746
52. Battery cut out connector/contactor 2009-04-15
53. P0017462
54. Instrument panel, display 2006-05-18
55. P0017463
56. Start/stop switch 2006-05-18
57. P0008793
58. Speed control 2009-11-26
59. P0029859
60. Driving function harnesses/fuse 2007-08-30
61. P0026750

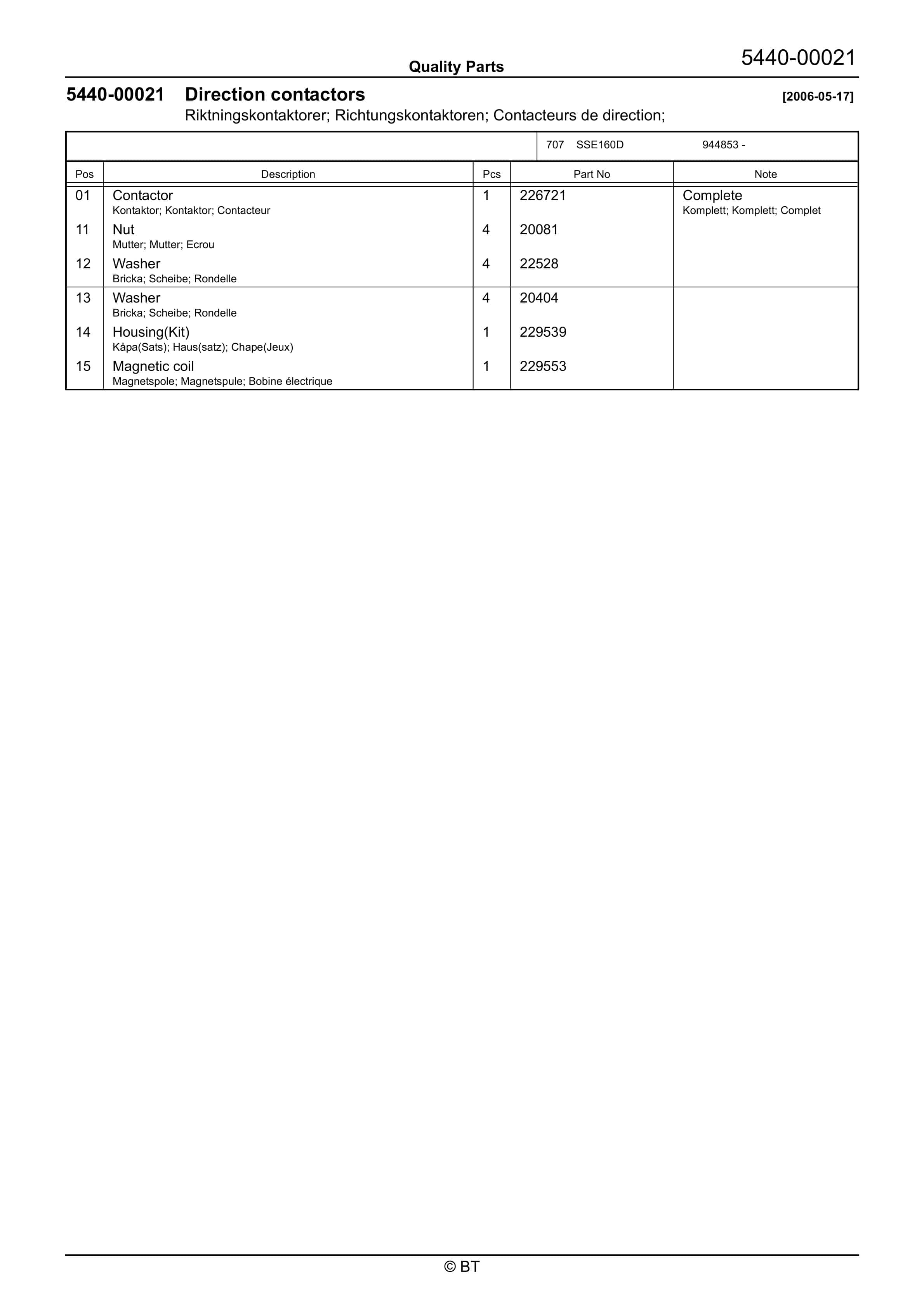

62. Direction contactors 2006-05-17
63. P0008622
64. Transistor panel 2006-05-17
65. P0029160
66. Work function micro switches, potentiometers 2007-05-07
67. P0029409
68. Pump contactor 2009-10-13
69. P0012201

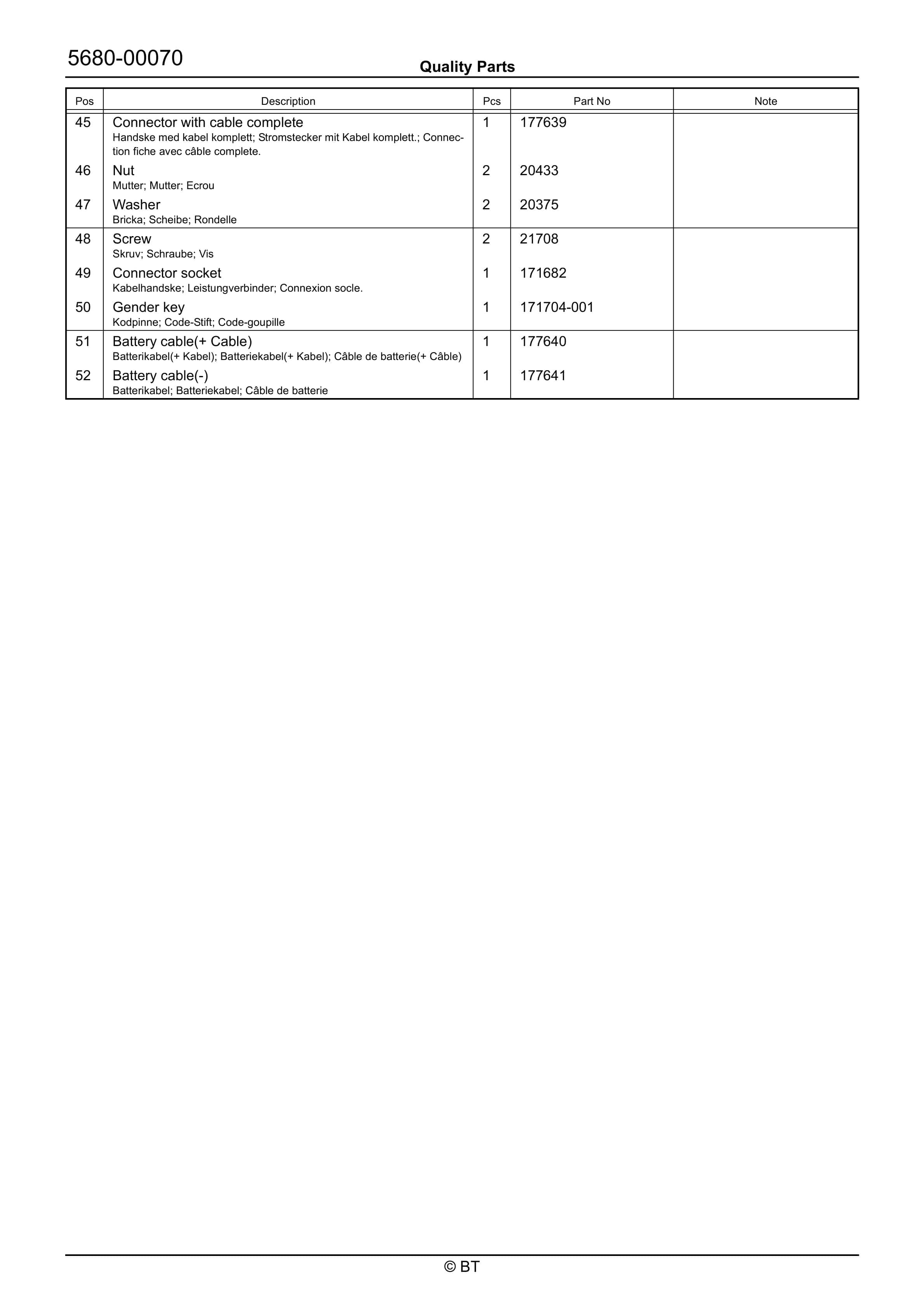

70. Battery/motor cables, fuse 2006-05-17
71. P0008621
72. Drive/multi-function PCBs 2007-04-24
73. P0029162
74. Work function PCBs 2007-05-07
75. P0008848
76. Lift/lowering/reach movement probes/sensors 2006-05-17
77. P0008852
78. Safety probes/sensors 2006-05-17
79. P0016157
80. Safety probes/sensors 2006-05-17
81. P0034776
82. Safety probes/sensors 2009-05-26
83. P0033249
84. Hydraulic unit 2008-11-17
85. P0033254
86. Hydraulic tank lines 2008-11-17
87. P0034792
88. Mast hydraulic lines 2009-05-26
89. P0033261
90. Main lift cylinders 2008-11-17
91. P0026755
92. Support arm/initial lift cylinders 2006-05-18
93. P0033257
94. Main lift chain system 2008-11-17
95. P0033263
96. Main mast guidance/dampers 2009-06-15
97. P0033441
98. Fork carriage unit, integrated sideshift, fork spread 2009-06-15
