BT SWE080L Quality Parts 7522358

$30.00

Type Of Manual: Quality Parts
Manual ID: 7522358
: Parts Manual PDF
Number of Pages: 91
Size: 10.0MB
Format: PDF

Category: BT Parts Manual PDF

Model List:
- SWE080L

1. Chassis
1.1. Chassi Chassis Châssis
2. Motors
2.1. Motorer Motoren Moteurs
3. Transmission/Drive gear
3.1. Kraftöverföring/Drivväxel Kraftübertragung/Fahrgetriebe Transmission/Groupe de traction
4. Brake/Wheel/Caterpillar system
4.1. Broms-/Hjul-/Bandsystem Brems-/Rad-/Bandsystem Freins/Roues/ Chenilles
5. Steering system
5.1. Styrsystem Steuer-/Lenksystem Système de direction
6. Electrical system
6.1. Elektriskt system Elektroanlage Système électrique
7. Hydraulic/pneumatic system
7.1. Hydraulik/pneumatik Hydraulikanlage/Pneumatik Système hydraulique/pneumatique
8. Work function – lifting masts
8.1. Arbetsfunktion – lyftstativ Arbeitsfunktion – Hubgerüste Fonction de travail – mâts de levage
9. Options/attachments
9.1. Tillbehör/extrautrustning Zubehör/Zusatzausrüstung Equipement supplémentaire/Options
10. P0034945
11. Inspection covers 2010-05-11
12. P0037305
13. Support arms, stabilizers 2010-07-12
14. P0033432
15. Battery compartment parts 2008-11-17
16. P0037306
17. Battery compartment parts 2010-07-12
18. P0032908
19. Finger/foot guards 2008-11-17
20. P0034936
21. Finger/foot guards 2010-01-21
22. P0037304
23. Signs, warnings, decals 2010-07-12
24. P0033992
25. Electric pump motor 2009-02-19
26. P0034035
27. Electric drive motor 2010-01-25
28. P0030606
29. Mechanical drive gear unit 2010-01-21
30. P0030567
31. Electrically controlled travel brake 2010-03-10
32. P0036936
33. Drive wheel 2010-06-07
34. P0035735
35. Support/castor wheels 2009-11-09
36. P0037303
37. Fork/support arm wheels 2010-07-12
38. P0032804
39. Wheel locating points 2009-11-19
40. P0032117
41. Steering arm/wheel/lever 2010-01-25
42. P0032867
43. Steering arm/wheel/lever 2010-05-11
44. P0032868
45. Steering arm/wheel/lever 2010-05-11
46. P0036744

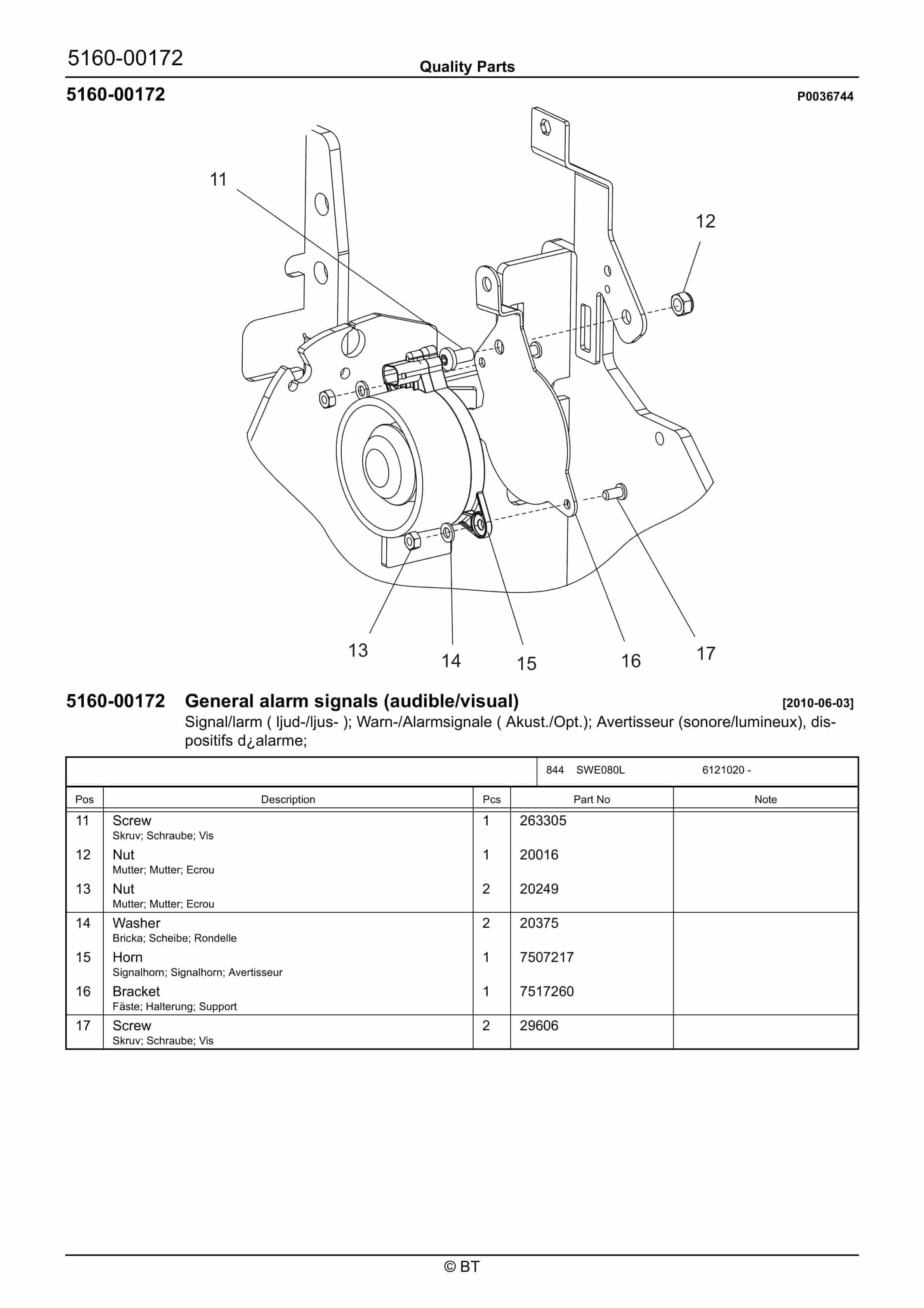

47. General alarm signals (audible/visual) 2010-06-03
48. P0030586
49. Battery cut out connector/contactor 2010-01-25
50. P0030580
51. Driving function harnesses/fuse 2010-01-25
52. P0032392
53. Transistor panel 2010-05-11
54. P0036883
55. Work function harnesses/fuse 2010-06-03
56. P0030587
57. Pump contactor 2010-01-25
58. P0032886
59. Battery/motor cables, fuse 2008-11-17
60. P0030669
61. Drive/multi-function PCBs 2010-03-08
62. P0034051
63. Lift/lowering/reach movement probes/sensors 2009-02-19
64. P0030581

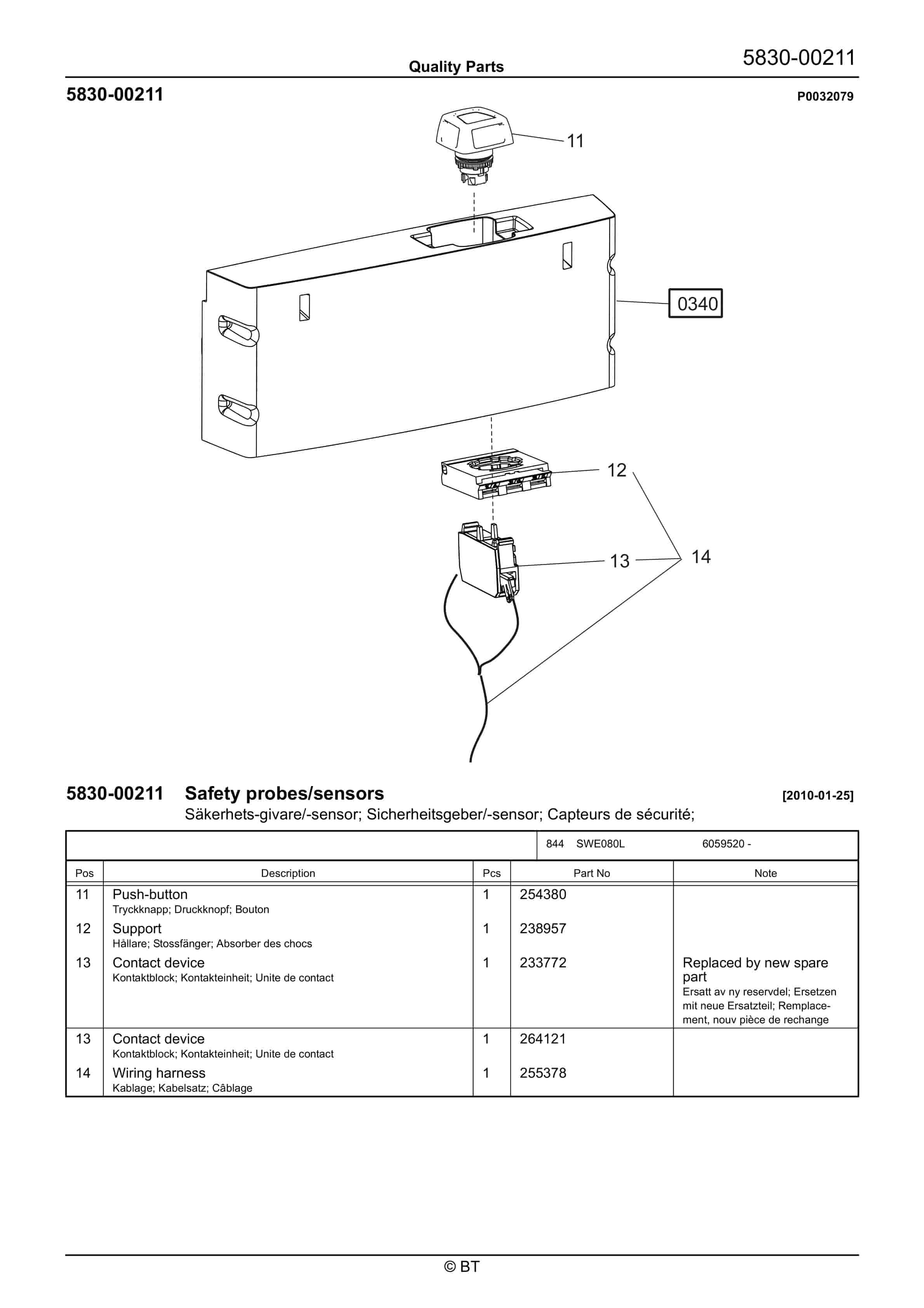

65. Safety probes/sensors 2010-01-25
66. P0032079
67. Safety probes/sensors 2010-01-25
68. P0033993
69. Hydraulic unit 2009-02-19
70. P0033437
71. Hydraulic lines chassis 2009-06-12
72. P0032899

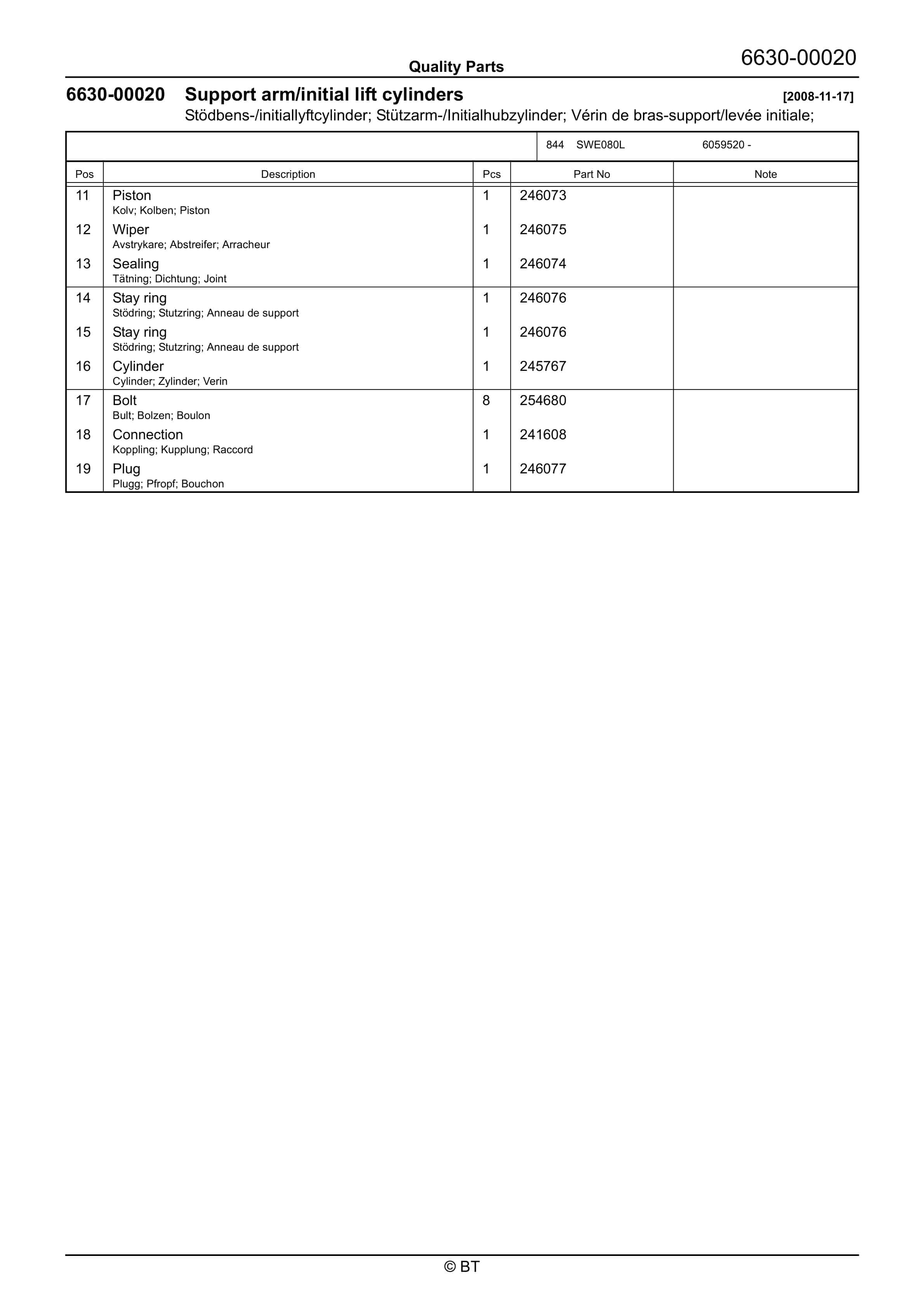

73. Main lift cylinders 2008-11-17
74. P0032896
75. Support arm/initial lift cylinders 2008-11-17
76. P0035819
77. Charger attachment 2010-03-09
78. P0031243
79. Extra electrical equipment 2010-03-08
80. P0033385
81. Extra electrical equipment 2008-11-17
82. P0034924
83. Extra electrical equipment 2010-02-03
84. P0036147
85. Extra electrical equipment 2010-02-03
86. P0036770
87. Extra electrical equipment 2010-06-03
88. P0012396
89. Truck log device, code locking device 2010-03-08
90. P0026077
91. Truck log device, code locking device 2010-03-10
92. P0033140
93. Truck log device, code locking device 2010-03-08
94. P0033141
95. Truck log device, code locking device 2010-03-08
96. P0031110
97. Other extra equipment 2010-03-08
98. P0031111
99. Other extra equipment 2010-01-25
100. P0032921
101. Other extra equipment 2008-11-17
102. P0032923
103. Other extra equipment 2008-11-17
104. P0033374
105. Other extra equipment 2008-11-17
