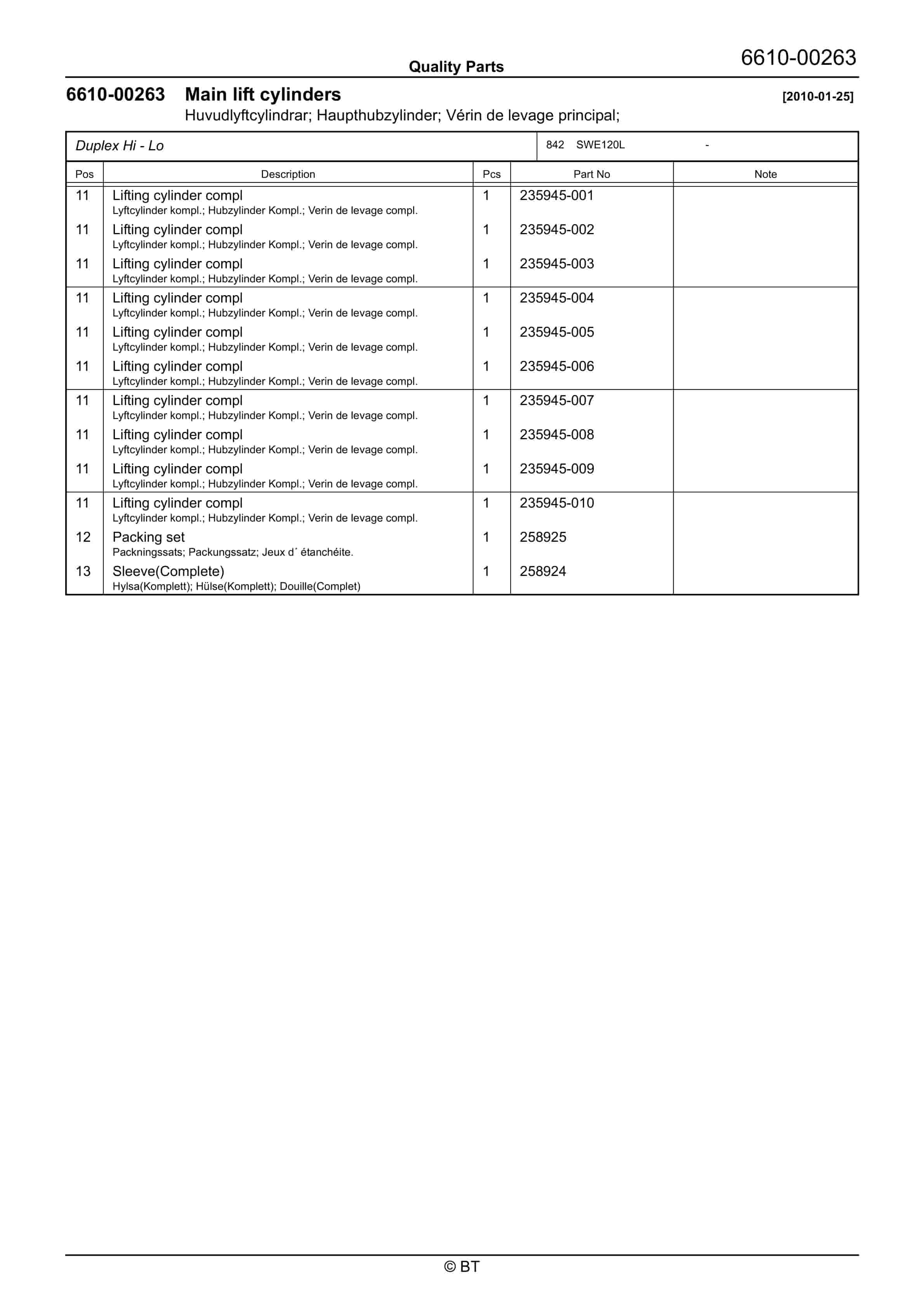

BT SWE120L Quality Parts 7518014 - Image 3

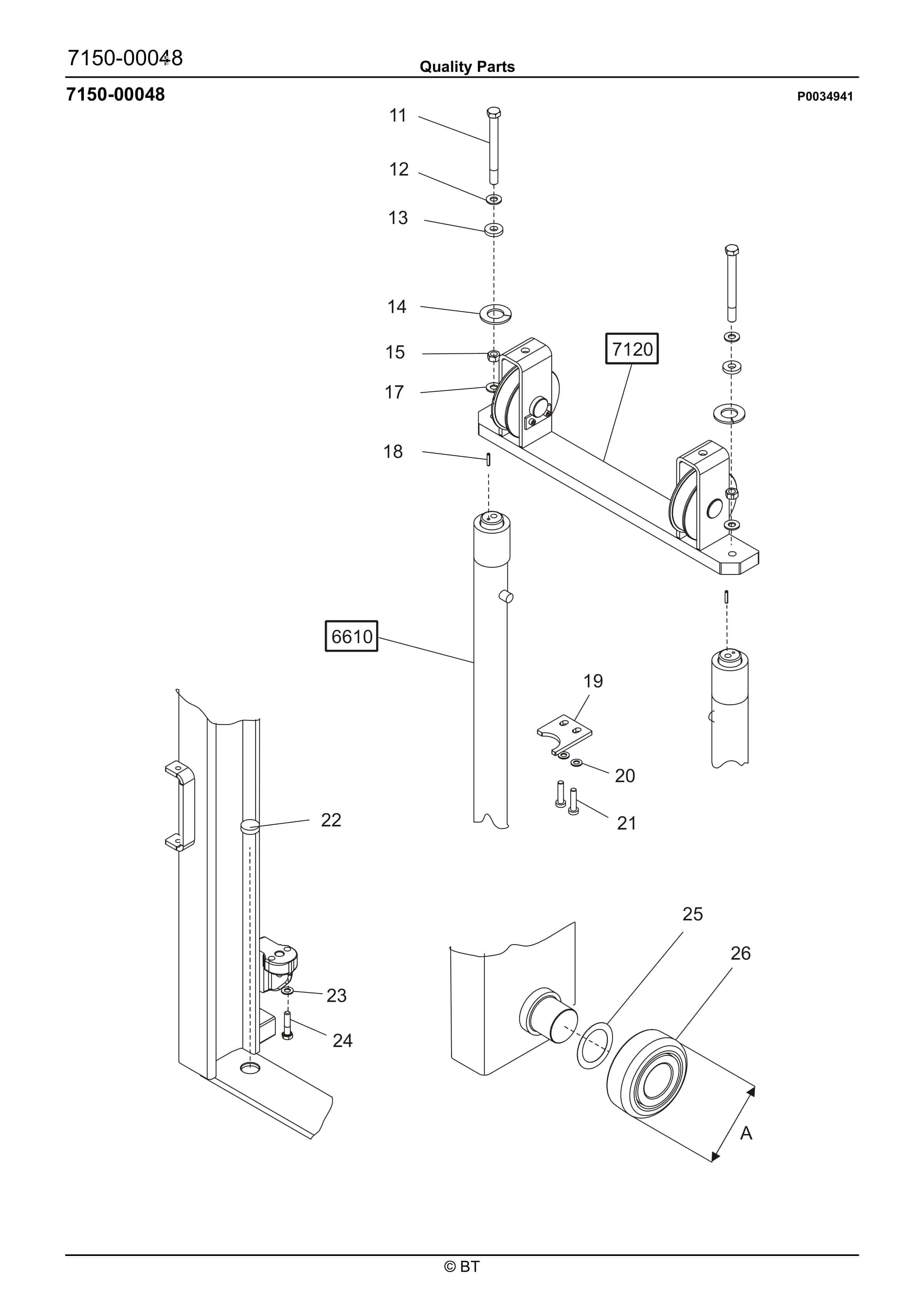

BT SWE120L Quality Parts 7518014 - Image 4

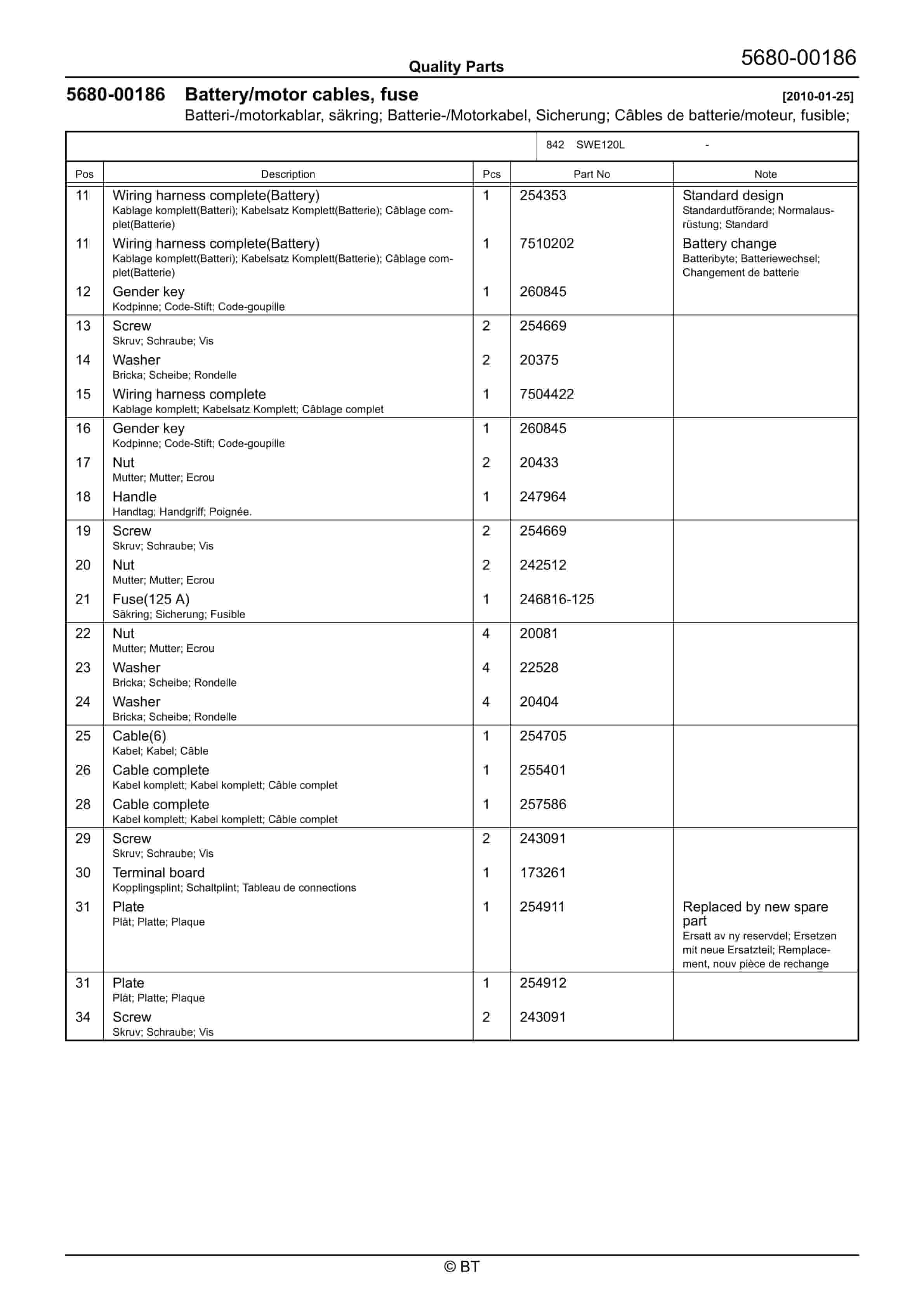

BT SWE120L Quality Parts 7518014 - Image 5

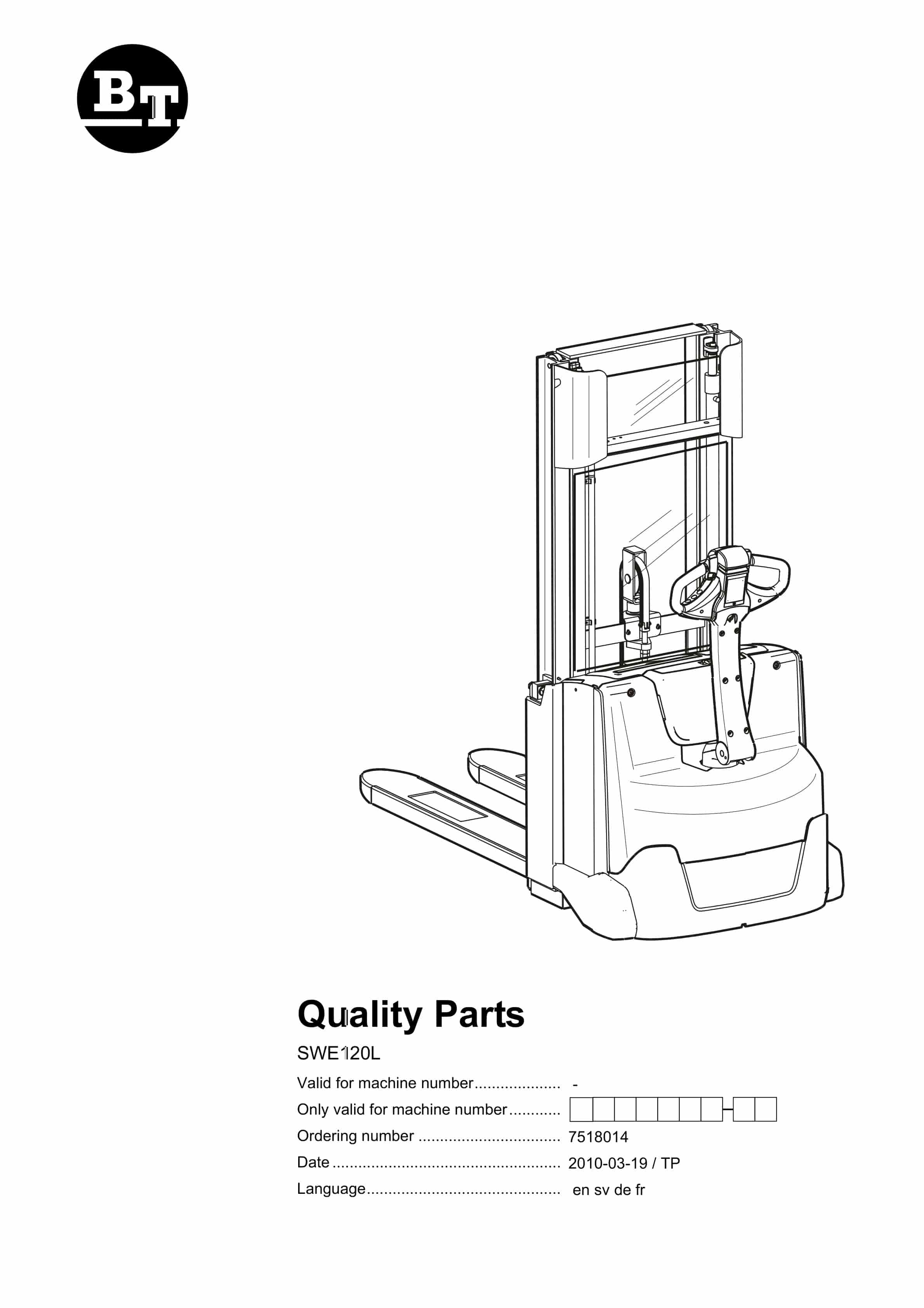

BT SWE120L Quality Parts 7518014

$30.00

Type Of Manual: Quality Parts
Manual ID: 7518014
: Parts Manual PDF
Number of Pages: 217
Size: 17.2MB
Format: PDF

Category: BT Parts Manual PDF

Model List:
- SWE120L

1. Chassis
1.1. Chassi Chassis Châssis
2. Motors
2.1. Motorer Motoren Moteurs
3. Transmission/Drive gear
3.1. Kraftöverföring/Drivväxel Kraftübertragung/Fahrgetriebe Transmission/Groupe de traction
4. Brake/Wheel/Caterpillar system
4.1. Broms-/Hjul-/Bandsystem Brems-/Rad-/Bandsystem Freins/Roues/ Chenilles
5. Steering system
5.1. Styrsystem Steuer-/Lenksystem Système de direction
6. Electrical system
6.1. Elektriskt system Elektroanlage Système électrique
7. Hydraulic/pneumatic system
7.1. Hydraulik/pneumatik Hydraulikanlage/Pneumatik Système hydraulique/pneumatique
8. Work function – lifting masts
8.1. Arbetsfunktion – lyftstativ Arbeitsfunktion – Hubgerüste Fonction de travail – mâts de levage
9. Options/attachments
9.1. Tillbehör/extrautrustning Zubehör/Zusatzausrüstung Equipement supplémentaire/Options
10. P0032962
11. Inspection covers 2010-01-25
12. P0033111
13. Inspection covers 2010-01-25
14. P0034945
15. Inspection covers 2010-01-25
16. P0035051
17. Inspection covers 2010-01-25
18. P0031379
19. Support arms, stabilizers 2010-01-21
20. P0032354
21. Battery compartment parts 2010-01-25
22. P0032355
23. Battery compartment parts 2010-01-25
24. P0034916
25. Battery compartment parts 2010-01-25
26. P0034917
27. Battery compartment parts 2010-01-25
28. P0034918
29. Battery compartment parts 2010-01-25
30. P0034919
31. Battery compartment parts 2010-01-21
32. P0031524
33. Boom/mast fixing points 2010-01-21
34. P0034086
35. Motor fixing points 2010-01-21
36. P0034087
37. Motor fixing points 2010-01-21
38. P0034088
39. Motor fixing points 2010-01-21
40. P0035797
41. Platform incl. fixing points 2010-01-25
42. P0036113
43. Finger/foot guards 2010-02-17
44. P0036114
45. Finger/foot guards 2010-02-17
46. P0036115
47. Finger/foot guards 2010-02-17
48. P0036119
49. Finger/foot guards 2010-02-17
50. P0036120
51. Finger/foot guards 2010-02-17
52. P0036121
53. Finger/foot guards 2010-02-17
54. P0036122
55. Finger/foot guards 2010-02-17
56. P0032710
57. Signs, warnings, decals 2009-09-23
58. P0033011
59. Signs, warnings, decals 2010-01-25
60. P0033991
61. Electric pump motor 2010-01-21
62. P0034036
63. Electric drive motor 2010-01-25
64. P0031391
65. Mechanical drive gear unit 2010-01-25
66. P0030567
67. Electrically controlled travel brake 2010-01-25
68. P0030540
69. Drive wheel 2010-01-25
70. P0032652
71. Drive wheel 2009-09-23
72. P0035820
73. Support/castor wheels 2010-01-25
74. P0035821
75. Support/castor wheels 2009-11-26
76. P0032082
77. Fork/support arm wheels 2010-01-21
78. P0032083
79. Fork/support arm wheels 2010-01-21
80. P0032661
81. Fork/support arm wheels 2009-11-25
82. P0031399
83. Steering arm/wheel/lever 2010-01-21
84. P0031400
85. Steering arm/wheel/lever 2010-01-21
86. P0031408
87. Steering arm/wheel/lever 2010-01-21
88. P0031409
89. Steering arm/wheel/lever 2010-01-21
90. P0032117
91. Steering arm/wheel/lever 2010-01-25
92. P0032963
93. Steering arm/wheel/lever 2010-01-25
94. P0032411
95. General alarm signals (audible/visual) 2010-01-25
96. P0030586
97. Battery cut out connector/contactor 2010-01-25
98. P0030580
99. Driving function harnesses/fuse 2010-01-25
100. P0032964
101. Driving function harnesses/fuse 2010-01-25
102. P0032393
103. Transistor panel 2010-01-25
104. P0034045
105. Work function harnesses/fuse 2010-01-21
106. P0034082
107. Battery/motor cables, fuse 2010-01-25
108. P0030669
109. Drive/multi-function PCBs 2010-03-08
110. P0033825
111. PCBs for other functions 2010-02-18
112. P0034047
113. Lift/lowering/reach movement probes/sensors 2010-01-21
114. P0034049
115. Lift/lowering/reach movement probes/sensors 2010-01-21
116. P0036127
117. Lift/lowering/reach movement probes/sensors 2010-02-17
118. P0036128
119. Lift/lowering/reach movement probes/sensors 2010-02-17
120. P0036129
121. Lift/lowering/reach movement probes/sensors 2010-02-17
122. P0036130
123. Lift/lowering/reach movement probes/sensors 2010-02-17
124. P0030581
125. Safety probes/sensors 2010-01-25
126. P0032079
127. Safety probes/sensors 2010-01-25
128. P0033821
129. Hydraulic unit 2009-01-26
130. P0036348
131. Hydraulic system chassi mounted 2010-03-19
132. P0031679
133. Hydraulic lines chassis 2010-01-21
134. P0036349
135. Hydraulic system mast mounted 2010-03-19
136. P0031462
137. Mast hydraulic lines 2010-01-25
138. P0034583
139. Mast hydraulic lines 2010-01-25
140. P0034584
141. Mast hydraulic lines 2010-01-25
142. P0034586
143. Mast hydraulic lines 2010-01-25
144. P0031471
145. Main lift cylinders 2010-01-25
146. P0031472
147. Main lift cylinders 2010-01-25
148. P0031475
149. Main lift cylinders 2010-01-25
150. P0031476
151. Main lift cylinders 2010-01-25
152. P0031477
153. Main lift cylinders 2010-01-25
154. P0034977
155. Main lift cylinders 2010-01-25
156. P0031356
157. Support arm/initial lift cylinders 2010-01-21
158. P0031463
159. Main lift chain system 2010-01-25
160. P0031464
161. Main lift chain system 2010-01-25
162. P0031485
163. Main lift chain system 2010-01-25
164. P0032671
165. Main lift chain system 2009-09-23
166. P0036124
167. Main lift chain system 2010-02-17
168. P0036125
169. Main lift chain system 2010-02-17
170. P0032780
171. Main mast fork carriage 2010-01-25
172. P0031469
173. Main mast guidance/dampers 2010-01-25
174. P0034582
175. Main mast guidance/dampers 2010-01-25
176. P0034941
177. Main mast guidance/dampers 2010-01-25
178. P0034943
179. Main mast guidance/dampers 2010-01-25
180. P0015872
181. Fork, carpet boom, lift hook 2010-01-25
182. P0031567
183. Fork carriage unit, integrated sideshift, fork spread 2010-01-25
184. P0031569
185. Fork carriage unit, integrated sideshift, fork spread 2010-01-25
186. P0031571
187. Fork carriage unit, integrated sideshift, fork spread 2010-01-25
188. P0031572
189. Fork carriage unit, integrated sideshift, fork spread 2010-01-25
190. P0032676
191. Fork carriage unit, integrated sideshift, fork spread 2010-01-21
192. P0032677
193. Fork carriage unit, integrated sideshift, fork spread 2009-09-23
194. P0033086
195. Extra warning lights/alarm 2010-01-25
196. P0033422
197. Extra warning lights/alarm 2010-01-25
198. P0035819
199. Charger attachment 2010-01-25
200. P0031234
201. Extra electrical equipment 2010-01-25
202. P0031243
203. Extra electrical equipment 2010-01-25
204. P0034924
205. Extra electrical equipment 2010-02-03
206. P0012396
207. Truck log device, code locking device 2010-01-25
208. P0026077
209. Truck log device, code locking device 2010-01-25
210. P0033140
211. Truck log device, code locking device 2010-01-25
212. P0033141
213. Truck log device, code locking device 2010-01-25
214. P0031110
215. Other extra equipment 2010-01-25
216. P0031111
217. Other extra equipment 2010-01-25
218. P0032686
219. Other extra equipment 2010-01-25
220. P0033424
221. Other extra equipment 2010-01-25
222. P0033425
223. Other extra equipment 2010-01-25
224. P0033429
225. Other extra equipment 2010-01-25
226. P0034762
227. Other extra equipment 2010-01-25
